Ozito MFR-2200U User manual

WHAT’S IN THE BOX
MULTI
FUNCTION
TOOL
300W
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Motor: 300W
Input: 230-240V ~ 50Hz
No Load Speed: 15,000-21,000 opm
Orbit Angle: 3.2°
Sanding Pad Size: 92 x 92 x 92mm
Weight: 1.43kg
MFR-2200U
ozito-diy.co.uk
Multi Function Tool
Sanding Pad & Paper x 15
Dust Collection
Accessory
Scraper & Triangular
Rasp
Straight Blade x 2
Semi Circular Blade
Grout Removal Disc
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0616
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts, for example: carbon brushes, blades, sanding
paper, etc. Guarantee claims should be submitted before the end of
the guarantee period within two weeks of the defect being noticed. No
guarantee claims will be accepted after the end of the guarantee period.
The original guarantee period remains applicable to the device even if
repairs are carried out or parts are replaced. In such cases, the work
performed or parts tted will not result in an extension of the guarantee
period, and no new guarantee will become active for the work performed or
parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

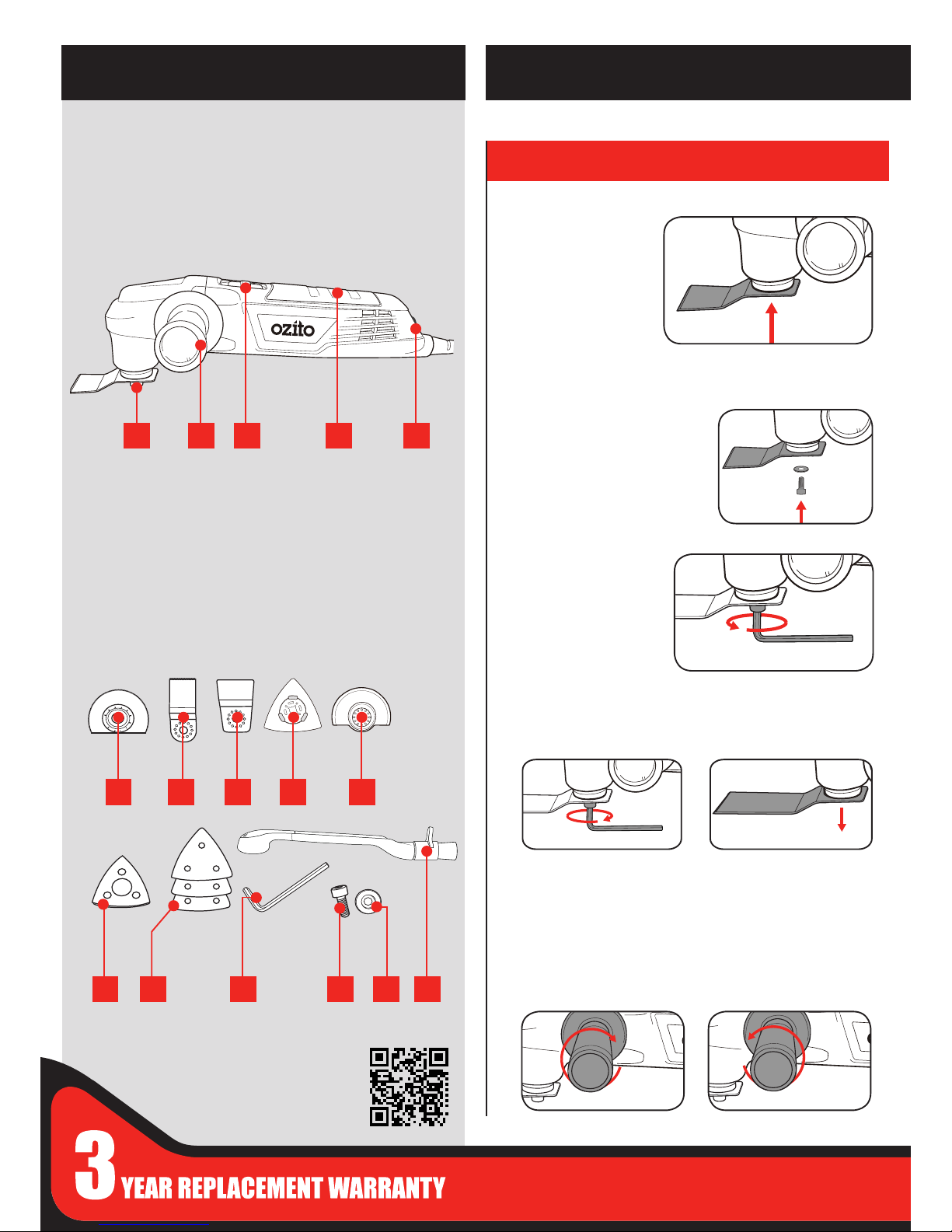

KNOW YOUR PRODUCT SETUP & PREPARATION
1. Accessory Drive Spindle
2. Side Handle
3. On/Off Switch
4. Rear Handle
5. Variable Speed Dial
MULTI FUNCTION TOOL
6. Semi Circular Blade
(Wood, Plastic & Metal)
7. Straight Blade x 2
(Wood & Plastic)
8. Scraper
9. Triangular Rasp
10.Grout Removal Disc
11.Sanding Pad
12.Sanding Paper
P60 Grit x 5
P120 Grit x 5
P240 Grit x 5
13.Hex Key
14.Locking Bolt
15.Washer
16. Dust Collection Accessory
ACCESSORIES
1. ASSEMBLY
Accessory Fitment
1. Place accessory
over the drive
spindle and
position to suit
angle needed
for application.
Note: Ensure the accessory is sitting at on spindle and locking
pins.
2. Place at side of
accessory tting
washer on the
accessory then insert
locking bolt.
3. Tighten locking
bolt with hex key.
1. Loosen locking bolt with
hex key.
2. Remove bolt and
accessory.
Accessory Removal
Side Handle
The side handle can be tted on either side of the tool. The
correct position will be determined by your preferred hand and the
operation being performed.
Removing
2. Remove the side handle.
Attaching
1. Firmly attach the side
handle in the desired
position.
1
6 7 8 9 10
11 12 13 14 15 16
2 3 4 5

OPERATION
2. CONTROLS
2. To turn off, slide the
switch backwards.
2. Place the circular end of the dust collection adaptor over the
accessory spindle so that the adaptor rests against the bottom
of the tool handle. Push the securing clip over the power cord
to secure in place.
3. Connect a vacuum or dust extractor hose to the hose
connector.
1. To turn on, slide the
on/ off switch forward.
1. Push the parts of the dust collection accessory together.
The dust collection adaptor can be tted to your multi function
tool to reduce the build up of dust and debris while operating.
Accessories must be removed prior to tting the dust collection
accessory. On / Off Switch
Fitting the Dust Collection Accessory
Variable Speed
For various applications, you will need to select the appropriate
speed for the task.
1. Turn multi function tool on.
2. Scroll through variable
speed dial to desired speed
setting.
Note: The higher the number on the variable speed dial the
faster the oscillation frequency of the multi function tool.
CAUTION: THE POWER SUPPLY FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30mA OR LESS).

MFR-2200U

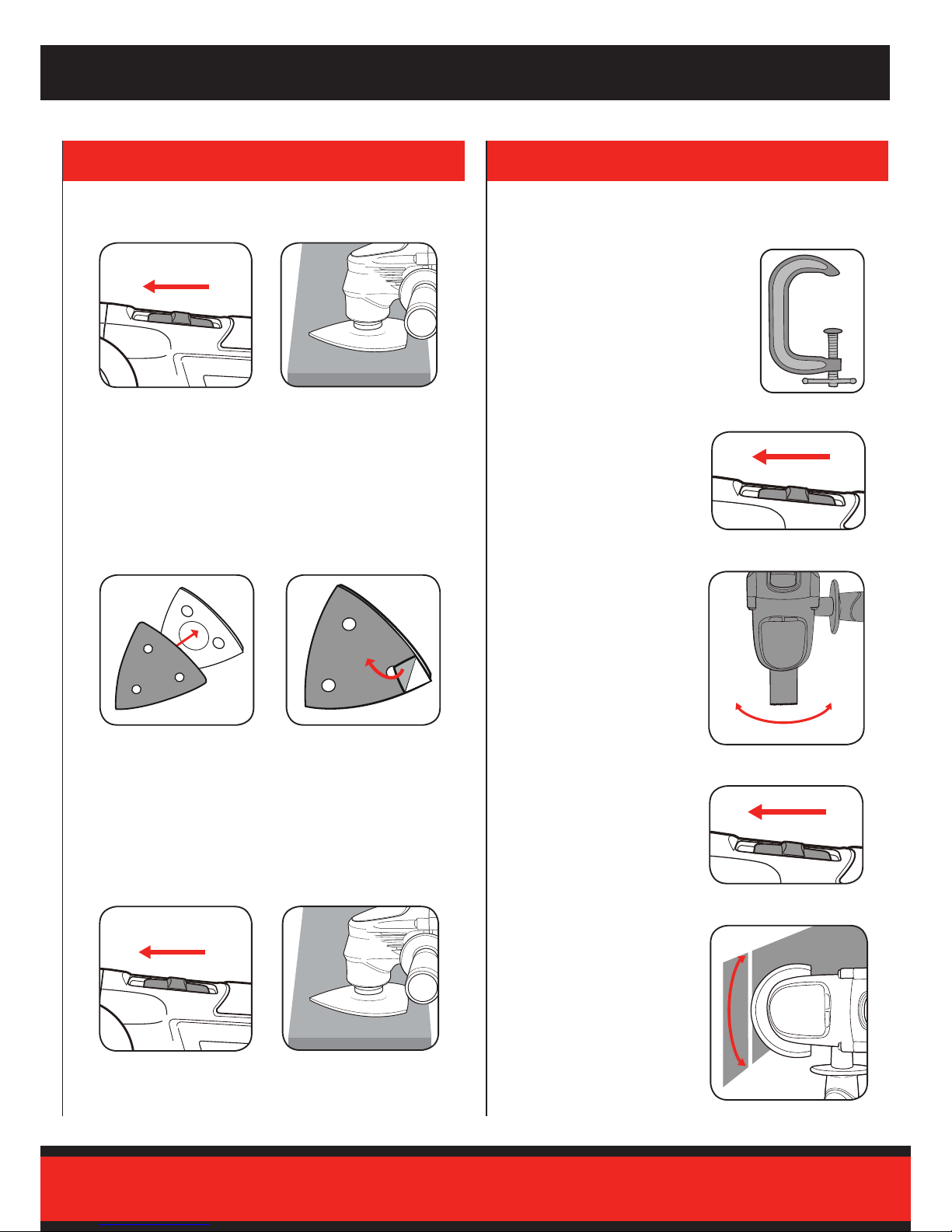

3. SANDING 4. SAWING
1. Turn multi function tool
on and select appropriate
speed.
2. Place the multi function tool
at on the workpiece.
Note: Do not apply heavy pressure to the tool or tilt the sanding
base as this will wear out the sanding paper and may damage the
sanding pad.
Changing Sanding Paper
2. Peel paper off pad from one
of the corners.
1. Align paper to pad and
press rmly to attach.
Semi Circular & Straight Blade
2. Turn multi function tool on
and select speed.
1. Ensure the workpiece
is securely held down.
3. Use slight pendulum
motion when plunge
cutting.
Note: Ensure blades are not blunt or damaged in any way
before commencing application.
Grout Removal Disc
1. Turn the multi function tool
on and select speed.
Triangular Rasp
1. Turn multi function tool
on and select appropriate
speed.
2. Place the multi function tool
at on the workpiece.
This accessory is suitable when sanding materials which require
a large amount of material removal, for example: rough wood,
mortar or adhesive cement / concrete.
2. Use slight pendulum
motion when cutting.
Note: Periodically turn the unit off and remove any built-up
dust and debris.
Note: Periodically turn the
unit off and remove any
built-up dust and debris.

MAINTENANCE
TROUBLESHOOTINGOPERATION
DESCRIPTION OF SYMBOLS
• Keep the ventilation vents of the multi function tool clean at all times,
if possible, prevent foreign matter from entering the vents.
• After each use, blow air through the multi function tool housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the tool to overheat and fail.
• If the enclosure of the multi function tool requires cleaning, do not use
solvents but a moist soft cloth only. Never let any liquid get inside the multi
function tool; never immerse any part of the multi function tool into a liquid.
Carbon Brushes
When the carbon brushes wear out, the multi function tool will spark and/
or stop. Discontinue use as soon as this happens. They should be replaced
prior to recommencing use of the multi function tool.
Carbon brushes are a wearing component of the
tool and therefore are not covered under warranty.
Continuing to use the multi function tool when carbon
brushes need to be replaced may cause permanent
damage. Carbon brushes will wear out after many
uses but when the carbon brushes need to be
replaced, take the multi function tool to an electrician
or a power tool repairer for a quick and low cost replacement. Always replace
both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the multi function tool by an unauthorised person
or by mishandling of the multi function tool.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the multi function tool failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
WARNING: BEFORE CARRYING OUT ANY MAINTENANCE
PROCEDURES, ENSURE THE TOOL IS SWITCHED OFF
AND DISCONNECTED FROM THE POWER SUPPLY.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated
no No load speed
Warning
Read instruction manual
5. SCRAPING
1. Turn multi function
tool on and select
appropriate speed.
2. Place multi function tool on the workpiece at an angle of
approximately 10-15°.
3. Allow the scraper to do the work; do not apply heavy pressure
to the multi function tool. This may cause the multi function
tool to overload or cut into the surface of the workpiece.
10 - 15º
SPARE PARTS
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]

ELECTRICAL SAFETY
MULTI FUNCTION TOOL SAFETY INSTRUCTIONS
Before you connect the equipment to the mains supply make sure that the data on the rating plate are
identical to the mains data.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician
or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the tool or which is damaged or defective may result in a risk of re
and electric shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Readallsafetywarnings,instructions,illustrationsandspecications
provided with this power tool. Failure to follow all instructions listed below may result in electric
shock,reand/orseriousinjury.
Thisapplianceisnotintendedforusebyyoungorinrmpersonsunlesssupervisedbya
responsible person to ensure that they can use the appliance safely. Young children should be
supervision to ensure that they do not play with play with the appliance.
Hold power tool by insulated gripping surfaces only, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live”
wire may make exposed metal parts of the power tool “live” and shock the operator.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
The tool is recommended for use with a residual current device with a rated residual current of
30mA or less.

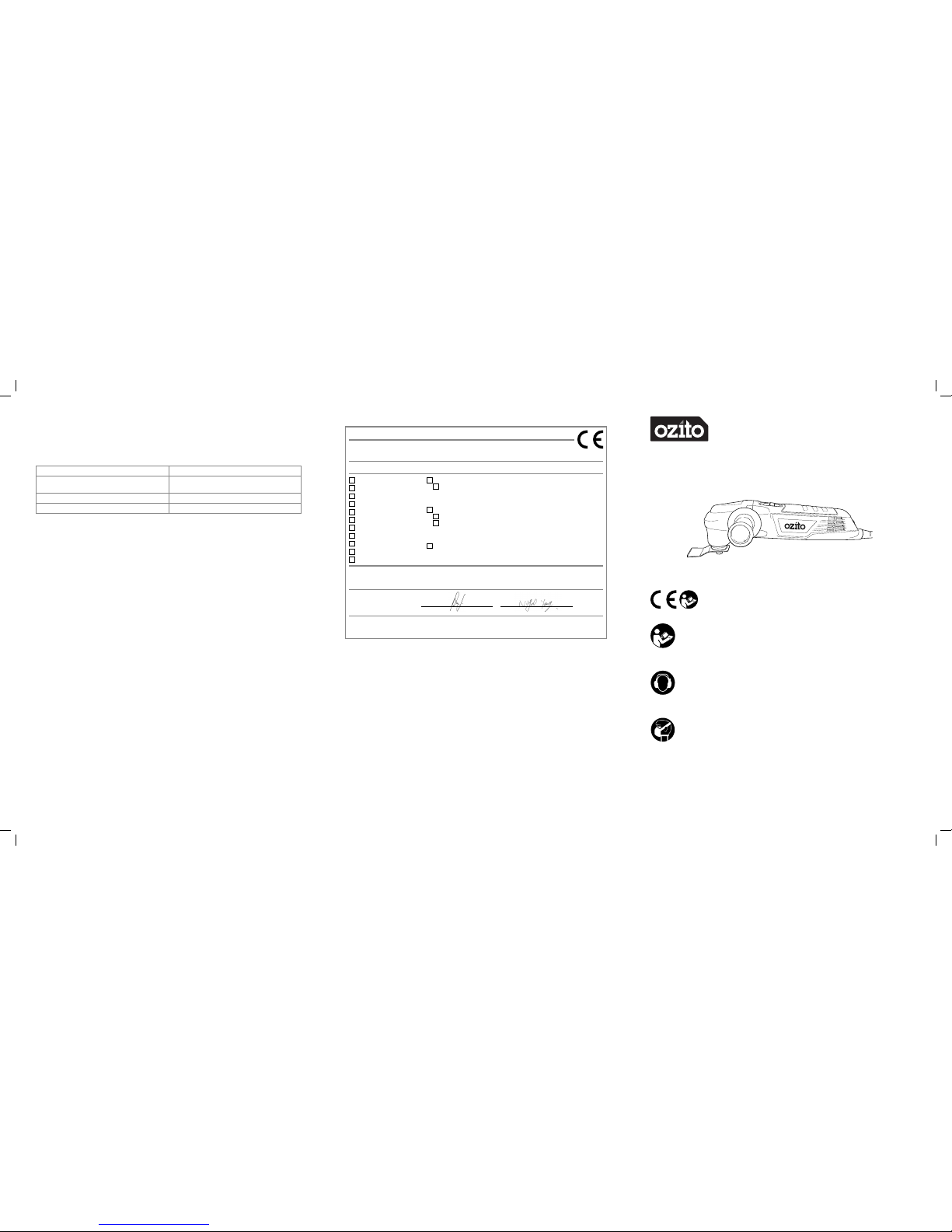

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-muffs. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
MFR-2200U
GB Additonal operating & safety instructions Multi Function Tool
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact
details can also be found on the guarantee certificate.These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Carbon brushes, Triangular sanding/grinding pla-
te, Scraper, HSS saw blade, Diamond saw blade
Consumables* Grinding/sanding paper
Missing parts
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Yang/Product-ManagementWeichselgartner/General-Manager
explains the following conformity according to EU directives and norms for
the following product
Multi Function Tool MFR-2200U (OZITO)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Notified Body:
Notified Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Notified Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-4; EN 55014-1; EN 55014-2;
EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 01.06.2016
First CE: 16 Archive-File/Record: NAPR014363
Art.-No.: 44.722.83 I.-No.: 11016 Documents registrar: R. Gehard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of confirmity

size 445 x 210 mm
Items supplied
Please check that the article is complete as
specified in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suffocating!
Proper use
The equipment is designed for the sanding/grin-
ding of wood, iron, plastic and similar materials
using the appropriate sanding/grinding paper.
Furthermore, the equipment is intended for sawi-
ng wood, plastic and similar materials, as well as
scraping offglued carpets, filling compound resi-
dues, old paint and similar applications.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse.The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Mains voltage: ........................ 230-240 V ~ 50 Hz
Power input: .............................................. 300 W
Idling speed: ............................ 15000-21000/min
Sanding/grinding area: .............. 92 x 92 x 92 mm
Oscillation angle: ........................................... 3.2°
Protection class: ............................................ II/쓑
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ....................... 78 dB(A)
KpA uncertainty ............................................. 3 dB
LWA sound power level ......................... 89 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-muffs.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Handle
Vibration emission value ah= 8.081 m/s2
K uncertainty = 1.5 m/s2
The specified vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specified value
in exceptional circumstances.
The specified vibration value can be used to
compare the equipment with other electric power
tools.
The specified vibration value can be used for initi-
al assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
