All Digital MPEG-4/MPEG-2, High-Definition DVR
Set-Top Box Solutions
Pace’s “Dallas” and “Denali” range of high-performance HD set-top boxes
(STBs) feature fully integrated MoCA®1.1 for home content sharing and
Multiroom DVR functionality.
Options include CableCARDTM Conditional Access for systems in the United
States and Embedded Conditional Access for Canadian and Latin American
markets.
The “Dallas” HD-DVR includes an easy fit, replaceable Hard Disk Drive (HDD)
subassembly for service purposes, which may also be retrofitted to “Denali”
eSATA STBs for full DVR upgrades.
The “Dallas/Denali” STB range provides cable operators with a robust, leading
edge secure platform for authorization entitlements, code download, and billing
system messages and signaling through an out-of-band (OOB)
messaging system.
The range also runs native electronic program guide applications commonly found
at today’s cable systems, including VOD and next-generation applications.
Summary
• CableCARD and Embedded Conditional Access
versions available
• 500 GB Hard Drive as standard on all “Dallas” models
• HDD upgrade option on “Denali” models
• Support for External HDD via eSATA as standard
• 4 MB Flash memory
• 512 MB SDRAM
• In-band and OOB tuners with RF return
• Comprehensive and advanced device connectivity
including HDMITM
• LED clock/channel display
• 10 LED indicators: Power, IR Receive, HD, Data, Record,
480i, 480p, 720p, 1080i and 1080p
• Enhanced on-screen diagnostics including Pace
Diagnostic Dashboard
• 1500 Dhrystone MIPS Processor
• 5.1 Dolby Digital™ and Dolby Digital Plus™
• AC-3 Matrix surround down mix to Stereo L/R RCA outputs
• Ethernet port
• SNMP support for remote diagnostics
Data Sheet RNG150N Denali

RNG150N Denali
Pace Americas, 3701 FAU Blvd, Suite 200, Boca Raton, FL 33431
Tel: [phone] Fax: [phone]
Pace and are trade marks and/or registered trade marks of Pace plc.
RNG150N-0513-5
This specification is subject to change without notice

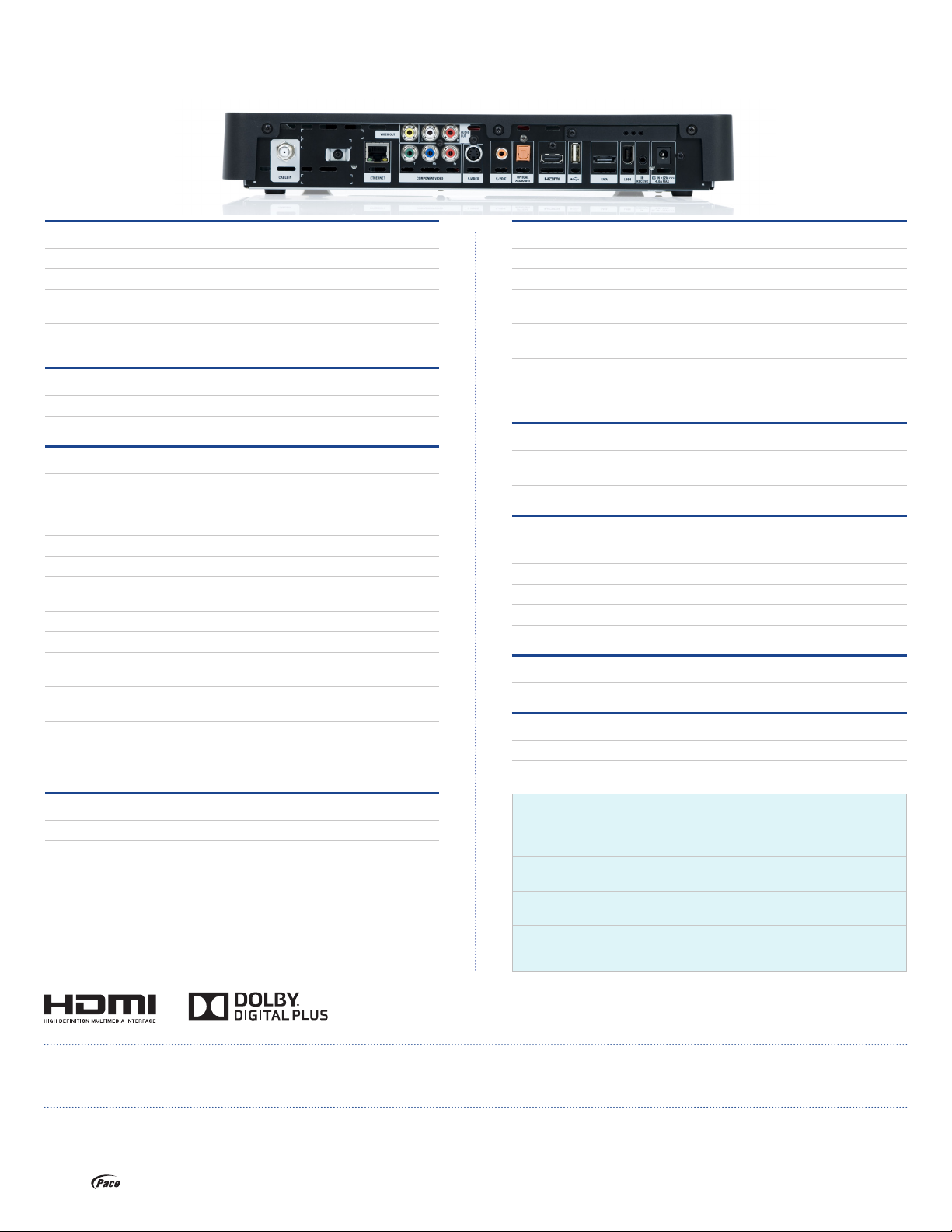

Technical Specifications
RF Interfaces
2 x In-band, 54 MHz-1 GHz Video Tuner (with QAM 64/256 decoding)
1 x In-band, 54 MHz-1 GHz DOCSIS® Tuner
1 x OOB, 70-130 MHz Agile Tuner with QPSK decoding
(including support for 104.2 MHz)
1 x RF Return, 5-42 MHz,QAM,QPSK Modulator
(compliant with Starvue II/DVS178/SCTE 55-1)
DOCSIS Cable Modem
DOCSIS 2.0 Cable Modem
Advanced DSG Support
Audio/Video Output
MPEG-2 MP@ML and MP@HL ATSC A/54 decode up to 1080p30
MPEG-4 MP@ML and MP@HL ATSC A/54 decode up to 1080p30
HDMI™ 1.3a Audio/Video Out with HDCP copy protection
Component (Y Pb Pr), Composite Video RCA outputs
Native 480i, 480p, 720p, 1080i and 1080p30 scaling modes
Simultaneous HD output via HDMI and Y Pb Pr outputs with HD video downscaled
to SD on CVBS output
Independent scaling of video/graphics on HD and SD outputs
Support for Zoom, Stretch and Crop
Constrained image support if CCI flag set on Component video outputs and HDMI
if HDCP not in effect
Macrovision copy protection capability v7.1 inc. support for Component
video output
5.1 Dolby Digital optical and coaxial output
AC-3 Matrix surround down mix to Stereo L/R RCA outputs
Ch 3/4 modulated RF output
Front Panel
LED clock/channel display
LED indicators for Message, Bypass, HDTV, Power, IR, Record, Play
System Processor/Memory
1500 Dhrystone MIPS processor for system and application use
64 MB Flash memory
512 MB SDRAM (Unified MPEG Decode/Graphics system run from RAM)
as standard
512 KB Non-volatile managed storage area within Flash
with random bit wise access
500 GB Hard Drive as standard on “Dallas” models, upgrade option
on “Denali” models
Support for external HDD via eSATA as standard
Conditional Access
Multistream CableCARD (M-Card) and Embedded MediaCipherTM security versions
of “Dallas” and “Denali” models available
CableCARD located behind flush mount cover
Pace Software
Pace EngineWareTM software v3.0 and STT driver code
Set-Up and Diagnostics
Diagnostic screens and Dashboard for on-site installation and debug
SNMP support for remote diagnostics
Display configuration menu
Software Update Mechanism
OOB Software Download Mechanism
Accessories
Consumer Quick Start Guide
External Power Supply
For more information on Pace products, please visit our website - www.pace.com/americas
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
®
Model Model Number(s) Pace Part No(s)
“Dallas” RNG200N C0203339900
HD DVR with CableCARDTM
“Denali” RNG150N C0193340000
HD eSATA with CableCARDTM
“Dallas” RNG200N B9503339100
HD DVR with Embedded Security
“Denali” RNG150N B7023439000
HD eSATA with Embedded Security
