PACIFIC CYCLE KT1165 User manual

Frozen Scooter
©2014 Pacic Cycle Inc.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: [phone]
www.kidtraxtoys.com
Styles and Colors may vary
Made in China
The owner’s manual contains assembly, use and maintenance
instructions. The Frozen Scooter must be assembled by an adult
who has read and understands the instructions in this manual.
Keep the packaging away from children and dispose all packaging
before use.
Model Number: KT1164/KT1165
Owner’s Manual
Keep instructions for future reference.

For purchasing the Frozen Scooter. Your child will have fun and
years of riding enjoyment. Features on the scooter include lights
and melodies, forward / reverse and a rechargeable battery.
Please call us at Kid Trax Toys Consumer Relations at
877-741-6154 with comments or questions.
ii
Thank You

Safety 1
User Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Attach the Front Wheel ..............................4
Attach the Mufer ............................ 5
Insert the Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Attach the Gear Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Attach the Drive Wheel ...........................6
Attach the Left Rear Wheel .......................7
Attach the Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . 8
Attach the Handlebar ......................... 8
Connecting the Wires ......................... 9
Gear Box Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attaching the Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Charging the Battery..........................12
Battery Replacement and Disposal ............... 14

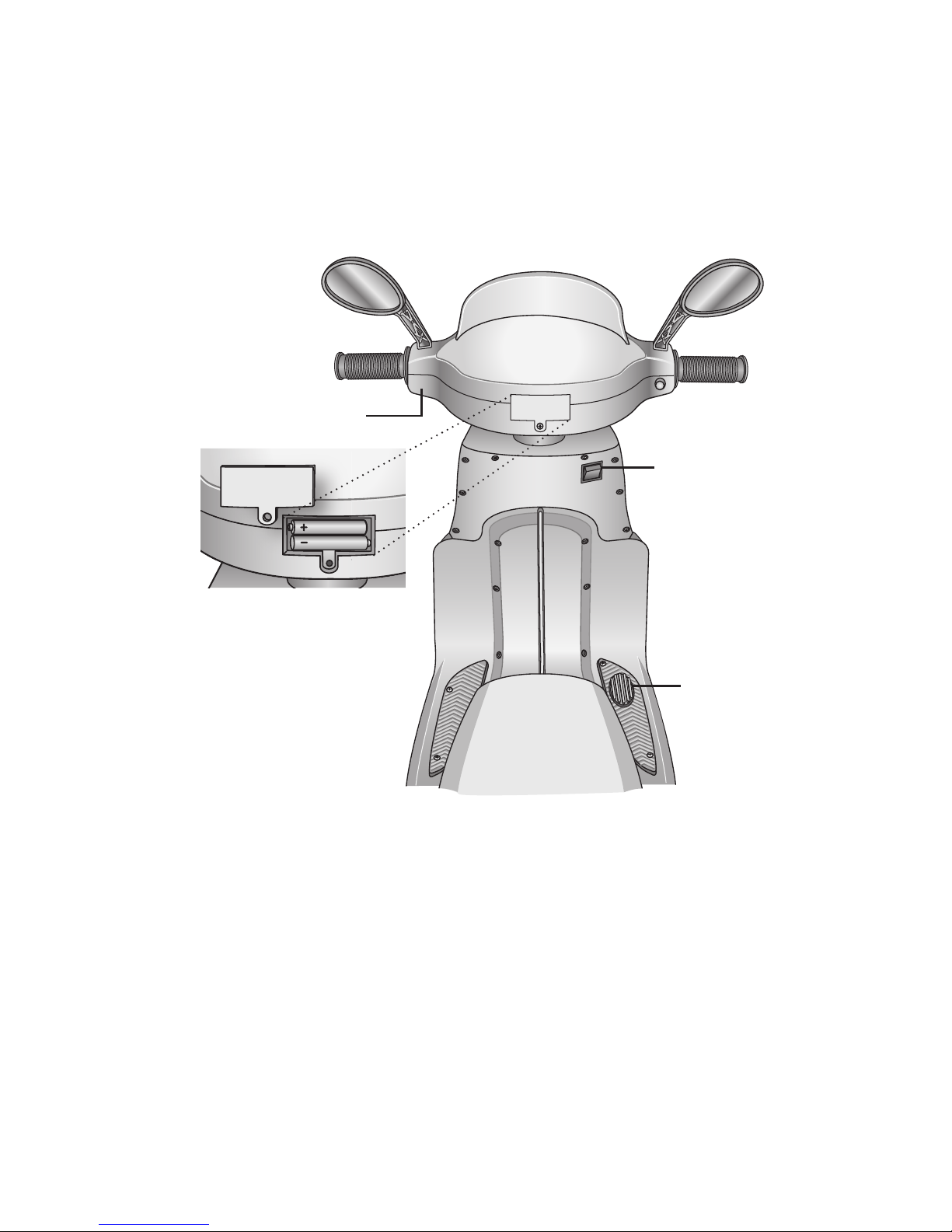

Insert Batteries for Sound . . . . . . . . . . . . . . . . . . . . . . 15
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting Guide .........................18
Services, Repairs and Parts .................... 20
Contents

WARNING!
The following safety hazards may result in serious injury or death to the
user of the scooter:
• This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose
of all protective material and poly bags before assembly. Be sure to
remove all packaging materials and parts from underneath the car
body.
• Riding the vehicle without a helmet. Riders must always wear a tted
helmet that complies with U.S. Consumer Product Safety
Commission (CPSC) Standard CFR 1183.
• Battery posts, terminals and related accessories contain lead and
lead compounds (acids) chemicals known to the state of California to
cause cancer, reproductive harm, and are toxic and corrosive. Never
open the battery.
• Body parts such as hands, legs, hair and clothing can get caught in
moving parts. Never place a body part near a moving part or wear
loose clothing while using the vehicle. Always wear shoes when
using the vehicle.
• Using the vehicle near streets, motor vehicles, drop-offs such as:
steps, water (swimming pools) or other bodies of water, sloped
surfaces, hills, wet areas, ammable vapors, in alleys, at night or in
the dark could result in an unexpected accident. Always use the
vehicle in a safe, secure environment with continuous adult
supervision.
• Using the vehicle in unsafe conditions such as snow, rain, loose dirt,
mud, sand or ne gravel may result in unexpected action such as tip
over and skidding.
• Using the vehicle in an unsafe manner. Examples include but are not
limited to:
a. Pulling the vehicle with another vehicle or similar device
b. Allowing more than one rider
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe practices when using the vehicle.
This product contains or emits chemicals known to the state of
California to cause cancer or birth defects or other reproductive harm.
1
Safety

User Requirements
The suitable age range for a child using the Scooter is 3 + years. The
maximum weight of the child is 44 lbs (20kg).
Before using the scooter the child must understand the vehicle controls
and safety issues. They must also demonstrate the capability to handle
the vehicle and operate its controls. It is the responsibility of the adult
to educate the child, determine if they are t to operate the vehicle, and
supervise the vehicle’s use.
Here are basic safe riding rules you should read aloud to your child and
anyone who may ride the Scooter:
• An adult must always supervise a child that is riding the Scooter.
• Children under 3 + years should not be allowed to use
the vehicle.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
Always wear shoes when riding the vehicle.
• Only one rider is allowed at a time.
• Don’t drive the vehicle into loose dirt, mud, sand or ne gravel.
Driving the vehicle into loose dirt, mud, sand, or ne gravel may
damage the chain mechanism inside the vehicle.
• Only drive on level ground. Don’t go near water, drop-offs or up
and down steep slopes.
• Do not drive the vehicle indoors or around obstructions.
• Do not drive the vehicle on streets or near cars.
2

Parts
front wheel (1)
seat (1)
charger (1)
spanner (1) 6V 5A battery (1)
rear wheels (2)
handlebar (1)
hubcaps (2)
axle (1)
Scooter body (1)
wheel
covers (2)
locknuts (2)
small
washers (2)
gear box spacer (1)
rear view mirrors (2)
mufer (1)
fasteners (2)
3

Assembly
1
2
4
Attach the Front Wheel
1. Place the bushings attached to the front axle into the fork.
2. Push the bushings up into the fork until the locking tabs engage into
the fork holes on both sides of the wheel.
3. Be sure the front wheel is locked into the fork.
4. Push the splash guard tabs into the bushing slots on both sides of
the wheel.
4
front axle
bushing
fork
fork holes
locking tab
bushing slot
splash guard tab
splash guard
front wheel

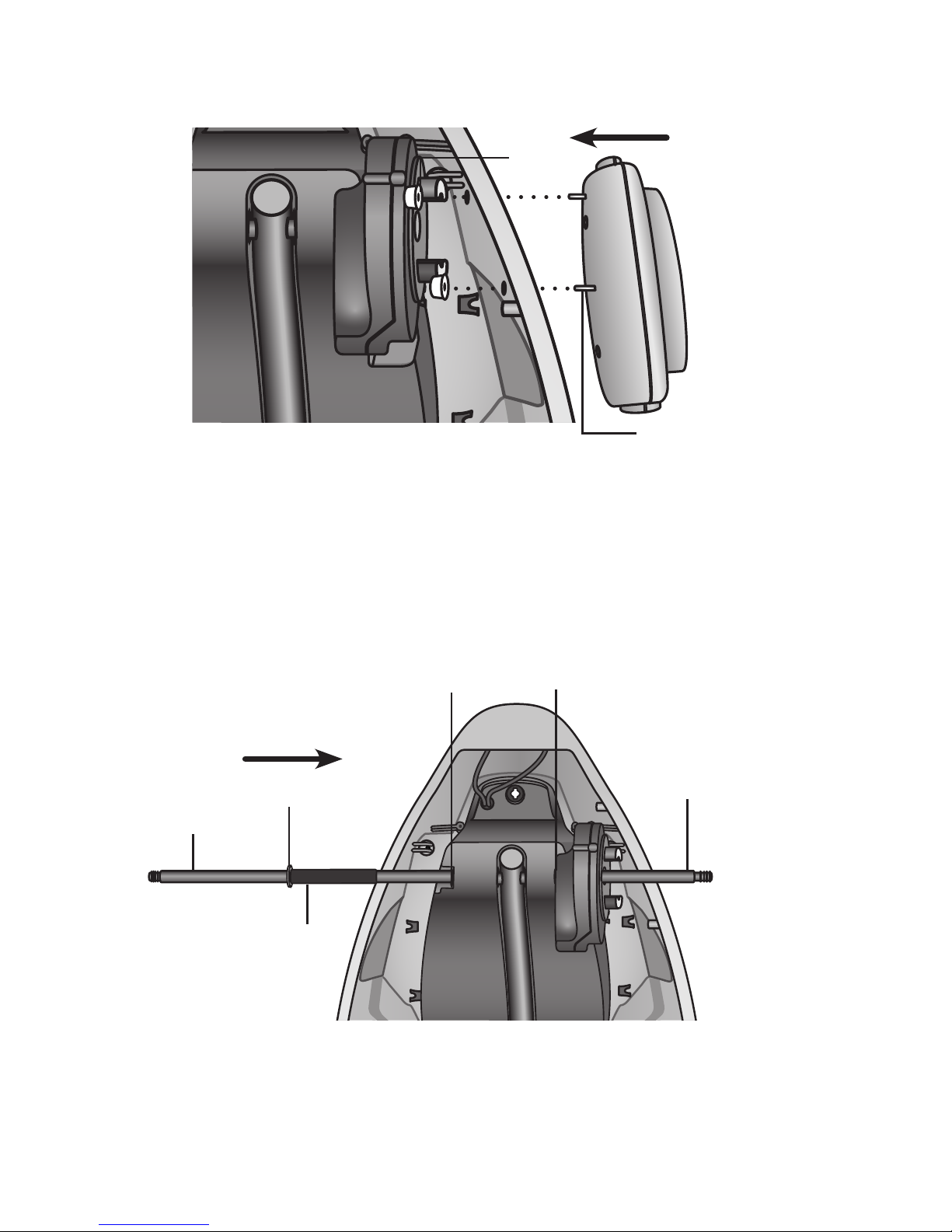

Insert the Axle
1. Remove the locknut, small washer, and gear box spacer from the
left side of the axle.
2. Position the axle so the gear box end is on the right side.
3. Slide the axle through the Scooter body axle holes.
Note: The left side
of the axle is the
end that has the
wielded spacer.
Attach the Mufer
1. Turn the Scooter body over.
2. Align the two muer screws with the two holes in the Scooter body.
3. Slide the muer into place, and attach with the two red fasteners.
5
axle
gear box end
large washer
Scooter body axle holes
mufer screws
red
fasteners

1. Press the hubcap onto the wheel.
2. Place the drive wheel onto the axle.
3. Place the small washer onto the rear axle.
4. Place the locknut on the axle and rmly tighten
with the spanner.
5. Line up the wheel cover tabs with the hubcap
slots. Press the wheel cover onto the hubcap.
Attach the Drive Wheel
6
spanner
hubcap
drive wheel
locknut
wheel
cover
axle
small
washer
Note: Both rear wheels are
identical and can be placed
on either axle.

Attach the Left Rear Wheel
7
spanner
hubcap wheel
locknut
wheel
cover
axle
small
washer
large
washer
Note: Both rear wheels are
identical and can be placed
on either axle.
1. Remove the locknut and the small washer
from the axle. Leave the large washer on the
axle.
2. Press the hubcap onto the wheel.
3. Place the wheel on the left side of the axle.
4. Place the small washer onto the axle.
5. Place the locknut onto the axle and rmly
tighten with the spanner.
6. Line up the wheel cover tabs with the hubcap
slots. Press the wheel cover onto the hubcap.

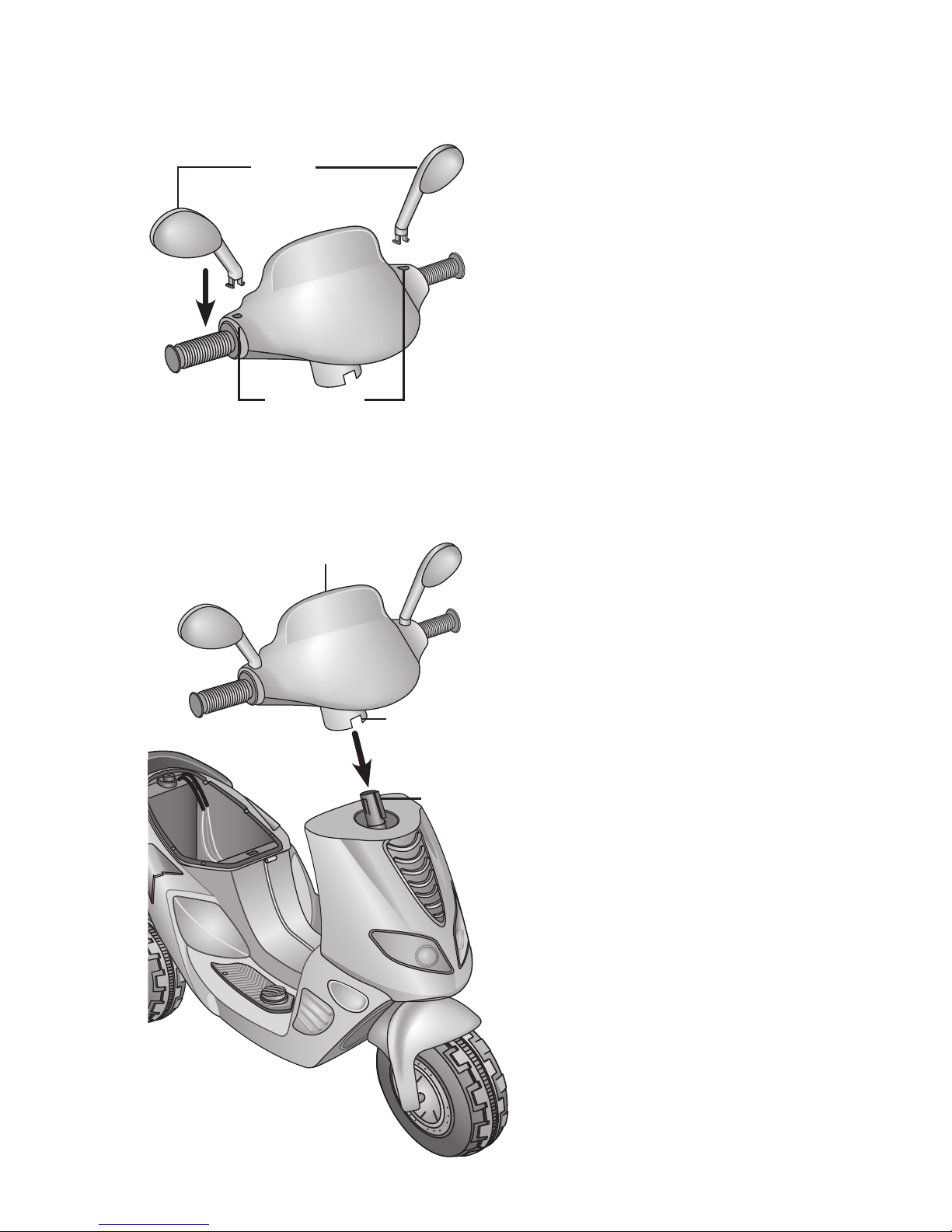

Attach the Rearview Mirrors
1. Position the rearview mirror so
the mirror side is facing in.
2. Press the rearview mirror
down into the mirror slots
located on the handlebar until
you hear a click.
3. Repeat steps one and two for
the remaining mirror.
Attach the Handlebar
1. Position the handlebar so it is
facing forward and the
handlebar slot is aligned with
the steering column.
2. Press the handlebar down on
to the steering column until
you hear a click.
3. Pull up on the handlebar to
ensure it is locked together
with the steering column.
8
mirrors
mirror slots
handlebar
slot
steering
column
handlebar

Connecting the Battery
1. Connect the red connector from the battery to the red connector from
the pedal.
Note: The connectors from the gear box to the pedal is connected at
the factory.
connector
from pedal
fuse
battery
connector
from battery
1
9

Close
Open
Attaching the Seat
1. Align the seat tab with the seat slot.
2. Lower the seat into place. Be sure that it is
properly positioned.
3. Turn the locking screw clockwise until the
lock is engaged.
10
seat tab seat slot
locking
screw

• Use of a battery or charger other than the supplied Kid
Trax Toys 6V rechargeable battery and charger may cause
a re or explosion. Only use the supplied Kid Trax Toys 6V
rechargeable battery and charger with the vehicle.
• Using the Kid Trax Toys 6V rechargeable battery and
charger for any other product may result in overheating, re
or explosion. Never use the Kid Trax Toys 6V rechargeable
battery and charger with another product.
• Explosive gases are created during charging. Charge the
battery in a well ventilated area. Do not charge the battery
near heat or ammable materials.
• Contact between the positive and negative terminals may
result in re or explosion. Avoid direct contact between the
terminals. Picking up the battery by the wires or charger can
cause damage to the battery and may result in a re. Always
pick up the battery by it’s case or handles.
• Liquids on the battery may cause re or electric shock.
Always keep all liquids away from the battery and keep the
battery dry.
• Contact or exposure to battery leakage (lead acid) may cause
serious injury. If contact or exposure occurs immediately call
your physician. If the chemical is on the skin or in the eyes,
ush with cool water for 15 minutes. If the chemical was
swallowed, immediately give the person water or milk. Do not
give water or milk if the patient is vomiting or has a decreased
level of alertness. Do not induce vomiting.
The following safety hazards may result in serious injury or death to the
user of the Scooter:
• Battery posts, terminals and related accessories contain lead
and lead compounds (acid), chemicals known to the State of
California to cause cancer, reproductive harm and are toxic
and corrosive. Never open the battery.
• Tampering or modifying the electric circuit system may cause
a shock, re or explosion and permanently damage the
system. Exposed wiring, circuitry in the charger may cause
electric shock. Always keep the charger housing closed.
11
The following safety hazards may result in serious injury or death to the
user of the Scooter:
WARNING!

3
Charging the Battery
Important! Before using the Frozen Scooter for the rst time the
battery needs to be charged for a full 10 hours. Only an adult who has
read and understands the following safety warnings should handle,
charge or recharge of the battery.
1. Remove the seat, as described on page 10.
2. Disconnect the red connectors.
3. Plug the charger connector into the red connector from the battery.
Only use the Kid Trax Toys charger included with the Scooter (Input:
AC 120V–, 0.2A, 60Hz Output: DC 7V, 0.8A).
4. Plug the charger into a standard 120V wall outlet.
Note: The charger may feel warm during charging. This is normal and
not a cause for concern.
5. After charging is complete (at least 8 hours, but no more than 10)
unplug the charger from the wall outlet.
6. Unplug the charger from the charging connector and connect the
battery connectors.
7. Place the seat back on the vehicle, and lock into place.
charger
battery
12
red battery
connector

Re-Charge Interval and Time
Important!
• Damage to the battery may occur if it is allowed to drain
completely. Do not allow the battery to drain completely.
• Check the battery and charger (supply chord, connector) for
wear and damage before charging. Do not charge the battery
if damage has occurred. Only replace with a Kid Trax Toys 6V
rechargeable battery and charger.
The battery should be charged after each use, or if not used regularly,
once a month at a minimum. Charge the battery between 8 and 10
hours. Do not charge the battery for more than 10 hours. Failure to
charge the battery as directed would cause permanent damage to the
battery and void the warranty.
Battery Storage
Do not leave the battery connected in the vehicle for long period of times
while not being used. This may drain the battery completely and cause
permanent damage. Disconnect the battery connectors from the battery
when the vehicle is not going to be used for a long period of time.
It is best to leave the battery in the battery compartment when the
vehicle is being stored for long periods. Follow these guidelines if the
battery is removed:
• Store the battery where temperatures are between -10° F (-24° C
and 75° F (24° C)
• Store the battery on a wood surface. Do not place the
battery on cement oors for extended periods. This will result
in battery discharge.
• Wipe the battery clean with a dry cloth prior to storage.
• Charge the battery once every month for 8 to 10 hours.
13

2
3
Battery Replacement and Disposal
The Kids Trax Toys 6V 5A battery will eventually lose the ability to hold
a charge. Depending on the amount of use, and varying conditions,
the battery should operate for one to three years. Follow these steps to
replace and dispose the battery:
1. Remove the Scooter seat, as described on page 10.
2. Disconnect the red battery connectors.
3. Loosen the battery strap holding the battery in.
4. Carefully lift the battery.
• Depending on the condition of the battery (i.e.: leakage) you may
want to wear protective gloves before removal.
• Do not lift the battery by its connectors or cables
5. Place the dead battery in a plastic bag.
Kid Trax Toys
6V 5A battery
14
battery strap
battery connectors

Important! Recycle the dead battery responsibly. The battery contains
lead acid (electrolyte) and must be disposed of properly and legally It
is illegal in most areas to incinerate lead acid batteries or dispose of
them in landlls. Take it to a federal or state-approved lead acid battery
recycler, such as a Kid Trax Toys authorized service center or your local
automotive battery retailer. Do not throw the battery away with your
regular household trash!
6. Replace the battery with a Kid Trax Toys 6V 5A battery.
7. Reconnect the battery connectors.
8. Replace the battery strap.
9. Replace the seat.
Insert Batteries for Sound
The following safety hazards may result in personal injury to the user
of the Frozen Scooter:
Contact or exposure to battery leakage (lead acid) may
cause personal injury. If contact or exposure occurs
immediately call your physician. If the chemical is on the
skin or in the eyes, ush with cool water for 15 minutes. If
the chemical was swallowed, immediately give the person
water or milk. Do not give water or milk if the patient is
vomiting or has a decreased level of alertness. Do not
induce vomiting.
Follow these guidelines for use of AA batteries:
• Do not mix old and new batteries or batteries of different type
(e.g.: alkaline, standard carbon zinc, rechargable nickel-cadmium.
• Dispose of batteries safely. Do not dispose of batteries in a re.
Doing so may result in explosion or re.
• Do not charge non-rechargable batteries. Always have adult
supervision when charging rechargable batteries.
CAUTION!
See next page for sound battery insertion and removal instructions.
15

Use
Important! Before using the Scooter for the rst time the battery
needs to be charged for a full 10 hours. Only an adult who has read
and understands the safety warnings (see Charging the Battery) should
handle, charge or recharge of the battery.
Movement: The Scooter is designed to move forward and reverse.
1. Sit on the scooter with the riders weight balanced and
evenly distributed.
2. Press the Forward / Stop / Reverse switch to the desired action.
3. Press on the foot pedal to move the scooter.
4. To stop movement, release pressure on the foot pedal.
Sound: Press the button on the left side of the handlebar to hear
the music.
1. Use a Phillips head
screwdriver to remove the
battery cover.
2. Insert two AA batteries as
shown inside the battery
compartment.
3. Place the battery cover
back in place and tighten
the screw.
16
Forward / Stop /
Reverse switch
Note: when the
scooter is not in
use set the switch
to STOP.
foot pedal
music button

Maintenance
The Scooter should be checked for damage, missing or badly worn
parts before use.
• Check the tightness of the fasteners before each use.
• Check the tightness of the wheel locknuts.
Note: If the wheel locknuts are not tight the drive wheel will not
engage and the vehicle will not run.
• Ensure the battery is securely in place before use
• Occasionally use lightweight oil to lubricate moving parts such as
wheels and steering linkage. Do not use oil on plastic or nylon parts.
No lubrication is required.
• Store the vehicle indoors or cover it with a tarp to protect it from
the wet weather. Keep it away from sources of heat, such as stoves
and heaters.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic
parts, use a non-wax furniture polish. Do not use car wax, abrasive
cleaners or wash the vehicle with soap and water. Water will damage
the motor, electrical system and battery.
• Kid Trax Toys recommends that you take the vehicle to an
authorized service center for periodic maintenance and service.
Call Kid Trax Toys Consumer Relations at 877-741-6154 for an
authorized service center.
17
