PacLights FPTA/2 - 055/075 User manual

INSTALLATION GUIDE FPTA generation 2 Series LED POST TOP LIGHT
Instructions and specifications are subject to change at any time without notice. Copyright© 2022 PacLights All Rights Reserved Page 1 of 2
Need help? (800) 988 -6386 Email: [e-mail] Website: www.PacLights.com
PL_INST_FPTA/2_v0
FPTA/2 LIGHT MODULE ANGLE ADJUSTABLE
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PacLights fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNINGS:
• Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sharp objects.
CAUTION:
• For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened firmly. Apply weatherproof silicone
sealant around the edge of the Back Box and/or Junction Box. This is especially important with an uneven wall surface. Silicone all plugs and
unused conduit entries.
FIG. 1
FPTA/2 - 055/075 FPTA/2 - 150
The FPTA/2 fixture removed from the box is in a vertical configuration
(Fig. 1). The FPTA/2 fixture can be rotated in various angles up to ±90°.
Remove the Screws from each side and rotate the Light Module of the
FPTA/2 fixture to the desired angle (Fig. 2). Fasten the Screws to secure
the Light Module in place (Fig. 3).
Connect the ACL and the ACN from the FPTA/2 fixture to the conduit with the AC power Supply Cable. Follow the Wiring Diagram provided.
AC POWER SUPPLY
FPTA/2 DRIVER
GRAY (-)
PURPLE (+)
HOT [BLACK]
NEUTRAL [WHITE]
GROUND [GREEN]
WIRING DIAGRAM
DIM
INPUT
SCREW
FPTA/2
FIXTURE
FIG. 2 FIG. 3
LIGHT
MODULE
OPTIONAL PHOTOCONTROL
The Photocontrol has a Dusk to Dawn functionality.
Note: If the Photocontrol is not included the following can be skipped. If
the Photocontrol is included prior to field installation, the following can be
skipped.
All FPTA/2 fixtures come with a NEMA Three-Prong Twist Lock
receptacle with a Short-Cap pre-installed. Remove the Short-Cap by
twisting CCW and lifting (Fig. 4). Place the Photocontrol on the NEMA
receptacle. Carefully push down and twist CW (Fig. 5).
FIG. 4
NEMA
RECEPTACLE
SHORT CAP PHOTOCONTROL
FIG. 5

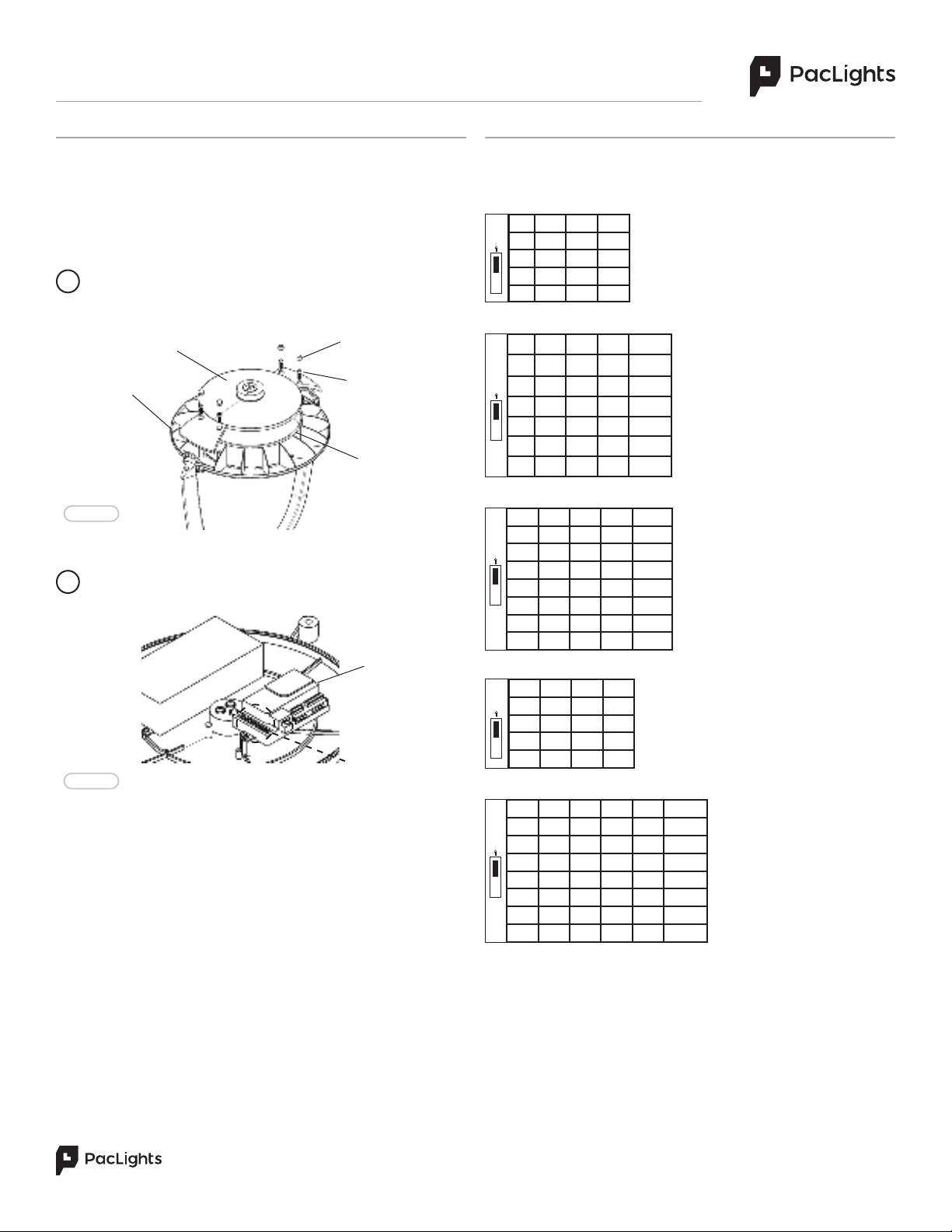

INSTALLATION GUIDE FPTA generation 2 Series LED POST TOP LIGHT
Instructions and specifications are subject to change at any time without notice. Copyright© 2022 PacLights All Rights Reserved Page 2 of 2
Need help? (800) 988 -6386 Email: [e-mail] Website: www.PacLights.com
PL_INST_FPTA/2_v0
Selecting the combination on the DIP switches, sensor data can be
precisely set for each specific application as seen below.
BI-LEVEL MOTION CONTROL DIP PIN SETTING
SCREWS
COVER SEAL
FIG. 7
FPTA/2 COVER
MOTION
SENSOR
DIP
SWITCHES
The integrated Bi-Level Motion Control is a programmable microwave
motion detector.
Note: If the Bi-Level Motion Control is not included or adjustment is not
needed, the following steps can be skipped.
OPTIONAL BI-LEVEL MOTION CONTROL
FIG. 6
FPTA/2 FIXTURE
INSERTS
1 2
ION ON 100%
II ON - 75%
III - ON 50%
IV - - 25%
Detection Area
Detection area having motion and not
enough ambient light will activate the
sensor. The sensor can be set at 100%,
75%, 50%, or 25%.
ON
1 2
ION ON 50%
II - ON 30%
III ON - 20%
IV - - 10%
ON
Stand-By Dimming Level
Stand-By Dimming Level is when ‘Hold
Time’ has ended, there is no movement
in the area and the light output is
reduced.
Factory setting = I
3 4 5
ION ON ON 5S
II - ON ON 30S
III ON - ON 90S
IV - - ON 3min
VON ON - 20min
VI - - - +∞
ON
Hold Time
Hold Time refers to the time period the
fixture remains at 100% illumination
after no motion detected. Hold Time
can range from 5s to 20 minutes. The
fixture will remain at full illumination
until ‘Hold Time’ ends, then reducing to
Stand-By Dimming Level.
Factory setting = VI
6 7 8
ION ON ON 0S
II - ON ON 5S
III ON - ON 5min
IV - - ON 10min
VON ON - 30min
VI  ON - 1h
VII - - - +∞
ON
Stand-By Period
The Stand-By period begins when the
‘Hold Time’ ends. The fixture remains
at a Stand-By Dimming Level before it
completely switches o while motion
is not present. When set ‘+∞’ mode,
the low led light is held until motion is
detected.
Factory setting = I
3 4 5 6
ION ON ON ON 5Lux
II - ON ON ON 15Lux
III ON - ON ON 30Lux
IV - - ON ON 50Lux
VON ON - ON 100Lux
VI ON ON ON - 150Lux
VII - - - - Disable
ON
Daylight Sensor
The Daylight Sensor measured
in LUX can be set to allow the
fixture to illuminate below a
surrounding minimum brightness
threshold. The sensor can be set
from 5 to 150 LUX. When set
to Disable mode, the Daylight
Sensor will switch ‘ON’ the
fixture when motion is detected
regrdless of ambient light.
Factory setting = VII
Remove the flush rubber inserts from the Cover. Remove the Screws
from the Cover. Lift the Cover from the FPTA fixture. The fixture is
now open to adjust (if needed) the Bi-Level Motion Control setting.
The process is the same for all FPTA Fixtures (Fig. 6).
1
The default settings can be changed by adjusting the DIP Switches on
the Bi-Level Motion Control. Please refer to the table on this page
and also directly on the Bi-Level Motion Control (Fig. 7).
2
