INSTALLATION GUIDE FSLN Series LED Strip Light
Instructions and specifications are subject to change at any time without notice. Copyright© 2022 PacLights All Rights Reserved Page 1 of 2
Need help? (800) 988 -6386 Email: [e-mail] Website: www.PacLights.com
PL_INST_FSLN_v0

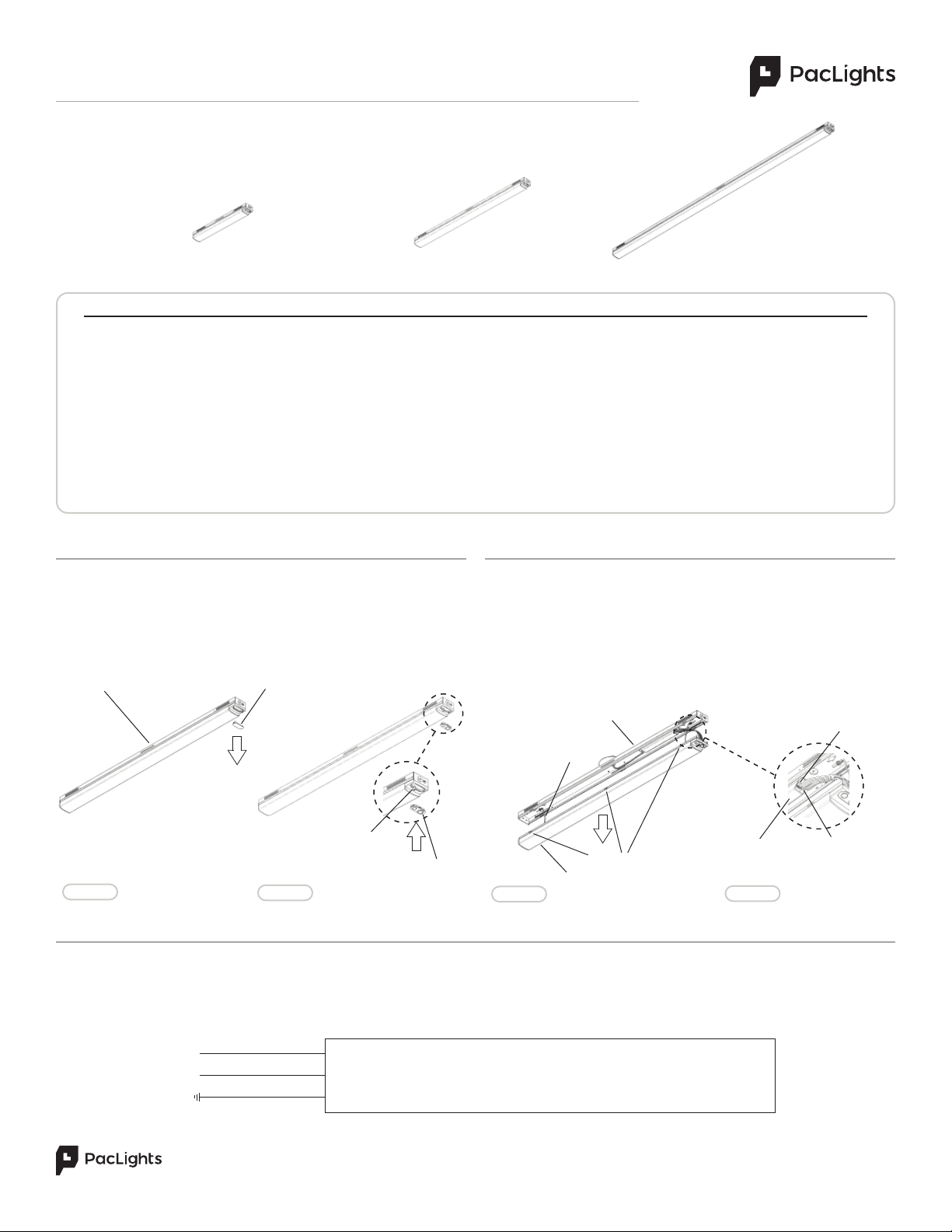

All models of FSLN are Bluetooth Network Conrol enabled. Remove
the Sensor Cover (Fig. 1). Install the PIR Sensor to the FSLN fixture by
attaching the Connector to the PIR Sensor and press into place onto the
FSLN fixture (Fig. 2).
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PacLights fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required for safety.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNINGS:
• Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sharp objects.
CAUTION:
• For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened firmly. Apply weatherproof silicone
sealant around the edge of the Back Box and/or Junction Box. This is especially important with an uneven wall surface. Silicone all plugs and
unused conduit entries.
FSLN-2D25 FSLN-4D45 FSLN-8D90
Connect the ACL and the ACN from the FSLN Fixture to the conduit with the AC power Supply Cable. Follow the Wiring Diagram provided.
AC POWER SUPPLY
FSLN DRIVER
HOT [BLACK]
NEUTRAL [WHITE]
GROUND [GREEN]
WIRING DIAGRAM
INPUT
SENSOR COVER
SAFETY CABLE
FSLN FIXTURE
FIG. 3
FIG. 1
A FSLN fixture can be de-commissioned from any Network Zone manually
by ‘long pressing’ for 5 seconds the ‘Reset’ Button that is located on the
Bluetooth Driver inside the FSLN fixture. While holding at Slot Insets on
the Lens Assembly, lift and tilt the Lens Assembly away from the Housing
(Fig. 3). The Safety Cables will hold the Lens Assembly. The ‘Reset’
Button is located at the end of the Bluetooth Driver between the Wire
Connectors (Fig. 4).
RESET / DECOMMISSION
PIR/DAYLIGHT SENSOR (OPTIONAL)
CONNECTOR
PIR SENSOR
FIG. 2 FIG. 4
LENS ASSEMBLY
CONNECTORS
DRIVER ‘RESET’
BUTTON
FSLN HOUSING
SLOT INSETS

INSTALLATION GUIDE FSLN Series LED Strip Light
Instructions and specifications are subject to change at any time without notice. Copyright© 2022 PacLights All Rights Reserved Page 2 of 2
Need help? (800) 988 -6386 Email: [e-mail] Website: www.PacLights.com
PL_INST_FSLN_v0
Place the Hooks on one side of FSLN fixture first, then place the
hooks into other side of FSLN fixture (Fig. 13). The length of the
Cables can be adjusted at the Link by depressing the spring loaded
Plunger .
FSLN SURFACE MOUNT
The Surface Mount Kit is included the FSLN fixture. The Surface
Mount Kit consists of the Junction Box Cover Plates, Screws, Washers
and plastic twist resistant Anchors. Install the Junction Box Cover
Plates to the FSLN Housing by inserting the screws (Fig. 5 & 6).
12
JUNCTION BOX
COVER PLATES
Remove the Lens Assembly (Refer to Fig. 3) from the Housing and
install the FSLN fixture flush to the ceiling with the plastic twist
resistant Anchors, Screws, and Washers (Fig. 7).
FIG. 5 FIG. 6
Install the Cable Mounting Kit to the ceiling joist/beam. Lift the
FSLN fixture to the Mounting Cables and hook into place (Fig.12).
2
The AirCraft Cable Mounting Kit for the FSLN fixture consists of the
cable and attachments (Fig. 11).
1
FIG. 11
LENS ASSEMBLY
FSLN HOUSING
FSLN FIXTURE
SCREW
ADJUSTABLE
LINK
HOOKS
AIRCRAFT CABLE
ANCHOR
FSLN FIXTURE
FIG. 12
FIG. 13
CEILING
JOIST/BEAM
3
OPTIONAL FSLN CABLE MOUNT
HOLES
WASHER
MOUNTING
CABLE
PLUNGER
ADJUSTABLE
LINK
HOOKS
FIG. 7
~
HOUSING
The V-Hook Mounting Kit for the FSLN fixture consists of the Hook
and Chain (Fig. 8).
1
V-HOOK
OPTIONAL FSLN V-HOOK & CHAINS MOUNT
FIG. 8
CHAIN
Install the Hook and Chain Mounting Kit to the ceiling Joist/Beam.
Lift the FSLN fixture and attach to the Hooks (Fig. 9).
2
FSLN FIXTURE
FIG. 9
JOIST/BEAM
MOUNTING
CHAIN
FIG. 10
Place the Hooks into the slots and holes at the end of the FSLN
fixture Housing (Fig. 10).
3
