Pakole GTV-E-20A User manual

EN
www.pakole.com
U˜ˎ˛’˜Mˊ˗˞ˊ˕
009_027_011_181010_V001_EN
AIR HEATERS BURNING GASEOUS FUELS
Appliance types:
GTV-E-20A, C, CL
GTV-E-27A, C, CL
GTV-E-33A, C, CL
GTV-E-40A, C, CL
GTV-E-48A, C, CL
GTV-E-58A, C, CL
GTV-E-68A
GTV-E-87A
GTV-E-107A

GTV-E AIR HEATERS BURNING GASEOUS FUELS C
Contents
1. S  ...................................................................................................................... 3
2. G I .................................................................................................................... 4
Data board .................................................................................................................................. 4
Corrosive materials .................................................................................................................... 5
Standards and laws .................................................................................................................... 5
Safety signs ................................................................................................................................ 5
Safe usage ................................................................................................................................. 5
3. T, ,  ...................................................................................... 6
4. O  ..................................................................................................................... 6
Reduced NOx emissions ............................................................................................................ 7
Appliance types .......................................................................................................................... 7
5. I ................................................................................................................................... 8
Appliance installation .................................................................................................................. 8
Optional accessories .................................................................................................................. 9
Type of electric socket ............................................................................................................... 9
Electrical connecting specifi cation .............................................................................................. 9
Regulation possibilities ............................................................................................................. 10
6. A  ............................................................................................................. 10
Ventilation ................................................................................................................................. 10
Protective distances ................................................................................................................. 11
7. A  .................................................................................................................. 11
Start, restart .............................................................................................................................. 11
Control and regulation of appliance .......................................................................................... 12
8. M
.....................................................................................................................................
.....................................................................................................................................
13
13
Maintenance procedures .......................................................................................................... 13
Gas change .............................................................................................................................. 14
9. T
........................................................................................................................
........................................................................................................................
14
14
10. E ................................................................................................................................... 15
Enclosure 1 / A . : Appliance performance data .......................................................................16
Enclosure 1 / B . : Gas consumption................. .......................................................................16
Enclosure 2.: appliance dimensions per types..........................................................................16
Enclosure 3.: Flue longs, allowed pressure drops .................................................................... 18
Enclosure 4.:Target countries/gas categories .......................................................................... 18
ECO-Design ............................................................................................................................. 19

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
3
GENERAL SAFETY NOTICES
Disregard of instructions and notices of this Manual can cause serious bodily injuries or damages
as follows: burning, explosion, suffocation, carbon monoxide poisoning, electric shock and in extreme
case death!
This appliance can only be used and serviced by such persons who understood and follow the user’s
Manual.
If you need help or information concerning the appliances – for example installation guide or labels
etc. – in that case contact with the manufacturer!
This appliance must not be used by children and mentally or sensitively deficient persons! Take care
that the children do not handle it and do not play with devices!
WARNING! Fire, burning, inhalation and explosion hazard! Keep all flammable objects as follows
building materials, papers, or carton unites away from heater according to the instructions! Never
use this appliance in such rooms where there are flammable volatile materials or the following mate-
rials, which can get into the device: petrol, solvent, thinner, fine grained dusty or unknown chemical
materials!
WARNING! This appliance can not be used in domestic circumstances or mobile home!
WARNING! For your safety, if you smell gas do the followings:
- Open windows.
- Do not try to light any appliance.
- Do not use electrical switches.
- Do not use any telephone in your building.
- Leave the building.
- Immediately call your local gas supplier after leaving the building. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the Fire Department.
The GTV-E-type warm air blower appliances have been developed and certifi ed in compliance with MSZ EN 1020 standard and quali-
fi ed for heating of industrial rooms! The function of these heater appliances to ensure heating of appointed workplace temporarily or
continuously! In case of proper using the appliance guarantees safety and energy-saving operation! The combustion products issued
during combustion process leave through the fl ue system into the open air. In case of further possible questions regarding the applicabil-
ity please turn to the local Fire Protection Offi ce!
Other standards e.g. GMBSZ can give you directions in terms of proper using of natural and propan gas as follows: leading/piping, storing
etc.! Concerning the detailed content of these standards the local Bureau of Standards can help.
Carbon- monoxide poisoning: The initial symptoms of carbon-monoxide poisoning are similar to infl uenza namely headache,dizziness
and/or nausea! If these symptoms are observed in that case the appliance probably does not work satisfactorily! First of all go fresh air,
ventilate the rooms and have the appliance investigated!
Propan-gas: The propan-gasis odourless! Mercaptan-derivative as scented component is mixed into the gas to be able to observe the
possible escape! In spite of the typical smell is not felt the propan gas can be present in the environmental air in case of escaping!
Read and understand this manual thoroughly before installing starting or servicing this equipment. The
improper installation or using can cause serious damages! Keep this manual in a safe place in order to
obtain information in case of incidental problems!
1. S 

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
4
• Make sure that read and understood all the warnings, correct keeping of which can guarantee the safety and faultless operation !
• During the installation be always circumspect! Follow the valid instructions and recommendations!
• The appliance can be operated by specifi ed voltage and frequency marked on its data board! The electrical connections and
groundings are prepared as per MSZ EN 60335 standard!
• Electrical grounding specifi cation: present appliance is equipped with three points grounding connection in the interests of your
protection!
• It needed to ensure the suffi cient quantity of combustion air if the appliance is installed without outside air supply!
• Keep away the device from the following strong eff ects: wind, high pressure water jet, rain or dropping water!
• The appliance must not be used in the open air!
• The application of device is STRICTLY PROHIBITED in such rooms, which are used for sleep or continuous stay!
• Keep away the fl ammable materials from the appliance and its near environment as follows: fuels,thinner or other fl ammable
fl uids and vapours!
• In the interests of avoiding of dust explosion do not used the device in such rooms where the degree of dust concentration is
high if the device is installed without outside air supply!
• Before starting of appliance in every case check it in order to detect the possible damages! Never use damaged equipment!
• In case of Propan-gas operation never install the device in basement or from that lower being rooms! The propan-gas is heavier
specifi c gravity than the air for this reason in case of possible escaping it will spread towards the lower located rooms !
• Only use that kind of fl exible gas pipe and pressure regulator, which is off ered for the appliance by the manufacturer!
• Before every starting of heater appliance check the condition of connecting gas hose and if it is particularly worn or damaged in
that case exchange it for a new one specifi ed by manufacturer!
• Preserve the equipment in genuine condition, do not leave it to grow old!
• Do not use seriously aged equipment any longer!
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
• If the appliance is put out of use in every case it must be cut off the current and gas!
• Never block the air supply and exhaust pipes!
• Keep away the children and animals from the equipment!
• Never service/mend such devices, which are hot and during operation or electrical charged!
• Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
• Use exclusively genuine-approved by manufacturer-spare parts,do not install similar quality spare parts for substitution! These
kind of substitute parts can cause serious damages concerning the operation of appliance!
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
• If the appliance is put out of use in every case it must be cut off the current and gas!
• Never block the air supply and exhaust pipes!
• Keep away the children and animals from the equipment!
• Never service/mend such devices, which are hot and during operation or electrical charged!
• Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
• Use exclusively genuine-approved by manufacturer-spare parts,do not install similar quality spare parts for substitution! These
kind of substitute parts can cause serious damages concerning the operation of appliance!
The appliance is equipped with data board, which is placed on inside of device’s door. On this data board there are information concern-
ing the type of device, gas type, electrical connection and fl ue types.
1. picture: Data board
2. G I
D 
II2H3P
PAKOLE Trade Kft.
8000 Székesfehérvár,
Börgöndi út 8-10.
Pconnecting min.:
20 mbar
218,5 VA
Category:
Electrical power:
30 Pa
Stat. air pressure:
2520 m³/h
Manufacturer
Type
Nominal input:
21,2 kW
Naturalgas
Pconnecting max.:
51-10398-P001
Series number:
GB
Targeted country:
1008 17
Gas type:
Electrical protection:
Electrical connection:
Max.current entry:
IP20
AC 230V 50Hz
Date/place of production
2018.08.06.
60 mbar
Airflow:
Jet pressure:
7 mbar
GTV-E-20A-3P
NOx
4
PIN:
1008 CQ 2928

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
5
WARNING! Do not use the appliance in such place where corrosive materials can be in the air!
If the appliance has to be applied in this circumstances outside air has to be ensured for combustion
air and circulation as well („CL” type)!
The manufacturer can not assume responsibility for fault of equipment in case the installation is not happened according to the above.
This responsibility concerns completely the installer. In order to avoid such eventualities, if it is not certain to fi t to the building or activity,
ask our colleague for help
Both the owner and the installer have to identify every possible material, which can be present in the building (infl ammable materials,corrosive
materials, halo hydrocarbons etc.), and with knowledge of these materials must be planed the heater system!
Every appliance installation must be satisfi ed the valid laws and standards. These laws refer to the gas and electrical installation respec-
tively the ventilation (special specifi cations refer to park houses, airplane hangars etc).
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
HIGH
TEMPERATURE
CAUTION
!
DISCONNECT
POWER LINE
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
FORBIDDEN!
CAUTION
!
DANGER
!
Please observe the following rules during installation, fi rst set-up, usage or maintance:
ATTENTION
!
ONLY
QUALIFIED
PERSON
• Installation must be carried out always strictly complying with the current standards of the
country where the appliance is going to be used and following, of course, the instructions given by
the producer.
• The installation and maintenance operations of the unit can be carried out by qualifi ed and
trained personnel only.
Qualifi ed service engineers are those having specifi c technical experience and/or valid license in the fi eld of heating and cooling installa-
tion for home and industry. In any case, call the Manufacturer offi ce or the closest dealer (www.pakole.com) and ask for further informa-
tions.
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
ONLY
QUALIFIED
PERSON
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
• According to the installation project, install the electric power lines.
• Always make sure that the unit and all its electrical parts have been cor-
rectly earthed prior starting up the unit.
CAUTION
!
DANGER
!
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
• If you have to disassemble the unit, use special protective gloves.
• Beware of sharp edges inside the unit!
• Beware of roof corners of outdoor units!
• Keep suction grids always clear!
CAUTION
!
DANGER
!
CAUTION
!
DANGEROUS
OPERATION
ATTENTION
!
FORBIDDEN!
• Before cleaning or maintaining the unit, make sure that all electrical parts
have been switched off , the appliance gas supply chain is closed and wait
until the appliance cools down. In particular, make sure that the fan is off
and cannot be inadvertently started prior to opening inspection panels.
• Fans can reach a speed of 1000 rpm. Do not insert any object nor hands
in the electric fan.
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DISCONNECT
POWER LINE
• We recommend to install a safety switch which can be easily reached to
cut off the current, near the unit. Before any cleaning and servicing opera-
tion, cut off the power line to the unit.
• Before opening the unit, make sure that all electrical parts have been
switched off . In particular, make sure that the fan is off and cannot be inad-
vertently started prior to opening inspection panels.
CHECK THE EARTHING !!
CAUTION
!
DANGER
!
• This unit is designed to be used for heating purposes only. Any diff erent use is not allowed as it may be dangerous.
• Should the unit work in a house where disabled people and/or children live, it must be placed safely away from their
reach. Always make sure that the access door to the inside control board stay locked.
• An incorrect installation can cause damages to people, animals and property. In case of erroneous installation, the manu-
facturer cannot be held responsible for such damages.
• The manufacturer cannot be held responsible for such damages by improper uses, errate uses, etc.
C 
S  
S 
S 
ATTENTION
!
COMPULSORY:
EARTHING

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
6
ATTENTION
!
FORBIDDEN!
• Never use the unit to support other equipment.
• Never leave tools, spare parts, etc. inside the unit.
• Make sure that all inspection panels are closed properly.
• Do no expose the unit to infl ammable gases.
ATTENTION
!
ONLY
QUALIFIED
PERSON
• In case of breakdown or failure: turn unit off , do not try to repair it on your own, call operator.
• If you are going to leave the heater switched off for a long time, fi rst make sure that in no way this could cause
harm to anyone in any way.
• The delivery must be made according to the following:
→ The package must be carefully secured in the loading space.
→ The package must be transferred in a closed space (always keep packing parts away environmental impacts).
• The unit has a special safety packing for transport and delivery which must be kept in good conditions till the unit is positioned
on the installation place.
• Make sure that the unit has all its parts, as specifi ed in the order.
• Check if there are any damages and if the unit abbreviation is the same as the one of the ordered model.
• Every unit is factory tested before shipment, therefore, if there are damages, report them immediately to the carrier.
Transporting, unloading and moving is a process which must be made carefully to avoid any kind of damages. Try not to use the unit’s
components as hand holds. When lifting, bear in mind that the centre of gravity of the unit may be off -centre.
CAUTION
!
DANGER
!
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
FORBIDDEN!
ATTENTION
!
ONLY
QUALIFIED
PERSON
The device is placed in cardboard box, one-way pallets are delivered.
Unpacking process:
• remove the bands from packing of device, the carton box and the covering foil. Screw off the 4 pcs M8x45 fi xing bolts on back
side of pallet hereby the device can be removed from pallet.
• do not remove the protection caps from device and gas installing set until the gas attachment
• investigate the device if it is not damaged during the transportation
• if it is damaged in that case notify the retailer from whom the device was bought!
There is an envelope inside the unit containing the Instructions for Installation and Servicing, User’s Guide use and Guarantee and ser-
vices and the warranty documents.
The appliance operates based on direct heater principle, that means the heater air is blowed into the heated room directly for assuring of
requested temperature. Besides HEATING (winter) mode the appliance can achieves the VENTILATION of room as well (summer mode).
Principle: The warm air blower appliance burns up the sucked mixture of combustion air and gas (S-,L-,Propan or natural gas), in this
way making the heater air,which is blowed into the heated room (by direct blowing or through air duct) in order to ensure the keeping of
temperature on requested value.
The heating and consumption values to be found as per appliance and gas types in the enclosure 1.b.
The supply of combustion air of appliance can be realized in two ways:
• directly from the heated place (A,C)
• from open air (CL), it can be used in case of such plants, which are working with dangers materials as follows: painting work-
shops and workshops,which are using explosive or corrosive materials etc…
The combustion products fl ow through the exchanger pipes towards the fl ue system while heat up it, parallel with this process the blower
fan circulates the sucked inside or outside air through the heat exchanger assuring the needed warm air for heating. (the heater air is
average 50°C)
The air supply of blower fan can be solved in two ways:
• by direct sucking in from the heated place (A, C, CL types),
• by sucked in from outside (CL type).
The made warm air can be passed into the heated place in two ways:
• by direct blowing in through the leading lamellas (A, C types),
• by blowing in and leading through air duct to the demanded places (in this case there are no lamellas on the device).Such as
the C and CL type of GTV-E.
The technical data of appliance can be found in the enclosure 1.
3. T, , 
4. O 

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
7
The GTV-E air heater operates with reduced NOx emissions in accordance with EU Regulation 2281/2016, which entered into force on
1 January 2018. Nitrogen oxide emissions from gas-fueled air-heaters under this Regulation shall not be higher than 100 mg / kWh. This
section of the regulation is compliant with the GTV-E type of GTV-E air heaters. The Declaration of Conformity can be downloaded from
our website (www.pakole.com) and found on the last pages of this Instructions for installation and servicing.
R NO
The technical solutions for the development of GTV-E with a reduced NOx emission air heater appliance:
- NOx reducer placed in a fl ue pipe
- pressure compensation plate placed in the fl ue gas chamber
- a blower fan with increased air fl ow
These supplements prevent the creation of favorable conditions for the formation of NOx which are the result of the formation of fl ame
and high fl ame temperatures and the long residence time of the molecules in the fl ame during combustion.
ATTENTION!
During regular maintenance, service technicians must check the status of the NOx reducers (physical
damage, dirt, lack of material, etc.) and must measure the value of carbon monoxide emissions. If this
value is above 200ppm, the replacement of the NOx reducer elements is compulsory !!!
The overal dimension of appliances are in enclosure 2.
Features:
• suction in of heater air is executed from the heated place, it can not be connected to air duct
• blowing in of warm air is executed directly through the air leading lamellas
Features:
• suction in of heater air is executed from the heated place,
• blowing in of warm air is executed directly through the air leading lamellas or through the attached air duct to the demanded
places
2. picture: Axial fan-type warm air blower
3. picture: Centrifugal fan-type with lamella execution
A 
A -  (GTV-E-…A)
C - (GTV-E-…C)

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
8
Features:
• suction in of heater air can be from inside or outside respectively in case of installed „winter-summer” mode relay the suction
in of mixed inside-outside air is executed through air duct
• blowing in of warm air is executed through the attached air duct system to the demanded places
4. picture: Centrifugal fan-type with air duct execution
C -  (GTV-E-…CL)
5. picture: Air duct execution at „CL” type
• SOLELY INTERIOR installa on is possible,
• for the sake of appropriate effi ciency the position and the high of installation has to be carefully defi ned,
• the mounting of appliance can be executed by cantilever respectively suspension
• the appliance has to be placed in that way that its every part be accessible.
5. I
A 

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
9
Recommended temperature regulators for appliances:
Please fi nd the description of termostats in supplied with these
6. picture: AHP-3, AHP-Mod type of termostat
O 
T 
L
N
AHP-2
AHP-1
V
1
WtSXV~KĘPV
V]DEHVHWpQ
1HPDNpV]OpNKH]
UHQGV]HUHVtWHWWKĘPV
V]DEHVHWpQ
V
2
7. picture: Electrical connection for 5- or 6-pole plug
The mains fuse should be inactive charasteristics-type and for defi nition of its value take the nominal current consumption - indicated
on the data board - of device respectively the quantity of devices moreover in case of bigger distances the length of mains wiring into
account.
The mains wire must be installed in the fi xed way.(The appliance can not be attached to the mains by plug !)
The proper installation of phase-null wires have to be thoroughly checked !
The appliance has I-class protection against electric shock for this reason it must be supplied with wired protection against electric
shock!
The appliance must be operated under dry circumstances.
At electrical installation of appliance the relevant MSZ 2364 standard must be considered.
For the sake of suitable detachability of appliance from the electrical supply, double-poles – phase / null switching off – detaching ma-
in-switch must be installed.
This main switch must be lockable-type in „OFF” position (e.g. by padlock).
In case of specifi cation of the main switch,the nominal current consumption of appliance moreover the instruction of 2014/35/EU must
be considered.
V
N
L
V
1
N
L
AHP-1
AHP-2
WtSXV~KĘP
V]DEHVHWpQ
1HPDNpV]OpNKH]
UHQGV]HUHVtWHWWKĘP
V]DEHVHWpQ
V
2
V
N
L
Fázis
9pGĘI|OG
'LyGD
1N4007
9H]pUOĘV]iO
1XOOD
-HOPDJ\DUi]DW
YH]pUHOWIi]LV
T   
T   
E  
AHP...
Legend
LPhase
Ground
NNull
Diode
VControl
Legend
LPhase
Ground
NNull
VControl
At other type ter-
mostat
AHP...
At other type
termostat
Control
phase

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
10
The appliance operates either using of inside air or outside air respectively inside-outside mixed air,which can be sucked in through of
located air duct system.
If the appliance uses indoor air than need replace the air by ventilation.
6. A 
V
This type of control is the so-called PILOT control, at which the communication between the programme clock and warm air blower is
solved by just one wire namely by „control cable”. The automatic burner control located in the appliance receives and processes the
transmitted control signals from the temperature regulator – transmitted by the mentioned control cable – and as a function of these
signals starts the requested programme.
R 
A      ECO DESIGN EU2016/426 3-,
: GTV-E-20...58 W

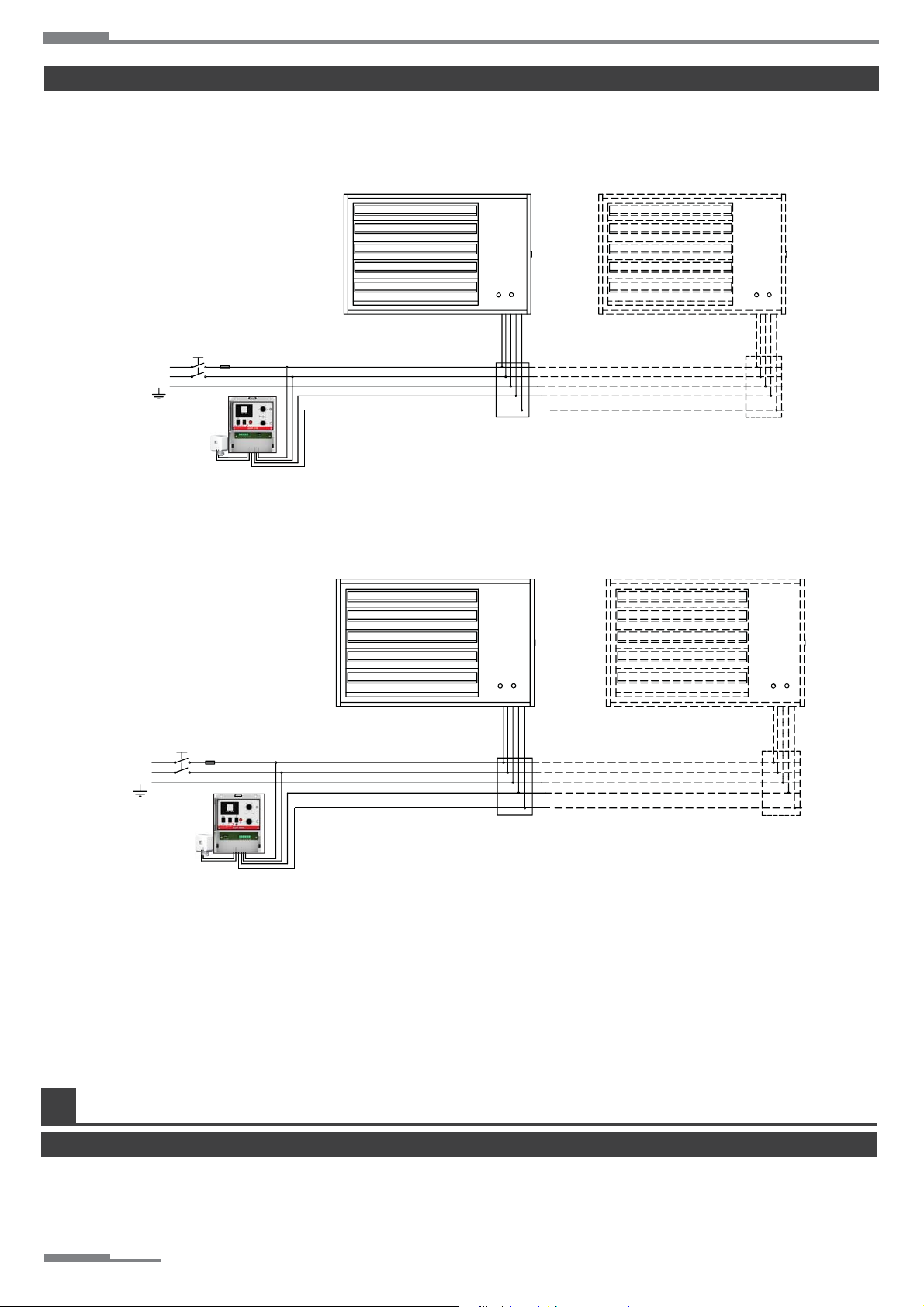

8. picture: Possible regulation mode controlled by AHP-3-type thermostat
9. picture: Possible regulation mode controlled by AHP-MOD-type thermostat
S1
L1
L
N
Air-heater
Two-pole isolating
switch
Fuse
termostat + sensor
L: phase
N:nul
L1: 50% (control) first stage
N1 :
S2 :100% second stage
S1
L1
L
N
Air-heater
Two-pole isolating
switch
Fuse
termostat + sensor
L: phase
N:nul
L1: 50% (control) first stage
N1 :
S2 :100% second stage

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
11
From fl ammable materials it is obligatory to keep SAFETY OF OPERATION and FIRE PREVENTION distances!
Minimal dimensions of protective distances:
10. picture: Protective distances
P 
The properly installed appliance according to the control sign received from temperature regulator - in the present case heating – starts
the exhaust fan,which executes the 30 seconds prepurge time. This time period is also enough for biggest power appliance to ensure
the satisfactory air exchange namely the triple of combustion air volume. When the ventilation happened the sparking is started and the
dual magnetic valves are opened the gas ignites.
If the continuous burning is formed within 5-10 seconds the appliance is operating normally the green control lamp is lighting..During
operation the appliance continuously monitors the status/sign of diff erential pressure switch and fl ame detector, if needed the electronic
control intervenes in the process.
If the status of diff erential air pressure switch is changed during operation namely switches over from work/switched on position to ba-
sic/standstill position in that case the automatic electronic control stops the gas supply by closing of magnetic valves and controls the
appliance in error mode moreover the red control lamp located on front side of device is lighting.
In case the fl ame detector of automatic burner control does not sense fl ame formation during ignition in that case stops the gas supply
and controls the appliance in error mode moreover the red control lamp is lighting.
In case during burning process the pressure diff erence decreases under the permissible minimal value on the air pressure switch than
the automatic control prohibits the operation as follows:
• stops the gas supply
• stops the operation of exhaust fan
• controls the appliance in error mode and red control lamp is lighting
ATTENTION! The restart of appliance, which is in safety status can only be possible by
pushing of „RESET” push button located on the PCB (inside of appliance) or on the tem-
perature regulator!
General information: The fl ame detector is self-checking and can just operate with the burner, other environmental eff ects (ambient
temperature,lights) can not infl uence it.
9. A 
S, 

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
12

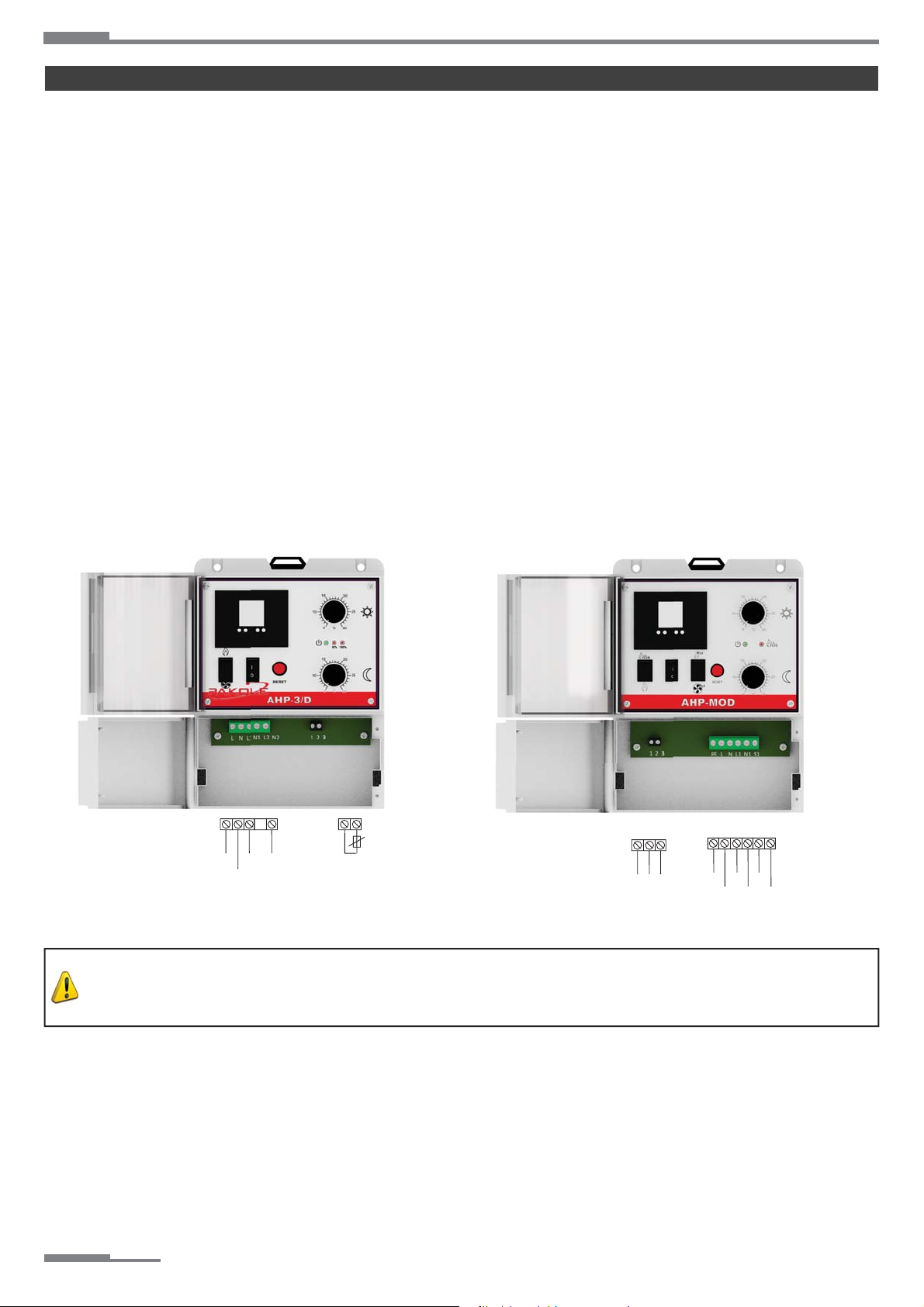

11.picture: AHP-3 and AHP-MOD temperature regulator
L
N
L1 L2
E
12
1G 2 PE
L
N
L1
N1
S1
AHP-MOD:
Controller has HEATING / 0 / VENTILATION switch, „RESET” button, MODULATION/100% switch and has PROGRAM HOURS. Set
day and night temperature by two calibrated rotary knobs. The programmable thermostat turn on device depending on the time of day if
required by the room temperature.
Set control device: turn on the device by switch 0/1 (green LED lights up) Turn on HEATING by HEATING / VENTILATION mode
switch.
Setting mode: In heating mode set the knob to 30°C then the device working at 100%. Set the solenoid valve at maximum upper pres-
sure. Turn back the knob until red LED fl ashes. Check out the output voltage S1 and L1 between 110V and 115 V. Set the solenoid
valve at minimum pressure. After that set the room temperature value.
ATTENTION! The GTV-E warm air blowers can be operated by AHP-3 and AHP-MOD-type
temperature regulator, which may be purchased at appliance manufacturer . In case of
using different temperature regulator, please contact with the manufacturer in interest
of proper installation!
The control of appliance is performed by temperature regulator(room thermostat). It can be manually operated or equipped with prog-
ramme-clock according to the request.
AHP-3:
The appliance is controlled by a HEATING/0/COOLING selector and RESET button. It has a time switch. Use the two rotatable knob to
set the temperature. Thermostat can TURN ON and TURN OFF the appliance, it depends on the room temperature. You have a chance
daily and weekly programming with time switch.
Thermostat and appliance: Appliance is under voltage with selector. In this case the green lamp is lighting and you can chose from he-
ating or cooling mode.
Operation:
In heating mode, use the knob to set the maximal pressure (2 red lamp is lighting) and after turn the button back (50 % LED is lighting)
to set the minimal pressure. Next step to set required temperature with the knob.
C    

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
13
The GTV-E-type warm air blowers apart from the checking of suspension and cleaning of cover, lamellas and circulating fan do not
need extra maintenances but to be able to preserve the long lifetime of appliance it is recommended to have yearly supervision done
with a qualifi ed service or expert.
Maintenance supervisions by the customer: (recommended half a yearly)
• supervision of circulating fan, if needed clean it (by high pressure air),
• supervision of outblowing apertures (lamellas)
• supervision of suspension points/surfaces by survey
WARNING! Before every maintenance the appliance must be detached from the electrical supply
by switching off the main-switch and disconnecting the connection plug located on the back side
of appliance!
ATTENTION! In case operational circumstances of appliance (atmosphere is contaminated with cor-
rosive substances,dirt) need it, then supervision and cleaning may have done more often! The main
reason of this that dirt placed on the fan may damage efficiency of appliance!
M 
10.
M
M
M       
(          ):
• supervision of nozzle pressure (at the outlet of solenoid valve),
• check of the condition of pressure regulator
• check of the protective ground
• check of the electrical connection
• check of the exhaust fan and circulating fan: check the free rotation of fan and remove the possible contaminations from
the impellers
• supervision of the heat exchanger
• supervision of working of the temperature controller
• check of the ignition and ionization electrode, if necessary change it
• check of the exhaust fan and circulating fan, if necessary clean those
• supervision of the quality of combustion
• dismounting and clean of the gas fi lter by high pressure air
ATTENTION! After every maintenance the appliance must be again adjusted !
Constructional components,which ensure the suitable operation:
• double-closed solenoid valve
• automatic burner control
• electrical board (sign processing)
• diff erential pressure switch
• exhaust fan
• combined thermostat (bimetal),
• heat-limiter thermostat (100oc),
• circulating fan
WARNING! Never block the outflow of fume and inflow of combustion air!
Never change the original adjustments what the expert made!
Never allow that water or water –vapour can be got on the appliance!
Apart from cleaning of exhaust fan and circulating fan the a.m. components do not need maintenance! The cleaning of fans is expe-
dient to carry out by high pressure air.

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
14
ATTENTION! In case you would like to operate your appliance by another type of gas(e.g. by Natural
gas instead of Propane gas), then contact the local authorized representative or a qualified service
department!
G 
ATTENTION! This action can only be realized by qualified expert or service!
ATTENTION! If the heater appliance is working, than it is prohibited to close the shutters completely!
There are installed mode indicator lamps on the front side of appliance:
• GREEN: operation indicator lamp
• RED: error indicator lamp
11.
T
T

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
15
12. E
E 1 / A . : A  
T GTV-E-20A GTV-E-27A GTV-E-33A GTV-E-40A GTV-E-48A GTV-E-58A
I (NCV) W 21/16,6 25,8/20,4 34,1/26,9 39,6/31,3 48,8/38,6 58,6/46,3
O  (NCV) W 19,4/15,2 23,9/18,7 31,5/24,6 36,7/28,7 45,1/35,3 54,2/42,3
E [3 /M] %72,6/73,1 72,8/73,3 72,2/72,6 72,3/72,7 72,2/72,7 72,1/72,9
A  3/ 2520 3110 3720 4490 5480 6410
Q    111111
D    ΔT [/] °C 24,1 24,9 24,5 24,7 25,2 25
A  12 16 18 20 22 25
E  /     Ø100/Ø100
G  G1/2” ISO 228 OD
E  230V / 50H
N   (/AVERAGE)A0,9 0,9 1,77 1,77 1,9 1,9
E  W 0,21 0,21 0,41 0,41 0,44 0,44
N  B(A) 53 53 55 55 55 57
W  64 86 95
IP    IP21
M GTV-E-68A GTV-E-87A GTV-E-107A
I (NCV) W 68,3/54 86,8/68,6 108,1/46,3
O  (NCV) W 63,4/49,5 80,4/62,9 99,8/77,9
E [3 ,M] % 92,82/91,6 92,65/91,7 92,3/91,2
A  3/ 7780 8450 11200
Q    1 1 1
D    ΔT °C 24,6 25 24,9
A   33 35 37
E  /     Ø100/Ø150
G  G3/4” ISO 228 OD
E  230V / 50H
N   A 4,15 4,15 4,25
E  W 0,95 0,95 0,98
N  B(A) 67 69 72
W  148 167 198
IP    IP21

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
16
E 1 / B : G 
T GTV-E-20C,CL GTV-E-27C,CL GTV-E-33C,CL GTV-E-40C,CL GTV-E-48C,CL GTV-E-58C,CL
I (NCV)
W 21/16,6 25,8/20,4 34,1/26,9 39,6/31,3 48,8/38,6 58,6/46,3
O  (NCV)
W 19,4/15,2 23,9/18,7 31,5/24,6 36,7/28,7 45,1/35,3 54,2/42,3
E [3 /M]
%72,6/73,1 72,8/73,3 72,2/72,6 72,3/72,7 72,2/72,7 72,1/72,9
A 
3/ 2520 3110 3720 4490 5480 6410
Q  
 111111
D    ΔT [/]
°C 24,1 24,9 24,5 24,7 25,2 25
A 
12 16 18 20 22 25
E  /   
 Ø100/Ø100
G  G1/2” ISO 228 OD
E  230V / 50H
N   (/AVERAGE)
A7,9/4,1 7,9/4,1 8,3/5 8,3/5 9,2/6 9,2/6
E 
W943 943 1150 1150 1380 1380
N 
B(A) 56 58 56 58 58 58
W
C 70 93 121
IP   
CL  75 98 126
IP21
T
Input Output Gas consumption
3 , L 3 , L 3 , L 3 , L
[W] [W] N [3/] PA[/]
GTV-E-20 21/16,6 19,4/15,2 2,22/1,76 1,73/1,37
GTV-E-27 25,8/20,4 23,9/18,7 2,73/2,16 2,13/1,68
GTV-E-33 34,1/26,9 31,5/24,6 3,61/2,85 2,81/2,22
GTV-E-40 39,6/31,3 36,7/28,7 4,19/3,32 3,27/2,58
GTV-E48 48,8/38,6 45,1/35,3 5,17/4,09 4,03/3,18
GTV-E-58 58,6/46,3 54,2/42,3 6,21/4,9 4,83/3,82
GTV-E-68 68,3/54 63,4/49,5 7,24/5,72 5,63/4,46
GTV-E-87 86,8/68,6 80,4/62,9 9,19/7,27 7,16/5,66
GTV-E-107 108,1/46,3 99,8/77,9 11,45/9,05 8,92/7,05

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
17
E 2.:    
GTV-E-…A  - 20…58 W
GTV-E-…C  - 20…58 W
Type A a b M e
GTV-E -20A 470 370 625 700 135
GTV-E -27A 470 370 625 700 135
GTV-E -33A 610 510 625 805 187
GTV-E-40A 610 510 625 805 187
GTV-E-48A 750 650 625 805 252
GTV-E-58A 750 650 625 805 252
Type A a b M e
GTV-E-20C 470 370 625 990 135
GTV-E-27C 470 370 625 990 135
GTV-E-33C 610 510 625 1040 187
GTV-E-40C 610 510 625 1040 187
GTV-E-48C 750 650 625 1110 252
GTV-E-58C 750 650 625 1110 252
GTV-…A  - 68…107 W
200
200
Type A a b M e
GTV-E-68A 810 700 840 970 238
GTV-E-87A 960 850 840 970 318
GTV-E-107A 1110 1000 860 990 412

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
18
GTV-E-…CL  - 20…58 W
Type A a b c d M D e
GTV-E-20CL 470 350 600 350 500 1050 50 135
GTV-E-27CL 470 350 600 350 500 1050 50 135
GTV-E-33CL 610 500 600 400 550 1100 50 187
GTV-E-40CL 610 500 600 400 550 1100 50 187
GTV-E-48CL 750 650 600 450 600 1150 50 252
GTV-E-58CL 750 650 600 450 600 1150 50 252

GTV-E AIR HEATERS BURNING GASEOUS FUELS U’ M
19
ATTENTION! The joint of pipes must be sealed and fixed! Not allowed longer flue system as the above
chart shows!
• See the following:
• the pressure drop of 1m inox Ø100mm pipe is 2Pa
• elbow 90° is equal about 1m-length pipe (2-3Pa)
Supplement: The fresh air supply and venting set can contain an elbow 90°. In case of use more elbows, you need to reduce the length
of fresh air supply and venting set, as follow:
It is allowed to use longer fresh air supply and venting set with isolation and condensate outlet. In
this case, contact the manufacturer!
E 3.: F ,   
E 4.:T / 
Exhoust type Appliance
category
Gas pressure
of connection (mbar) Target countries
B22, C12, C32, C52
i2H 20 DK, EE, FI, LT, LV, NO, SE
i2E 20 LU, DE
i3P
37 BE, FR
50 CY, DE
i2H3P
20, 28-30 BA, BG, MD, RO,
RU, SK, UA, HR, RS
20, 37 CH, ES, GB, IE, PT, SI
20, 28-30, 37 CZ, GR, IT
20, 50 AT, TR
i2E3P 20, 37 PL
i2HS3P 25, 28-30, 50 HU
The appliances were tested together with the fl ue system, recommended by the manufacturer.
The applied fl ue system parts: LIM-MONT ECO DIM, DW,
LIM-MONT ECO DIM DE.
Type GTV-E-20A,
C, CL
GTV-E-27A,
C, CL
GTV-E-33A,
C, CL
GTV-E-40A,
C, CL
GTV-E-48A,
C, CL
GTV-E-58A,
C, CL
Ven ng set
type Maximal lenght of venting set Ø 100 mm [m]
B22 346688
C12 346688
C32 346688
C52 346688
Ven ng set
type Maximal pressure drop of ven ng set Ø 100 mm [Pa]
B22 6 8 12 12 16 16
C12 6 8 12 12 16 16
C32 6 8 12 12 16 16
C52 6 8 12 12 16 16
Type GTV-E-68A GTV-E-87A GTV-E-107A
Ven ng set
type Maximal lenght of venting set Ø 100 mm [m]
B22 12 16 20
C12 12 16 20
C52 12 16 20
Ven ng set
type
Maximal pressure drop of ven ng set Ø 100 mm
[Pa]
B22 24 32 40
C12 24 32 40
C52 24 32 40

ECO-D M 
Model: GTV-E-20A / C / CL-3P 3-point controlled gas-fired forced convecon air heater with axial fan
B1 Warm air heater: No
C2 Warm air heater: No
C4 Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful efficiency
Rated
heang capacity Prated,h 19,4 kW Useful efficiency at rated heang capacity nom 83,45 %
Minimum
capacity Pmin 15,2 kW Useful efficiency at minimum capacity pl 82,73 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW Emissions of nitrogen oxides NOx 93 mg/kWh input
energy (GCV)
Regulaon (EU) 2016/2281
Emission efficiency s,flow 93,28 %
Seasonal space heang energy
efficiency s,h 72,7 %
Model: GTV-E-20A / C / CL-MOD Modulated Indirect gas-fired forced convecon air heater with axial fan
B1 Warm air heater: No
C2 Warm air heater: No
C4 Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful efficiency
Rated
heang capacity Prated,h 19,4 kW Useful efficiency at rated heang capacity nom 83,45 %
Minimum
capacity Pmin 15,2 kW Useful efficiency at minimum capacity pl 82,73 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW Emissions of nitrogen oxides NOx 93 mg/kWh input
energy (GCV)
Regulaon (EU) 2016/2281
Emission efficiency s,flow 93,28 %
Seasonal space heang energy
efficiency s,h 73,1 %
Contact
details PAKOLE Trade K. H-8000, Székesfehérvár, Börgöndi út, 8-10
