PaloAlto Networks PA-220R Application guide

PA-220R Next-Gen Firewall Hardware
Reference
paloaltonetworks.com/documentation

2 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE |
Contact Information
Corporate Headquarters:
Palo Alto Networks
3000 Tannery Way
Santa Clara, CA 95054
www.paloaltonetworks.com/company/contact-support
About the Documentation
• For the most recent version of this guide or for access to related documentation, visit the Technical
Documentation portal www.paloaltonetworks.com/documentation.
• To search for a specific topic, go to our search page www.paloaltonetworks.com/documentation/
document-search.html.
• Have feedback or questions for us? Leave a comment on any page in the portal, or write to us at
[email protected].
Copyright
Palo Alto Networks, Inc.
www.paloaltonetworks.com
© 2018-2018 Palo Alto Networks, Inc. Palo Alto Networks is a registered trademark of Palo
Alto Networks. A list of our trademarks can be found at www.paloaltonetworks.com/company/
trademarks.html. All other marks mentioned herein may be trademarks of their respective companies.
Last Revised
July 30, 2018

TABLE OF CONTENTS iii
Table of Contents
Before You Begin................................................................................................5
Tamper Proof Statement...........................................................................................................................7
Third-Party Component Support.............................................................................................................8
Product Safety Warnings.......................................................................................................................... 9
PA-220R Firewall Overview...........................................................................13
PA-220R Front Panel...............................................................................................................................15
PA-220R Back Panel................................................................................................................................ 17
PA-220R Status LEDs.............................................................................................................................. 18
Install the PA-220R Firewall.......................................................................... 19
Install the PA-220R Firewall on a Flat Surface................................................................................. 21
Install the PA-220R Firewall on a DIN Rail........................................................................................22
Install the PA-220R Firewall on a Wall...............................................................................................23
Install the PA-220R Firewall in a 19-inch Equipment Rack............................................................25
Connect Power to a PA-220R Firewall....................................................... 27
Prepare to Connect DC Power to a PA-220R Firewall................................................................... 29
Connect DC Power to a PA-220R Firewall........................................................................................30
PA-220R Firewall Specifications...................................................................33
PA-220R Physical Specifications...........................................................................................................35
PA-220R Electrical Specifications.........................................................................................................36
PA-220R Environmental Specifications...............................................................................................37
PA-220R Miscellaneous Specifications............................................................................................... 38
PA-220R Firewall Hardware Compliance Statements Overview.......... 39
PA-220R Firewall Hardware Compliance Statements..................................................................... 41

iv TABLE OF CONTENTS

5
Before You Begin
Read the following topics before you install or service a Palo Alto Networks® next-generation
firewall or appliance. The following topics apply to all Palo Alto Networks firewalls and
appliances except where noted.
> Tamper Proof Statement
> Third-Party Component Support
> Product Safety Warnings

6 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin
© 2018 Palo Alto Networks, Inc.

PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin 7
© 2018 Palo Alto Networks, Inc.
Tamper Proof Statement
To ensure that products purchased from Palo Alto Networks were not tampered with during shipping, verify
the following upon receipt of each product:
• The tracking number provided to you electronically when ordering the product matches the tracking
number that is physically labeled on the box or crate.
• The integrity of the tamper-proof tape used to seal the box or crate is not compromised.
• The integrity of the warranty label on the firewall or appliance is not compromised.
(PA-7000 Series firewalls only) PA-7000 Series firewalls are modular systems and therefore
do not include a warranty label on the firewall.

8 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin
© 2018 Palo Alto Networks, Inc.
Third-Party Component Support
Before you consider installing third-party hardware, read the Palo Alto Networks Third-Party Component
Support statement.

PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin 9
© 2018 Palo Alto Networks, Inc.
Product Safety Warnings
To avoid personal injury or death for yourself and others and to avoid damage to your Palo Alto Networks
hardware, be sure you understand and prepare for the following warnings before you install or service the
hardware. You will also see warning messages throughout the hardware reference where potential hazards
exist.
All Palo Alto Networks products with laser-based optical interfaces comply with 21 CFR
1040.10 and 1040.11.
The following safety warnings apply to all Palo Alto Networks firewalls and appliances, unless a specific
hardware model is specified.
• When installing or servicing a Palo Alto Networks firewall or appliance hardware component that has
exposed circuits, ensure that you wear an electrostatic discharge (ESD) strap. Before handling the
component, make sure the metal contact on the wrist strap is touching your skin and that the other end
of the strap is connected to earth ground.
French Translation: Lorsque vous installez ou que vous intervenez sur un composant matériel de
pare-feu ou de dispositif Palo Alto Networks qui présente des circuits exposés, veillez à porter un
bracelet antistatique. Avant de manipuler le composant, vérifiez que le contact métallique du bracelet
antistatique est en contact avec votre peau et que l’autre extrémité du bracelet est raccordée à la terre.
• Use grounded and shielded Ethernet cables to ensure agency compliance with electromagnetic
compliance (EMC) regulations.
French Translation: D es câbles Ethernet blindés reliés à la terre doivent être utilisés pour garantir la
conformité de l'organisme aux émissions électromagnétiques (CEM).
• (PA-220 firewalls only) The PA-220 firewall meets the requirements of IEC 61000-4-5 surge immunity
test. To prevent damage from electrical surges on Ethernet ports, we recommend that you use an
Ethernet surge protection device with the following specifications:
• Rated for Gigabit Ethernet up to category 5E and minimum 1Gbps.
• Protection provided on all eight signal leads.
• Both line-to-line and line-to-ground/shield are provided.
• Protection device must be connected to earth ground and use shielded category 5E or higher
Ethernet cable.
Technical Specifications:
• Protective circuit complies with IEC test classifications B2, C1, C2, C3, and D1.
• Normal discharge current (core to earth ground) is 2kA per signal pair.
• Normal discharge current (core to core) is 100A.
• Total discharge current is 10kA.
•French Translation: (PA-220 uniquement) Les pare-feux PA-220 sont conformes aux exigences du test
d’immunité aux surtensions IEC 61000-4-5. Pour éviter les dommages résultant de surtension électrique
sur les ports Ethernet, il est recommandé d’utiliser un dispositif de protection contre les surtensions aux
caractéristiques suivantes:
• Gigabit Ethernet jusqu’à la catégorie 5E, débit 1 Go/s minimum.
• Protection sur les huit câbles signal.
• Le blindage et la mise à la terre “ligne à ligne” et “ligne à la terre” sont fournis.
• Le dispositif de protection doit être raccordé à la terre et un câble Ethernet blindé de catégorie 5E ou
supérieure doit être utilisé.
Caractéristiques techniques:

10 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin
© 2018 Palo Alto Networks, Inc.
• Le circuit de protection est conforme aux classifications de test IEC B2, C1, C2, C3, et D1.
• Le courant de décharge normal (cœur vers terre) est de 2kA par paire de signal.
• Le courant de décharge normal (cœur vers cœur) est de 100 A.
• Le courant de décharge total est de 10kA.
• Do not connect a supply voltage that exceeds the input range of the firewall or appliance. For details
on the electrical range, refer to electrical specifications in the hardware reference for your firewall or
appliance.
French Translation: Veillez à ce que la tension d’alimentation ne dépasse pas la plage d’entrée du
pare-feu ou du dispositif. Pour plus d’informations sur la mesure électrique, consulter la rubrique des
caractéristiques électriques dans la documentation de votre matériel de pare-feu ou votre dispositif.
• Do not replace a battery with an incorrect battery type; doing so can cause the replacement battery to
explode. Dispose of used batteries according to local regulations.
French Translation: Ne remplacez pas la batterie par une batterie de type non adapté, cette dernière
risquerait d’exploser. Mettez au rebut les batteries usagées conformément aux instructions.
• (All firewalls with two or more power supplies) Disconnect all power cords (AC or DC) from the power
inputs to fully de-energize the hardware.
French Translation: (Tous les pare-feux avec au moins deux sources d’alimentation) Débranchez tous les
cordons d’alimentation (c.a. ou c.c.) des entrées d’alimentation et mettez le matériel hors tension.
• (PA-7000 Series firewalls only) When removing a fan tray from a PA-7000 Series firewall, first pull the
fan tray out about 1 inch (2.5cm) and then wait a minimum of 10 seconds before extracting the entire
fan tray. This allows the fans to stop spinning and helps you avoid serious injury when removing the
fan tray. You can replace a fan tray while the firewall is powered on but you must replace it within 45
seconds and you can only replace one fan tray at a time to prevent the thermal protection circuit from
shutting down the firewall.
French Translation: (Pare-feu PA-7000 uniquement) Lors du retrait d’un tiroir de ventilation d’un pare-
feu PA-7000, retirez tout d’abord le tiroir sur 2,5 cm, puis patientez au moins 10 secondes avant de
retirer complètement le tiroir de ventilation. Cela permet aux ventilateurs d’arrêter de tourner et permet
d’éviter des blessures graves lors du retrait du tiroir. Vous pouvez remplacer un tiroir de ventilation
lors de la mise sous tension du pare-feu. Toutefois, vous devez le faire dans les 45 secondes et vous ne
pouvez remplacer qu’un tiroir à la fois, sinon le circuit de protection thermique arrêtera le pare-feu.
• (All firewalls with two or more power supplies) Disconnect all power cords (AC or DC) from the power
inputs to fully de-energize the hardware.
French Translation: (Tous les pare-feux avec au moins deux sources d’alimentation) Débranchez tous les
cordons d’alimentation (c.a. ou c.c.) des entrées d’alimentation et mettez le matériel hors tension.
The following applies only to Palo Alto Networks firewalls that support a direct current (DC) power source:
French Translation: Les instructions suivantes s’appliquent uniquement aux pare-feux de Palo Alto
Networks prenant en charge une source d’alimentation en courant continu (c.c.):
• Do not connect or disconnect energized DC wires to the power supply.
French Translation: Ne raccordez ni débranchez de câbles c.c. sous tension à la source d’alimentation.
• The DC system must be earthed at a single (central) location.
French Translation: Le système c.c. doit être mis à la terre à un seul emplacement (central).
• The DC supply source must be located within the same premises as the firewall.
French Translation: La source d’alimentation c.c. doit se trouver dans les mêmes locaux que ce pare-feu.
• The DC battery return wiring on the firewall must be connected as an isolated DC (DC-I) return.
French Translation: Le câblage de retour de batterie c.c. sur le pare-feu doit être raccordé en tant que
retour c.c. isolé (CC-I).

PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin 11
© 2018 Palo Alto Networks, Inc.
• The firewall must be connected either directly to the DC supply system earthing electrode conductor
or to a bonding jumper from an earthing terminal bar or bus to which the DC supply system earthing
electrode conductor is connected.
French Translation: Ce pare-feu doit être branché directement sur le conducteur à électrode de mise à
la terre du système d’alimentation c.c. ou sur le connecteur d'une barrette/d'un bus à bornes de mise à la
terre auquel le conducteur à électrode de mise à la terre du système d'alimentation c.c. est raccordé.
• The firewall must be in the same immediate area (such as adjacent cabinets) as any other equipment that
has a connection between the earthing conductor of the DC supply circuit and the earthing of the DC
system.
French Translation: Le pare-feu doit se trouver dans la même zone immédiate (des armoires adjacentes
par exemple) que tout autre équipement doté d’un raccordement entre le conducteur de mise à la terre
du même circuit d’alimentation c.c. et la mise à la terre du système c.c.
• Do not disconnect the firewall in the earthed circuit conductor between the DC source and the point of
connection of the earthing electrode conductor.
French Translation: Ne débranchez pas le pare-feu du conducteur du circuit de mise à la terre entre la
source d'alimentation c.c. et le point de raccordement du conducteur à électrode de mise à la terre.
• Install all firewalls that use DC power in restricted access areas only. A restricted access area is where
access is granted only to craft (service) personnel using a special tool, lock and key, or other means of
security, and that is controlled by the authority responsible for the location.
French Translation: Tous les pare-feux utilisant une alimentation c.c. sont conçus pour être installés
dans des zones à accès limité uniquement. Une zone à accès limité correspond à une zone dans laquelle
l’accès n’est autorisé au personnel (de service) qu'à l'aide d'un outil spécial, cadenas ou clé, ou autre
dispositif de sécurité, et qui est contrôlée par l'autorité responsable du site.
• Install the firewall DC ground cable only as described in the power connection procedure for the firewall
that you are installing. You must use the American wire gauge (AWG) cable specified and torque all nuts
to the torque value specified in the installation procedure for your firewall.
French Translation: Installez le câble de mise à la terre c.c. du pare-feu comme indiqué dans la procédure
de raccordement à l’alimentation pour le pare-feu que vous installez. Utilisez le câble American wire
gauge (AWG) indiqué et serrez les écrous au couple indiqué dans la procédure d’installation de votre
pare-feu pare-feu.
• The firewall permits the connection of the earthed conductor of the DC supply circuit to the earthing
conductor at the equipment as described in the installation procedure for your firewall.
French Translation: Ce pare-feu permet de raccorder le conducteur de mise à la terre du circuit
d’alimentation c.c. au conducteur de mise à la terre de l’équipement comme indiqué dans la procédure
d’installation du pare-feu.
• A suitably-rated DC mains disconnect device must be provided as part of the building installation.
French Translation: Un interrupteur d'isolement suffisant doit être fourni pendant l'installation du
bâtiment.

12 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Before You Begin

13
PA-220R Firewall Overview
The Palo Alto Networks® PA-220R next-generation firewall is a rugged-design firewall built
for uncontrolled environments with varying temperature and humidity levels. This firewall
includes the following main features: active/passive and active/active high availability (HA),
passive cooling (no fans) to reduce noise and power consumption, RJ-45 ports with built-in
surge protection, and dual 12-24VDC power inputs for power redundancy.
First Supported Software Release: PAN-OS® 8.1
The following topics describe the hardware features and the status LEDs of the PA-220R
firewall. To view or compare performance and capacity information, refer to the Product
Selection tool.
> PA-220R Front Panel
> PA-220R Back Panel
> PA-220R Status LEDs

14 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | PA-220R Firewall Overview
© 2018 Palo Alto Networks, Inc.

PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | PA-220R Firewall Overview 15
© 2018 Palo Alto Networks, Inc.

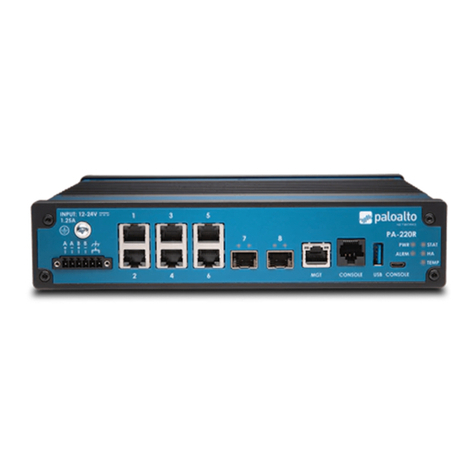

PA-220R Front Panel
The following image shows the front panel of the PA-220R firewall and the table describes each front-panel
component.
Item Component Description
1 Screw-on ground point Use this ground point to connect the firewall to earth
ground (ground cable not included).
2 DC power and ground inputs Use the DC input terminal block to connect DC power
to the firewall. The terminal block is included in the
accessories kit and is labeled A+, A-, B+, and B-.
The two inputs to the right of the four DC power inputs
are ground inputs (use only one) that you can use in
place of the screw-on ground point on the firewall (see
Connect Power to a PA-220R Firewall).
3 Ethernet ports 1 through 6 Six RJ-45 10Mbps/100Mbps/1000Mbps ports for
network traffic. You can set the link speed and duplex
or choose auto-negotiate for each port. These ports also
have built-in surge protection.
4 SFP ports 7 and 8 Two SFP (1Gbps) ports for network traffic.
These ports also support 100Base-FX.
5 MGT port Use this Ethernet 10Mbps/100Mbps/1000Mbps port
to access the management web interface and perform
administrative tasks. The firewall also uses this port for
management services, such as retrieving licenses and
updating the threat and application signatures.
6 CONSOLE port (RJ-45) Use this port to connect a management computer to the
firewall using a 9-pin serial-to-RJ-45 cable and terminal
emulation software.
The console connection provides access to firewall boot
messages, the Maintenance Recovery Tool (MRT), and
the command line interface (CLI).
If your management computer does not
have a serial port, use a USB-to-serial
converter.

16 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | PA-220R Firewall Overview
© 2018 Palo Alto Networks, Inc.
Item Component Description
Use the following settings to configure your terminal
emulation software to connect to the console port:
• Data rate: 9600
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None
7 USB A USB port that accepts a USB flash drive with a
bootstrap bundle (PAN-OS configuration).
Bootstrapping speeds up the process of configuring
and licensing the firewall to make it operational on the
network with or without internet access.
8 CONSOLE port (Micro USB) Use this port to connect a management computer to
the firewall using a standard Type-A USB-to-micro USB
cable.
The console connection provides access to firewall boot
messages, the Maintenance Recovery Tool (MRT), and
the command line interface (CLI).
Refer to the Micro USB Console Port page for more
information and to download the Windows driver or to
learn how to connect from a Mac computer.
9 LED status indicators Five LEDs that indicate the status of the firewall
hardware components (see PA-220R Status LEDs).

PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | PA-220R Firewall Overview 17
© 2018 Palo Alto Networks, Inc.

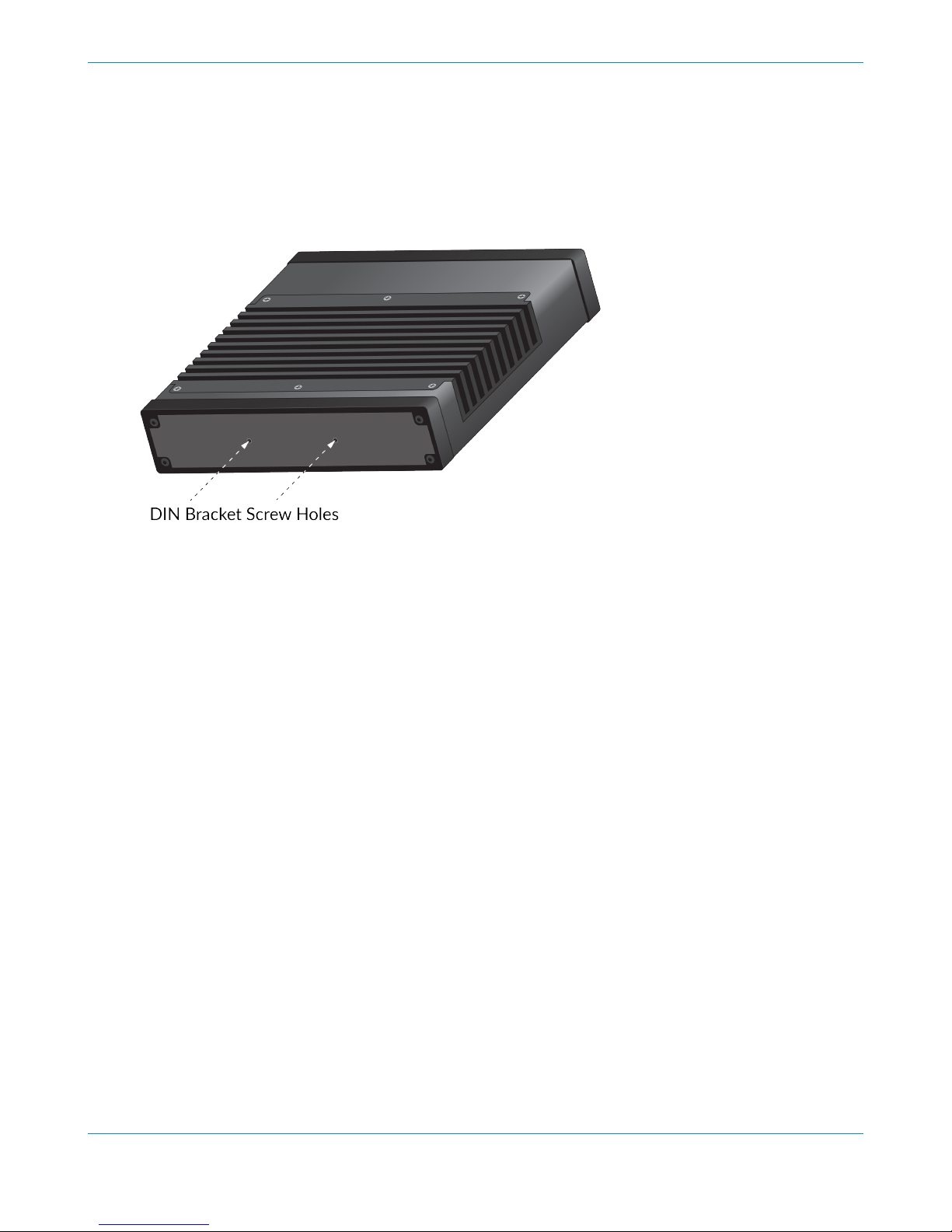

PA-220R Back Panel
The following image shows the back panel of the PA-220R firewall. The only usable components on the
back panel are the two screw holes used to Install the PA-220R Firewall on a DIN Rail. There are also two
DIN-bracket screw holes (not shown) on the bottom of the firewall.

18 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | PA-220R Firewall Overview
PA-220R Status LEDs
The following table describes how to interpret the status LEDs on the PA-220R firewall.
LED Description
PWR (Power) • Green—The firewall is powered on.
•Off—The firewall is not powered on or an error
occurred with the internal power system (for
example, power is not within tolerance levels).
ALRM (Alarm) • Red—A hardware failure, such as a power
supply failure, a firewall failure that caused an
HA failover, a drive failure, or if the hardware
overheated and exceeded the high temperature
threshold.
•Off—The firewall is operating normally.
STAT (Status) • Green—The firewall is operating normally.
•Yellow—The firewall is booting.
HA (High Availability) • Green—The firewall is the active peer in an
active/passive configuration.
•Yellow—The firewall is the passive peer in an
active/passive configuration.
•Off—HA is not operational on this firewall.
In an active/active configuration,
the HA LED indicates HA status for
only the local firewall and has two
possible states; it does not indicate
HA connectivity of the peer. Green
indicates that the firewall is either
active-primary or active-secondary
and off indicates that the firewall
is in any other state (for example,
non-functional or suspended).
TEMP (Temperature) • Green—The firewall temperature is normal.
•Yellow—The firewall temperature is outside
tolerance levels.
Ethernet
port LEDs
•Left LED—Solid green indicates a network link.
•Right LED—Blinking green indicates network
activity.
SFP LEDs These ports have one green LED:
• Solid green indicates a network link.
• Blinking green indicates network activity.

19

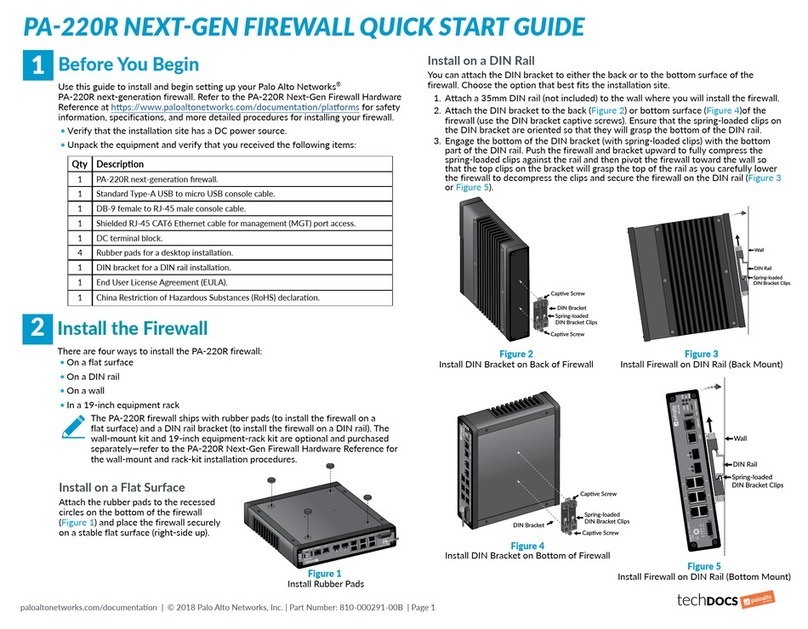

Install the PA-220R Firewall
The PA-220R next-generation firewall ships with the hardware required to install the firewall
on a flat surface or on a DIN rail. You can also order a wall-mount kit to install the firewall on a
wall or a rack-mount kit to install the firewall in a 19” equipment rack.
> Install the PA-220R Firewall on a Flat Surface
> Install the PA-220R Firewall on a DIN Rail
> Install the PA-220R Firewall on a Wall
> Install the PA-220R Firewall in a 19-inch Equipment Rack

20 PA-220R NEXT-GEN FIREWALL HARDWARE REFERENCE | Install the PA-220R Firewall
© 2018 Palo Alto Networks, Inc.
