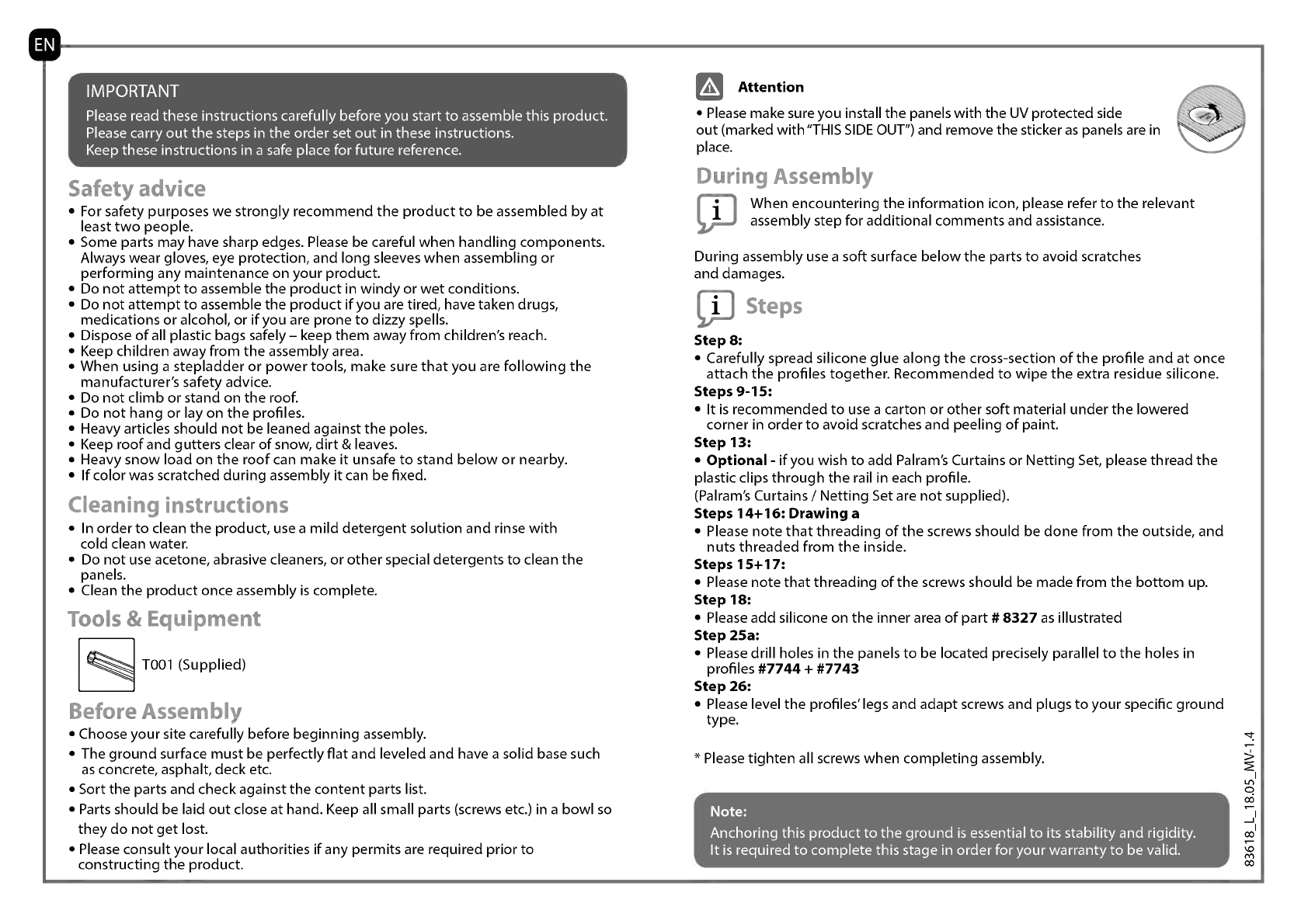

IMPORTANT
Please read these instructions carefully before you start to assemble this product.
Please carry out the steps in the order set out in these instructions.
Keep these instructions in a safe place for future reference.
Safety advicc
For safety purposes we strongly recommend the product to be assembled by at
least two people.
Some parts may have sharp edges. Please be careful when handling components.
Always wear gloves, eye protection, and long sleeves when assemblingor
performing any maintenance on your product.
Do not attemptto assemble the product in windy or wet conditions.
Do not attemptto assemble the product if you are tired, have taken drugs,
medications or alcohol, or if you are prone to dizzy spells.
Dispose of all plastic bags safely - keep them away from children's reach.
Keep children away from the assembly area.
When using a stepladder or power tools, make sure that you are following the
manufacturer's safety advice.
Do not climb or stand on the roof.
Do not hang or lay on the profiles.
Heavy articles should not be leaned against the poles.
Keep roofand gutters clear of snow, dirt & leaves.
Heavy snow load on the roof can make it unsafe to stand below or nearby.
Ifcolor was scratched during assembly it can be fixed.
Cleaning instruction:.
In order to clean the product, use a mild detergent solution and rinse with
cold clean water.
Do not use acetone, abrasive cleaners, or other special detergents to clean the
panels.
Clean the product once assembly is complete.
Tools & Equipment
.---.<- Tool (Supplied)
Before Assembly
Choose your site carefully before beginning assembly.
The ground surface must be perfectly flat and leveled and have a solid base such
as concrete, asphalt, deck etc.
Sort the parts and check against the content parts list.
Parts should be laid out close at hand. Keep all small parts (screws etc.) in a bowl so
they do not get lost.
Please consult your local authorities if any permits are required prior to
constructing the product.
A Attention
Please make sure you install the panels with the UV protected side
out (marked with "THIS SIDE OUT") and remove the sticker as panels are in
place.
During Assembly
When encountering the information icon, please refer to the relevant
assembly step for additional comments and assistance.
).
During assembly use a soft surface below the parts to avoid scratches
and damages.
Steps
Step 8:
Carefully spread silicone glue along the cross-section of the profile and at once
attach the profiles together. Recommended to wipe the extra residue silicone.
Steps 9-15:
It is recommended to use a carton or other soft material under the lowered
corner in order to avoid scratches and peeling ofpaint.
Step 13:
Optional - if you wish to add Palram's Curtains or Netting Set, please thread the
plastic clips through the rail in each profile.
(Palram's Curtains / Netting Set are not supplied).
Steps 14+16: Drawing a
Please note that threading of the screws should be done from the outside, and
nuts threaded from the inside.
Steps 15+17:
Please note that threading of the screws should be made from the bottom up.
Step 18:
Please add silicone on the inner area of part # 8327 as illustrated
Step 25a:
Please drill holes in the panels to be located precisely parallel to the holes in
profiles #7744 + #7743
Step 26:
Please level the profiles' legs and adapt screws and plugs to your specific ground
type.
* Please tighten all screws when completing assembly.
Note:
Anchoring this product to the ground is essential to its stability and rigidity.
It is required to complete this stage in order for your warranty to be valid.
