Panasonic TY-ER3D6ME User manual

Operating Instructions
3D Eyewear
Model No. TY-ER3D6ME
This product cannot and must not be used
as sunglasses.
ENGLISH
DANSK
NEDERLANDS
FRANÇAIS
DEUTSCH
ITALIANO
ҚАЗАҚ
PORTUGUÊS
РУССКИЙ
ESPAÑOL
SVENSKA
УКРАЇНСЬКА
GUARANTEE
ГАРАНТИЙНЫЙ ТАЛОН
TÜRKÇE
TQZJ737-1

ENGLISH
2
Thank you for purchasing a Panasonic product.
Before operating this product, please read the instructions
carefully, and save this manual for future use.
Before using this product, be sure to read “Safety
Precautions” and “Using Precautions” ( pages 2 - 6).
This 3D Eyewear can be used for Panasonic HDTVs
supporting 3D and the Bluetooth
®
Wireless technology.
For the latest information on applicable models, visit
our web site.
http://panasonic.net/viera/support
Safety Precautions
Warning
About Prohibited Place
 Do not use 3D Eyewear in hospital or other medical
facilities.
Radio waves from 3D Eyewear may cause interference of medical
equipments.
 Do not use 3D Eyewear nearby automatic control
equipments, like a automatic door, a fire alarm
apparatus, etc.
Radio waves from 3D Eyewear may cause interference of automatic
control equipments.
 Keep 3D Eyewear more than 15 cm away from the
implant of cardiac pacemaker, or similar implantable
medical equipments, at all times.
Radio waves from 3D Eyewear may affect implantable cardiac
pacemaker or similar equipment operations.
Accidental Ingestion
 Do not ingest battery, chemical burn hazard.
This product contains a coin/button cell battery. It can cause severe
internal burns in just two hours if swallowed, which can lead to life
threatening injury, including death.
Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and
keep it away from children.
If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
Disassembly
 Do not disassemble or modify the 3D Eyewear.

ENGLISH
3
Caution
Battery
 Incorrect installation may cause battery leakage,
corrosion and explosion.
 Replace only with the same or equivalent type.
 Do not use rechargeable battery (Ni-Cd, etc.).
 Do not burn or break up battery.
 Do not expose battery to excessive heat such as
sunshine, fire or the like.
 Make sure you dispose of battery correctly.
 Remove the battery from the unit when not using
for a prolonged period of time to prevent battery
leakage, corrosion and explosion.
About 3D Eyewear
 Do not drop, exert pressure on, or step on the
3D Eyewear.
 Be careful of the tips of the frame when putting on
the 3D Eyewear.
 Always keep the 3D Eyewear in a cool, dry place.
 Be careful not to trap a finger in the hinge section of
the 3D Eyewear.
 Pay special attention when children are using this
product.
Viewing 3D Content
 Do not use the 3D Eyewear if you have a history of
over-sensitivity to light, heart problems, or have any
other existing medical conditions.
 Stop using the 3D Eyewear immediately if you
feel tired, discomfort, or any other uncomfortable
sensation.
 Take an appropriate break after viewing a 3D
movie.
 Take a break of between 30 - 60 minutes after
viewing 3D content on interactive devices such as
3D games or computers.
(continued overleaf)

ENGLISH
4
 Be careful not to strike the television screen or other
people unintentionally. When using the 3D Eyewear
the distance between the user and screen can be
misjudged.
 The 3D Eyewear must only be worn when viewing
3D content.
 Do not tilt your head and/or the 3D Eyewear
while viewing 3D image. Keep your eyes and
the 3D Eyewear are on a horizontal level to the
television.
 If you suffer from any eyesight problems (short/
far-sighted, astigmatism, eyesight differences in
left and right), please ensure to correct your vision
before using the 3D Eyewear.
 Stop using the 3D Eyewear if you can clearly see
double images when viewing 3D content.
 Do not use the 3D Eyewear at a distance less than
the recommended distance.
The recommended viewing distance is at least
3 times of image height.
e.g.
For a 40-inch TV 1.5 m or more
For a 42-inch TV 1.6 m or more
For a 47-inch TV 1.8 m or more
For a 48-inch TV 1.8 m or more
For a 50-inch TV 1.9 m or more
For a 55-inch TV 2.1 m or more
For a 58-inch TV 2.2 m or more
For a 60-inch TV 2.3 m or more
For a 65-inch TV 2.4 m or more
 When the top and bottom area of the screen is
blackened, such as movies, view the screen at a
distance at least 3 times of the height of the actual
image.
(That makes the distance closer than above
recommended figure.)
3D Eyewear Use
 3D Eyewear should not be used by children younger
than 5 - 6 years old, as a guideline.
 All children must be fully supervised by parents or
guardians who must ensure their safety and health
throughout the using 3D Eyewear.
 Before using the 3D Eyewear, ensure no breakable
objects surrounding the user to avoid any accidental
damage or injury.

ENGLISH
5
 Remove the 3D Eyewear before moving around to
avoid falling or accidental injury.
 Use the 3D Eyewear only for the intended purpose
and nothing else.
 Do not use if the 3D Eyewear is physically
damaged.
 Stop using the 3D Eyewear immediately if a
malfunction or fault occurs.
 Stop using the 3D Eyewear immediately if you
experience any redness, pain, or skin irritation
around the nose or temples.
 In rare cases, the materials used in the 3D Eyewear
may cause an allergic reaction.
Using Precautions
 Do not drop or bend the 3D Eyewear.
 Do not apply pressure to or scratch the surface of
the liquid crystal shutter of the 3D Eyewear.
 Do not use devices (such as mobile phones
or personal transceivers) that emit strong
electromagnetic waves near the 3D Eyewear as this
may cause the 3D Eyewear to malfunction.
 Do not use 3D Eyewear outside the specified usage
temperature range ( page 14).
 If the room is lit by fluorescent lights (50 Hz) and
light appears to flicker when using the 3D Eyewear,
switch off the fluorescent light.
 3D content will not be correctly visible if the
3D Eyewear is worn upside down or back-to-front.
 Do not wear the 3D Eyewear when watching
anything other than 3D images. Other kinds of
displays (such as computer screens, digital clocks,
or calculators etc.) may be difficult to see while
wearing the 3D Eyewear.
 Using radio waves
This unit uses the 2.4 GHz radio frequency
ISM band (Bluetooth®). However other wireless
equipment may use the same frequency. Be sure
to take note of the following to prevent radio wave
interference from other equipment.
●Restriction of use
For use only in your country.
(continued overleaf)

ENGLISH
6
●Range of use
The range of use is up to approximately 3.2 m.
The range may be less depending on the
structure of the building, the environment
and any obstacles between the receiver and
the transmitter. Such obstacles as reinforced
concrete walls and metal doors, in particular,
obstruct the transmitter’s signals.
●Interference from other equipment
Due to radio interference, malfunctions may occur
if the unit is placed too close to other equipment.
We recommend keeping the unit as far away as
possible from the following devices:
Bluetooth®devices other than this unit, wireless
LAN, microwaves, office automation devices,
digital cordless telephones and other electronic
devices.
The unit is designed to automatically avoid radio
interference from these household devices.
However malfunctions may happen when radio
interference occurs.

ENGLISH
7
Identifying Controls

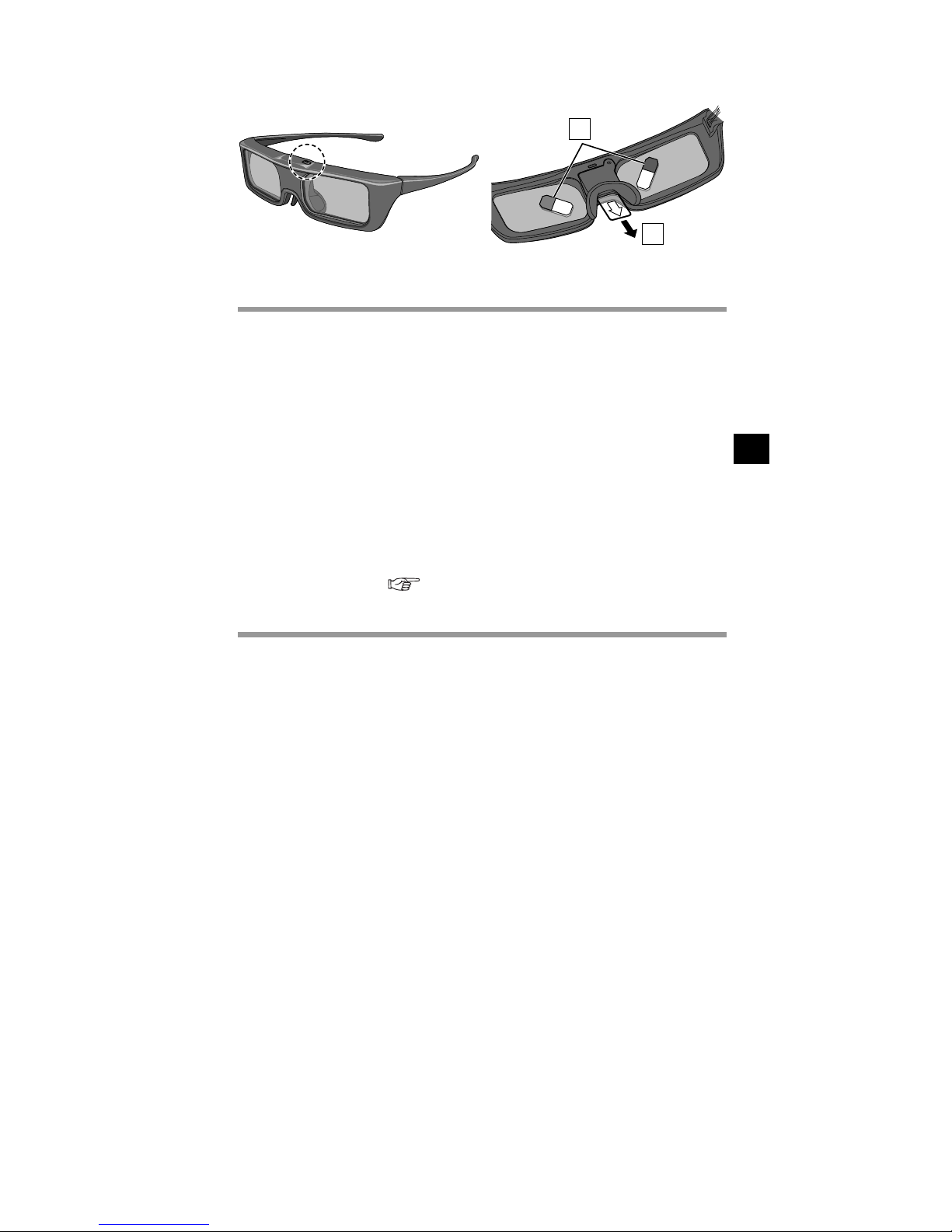

1
2
(Part No.: TY-ER3D6MA)
Power button / Mode change
Power button Press and hold for approx. 1 second to turn
the 3D Eyewear on. (The indicator lamp
lights for 2 seconds.) Press and hold for
3 seconds or more to turn the 3D Eyewear
off. (The indicator lamp lights 3 times.)
Mode change Press and hold for approx. 1 second to
change the mode between 3D and 2D (view
a 3D image in 2D). When power is off,
press and hold for approx. 5 seconds to
change to registration mode. For details on
registration, refer to the Registration page.
(page 9)
Indicator lamp
Lights or flashes during use to show the status.
(continued overleaf)

ENGLISH
8
 Indicator lamp status
Indicator lamp Status
Lights red for 2 seconds
when turned on
Sufficient battery level
Flashes red 5 times when
turned on
Low battery level
Flashes red Under registration
Flashes red once every
1 second
Under reconnecting to the
TV
Flashes red 3 times Power off (Press and hold
for more than 3 seconds
when in use, or automatically
power off when registering /
reconnecting fails, or
connection is lost.)
Flashes red once every
2 seconds when in use
3D mode is selected
Flashes red twice every
4 seconds when in use
2D mode is selected

ENGLISH
9
Registration
 First Registration
Perform the First Registration when the 3D Eyewear is
used for the first time.
1. Turn on the TV to see.
2. Press Power button for about 1 second to turn the 3D
Eyewear on.
The lamp lights for about 2 seconds and then flashes.
The 3D Eyewear will power on and start registration.

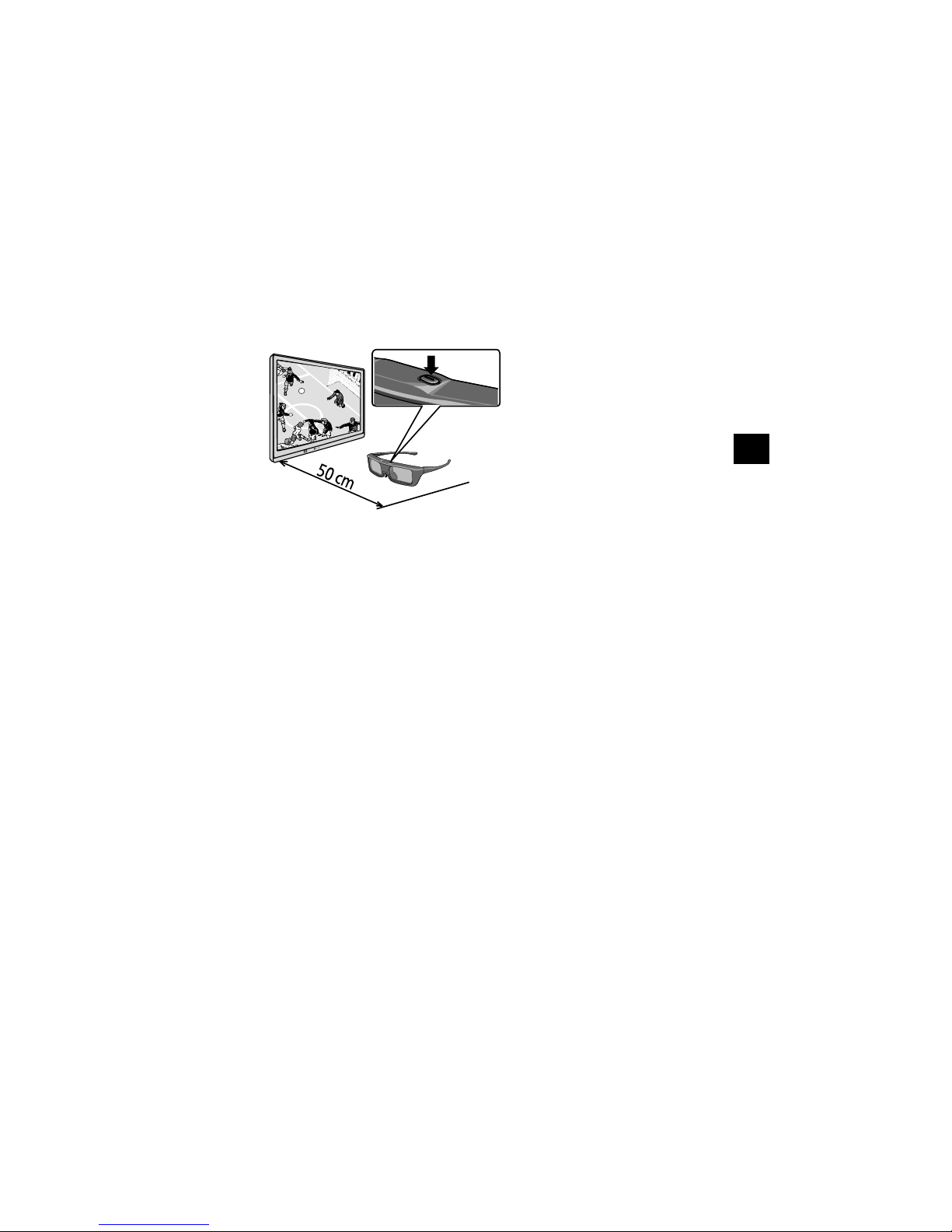

Place the 3D Eyewear within 50 cm from the TV while
registration in progress.
3. After the registration is successfully completed, the 3D
Eyewear will reconnect with TV automatically when the 3D
Eyewear is turned on near the TV in 3D mode.
 Registration Again
When connection with registered TV fails, or when using
with another TV,re-register the 3D Eyewear.
1. Turn on the TV to see.
2. Within 50 cm from the TV, press Power button until lamp
lights, then release it to start registration.
3. After the registration is successfully completed, the 3D
Eyewear will reconnect with TV automatically when the 3D
Eyewear is turned on near the TV in 3D mode.
* If the registration failed, the 3D Eyewear will power off.
In this case, power off the TV and perform from step 1.

ENGLISH
10
Storage and Cleaning
Clean using a soft, dry cloth.
Wiping the 3D Eyewear with a soft cloth that is covered in
dust or dirt may scratch the eyewear. Shake off any dust
from the cloth before use.
Do not use benzene, thinner, or wax on the 3D Eyewear,
as doing so may cause the paint to peel off.
Do not dunk the 3D Eyewear in liquid such as water when
cleaning.
Avoid storing the 3D Eyewear in hot or highly humid
locations.
As the liquid crystal shutters (lens) are fragile and easily
broken, be very careful when cleaning them.

ENGLISH
11
Replacing battery
When the battery is running low, the indicator lamp flashes 5
times on turning the 3D Eyewear on. In this case, early battery
replacement is recommended.
Dispose of the old batteries as non-burnable rubbish, or in
line with the waste disposal regulations in your local area.

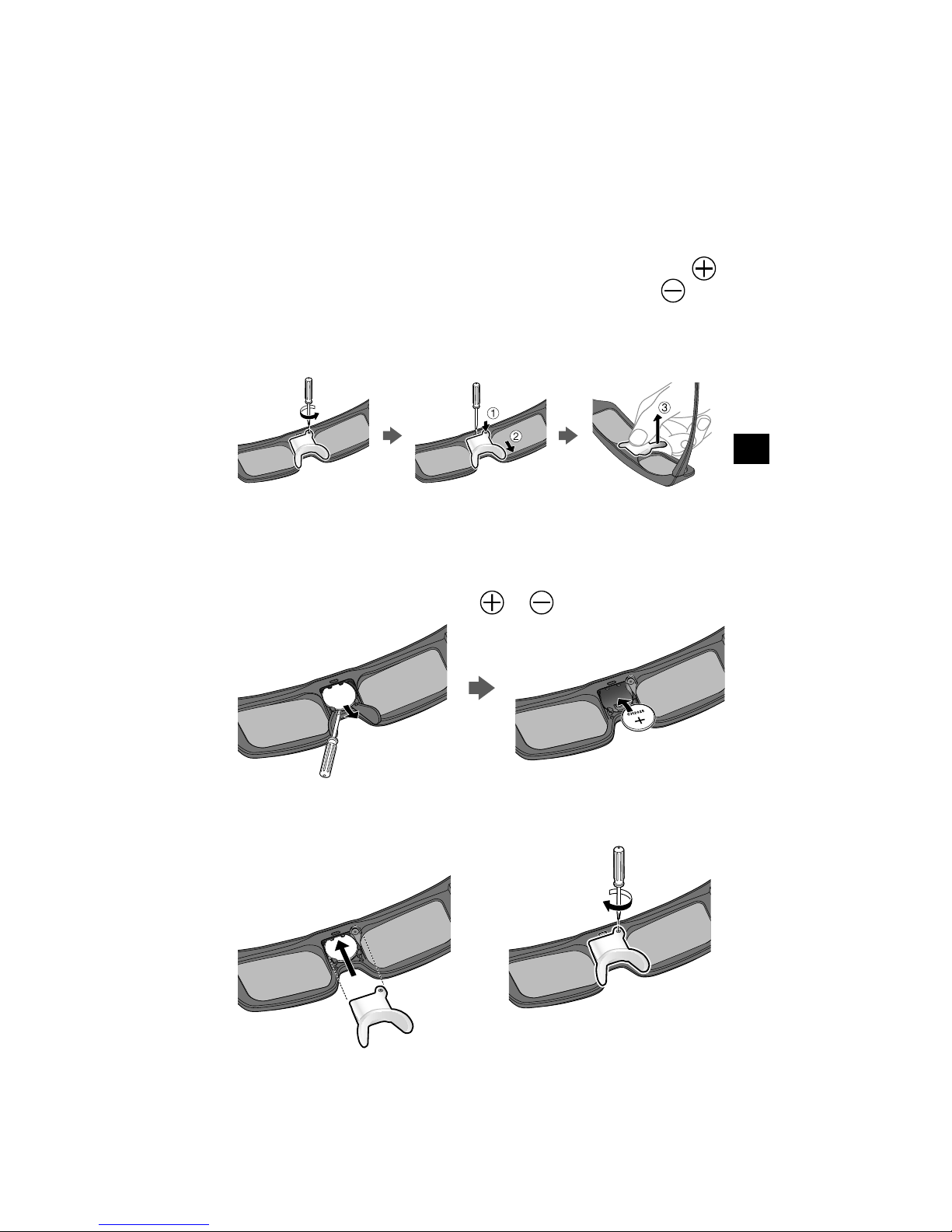

1. Remove the cover
1)
Loosen the screw with a precision Phillips (No.0, plus ).
2) Slide the cover using pen tip or screwdriver (minus ), etc.
3) Remove the cover with your finger as shown in the
illustration below.
The screw is not removed from the cover.
2. Replace the battery.
If difficulty, remove it with the tip of the driver.
Use the specified type of battery (coin-shaped lithium
battery CR2025.)
Note the correct polarity ( or ).
3. Replace and fasten the cover
Tighten the screw.

ENGLISH
12
Troubleshooting/Q&A
Check the followings first. If they do not solve the problem,
please contact the place of purchase.
Cannot register a 3D Eyewear to TV.
►Does the TV support on this 3D Eyewear?
Use the 3D Eyewear with compatible TVs. ( page 2)
►Did you allow more than 1 minute to elapse after
setting the unit to the device registration mode?
The registration is automatically released if you allow more than
1 minute to elapse. Set the registration with the television and
connected 3D Eyeware placed as close to each other as possible.
Images are not 3D.
►Is the TV has been registered with the 3D Eyewear?
Perform the registration with the TV to see. ( page 9)
►Is the 3D Eyewear Mode set to 3D?
Push the power button once to change the mode between 3D and
2D.
►Are the image settings switched to 3D images?
Refer the television operating instructions.
►Individual differences may occur in which the
3D images are difficult to see, or cannot be seen,
especially in users that have a different level of
eyesight between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your
eyesight before use.

ENGLISH
13
The power of the 3D Eyewear turns off by itself.
►Are there any objects between the eyewear and
television?
The indicator lamp does not light up when
pressing Power button on the 3D Eyewear.
►The battery is too low to operate the 3D Eyewear.
The indicator lamp does not light when switching on the power by
pressing and hold the power button for 1 second; that indicates the
battery is completely flat. Replace the battery with new one.

ENGLISH
14
Specifications
Lens type
Liquid Crystal Shutter
Usage temperature range
0 °C - 40 °C
Battery
Coin-shaped lithium battery CR2025
Operation time: Approx. 75 hours
Viewing range*
Within 3.2 m from front surface of the TV.
Materials
Main body: Resin
Lens section: Liquid crystal glass
Communication system
2.4 GHz band FH-SS (Frequency Hopping Spread
Spectrum)
Dimensions (not including nose pad part)
Model No. TY-ER3D6ME
Width 164.7 mm
Height 41.0 mm
Overall length 170.7 mm
Mass Approx. 34 g
* Viewing range
• There are differences in the viewing range of the 3D Eyewear
among individuals.
• The 3D Eyewear may not operate correctly at the outside of the
viewing range.

ENGLISH
15
Declaration of Conformity (DoC)
“Hereby, Panasonic Corporation declares that this 3D Eyewear
is in compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC.”
If you want to get a copy of the original DoC of this 3D
Eyewear, please visit the following website:
http://www.ptc.panasonic.eu/doc
Authorized Representative:
Panasonic Testing Centre (PTC)
Panasonic Marketing Europe GmbH
Winsbergring 11, D-22525 Hamburg, Germany
The Bluetooth®word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks and trade
names are those of their respective owners.

ENGLISH
Contact:
Panasonic Testing Centre (PTC)
Panasonic Europe Ltd.
Winsbergring 11, D-22525 Hamburg, Germany
Panasonic Corporation
Osaka Japan
Web Site : http://www.panasonic.com
© Panasonic Corporation 2016
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling
systems
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries must not be mixed with general
household waste.
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help
to save valuable resources and prevent any
potential negative effects on human health and
the environment. For more information about
collection and recycling, please contact your
local municipality.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with
a chemical symbol. In this case it complies
with the requirement set by the Directive for
the chemical involved.

DANSK
1
Betjeningsvejledning
3D-briller
Modelnummer TY-ER3D6ME
Tak, fordi du har købt et Panasonic-produkt.
Før du bruger produktet, skal du læse betjeningsvejlednin-
gen omhyggeligt og gemme denne manual til senere brug.
Før du bruger produktet, skal du læse ”Sikkerhedsforskrif-
ter” og ”Forsigtighedsregler ved brug” ( side 1 - 6).
Denne 3D-brille kan bruge til Panasonic HDTV’er,
som understøtter 3D og Bluetooth®-trådløs teknologi.
For seneste nyt om tilgængelige modeller henvises
til vores hjemmeside.
http://panasonic.net/viera/support
Dette produkt kan ikke og må ikke anvendes
som solbriller.
Sikkerhedsforskrifter
Advarsel
Forbudte brugssteder
 Undlad at bruge 3D-briller på hospitaler eller andre
medicinske faciliteter.
Radiobølger fra 3D-briller kan forårsage støj i medicinsk udstyr.
 Undlad at bruge 3D-briller i nærheden af automatisk
styringsudstyr såsom automatiske døre, brandalar-
mer, mv.
Radiobølger fra 3D-briller kan forårsage støj i automatisk
styringsudstyr.
 3D-briller skal altid holdes i en afstand på mindst
15 cm fra implanterede pacemakere eller lignende
implanteret medicinsk udstyr.
Radiobølger fra 3D-briller kan påvirke implanterede pacemakere eller
lignende medicinsk udstyr.
(fortsættes på næste side)

DANSK
2
Utilsigtet indtagelse
 Slug ikke batteriet - fare for kemisk ætsning.
Dette produkt indeholder et knapcellebatteri. Hvis knapcellebatteriet
sluges, kan det forårsage alvorlige indre ætsninger på blot 2 timer og
medføre dødsfald.
Opbevar nye og brugte batterier uden for børns rækkevidde. Hvis
batterirummet ikke lukker sikkert til, bør man ikke bruge produktet, og
det bør opbevares uden for børns rækkevidde.
Hvis du har mistanke om, at batterier er blevet slugt eller kommet ind
i kroppen på anden vis, skal du straks kontakte en læge.
Adskillelse
 Undlad at skille 3D-brillerne ad eller at ændre dem.
Forsigtig
Batteri
 Forkert isættelse af batterier kan resultere i bat-
terilækage, ætsning og eksplosion.
 Udskift kun med et af samme slags eller af tilsva-
rende type.
 Anvend ikke genopladelige (Ni-Cd, etc.) batterier.
 Batterier må ikke brændes eller brydes op.
 Udsæt ikke batterierne for ekstrem varme som
direkte sollys, ild eller lignende.
 Sørg for at bortskaffe batterier på den korrekte
måde.
 Fjern batteriet fra enheden, når den ikke skal
anvendes i længere tid, for
Om 3D-brillserne
 Undlad at tabe, udøve tryk på eller træde på
3D-brillerne.
 Vær opmærksom på spidserne på stellet, når du
tager 3D-brillerne på.
 Opbevar altid 3D-brillerne på et køligt, tørt sted.
 Pas på ikke at få fingeren i klemme ved hængslerne
på 3D-brillerne.
 Vær særligt opmærksom, når børn benytter produk-
tet.

DANSK
3
Om at se 3D-billeder
 Undlad at bruge 3D-brillerne, hvis du tidligere har
lidt af overfølsomhed over for lys, hjerteproblemer,
eller du har andre eksisterende lidelser.
 Hold med det samme op med at bruge 3D-brillerne,
hvis du føler dig træt eller utilpas eller på anden vis
ikke har det godt.
 Tag en passende pause, efter at du har set en
3D-film.
 Tag en pause på mellem 30 og 60 minutter, efter at
du har set 3D-indhold på interaktive enheder som
f.eks. 3D-spil eller computere.
 Pas på ikke at ramme tv-skærmen eller andre per-
soner ved en fejltagelse. Når du bruger 3D-brillerne,
kan du komme til at fejlbedømme afstanden mellem
dig selv og skærmen.
 Du må kun bruge 3D-brillerne, når du ser 3D-
indhold.
 Undlad at vippe hovedet og/eller 3D-brillerne, når
du ser 3D-billeder. Hold øjnene og 3D-brillerne
vandret i forhold til tv’et.
 Hvis du har problemer med synet (kort- eller lang-
synethed, bygningsfejl eller forskellig synsstyrke på
venstre og højre øje), skal du korrigere synet, før du
bruger 3D-brillerne.
 Hold op med at bruge 3D-brillerne, hvis du tydeligt
ser dobbelt, når du ser 3D-indhold.
 Du må ikke bruge 3D-brillerne på en afstand, der er
mindre end den anbefalede afstand.
Den anbefalede visningsafstand er 3 gange bil-
ledhøjden.
Eksempler:
Ved et 40”-tv 1.5 m eller mere
Ved et 42”-tv 1.6 m eller mere
Ved et 47”-tv 1.8 m eller mere
Ved et 48”-tv 1.8 m eller mere
Ved et 50”-tv 1.9 m eller mere
Ved et 55”-tv 2.1 m eller mere
Ved et 58”-tv 2.2 m eller mere
Ved et 60”-tv 2.3 m eller mere
Ved et 65”-tv 2.4 m eller mere
(fortsættes på næste side)

DANSK
4
 Når den øverste og nederste del af skærmen er
sort, f.eks. når du ser film, skal du se på skærmen
i en afstand, der er 3 gange højden af det faktiske
billede.
(Derved bliver afstanden kortere end det ovenstå-
ende anbefalede tal.)
Se 3D-billeder
 3D-briller bør som hovedregel ikke benyttes af børn
under 5 - 6 år.
 Alle børn skal være under fuldt opsyn af forældre
eller værger, der skal sørge for deres sikkerhed og
sundhed, mens de bruger 3D-brillerne.
 Før 3D-brillerne anvendes, skal du sikre dig, at der
ikke er genstande, som kan gå i stykker, i nærhe-
den af brugerne, for at undgå personskade eller
tingskade ved et uheld.
 Tag 3D-brillerne af, før du bevæger dig omkring, for
at undgå, at du falder eller kommer til skade.
 Brug kun 3D-brillerne til det beregnede formål, ikke
til noget andet.
 Brug ikke 3D-brillerne, hvis de er fysisk beskadi-
gede.
 Hold med det samme op med at bruge 3D-brillerne,
hvis der opstår fejlfunktion eller fejl i dem.
 Hold med det samme op med at bruge 3D-brillerne,
hvis du oplever rødmen, smerte eller hudirritation
på næsen eller tindingerne.
 Materialerne i 3D-brillerne kan i sjældne tilfælde
medføre en allergisk reaktion.
