Ultra High-speed Laser Displacement Sensor （CCD Style）
HL-C1-WL series
USER’S MANUAL

Contents
Contents
About This Document (HL-C1-WL Series).............................................1
Precautions for the Handling Class 3B Laser Beam............................1
Conditions for Compliance with EMC Directives in EU........................8
CHAPTER 1 NAME AND FUNCTION OF EACH PART
1-1 Controller ........................................................................................1-1
CHAPTER 2 INSTALLATION OF SENSOR HEAD
2-1 Mounting Dimensions.....................................................................2-1
2-2 Mutual Interference Area...............................................................2-2

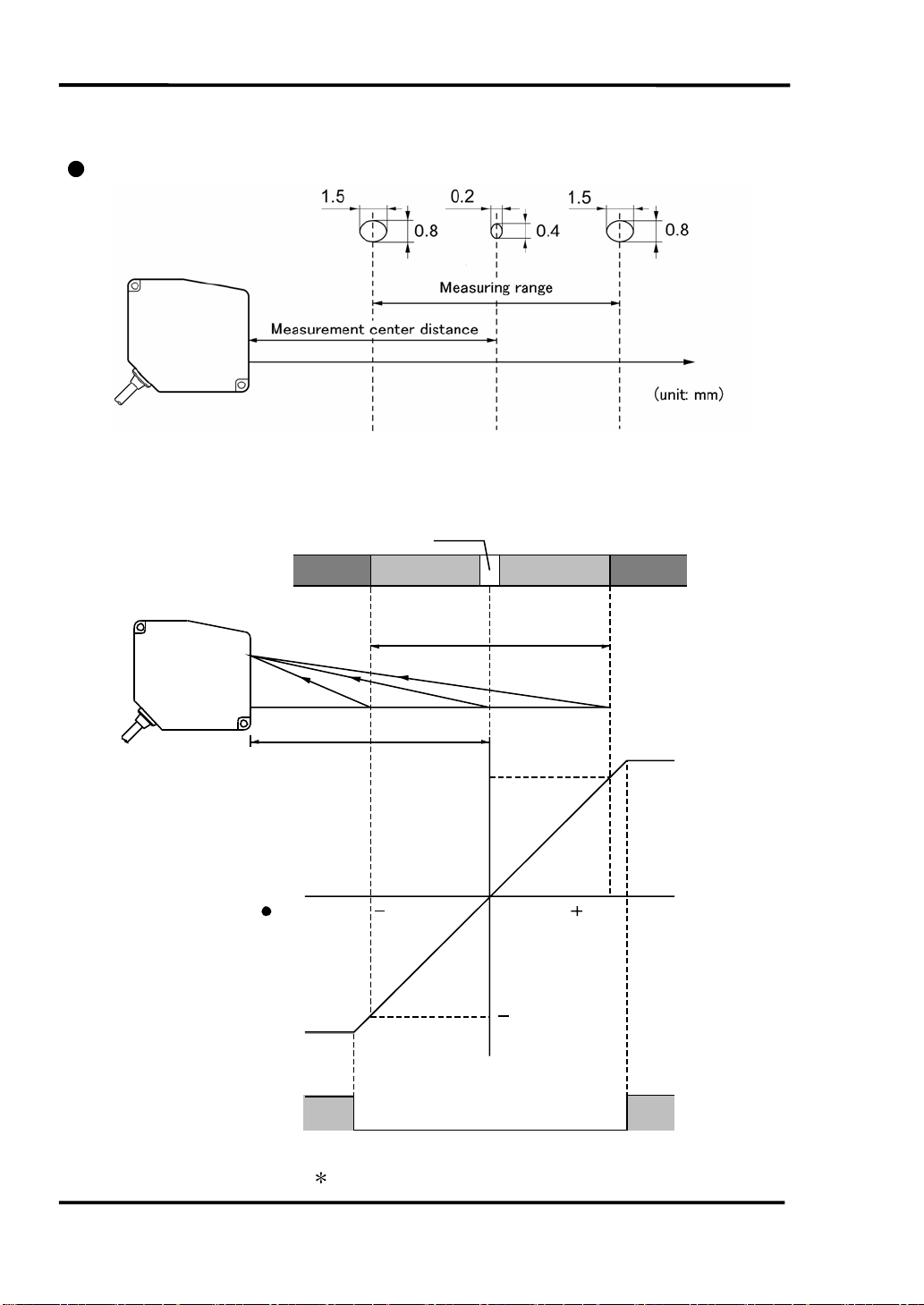

2-3 Beam Diameter..............................................................................2-3
2-4 Output Characteristics and Measurement Range Indicator.........2-3
CHAPTER 3 INPUT TERMINAL BLOCK
3-1 Input Terminal................................................................................3-1
3-2 Remote Interlock Terminal ............................................................3-2
CHAPTER 4
DESCRIPTION OF FUNCTIONS AND COMMUNICATION COMMANDS
(MODIFICATIONS, DELETIONS AND ADDITIONS)
4-1 Description of Modified Functions.................................................4-1
4-2 Setting Range and Initial Value....................................................4-2
4-3 Limitation in Sampling Period.......................................................4-2
4-4 Changes in RS232C Communication Commands.......................4-3
4-4-1 List of Modified Commands....................................................4-3
4-4-2 Command with Modified Format.............................................4-3
CHAPTER 5 Specifications
5-1 Sensor Head..................................................................................5-1
5-2 Controller ........................................................................................5-2
5-3 Compact Console...........................................................................5-4
5-4 Intended Products for CE Marking...............................................5-5
CHAPTER 6 Dimensions
6-1 Sensor Head..................................................................................6-1
6-2 Controller ........................................................................................6-1
6-3 Compact Console...........................................................................6-2

1
About This Document (HL-C1-WL Series)
This document (HL-C1-WL Series) describes modifications, additions and deletions
to the HL-C1 Series. Read the USER’S MANUAL for the HL-C1 Series to check the
descriptions in this document.
Precautions for the Handling Class 3B Laser
Beam
1. IEC
A semiconductor laser is used as the light source of the sensor.
The laser class is based on IEC Standards (IEC60825-1).
Cautions
1)Be careful not to look directly at the laser beam or at its reflection from a mirror
surface.
2)Mount the sensor at a height above or lower than eye level so the beam will
not shine directly into eyes during operation.
The safety distance (Nominal Optical Harm Distance: NOHD) is approximately
1.8m, but make sure the laser beam hits a diffusing reflector or an absorbing
body.
3)This machine is not equipped with a mechanism for stopping laser emission
automatically upon disassembly of the sensor; contact us in the case of failure.
You may be exposed to laser emission if the machine is disassembled for re-
pairs or the like.
4)Do not operate according to methods not described in this USER’S MANUAL.
Caution – You may be exposed to hazardous laser radiation if the device is
controlled or adjusted in procedures not specified in this manual.

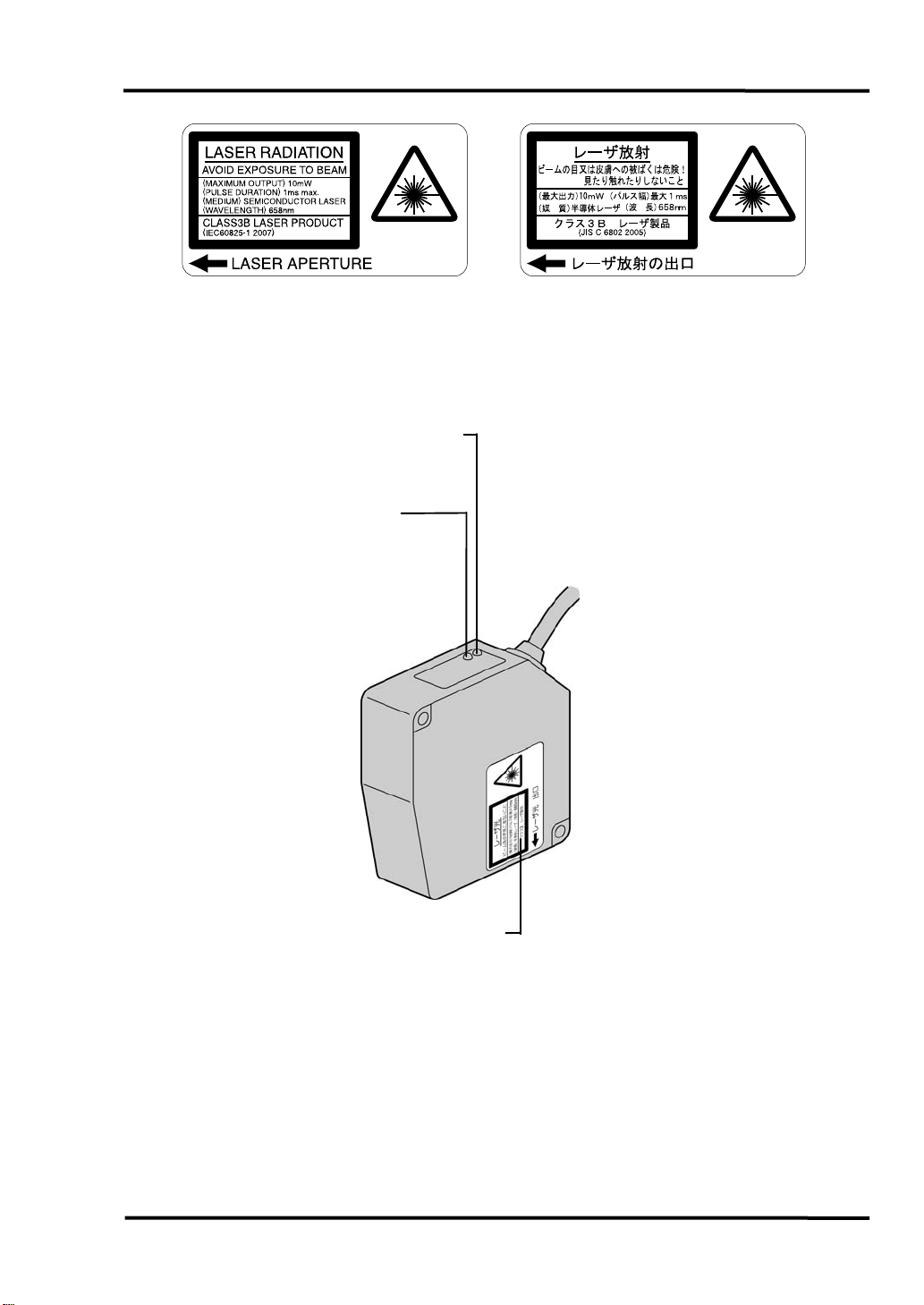

5)Carefully read the description given on the following warning label.
The warning label is affixed to the side of the sensor. A warning label in Eng-
lish is included in the package; use it when required.
Model HL-C135C-BK10
Wave length 658nm
Pulse width Max. 1ms
Period 100 to 1000 s
Max. output 10mW
Class 3B

2
(English) (Japanese)
Measuring
range indicator
Laser emission
indicator
Warning label

3
Safety Equipment
1)Key Switch
This product uses a key switch to emit a laser. Remove the key when the
product is not used.
2)Beam attenuator
If there is danger of incision by the laser beam into eyes during work, install the
accessory beam attenuator.
3)Remote Interlock Terminal
Open across the IL1 and (-) terminals (COM terminals for NPN output type or
photo MOS output type) in the case of a single sensor head, or open across
the IL1 and IL2 terminals and (-) terminal (COM terminals for NPN output type
or photo MOS output type) to stop emitting the laser beam.
To install the beam attenuator,
fix it with the accessory screw
so that the projector face is
covered.
When the beam attenuator is
not used, fix it on either side of
the sensor head with the ac-
cessory screw.
NPN output type Photo MOS output type
I12
I22
IL1
(-)
I21
(-)
IL2
I11
I12
I22
IL1
COM
I21
COM
IL2
I11
Beam
attenuator Beam attenuator

4
4)Laser Emission Indicator
The green LED of the sensor head lights up for about five seconds before the laser is
emitted. It is possible to recognize the LED through the laser protective eyewear.
Summary of IEC 60825-1
Safety measures to be taken by the user according to the class of the laser product are
shown below.
Classification
Requirements
subclause Class 1 Class 1M Class 2 Class 2M Class 3R Class 3B Class 4
Description of
hazard class
8.2
Safe under
reasonably
foreseeable
conditions
As for Class1
except may
be hazard-
ous if user
employs
optics
Low power;
eye protec-
tion nor-
mally af-
forded by
aversion
responses
As for Class 2
except may
be more
hazardous if
user em-
ploys
Direct in-
trabeam
viewing may
be hazard-
ous
Direct in-
trabeam
viewing
normally
hazardous
High power;
diffuse
reflections
may be
hazardous
Protective housing
4.2 Required for each laser product; limits access necessary for performance of functions of the product
Safety interlock in
protective housing
4.3
Designed to prevent removal of the panel until accessible
emission values are below that for Class 3R
Designed to prevent removal of the panel
until accessible emission values are below
that for Class 3B
Remote control
4.4 Not required Permits easy addition of
external interlock in laser
installation
Key control
4.5 Not required Laser inoperative when key
is removed
Emission warning
device
4.6 Not required
Gives audible or visible warning when laser
is switched on or if capacitor bank of pulsed
laser is being charged. For Class 3R only,
applies if invisible radiation is emitted.
Attenuator
4.7 Not required Gives means besides the On/Off switch to temporarily
block beam
Location controls
4.8 Not required Controls so located that there is no danger
of exposure to AEL above Classes 1 or 2
when adjustments are made
Viewing optics
4.9 Not required Emission from all viewing system must be below Class 1M AEL.
レーザ放射表示灯
Laser emission indicator

5
Classification
Requirements
subclause Class 1 Class 1M Class 2 Class 2M Class 3R Class 3B Class 4
Scanning 4.10 Scan failure shall not cause product to exceed its classification
Class label
5.1 to 5.6 Required wording Figures14and 15 and required wording
Aperture label 5.7 Not required Specified wording required
Service entry label
5.9.1 Required as appropriate to the class of accessible radiation
Override interlock
label 5.9.2 Required under certain conditions as appropriate to the class of laser used
Wavelength range
label 5.10 & 5.11 Required for certain wavelength ranges
LED label 5.12 Make required word substitutions for LED products
User information
6.1 Operation manuals must contain instructions for safe use. Additional requirements apply for Class 1M and Class 2M
Purchasing and
service information
6.2 Promotion brochures must specify product classification; service manuals must contain safety information
Medical products
7.1 For the safety of medical laser products, IEC 60601-2-22 applies
Note: This table is intended to provide a convenient summary of requirements. See text of this standard for complete requirements.

6
2. FDA
Export to US
To export the laser product to the US installed on equipment, it is restricted by
the regulation of the USA Food and Drug Administration (FDA).
In case this product is used as a FDA conformity product, be sure to change
the warning label to the English version label and affix the Certifi-
cate/identification label, which are enclosed in the package of this product.
The FDA establishes the standard below to prevent problems to the user pre-
viously due to laser product.
PART1040 (PERFORMANCE STANDARDS FOR LIGHT-EMITTING PRODUCTS)
– Execution standard for laser beam emitting product –
This standard classifies the laser product based on the level of laser danger
and stipulates preventive safety measures to be executed for each class (21
CER 1040.10 and 1040.11).
Furthermore, the guidance of Laser Products-Conformance with IEC 60825-1,
2007 and IEC 60601-2-22; Final Guidance for Industry and FDA (Laser No-
tice No. 50) are applied to this product.
The classification of equipment type is as follows:
Classification of HL-C135C-BK10 (FDA)
Class IIIB

7
Be sure to affix the following labels to the positions shown in the figure below:
(1) Warning label
(2) Certificate/identification label
<Label position>

8
Conditions for Compliance with EMC Directives
in EU

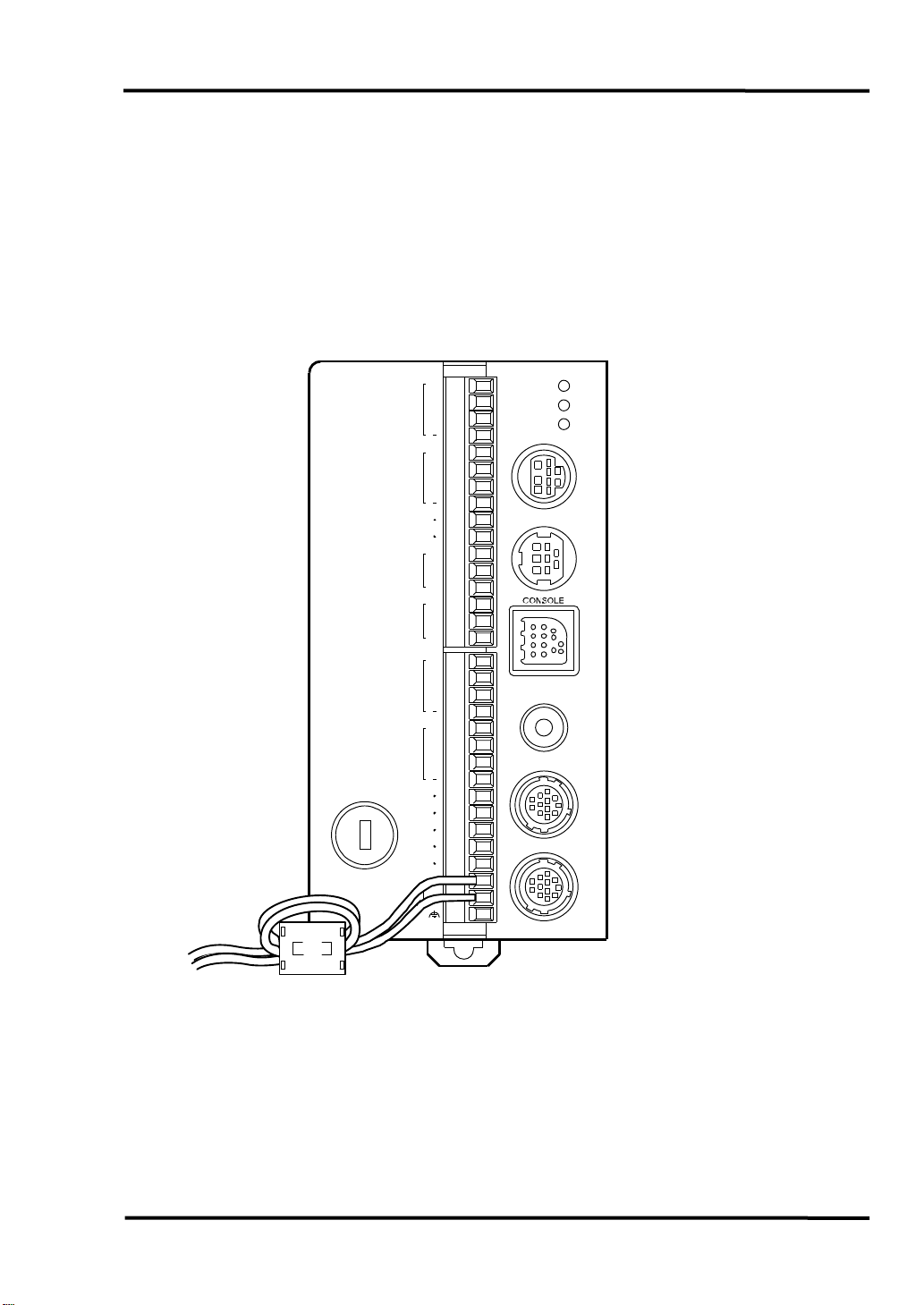

To meet requirements of EMC directives of the EU, connect ferrite cores
(ZCAT3035-1330 made by THK Co., Ltd.) to the cables connected to the terminal
block, as shown below.
AL1
O11
O12
AL2
O21
O22
V1
I 1
V2
I 2
I
11
I 12
I L1
I L2
I 21
I 22
GND
( )
( )
( )
( )
GND
NOTUSE
COM .
NOTUSE
HEAD 1
HEAD 2
LASER
BRIGHT
DARK
OFF
ON
Ferrite core

CHAPTER 1
NAME AND FUNCTION OF
EACH PART

CHAPTER 1 NAME AND FUNCTION OF EACH PART
1-1

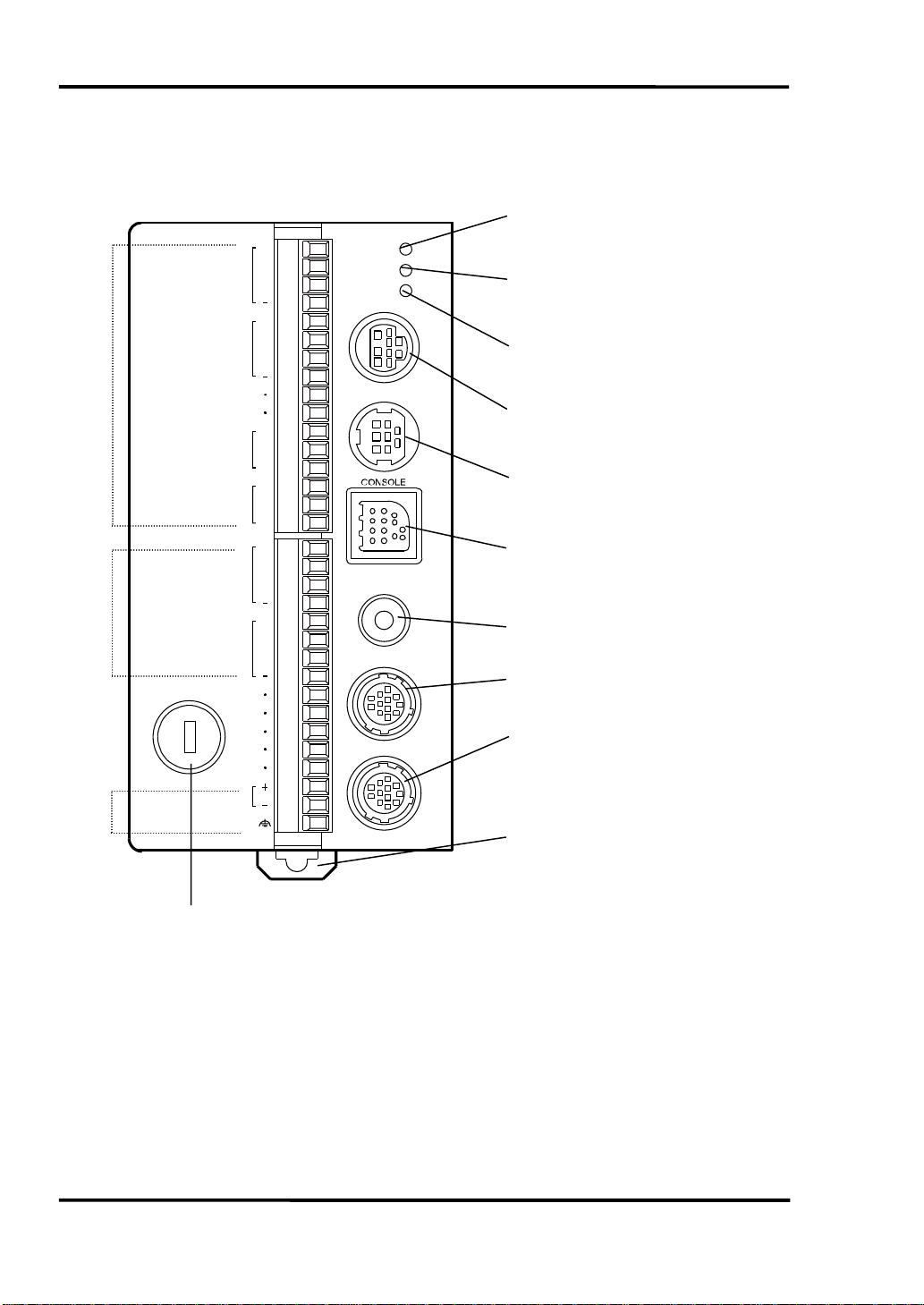

1-1 Controller


















1) Laser emission indicator (green)
2) BRIGHT indicator (red)
3) DARK indicator (red)
4) Not used.
5) COM. port
6) Compact console connector
7) Not used.
8) Sensor head 1 connector
9) Sensor head 2 connector
13) DIN rail mounting hook
14) Key switch
11) 
12) 
10) 
AL1
O11
O12
AL2
O21
O22
V1
I 1
V2
I 2
I
11
I 12
I L1
I L2
I 21
I 22
GND
( )
( )
( )
( )
GND
NOTUSE
COM .
NOTUSE
HEAD 1
HEAD 2
LASER
BRIGHT
DARK
OFF
ON

CHAPTER 1 NAME AND FUNCTION OF EACH PART

1-2
1)Laser Emission Indicator (green)
The indicator lights up during emission and for about five seconds before the laser
beam is emitted from the sensor head 1 or sensor head 2.
2)BRIGHT Indicator (red)
The indicator lights up when sensor head 1 or sensor head 2 cannot make a
measurement due to excessive light.
3)DARK Indicator (red)
The indicator lights up when sensor head 1 or sensor head 2 cannot make a
measurement due to insufficient light.
4)Not used.
This port is for adjustment at the factory before shipping.
5)COM. Port
Use for RS-232C communication with a PC.
6)Compact Console Connector
Connect a special cable for connecting the compact console, to display the measurement
or enter various settings on the compact console.
7)Not used.
This port is for adjustment at the factory before shipping.
8)Sensor Head 1 Connector
The controller recognizes the sensor head connected to this connector as sensor
head 1.
9)Sensor Head 2 Connector
The controller recognizes the sensor head connected to this connector as sensor
head 2.
To use only one sensor head with the controller, connect it to sensor head 1 side 8).
10)Power Supply Terminal
Supplies 24V DC.
11)External Output Terminal
12)External Input Terminal
13)DIN Rail Mounting Hook
The hook allows quick installation on a 35mm width DIN rail.
14)Key Switch
Turn the key switch on to turn the controller on. Remove the key when the controller
is not used.

CHAPTER 1 NAME AND FUNCTION OF EACH PART
1-3
-MEMO-

CHAPTER 2
INSTALLATION OF SENSOR HEAD

CHAPTER 2 INSTALLATION OF SENSOR HEAD
2-1

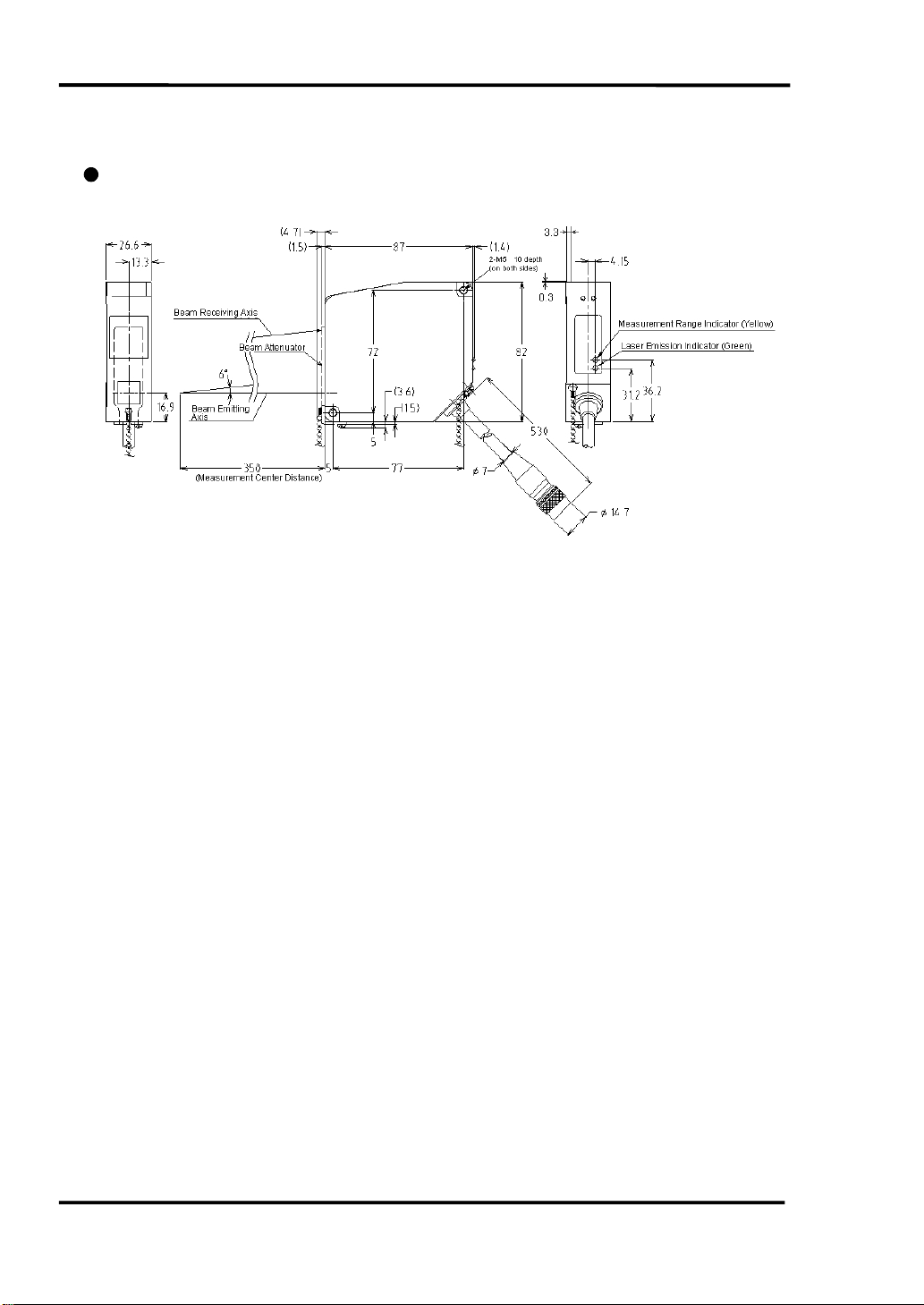

2-1 Mounting Dimensions
Hl-C135C-BK10
(Unit: mm)


CHAPTER 2 INSTALLATION OF SENSOR HEAD

2-2
2-2 Mutual Interference Area
If more than one sensor head is mounted close together, no mutual interference will occur
if the neighboring sensor's laser spot is outside the shaded area in the figure below.
Mount other sensor heads so laser spots do not enter the shaded area.
When two sensor heads are connected to a single controller, the mutual interference
prevention function can be used to avoid a mutual interference.
350mm type
(unit: mm)

CHAPTER 2 INSTALLATION OF SENSOR HEAD
2-3
2-3 Beam Diameter
2-4 Output Characteristics and Measurement
Range Indicator
With initial analog output setting
HL-C135C-BK10

5V
20mA
200200
Measurement center distance
Measuring range
5V
4mA
Distance(mm)
OFFON ON
Alarm output
(N.C.)
Open
Closed
Measurement
range indicator
Blinks Blinks OFFOFF
Lights
350mm type
0V
12mA
Displacement
output


CHAPTER 3
INPUT TERMINAL BLOCK

CHAPTER 3 INPUT TERMINAL
3-1
3-1 Input Terminal





































Terminals marked "." are not used. However, some terminals are connected with
internal circuits. Do not use them as a cable relaying terminal.
Symbol Description
IL1
I11
I12
()
Remote interlock (sensor head 1)
Zero set ON input (sensor head 1)
Zero set OFF input (sensor head 1)
Externally isolated ground
IL2
I21
I22
()
Remote interlock (sensor head 2)
Zero set ON input (sensor head 2)
Zero set OFF input (sensor head 2)
Externally isolated ground
Not used
Not used
Not used
Not used
Not used
24V DC input for power supply
Ground for power supply
Function ground
Symbol Description
IL1
I11
I12
COM
Remote interlock (sensor head 1)
Zero set ON input (sensor head 1)
Zero set OFF input (sensor head 1)
Input common
IL2
I21
I22
COM
Remote interlock (sensor head 2)
Zero set ON input (sensor head 2)
Zero set OFF input (sensor head 2)
Input common
Not used
Not used
Not used
Not used
Not used
24V DC input for power supply
Ground for power supply
Function ground
NPN output type
Photo MOS output type
The COM (input common) terminals of sensor
heads 1 and 2 are connected to each other
AL1
O11
O12
AL2
O21
O22
V1
I 1
V2
I 2
I
11
I 12
I L1
I L2
I 21
I 22
GND
( )
( )
( )
( )
GND
NOTUSE
COM .
NOTUSE
HEAD 1
HEAD 2
LASE R
BRIGHT
DARK
OFF
ON
I 11
I 12
I L1
I L2
I 21
I 22
COM
COM
I 11
I 12
I L1
I L2
I 21
I 22
( )
( )
