<DVORVO/
! ,3;1! ,3;1
Order No: GMAC0312013C2

"! #$%&'()%*
Operation START/ST OP
Operation Mode Selection
Automatic Operation
Soft Dry Mode Operation
Mode
Air Circulation Operation(PC7CKE/PC9CKE
/PC12CKE)
Indoor Fan Speed Selection
Low Speed
Medium Speed
High Speed
Automatic Speed
Airflow Direction Control
Auto Airflow Direction
Airflow Direction Manual Control
Room Temperature Setting
Temperature Setting(16 C to 30 C)
Auto Operation
Timer Operation Selection
Stop/Start Operation Control
(set the ON/OFF Timer hourly later)
Set /Cancel Timer Operation
Set timer/Cancel the set timer
Heating Mode Operation(PA7CKE/PA9CKE/PA12CKE)
2

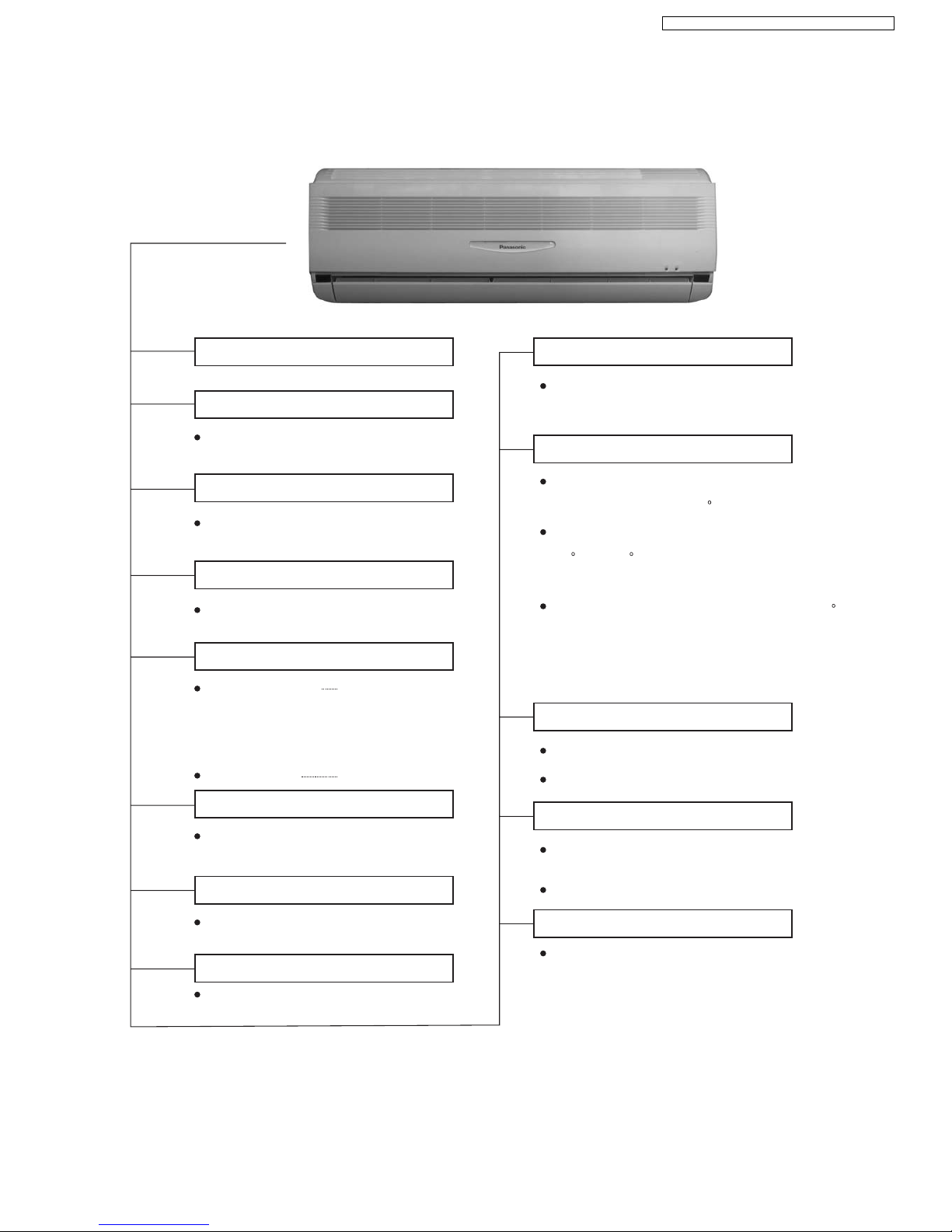

</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

Indoor Unit
When the remote control cannot be used,
please use this button.
Keep pressing this button for 10sec to turn
on or turn off the signal receiving sound.
Used when testing or repairing
Operation (green)
Timer(orange)
Iights up in operation
Blinks during Test
Run operation and
determining Auto
Operation mode
Timer in operation
Heating/Cooling/Soft Dry/Air Circulation/
Auto Operation
The unit will restart operation after 3-4
minutes after each pause.
7-minutes automatic restarting at Cooling
Operation
Cooling or Soft Dry Operation
Indoor fan starts running when temperature
When temperature of evaporator is between
30 C and 40 C,indoor fan will run at Super Low
or Low speed.
When temperature of evaporator reaches 34 C,
Wa
(For CS-PA7CKE/CS-PA9CKE/
CS-PA12CKE only)
rm Booting Operation ends.
High,Med,Low
Auto Fan Speed
Automatic Airflow Direction Control
The louver automatically swings up and down
Airflow Direction Manual Control
Auto Mode Operation Selection Button
Power Switch ON/OFF
Signal Receiving Sound Control
Test Run
Operation Indication Lamps
Operation Mode
Time Delay Safety Control
Automatic Restarting Control
Anti-freezing Control for the Evaporator
Warm Booting Control
Indoor Fan Speed Control
Airflow Direction Control
Delayed On-timer Control
of evaporator reaches 3 C or above.
For cooling or soft dry mode, the unit
starts 15 minutes before the set time with
the remote control, but for heating mode
30 minutes before the set time.
3
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

When the temperature of evaporator
reaches 51 C,outdoor fan stops,and will
restart when the temperature of evaporator
declines to 49 C.
When the temperature of evaporator
reaches 65 C,compressor will stop.
(For PA7CKE/PA9CKE/PA12CKE only)
Outdoor Unit
To protect the compressor from reverse
rotation when power off suddenly.
The 2-step Overload Protector is to protect
the compressor when
1/ temperature of compressor reaches 120 C
2/ high temperature or current enters into the
compressor. (for PA7CKE, PC7CKE,
PA9CKE, PC9CKE only)
Once the compressor is activated,it does not
stop for 60 seconds.It stops immediately with
remote controller ON/OFF button.
Anti-freezing operation for outdoor unit(during
Heating Mode Operation only)
Temperature of the condenser is tested by TRS.
(For CS-PA7CKE/CS-PA9CKE/CS-PA12CKE only)
If the unit is stopped during Heating
Operation,the 4-way valve will remain in
heating mode operation for 5 minutes.
(PA7CKE/PA9CKE/PA12CKE only)
Anti-reverse Protection
Overload Protector
60-seconds Test Operation Control
Deicing Control
Overload Protection Control
Compressor Protection Control
4-way Valve Control
Outdoor Fan Operation Control
Controlled by the indoor unit.
(PA7CKE/PA9CKE/PA12CKE only)
If the outdoor fan does not run after the
compressor is activated for 50sec,the
compressor will stop.
(Only for CS-PA7CKE/CU-PA7CKE/
CS-PA9CKE/CU-PA9CKE/
CS-PA12CKE/CU-PA12CKE)
CU-PA7CKE
CU-PC7CKE
CU-PC9CKE
CU-PA9CKE
CU-PC12CKE
CU-PA12CKE
4
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

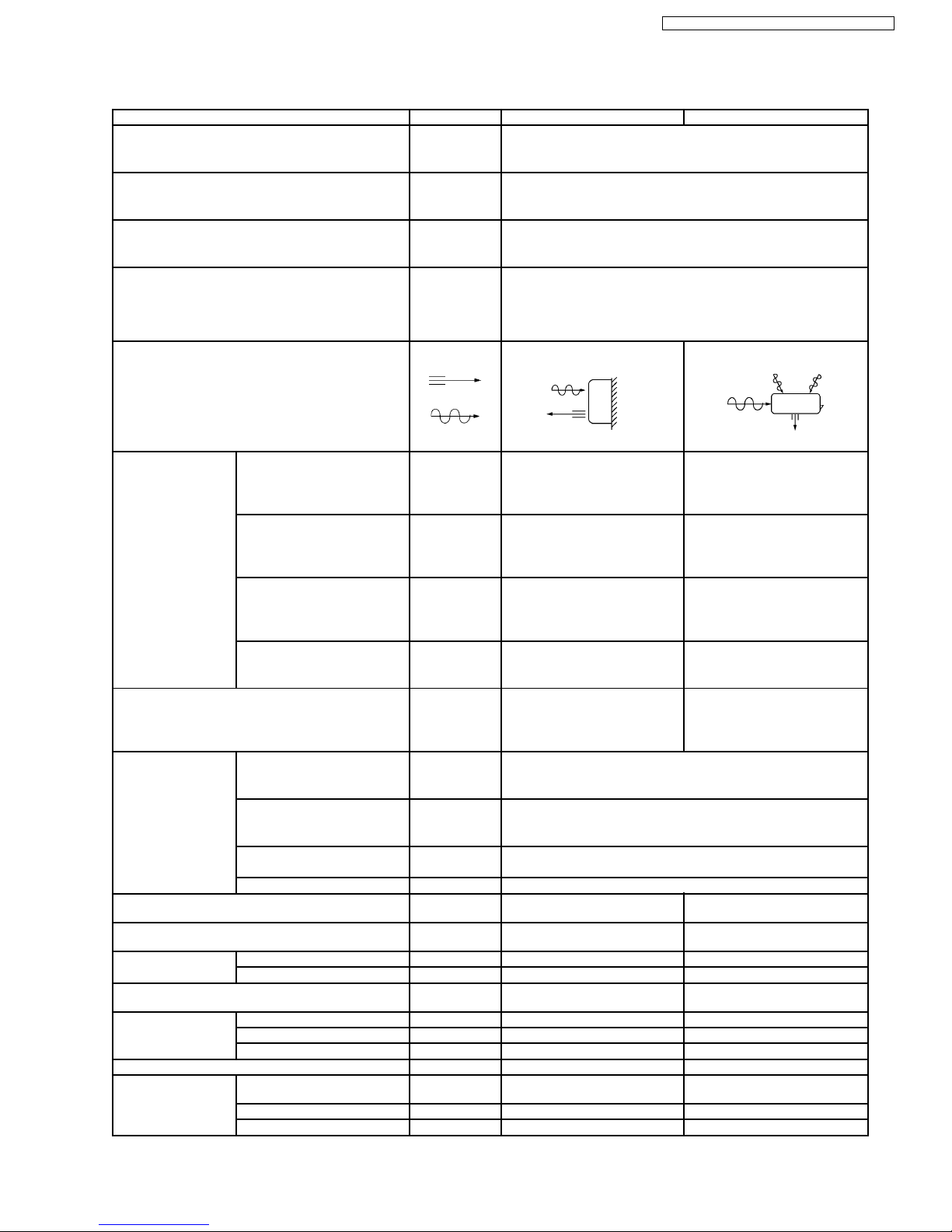

+! ,-).$&' /01&(2(&3'()%*
S%(' </H,P8<QR <SH,P8<QR
Cooling Capacity kW 2.10
Heating Capacity kW 2.30
Moisture Removal L/h 1.2
Power Source Phase
V
Cycle
Single
220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min Cooling: 6.7 —
Heating: 6.7
Indoor Air (medium) m3/min Cooling: 7.6 —
Heating: 7.6
Indoor Air (high) m3/min Cooling: 8.6 —
Heating: 8.6
Outdoor Air m3/min — —
Noise Level dB(A) Cooling: High37, Low29 Cooling: High48
Heating: High37, Low29 Heating: High48
Electrical Data Input W Cooling: 695
Heating: 620
Running Current ACooling: 3.50
Heating: 3.10
EER/COP W/W Cooling: 3.02
Heating: 3.71
Starting Current A 15
Piping Connection Port (Flare piping) Inch
Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length (Number of core-wire) m 2.2
3 core-wire/1.0mm2— —
Dimensions Height mm 275 534
Width mm 799 590
Depth mm 210 255
Net Weight kg 9.0 23
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 600
5
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,P8<QR <SH,P8<QR
Air Circulation Type Cross-flow fan Propeller fan
Motor Type Induction (4 pole) Induction (6 pole)
Input W 38.4 58.3
Rated Output W 13 15
Fan Speed Low rpm 960±60 —
Medium rpm 1100±60 —
High rpm 1240±60 880±60
Heat Exchanger Description Evaporator Condenser
Tube Material Copper Copper
Fin Material Slot Type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×10 1×20
FPI 18 16
Dimensions mm 610 × 210 × 25.4 568.8 × 508 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 620
Thermostat Electronic Control —
Protection Device — OLP(30A/230V)
Capillary Length mm — Cooling: 645, Heating: 1160
Circulation L/min — Cooling: 8.0, Heating: 4.5
Inner Diameter mm — Cooling: 1.3, Heating: 1.2
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 20µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.2µF, 400V
•
Specifications are subject to change without notice for further improvement
6
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

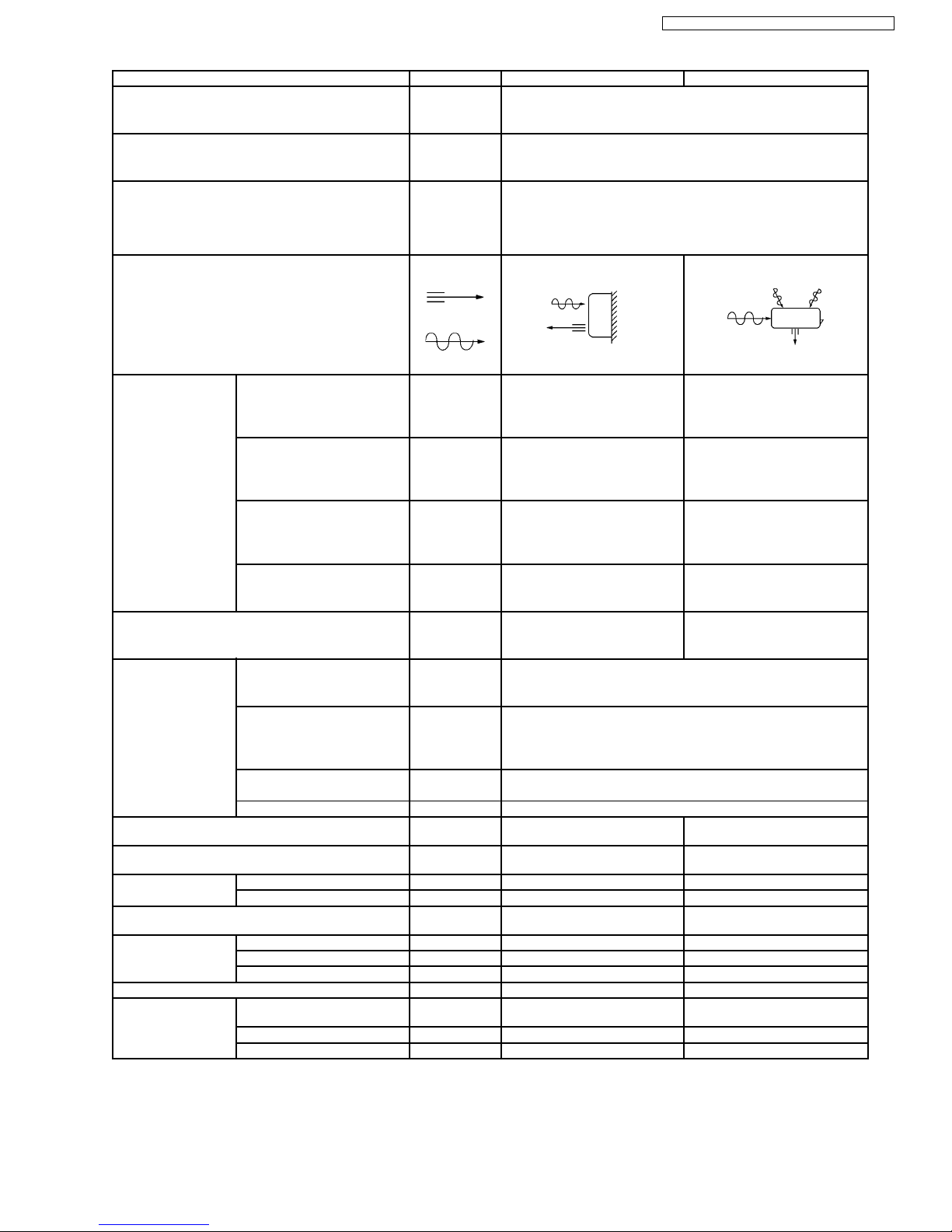

S%(' </H,PG<QR <SH,PG<QR
Cooling Capacity kW 2.70-2.75
Heating Capacity kW 3.10-3.15
Moisture Removal L/h 1.6
Power Source Phase
V
Cycle
Single
220-230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min Cool: 6.79 —
Heating: 6.75
Indoor Air (medium) m3/min Cool: 7.84 —
Heating: 7.8
Indoor Air (high) m3/min Cool: 8.9 —
Heating: 8.0
Outdoor Air m3/min — 22.0
Noise Level dB(A) Cooling: High38, Low29 Cooling: High47
Heating: High38, Low29 Heating: High47
Electrical Data Input W Cooling: 930-975
Heating: 800-830
Running Current ACooling: 4.35-4.30
Heating: 3.75-3.70
EER W/W Cooling: 2.9-2.82
Heating: 3.88-3.8
Starting Current A 20
Piping Connection Port
(Flare piping) Inch Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire) m 2.2 3 core-wire/1.0mm2— —
Dimensions Height mm 275 505
Width mm 799 780
Depth mm 210 245
Net Weight kg 9.0 31
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 750
7
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,PG<QR <SH,PG<QR
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (4 pole)
Input W 38.4 55.3
Rated Output W 13 20
Fan Speed Low rpm 900±60 —
Medium rpm 1040±60 —
High rpm 1180/1200±60 740±60
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×19
FPI 18 18
Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 840
Thermostat Electronic Control —
Protection Device — OLP(30A/230V)
Capillary Length mm — Cooling: 470 Heating: 1160
Circulation L/min — Cooling: 13.4 Heating: 4.5
Inner Diameter mm — Cooling: 1.5 Heating: 1.2
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 25µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.2µF, 400V
•
Specifications are subject to change without notice for further improvement.
8
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

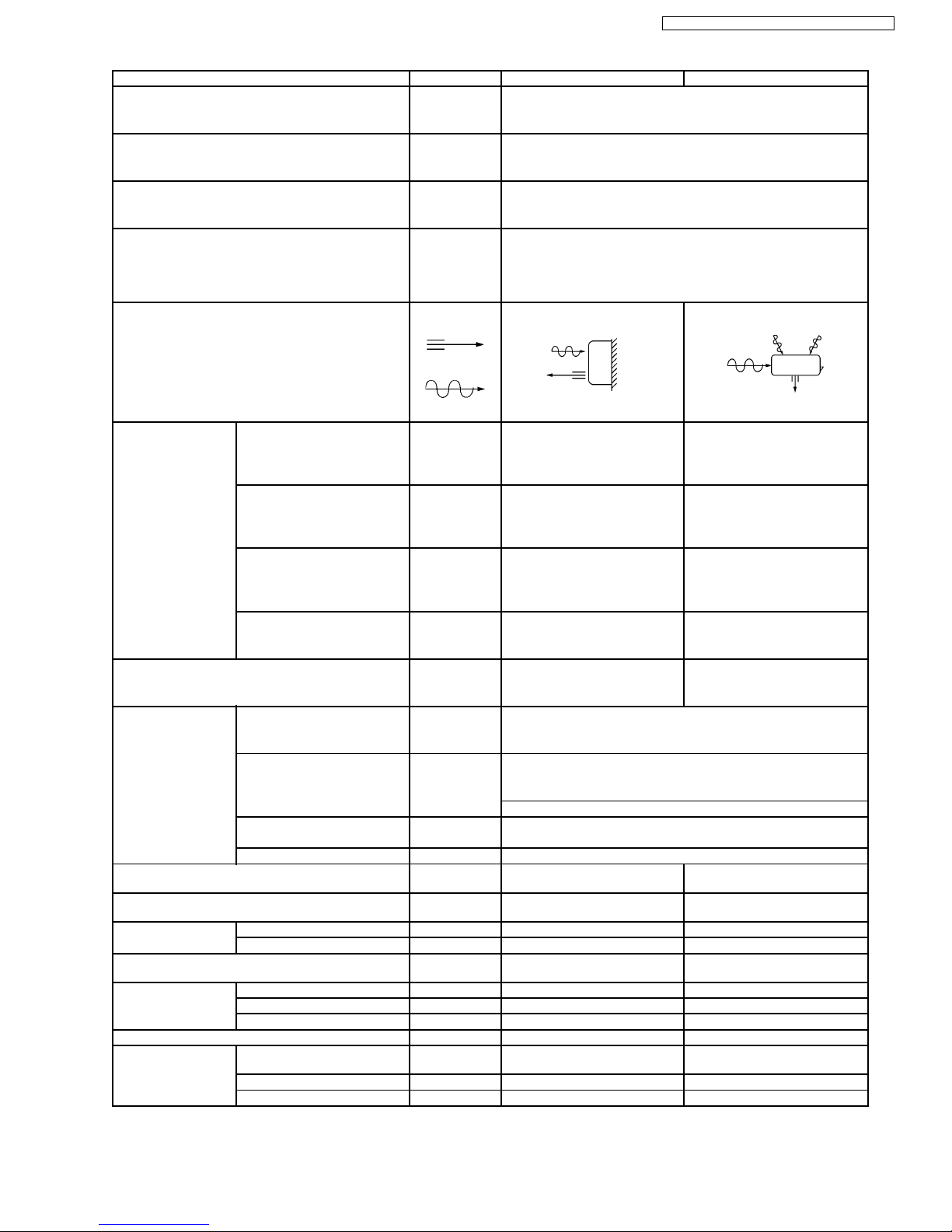

S%(' </H,P"+<QR <SH,P"+<QR
Cooling Capacity kW 3.35-3.40
Heating Capacity kW 4.00-4.05
Moisture Removal L/h 1.8
Power Source Phase
V
Cycle
Single
220-230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min Cool: 7.43 —
Heating: 7.48
Indoor Air (medium) m3/min Cool: 8.27 —
Heating: 8.33
Indoor Air (high) m3/min Cool: 9.1 —
Heating: 9.7
Outdoor Air m3/min — —
dB(A) Cooling: High39, Low32 Cooling: High48
Noise Level Heating: High39, Low32 Heating: High48
Input W Cooling: 1220-1240
Electrical Data Heating: 1100-1130
Running Current ACooling: 5.70-5.55
Heating: 5.15-5.05
EER W/W Cooling: 2.75-2.74
Heating: 3.64-3.58
Starting Current A 25
Piping Connection Port
(Flare piping) Inch Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire) m 2.2 3 core-wire/1.0mm2— —
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 9.0 38
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 900
9
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,P"+<QR <SH,P"+<QR
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (4 pole)
Input W 38.4 54.8
Rated Output W 13 20
Fan Speed Low rpm 980±60 —
Medium rpm 1090±60 —
High rpm 1200/1270±60 760±60
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 18 18
Dimensions mm 610 × 315 × 25.4 838.9 × 508 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 1000
Thermostat Electronic Control —
Protection Device — OLP(30A/230V)
Capillary Length mm — Cooling: 690 Heating: 665
Circulation L/min — Cooling: 60 Heating: 16.1
Inner Diameter mm — Cooling: 1.2 Heating: 1.7
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 30µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.8µF, 440V
•
Specifications are subject to change without notice for further improvement.
10
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<8<QR <SH,<8<QR
Cooling Capacity kW 2.10
Moisture Removal L/h 1.20
Power Source Phase
V
Cycle
Single
220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min 6.0 —
Indoor Air (medium) m3/min 6.96 —
Indoor Air (high) m3/min 8.0 —
Outdoor Air m3/min — —
Noise Level dB(A) High35, Low28 High48
Electrical Data Input W 735
Running Current A 3.60
EER W/W 2.86
Starting Current A 15
Piping Connection Port
(Flare piping) Inch Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire) m 2.2 3 core-wire/1.0mm2— —
Dimensions Height mm 250 534
Width mm 770 590
Depth mm 205 255
Net Weight kg 7.5 22
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 600
11
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<8<QR <SH,<8<QR
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (4 pole)
Input W 38.4 59.6
Rated Output W 13 15
Fan Speed Low rpm 810±60 —
Medium rpm 940±60 —
High rpm 1080±60 910±60
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×8 1×20
FPI 18 16
Dimensions mm 610 × 168 × 25.4 568.8 × 508 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 450
Thermostat Electronic Control O.L.P.(25A/230V)
Protection Device —
Capillary Length mm — 645
Circulation L/min — 8.0
Inner Diameter mm — 1.3
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 20µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.2µF, 400V
•
Specifications are subject to change without notice for further improvement.
12
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<G<QR <SH,<G<QR
Cooling Capacity kW 2.50-2.55
Moisture Removal L/h 1.40
Power Source Phase
V
Cycle
Single
220-230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min 7.36 —
Indoor Air (medium) m3/min 8.29 —
Indoor Air (high) m3/min 9.3 —
Outdoor Air m3/min — —
Noise Level dB(A) High36, Low30 High48
Electrical Data Input W 840-860
Running Current A 4.00-3.95
EER W/W 2.98-2.97
Starting Current A 21
Piping Connection Port
(Flare piping) Inch Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire) m 2.2 3 core-wire/1.5mm2— —
Dimensions Height mm 250 534
Width mm 770 590
Depth mm 205 255
Net Weight kg 8.0 24
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 750
13
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<G<QR <SH,<G<QR
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (4 pole)
Input W 38.4 59.6
Rated Output W 13 15
Fan Speed Low rpm 870±60 —
Medium rpm 980±60 —
High rpm 1100±60 880±50
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×12 1×20
FPI 18 18
Dimensions mm 610 × 252 × 25.4 568.8 × 508 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 530
Thermostat Electronic Control —
Protection Device — O.L.P.(25A/230V)
Capillary Length mm — 815
Circulation L/min — 10.4
Inner Diameter mm — 1.5
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 25µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.2µF, 400V
•
Specifications are subject to change without notice for further improvement.
14
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<"+<QR <SH,<"+<QR
Cooling Capacity kW 3.50-3.55
Moisture Removal L/h 2.1
Power Source Phase
V
Cycle
Single
220-230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor Air (low) m3/min 7.1 —
Indoor Air (medium) m3/min 8.0 —
Indoor Air (high) m3/min 8.8 —
Outdoor Air m3/min — —
Noise Level dB(A) High39, Low33 High47
Electrical Data Input W 1240-1270
Running Current A 5.80-5.70
EER W/W 2.82-2.80
Starting Current A 25
Piping Connection Port
(Flare piping) Inch Inch G: half union 3/8" L: half union 1/4" G: 3-way valve 3/8" L: 2-way valve 1/4"
Piping Size
(Flare piping) Inch Inch G: gas side 3/8" L: liquid side 1/4" G: gas side 3/8" L: liquid side 1/4"
Drain
Hose Inner Diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire) m 2.2 3 core-wire/1.5mm2— —
Dimensions Height mm 275 505
Width mm 799 780
Depth mm 210 245
Net Weight kg 9.0 34
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 1100
15
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

S%(' </H,<"+<QR <SH,<"+<QR
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (4 pole)
Input W 38.4 45.9
Rated Output W 13 20
Fan Speed Low rpm 980±60 —
Medium rpm 1110±60 —
High rpm 1220±60 680±50
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×22
FPI 18 19
Dimensions mm 610 × 315 × 25.4 718 × 462 × 12.7
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(M56)
Refrigerant (R-22) g — 600
Thermostat Electronic Control —
Protection Device — O.L.P.(25A/230V)
Capillary Length mm — 505
Circulation L/min — 17.8
Inner Diameter mm — 1.7
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 30µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.2µF, 400V
•
Specifications are subject to change without notice for further improvement.
16
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

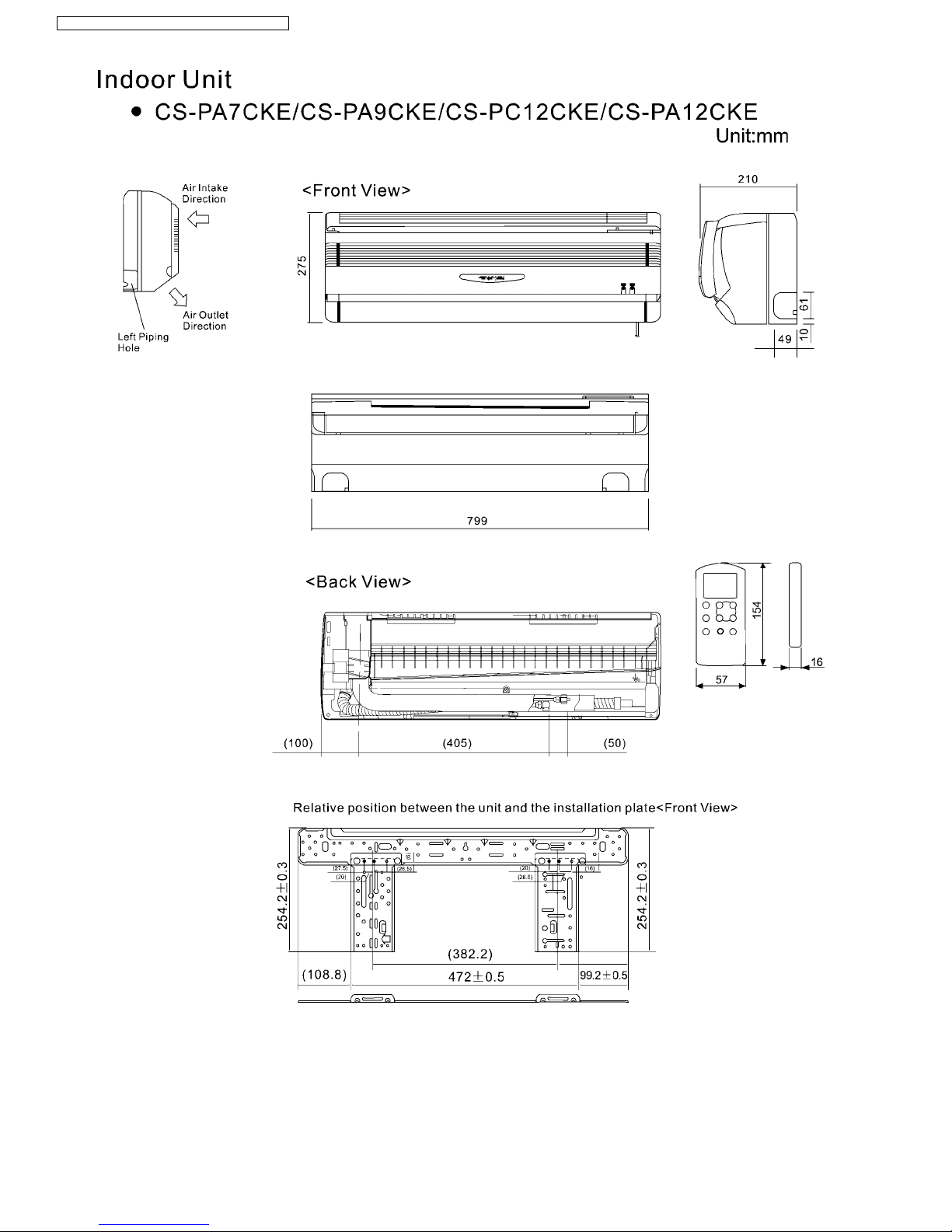

5! 6(71%*()%*
17
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

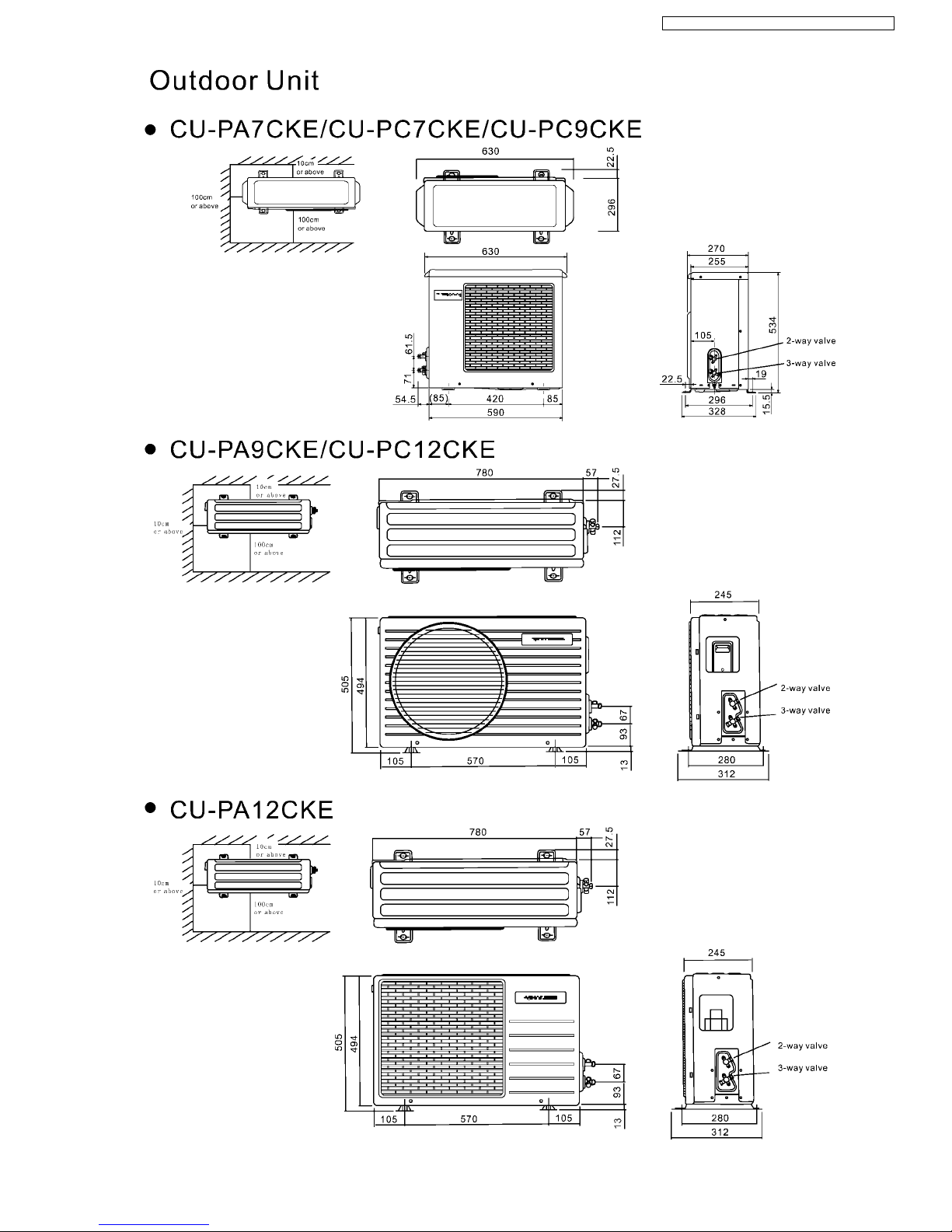

18
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

19
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR

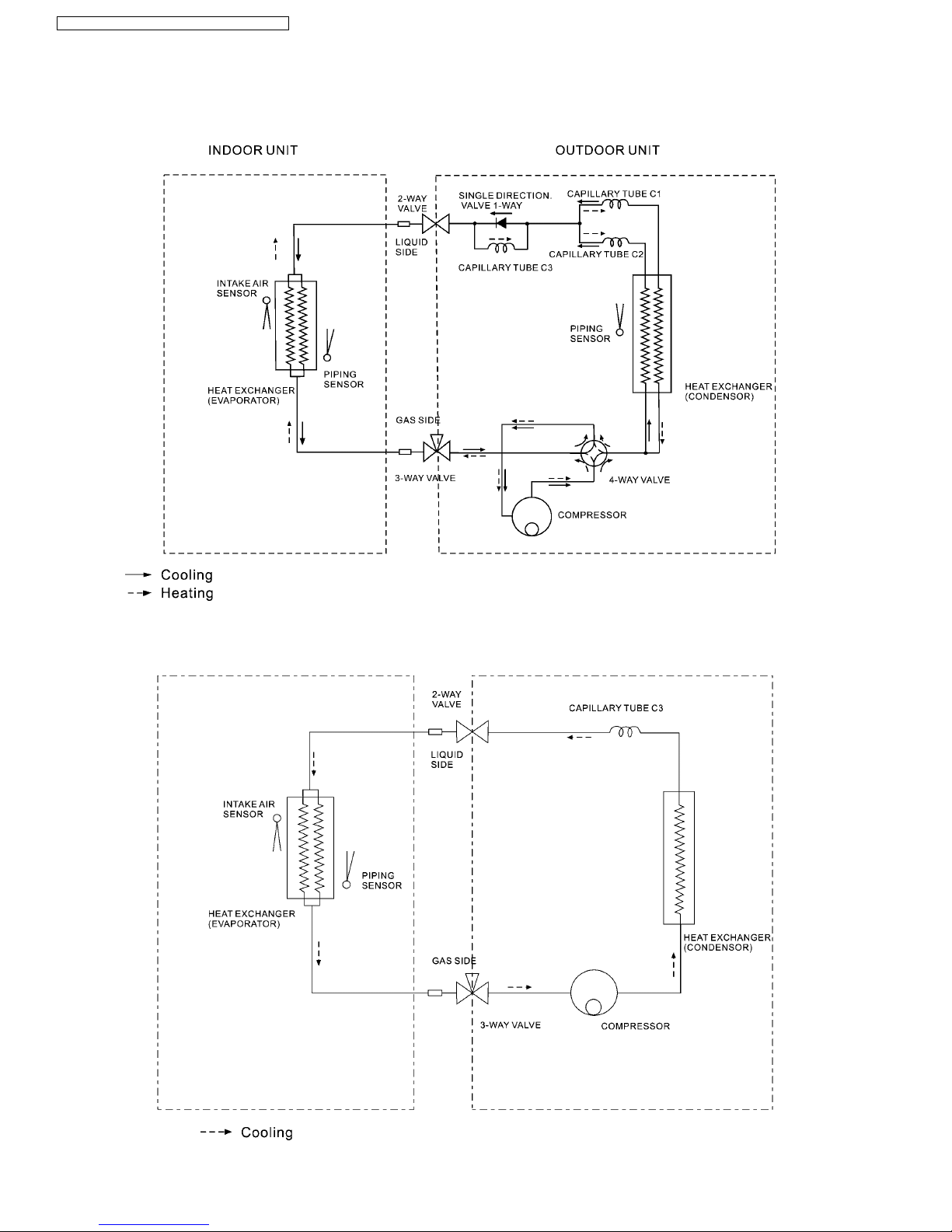

9! :12-(;1-3'()% <=&>1 6(3;-37
9Z"Z! </Y<SH,P8<QRJ </Y<SH,PG<QRJ </Y<SH,P"+<QR
9Z+Z! </Y<SH,<8<QRJ </Y<SH,<G<QRJ </Y<SH,<"+<QR
20
</H,P8<QR Y <SH,P8<QR Y </H,<8<QR Y <SH,<8<QR
