Panasonic aw-rm50g User manual

AW-RM50
Before operating this product, please read the instructions carefully and save this manual for future use.
Operating Instructions
Wireless Remote Controller
Model No. AW-RM50G

2
indicates safety information.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
Note:
The rating plate (serial number plate) is on the
bottom of the unit.
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
• THE APPARATUS SHALL NOT BE EXPOSED TO
DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE
APPARATUS.
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic
products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where
they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your
products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

3
Contents
Preparing to use the unit.......................................................................................4
Inserting the dry batteries ...................................................................................4
How to use the unit..............................................................................................5
Maintenance ...........................................................................................................6
Troubleshooting.....................................................................................................6
Specifications ........................................................................................................7
Concerning the unit’s operations and settings
 This remote controller is used only with the HD integrated camera.
These instructions describe the unit’s basic handling procedures.
For details on how to operate the unit and select its settings, refer to the Operating Instructions of the HD integrated
camera.
Importer’s name and address of pursuant to EU rules:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany

4
Preparing to use the unit
p Batteries are not supplied with this remote controller.
Provide two usable size “AA”, “R6” or “LR6” dry
batteries.
w Inserting the dry batteries

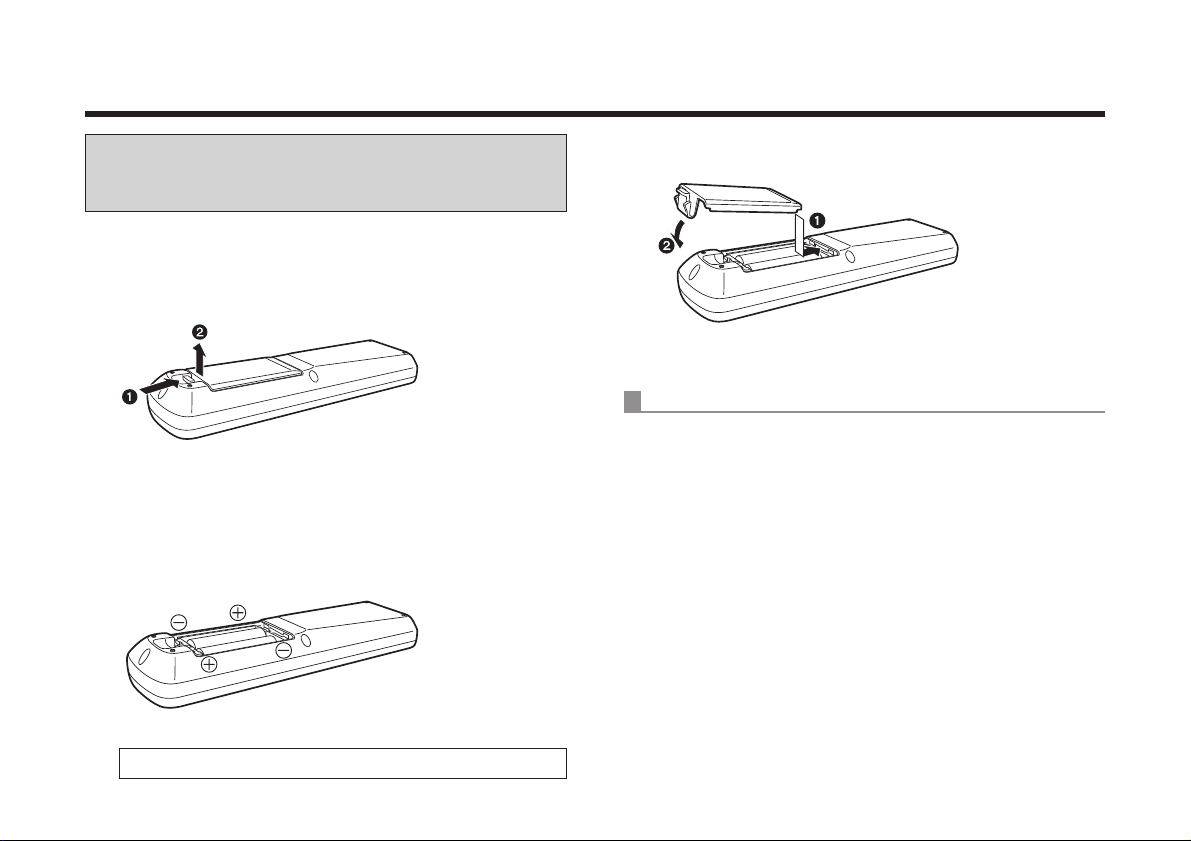

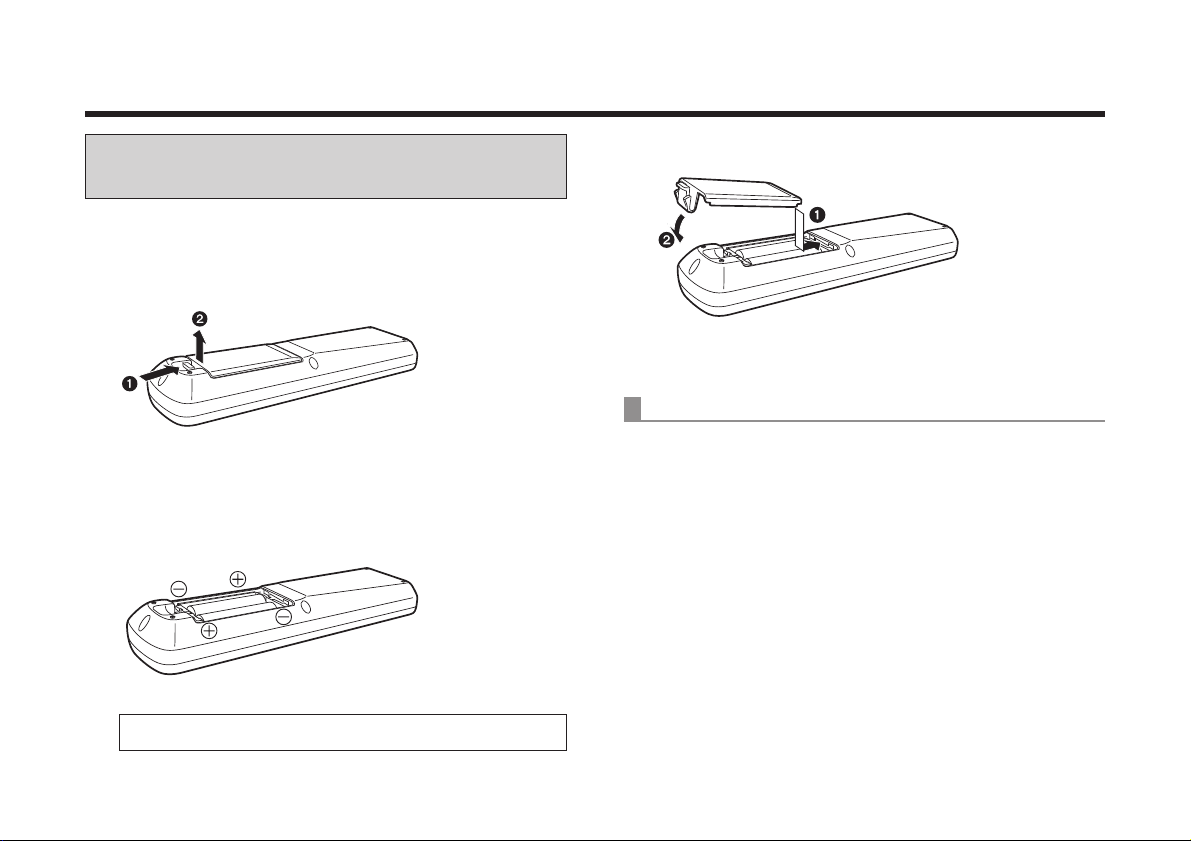

1 Remove the battery compartment cover.
2 Insert the dry batteries.
pCheck which ends of the batteries are the “+”
electrodes and which ends are the “–” electrodes.
Load the batteries correctly by inserting the negative
end first.
Usable batteries:
SUM-3, AA, R6, R6P, R6PU, UM3, LR6
3 Put the battery compartment cover back.
Replacing the dry batteries
p When removing the dry batteries, remove them from the
end of the batteries.
p The battery life span may be reduced under some
conditions of use.
p When the distance from which the unit is able to operate
the camera is becoming progressively shorter, it is time to
replace the dry batteries with two new ones.
Do not use one old battery and one new one together,
and do not use two different kinds of dry batteries
together.
p Dispose of batteries that are no longer usable together
with other incombustible garbage or in compliance with
the local ordinances.

5
Preparing to use the unit
w How to use the unit

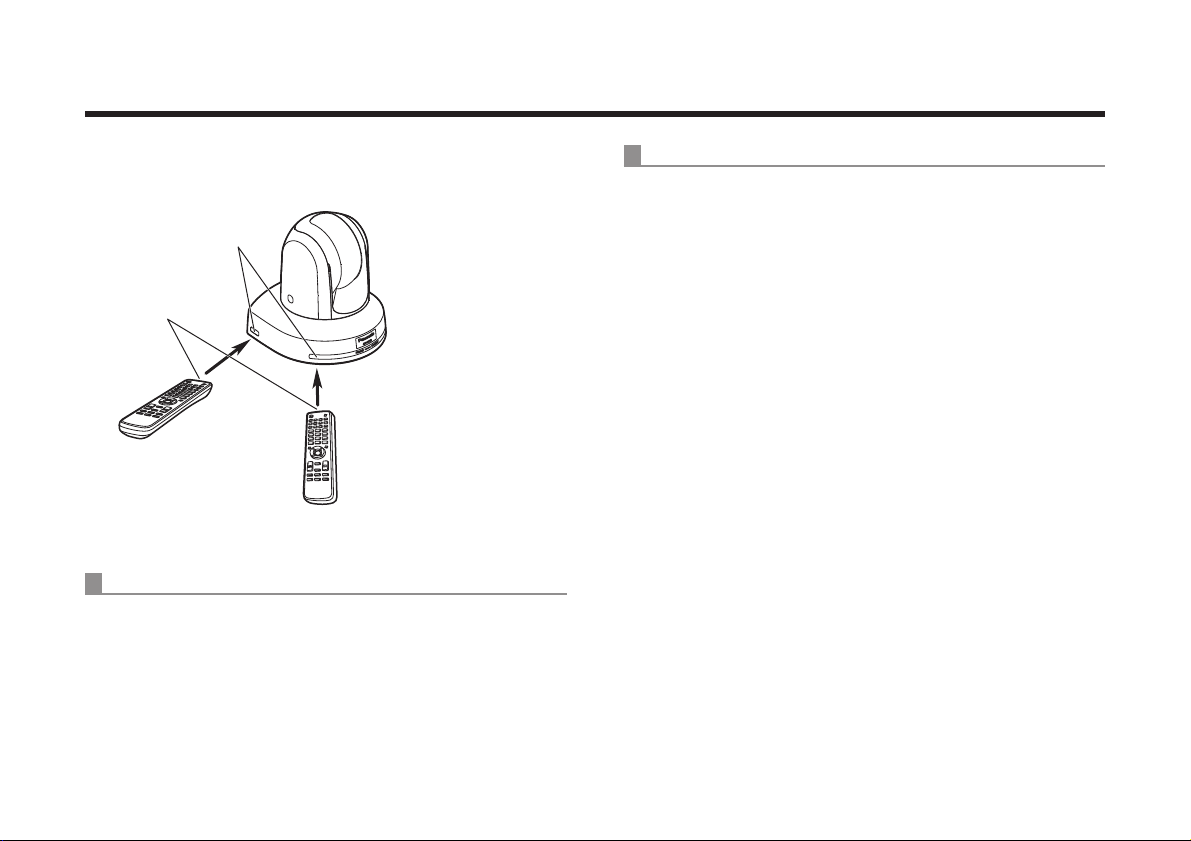

Signal light-sensing
area
HD Integrated Camera
p The camera’s shape and
positions of its signal
light-sensing areas will
differ from one model to
another.
Signal transmission
window
What to do to prevent trouble
p Do not disassemble or remodel the unit.
p Do not place heavy objects on top of it.
p Do not leave the unit standing in direct sunlight.
p Do not spill fruit juices or other liquids onto it.
To ensure that the unit’s signals are sent properly
p Set the operation of the wireless remote controller to
“enable” at the camera.
p Operate the unit at a distance of less than 10 m (32.8 ft.)
from the camera.
p It may not be possible to operate the camera using the
unit depending on the angle at which the unit is pointed at
the camera.
Point the unit’s signal transmission window at the
camera’s signal light-sensing area, and then use the unit
to operate the camera.
Point the unit at any angle ranging from +30° to –30° of
the camera’s light-sensing area.
p If the camera is installed near fluorescent lights, plasma
monitors or other such products or if the camera is
exposed to sunlight, the effects of the light may make it
impossible for the camera to be operated using the unit.
Be sure to follow the steps below for installation and use.
• Take steps to ensure that the camera’s signal light-
sensing area will not be exposed to the light from
fluorescent lights, plasma monitors or other such
products or from the sun.
• Install the unit away from fluorescent lights, plasma
monitors and other such products.

6
Maintenance
p Wipe the surfaces using a soft dry cloth. Avoid all contact with benzene, paint thinners and other volatile substances, and
avoid using these substances. Otherwise, the casing may become discolored.
Troubleshooting
Cannot operate the camera using the unit
Cause and remedial action Reference pages
p Has the operation of the wireless remote controller been set to “disable” at the camera? Page 5
p Have the unit’s batteries run down or have the batteries been installed with their polarities
reversed?
¬If the camera cannot be operated unless the remote controller is brought closer to the camera’s
light-sensing area, it means that the remaining charge of the batteries is low.
Replace the batteries.
Page 4
p Is a fluorescent light, the light from a plasma monitor or sunlight shining on the camera’s
light-sensing area? Page 5

7
Specifications
Power supply: DC 3 V (size “AA”, “R6” or “LR6” dry batteries M2; to be provided by the user)
Camera supported: HD integrated camera
Operable range: Approx. 10 m (32.8 ft.) (when the unit is pointed straight at one of the signal light-sensing areas)
Battery life span: Approx. 1.5 years (varies depending on how frequently the unit is used)
Dimensions (W VH VL): 53 M24 M200 mm (2-1/16˝ M15/16˝ M7-7/8˝)
Mass: Approx. 90 g (0.20 lbs.) [excluding dry batteries]
Mass and dimensions shown are approximate.
Specifications are subject to change without notice.

Web Site: http://panasonic.net
©Panasonic Corporation 2011

取扱説明書
ワイヤレスリモートコントローラー
品番AW-RM50G
このたびは、パナソニック製品をお買い上げいただき、まことにありがとうございます。
●取扱説明書をよくお読みのうえ、正しく安全にお使いください。
●ご使用前に「安全上のご注意」（3 〜 5ページ）を必ずお読みください。
●保証書は「お買い上げ日・販売店名」などの記入を確かめ、取扱説明書とともに大切に保管してください。
保証書別添付
AW-RM50
3TR006585CAA
FJ0710TY4102 -FJ
Printed in Japan

2
もくじ
安全上のご注意........................................................................................................... 3
本機の準備.................................................................................................................. 6
乾電池を入れる...................................................................................................... 6
本機の使いかた...................................................................................................... 7
お手入れ...................................................................................................................... 8
故障と思ったら........................................................................................................... 8
主な仕様...................................................................................................................... 9
保証とアフターサービス........................................................................................ 10
本機の操作・設定について
p 本機は、HD インテグレーテッドカメラ専用のリモコンです。
この取扱説明書では、基本的な取り扱いかたについて説明しています。
本機の操作や設定のしかたは、HD インテグレーテッドカメラの取扱説明書をお読みください。
