Panasonic EH-HW58 User manual

© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number PEWT1207A38CE
(Household) Multi-Styling Straightener
Model No. EH-HW58
Model No. EH-HW38
Model No. EH-HW18
Asia
TABLE OF CONTENTS
PAGE PAGE
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 5
4.1. Disassembly instruction---------------------------------- 5
4.2. ASSEMBLY instruction----------------------------------- 8
4.3. Lead wire of Iron Plate (Heater A , Heater B)
and Circuit arrangement points. ----------------------- 9
5 Wiring Connection Diagram ---------------------------------10
6 Schematic Diagram ---------------------------------------------10
7 Exploded View and Replacement Parts List ----------- 11
7.1. Exploded View for EH-HW58 ------------------------- 11
7.2. Parts List for EH-HW58--------------------------------- 12
7.3. Exploded View for EH-HW38 ------------------------- 13
7.4. Parts List for EH-HW38--------------------------------- 14
7.5. Exploded View for EH-HW18 ------------------------- 15
7.6. Parts List for EH-HW18--------------------------------- 16

2
1Warning
Caution:
- Pb free solder has a higher melting point that standard solder Typicall the melting point is 50 - 70°F (30 - 40°C) a higher.
Please use soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C).
In case of using high temperature soldering iron, please be careful not to heat too long.
- Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).
2 Specifications

3
3 Troubleshooting Guide
Refer to WIRING CONNECTION DIAGRAM.

4

5
4 Disassembly and Assembly Instructions
4.1. Disassembly instruction
1. Remove Shaft Cover from Main Body by Slotted screw
driver (Minus Driver.)
2. Remove Torx screws at Shaft position by Phillips screw
driver (Plus driver).
3. Remove Shaft out by tiny-shaped Phillips screw drivers
(Plus Driver) and pull it out from the main body.
4. Remove Pivot spring by gripping and pulling it out from
the Main body.
5. Remove 6 screws for fitting Press Plate side by Phillips
screw drivers (Plus Driver).
6. Remove Press Plate Cover at the Hook part by Slotted
screw driver (Minus Driver).

6
7. Remove Lock Button and Lock Button Spring.
8. Remove Iron Plate of Heater B from Hook.
9. Remove Slide Plate and Slide Spring.
10. Take off Press Plate.
11. Remove 2 screws of the Housing side by Phllips screw
driver (Plus Driver).
12. Remove 6 Screws by Phllips screw driver (Plus Driver).

7
13. Remove Housing A from Housing B in Grip follow as
below drawing.
14. Take off Iron Plate and Circuit assembly b/k from Housing
A.

8
4.2. ASSEMBLY instruction
1. Shaft Cover fixing point.
2. Housing B Assembly Point.

9
4.3. Lead wire of Iron Plate (Heater A , Heater B) and Circuit arrangement
points.
1. Lead wire of Iron Plate (Heater A assembly b/k) and Circuit assembly b/k arrangement follow as below.
2. Lead wire of Iron Plate(Heater B assembly b/k) arrangement follow as below.
3. Shaft Cover must be control direction follow as below.

10
5 Wiring Connection Diagram
6 Schematic Diagram

11
7 Exploded View and Replacement Parts List
7.1. Exploded View for EH-HW58

12

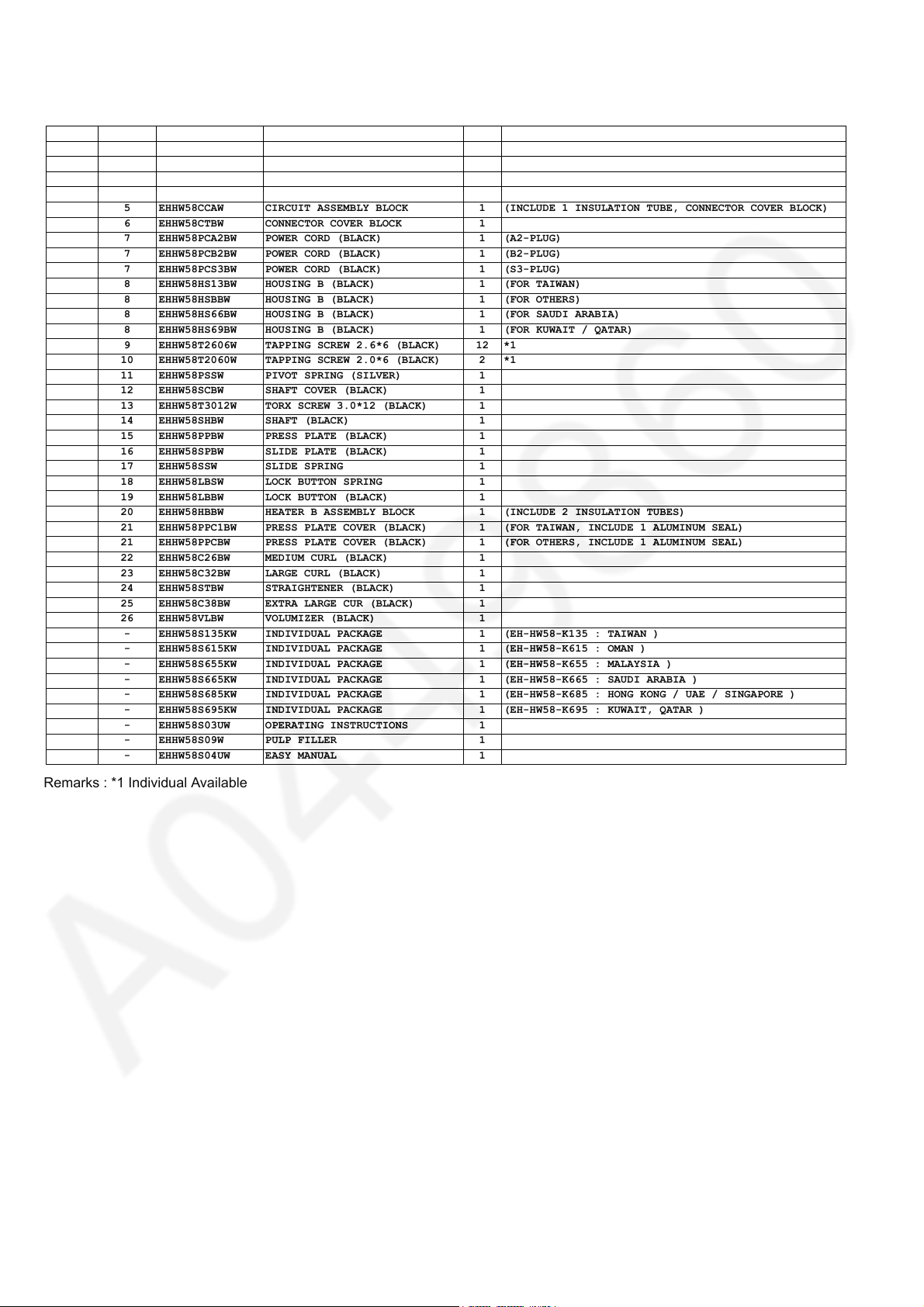

7.2. Parts List for EH-HW58
Remarks : *1 Individual Available
Safety Ref. No. Part No. Part Name & Description Q'ty Remarks
1 EHHW58HSABW HOUSING A BLOCK (BLACK) 1
2 EHHW58FSW FLOATING SPRING 4 *1
3 EHHW58HABW HEATER A ASSEMBLY BLOCK 1
4 EHHW58PKW PACKING 1
5 EHHW58CCAW CIRCUIT ASSEMBLY BLOCK 1 (INCLUDE 1 INSULATION TUBE, CONNECTOR COVER BLOCK)
6 EHHW58CTBW CONNECTOR COVER BLOCK 1
7 EHHW58PCA2BW POWER CORD (BLACK) 1 (A2-PLUG)
7 EHHW58PCB2BW POWER CORD (BLACK) 1 (B2-PLUG)
7 EHHW58PCS3BW POWER CORD (BLACK) 1 (S3-PLUG)
8 EHHW58HS13BW HOUSING B (BLACK) 1 (FOR TAIWAN)
8 EHHW58HSBBW HOUSING B (BLACK) 1 (FOR OTHERS)
8 EHHW58HS66BW HOUSING B (BLACK) 1 (FOR SAUDI ARABIA)
8 EHHW58HS69BW HOUSING B (BLACK) 1 (FOR KUWAIT / QATAR)
9 EHHW58T2606W TAPPING SCREW 2.6*6 (BLACK) 12 *1
10 EHHW58T2060W TAPPING SCREW 2.0*6 (BLACK) 2 *1
11 EHHW58PSSW PIVOT SPRING (SILVER) 1
12 EHHW58SCBW SHAFT COVER (BLACK) 1
13 EHHW58T3012W TORX SCREW 3.0*12 (BLACK) 1
14 EHHW58SHBW SHAFT (BLACK) 1
15 EHHW58PPBW PRESS PLATE (BLACK) 1
16 EHHW58SPBW SLIDE PLATE (BLACK) 1
17 EHHW58SSW SLIDE SPRING 1
18 EHHW58LBSW LOCK BUTTON SPRING 1
19 EHHW58LBBW LOCK BUTTON (BLACK) 1
20 EHHW58HBBW HEATER B ASSEMBLY BLOCK 1 (INCLUDE 2 INSULATION TUBES)
21 EHHW58PPC1BW PRESS PLATE COVER (BLACK) 1 (FOR TAIWAN, INCLUDE 1 ALUMINUM SEAL)
21 EHHW58PPCBW PRESS PLATE COVER (BLACK) 1 (FOR OTHERS, INCLUDE 1 ALUMINUM SEAL)
22 EHHW58C26BW MEDIUM CURL (BLACK) 1
23 EHHW58C32BW LARGE CURL (BLACK) 1
24 EHHW58STBW STRAIGHTENER (BLACK) 1
25 EHHW58C38BW EXTRA LARGE CUR (BLACK) 1
26 EHHW58VLBW VOLUMIZER (BLACK) 1
- EHHW58S135KW INDIVIDUAL PACKAGE 1 (EH-HW58-K135 : TAIWAN )
- EHHW58S615KW INDIVIDUAL PACKAGE 1 (EH-HW58-K615 : OMAN )
- EHHW58S655KW INDIVIDUAL PACKAGE 1 (EH-HW58-K655 : MALAYSIA )
- EHHW58S665KW INDIVIDUAL PACKAGE 1 (EH-HW58-K665 : SAUDI ARABIA )
- EHHW58S685KW INDIVIDUAL PACKAGE 1 (EH-HW58-K685 : HONG KONG / UAE / SINGAPORE )
- EHHW58S695KW INDIVIDUAL PACKAGE 1 (EH-HW58-K695 : KUWAIT, QATAR )
- EHHW58S03UW OPERATING INSTRUCTIONS 1
- EHHW58S09W PULP FILLER 1
- EHHW58S04UW EASY MANUAL 1

13
7.3. Exploded View for EH-HW38

14
7.4. Parts List for EH-HW38
Remarks : *1 Individual Available
Safety Ref. No. Part No. Part Name & Description Q'ty Remarks
1 EHHW38HSABW HOUSING A BLOCK (BLACK) 1
2 EHHW38FSW FLOATING SPRING 4 *1
3 EHHW38HABW HEATER A ASSEMBLY BLOCK 1
4 EHHW38PKW PACKING 1
5 EHHW38CCAW CIRCUIT ASSEMBLY BLOCK 1 (INCLUDE 1 INSULATION TUBE, CONNECTOR COVER BLOCK)
6 EHHW38CTBW CONNECTOR COVER BLOCK 1
7 EHHW38PCA2BW POWER CORD (BLACK) 1 (A2-PLUG)
7 EHHW38PCB2BW POWER CORD (BLACK) 1 (B2-PLUG)
7 EHHW38PCS3BW POWER CORD (BLACK) 1 (S3-PLUG)
8 EHHW38HS13BW HOUSING B (BLACK) 1 (FOR TAIWAN)
8 EHHW38HSBBW HOUSING B (BLACK) 1 (FOR OTHERS)
8 EHHW38HS66BW HOUSING B (BLACK) 1 (FOR SAUDI ARABIA)
8 EHHW38HS69BW HOUSING B (BLACK) 1 (FOR KUWAIT / QATAR)
9 EHHW38T2606W TAPPING SCREW 2.6*6 (BLACK) 12 *1
10 EHHW38T2060W TAPPING SCREW 2.0*6 (BLACK) 2 *1
11 EHHW38PSSW PIVOT SPRING (SILVER) 1
12 EHHW38SCBW SHAFT COVER (BLACK) 1
13 EHHW38T3012W TORX SCREW 3.0*12 (BLACK) 1
14 EHHW38SHBW SHAFT (BLACK) 1
15 EHHW38PPBW PRESS PLATE (BLACK) 1
16 EHHW38SPBW SLIDE PLATE (BLACK) 1
17 EHHW38SSW SLIDE SPRING 1
18 EHHW38LBSW LOCK BUTTON SPRING 1
19 EHHW38LBBW LOCK BUTTON (BLACK) 1
20 EHHW38HBBW HEATER B ASSEMBLY BLOCK 1 (INCLUDE 2 INSULATION TUBES)
21 EHHW38PPC1BW PRESS PLATE COVER (BLACK) 1 (FOR TAIWAN, INCLUDE 1 ALUMINUM SEAL)
21 EHHW38PPCBW PRESS PLATE COVER (BLACK) 1 (FOR OTHERS, INCLUDE 1 ALUMINUM SEAL)
22 EHHW38C26BW MEDIUM CURL (BLACK) 1
23 EHHW38C32BW LARGE CURL (BLACK) 1
24 EHHW38STBW STRAIGHTENER (BLACK) 1
- EHHW38S135KW INDIVIDUAL PACKAGE 1 (EH-HW38-K135 : TAIWAN )
- EHHW38S615KW INDIVIDUAL PACKAGE 1 (EH-HW38-K615 : OMAN )
- EHHW38S665KW INDIVIDUAL PACKAGE 1 (EH-HW38-K665 : SAUDI ARABIA )
- EHHW38S685KW INDIVIDUAL PACKAGE 1 (EH-HW38-K685 : HONG KONG / UAE / SINGAPORE )
- EHHW38S695KW INDIVIDUAL PACKAGE 1 (EH-HW38-K695 : KUWAIT, QATAR )
- EHHW38S03UW OPERATING INSTRUCTIONS 1
- EHHW38S09W PULP FILLER 1
- EHHW38S04UW EASY MANUAL 1

15
7.5. Exploded View for EH-HW18

16
7.6. Parts List for EH-HW18
Remarks : *1 Individual Available
Safety Ref. No. Part No. Part Name & Description Q'ty Remarks
1 EHHW18HSABW HOUSING A BLOCK (BLACK) 1
2 EHHW18FSW FLOATING SPRING 4 *1
3 EHHW18HABW HEATER A ASSEMBLY BLOCK 1
4 EHHW18PKW PACKING 1
5 EHHW18CCAW CIRCUIT ASSEMBLY BLOCK 1 (INCLUDE 1 INSULATION TUBE, CONNECTOR COVER BLOCK)
6 EHHW18CTBW CONNECTOR COVER BLOCK 1
7 EHHW18PCA2BW POWER CORD (BLACK) 1 (A2-PLUG)
7 EHHW18PCB2BW POWER CORD (BLACK) 1 (B2-PLUG)
7 EHHW18PCS3BW POWER CORD (BLACK) 1 (S3-PLUG)
8 EHHW18HS13BW HOUSING B (BLACK) 1 (FOR TAIWAN)
8 EHHW18HSBBW HOUSING B (BLACK) 1 (FOR OTHERS)
8 EHHW18HS64BW HOUSING B (BLACK) 1 (FOR VIETNAM)
8 EHHW18HS66BW HOUSING B (BLACK) 1 (FOR SAUDI ARABIA)
8 EHHW18HS69BW HOUSING B (BLACK) 1 (FOR KUWAIT / QATAR)
9 EHHW18T2606W TAPPING SCREW 2.6*6 (BLACK) 12 *1
10 EHHW18T2060W TAPPING SCREW 2.0*6 (BLACK) 2 *1
11 EHHW18PSSW PIVOT SPRING (SILVER) 1
12 EHHW18SCBW SHAFT COVER (BLACK) 1
13 EHHW18T3012W TORX SCREW 3.0*12 (BLACK) 1
14 EHHW18SHBW SHAFT (BLACK) 1
15 EHHW18PPBW PRESS PLATE (BLACK) 1
16 EHHW18SPBW SLIDE PLATE (BLACK) 1
17 EHHW18SSW SLIDE SPRING 1
18 EHHW18LBSW LOCK BUTTON SPRING 1
19 EHHW18LBBW LOCK BUTTON (BLACK) 1
20 EHHW18HBBW HEATER B ASSEMBLY BLOCK 1 (INCLUDE 2 INSULATION TUBES)
21 EHHW18PPC1BW PRESS PLATE COVER (BLACK) 1 (FOR TAIWAN, INCLUDE 1 ALUMINUM SEAL)
21 EHHW18PPCBW PRESS PLATE COVER (BLACK) 1 (FOR OTHERS, INCLUDE 1 ALUMINUM SEAL)
22 EHHW18C26BW MEDIUM CURL (BLACK) 1
- EHHW18S135KW INDIVIDUAL PACKAGE 1 (EH-HW18-K135 : TAIWAN )
- EHHW18S615KW INDIVIDUAL PACKAGE 1 (EH-HW18-K615 : OMAN )
- EHHW18S01IKW INDIVIDUAL PACKAGE 1 (EH-HW18K615I : INDIA )
- EHHW18S645KW INDIVIDUAL PACKAGE 1 (EH-HW18-K645 : VIETNAM )
- EHHW18S655KW INDIVIDUAL PACKAGE 1 (EH-HW18-K655 : MALAYSIA )
- EHHW18S665KW INDIVIDUAL PACKAGE 1 (EH-HW18-K665 : SAUDI ARABIA )
- EHHW18S685KW INDIVIDUAL PACKAGE 1 (EH-HW18-K685 : HONG KONG / UAE / SINGAPORE )
- EHHW18S695KW INDIVIDUAL PACKAGE 1 (EH-HW18-K695 : KUWAIT, QATAR )
- EHHW18S03UW OPERATING INSTRUCTIONS 1
- EHHW18S09W PULP FILLER 1
- EHHW18S04UW EASY MANUAL 1
