Panasonic EH-HV70 User manual

Operating Instructions
(Household) Multi-Styling Straightener
Model No. EH-HV70
English��������������������������������������������� 3
������������������������������������������������ 19
�������������������������������������������������� 35
Bahasa Indonesia������������������������� 51

2

3
English
Operating Instructions
(Household) Multi-Styling Straightener
Model No. EH-HV70
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
Contents
Safety precautions..................... 4
Parts identication ������������������������������8
About the temperature control system ���9
About ion����������������������������������������������9
About thumb holder ����������������������������9
Tips for best styling results��������������10
Before use������������������������������������������ 11
Using the straightener ����������������������13
After use���������������������������������������������16
Maintenance���������������������������������������16
Troubleshooting ��������������������������������17
Specications ������������������������������������17

4
English
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, and
damage to property, always observe the following safety
precautions.
Explanation of symbols
The following symbols are used to classify and describe the
level of hazard, injury, and property damage caused when the
denotation is disregarded and improper use is performed.
WARNING
Denotes a potential
hazard that could result
in serious injury or
death.
CAUTION
Denotes a hazard that
could result in minor
injury or property
damage.
The following symbols are used to classify and describe the
type of instructions to be observed.
This symbol is used to alert users to a specific
operating procedure that must not be performed.
This symbol is used to alert users to a specific
operating procedure that must be followed in order to
operate the unit safely.
Illustrations in “Safety precautions” may vary from the actual
product.
WARNING
Do not store within the reach of children or infants.
Do not let them use the appliance.
-Doing so may cause burn, electric shock, or injury.
Never modify, disassemble, or repair.
-Doing so may cause ignition or injury due to abnormal
operation.
Contact an authorized service center for repair.
Do not use in a way exceeding the rating of the
household outlet or the wiring.
-Exceeding the rating by connecting too many plugs to
one household outlet may cause fire due to overheating.
Do not damage the cord or plug.
Do not damage, modify, or forcibly bend, pull, or
twist the cord.
Also, do not place anything heavy on or pinch the cord.
-Doing so may cause electric shock, burn or fire due to
a short circuit.
Do not use with the cord bundled.
-Doing so may cause fire or electric shock.
Do not wrap the cord around the
main body when storing.
-Doing so may cause the wire in the
cord to break with the load, and
may cause electric shock, burn or
fire due to a short circuit.
Do not use when the plug or cord is damaged (small
cracks, inner wires visible, etc.) or hot.
-Doing so may cause burn, electric shock, or fire due to
a short circuit.

5
English
WARNING
Never use the appliance if the plug fits loosely in a
household outlet.
-Doing so may cause burn, electric shock, or fire due to
a short circuit.
Do not connect or disconnect the plug to a
household outlet with a wet hand.
-Doing so may cause electric shock or injury.
Do not use the appliance with a wet hand.
-Doing so may cause electric shock or fire due to a
short circuit.
Do not leave the appliance unattended with the
power connected or after use while the Iron Plate is
still hot.
-Doing so may cause fire, burn, or discoloration or
deformation of objects nearby.
Do not store the appliance in a bathroom or location
with high humidity. Also, do not place in a location
where water may spill (such as top of a vanity).
-Doing so may cause electric shock or fire.
Do not use in proximity of flammable materials
(such as alcohol, benzine, thinner, spray, hair care
product, nail polish remover).
-Doing so may cause an explosion or fire.
Do not apply hair spray or flammable hair product
to the main body or hair while using the appliance.
-Doing so may cause fire, electric shock, or burn.
Do not immerse the appliance in water.
Do not use the appliance near water.
Do not use the appliance near bathtubs, showers,
basins or other vessels containing water.
-Doing so may cause electric shock or fire.

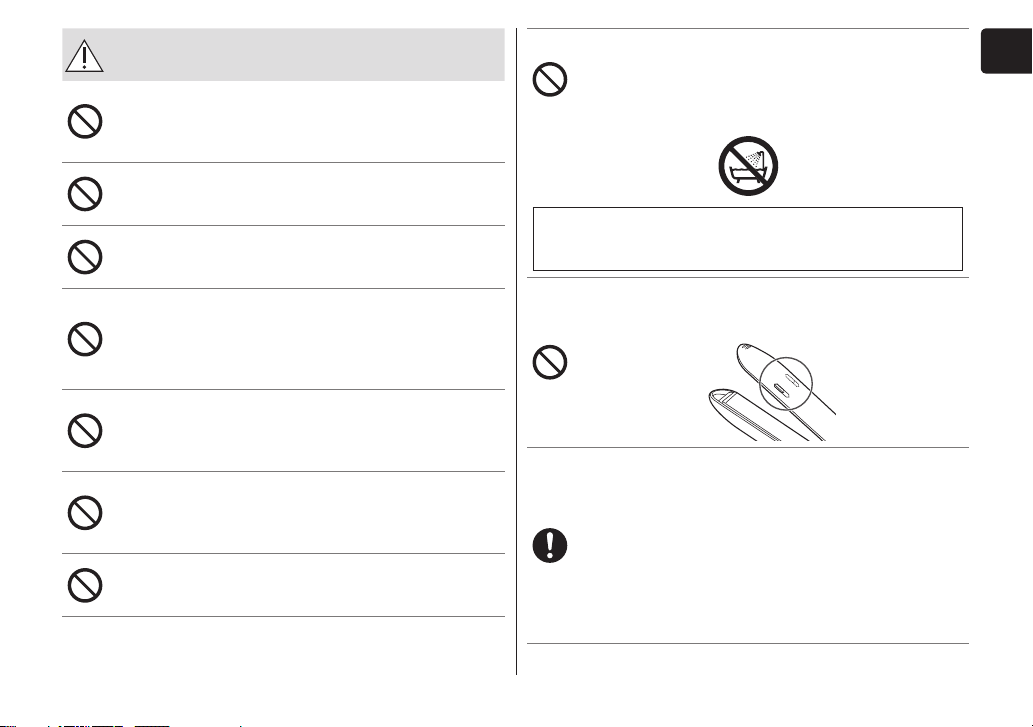

This symbol with prohibition sign in red on the
appliance means “Do not use this appliance near
water”.
Do not block, or insert hair pins or other foreign
objects into the ion outlet.
-Doing so may cause fire, electric shock, or burn.
Immediately stop using and remove the plug if there
is any abnormality or malfunction.
-Failure to do so may cause fire, electric shock, or
injury.
<Abnormality or malfunction cases>
•The main body stops occasionally, or the cord or
the plug is abnormally hot.
•The main body is deformed or smells of burning.
-Immediately request inspection or repair at an
authorized service center.

6
English
WARNING
Fully insert the plug.
Always ensure the appliance is operated on an
electric power source matched to the rated voltage
indicated on the appliance.
-Failure to do so may cause fire, or electric shock
Regularly clean the plug to prevent dust from
accumulating.
-Failure to do so may cause fire due to insulation failure
caused by humidity.
Disconnect the plug and wipe with a dry cloth.
When the appliance is used in a bathroom, unplug it
after use since the proximity of water presents a
hazard even when the appliance is switched off.
-Failure to do so may cause an accident or injury.
For additional protection, the installation of a
residual current device (RCD) having a rated
residual operating current not exceeding 30 mA is
advisable in the electrical circuit supplying the
bathroom. Ask your installer for advice.
-Failure to do so may cause an accident or injury.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
-Failure to do so may cause an accident or injury.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
-Failure to do so may cause an accident or injury.
CAUTION
Do not store or use the cord in a twisted state.
-Doing so may cause the wire in the cord to break with
the load, leading to electric shock or fire due to a short
circuit.
Do not drop or subject to shock.
-Doing so may cause electric shock or ignition.
Do not use on infants.
-Doing so may cause burn.

7
English
CAUTION
Do not touch the shaded areas when in use or right
after use since they will be hot.
-Doing so may cause burn.
Do not let the heated section touch the skin (ears,
forehead, neckline, etc.).
-Doing so may cause burn.
Do not use the appliance with permanent wave
liquids applied to your hair.
-Doing so may cause hair or skin trouble.
Do not use the appliance for any purpose other than
the care of your own hair. (Do not use on pets, etc.)
-Doing so may cause burn.
Do not use the appliance on the same bundle of hair
for more than 2 times.
-Doing so may cause burn or damage your hair.
Disconnect the plug from the household outlet after
use.
-Failure to do so may cause electric shock or fire due to
electrical leakage resulting from insulation
deterioration.
During use, be careful not to catch your hands or
fingers in the shaded areas.
-Failure to do so may cause injury.
Disconnect the plug by holding onto it instead of
pulling on the cord.
-Failure to do so may cause the wire in the cord to
break, and may cause burn, electric shock, or fire due
to a short circuit.
Slide the appliance down your hair without
stopping.
Only use the appliance on clean, dry and tangle-free
hair.
Recommended temperature for use depends on
each hair type of condition. (see 12 page)
-Failure to do so may cause burn or damage your hair.
Be careful of the high temperature of the
attachment when using or after using.
-Doing so may cause burns.
Place the appliance on a flat surface away from
flammable objects or objects fragile to heat.
-Failure to do so may cause fire, burns or discoloration
or deformation of surrounding objects.
►Notes
●Styling will hold for 1 day only.
Hair will return to its normal condition after shampoo.
●Effectiveness of straightening may vary among individuals.

8
English
Parts identification
A Holding Tip
BIon Outlet
COpen/Close Lock
DCord
EPlug
(The shape of the plug
differs depending on the
area.)
FIron Plate
GPush Button
HThumb holder
ITemperature Setting
Switch
JPower Switch
KTemperature Setting
Lamp
Accessory
LVolumizer
MVolumizer Tips
NCleaning Brush (for the Ion Outlet)
About Open/Close lock
Slide the Open/Close lock (shaded area) to lock and unlock.
Locked Unlocked
►Note
●Do not try to force open when locked.
This may damage the product.
AB
F
C
L
D
K
I
J
N
E
G
M
H

9
English
About the temperature control system
Standby mode
At temperature setting of 230 °C, 200 °C and 180 °C, if the
straightener is left unused for approximately 10 minutes, the
temperature will automatically lower to 160
°C.
The indicator light will blink alternately
between 230 °C, 200 °C, or 180 °C
and 160 °C
Once the straightener is used again, or the [-] or [+]
temperature setting switches are pressed, the temperature
will return to 230 °C, 200 °C, or 180 °C.
The 230 °C, 200 °C, or 180 °C
light will blink and then light up.
(Depending on use, it may light
up without flickering.)
►Note
●Place hair in the center of the iron plate to use.
(If hair is placed on edge of the iron plate, the straightener
may not be able to detect it is in use.)
Automatic shut OFF function
This unit will automatically turn off when 60 minutes have
passed from the start of use.
The power will shut off even if you are using this unit, so in this
event, please turn on the power once again.
After using this unit, even if you forget to shut off the power,
after 60 minutes have passed, it will automatically turn off.
About ion
Ions are particles that combine negatively charged oxygen
and moisture in the air, and cannot be seen through the naked
eye.
(Ion generation method: High-voltage discharge)
►Notes
●You may notice a characteristic odor when using this
appliance. This is caused by the ozone it generates and is
not harmful to the human body.
●A humming noise may come out of the Ion Outlet, but this is
the sound of ion being discharged and is not a malfunction.
About thumb holder
This thumb holder is for easy holding.
This dimple helps you to hold the straightener easier with
more stability.

10
English
Tips for best styling results
1
1Brush your hair to ensure it is lying in the same
direction.
2
2Bundle and pin to hold your
hair in the order shown in the
illustration.
•If you have thick hair, separating
the hair into more sections will
make the styling easier.
2
13
4
3
3Practice with the power off.
•Please practice with the power off until you get used to
using the straightener.
Styling order
Start styling from the bottom of the back
of your head in the order of 1to 2and
3to 4.
2
13
4
Hair types and styling guidelines
The hair styling effect may differ among individuals by the
degree of curliness and hair type.
Hard-to-style hair Coarse hair, Kinked hair
About hair-straightening products
• Do not use the straightener immediately after a home
straight perm liquid is used. Doing so may damage your
hair. (The straightener may be used 3-4 days after a
straight perm liquid. The straightener may also be used
3-4 days after having your hair treated at a beauty parlor.)
About dyeing products
• Dyeing places great stress on the hair. After dyeing please
wait for 2 or 3 days before using the straightener. If you
use a temporary dye, wash it out and dry your hair before
use.
• It takes some time after dyeing for the color to settle. In the
case of the temporary dye, the dye can dirty the
straightener if it is not fully washed out. Also, your hair
cannot be straightened when it is wet.

11
English
Before use
Attaching and removing volumizer attachment
•Only for adding top volume.
■Attaching
1
1Release the Open/Close
Lock.
Release
2
2Hold the volumizer
attachment at the tip as
illustrated.
3
3Push in the volumizer attachment along the groove
on the Push Button side until you hear a click sound.
•Do not insert the volumizer attachment onto the opposite
side.
■Removing
1
1Shut the Iron Plate with the Open/Close Lock.
2
2Press the Push Button,
and pull out the
volumizer attachment
while holding it as
illustrated.
•Do not touch the heated sections such as Iron Plates when
attaching or removing volumizer attachment.

12
English
Heating the iron plate
1
1Release the Open/Close
Lock.
Release
2
2Insert the plug into the household outlet.
3
3Press the Power Switch to
turn on the straightener.
•Confirm that the Temperature
Setting Lamp for 130 is blinking.
•Do not use the straightener if all the Temperature
Setting Lamps are blinking.
4
4Set a temperature by using
the Temperature Setting
Switches according to the
type and condition of your
hair.
•When you use the straightener for the first time, be sure
to set the temperature to 130 °C.
•The temperature is raised using [+] and lowered using [–]
of the Temperature Setting Switches.
Indicator Temperature Hair type Hair
condition
Approx. 230 °C Wavy
Less
damaged
Approx. 200 °C
Approx. 180 °C
Approx. 160 °C
Approx. 130 °C Straight Damaged
•When the selected Temperature Setting Lamp stops
blinking (and glows), the straightener has reached the
selected temperature.
(Note that the time taken to reach operating temperature
may vary depending on the operating environment.)
►Notes
•A temperature level of more than 200 °C is high and
may damage your hair.
We recommend that you avoid continuous lengthy use
of this level, and only use it if your hair is in a suitable
condition.
•After switching on, the straightener reaches operating
temperature (approximately 100 °C) after about
15 seconds.
•Please be careful as your hair will be hot after using.

13
English
Using the straightener
Before use, confirm that the Temperature Setting Lamp has
stopped blinking and glows.
Straightening
•Use the straightener without a volumizer attachment.
1
1Hold a hair bundle with a width of
approximately 5 cm.
•Do not take too much hair as it may be difficult to
straighten your hair.
2
2Clamp the hair bundle in the
center of the Iron Plate.
•Use both hands and hold both
holding tip to straighten curly hair.
•Do not use excessive force as it
may place a strain on hair ends.
3
3With the hair clamped, slide
the straightener straight down
toward the hair ends.
•Slide the straightener slowly (at a
speed slower than ordinary brushing).
•Repeat the step, starting from the lower portion of your
bundled hair.
•When hair is clamped, do not hold the straightener in
the same position as it may damage your hair.
Curling
•Use the straightener without a volumizer attachment.
<For inward curls>
1
1Hold a hair bundle with a width of
approximately 3 cm.
•Do not take too much hair as it may be
difficult to style your hair.
•Hold a bundle of hair in a square
approximately 3 cm in width and 4 cm
in thickness.
2
2Tilt the main body 10° and clamp
the hair bundle.
•Clamp the hair bundle in the center of
the Iron Plate .
•Clamp the hair just above the point at
which you want to make curls.
•Tilt the main body 10° towards the
back-of-the-head.

14
English
3
3After clamping a hair bundle, rotate the main
body inwards, making at least half a rotation
(180°).
•Rotate the main body with both hands.
•Rotate the main body inwards.
•After the half-rotation, ensure that the
hair tips protrude towards the back-of-
the-head.
<For outward curls>
Rotate the main body outwards.
•The only difference is the direction in
which you rotate the main body.
Otherwise, follow the steps for inward
curls.
4
4Keeping the straightener in the half-rotated
position, slide it straight down towards the hair
ends while clamping the hair bundle.
•Slide the straightener slowly (at a
speed slower than ordinary brushing).
■Recommended speeds (from scalp to hair ends)
Hair length/
Temperature
level
130 °C – 200 °C 230 °C
Medium Approx. 3 sec. Approx. 2 sec.
Semi-long Approx. 4 - 5 sec. Approx. 3 - 4 sec.
Long Approx. 7 - 8 sec. Approx. 5 - 6 sec.
•When using the straightener at the maximum
temperature level of 230 °C, do not exceed the time
mentioned.
•For a more defined curl, make a full rotation (360°) of
the main body and slide it towards the hair ends.
•For an effective curl, move the straightener slowly at a
same speed while clamping a small bundle of hair.
•Grip the root of an already created curl
with your hand. Then move it up and
down. It will give you a more defined curl.
Do not detangle the finished curls until
the hair cools down.

15
English
Adding top volume
•Attach the Volumizer attachment.
•Please practice with the power off until you get use to using
it.
1
1Hold a hair bundle in the area
where you want to add volume.
•Each hair bundle should be about
2 cm (thickness) x 5 cm (width).
2
2Ensure that hair bundle is
properly arranged, then pull it
in perpendicular direction
toward the scalp.
3
3With the volumizer attachment towards the
inward side, clamp the hair from the root.
Ion outlet
side
Volumizer
side
Enlarged view
4
4Rotate main body by more than 90° from the
root then slowly pull upwards and turn towards
the side with the volumizer attachment.
Enlarged view
5
5Release the hair bundle after pulling
approximately 10 cm from the root.
■Recommended speeds (from scalp to hair at
position 10 cm from the root): approx. 2 sec.
This speed is applied to all hair length and all
temperature level.
Enlarged view
•In order to keep styling result, remove the main body
without pulling the finished hair.
►Note
●Do not use flammable styling producs when using.
After styling, style your hair using hair cream, wax, etc.

16
English
After use
1
1Press the Power Switch to
turn off the straightener.
•Please confirm the temperature
setting lamps are off.
2
2Remove the plug from the household outlet.
3
3Lock the Iron Plate to store
it.
Lock
Maintenance
Clean the straightener after it has cooled and with the plug
removed from the household outlet.
Maintenance for the straightener
●When the straightener has become dirty or styling products,
etc. have gotten onto it, please soak a rag in soapy water,
wring it out, and wipe the unit clean.
•Do not use alcohol, polish remover, or detergent (liquid
hand soap, etc.).
Doing so may crack or discolor the surface of the
straightener.
Maintenance for the ion outlet
●Clean the Ion Outlet about once per month.
●This maintenance allows the straightener to sustain the
generated level of ion over a long period.
1
1Lock the Iron Plate with using the Open/Close
Lock.
2
2Tilt the main body and insert the “cleaning
brush” towards the metal section (a) in the Ion
Outlet until it reaches the base.
•The metal section
(a) is the part that
looks like a line as
per the figure on the
right. (a)
3
3Rub the metal section back and forth with the
brush 10 times.
•Ion Outlets are located on both sides. Perform
maintenance on both sides.

17
English
Troubleshooting
Problem Possible cause Action
•Sparks are generated inside the Ion Outlet.
•The Ion Outlet emits a noise (crackling
noise).
Dust, styling products, etc. are adhered
to the pin-shaped portion where ion is
generated.
Clean the Ion Outlet to
remove any adherents.
When the temperature is set to [230], [200],
or [180] it blinks alternately between
230 °C, 200 °C, or 180 °C and 160 °C.
It is on standby mode.
When resuming use, press
the [+] or [-] temperature
setting switches and return
the temperature setting to
230 °C, 200 °C, or 180 °C.
All temperature setting lamps keep blinking.
Please request an inspection or
repair from place of purchase.
It takes time to reach operating temperature.
The time to reach operating temperature
(approximately 100 °C) differs depending
on the area.
100 - 120 V: about 40 seconds
220 - 240 V: about 15 seconds
If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Specifications
Power source 100 - 120 V 50 - 60 Hz 220 - 240 V 50 - 60 Hz
Power consumption 41 W 43 W
Iron temperature Approx. 130 °C to 230 °C
The amount of power consumption is determined as the arithmetic mean value of the power input occurring during a
representative period.
This product is intended for household use only.

18
English
MEMO

19
中文
使用說明書
（家用）多功能造型直髮器
型號 EH-HV70
感謝您購買本 Panasonic 產品。
使用本產品前，請仔細閱讀此說明書，並妥善保管以備未來使用。
目錄
安全注意事項...................... 20
部件名稱.......................... 24
關於溫度控制系統.................. 25
關於離子.......................... 25
關於拇指擺放點.................... 25
最佳造型效果的秘訣................ 26
使用前注意事項.................... 27
使用直髮器........................ 29
使用後............................ 32
保養.............................. 32
疑難排解.......................... 33
規格.............................. 33

20
中文
安全注意事項
為減少受傷、死亡、電擊、火災以及財物損失的風險，請務必
遵守下列安全注意事項。
符號說明
下列符號用於分類和說明在忽視標誌及使用不當時，引起的危
險、人身傷害及財物損失的等級。
警告 表示可能導致重傷甚至死亡的潛在危
險。
注意 表示可能導致輕傷到財物損失的危險。
下列符號用於分類和說明需遵守的指示類型。
此符號用於警告使用者不得進行某項特定的操作程序。
此符號用於警告使用者，必須遵循某項特定的操作程
序，才能安全地操作本產品。
「安全注意事項」中的圖示可能與實際產品不同。
警告
切勿存放於兒童或幼童可觸及的地方。
切勿讓兒童或幼童使用本產品。
-否則可能會導致灼傷、觸電或受傷。
切勿改造、拆解或維修本產品。
-否則可能會因運轉異常而導致起火或受傷。
如需維修，請聯絡授權服務中心。
請勿以超出家用插座或電線額定值的方式使用本產品。
-若在一個家用插座上連接太多插頭，以致於超出額定
值，可能會因過熱而導致起火。
請勿損壞本產品的電源線或插頭。
請勿損壞、修改、用力彎折、拉扯或扭轉本產品的電源
線。
另外，請勿將重物放在電源線上，或是夾到電源線。
-否則可能會因為短路而導致觸電、灼傷或起火。
請勿將電源線捆成一束使用。
-否則可能會導致起火或觸電。
存放時請勿將本產品的電源線纏繞在
機身上。
-否則可能會導致電源線中的導線因
負載而斷裂，並可能因短路而導致
觸電、灼傷或起火。
請勿在插頭或電源線受損（有小裂痕、內部導線外露等）
或高溫時使用。
-否則可能會因為短路而導致灼傷、觸電或起火。
若插頭在家用插座中鬆動而不牢固，切勿使用本產品。
-否則可能會因為短路而導致灼傷、觸電或起火。
請勿用濕手將插頭插入家用插座或從插座上拔下。
-否則可能會導致觸電或受傷。
