Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
4K HDR Four-Input HDMI Switcher with Auto-Switching and
Return Optical Audio
AT-JUNO-451 / AT-JUNO-451-HDBT
1 x AT-JUNO-451
1 x 4-pin captive screw connector
2 x Mounting plates
4 x Rubber feet
4 x Screws
1 x IR remote control
1 x DC 5V power supply
1 x IEC cord
1 x Installation Guide
1 x AT-JUNO-451-HDBT
1 x 4-pin captive screw connector
2 x Mounting plates
4 x Rubber feet
4 x Screws
1 x IR remote control
1 x DC 5V power supply
1 x IEC cord
1 x Installation Guide
Package Contents

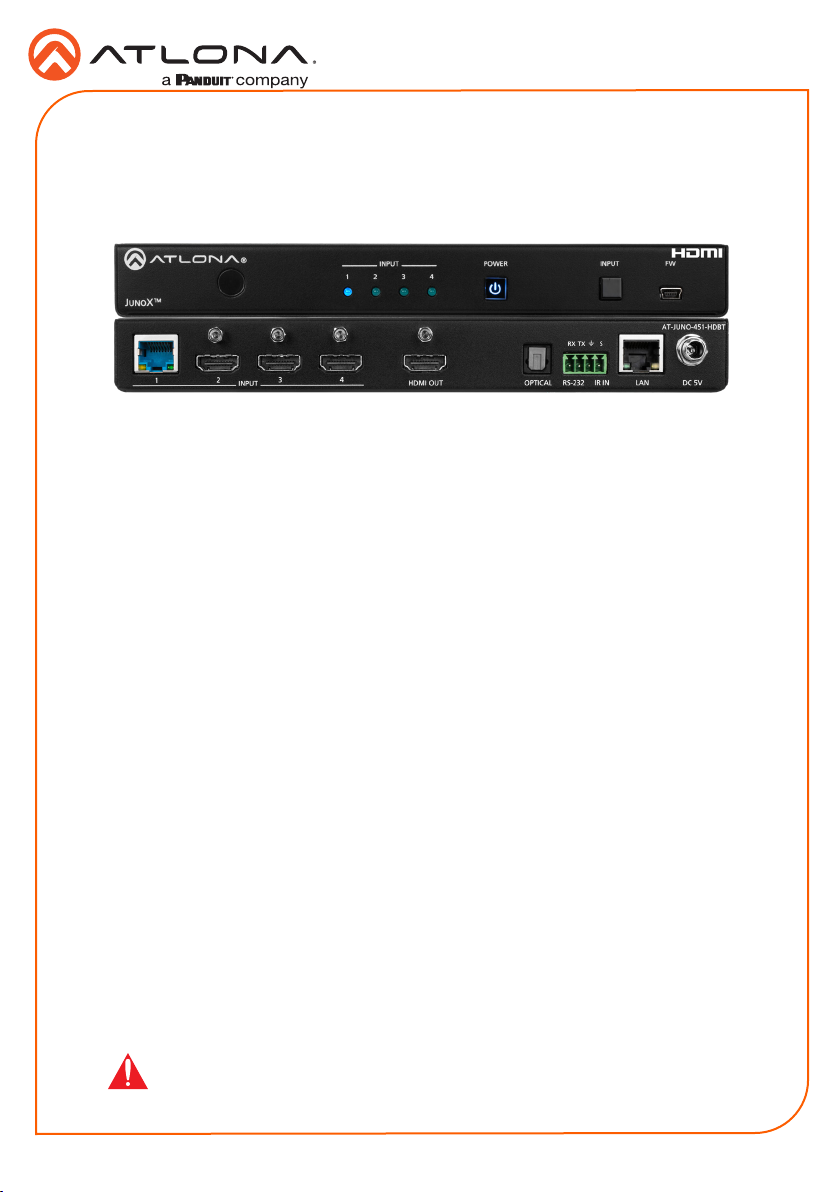

The Atlona JunoX™451 HDBT (AT-JUNO-451-HDBT) is a 4x1 switcher for high dynamic range
(HDR) formats. The JunoX 451 HDBT features three HDMI inputs, plus an HDBaseT input for
receiving video, embedded audio, and Ethernet over distances up to 330 feet (100 meters).
It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling,
as well as HDMI data rates up to 18 Gbps. The JunoX 451 HDBT is ideal for receiving 4K HDR
over HDBaseT from an Atlona Opus™ Series matrix switcher, and is also compatible with the
Atlona UHD-PRO3, UHD-CAT, and SW Series for data rates up to 10 Gbps. It includes EDID
management features and automatic input switching. The JunoX 451 HDBT also supports
the HDMI Audio Return Channel for receiving digital audio from a television,and includes a
TOSLINK digital audio output for sending this audio to an AV receiver or soundbar. This JunoX
Series switcher can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is
included.
The Atlona JunoX™ 451 (AT-JUNO-451) provides the same features at the AT-JUNO-451-HDBT,
except that the HDBaseT input is replaced with an HDMI port.
IMPORTANT: Visit http://www.atlona.com/product/AT-JUNO-451-HDBT and
http://www.atlona.com/product/AT-JUNO-451 for the latest rmware updates
and User Manual.
AT-JUNO-451 AT-JUNO-451-HDBT

2
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
HDMI OUT LANOPTICAL RS-232
RX TX S
IR IN DC 5V
AT-JUNO-451-HDBT
INPUT
1 2 34
POWER INPUT
1 2 3 4
INPUT
JUNOXTM
FW
HDMI OUT LANOPTICAL RS-232
RX TX S
IR IN DC 5V
AT-JUNO-451-HDBT
INPUT
1 2 34
POWER INPUT
1 2 3 4
INPUT
JUNOXTM
FW
1 IR Window
Receives IR signals from the included IR
remote.
2 Input Indicators
These LED indicators glow solid blue to
indicate the active input.
3 POWER
Press this button to power-on or power-
o the unit.
4 INPUT
Press and release this button to cycle
through each of the inputs.
5 FW
Connect a mini USB cable to this port to
update the rmware.
6 HDBaseT Input
This port is only available on the AT-
JUNO-451-HDBT: Connect a compatible
transmitter to this port using an Ethernet
cable. Ethernet is not passed through this
port. The AT-JUNO-451 replaces this port
with an HDMI input.
7 HDMI Inputs
Connect an HD/UHD source to each of
these HDMI ports.
8 HDMI OUT
Connect an HDMI cable from this port to
a display or other sink device. This output
supports multichannel audio.
9 OPTICAL
Connect an optical audio cable from this
TOSLINK port to an audio output device.
This port can be used as part of the Audio
Return Channel (ARC). Refer to the User
Manual for more information.
10 RS-232 / IR IN
Connect the included 4-pin captive
screw block to this port. Refer to RS-232
/ IR Connector (page 3) for wiring
information.
11 LAN
Connect an Ethernet cable from this port
to a Local Area Network (LAN). This port
only supports direct control of the unit.
12 DC 5V
Connect the included 5 V DC power
supply to this power receptacle.
Panel Descriptions (AT-JUNO-451-HDBT shown)
1
6
2
7
3
8
4
9 10 11
5
12

3
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
RS-232 / IR Connector
Both the AT-JUNO-451 and AT-JUNO-451-HDBT provide RS-232 and IR control, using the
included four-pin captive screw connector. Electrical IR or RS-232 signals, from a control
system, can be used for control. Atlona recommends the AT-LC-CS-IR-2M (sold separately) for
easy connection to the captive screw connector.
1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16” (5 mm) from the insulation of each wire.
3. Insert the wires into the correct terminal on the included captive screw connector, as shown
below.
4. Tighten the screws to secure the wires. Do not use high-torque devices as this may
damage the screws and/or connector.
Both the AT-JUNO-451 and AT-JUNO-451-HDBT
include an IR remote control that can be used to
operate the unit from a remote location.
GND
to control system
or AT-VCC-IR-KIT
RX
TX
S
GND
IR Remote Control
SW-R1
Video 1
Video
Video 2
All On
Power
Vol +
Vol
-
Mute
1
3
2
4
5
Input Audio
On Off
On Off
On Off
1 On / O buttons
Press the On button to power-on the unit.
Press the O button to power-o the unit.
2 Input
Press these buttons (1- 4) to select the desired
input.
3 Mute
Press this button to toggle audio muting on the
HDMI OUT port. The Output 1 toggle switch,
in the web GUI, will also change to reect the
current muting state. Refer to the User Manual
for more information.
1
3
2

4
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
• AT-JUNO-451-HDBT:
1. Connect a compatible transmitter to the HDBaseT (INPUT 1) port on the AT-JUNO-451-
HDBT.
2. Connect an HDR source to each of the three HDMI inputs (INPUT 2 - INPUT 4).
• AT-JUNO-451:
3. Connect an HDR source to each of the four HDMI inputs (INPUT 1 - INPUT 4).
• AT-JUNO-451 / AT-JUNO-451-HDBT:
4. Connect an optical audio cable from the OPTICAL port to a sound bar or other audio output
device. Audio Return Channel (ARC) is supported. Refer to the User Manual for more
information.
5. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN).
6. Connect the included 4-pin captive screw block to the RS-232 /IR IN port.
Refer to RS-232 / IR Connector (page 3) for wiring information.
7. Connect the included 5 V DC power supply to the DC 5V power receptacle.
8. Connect the power supply to an available electrical outlet.
Installation
NOTE: HDR formats are only supported when connected to an Atlona Opus
matrix.
Refer to the tables below for recommended cabling when using Altona products with HDBaseT
technology. The green bars indicate the signal quality when using each type of cable. Higher-
quality signals are represented by more bars. These tables are for guidance, only. Performance
may vary, based on environmental factors.
*Atlona recommends TIA/EIA 568-B termination for optimal performance.
Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
STP (sheilded)
Performance Rating (MHz) 350 500 600 800
Cable* Max. Distance @ 4K Max. Distance @ 1080p
CAT5e / CAT6 295 feet (90 meters) 330 feet (100 meters)
CAT6a / CAT7 330 feet (100 meters) 330 feet (100 meters)
Cable Recommendation Guidelines
IMPORTANT: Stranded or patch cables are not recommended due to
performance issues.

5
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Web GUI
Both the AT-JUNO-451 and AT-JUNO-451-HDBT include a built-in web GUI, which allows easy
management and control of all features. Follow the instructions below to access the web GUI.
1. Set the IP mode of the unit. Refer to the above instructions for more information.
2. Connect an Ethernet cable from the LAN port on the AT-JUNO-451, to the Local Area
Network (LAN).
3. Use an IP scanner to determine the IP address of the AT-JUNO-451.
4. Launch a web browser and enter the IP address of the unit.
5. The AT-JUNO-451 Login page will be displayed.
6. Enter the following information on the Login page.
Login: root
Password: Atlona
7. Click the Login button.
For easy conguration of Atlona devices, AMS 2.0 is available from https://atlona.com/AMS for
free. Two options can be used for installation: The free Linux-based software download or the
easy-to-install server hardware (AT-AMS-HW).
Once AMS has been set up:
1. Open a browser on the same network as AMS 2.0 and go to the IP of AMS 2.0. View the
AMS 2.0 installation instructions on how to nd the IP of the software, if necessary.
2. Enter the login information on the AMS 2.0 web page, then click the Login button.
3. View the AT-JUNO-451 or AT-JUNO-451-HDBT manual for routing and conguration
information.
AMS 2.0
IP Conguration
By default, the AT-JUNO-451 / AT-JUNO-451-HDBT are set to DHCP mode, allowing a DHCP
server (if present) to assign the unit an IP address.
1. Make sure the unit is powered.
2. Press and hold the INPUT button for approximately 10 seconds.
3. Release the button once the POWER button begin to ash. The number of ashes will
indicate the currently selected IP mode:
POWER button ashes Description
Two Static IP mode IP address: 192.168.1.254
Subnet mask: 255.255.0.0
Gateway: 192.168.1.1
Four DHCP mode

6
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Connection Diagrams
LAN
AV Receiver
AT-JUNO-451-HDBT
Media Player
4
media4
Display
SOURCE: DVD
AAX DEC
BNE XOR
Video
Video
Video
Video
HDBaseT
Ethernet
Video
Audio
AT-UHD-PRO3-44M
Blu-ray Player
Media Player
Set-Top Box
EDID
POWER ENTER
FNC CANCEL INFO
12 3
45
AT-UHD-PRO3-44M
tv
POWER INPUT FW
1 2 3 4
INPUT
AT-JUNO-451-HDBT
J
UNO
X
TM
SET-TOPBOX
OK
224
LAN
AV Receiver
UHD Blu-ray Player
Media Player
Laptop
Laptop
4
media4
UHD Display
SOURCE: DVD
AAX DEC
BNE XOR
Video
Video
Video Video
Video
Audio
AT-JUNO-451
POWER
J
UNO
X
1 2 3 4
INPUT INPUT FW
TM
AT-JUNO-451
AT-JUNO-451-HDBT

7
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Both the AT-JUNO-451 and AT-JUNO-451-
HDBT include two mounting brackets, which
can be used to attach the unit to any at
surface. Use the two enclosure screws, on
the sides of the unit to attach the mounting
brackets.
1. Using a small Phillips screwdriver, remove
the two screws from the left side of the
enclosure.
2. Position one of the mounting brackets, as
shown below, aligning the holes on the
side of the enclosure with one set of holes
on the mounting bracket.
3. Use the screws from Step 1 to attach the
mounting bracket.
4. Repeat steps 1 and 2 to attach the
second mounting bracket to the opposite
side of the unit.
5. Mount the unit to a at surface using the
oval-shaped holes, on each mounting
bracket. If using a drywall surface, a #6
drywall screw is recommended.
POWER INPUT FW
1 2 3 4
INPUT
AT-JUNO-451-HDBT
J
UNO
X
TM
POWER INPUT FW
1 2 3 4
INPUT
AT-JUNO-451-HDBT
J
UNO
X
TM
POWER INPUT FW
1 2 3 4
INPUT
AT-JUNO-451-HDBT
J
UNO
X
TM
NOTE: Mounting brackets can
also be inverted to mount the
unit under a table or other at
surface.
Mounting Instructions

8
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Troubleshooting
Problem Solution
How do I update the
rmware?
• Firmware and instructions can be found and downloaded
from the rmware tab at http://www.atlona.com/product/
AT-JUNO-451 and http://www.atlona.com/product/AT-
JUNO-451-HDBT.
RS-232 and/or IR control
is not working.
• Verify that the 4-pin captive screw block is wired
correctly. Refer to RS-232 / IR Connector (page 3) for
wiring instructions.
• Check that the included power supply is connect to an
active AC electrical outlet.
What type of control can
be used with the AT-
JUNO-451 and AT-JUNO-
451-HDBT?
• The AT-JUNO-451 can be controlled using RS-232, TCP/
IP, the web GUI, or AMS.
Auto-switching is not
working.
• The AT-JUNO-451 and AT-JUNO-451-HDBT both come
with auto-switching disabled. Auto-switching can
be enabled through AMS, the web GUI, or using the
AutoSW command. Refer to the User Manual for more
information.
I’m unable to use HDR
formats on the INPUT 1
(HDBaseT) port.
• The AT-JUNO-451-HDBT must be used with an Atlona
Opus matrix in order to pass HDR formats.

9
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Notes

10
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Notes

11
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
Notes

12
Installation Guide
AT-JUNO-451 / AT-JUNO-451-HDBT
© 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered
trademarks are the property of their respective owners. Pricing, specications and availability subject to change without notice. Actual products, product images, and
online product images may vary from images shown here.
Toll free US International
atlona.com •877.536.3976 •41.43.508.4321
English Declaration of Conformity
Chinese Declaration of Conformity 中国RoHS合格声明
The English versions can be found under the resources tab at:
https://atlona.com/product/at-juno-451/.https://atlona.com/product/at-juno-451-hdbt/.
由SKU列出於:
https://atlona.com/about-us/china-rohs/.
®
The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI licensing Administrator, Inc.
Version 2
