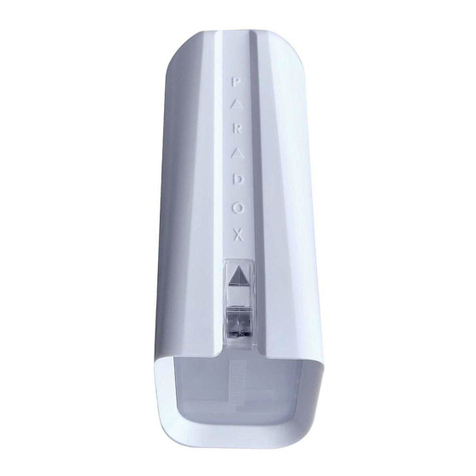

NV37MX
Installation Manual V1.0
Outdoor/Indoor Window and Sliding Door
Dual Detector with Anti-Masking and Pet
Immunity
General Description
Thank you for choosing the NV37MX for your professional protection
needs. The NV37MX EVO version will provide you the most advanced
window and sliding door protection either in Pet Immune or Sharp
mode, while programming can be done remotely via EVO bus
connection. If you have any comments please write to us at
Paradox.com/products/feedback.
Recommended Installations (please read)
Outdoor installation permits placements within frames of sliding
windows or doors and presumes protection from raindrops. This
ensures best catch performance, anti-masking ability, and pet alarm
immunity.
Other installations are possible but in outdoor conditions, pet immunity
can decrease. Moreover, space near the detector must be clear from
obstacles from a distance of 30 to 40 cm (11.8 to 15.7 in.) within its
pattern.
Installing the NV37MX
1. Remove the NV37MX front cover - open the Captive screw.
2. Remove the Main Unit: open the two snap-lock mechanisms on
each side of the back cover attaching the Main Unit to the back
cover as displayed below. Then remove the Main Unit.
3. Pull the wires from the control panel through the knockout holes
and mount the back cover onto the window frame or wall using
screws.
Note: PLEASE KEEP AT LEAST 4 cm / 1.5 in. clearance from
window/shutter.
4. Attach the Main Unit to the back cover - ensure the locks snap
closed.
5. Connect the wires to the terminal blocks according to the following
wiring assignment.
Table 1: Wiring Assignment
6. Replace the front cover and close the Captive screw.
Note: Do not obscure the detector's field of view.
Programming the NV37MX via Keypad or
BabyWare
Via Keypad
1. Enter EVO Installer Programming Mode, programming section 4003.
2. Enter the detector’s 8-digit Serial Number. Enter the 3-digit
Section as per Table 2.
Table 2
Section [001]:
Table 3
Section [002]:
Section [003]: 00 (Low), 01 (Medium), 02 (High)
Via BabyWare
1. Double-click the serial number of the NV37MX to open the
detector’s programming.
2. Configure the required settings.
Testing the NV37MX
Perform a Walk-Test to test successful installation: Walk slowly across
the far end of the detection range. Ensure detection.
Walk test mode lasts 5 minutes after the tamper screw is closed.
Figure 1 – Removing the
Front Cover
Figure 2 – Main
Unit
Figure 3 – Back Plate
Front
cover
Captive screw
Mounting
screw
Tam pe r
knockout
hole
Knockout
holes
Tam pe r
screw
An optional mounting bracket for the NV37MX is available for
ordering, part number: SB35.
4 cm /
1.5 in.
Terminal Connector Recommended Wiring Assignment
Bus Label Wire Color
1 12V+ Red
2 Minus (-) Black
3Data Green
4Clock Yellow
Bit Function Status/Description
[1] LED Display Alarm ON: Enabled (default) OFF: Disabled
[3] LED Display Trouble ON: Enabled (default) OFF: Disabled
[5] Anti-mask ON: Enabled (default) OFF: Disabled
[6] Anti-mask Sensitivity ON: High (default) OFF: Low
Bit Function Status/Description
[1] Unit Tamper ON: Enabled (default), OFF: Disabled
[2] Wall Tamper ON: Enabled (default), OFF: Disabled
[3] PET Immunity ON: Enabled (default) (PET Mode)
OFF: Disabled (SHARP Mode)

NV37MX-EI00 07/2021 PARADOX.COM
Beam Pattern
PET Mode
SHARP Mode
Top View
LED Display
Technical Specifications
Feature LED Status Indicator
Tamper open Green: ON for 0.3 seconds every 30 seconds
Alarm detection Red: ON for 2 seconds
Booting/Tamper close Green/Red alternating flashes for 30 seconds
Anti-mask detection Flashing Orange:
Pre-mask situation is detected.
Orange LED flashes ON/OFF 3 times.
Solid Orange:
Real mask is detected (can take between 20
-150 seconds after the pre-mask situation).
Orange LED will remain solid “ON” while
mask is present.
SIDE VIEW:
0.5m
1m
1.5m
5m1m 2m 3m 4m 6m 7m 8m 9m 10m
(32.8ft)
2m
(6.5ft)
0m
0m
Model Number NV37MX
Infrared Sensor type 2 Dual elements
Detection range • PET Immunity mode: 7.5m x 2m (25 x 7 ft)
•Sharp mode: 10 x 2m (33 x 7 ft)
Super Pet Immunity Pet size approximately 50cm
Anti- mask Active IR detection for blocking 30cm and
sprayed liquid
Input voltage 9 to 16 VDC
Current consumption Typical: 15mA
Maximum: 19.2mA
Compatibility EVO systems
Outdoor protection IP54
Operation
temperature
-40°c to +70°c
Relative humidity 95% non-condensing
Dimensions 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.)
Certifications CE, EN50131-2-2 Grade 3, Class IVA
Certification Body: Applica Test &
Certification
Note: EN performance tests were
conducted on sensitivity level 3 (high).
Weight 100g / 0.2 lb
Warranty
For complete warranty information on this product, please refer to the Limited Warranty Statement found on the website:
www.paradox.com/terms or contact your local distributor. Specifications may change without prior notice.
Patents
US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of Paradox Security Systems
(Bahamas) Ltd.
