Parker 650 Series Instructions for use

Easy Start Guide
Parker SSD Drives
650 Series Frequency Inverter
available from Parker.InverterDrive.com
This guide is intended to compliment the user manual provided by the manufacturer.
It is provided as a basic introduction to the product for Inverter Drive Supermarket customers.
It should not be used as a replacement for the manual issued by the manufacturer.
v1.0
20110321
This product is not a safety device. All safety considerations including but not
limited to Emergency Stop provision should be assessed separately and are
outside the scope of this guide.

Parker SSD Drives 650 Series Inverter
Easy Start Guide
Page 1
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 8
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Contents
Power and Motor Connections (Single Phase)
Power and Motor Connections (Three Phase)
Motor Connections - Star and Delta
Parameters - Overview
Parameters to set before use
How to set “Boost” - Parameter P13
How to Operate the Inverter (Local mode)
How to switch from Local (keypad) control to
Remote (terminal) control and back
How to connect and configure a Potentiometer
for remote speed control
How to connect and configure a Run/Stop switch
How to Reset the Inverter to Factory Defaults
How to set a Parameter value
How to connect and configure a Fwd/Rev switch
Contents

Easy Start Guide
1. Power and Motor Connections (Single Phase)
Page 2
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Notes:
The illustration above is based on frame size 1
models (0.25kW - 0.75kW). The terminal
layout for sizes 2 and 3 (1.1kW - 2.2kW) is
slightly different.
The order of the three phases determines the
direction the motor turns.
Important:
Use screened SY cable between the Inverter
and Motor to minimise electromagnetic
interference.
Ensure the motor cable screen is earthed at
the motor end.
Before commencing, confirm that the Inverter and
all cables are completely isolated from the power
supply, have been isolated for at least 5 minutes
and that the motor is not turning.
Parker SSD Drives 650 Series Inverter
M3/W
M2/V
M1/U
L2/N
L1
TH1B
TH1A
10
9
8
7
6
5
4
3
2
1
RL1A
RL1B
Motor Power
Live
Earth
Neutral
Phase
Earth
Phase
Phase Fit the cable clamp to
the power cable and
attach motor cable to
power cable securely.
TH1B
TH1A
Connect TH1A and
TH1B terminals to the
motor thermistor if
available.
If the motor does not
have thermistor
protection, short TH1A
and TH1B as shown.
The Inverter will not
operate if TH1A and
TH1B are not
connected.
Motor
I/O Terminal Block

Easy Start Guide
2. Power and Motor Connections (Three Phase)
Page 3
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Notes:
The illustration above is based on frame size 2
models (0.37kW - 2.2kW). The terminal layout
for size 3 (3kW - 7.5kW) is slightly different.
The order of the three motor phases
determines the direction the motor turns.
The order of the three power phases is
unimportant.
Important:
Use screened SY cable between the Inverter
and Motor to minimise electromagnetic
interference.
Ensure the motor cable screen is earthed at
the motor end.
Before commencing, confirm that the Inverter and
all cables are completely isolated from the power
supply, have been isolated for at least 5 minutes
and that the motor is not turning.
Parker SSD Drives 650 Series Inverter
M3/W
M2/V
M1/U
L2/N
L1
TH1B
TH1A
10
9
8
7
6
5
4
3
2
1
RL1A
RL1B
DBR
DC+
L3
TH1B
TH1A
Connect TH1A and
TH1B terminals to the
motor thermistor if
available.
If the motor does not
have thermistor
protection, short TH1A
and TH1B as shown.
The Inverter will not
operate if TH1A and
TH1B are not
connected.
Motor
Fit the cable clamp to
the power cable and
attach motor cable to
power cable securely.
Motor Power
Phase
Earth
Phase
Phase
Phase
Phase
Phase
Earth
Motor
Power
I/O Terminal Block

Easy Start Guide
3. Motor Connections - Star and Delta
Page 4
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
3.2 Motor connected in DELTA:
The link configuration is shown in the
illustration opposite and is sometimes referred
to a “three-a-breast”.
The order of the three phases determines the
direction the motor turns.
Note that the cable screen and earth are
connected together at the earth terminal.
Phase
Phase
Phase
Earth
Screen

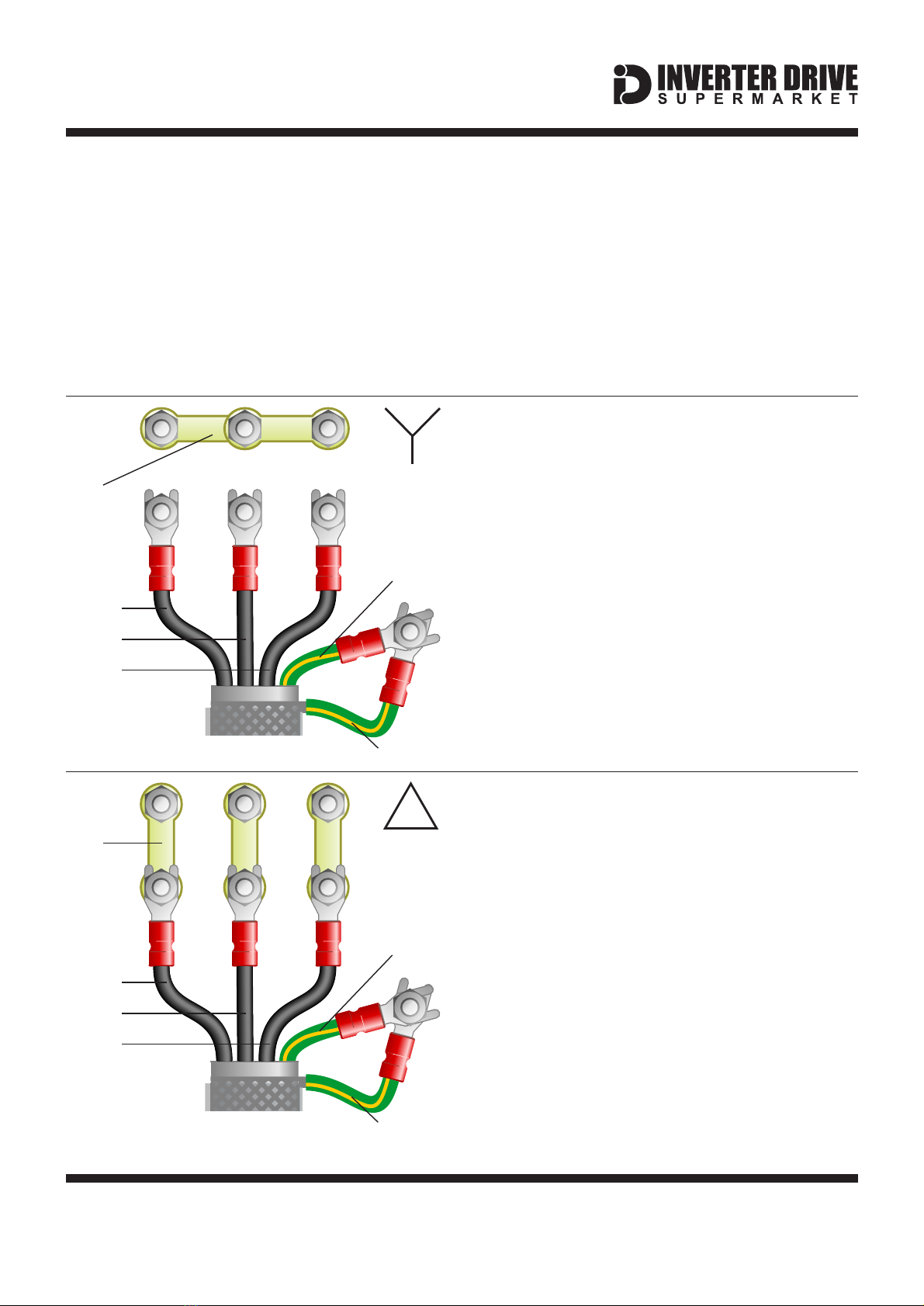

3.1 Motor connected in STAR (or Wye):
For safety purposes, Star (shown opposite) is
the default configuration for new motors and is
sometimes known as “two at one side”.
Only two links are required for Star. Double-up
the links if changing from Delta to allow the
motor to be changed to back in future.
The order of the three phases determines the
direction the motor turns.
Note that the cable screen and earth are
connected together at the earth terminal.
Phase
Phase
Phase
Earth
Screen
Dual voltage induction motors typically include
terminal boxes with six points. The points can
be connected together with links in one of two
ways to suit one of the two rated voltages.
The two ways of connecting the links are
shown below. These are known as “Star” (the
higher voltage) or “Delta” (the lower voltage).
Link
The selection of Star or Delta is not optional
and must match the supply voltage.
Dual voltage motor nameplates include
symbols to represent voltage and full load
current in each configuration.
Delta is represented by a triangle and star by a
Y (Wye).
DELTA
STAR
Link
Parker SSD Drives 650 Series Inverter

Easy Start Guide
Page 5
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
4. Parameters - overview
Parameter
Description
How to set
P2
Maximum Speed in Hz
Default is 50 or 60 depending on region. Set at for 50Hz motor.50
P3
Minimum Speed as % of P2
Default is 0. Set to for most applications.0
P6
Motor Current in Amps
Set to match motor nameplate - eg. 4.7
P7
Base Frequency in Hz
Default is 50. Change to 60 for 60Hz motor only - otherwise set at .50
P13
Fixed Boost (%)
See section 6 for details of how to correctly set this value.
The Inverter contains a number of settings
which can be changed to tailor it for use in a
wide range of applications. These settings are
known as parameters.
Parameters are typically referred to by code or
number (eg. P6 = Motor Full Load Current)
with a description available in the manual.
The parameters contain critical information
essential to the correct operation of the
Inverter. Therefore, they should at least be
checked by the user before it is operated for
the first time.
The parameters listed in section 5 are intended
to provide a starting point to allow for basic
operation of the 650 Inverter.
5. Parameters to set before use
See section 7 to learn how to set a parameter value.
Set the following parameters to allow the 650
to run in standard mode with Run, Stop and
Speed Control from the keypad.
If any of the parameters have been changed
previously, follow the procedure in section 13
to reset the Inverter to Factory Defaults.
5.1 Parameters to check and values to set
Parker SSD Drives 650 Series Inverter

Easy Start Guide
6. How to set “Boost” - Parameter P13
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Boost is an important parameter to set to get
the best possible motor performance.
Correctly set, it significantly improves torque at
lower speeds. However, it is not relevant for
Fan and Centrifugal Pump applications.
The procedure involves running the motor off-
load at it’s rated speed and making a note of
output current. The motor is then run at 10%
speed and P13 adjusted to ensure that the
output current is the same in both cases.
6.1 How to determine “Motor no-load current” by operating the 650.
Page 6
Parker SSD Drives 650 Series Inverter
6.1.2 Press “M” to open the menu.
Press and hold the “M” button until the display shows “diag”
as illustrated.
Press “M” again to open the diagnostics (diag) menu.
6.1.3 Use the up and down keys to locate output
current.
Make a note of this value. It is “Motor no-load current”
in Amps.
Output current can be identified by the letter “A” on the top
right as shown.
Leave the motor running and continue to the next step
overleaf.

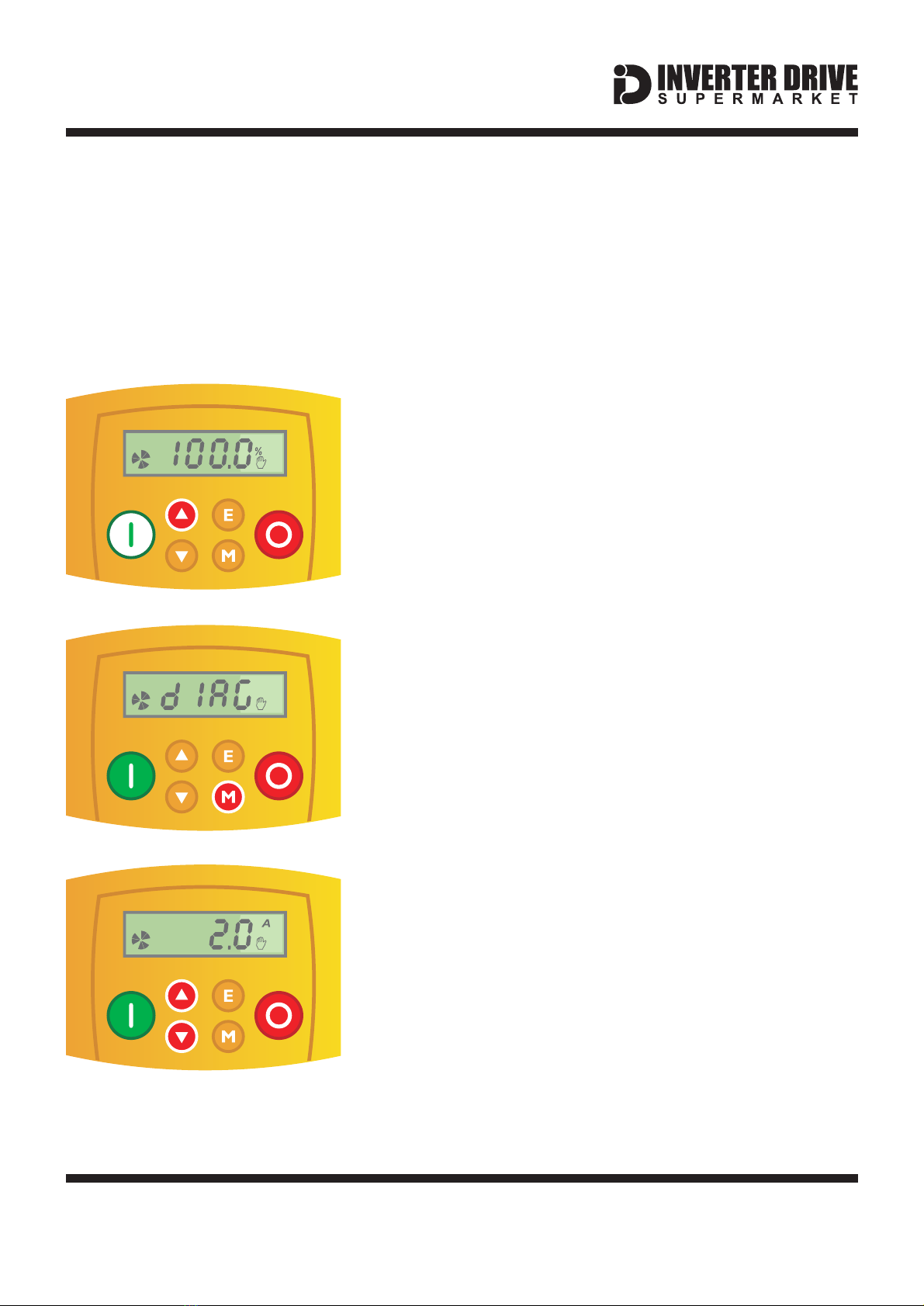

6.1.1 Set speed to 100% and start the motor.
Use the up key to increase speed to 100% (50Hz or 60Hz
depending on motor) and press the green button to start the
motor. Once the motor is running at 100%, proceed to the
next step.
Motor no-load current can only be determined with the
motor running off-load. Decouple the motor from the
machine before beginning!

Easy Start Guide
Parker SSD Drives 650 Series Inverter
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©Page 7

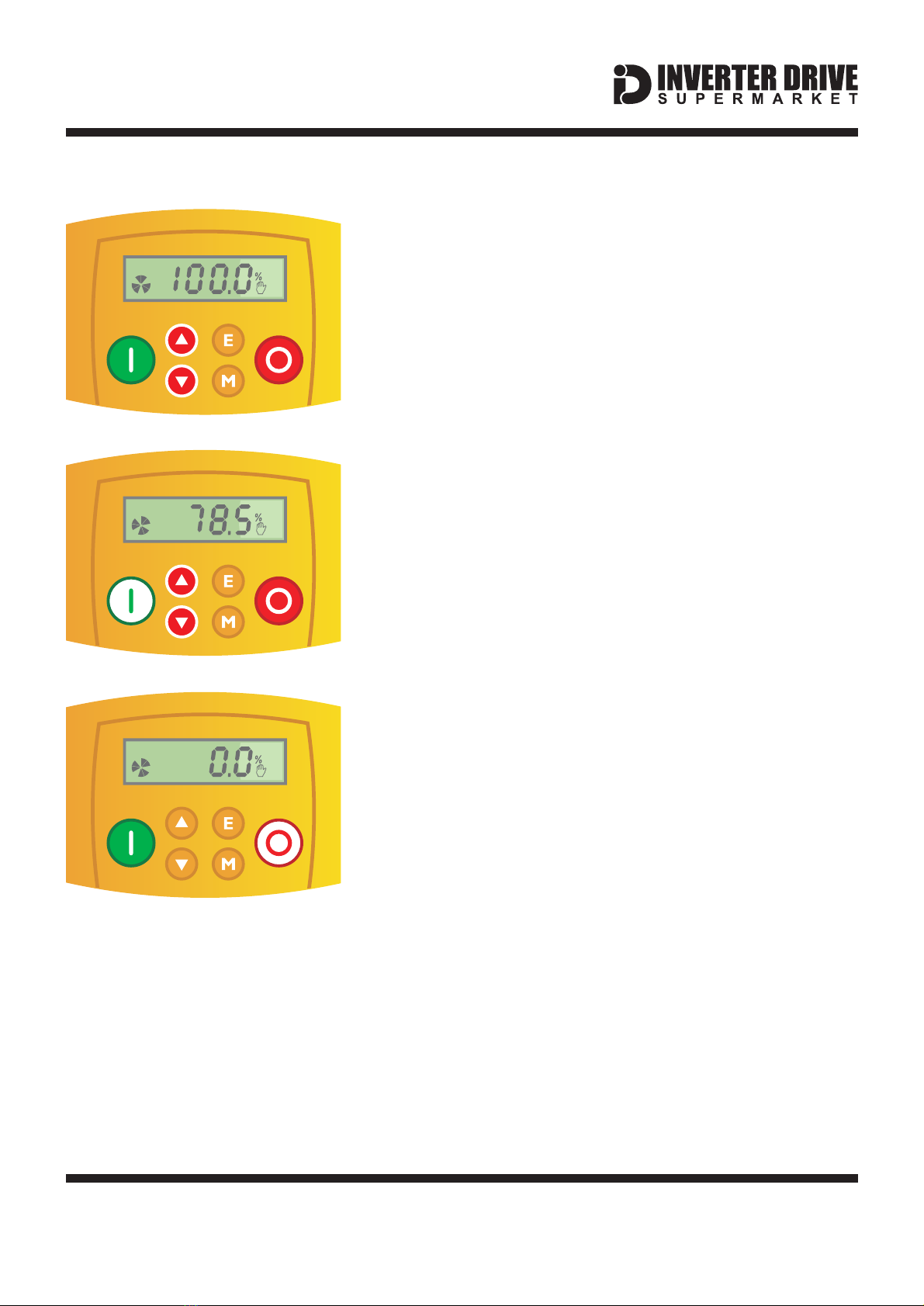

6.2.1 Reduce motor speed to 10%.
Press the “E” (escape) key twice to return to the speed
display. Then press and hold the down key to reduce the
speed from 100% to 10%.
Once the motor is running at 10%, proceed to the next step.

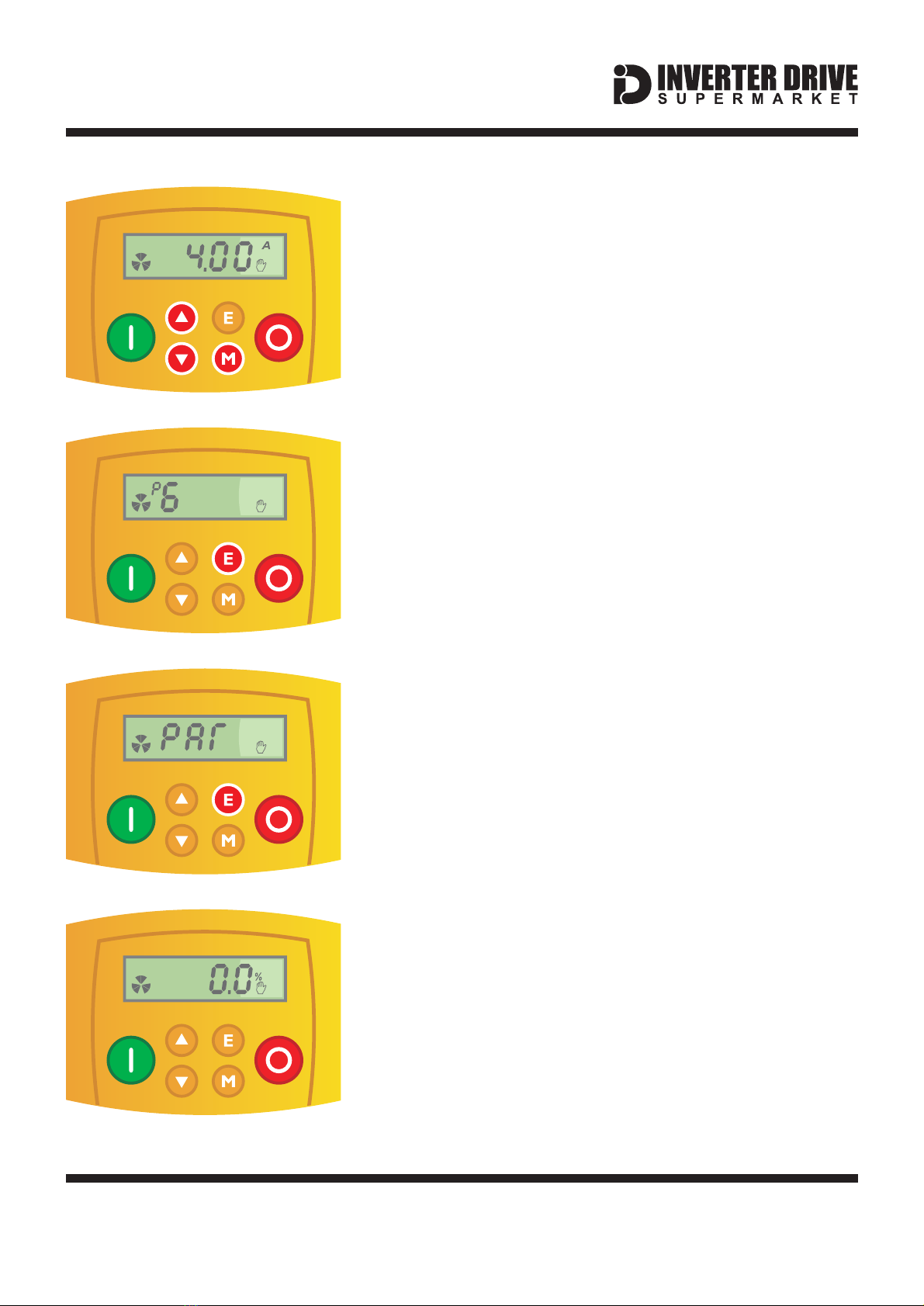

6.2.3 Locate parameter P13 and change as required.
From the output current display in the previous step, press
“E” to return to “diag” then up and down to locate “par” as
shown.
Press “M” to open the parameter list then up and down to
locate P13. Press “M” again to edit it.
6.2.4 Change P13, save and check output current.
Use the up and down keys to increase or decrease the
value of P13 as necessary. Press “E” to save and “E” to
return to “par”, then “E” again to return to the speed display.
Repeat step 6.2.2 to check output current. If it matches
motor no-load current Boost is set correctly and the motor
can be stopped using the red button.
If the output current does not match, repeat steps 6.2.3 and
6.2.4 until it does.

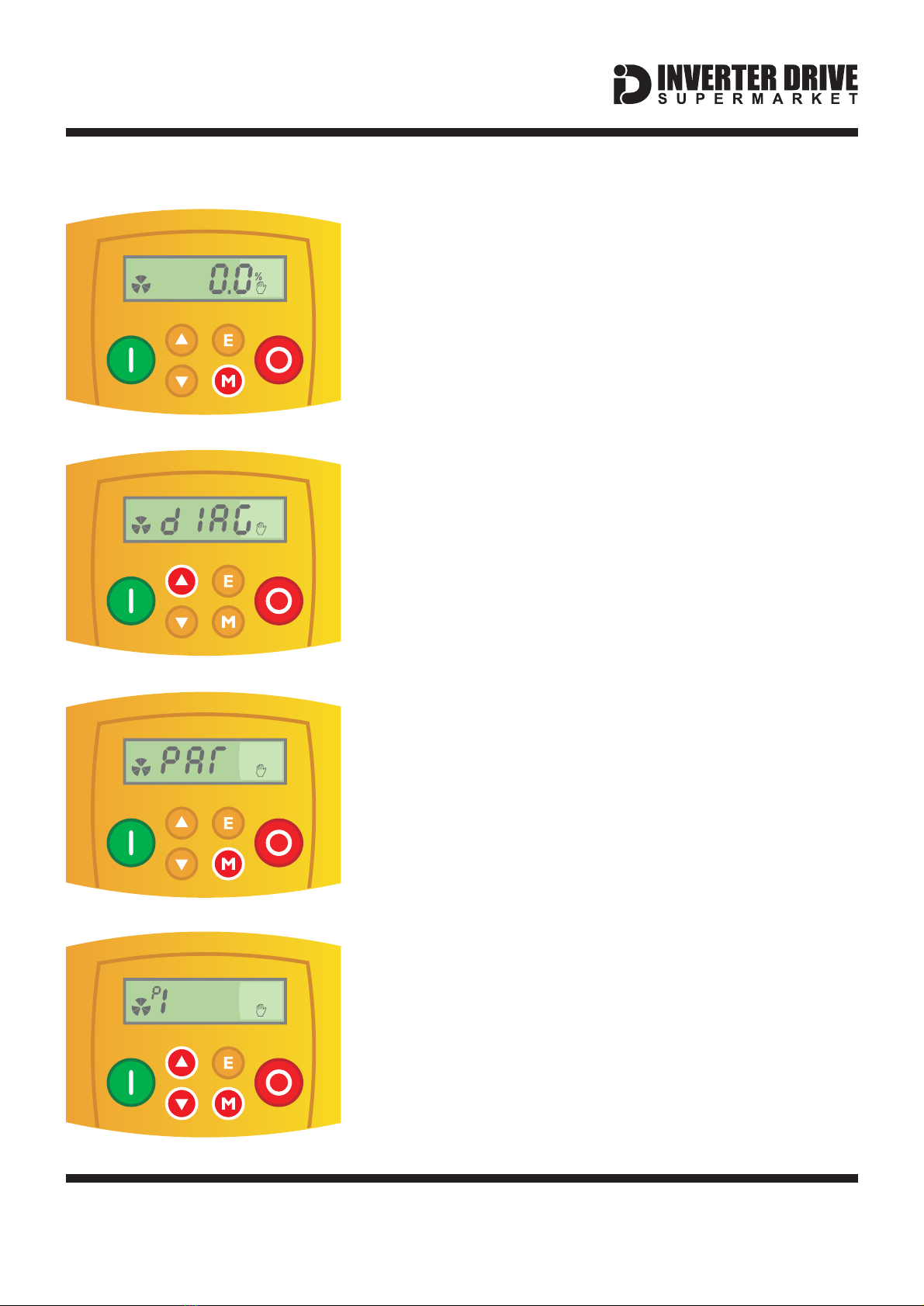

6.2.2 Use the diagnostics menu to find output current.
Press and hold the “M” button until the display shows “diag”
as before. Press “M” again to open the diagnostics menu.
Use the up and down keys to locate output current as
before.
If the current value shown is more than motor no-load
current, the Boost value in P13 will need to be reduced. If it
is less, P13 will need to be increased.
6.2 How to use “Motor no-load current” to set Boost correctly.

Easy Start Guide
7. How to set a Parameter value
Page 8
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Parker SSD Drives 650 Series Inverter
7.1 Press and hold the “M” (Menu) key for 1 second.
This example demonstrates the steps required to set
parameter 6 (P6) which is motor full-load current.
From the speed reference screen (shown in the
illustration opposite), press and hold the Menu key for
approximately 1 second to access the menu.
7.2 Press the up key to move from Diagnostics to
Parameters.
The display shows “diag” to indicate that the currently
selected menu option is “diagnostics”.
Press the up key to select the parameter menu. The
display will show “par” to indicate that this has been
selected.
7.3 Press the Menu key to access the parameter list.
When the display shows “par”, press the Menu key to
access the parameter list.
7.4 The Parameter List
The display shows P1 to indicate that Parameter 1 is
currently selected.
Use the up and down keys to navigate through the list of
available parameters.
For this example, select P6 (motor full-load current).
Press the Menu key to modify the parameter value.

Page 9
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Easy Start Guide
Parker SSD Drives 650 Series Inverter
7.5 Use the Menu, up and down keys to change the
value.
Press the Menu key to select the first digit. The selected
digit will flash to indicate that it can be changed.
Use the up and down keys to increase or decrease the
value.
Press the Menu key again to move through each digit
from right to left. Continue to press Menu to cycle back to
the first digit.
7.6 Press the “E” (Escape) key to return to the
Parameter List.
Press the Escape key to return to the parameter list. The
previously selected parameter number is shown.
Use the up and down arrows to select a different
parameter and press the Menu key to modify as before.
Press the Escape key again to return to the Parameter
menu as shown in 7.3.
7.7 Press the Escape key to return to the speed
reference screen.
When the display shows “par”, press the Escape key to
return to the initial screen.
7.8 The initial screen
The drive is now back at the speed reference screen.

Easy Start Guide
8. How to operate the Inverter (Local mode)
Page 10
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
8.1 Use the up and down keys to set the required speed.
The display will change to show the current speed
reference in percent.
8.3 Press the green button to start the motor.
Press the green button firmly to start the motor. The motor
will accelerate to the speed set in 8.1 (above) in the time
defined by parameter P4.
Motor speed can be changed whilst the motor is running by
pressing and holding the down key (slower) or up key
(faster). When the motor is running, the shaft-end symbol
on the left side of the screen will rotate.
8.4 Press the red button to stop the motor.
The red button will stop the motor.
The time taken (in seconds) to stop the motor is determined
by parameter P5.
Parker SSD Drives 650 Series Inverter

Easy Start Guide
9. How to switch from Local (keypad) control to
Remote (terminal) control and back
Page 11
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
9.1 Press and hold the stop button.
When the drive is in Local control mode a small hand
symbol is shown on the right side of the display.
Press and hold the stop button to switch the Inverter from
Local control via the keypad to Remote control via the IO
terminals.
Keep the stop button held down.
9.3 The display shows “rdy”.
If the display immediately switches back to local
control (ie. the hand symbol is still visible) a run signal
is present. Check the IO terminals and disable the run
signal before attempting this procedure again.
Once the process is complete the display shows “rdy”
(ready) and the stop button can be released.
Parker SSD Drives 650 Series Inverter
9.2 “LOC” is displayed.
The display shows “LOC” and each letter disappears one at
a time whilst the Inverter switches to remote control.
Keep the stop button held down.
9.4 To switch back to Local control.
Press and hold the stop button as before to switch back to
local control. The display will show “LOC” with each letter
appearing in sequence as the Inverter switches to local
control. Keep the stop button held down.
Once the process is complete a hand symbol appears on
the right side of the display. The stop button can now be
released.

Easy Start Guide
10. How to connect and configure a Potentiometer
for remote speed control
Page 12
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
2
1
3
10.1 Connecting the Potentiometer
If the up and down speed control buttons on
the keypad are unsuitable for the application, a
remote Potentiometer can be used instead.
This provides the benefit of allowing motor
speed to be controlled from a more convenient
location such as a cabinet door (if the 650 is
cabinet-mounted) or on the machine itself.
A Potentiometer of rating should be
used.
The number of turns depends on the
application but both single turn and ten turn
Potentiometers are available from The Inverter
Drive Supermarket at InverterDrive.com.
10kOhm
To use a external potentiometer, the Inverter
must be set to operate in “Remote” mode - see
section 9 for details.
A wiring diagram is shown in the illustration
opposite. The most important connection at
the Potentiometer end is the centre terminal or
“wiper”.
The wiper will output a variable voltage
between 0 and 10 volts and should be
connected to terminal 2 (AIN1) at the Inverter
end. It is this voltage which provides the speed
signal with 0V being slowest and 10V fastest.
The default speed at 0V is 0%. To change this,
edit parameter P3.
The default speed at 10V is 50Hz or 60Hz
depending on region. To change this, edit
parameter P2.
If the rotation of the Potentiometer is the
opposite to that required (ie. turn anti-
clockwise to increase speed instead of
clockwise) reverse connections +10V and 0V.
Use shielded SY cable between Potentiometer
and Inverter and ensure that the cable screen
Screen to
Earth Terminal
on Cable clamp
10kOhm
Potentiometer
SY Cable
Parker SSD Drives 650 Series Inverter
10
9
8
7
6
5
4
3
2
1
650 I/O Terminal Block
+10V
0V
AIN1

SY Cable
Easy Start Guide
11. How to connect and configure a Run/Stop switch
Page 13
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
The default settings of the Inverter enable
Run/Stop operation via the red and green
buttons on the keypad.
If this is unsuitable for the application, a remote
Run/Stop switch can be used instead.
Note that once this procedure is complete, the
Run/Stop buttons on the keypad can no longer
be used.
To use a external Run/Stop switch, the Inverter
must be set to operate in “Remote” mode - see
section 9 for details.
Use shielded SY cable between Potentiometer
and Inverter and ensure that the cable screen
is earthed at the cable clamp on the Inverter as
shown opposite.
Note that although 2 core SY cable is shown in
the illustration opposite, multi-core SY cable
can be used if several digital inputs are to be
used.

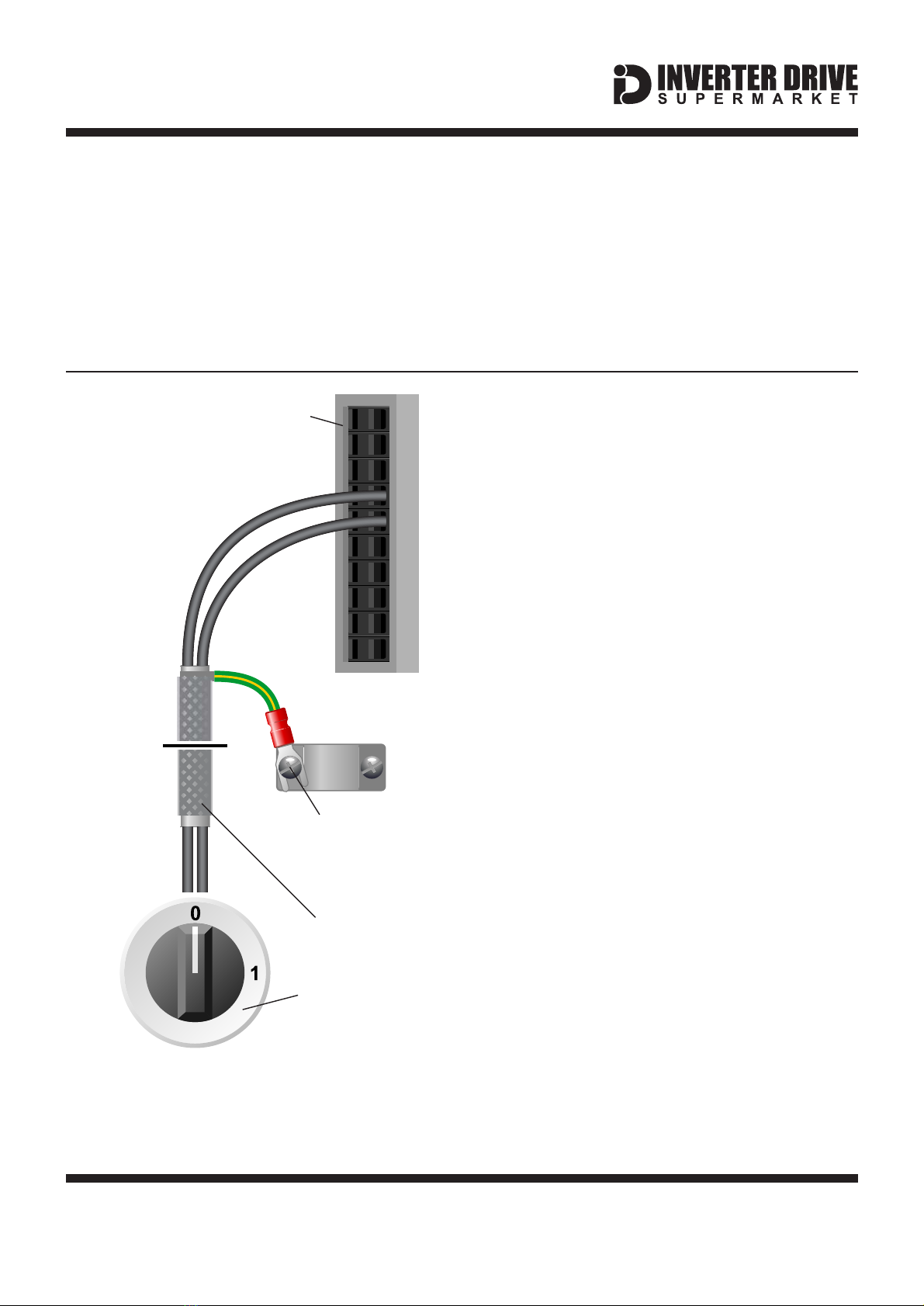

A wiring diagram is shown in the illustration
opposite.
When terminal 7 (DIN1) receives 24V (ie.
when the circuit with terminal 6 (+24V) is
complete), Run is enabled and motor will turn.
Conversely, when it receives 0V (ie. when the
circuit with +24V is broken), Run is disabled
and the motor will stop.
This behaviour is known as a
hence Digital Input 1 (DIN1).
Any +24V DC signal connected to DIN1 will
cause the Inverter to run. This can be useful if
an external source such as a PLC is controlling
the Inverter. If the +24V DC signal is external, a
connection to +24V is not required.
Digital Input,
Parker SSD Drives 650 Series Inverter
10
9
8
7
6
5
4
3
2
1
+24V
Screen to
Earth Terminal
on Cable clamp
650 I/O Terminal Block
Switch
DIN1
11.1 Connecting the Run/Stop Switch

Easy Start Guide
12. How to connect and configure a Fwd/Rev switch
Page 14
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
The default settings of the Inverter enable
Run/Stop operation via the red and green
buttons but do not allow forward and reverse
rotation to be selected via the keypad.
Section 11 explains how to enable remote
Run/Stop via a external switch.
This section extends the functionality added in
section 11 to include a Forward/Reverse
switch as well.
To use a external Fwd/Rev switch, the Inverter
must be set to operate in “Remote” mode - see
section 9 for details.
This behaviour is known as a
hence Digital Input 2 (DIN2).
Use shielded SY cable between the switch and
Inverter and ensure that the cable screen is
earthed as described in section 11.
A wiring diagram is shown in the illustration
opposite.
Note that this switch should be used in
conjunction with a Run/Stop switch as
described in section 11.
When the switch is in position “F” (forward), the
circuit between terminal 8 (DIN2) and terminal
6 (+24V) is incomplete and the motor direction
is set to forward.
When the switch is in position “R” (reverse),
the circuit between DIN2 and +24V is complete
and the motor direction is set to reverse.
Any 24V DC signal from an external source
such as a PLC connected to DIN2 will set the
direction of rotation.
Digital Input,
Parker SSD Drives 650 Series Inverter
SY Cable
10
9
8
7
6
5
4
3
2
1
+24V
Screen to
Earth Terminal
on Cable clamp
650 I/O Terminal Block
Switch
DIN2
F
R
12.1 Connecting the Fwd/Rev Switch

Easy Start Guide
13. How to reset the Inverter to Factory Defaults
Page 15
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Parker SSD Drives 650 Series Inverter
13.1 Power-on with up and down keys pressed
With the power supply to the drive off, press and hold the
up and down arrow keys and switch the power supply on.
13.2 Release up and down keys when “data” is
displayed.
When the display flashes “data”, release the up and down
keys.
Press the “E” (Escape) key to continue.
13.3 Drive initialises
The display briefly shows “init” to indicate that the drive is
initialising.
13.4 Reset complete
Once the reset is completed the display shows the speed
reference screen (as shown in the illustration opposite)
and the drive is ready.
Note that the “hand” icon indicates that the drive is in
local mode (control via keypad only). See section 9 for
more information regarding Local and Remote control
modes.

Easy Start Guide
14. Notes
Page 16
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Parker SSD Drives 650 Series Inverter
