MiniKrimp™
Bulletin 4660-MiniKrimp
Crimping Machine
Technical Manual
Effective: April 2003

Offer of Sale
The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors.
This offer and its acceptance are governed by the provisions in the “Offer of Sale.”
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN
CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
Before selecting or using any Parker hose or fittings or related accessories, it is important that you read and follow Parker Safety Guide for Selecting and
Using Hose, Fittings, and Related Accessories (Parker Publication No. 4400-B.1)
This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors provide product and/or system options for
further investigation by users having technical expertise. It is important that you analyze all aspects of your application and review the information concerning the
product or system in the current product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its
own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning
requirements of the application are met.
The products described herein including without limitation, product features, specifications, designs, availability and pricing, are subject to change by Parker
Hannifin Corporation and subsidiaries at any time without notice.
WARNING
Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp/Model #94C-001-PFD
Limited Safety Instructions
Crimping Machine
MiniKrimp™
WARNING -- When operating this machine, always exercise basic safety precautions
to minimize the possibility of injury, including the following:
1. When using a power unit, use only Parker recommended power units to
hydraulically operate Parker crimpers.
2. When using a power unit, connect the power unit to a grounded, properly rated,
protected and sized power-supply circuit to prevent electrical shock and to avoid
electrical overload.
3. DO NOT OPERATE MINIKRIMP™ OVER MAXIMUM RATED WORKING
PRESSURE OF 10,000 PSI.
4. Wear safety glasses.
Make sure that the valve connecting the hose or tube assembly and other
components are protected from any external source of damage, such as: excessive
heat, flame, moving machine parts, sharp edges, falling objects, corrosive chemicals,
dropping, and other hazards.
¤¤
¤¤
¤Copyright 2002, Parker Hannifin Corporation, All Rights Reserved

1Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Table of Contents
Help us help you . . .
Read this guide carefully before using.
This Technical Manual is designed to help you
operate and maintain your MiniKrimp™. If you need
more information or further assistance, please
contact us:
Call:
Technical Services Department
Parker Hannifin Corporation
Parflex Division
Phone: [phone] or [phone]
Fax: [phone]
Write:
Technical Services Department
Parker Hannifin Corporation
Parflex Division
1300 N. Freedom St.
Ravenna, OH 44266
E-mail:
[email protected]
MiniKrimp™ Hand Pump Model - Overview ............................................................................... 2
MiniKrimp™ Air over Hydraulic Model - Overview ...................................................................... 3
Accessories .......................................................................................................................... 4-6
Tools and Dies .................................................................................................................... 7-10
Crimping Instructions .............................................................................................................. 11
MiniKrimp™ Assembly Detail and Parts List ........................................................................... 12
Air over Hydraulic MiniKrimp™ Assembly ............................................................................... 13
Trouble Shooting Guide .......................................................................................................... 14
Safety Guide (Parker Publication 4400-B.1) ....................................................................... 15-18
MSDS Statement ................................................................................................................... 18
Offer of Sale ........................................................................................................................... 19
RECEIVING INSTRUCTIONS:
UNPACKING — Carefully remove all documents and components from shipping containers.
INSPECTION — Visually inspect all components for shipping damage. If any shipping damage is found, notify
the carrier at once. The carrier is responsible for all repair and replacement costs resulting from such damage.
Shipping damage is not covered by the Parker warranty.
For the nearest authorized Enerpac Service Center,
please contact Enerpac:
Call:
Enerpac Service Center
Phone: [phone]
E-mail:
www.Enerpac.com

2Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Overview

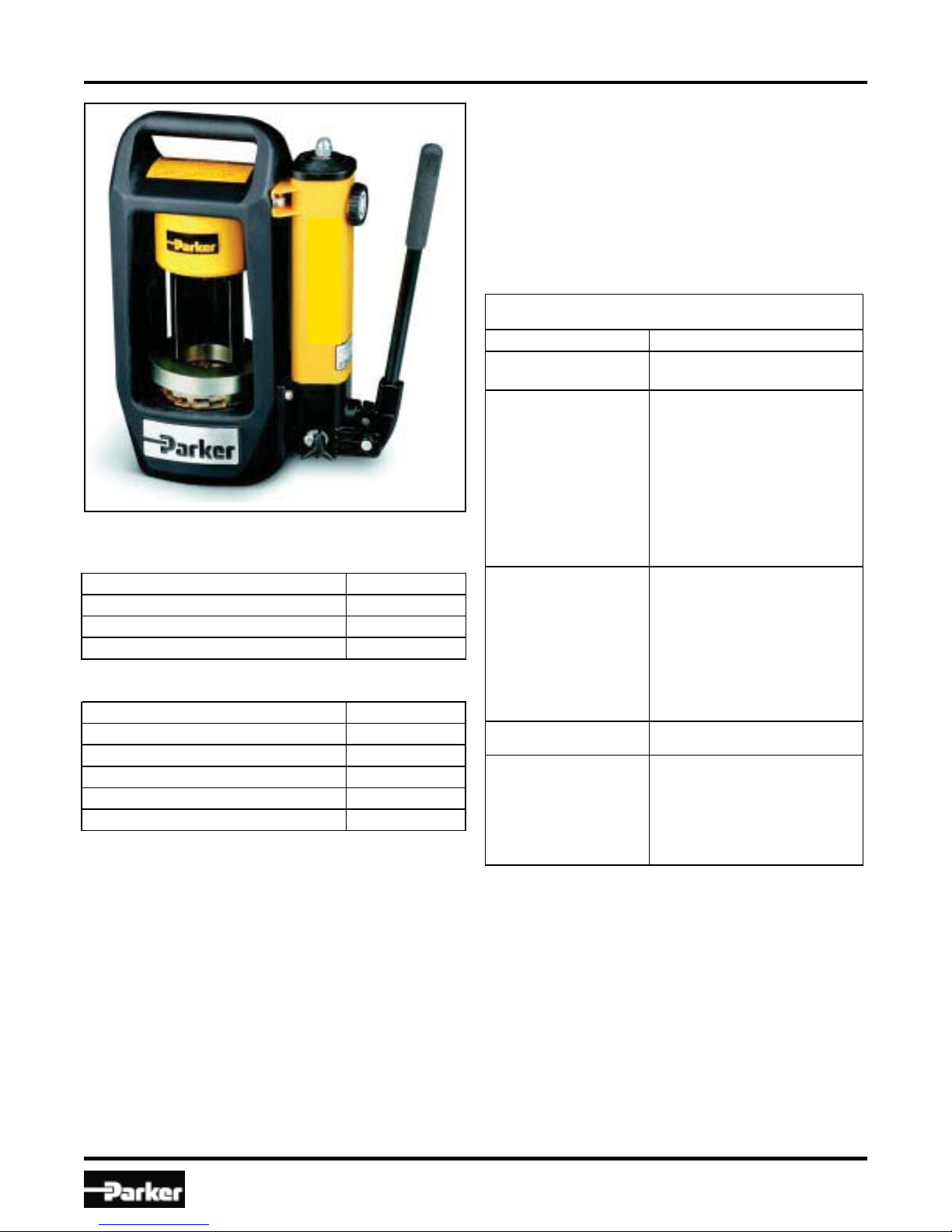

MiniKrimp™— Hand Pump Model
For use with Parker HY, 43, 55, 57, 58, and 91N
Series Fittings
With its cast aluminum design, the MiniKrimp is lightweight,
portable, and compact. This all-in-one unit is capable of crimping
Parflex Division hose sizes up to 1". Note: Dies are sold
separately.
Specifications
Standard Equipment
Model 94C-001-PFD includes:
Part Description Part Number
MiniKrimp™ Portable Crimping Machine 94C-080-PFD
Hand Pump Only 015301
Die Ring – Color Coded Silver 82C-R01-PFD
Optional Equipment:
Part Description Part Number
Side Vise Mount 015736
Upright Table Mount 015306
Upright Vise Mount 015307
Die Ring – Color Coded Black 82C-R02-PFD
Hose Assembly 015309
For HY, 43, 55, 57, 58, and 91N Series tooling and crimping
information, refer to Parker Parflex Catalog 4660 or the “Tools
and Dies” section of this manual.
For MiniKrimp usage with HPD's offering of hose, fittings, and
tooling and for crimping information, refer to Parker Hose Prod-
ucts Catalog 4400, Section C.
Current hose and fitting combinations, as well as proper crimp
dimensions, are available from Parker Parflex Division for
thermoplastic hose, and Parker Hose Products Division for
rubber hose. Contact 1-800-C-PARKER for direction on ob-
taining current literature.
Approximate Size
(
with Pum
p)
6" wide, 13" deep, 15" high
Weight (w/o Die Set) 42 lbs. with hand pump
Rating
30 tons force @ 10,000 psi
maximum
Capability - 1" SAE 100R1 maximum
(steel & brass) - 1" SAE 100R2 maximum
HY, 43, 55, 57, 58, 91N - 1" SAE 100R7 maximum
series fittings - 1" SAE 100R8 maximum
- 1" SAE 100R12 maximum
- 1" SAE 100R14 maximum
- 1" SAE 100R16 maximum
- 1" SAE 100R17 maximum
- 1" SAE 100R18 maximum
Capability - 3/4" SAE 100R1 maximum
(stainless steel) - 3/4" SAE 100R2 maximum
HY, 55, 57, 58, 91N - 3/4" SAE 100R7 maximum
series fittings - 3/4" SAE 100R8 maximum
- 3/4" SAE 100R14 maximum
- 3/4" SAE 100R16 maximum
- 3/4" SAE 100R17 maximum
- 3/4" SAE 100R18 maximum
Set Up Time 20 seconds
Full Cycle Time Approx. 20 seconds to 3
minutes.
Note: Cycle times vary
depending on hose, fitting,
operator, and crimping
environment.
Note: Reference the following manual sections: “Accessories” for information on Hand Pump (015301 and 85C-0HP), Electric Pump (82C-0EP and
85C-0EP), and Air/Hydraulic Pump (82C-0AP and 025399); “Crimping Instructions” for assembly instructions using the MiniKrimp;
“MiniKrimp Assembly Detail & Parts List” for a complete listing of parts.
All pumps are supplied to Parker by Enerpac. For repair or warranty work to any of the cylinders or pumps, contact your nearest Enerpac
Service Center. For the Enerpac Service Center nearest you, call 1-800-558-0530 or visit the Enerpac web site at www.Enerpac.com.

3Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Overview

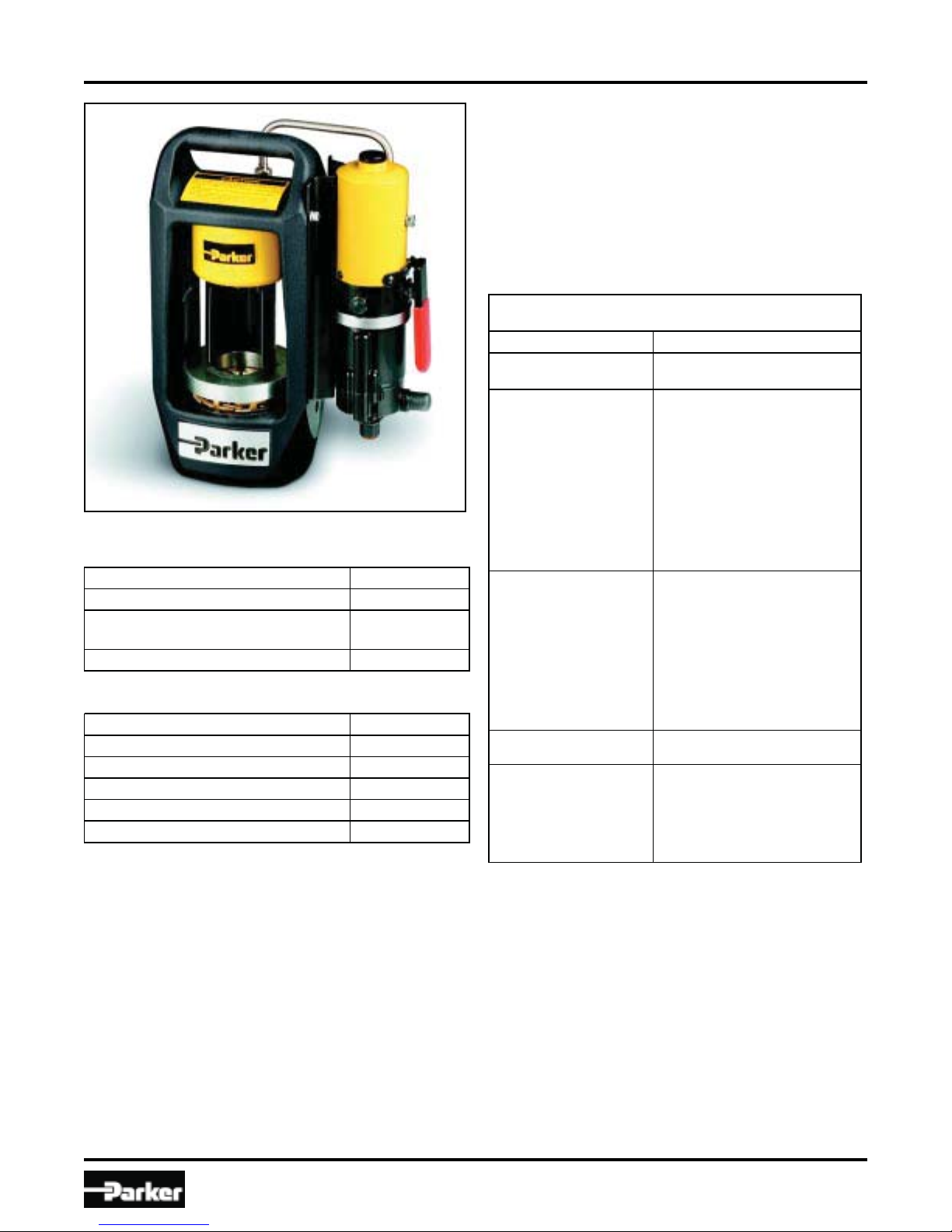

MiniKrimp™ — Air over Hydraulic Model
For use with Parker HY, 43, 55, 57, 58, and 91N
Series Fittings
With its cast aluminum design, the MiniKrimp™ Air over Hydraulic
is lightweight, portable, and compact. This all-in-one unit is
capable of crimping Parflex Division hose sizes up to 1". Note:
Dies are sold separately.
Specifications
For HY, 43, 55, 57, 58, and 91N Series tooling and crimping
information, refer to Parker Parflex Catalog 4660 or the “Tools
and Dies” section of this manual.
For MiniKrimp usage with HPD's offering of hose, fittings, and
tooling and for crimping information, refer to Parker Hose Prod-
ucts Catalog 4400, Section C.
Current hose and fitting combinations, as well as proper crimp
dimensions, are available from Parker Parflex Division for
thermoplastic hose, and Parker Hose Products Division for
rubber hose. Contact 1-800-C-PARKER for direction on ob-
taining current literature.
Standard Equipment
Model 94C-002-PFD includes:
Part Description Part Number
MiniKrimp™ Portable Crimping Machine 94C-080-PFD
Air over Hydraulic Pump Kit
(includes tubing and adapters) 025411
Die Ring – Color Coded Silver 82C-R01-PFD
Optional Equipment:
Part Description Part Number
Side Vise Mount 015736
Upright Table Mount 015306
Upright Vise Mount 015307
Die Ring – Color Coded Black 82C-R02-PFD
Hose Assembly 015309
Approximate Size
with Pum
p
:6" wide, 12" deep, 15" high
Weight 45 lbs. with air/hydraulic pump
Rating
30 tons force @ 10,000 psi
maximum
Capability - 1" SAE 100R1 maximum
(steel & brass) - 1" SAE 100R2 maximum
HY, 43, 55, 57, 58, 91N - 1" SAE 100R7 maximum
series fittings - 1" SAE 100R8 maximum
- 1" SAE 100R12 maximum
- 1" SAE 100R14 maximum
- 1" SAE 100R16 maximum
- 1" SAE 100R17 maximum
- 1" SAE 100R18 maximum
Capability - 3/4" SAE 100R1 maximum
(stainless steel) - 3/4" SAE 100R2 maximum
HY, 55, 57, 58, 91N - 3/4" SAE 100R7 maximum
series fittings - 3/4" SAE 100R8 maximum
- 3/4" SAE 100R14 maximum
- 3/4" SAE 100R16 maximum
- 3/4" SAE 100R17 maximum
- 3/4" SAE 100R18 maximum
Set Up Time 20 seconds
Full Cycle Time Approx. 20 seconds to crimp a
3/8" hose
Note: Cycle times vary
depending on hose and fitting
st
y
les and sizes.
Note: Reference the following manual sections: “Accessories” for information on Hand Pump (015301 and 85C-0HP), Electric Pump (82C-0EP and
85C-0EP), and Air/Hydraulic Pump (82C-0AP and 025399); “Crimping Instructions” for assembly instructions using the MiniKrimp;
“MiniKrimp Assembly Detail & Parts List” for a complete listing of parts.
All pumps are supplied to Parker by Enerpac. For repair or warranty work to any of the cylinders or pumps, contact your nearest Enerpac
Service Center. For the Enerpac Service Center nearest you, call 1-800-558-0530 or visit the Enerpac web site at www.Enerpac.com.

4Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™
Accessories*

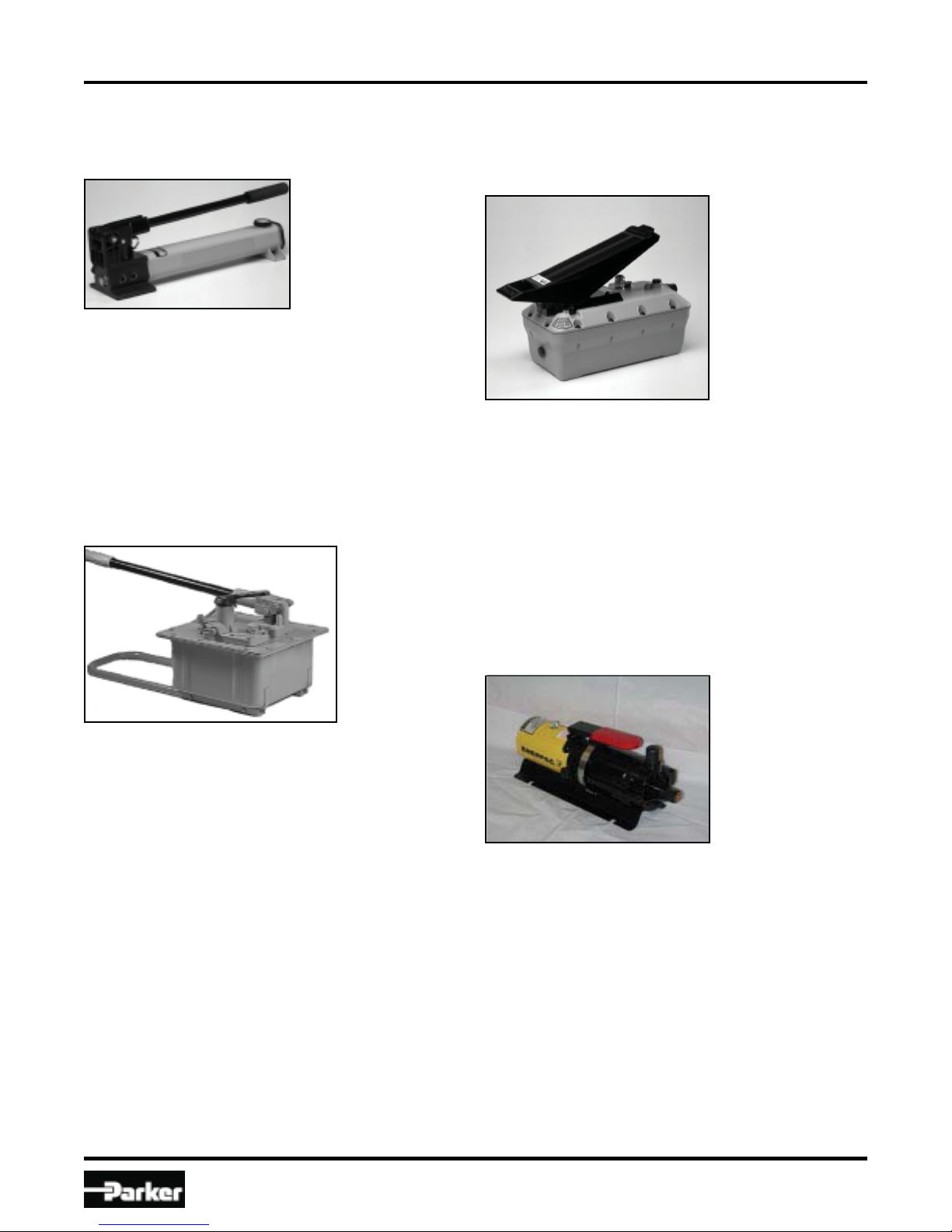

Hand Pump
Part No. 015301
Easy-to-use hand pump delivers 10,000 psi.
Reference Parker Hose Products Catalog 4400 for these
additional pump options:
Pump Description Part Number
Electric Pump ........................ 82C-0EP
Electric Pump ........................ 85C-0EP
Length ...................................13-3/8"
Width ..................................... 3-1/4"
Height .................................... 3-5/8"
Port size ................................1/4" NP
Weight ................................... 4.7 lbs.
Hydraulic Fluid ...................... Enerpac Oil
Hand Pump
Part No. 85C-0HP-PFD
Easy-to-use hand pump delivers 10,000 psi.
Length ...................................28-15/16"
Width .....................................12-1/8"
Height .................................... 11"
Port Size ............................... 3/8" NPTF
Weight ................................... 61 lbs.
Hydraulic Fluid ...................... Enerpac Oil
Air/Hydraulic Pump
Part No. 82C-0AP-PFD
Lightweight pump operates with 80 – 120 psi shop air
pressure.
Length ...................................14-3/4"
Width ..................................... 5-5/8"
Height .................................... 5-3/4"
Weight ................................... 14 lbs.
Intake Port Size .................... 1/4" NPTF
Output Port Size ................... 3/8" NPTF
Hydraulic Fluid ...................... Enerpac Oil
Air over Hydraulic Pump
Part No. 025399
Lightweight pump operates with 80 – 120 psi shop air
pressure.
Length ...................................13"
Width ..................................... 4-1/2"
Height .................................... 5"
Weight ................................... 12 lbs.
Intake Port Size .................... 1/4" NPTF
Output Port Size ................... 1/8" NPTF
Hydraulic Fluid ...................... Enerpac Oil
*All pumps are supplied to Parker by Enerpac. For repair or warranty work to any of the cylinders or pumps, contact your nearest Enerpac Service
Center. For the Enerpac Service Center nearest you, call 1-800-558-0530 or visit the Enerpac web site at www.Enerpac.com.

5Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Accessories
ENERPAC Warranty Policy
ENERPAC products are warranted to be free of defects in
materials and workmanship under normal use for as long as
they are owned by the original purchaser, subject to the
exclusions and limitations described below. This warranty
does not cover ordinary wear and tear, overloading, alter-
ations, (including repairs or attempted repairs by parties other
than ENERPAC or its authorized service representatives),
improper fluid, use in a manner for which they are not intended
or use which is contrary to instructions for the products.
THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD
THROUGH ENERPAC AUTHORIZED DISTRIBUTORS,
ORIGINAL EQUIPMENT MANUFACTURERS OR OTHER
DESIGNATED CHANNELS OF DISTRIBUTION. NO
AGENT, EMPLOYEE, OR OTHER REPRESENTATIVE OF
ENERPAC HAS THE AUTHORITY TO IN ANY WAY
CHANGE OR AMEND THIS WARRANTY.
Electronic products and components are warranted against
defects in material and workmanship for a period of two years
from the date of purchase.
The following items supplied with ENERPAC products are
excluded from this warranty:
• Components not manufactured by ENERPAC, including
air motors, electric motors, gasoline engines, and diesel
engines. Such items are warranted to the extent of the
warranty provided by the manufacturers of such items.
If the customer believes a product is defective, the product
must be delivered, or shipped freight prepaid, to the nearest
ENERPAC Authorized Service Center. The customer should
contact ENERPAC to locate an Authorized Service Center in
the customer's area. Products that do not conform to this
warranty will be returned by ground transportation, freight
prepaid.
THE FOREGOING WARRANT IS EXCLUSIVE AND IS IN
LIEU OF ALL OTHER EXPRESS AND IMPLED WARRAN-
TIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
The remedy of repair, replacement or refund is customer's
exclusive remedy in the event of breach of this warranty.
SELLER SHALL NOT BE SUBJECT TO AND DISCLAIMS:
(a) ANY OTHER OBLIGATIONS OR LIABILITIES ARISING
OUT OF BREACH OF CONTRACT OR OF WAR-
RANTY,
(b) ANY OBLIGATIONS WHATSOEVER ARISING FROM
TORT CLAIMS (INCLUDING NEGLIGENCE AND
STRICT LIABILITY) OR ARISING UNDER THEORIES
OF LAW WITH RESPECT TO PRODUCTS SOLD OR
SERVICES RENDERED BY SELLER OR ANY UNDER-
TAKINGS, ACTS OR OMISSIONS RELATING
THERETO, AND
(c) ALL CONSEQUENTIAL, INCIDENTAL AND CONTIN-
GENT DAMAGES WHATSOEVER.
ENERPAC's liability in all cases is limited to, and shall not
exceed, the purchase price paid.
For the nearest authorized ENERPAC SERVICE CENTER,
please call ENERPAC at 800-558-0530 or visit the
ENERPAC WEB SITE at www. Enerpac.com.
For those ENERPAC items sold as part of the Parker Parflex Division product offering, the following warranty applies.

6Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Accessories

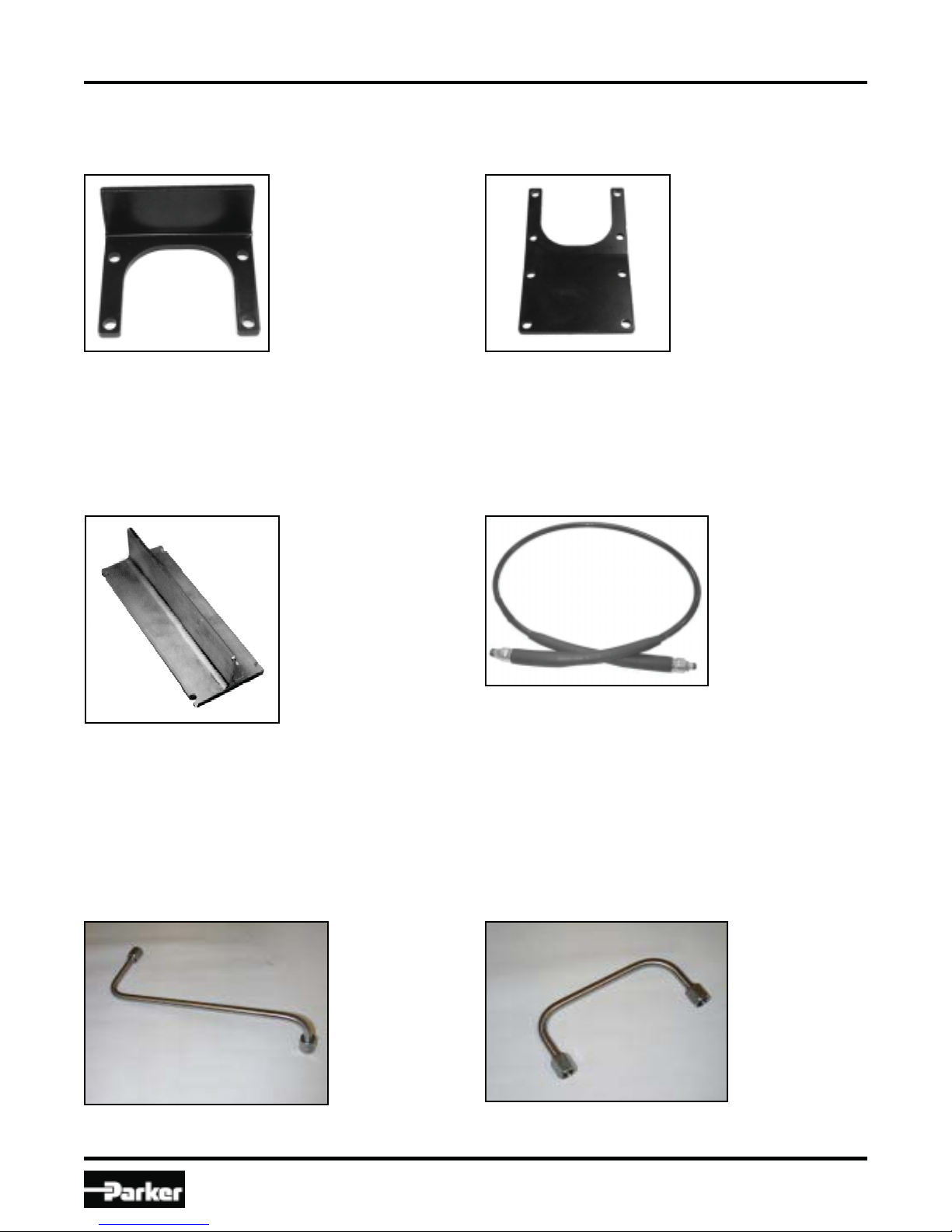

Upright Table Mount
Part No. 015306
(for use with MiniKrimp™only)
Weight .................... 2.2 lbs.
3/8"-16 UNC 1" long bolts are required for mounting
bracket to crimper. Mounting bolts are not included.
Side Vise Mount
Part No. 015736
(for use with MiniKrimp™only)
Attachable Hose Assembly
Part No. 015309
(for use with MiniKrimp™only)
Size .......................................1/4" I.D.
Pressure Rating .................... 10,000 psi W.P.
Length ...................................6 ft.
End Connections:.................. 1/4" NPTF
Upright Vise Mount
Part No. 015307
(for use with MiniKrimp™only)
Weight ................................... 1.7 lbs.
3/8"-16 UNC 1" long bolts are required for mounting
bracket to crimper. Mounting bolts are not included.
Weight ................................... 1.4 lbs.
1/4"-20 UNC 1" long bolts are required for mounting
bracket to crimper. Mounting bolts are not included.
Bent Tube
Part No. 015308
(for use with MiniKrimp™Hand Pump
Model only)
Bent Tube
Part No. 025349
(for use with MiniKrimp™Air Over
Hydraulic Model only)

7Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Tools and Dies
Parflex Crimp Dies can be identified by machined grooves in the top of dies: 55 Series has one groove, 58 Series has
two grooves, 91N Series has three grooves and HY Series is flat. For 43 Series tooling and crimping information not
listed above, refer to Parker Hose Products Catalog 4400, Section C.
(Chartis continued
onthefollowing page.)
Hose Size Fitting
Crimp
DIE 80C-
Crimp
Diameter Color
Die
Ring
Color
3CNG/CNGLT/CNGFR -4 55 P04 .560/.580 Red Silver
3CNG/CNGLT/CNGFR -6 58 PO6H .785/.805 Yellow Silver
4CNG/CNGLT/CNGFR -6 58 P06H .785/.805 Yellow Silver
5CNG/CNGLT/CNGFR -3 55 P03 .480/.500 Gray Silver
5CNG/CNGLT/CNGFR -4 58 P04H .668/.688 Red Silver
5CNG/CNGLT/CNGFR -6 58 P06H .785/.805 Yellow Silver
5CNG/CNGLT/CNGFR -8 58 P08H .900/.920 Blue Silver
510A/510C/518C -2 58 P02H .395/.415 Brown Silver
510/510A/510C/518C -3 55 P03 .480/.500 Gray Silver
510/510A/510C/518C -4 55 P04J .535/.555 Red Silver
510C/518C -5 55 P05 .620/.640 Purple Silver
510/510A/510C/518C -6 55 P06 .675/.695 Yellow Silver
510/510A/510C/518C -8 55 P08 .840/.860 Blue Silver
510C/518C -12 55 P12 1.100/1.120 Green Silver
510C/518C -16 55 P16 1.345/1.365 Black Silver
520N/528N -3 55 P03 .480/.500 Gray Silver
520N/528N -4 55 P04 .560/.580 Red Silver
520N/528N -5 55 P05 .620/.640 Purple Silver
520N/528N -6 55 P06 .675/.695 Yellow Silver
520N/528N -8 55 P08 .840/.860 Blue Silver
520N/528N -10 55 P10 .950/.970 Orange Silver
526BA -3 55 P03 .480/.500 Gray Silver
526BA -4 55 P04 .560/.580 Red Silver
526BA -6 55 P06 .675/.695 Yellow Silver
53FR/530 -6 58 P06FR .730/.750 Yellow Silver
53FR/530 -8 58 P08H .900/.920 Blue Silver
53FR/530 -12 58 P12H 1.150/1.170 Green Silver
53LT/538LT -3 55 P03 .480/.500 Gray Silver
53LT/538LT -4 55 P04 .560/.580 Red Silver
53LT/538LT -5 58 P05R .650/.670 Purple Silver
53LT/538LT -6 58 P06FR .730/.750 Yellow Silver
53LT/538LT -8 58 P08H .900/.920 Blue Silver
53LT/538LT -10 58 P10H 1.000/1.020 Orange Silver
540N -2 58 P02H .395/.415 Brown Silver
540N -3 55 P03 .480/.500 Gray Silver
540N/549 -4 55 P04 .560/.580 Red Silver
540N -5 55 P05 .620/.640 Purple Silver
540N/549 -6 55 P06 .675/.695 Yellow Silver
540N/549 -8 55 P08 .840/.860 Blue Silver
540N -12 55 P12 1.100/1.120 Green Silver
540P -4 55 P04 .560/.580 Red Silver
540P -6 55 P06 .675/.695 Yellow Silver
540P -8 55 P08 .840/.860 Blue Silver
549 -2 57 P02H .395/.415 Brown Silver
55LT -2 58 P02H .395/.415 Brown Silver
550H/55LT -3 55 P03 .480/.500 Gray Silver
550H/55LT -4 55 P04 .560/.580 Red Silver
550H/55LT -5 55 P05 .620/.640 Purple Silver
550H/55LT -6 55 P06 .675/.695 Yellow Silver
550H/55LT -8 55 P08 .840/.860 Blue Silver
550H -10 58 P10H 1.000/1.020 Orange Silver
550H/55LT -12 55 P12 1.100/1.120 Green Silver
550H -16 55 P16 1.345/1.365 Black Silver
55FR -4 55 P04 .560/.580 Red Silver
55FR -6 55 P06 .675/.695 Yellow Silver
55FR -8 55 P08 .840/.860 Blue Silver
560 -3 55 P03 .480/.500 Gray Silver
Parflex Hose Crimp Assembly Tool Selection Chart
560 -4 55 P04 .560/.580 Red Silver

8Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Tools and Dies
Parflex Crimp Dies can be identified by machined grooves in the top of dies: 55 Series has one groove, 58 Series has
two grooves, 91N Series has three grooves and HY Series is flat. For 43 Series tooling and crimping information not
listed above, refer to Parker Hose Products Catalog 4400, Section C.
(Chartis continued
onthefollowing page.)
Hose Size Fitting
Crimp
DIE 80C-
Crimp
Diameter Color
Die
Ring
560 -5 55 P05 .620/.640 Purple Silver
560 -6 55 P06 .675/.695 Yellow Silver
560 -8 55 P08J .815/.835 Blue Silver
560 -10 55 P10 .950/.970 Orange Silver
560 -12 58 P12H 1.150/1.170 Green Silver
570A -6 55 P06 .675/.695 Yellow Silver
570A -8 55 P08J .815/.835 Blue Silver
575X ** -3 55 P03 .480/.500 Gray Silver
575X -4 55 P04 .560/.580 Red Silver
575X -6 55 P06 .675/.695 Yellow Silver
575X -8 55 P08 .840/.860 Blue Silver
580N/588N -4 58 P04H .668/.688 Red Silver
580N/588N -6 58 P06H .785/.805 Yellow Silver
580N/588N -8 58 P08H .900/.920 Blue Silver
580N/588N -10 58 P10H 1.000/1.020 Orange Silver
580N/588N -12 58 P12H 1.150/1.170 Green Silver
580N/588N ** -16 58 P16H 1.475/1.495 Black Silver
590 -3 55 P03 .480/.500 Gray Silver
590 -4 55 P04 .560/.580 Red Silver
590 -6 55 P06 .675/.695 Yellow Silver
590 -8 55 P08J .815/.835 Blue Silver
590 -10 58 P10H 1.000/1.020 Orange Silver
590 ** -12 58 P12H 1.150/1.170 Green Silver
590 ** -16 58 P16J 1.450/1.470 Black Silver
GPH -3 55 P03J .445/.465 Gray Silver
GPH -4 55 P04J .535/.555 Red Silver
GPH -5 55 P05 .620/.640 Purple Silver
GPH -6 55 P06 .675/.695 Yellow Silver
GPH -8 55 P08J .815/.835 Blue Silver
GPH -10 55 P10 .950/.970 Orange Silver
GPH -12 55 P12 1.100/1.120 Green Silver
HGPH -4 55 P04 .560/.580 Red Silver
GPH -3 HBL GPH3 .390/.410 Gray Silver
GPH -4 HBL GPH4 .490/.510 Red Silver
GPH -5 HBL GPH5 .560/.580 Purple Silver
GPH -6 HBL GPH6 .625/.645 Yellow Silver
GPH -8 HBL GPH8 .750/.770 Blue Silver
GPH -10 HBL GPH10 .895/.915 Orange Silver
GPH -12 HBL GPH12 1.060/1.080 Green Silver
GPH -16 HBL GPH16 1.335/1.355 Red Silver
MSH -5 MS M05 .535/.555 Purple Silver
MSH -6 MS M06 .640/.660 Yellow Silver
PDH 1.5 SF P01H .295/.315 – Silver
PDH -2 58 P02H .395/.415 Brown Silver
HPSH -12 58 P12H 1.150/1.170 Green Silver
HPSH -16 58 P16J 1.450/1.470 Black Silver
3PSH -12 58 P12H 1.150/1.170 Green Silver
3PSH -16 58 P16J 1.450/1.470 Black Silver
4PSH -8 58 P08H .900/.920 Blue Silver
PTH -3 92 T05 .450/.470 Purple Silver
901N -4 91N T04N .335/.355 Red Silver
919 -3 91 TO3 .295/.305 Gray Silver
919/929 -4 91N T04N .335/.355 Red Silver
919 -5 91N T05N .385/.405 Purple Silver
919/929 -6 91N T06N .470/.490 Yellow Silver
919/929 -8 91N T08N .565/.585 Blue Silver
919 -10 91N T10N .665/.685 Orange Silver
Parflex Hose Crimp Assembly Tool Selection Chart (Continued)

9Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Tools and Dies
Parflex Crimp Dies can be identified by machined grooves in the top of dies: 55 Series has one groove, 58 Series has
two grooves, 91N Series has three grooves and HY Series is flat. For 43 Series tooling and crimping information not
listed above, refer to Parker Hose Products Catalog 4400, Section C.
Hose Size Fitting
Crimp
DIE 80C-
Crimp
Diameter Color
Die
Ring
919 -16 91N T16N 1.045/1.065 Black Silver
929 -16 91N T16H 1.100/1.120 Black Silver
919 -20 91 T20 1.415/1.435 White Silver
919J/929BJ -4 91N T04J .335/.355 Red Silver
919J/929BJ -5 91N T05J .385/.405 Purple Silver
919J/929BJ -6 91N T06J .470/.490 Yellow Silver
919J/929BJ -8 91N T08J .565/.585 Blue Silver
919J/929BJ -10 91N T10J .665/.685 Orange Silver
919J/929BJ -12 91N T12J .790/.810 Green Silver
919J -16 91N T16J 1.045/1.065 Black Silver
929BJ -16 91N T16HJ 1.100/1.20 Black Silver
1035HT -3 55 P03 .480/.500 Gray Silver
1035A/HT -4 55 P04 .560/.580 Red Silver
1035A/HT -6 55 P06 .675/.695 Yellow Silver
Parflex Hose Crimp Assembly Tool Selection Chart (Continued)
Hose Size Fitting
Crimp
DIE 80C-
Crimp
Diameter Color
Die
Ring
Color
D604 -4 HY P0580 0.570/0.590 Red Silver
D606 -6 HY P0740 0.730/0.750 Yellow Silver
D608 -8 HY P0870 0.860/0.880 Blue Silver
D610 -10 HY P1045 1.035/1.055 Orange Silver
D612 -12 HY P1220 1.210/1.230 Green Silver
D616 -16 HY P1525 1.515/1.535 Black Silver
HFS04 -4 HY P0580 0.570/0.590 Red Silver
HFS06 -6 HY P0740 0.730/0.750 Yellow Silver
HFS08 -8 HY P0845 0.835/0.855 Blue Silver
HFS12 -12 HY P1130 1.120/1.140 Green Silver
HFS16 -16 HY P1395 1.385/1.405 Black Silver
HFS204 -4 HY P0625 0.615/0.635 Red Silver
HFS206 -6 HY P0740 0.730/0.750 Yellow Silver
HFS208 -8 HY P0870 0.860/0.880 Blue Silver
HFS210 -10 HY P1015 1.005/1.025 Orange Silver
HFS212 -12 HY P1150 1.140/1.160 Green Silver
HFS216 -16 HY P1450 1.440/1.460 Black Silver
HTB04 -4
HTB06 -6 43 A06 0.865/0.885 Yellow Black
HTB08 -8 43 A08 0.985/1.005 Blue Black
HTB10 -10 43 A10 1.100/1.120 Orange Black
HTB12 -12 43 A12 1.285/1.305 Green Black
HTB16 -16 43 A16 1.630/1.650 Black Black
M806 -6 43 M0850 0.840/0.860 Yellow Silver
M808 -8 43 M1010 1.000/1.020 Blue Silver
M810 -10 43 M1170 1.160/1.180 Orange Silver
Parflex HYBRID Hose Crimp Assembly Tool Selection Chart
Contact Parflex

10 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™
The following tooling is used for crimping:
82C-R01 Silver Die Ring – to be used with HY, 55, 58, 57, and 91N Series fittings
80C-Axx Die Set - 43 Series
80C-Mxx - 43 Series
80C-Pxx Die Set - HY/55/57/58 Series
80C-Txx Die Set - 91N Series
Note: There are three (3) identification grooves in the top of the 91N Series dies.
There are two (2) grooves in the top of the 58 Series dies and one (1) groove in the
top of the 55 and 57 Series dies. The top of the HY Series dies is flat. For 43 Series
tooling and crimping information, refer to Parker Hose Products Catalog 4400,
Section C.
82C-R01
HY, 55, 57, 58,
and 91N Series
Color Coded Die
CAUTION: To ensure consistent quality, crimp diameters must be checked:
1. After first assembly
2. At regular intervals during production
If out of tolerance crimp diameters result, inspect all assemblies produced. Never allow the use of hose
assemblies with an incorrect crimp diameter. If unable to determine the cause of the problem, call the appropri-
ate Parker division:
Parker Parflex Division Parker Hose Products
Technical Service Department Technical Department
[phone] or [phone] [phone]
e-mail: [email protected]
The HY, 55, 57, 58 and 91N dies are gold and color coded by size; 43 series dies are silver or gold and color
coded by size. Refer to Die Selection Chart in the Parker Parflex Catalog 4660 or “Parflex Hose Crimp Assem-
bly Tool Selection Chart” in this manual to determine which die set to use when crimping a particular hose size
and type.
Tools and Dies

11 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine

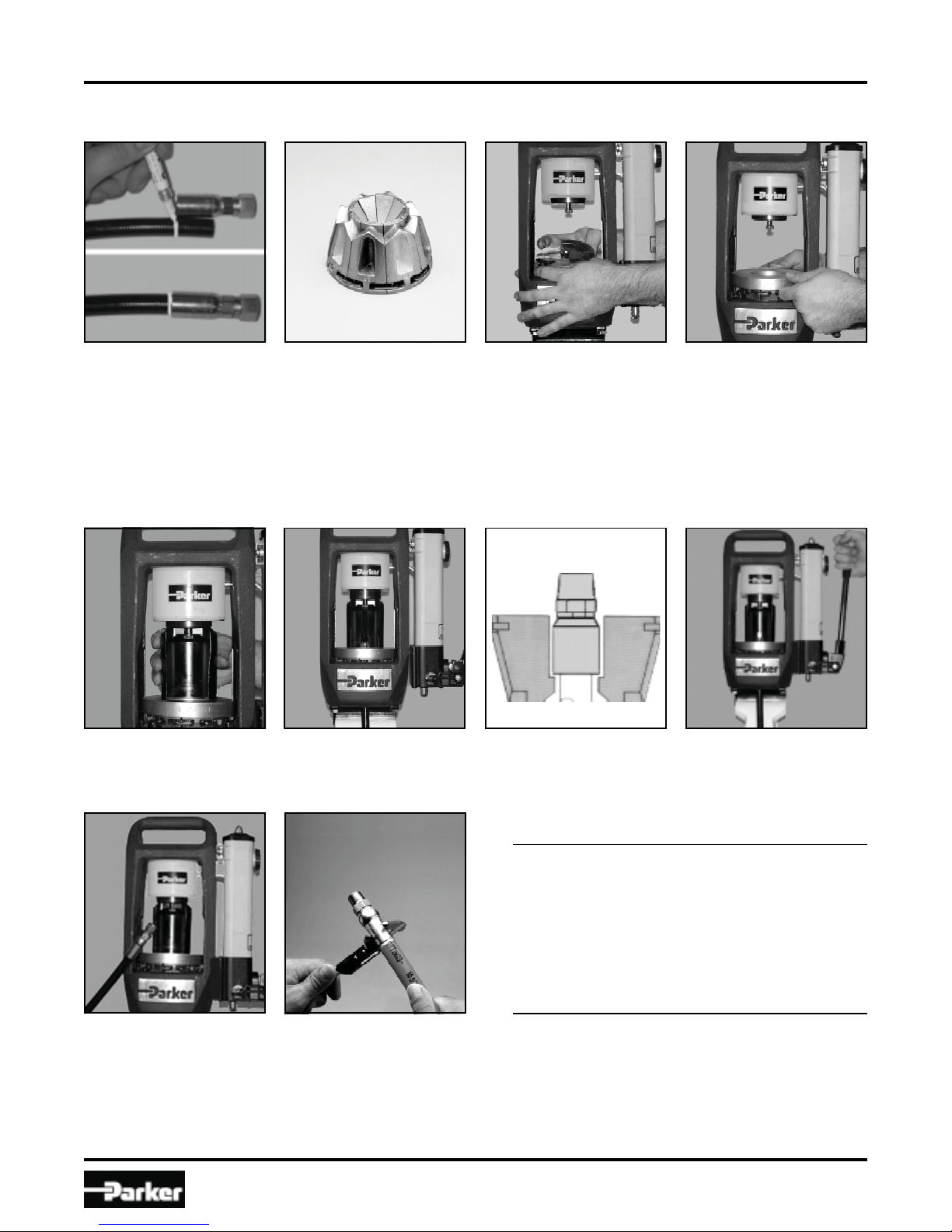

MiniKrimp™Crimping Instructions
Note: Hose assemblies must be inspected for cleanliness
and should be free of all foreign particles.
Note: Parker Hannifin will not accept responsibility for the
operation of, or provide warranty coverage for, a
crimper that is operated by a power unit other than
equipment supplied by Parker Hannifin for the
express purpose of operating that crimper.
MiniKrimp™ Assembly Instructions for HY, 43, 55, 57, 58 and 91N Series Fittings
1. Place the hose next to
the fitting and align it with
the knurl marks in the
fitting shell. Mark the
length onto the hose.
Push hose into the fitting
until the mark on the
hose is even with the
end of the fitting shell
(lubricate hose, if
necessary).
3a. Using a molybdenum
disulfide type grease,
apply a thin layer of
grease to the die bowl.
3b. Place unitized die set
into die bowl.
4. Place proper die ring
on top of the selected
die. See Parker PFD
Catalog 4660 for proper
die ring selection.
5. Slide pusher into place
onto shoulder bolt.
8. While holding hose and
fitting into position on die
step, begin pumping
hand pump until die ring
contacts base plate.
9. Release pressure,
remove finished
assembly. Check crimp
diameter. See Parker
PFD Catalog 4660 for
correct crimp diameter
measurements.
7. Rest bottom of coupling
on die step using
PARKALIGN® feature.
PARKALIGN® FEATURE
6. Position the hose and
fitting in dies from below.
nn
nn
n
nn
nn
n
2. Select proper die set.
For Parflex hoses, see
“Parflex Hose Crimp
Assembly Tool Selection
Chart” in this manual.
Note: Die sets are
color coded by size.
10. Measure crimp diameter of each fitting at the top, middle
and bottom of the shell. Take measurements at a minimum
of three places around the shell circumference. Verify crimp
diameter is within tolerances. For Parflex hoses see
“Parflex Hose Crimp Assembly Tool Selection Chart” in this
manual for correct crimp diameters.

12 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine

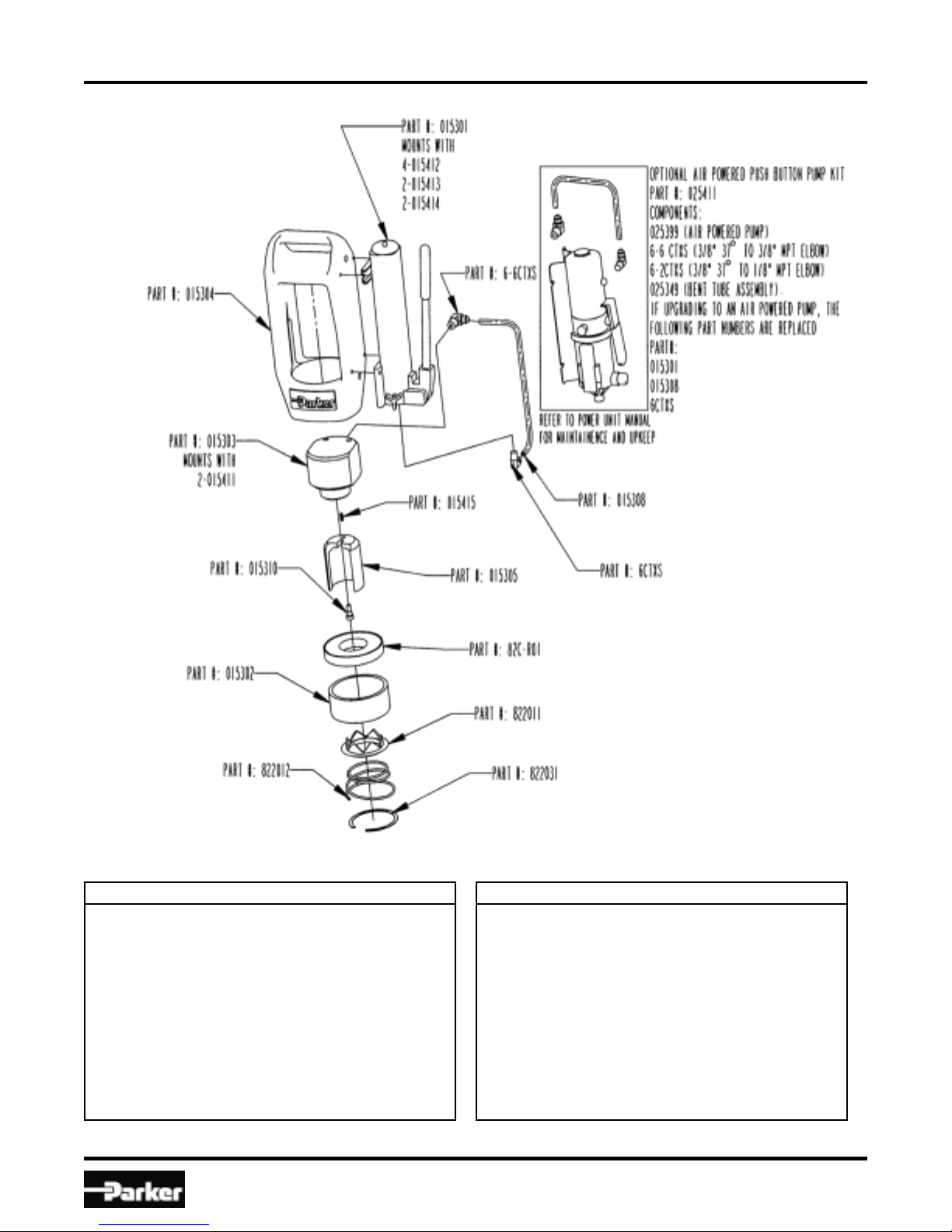

MiniKrimp™MiniKrimp Assembly Detail & Parts List
MiniKrimp Models (94C-001-PFD and 94C-002-PFD) consist of:
Part No. Description Qty.
Part No. Description Qty.
015301 2 Speed Light Weight Hand Pump 1
015302 Hardened Steel Sleeve 1
015303 Custom Cylinder 1
015304 Aluminum Framed Machine 1
015305 Cup Pusher 1
015308 Bent Tube Assembly 1
015310 3/8" x 3/8" Shoulder Bolt 1
015415 Spring Plunger 1
6CTXS 3/8" 37° to 1/4" NPT Elbow 1
6-2CTXS 3/8" 37° to 1/8" NPT Elbow 1
6-6CTXS 3/8" 37° to 3/8" NPT Elbow 1
822011 Die Separator 1
822012 Spring 1
822031 Retention Ring 1
82C-R01 Silver Die Ring 1
015411 3/8-16 18-8 SS SHCS 2.5" Long 2
015413 1/4-20 18-8 SS Lock Washer 2
015414 14-20 18-8 SS Flat Washer 2
015412 1/4-20 18-8 SS SHCS .75" Long 4
025349 Bent Tube Assembly 1
025399 Air Powered Pump 1

13 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Air/Hydraulic MiniKrimp Assembly
MiniKrimp™ Assembly Instructions for HY, 43, 55, 57, 58 and 91N Series Fittings
Using Air Over Hydraulic Pump
1. See steps 1 – 7 in “MiniKrimp™ Assembly Instructions for HY, 43, 55, 57, 58 and 91N Series Fittings.”
2. Hold black button located on pump below red lever until die ring contacts base plate.
3. Depress red lever to release pressure.
4. Measure crimp diameter of each fitting at the tip, middle and bottom of the shell. Take measurements at a
minimum of three places around the shell circumference. Verify crimp diameter is within tolerances. For
Parflex hoses see “Parflex Hose Crimp Assembly Tool Selection Chart” in this manual for correct crimp
diameters.
Note: Hose assemblies must be inspected for cleanliness and should be free of all foreign particles. Parker
Hannifin will not accept responsibility for the operation of, or provide warranty coverage for, a crimper that is
operated by a power unit other than equipment supplied by Parker Hannifin for the express purpose of operat-
ing that crimper.
Assembling the MiniKrimp™ Air Over Hydraulic Pump Upgrade Kit
1. (IF APPLICABLE) Remove the hand pump and bent tube assembly from the
body of the crimper. Do not take out the adapter in the cylinder as it is the
same as the adapter used for the Air over Hydraulic Pump. The adapter will
however need to be reoriented.
2. Screw (or reorient) the 6-6 CTXS adapter into the cylinder port and tighten
until the fitting is facing in the upward direction. Do not loosen the adapter to
reach the correct orientation as this may cause leakage.
3. Screw the 6-2 CTXS adapter into the pump and tighten until the fitting is
facing the direction of the fill cap.
4. Mount the pump to the right side of the crimper as shown in the figure using
two 1/4" bolt holes on the top of the crimper. Note that only the top two bolt
holes are used.
5. Attach the 025399 bent tube assembly to the two adapters. The longer of the two ends of the tube will attach
to the pump. Tighten the nuts of the bent tube to a minimum of 21 ft.-lbs.

14 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Trouble Shooting Guide
If you have a problem with your MiniKrimp Portable Crimping Machine....
First, check that the proper tooling, hose and fitting combinations are being used.
Then check the following recommendations. If the following suggestions do not remedy the problem, call
the Parflex Technical Service Department [phone] or [phone].
Symptoms Possible Causes What to Do
Hand pump, air/hydraulic
pump, electric pump, pump
hose assembly, quick
disconnect problems
Refer to Enerpac instruction sheets or call Enerpac at
1-800-433-2766; in Wisconsin 1-800-242-6636.
Coupling crimp diameter
above or below
Wrong fitting style being used. Only HY, 43, 55, 57, 58 and 91N Series fittings may be used
with MiniKrimp™ machine. For 43 Series tooling and crimping
information, refer to Parker Hose Products Catalog 4400,
Section C.
Wrong die ring being used. Refer to die selection chart in the Parker PFD Catalog 4660
for correct die ring.
NOTE: Refer to the latest Parker Parflex Catalog 4660 for
approved hose and fitting styles and sizes.
Pump relief valve set too low.
Pusher is not be bottomed out on
die ring and base plate com-
pletely (usually inconsistent
crimp diameters).
Lubricate die cavity with Factran EP-2 lithium grease,
Dowel Corning GN assembly paste, or equivalent to
prevent dies from sticking in bowl. Bottom out the pusher on
the die ring completely. Also check for proper bottoming by
placing a piece of paper between die ring and base plate. If
properly bottomed, you should not be able to remove paper.
Vent must be open for Hand pump and Air over Hydraulic
pump prior to use.
Adjust relief valve setting to 10,000 psi. For assistance,
contact Enerpac's Technical Service Center at
1-800-433-2766; in Wisconsin 1-800-242-6636.
High or low voltage. Call a qualified electrician.
Low on oil. Refill oil reservoir with Enerpac recommended oil.
Crimp dies, die rings damaged,
worn, or faulty.
Visually inspect all wear surfaces for raised metal dents or
gouges. Replace damaged die sets and die rings. Worn or
faulty die sets will crimp above or below specifications by the
same amount with and without the die ring. Replace worn or
faulty die sets.
Lubricate the die cavity in the base plate frequently with
Factran EP-2 lithium grease, Dowel Corning GN assembly
paste, or equivalent to prevent wear.
Die cavity in base plate worn or
faulty.
Check crimp diameter of several different sizes of die sets
with and without the black spacer ring. If all crimp diameters
are out of specification by the same amount, the die cavity in
the base plate may be out of specification. Contact Parflex
Technical Service Dept. [phone] or [phone]
for repair.
Lubricate the die cavity in base plate frequently with Factran
EP-2 lithium grease, Dowel Corning GN assembly paste, or
equivalent to prevent wear.

15 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Safety Guide
!
(Continued)
Parker Safety Guide
for Selecting and Using Hose, Tubing, Fittings and Related Accessories
Parker Publication No. 4400-B.1
Revised: May 2002
WARNING: Failure or improper selection or improper use of hose, tubing, fittings, assemblies or related accessories (“Products”) can cause
death, personal injury and property damage. Possible consequences of failure or improper selection or improper use of these Products include
but are not limited to:
•Fittings thrown off at high speed.
•High velocity fluid discharge.
•Explosion or burning of the conveyed fluid.
•Electrocution from high voltage electric power lines.
•Contact with suddenly moving or falling objects that are controlled
by the conveyed fluid.
•Injections by high-pressure fluid discharge.
•Dangerously whipping Hose.
•Contact with conveyed fluids that may be hot, cold, toxic or other-
wise injurious.
•Sparking or explosion caused by static electricity buildup or other
sources of electricity.
•Sparking or explosion while spraying paint or flammable liquids.
•Injuries resulting from inhalation, ingestion or exposure to fluids.
Before selecting or using any of these Products, it is important that you read and follow the instructions below. Only Hose from Parker’s
Stratoflex Products Division is approved for in flight aerospace applications, and no other Hose can be used for such in flight applications.
1.0 GENERAL INSTRUCTIONS
1.1 Scope: This safety guide provides instructions for selecting and
using (including assembling, installing, and maintaining) these Prod-
ucts. For convenience, all rubber and/or thermoplastic products
commonly called “hose” or “tubing” are called “Hose” in this safety
guide. All assemblies made with Hose are called “Hose Assem-
blies”. All products commonly called “fittings” or “couplings” are
called “Fittings”. All related accessories (including crimping and
swaging machines and tooling) are called “Related Accessories”.
This safety guide is a supplement to and is to be used with, the
specific Parker publications for the specific Hose, Fittings and
Related Accessories that are being considered for use.
1.2 Fail-Safe: Hose, and Hose Assemblies and Fittings can and do
fail without warning for many reasons. Design all systems and equip-
ment in a fail-safe mode, so that failure of the Hose or Hose As-
sembly or Fitting will not endanger persons or property.
1.3 Distribution: Provide a copy of this safety guide to each person
that is responsible for selecting or using Hose and Fitting products.
Do not select or use Parker Hose or Fittings without thoroughly
reading and understanding this safety guide as well as the specific
Parker publications for the products considered or selected.
1.4 User Responsibility: Due to the wide variety of operating condi-
tions and applications for Hose and Fittings, Parker and its dis-
tributors do not represent or warrant that any particular Hose or
Fitting is suitable for any specific end use system. This safety
guide does not analyze all technical parameters that must be con-
sidered in selecting a product. The user, through its own analysis
and testing, is solely responsible for:
• Making the final selection of the Hose and Fitting.
• Assuring that the user’s requirements are met and that the ap-
plication presents no health or safety hazards.
• Providing all appropriate health and safety warnings on the equip-
ment on which the Hose and Fittings are used.
• Assuring compliance with all applicable government and indus-
try standards.
1.5 Additional Questions: Call the appropriate Parker technical ser-
vice department if you have any questions or require any additional
information. See the Parker publication for the product being con-
sidered or used, or call 1-800-CPARKER, or go to www.parker.com,
for telephone numbers of the appropriate technical service depart-
ment.
2.0 HOSE AND FITTING SELECTION INSTRUCTIONS
2.1 Electrical Conductivity: Certain applications require that the Hose
be nonconductive to prevent electrical current flow. Other applica-
tions require the Hose and the Fitting and the Hose/Fitting inter-
face to be sufficiently conductive to drain off static electricity. Ex-
treme care must be exercised when selecting Hose and Fittings
for these or any other applications in which electrical conductivity
or nonconductivity is a factor.
The electrical conductivity or nonconductivity of Hose and Fittings
is dependent upon many factors and may be susceptible to change.
These factors include but are not limited to the various materials
used to make the Hose and the Fittings, Fitting finish (some Fitting
finishes are electrically conductive while others are nonconduc-
tive), manufacturing methods (including moisture control), how the
Fittings contact the Hose, age and amount of deterioration or dam-
age or other changes, moisture content of the Hose at any particu-
lar time, and other factors.
The following are considerations for electrically nonconductive and
conductive Hose. For other applications consult the individual cata-
log pages and the appropriate industry or regulatory standards for
proper selection.
2.1.1 Electrically Nonconductive Hose: Certain applications require that
the Hose be nonconductive to prevent electrical current flow or to
maintain electrical isolation. For these applications that require Hose
to be electrically nonconductive, including but not limited to appli-
cations near high voltage electric lines, only special nonconduc-
tive Hose can be used. The manufacturer of the equipment in which
the nonconductive Hose is to be used must be consulted to be
certain that the Hose and Fittings that are selected are proper for
the application. Do not use any Parker Hose or Fitting for any such
application requiring nonconductive Hose, including but not limited
to applications near high voltage electric lines, unless (i) the appli-
cation is expressly approved in the Parker technical publication for
the product, (ii) the Hose is marked “nonconductive”, and (iii) the
manufacturer of the equipment on which the Hose is to be used
specifically approves the particular Parker Hose and Fitting for such
use.
2.1.2 Electrically Conductive Hose: Parker manufactures special Hose
for certain applications that require electrically conductive Hose.
Parker manufactures special Hose for conveying paint in airless
paint spraying applications. This Hose is labeled “Electrically Con-
ductive Airless Paint Spray Hose” on its layline and packaging.
This Hose must be properly connected to the appropriate Parker
Fittings and properly grounded in order to dissipate dangerous static
charge buildup, which occurs in all airless paint spraying applica-
tions. Do not use any other Hose for airless paint spraying, even if
electrically conductive. Use of any other Hose or failure to properly
connect the Hose can cause a fire or an explosion resulting in
death, personal injury, and property damage.
Parker manufactures a special Hose for certain compressed natu-
ral gas (“CNG”) applications where static electricity buildup may
occur. Parker CNG Hose assemblies comply with AGA Require-
ments 1-93, “Hoses for Natural Gas Vehicles and Fuel Dispens-
ers”. This Hose is labeled “Electrically Conductive for CNG Use”
on its layline and packaging. This Hose must be properly con-
nected to the appropriate Parker Fittings and properly grounded in
order to dissipate dangerous static charge buildup, which occurs
in, for example, high velocity CNG dispensing or transfer. Do not
use any other Hose for CNG applications where static charge buildup
may occur, even if electrically conductive. Use of other Hoses in
CNG applications or failure to properly connect or ground this Hose

16 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™
(Continued)
Safety Guide
can cause a fire or an explosion resulting in death, personal injury,
and property damage. Care must also be taken to protect against
CNG permeation through the Hose wall. See section 2.6, Perme-
ation, for more information. Parker CNG Hose is intended for dis-
penser and vehicle use at a maximum temperature of 180°F. Parker
CNG Hose should not be used in confined spaces or unventilated
areas or areas exceeding 180°F. Final assemblies must be tested
for leaks. CNG Hose Assemblies should be tested on a monthly
basis for conductivity per AGA 1-93.
Parker manufactures special Hose for aerospace in-flight applica-
tions. Aerospace in-flight applications employing Hose to transmit
fuel, lubricating fluids and hydraulic fluids require a special Hose
with a conductive inner tube. This Hose for in-flight applications is
available only from Parker’s Stratoflex Products Division. Do not
use any other Parker Hose for in-flight applications, even if electri-
cally conductive. Use of other Hoses for in-flight applications or
failure to properly connect or ground this Hose can cause a fire or
an explosion resulting in death, personal injury, and property dam-
age. These Hose assemblies for in-flight applications must meet
all applicable aerospace industry, aircraft engine, and aircraft re-
quirements.
2.2 Pressure: Hose selection must be made so that the published
maximum recommended working pressure of the Hose is equal to
or greater than the maximum system pressure. Surge pressures or
peak transient pressures in the system must be below the pub-
lished maximum working pressure for the Hose. Surge pressures
and peak pressures can usually only be determined by sensitive
electrical instrumentation that measures and indicates pressures
at millisecond intervals. Mechanical pressure gauges indicate only
average pressures and cannot be used to determine surge pres-
sures or peak transient pressures. Published burst pressure rat-
ings for Hose is for manufacturing test purposes only and is no
indication that the Product can be used in applications at the burst
pressure or otherwise above the published maximum recommended
working pressure.
2.3 Suction: Hoses used for suction applications must be selected to
insure that the Hose will withstand the vacuum and pressure of the
system. Improperly selected Hose may collapse in suction appli-
cation.
2.4 Temperature: Be certain that fluid and ambient temperatures, both
steady and transient, do not exceed the limitations of the Hose.
Temperatures below and above the recommended limit can de-
grade Hose to a point where a failure may occur and release fluid.
Properly insulate and protect the Hose Assembly when routing near
hot objects (e.g. manifolds). Do not use any Hose in any applica-
tion where failure of the Hose could result in the conveyed fluids (or
vapors or mist from the conveyed fluids) contacting any open flame,
molten metal, or other potential fire ignition source that could cause
burning or explosion of the conveyed fluids or vapors.
2.5 Fluid Compatibility: Hose Assembly selection must assure com-
patibility of the Hose tube, cover, reinforcement, and Fittings with
the fluid media used. See the fluid compatibility chart in the Parker
publication for the product being considered or used. This informa-
tion is offered only as a guide. Actual service life can only be deter-
mined by the end user by testing under all extreme conditions and
other analysis.
Hose that is chemically compatible with a particular fluid must be
assembled using Fittings and adapters containing likewise com-
patible seals.
2.6 Permeation: Permeation (that is, seepage through the Hose) will
occur from inside the Hose to outside when Hose is used with
gases, liquid and gas fuels, and refrigerants (including but not lim-
ited to such materials as helium, diesel fuel, gasoline, natural gas,
or LPG). This permeation may result in high concentrations of va-
pors which are potentially flammable, explosive, or toxic, and in
loss of fluid. Dangerous explosions, fires, and other hazards can
result when using the wrong Hose for such applications. The sys-
tem designer must take into account the fact that this permeation
will take place and must not use Hose if this permeation could be
hazardous. The system designer must take into account all legal,
government, insurance, or any other special regulations which gov-
ern the use of fuels and refrigerants. Never use a Hose even though
the fluid compatibility is acceptable without considering the poten-
tial hazardous effects that can result from permeation through the
Hose Assembly.
Permeation of moisture from outside the Hose to inside the Hose
will also occur in Hose assemblies, regardless of internal pressure.
If this moisture permeation would have detrimental effects (particu-
larly, but not limited to refrigeration and air conditioning systems),
incorporation of sufficient drying capacity in the system or other
appropriate system safeguards should be selected and used.
2.7 Size: Transmission of power by means of pressurized fluid varies
with pressure and rate of flow. The size of the components must be
adequate to keep pressure losses to a minimum and avoid damage
due to heat generation or excessive fluid velocity.
2.8 Routing: Attention must be given to optimum routing to minimize
inherent problems (kinking or flow restriction due to Hose collapse,
twisting of the Hose, proximity to hot objects or heat sources).
2.9 Environment: Care must be taken to insure that the Hose and
Fittings are either compatible with or protected from the environ-
ment (that is, surrounding conditions) to which they are exposed.
Environmental conditions including but not limited to ultraviolet ra-
diation, sunlight, heat, ozone, moisture, water, salt water, chemi-
cals, and air pollutants can cause degradation and premature fail-
ure.
2.10 Mechanical Loads: External forces can significantly reduce Hose
life or cause failure. Mechanical loads which must be considered
include excessive flexing, twist, kinking, tensile or side loads, bend
radius, and vibration. Use of swivel type Fittings or adapters may
be required to insure no twist is put into the Hose. Unusual applica-
tions may require special testing prior to Hose selection.
2.11 Physical Damage: Care must be taken to protect Hose from wear,
snagging, kinking, bending smaller that minimum bend radius, and
cutting, any of which can cause premature Hose failure. Any Hose
that has been kinked or bent to a radius smaller than the minimum
bend radius, and any Hose that has been cut or is cracked or is
otherwise damaged, should be removed and discarded.
2.12 Proper End Fitting: See instructions 3.2 through 3.5. These rec-
ommendations may be substantiated by testing to industry stan-
dards such as SAE J517 for hydraulic applications, or MIL-A-5070,
AS1339, or AS3517 for Hoses from Parker’s Stratoflex Products
Division for aerospace applications.
2.13 Length: When establishing a proper Hose length, motion absorp-
tion, Hose length changes due to pressure, and Hose and machine
tolerances and movement must be considered.
2.14 Specifications and Standards: When selecting Hose and Fittings,
government, industry, and Parker specifications and recommenda-
tions must be reviewed and followed as applicable.
2.15 Hose Cleanliness: Hose components may vary in cleanliness lev-
els. Care must be taken to insure that the Hose Assembly selected
has an adequate level of cleanliness for the application.
2.16 Fire Resistant Fluids: Some fire resistant fluids that are to be
conveyed by Hose require use of the same type of Hose as used
with petroleum base fluids. Some such fluids require a special Hose,
while a few fluids will not work with any Hose at all. See instruc-
tions 2.5 and 1.5. The wrong Hose may fail after a very short ser-
vice. In addition, all liquids but pure water may burn fiercely under
certain conditions, and even pure water leakage may be hazard-
ous.
2.17 Radiant Heat: Hose can be heated to destruction without contact
by such nearby items as hot manifolds or molten metal. The same
heat source may then initiate a fire. This can occur despite the
presence of cool air around the Hose.
2.18 Welding or Brazing: When using a torch or arc welder in close
proximity to hydraulic lines, the hydraulic lines should be removed
or shielded with appropriate fire resistant materials. Flame or weld
spatter could burn through the Hose and possibly ignite escaping
fluid resulting in a catastrophic failure. Heating of plated parts, in-
cluding Hose Fittings and adapters, above 450°F (232°C) such as
during welding, brazing, or soldering may emit deadly gases.
2.19 Atomic Radiation: Atomic radiation affects all materials used in
Hose assemblies. Since the long-term effects may be unknown,
do not expose Hose assemblies to atomic radiation.
2.20 Aerospace Applications: The only Hose and Fittings that may be
used for in-flight aerospace applications are Hose available from

17 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Safety Guide
(Continued)
Parker’s Stratoflex Products Division. Do not use any other Hose
or Fittings for in-flight applications. Do not use any Hose or Fittings
from Parker’s Stratoflex Products Division with any other Hose or
Fittings, unless expressly approved in writing by the engineering
manager or chief engineer of Stratoflex Products Division and veri-
fied by the user’s own testing and inspection to aerospace industry
standards.
2.21 Unlocking Couplings: Ball locking couplings or other couplings
with disconnect sleeves can unintentionally disconnect if they are
dragged over obstructions or if the sleeve is bumped or moved
enough to cause disconnect. Threaded couplings should be con-
sidered where there is a potential for accidental uncoupling.
3.0 HOSE AND FITTING ASSEMBLY AND INSTALLATION IN-
STRUCTIONS
3.1 Component Inspection: Prior to assembly, a careful examination
of the Hose and Fittings must be performed. All components must
be checked for correct style, size, catalog number, and length. The
Hose must be examined for cleanliness, obstructions, blisters, cover
looseness, kinks, cracks, cuts or any other visible defects. In-
spect the Fitting and sealing surfaces for burrs, nicks, corrosion or
other imperfections. Do NOT use any component that displays any
signs of nonconformance.
3.2 Hose and Fitting Assembly: Do not assemble a Parker Fitting on
a Parker Hose that is not specifically listed by Parker for that Fit-
ting, unless authorized in writing by the engineering manager or
chief engineer of the appropriate Parker division. Do not assemble
a Parker Fitting on another manufacturer’s Hose or a Parker Hose
on another manufacturer’s Fitting unless (i) the engineering man-
ager or chief engineer of the appropriate Parker division approves
the Assembly in writing or that combination is expressly approved
in the appropriate Parker literature for the specific Parker product,
and (ii) the user verifies the Assembly and the application through
analysis and testing. For Parker Hose that does not specify a Parker
Fitting, the user is solely responsible for the selection of the proper
Fitting and Hose Assembly procedures. See instruction 1.4.
The Parker published instructions must be followed for assembling
the Fittings on the Hose. These instructions are provided in the
Parker Fitting catalog for the specific Parker Fitting being used, or
by calling 1-800-CPARKER, or at www.parker.com.
3.3 Related Accessories: Do not crimp or swage any Parker Hose or
Fitting with anything but the listed swage or crimp machine and
dies in accordance with Parker published instructions. Do not crimp
or swage another manufacturer’s Fitting with a Parker crimp or swage
die unless authorized in writing by the engineering manager or chief
engineer of the appropriate Parker division.
3.4 Parts: Do not use any Parker Fitting part (including but not limited
to socket, shell, nipple, or insert) except with the correct Parker
mating parts, in accordance with Parker published instructions,
unless authorized in writing by the engineering manager or chief
engineer of the appropriate Parker division.
3.5 Reusable/Permanent: Do not reuse any field attachable (reusable)
Hose Fitting that has blown or pulled off a Hose. Do not reuse a
Parker permanent Hose Fitting (crimped or swaged) or any part
thereof. Complete Hose Assemblies may only be reused after proper
inspection under section 4.0. Do not assemble Fittings to any pre-
viously used hydraulic Hose that was in service, for use in a fluid
power application.
3.6 Pre-Installation Inspection: Prior to installation, a careful exami-
nation of the Hose Assembly must be performed. Inspect the Hose
Assembly for any damage or defects. Do NOT use any Hose As-
sembly that displays any signs of nonconformance.
3.7 Minimum Bend Radius: Installation of a Hose at less than the
minimum listed bend radius may significantly reduce the Hose life.
Particular attention must be given to preclude sharp bending at the
Hose to Fitting juncture. Any bending during installation at less
than the minimum bend radius must be avoided. If any Hose is
kinked during installation, the Hose must be discarded.
3.8 Twist Angle and Orientation: Hose Assembly installation must
be such that relative motion of machine components does not pro-
duce twisting.
3.9 Securement: In many applications, it may be necessary to re-
strain, protect, or guide the Hose to protect it from damage by
unnecessary flexing, pressure surges, and contact with other me-
chanical components. Care must be taken to insure such restraints
do not introduce additional stress or wear points.
3.10 Proper Connection of Ports: Proper physical installation of the
Hose Assembly requires a correctly installed port connection insur-
ing that no twist or torque is transferred to the Hose when the Fit-
tings are being tightened or otherwise during use.
3.11 External Damage: Proper installation is not complete without in-
suring that tensile loads, side loads, kinking, flattening, potential
abrasion, thread damage, or damage to sealing surfaces are cor-
rected or eliminated. See instruction 2.10.
3.12 System Checkout: All air entrapment must be eliminated and the
system pressurized to the maximum system pressure (at or below
the Hose maximum working pressure) and checked for proper func-
tion and freedom from leaks. Personnel must stay out of potential
hazardous areas while testing and using.
3.13 Routing: The Hose Assembly should be routed in such a manner
so if a failure does occur, the escaping media will not cause per-
sonal injury or property damage. In addition, if fluid media comes in
contact with hot surfaces, open flame, or sparks, a fire or explosion
may occur. See section 2.4.
4.0 HOSE AND FITTING MAINTENANCE AND REPLACEMENT IN-
STRUCTIONS
4.1 Even with proper selection and installation, Hose life may be sig-
nificantly reduced without a continuing maintenance program. The
severity of the application, risk potential from a possible Hose fail-
ure, and experience with any Hose failures in the application or in
similar applications should determine the frequency of the inspec-
tion and the replacement for the Products so that Products are
replaced before any failure occurs. A maintenance program must
be established and followed by the user and, at minimum, must
include instructions 4.2 through 4.7.
4.2 Visual Inspection Hose/Fitting: Any of the following conditions
require immediate shut down and replacement of the Hose Assem-
bly:
• Fitting slippage on Hose,
• Damaged, cracked, cut or abraded cover (any reinforcement
exposed);
• Hard, stiff, heat cracked, or charred Hose;
• Cracked, damaged, or badly corroded Fittings;
• Leaks at Fitting or in Hose;
• Kinked, crushed, flattened or twisted Hose; and
• Blistered, soft, degraded, or loose cover.
4.3 Visual Inspection All Other: The following items must be tight-
ened, repaired, corrected or replaced as required:
• Leaking port conditions;
• Excess dirt buildup;
• Worn clamps, guards or shields; and
• System fluid level, fluid type, and any air entrapment.
4.4 Functional Test: Operate the system at maximum operating pres-
sure and check for possible malfunctions and leaks. Personnel
must avoid potential hazardous areas while testing and using the
system. See section 2.2.
4.5 Replacement Intervals: Hose assemblies and elastomeric seals
used on Hose Fittings and adapters will eventually age, harden,
wear and deteriorate under thermal cycling and compression set.
Hose Assemblies and elastomeric seals should be inspected and
replaced at specific replacement intervals, based on previous ser-
vice life, government or industry recommendations, or when fail-
ures could result in unacceptable downtime, damage, or injury risk.
See section 1.2.
4.6 Hose Inspection and Failure: Hydraulic power is accomplished
by utilizing high-pressure fluids to transfer energy and do work.
Hoses, Fittings, and Hose Assemblies all contribute to this by trans-
mitting fluids at high pressures. Fluids under pressure can be dan-
gerous and potentially lethal and, therefore, extreme caution must
be exercised when working with fluids under pressure and handling
the Hoses transporting the fluids. From time to time, Hose Assem-
blies will fail if they are not replaced at proper time intervals. Usu-
ally these failures are the result of some form of misapplication,
abuse, wear, or failure to perform proper maintenance. When Hoses

18 Parker Hannifin Corporation
Parflex Division
Ravenna, OH
Bulletin 4660-MiniKrimp Crimping Machine
MiniKrimp™Safety Guide
Material Safety Data Sheets (MSDS) are available upon request.
Federal OSHA regulation 29 CFR 1910.1200 requires that we transmit to our customers Material Safety Data Sheets for all material
covered under the law. If you are an employer in SIC 20-39 who has not yet received them, you are required to obtain them from us and
provide the information to employees as directed in Secton (b) of the requlation. Please contact the Parflex Technical Service Department
at 330-298-4066 (phone) or 330-296-8433 (FAX).
fail, generally the high-pressure fluids inside escape in a stream
which may or may not be visible to the user. Under no circum-
stances should the user attempt to locate the leak by “feeling” with
their hands or any other part of their body. High-pressure fluids can
and will penetrate the skin and cause severe tissue damage and
possibly loss of limb. Even seemingly minor hydraulic fluid injec-
tion injuries must be treated immediately by a physician with knowl-
edge of the tissue damaging properties of hydraulic fluid.
If a Hose failure occurs, immediately shut down the equipment and
leave the area until pressure has been completely released from
the Hose Assembly. Simply shutting down the hydraulic pump may
or may not eliminate the pressure in the Hose Assembly. Many
times check valves, etc., are employed in a system and can cause
pressure to remain in a Hose Assembly even when pumps or equip-
ment are not operating. Tiny holes in the Hose, commonly known
as pinholes, can eject small, dangerously powerful but hard to see
streams of hydraulic fluid. It may take several minutes or even
hours for the pressure to be relieved so that the Hose Assembly
may be examined safely.
Once the pressure has been reduced to zero, the Hose Assembly
may be taken off the equipment and examined. It must always be
replaced if a failure has occurred. Never attempt to patch or repair
a Hose Assembly that has failed. Consult the nearest Parker dis-
tributor or the appropriate Parker division for Hose Assembly re-
placement information.
Never touch or examine a failed Hose Assembly unless it is obvi-
ous that the Hose no longer contains fluid under pressure. The
high-pressure fluid is extremely dangerous and can cause serious
and potentially fatal injury.
4.7 Elastomeric seals: Elastomeric seals will eventually age, harden,
wear and deteriorate under thermal cycling and compression set.
Elastomeric seals should be inspected and replaced.
4.8 Refrigerant gases: Special care should be taken when working
with refrigeration systems. Sudden escape of refrigerant gases can
cause blindness if the escaping gases contact the eye and can
cause freezing or other severe injuries if it contacts any other por-
tion of the body.
4.9 Compressed natural gas (CNG): Parker CNG Hose Assemblies
should be tested after installation and before use, and at least on a
monthly basis per AGA 1-93 Section 4.2 “Visual Inspection Hose/
Fitting”. The recommended procedure is to pressurize the Hose
and check for leaks and to visually inspect the Hose for damage.
4.10 Matches, candles, open flame or other sources of ignition shall not
be used for Hose inspection. Leak check solutions should be rinsed
off after use.
