MiniKrimp™

Crimping Machine Technical Manual

Bulletin 4660-MKD

1. When using a power unit, use only Parker recommended power units to

hydraulically operate Parker crimpers.

2. When using a power unit, connect the power unit to a grounded, properly rated,

protected and sized power-supply circuit to prevent electrical shock and to avoid

electrical overload.

3. DO NOT OPERATE MINIKRIMP™ OVER MAXIMUM RATED WORKING

PRESSURE OF 10,000 PSI.

4. Wear safety glasses. Make sure that the valve connecting the hose or tube assembly

and other components are protected from any external source of damage, such as:

excessive heat, ame, moving machine parts, sharp edges, falling objects, corrosive

chemicals, dropping the crimper and other hazards.

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND / OR

SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL

INJURY AND PROPERTY DAMAGE.

Before selecting or using any Parker hose or ttings or related accessories, it is important that

you read and follow Parker Safety Guide for Selecting and Using Hose, Fittings, and Related

Accessories (Parker Publication No. 4400-B.1)

is document and other information from Parker Hannin Corporation, its subsidiaries and

authorized distributors provide product and/or system options for further investigation by

users having technical expertise. It is important that you analyze all aspects of your application

and review the information concerning the product or system in the current product catalog.

Due to the variety of operating conditions and applications for these products or systems, the

user, through its own analysis and testing, is solely responsible for making the nal selection of

the products and systems and assuring that all performance, safety and warning requirements

of the application are met.

e products described herein including without limitation, product features, specications,

designs, availability and pricing, are subject to change by Parker Hannin Corporation and

subsidiaries at any time without notice.

e items described in this document are hereby oered for sale by Parker Hannin

Corporation, its subsidiaries or its authorized distributors. is oer and its acceptance

are governed by the provisions in the “Oer of Sale.”

WARNING

When operating this machine, always exercise

basic safety precautions to minimize the possibility

of injury, including the following:

Offer of Sale

Table of Contents

MiniKrimp™ Hand Pump Model - Overview ............................................................................................ 2

MiniKrimp™ Air Over Hydraulic Model - Overview .................................................................................. 3

Accessories ...............................................................................................................................................4-5

MiniKrimp™ Assembly Detail and Parts List (Hand Pump Model) ......................................................... 6

MiniKrimp™ Assembly Detail and Parts List (Air Over Hydraulic Model) .............................................. 7

Crimping Instructions................................................................................................................................. 8

Assembling the MiniKrimp™ Air Over Hydraulic ...................................................................................... 9

Trouble Shooting Guide.......................................................................................................................10-11

ENERPAC Warranty Policy ....................................................................................................................... 12

Oer of Sale................................................................................................................................................ 13

Safety Guide (Parker Publication 4400-B.1).......................................................................................14-17

MSDS ......................................................................................................................................................... 17

Help us help you . . .

Receiving Instructions:

UNPACKING — Carefully remove all documents and components from shipping containers.

INSPECTION— Visually inspect all components for shipping damage. If any shipping damage

is found, notify the carrier at once. e carrier is responsible for all repair and replacement costs

resulting from such damage. Shipping damage is not covered by the Parker warranty.

Read this guide carefully before using.

is Technical Manual is designed to help you operate and maintain your MiniKrimpTM.

If you need more information or further assistance, please contact us:

Call: Technical Services Department

Parker Hannin Corporation

Parex Division

Phone: (330) 298-4066 or (330) 296-2871

Fax: (330) 296-8433

MiniKrimp™- Hand Pump Model

Specifications

Approximate Size (with pump) . . . . . . . . . . . . . . 6” Deep, 13” Wide, 15” high

Weight (w/o die set) . . . . . . . . . . . . . . . . . . . . . . . 42 lbs. with hand pump

Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 tons force @ 10,000 psi maximum

Full Cycle Time . . . . . . . . . . . . . . . . . . . . . . . . . . . approximately 30 seconds

Standard Equipment

Model 94C-001-PFD includes:

Part Description Part Number

MiniKrimp™ Portable Crimping Machine . . . . . . . . . . . . . . . . . . . . . . . 94C-080-PFD

Hand Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 015301

Die Ring – Color Coded Silver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82C-R01-PFD

Overview - MiniKrimp™ Crimping Machine

Air Over Hydraulic Model

Specifications

Approximate Size (with pump) . . . . . . . . . . . . . . 6” Deep, 12” Wide, 15” high

Weight (w/o die set) . . . . . . . . . . . . . . . . . . . . . . 42 lbs. air/hydraulic pump

Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 tons force @ 10,000 psi maximum

Full Cycle Time . . . . . . . . . . . . . . . . . . . . . . . . . . approximately 30 seconds

Standard Equipment

Model 94C-002-PFD includes:

Part Description Part Number

MiniKrimp™ Portable Crimping Machine . . . . . . . . . . . . . . . . . . . . . . ..94C-080-PFD

Air Over Hydraulic Pump (includes tubing and adapters) . . . . . . . . . . ..025399

Die Ring – Color Coded Silver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82C-R01-PFD

Overview - MiniKrimp™ Crimping Machine

2 3

e Parker Hannin MiniKrimpTM

is the best portable crimper on the

market. By utilizing a one-piece

high strength cast aluminum

frame, the MiniKrimpTM is light,

robust, and highly corrosion

resistant.

Features of the MiniKrimp

with Hand Pump

• Lightweight,portable,compact

all-in-one unit

• Unitwithpumpweighs

only 41 lbs.

•10,000psiand30+tonsofforce

•Removablepusherdesignfor 

easy die change

•Handpumpeasilyremoved

for use with jumper hose for

bench mounted units

(part number - 015309)

• Noadditionalpowersource 

required for operation

• Capableofcrimpingamajority

of thermoplastic, rubber, PTFE

and specialty hoses up to

3/4” ID.

Reference CrimpSource Online or

appropriate catalog (4660 or 4400)

of the Parker division that supplies

the hose for detailed crimp

specications as exceptions do

occur based on the particular hose

type, size, and tting material

www.parker.com/crimpsource

e Parker Hannin MiniKrimpTM

is the best portable crimper on the

market. By utilizing a one-piece

high strength cast aluminum

frame, the MiniKrimpTM is light,

robust, and highly corrosion

resistant.

Features of the MiniKrimp

with Air over Hydraulic Pump

• Lightweight,portable,compact

all-in-one unit

• Unitwithpumpweighs

only 45 lbs.

• 10,000psiand30+tonsofforce

• Removablepusherdesignfor 

easy die change

• AirPumputilizesarugged

activation and release lever for

greater durability

• Canoperatewithaslittleas

60 psi air pressure (60-100 psi,

9 CFM recommended)

• Capableofcrimpingamajority

of thermoplastic, rubber, PTFE

and specialty hoses up to

3/4” ID.

Reference CrimpSource Online or

appropriate catalog (4660 or 4400)

of the Parker division that supplies

the hose for detailed crimp

specications as exceptions do

occur based on the particular hose

type, size, and tting material

www.parker.com/crimpsource

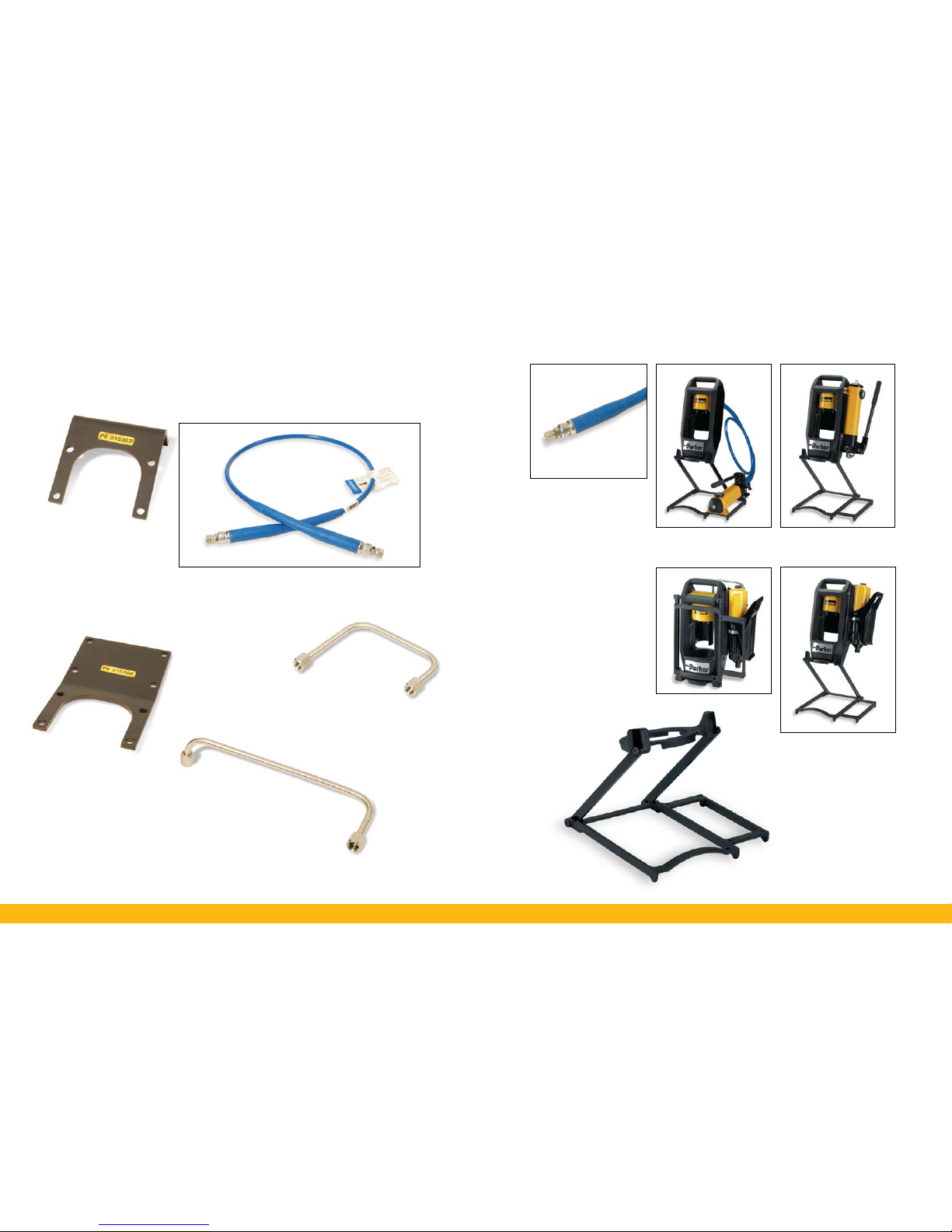

Accessories

MiniKrimp™ Crimping Machine

Note: e hydraulic connectors shown

on page 4 are designed exclusively for

use with the Minikrimp™. No other

connectors are approved for use with

the MiniKrimp™without expressed

written consent from Parker Parex

Division’s technical support. Any

worn connectors should be replaced

immediately.

4 5

Part # 015307

Upright Vise Mount

•Machinedandbentfrom

1/4” thick 1018 steel

• Mountconnectstothebottom

of the MiniKrimp™using four

3/8-16 bolts (not included)

• Onceconnected,MiniKrimp™

can be clamped into a vise for

operation

Part # 015306

Table Mount

• Machinedandbentfrom1/4”

thick 1018 steel

• Mountconnectstothebottom

of the MiniKrimp™using four

3/8-16 bolts (not included)

• MiniKrimp™can then be

mounted to a table using the

four 3/8” clearance holes on

the other side of the plate

(bolts not included)

Part # 015309

High Pressure Hose Assembly

• Parker10,000psi,1/4inchID

hose with 3/8 inch female JIC

connections on both ends

• Hoseis6feetlong

• Hoseisusedwhenaexible

connection is required

between the MiniKrimp™and

a hydraulic pressure source

Part # 015308

Replacement Connector

• Replacementstainlesssteelbent

tube rigid connector

• Forusewith94C-001-PFD

(MiniKrimp™Hand Pump Model)

Part # 045234

High Pressure

Hose Assembly

• Parker10,000psi,1/4inchID 

hose with quick coupler

• Hoseisdesignedtobeused

when mounting a hand pump

to the 94C-MKS MiniKrimp™

stand’s base (see picture

at right)

Part # 94C-MKS

Folding Stand

• Lightweightfoldingstand

designed exclusively for the

MiniKrimp™portable crimper

(works for all versions)

• Whennotinuse,thestandfolds

up closely to the MiniKrimp™

for storage

• Mountinghardwareandsafety

instructions are included

• Seepicturesbelowfor

conguration examples.

• PatentPending

Part # 025349

Replacement Connector

• Replacementstainlesssteelbent 

tube rigid connector

• Forusewith94C-002-PFD

(MiniKrimp™Air Over

Hydraulic Model)

MiniKrimp™with Hand Pump

Mounted to Folding Stand

Hand Pump MiniKrimp™and

Folding Stand

Air Over Hydraulic MiniKrimp™

and Folding Stand

Air Over Hydraulic MiniKrimp™

Assembly Detail & Parts List

MiniKrimp™ Hand Pump Model

6 7

Assembly Detail & Parts List

MiniKrimp™ Air Over Hydraulic Model

Part No. Description Qty.

015301 2 Speed Light Weight Hand Pump 1

015302 Hardened Steel Sleeve 1

015303 Custom Cylinder 1

015304 Aluminum Frame 1

015305 Cup Pusher 1

015308 Bent Tube Assembly 1

015310 3/8” x 3/8” Shoulder Bolt 1

015415 Spring Plunger 1

6 CTX-S 3/8” 37° to 1/4” NPT Elbow 1

6-6 CTX-S 3/8” 37° to 3/8” NPT Elbow 1

822011 Die Separator 1

822012 Spring 1

822031 Retention Ring 1

82C-R01 Silver Die Ring 1

015411 3/8-16 18-8 SS SHCS 2.5” Long 2

015413 1/4-20 18-8 SS Lock Washer 2

015414 14-20 18-8 SS Flat Washer 2

015412 1/4-20 18-8 SS SHCS .75” Long 4

MiniKrimp™Hand Pump Model

MiniKrimp™Air Over Hydraulic Model

Part No. Description Qty.

015302 Hardened Steel Sleeve 1

015303 Custom Cylinder 1

015304 Aluminum Frame 1

015305 Cup Pusher 1

015310 3/8” x 3/8” Shoulder Bolt 1

015415 Spring Plunger 1

6-2 CTX-S 3/8” 37° to 1/8” NPT Elbow 1

6-6 CTX-S 3/8” 37° to 3/8” NPT Elbow 1

822011 Die Separator 1

822012 Spring 1

822031 Retention Ring 1

82C-R01 Silver Die Ring 1

015411 3/8-16 18-8 SS SHCS 2.5” Long 2

015413 1/4-20 18-8 SS Lock Washer 2

015414 14-20 18-8 SS Flat Washer 2

015412 1/4-20 18-8 SS SHCS .75” Long 4

025349 Bent Tube Assembly 1

025399 Air Powered Pump 1

PART # 015301

MOUNTS WITH

4-015412

2-015413

2-015414

PART # 6-6 CTX-S

PART # 015308

PART # 015304

PART # 015303

MOUNTS WITH

2-015411

PART # 015310

PART # 015302

PART # 822012

PART # 6 CTX-S

PART # 015415

PART # 015305

PART # 82C-R01

PART # 822011

PART # 822031

PART # 6-6 CTX-S

PART # 025349

PART # 6-2 CTX-S

PART # 025399

MOUNTS WITH

4-015412

2-015413

2-015414

PART # 015415

PART # 015305

PART # 82C-R01

PART # 822011

PART # 822031

PART # 015304

PART # 015303

MOUNTS WITH

2-015411

PART # 015310

PART # 015302

PART # 822012

8 9

body of the crimper. Do not

remove the adapter (6-6 CTX-S)

from the cylinder. is adapter

will be used, with an orientation

change, with the Air Over

Hydraulic Pump.

2. Screw (or reorient) the

6-6 CTX-S adapter into the

cylinder port and tighten until

the tting is facing in the up-

ward direction. Do not loosen

the adapter to reach the correct

orientation as this may cause

leakage.

3. Screw the 6-2 CTX-S adapter

into the pump and tighten until

the tting is facing the direction

of the ll cap.

Assembling the MiniKrimp™

Air Over Hydraulic Pump Upgrade Kit, Part #025411

Now that steps 1-5 are complete the

MiniKrimp™ is ready for operation.

Reference the Enerpac pump manual

for operating instructions.

4. Mount the pump to the right

side of the crimper as shown in

the image to the left using two

1/4” bolt holes on the top of the

crimper. Note that only the top

two bolt holes are used.

5. Attach the 025399 bent tube

assembly to the two adapters.

e longer of the two ends of

the tube will attach to the

pump. Tighten the nuts of the

bent tube to a minimum of

21 ft.-lbs.

Crimping Instructions

MiniKrimp™ Crimping Machine

1. Place the hose next to

the tting and align it

with the knurl marks

on the tting shell. Mark

the length on the hose.

Push hose into the

tting until the mark on

the hose is even with

the end of the tting

shell (lubricate hose*,

if necessary).

10. Measure crimp diameter of each tting at the top, middle and bottom of the shell.

Take measurements at a minimum of three places around the shell circumference.

Verify crimp diameter is within tolerances.

2. Select proper die set. 3a. Using a molybdenum

disulde type grease,

apply a thin layer of

grease to the die bowl.

3b. Place unitized die set

into die bowl.

4. Place proper die ring on

top of the selected die.

5. Slide pusher into place

onto shoulder bolt.

6. Position the hose and

tting in dies from below.

7. Rest bottom of tting

on die step using

PARKALIGN® feature.

8. While holding hose and

tting into position on

die step, begin pumping

hand pump until die ring

contacts base plate.

9. Release pressure, remove

nished assembly. Check

crimp diameter.

Note: 1) Hose assemblies must be inspected for cleanli-

ness and should be free of all foreign particles.

2) Parker Hannin will not accept responsibility for

the operation of, or provide warranty coverage

for, a crimper that is operated by a power unit

other than equipment supplied by Parker

Hannin for the express purpose of operating

that crimper.

PARKALIGN®FEATURE

1. (IF APPLICABLE) Relieve

pressure from attached pump.

Remove the hand pump and

bent tube assembly from the

*Do not use water-based or synthetic lubricants

10 11

Trouble Shooting Guide

MiniKrimp™ Crimping Machine

If you have a problem with your MiniKrimp™ Portable Crimping Machine:

First, check that the proper tooling, hose and tting combinations are being used.

en check the following recommendations. If the following suggestions do not remedy the

problem, call the Parex Technical Service Department (330) 298-4066 or (330) 296-2871.

Refer to Parker hose manufacturer’s catalog and/or

CrimpSource Online. www.parker.com/crimpsource.

Lubricate die cavity with Factran EP-2 lithium grease,

Dow Corning GN assembly paste, or equivalent to

prevent dies from sticking in bowl. Bottom out the

pusher on the die ring completely. Also check for

proper bottoming by placing a piece of paper between

die ring and base plate. If properly bottomed, you

should not be able to remove paper.

Call a qualied electrician.

Rell oil reservoir to 1/2” to top of opening with

ENERPAC recommended oil. Do not overll.

Visually inspect all wear surfaces for raised metal dents

or gouges. Replace damaged or worn die sets and die

rings.

Lubricate the die cavity in the base plate frequently

with Factran EP-2 lithium grease, Dow Corning GN

assembly paste, or equivalent to prevent wear.

If all crimp diameters are out of specication by the

same amount, the die cavity in the base plate may be

out of specication. Contact Parex Technical Service

Dept. (330) 298-4066 or (330) 296-2871 for repair.

Lubricate the die cavity in base plate frequently with

Factran EP-2 lithium grease, Dow Corning GN assembly

paste, or equivalent to prevent wear.

Incorrect tting crimp

diameter

Wrong tting style being used.

Wrong die ring being used.

Pusher is not bottomed out

on die ring and base plate

completely.

High or low voltage.

Low on oil.

Crimp dies, die rings

damaged, worn, or faulty.

Die cavity in base plate worn

or faulty.

Symptoms Possible Causes What to Do

Trouble Shooting Guide

MiniKrimp™ Crimping Machine

If pump does not operate properly, it may have lost

its prime. Follow the procedure below to prime your

pump, if necessary.

1. Fill pump with ENERPAC hydraulic oil, if necessary.

2. Place pump on horizontal surface.

3. Set air supply pressure to 30 – 40 psi (2,1 – 2,7 bar)

4. Move pump treadle to RELEASE position.

5. Depress the button under the treadle to activate

the pump. Operate pump in RELEASE position

momentarily several times to allow oil to ow back

into pump and ll passage ways.

6. To verify that pump is primed, operate as normal

with cylinder attached. If cylinder does not advance,

repeat step 5.

If pump does not deliver oil, contact Parex Technical

Services Department.

Contact: Technical Services Department,

Parker Hannin Corporation, Parex Division at

(330) 298-4066 or (330) 296-2871. e fax number

is (330) 296-8433.

Insucient air pressure

Air inlet pressure at the

pump must be 60–100 psi

Hand pump, air/hydraulic

pump, electric pump, pump

hose assembly, quick

disconnect problems

Symptoms Possible Causes What to Do

12 13

ENERPAC Warranty Policy

For those ENERPAC items sold as part of the Parker Parex

Division product oering, the following warranty applies.

ENERPAC products are warranted to be free of defects in

materials and workmanship under normal use for as long

as they are owned by the original purchaser, subject to

the exclusions and limitations described below. is war-

ranty does not cover ordinary wear and tear, overloading,

alterations, (including repairs or attempted repairs by

parties other than ENERPAC or its authorized service repre-

sentatives),improper uid, use in a manner for which they

are not intended or use which is contrary to instructions for

the products.

THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD

THROUGH ENERPAC AUTHORIZED DISTRIBUTORS,

ORIGINAL EQUIPMENT MANUFACTURERS OR OTHER

DESIGNATED CHANNELS OF DISTRIBUTION. NO

AGENT, EMPLOYEE, OR OTHER REPRESENTATIVE OF

ENERPAC HAS THE AUTHORITY TO IN ANY WAY

CHANGE OR AMEND THIS WARRANTY.

Electronic products and components are warranted

against defects in material and workmanship for a period

of two years from the date of purchase. e following items

supplied with ENERPAC products are excluded from

this warranty:

• ComponentsnotmanufacturedbyENERPAC,including

air motors, electric motors, gasoline engines, and diesel

engines. Such items are warranted to the extent of the

warranty provided by the manufacturers of such items.

If the customer believes a product is defective, the product

must be delivered, or shipped freight prepaid, to the nearest

ENERPAC Authorized Service Center. e customer should

contact ENERPAC to locate an Authorized Service Center

If you need more information or further assistance, please contact:

Technical Services Department, Parker Hannin Corporation, Parex Devision

Phone: (330) 298-4066 or (330) 296-2871, Fax: (330) 296-2871

All other MiniKrimp™ components can be purchased directly from Parex. Contact the Parex Division at

www.parker.com/parex, or phone 1.330.296.2871.

in the customer’s area. Products that do not conform to

this warranty will be returned by ground transportation,

freight prepaid.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS

IN LIEU OF ALL OTHER EXPRESS AND IMPLED

WARRANTIES, INCLUDING BUT NOT LIMITED TO THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE.

e remedy of repair, replacement or refund is customer’s

exclusive remedy in the event of breach of this warranty.

SELLER SHALL NOT BE SUBJECT TO AND DISCLAIMS:

(a)ANY OTHER OBLIGATIONS OR LIABILITIES ARISING

OUT OF BREACH OF CONTRACT OR OF WARRANTY.

(b)ANY OBLIGATIONS WHATSOEVER ARISING FROM

TORT CLAIMS (INCLUDING NEGLIGENCE AND

STRICT LIABILITY) OR ARISING UNDER THEORIES

OF LAW WITH RESPECT TO PRODUCTS SOLD OR

SERVICES RENDERED BY SELLER OR ANY UNDER-

TAKINGS, ACTS OR OMISSIONS RELATING THERE-

TO, AND

CONTINGENT DAMAGES WHATSOEVER.

ENERPAC’s liability in all cases is limited to, and shall not

exceed, the purchase price paid.

For the nearest authorized ENERPAC SERVICE CENTER,

please call ENERPAC at 800-558-0530 or visit the ENERPAC

WEB SITE at www. Enerpac.com.

Enerpac supplies the following MiniKrimpTM crimper components to Parﬂex:

PARFLEX ENERPAC

MiniKrimp™Component Component Component

Part Number Description Part Number Part Number

94C-001-PFD Cylinder 015303 RSM301U001

Hand Pump 015301 P142

94C-002-PFD Cylinder 015303 RSM301U001

Air/Hydraulic Pump 025399 025399

1. Terms and Conditions of Sale: All descriptions, quotations, proposals, oers,

acknowledgments, acceptances and sales of Seller’s products are subject to and shall

be governed exclusively by the terms and conditions stated herein. Buyer’s accept-

ance of any oer to sell is limited to these terms and conditions. Any terms or con-

ditions in addition to, or in consistent with those stated herein, proposed by Buyer in

any acceptance of an oer by Seller, are hereby objected to. No such additional,

dierent or inconsistent terms and conditions shall become part of the contract be-

tween Buyer and Seller unless expressly accepted in writing by Seller. Seller’s accept-

ance of any oer to purchase by Buyer is expressly conditioned upon Buyer’s assent

to all the terms and conditions stated herein, including any terms in addition to, or in

consistent with those contained in Buyer’s oer. Acceptance of Seller’s products shall

in all events constitute such assent.

2. Payment: Payment shall be made by Buyer net 30 days from the date of delivery of the

items purchased hereunder. Amounts not timely paid shall bear interest at the rate of

1-1/2% for each month or a portion thereof that Buyer is late in making payment. Any

claims by Buyer for omissions or shortages in a shipment shall be waived unless Seller

receives notice thereof within 30 days after Buyer’s receipt of the shipment.

3. Delivery: Unless otherwise provided on the face hereof, delivery shall be made F.O.B.

Seller’s plant. Regardless of the method of delivery, however, risk of loss shall pass to

Buyer upon Seller’s delivery to a carrier. Any delivery dates shown are approximate

only and Seller shall have no liability for any delays in delivery.

4. Warranty: Seller warrants that the items sold hereunder shall be free from defects in

materials or workmanship for a period of 365 days from the date of shipment to Buyer,

or 2,000 hours of use, whichever expires rst. THIS WARRANTY COMPRISES THE

SOLE AND ENTIRE WARRANTY PERTAINING TO ITEMS PROVIDED HEREUNDER.

SELLER MAKES NO OTHER WARRANTY, GUARANTEE, OR REPRESENTATION OF

ANY KIND WHATSOEVER. ALL OTHER WARRANTIES, INCLUDING BUT NOT

LIMITED TO, MERCHANTABILITY AND FITNESS FOR PURPOSE, WHETHER

EXPRESS, IMPLIED, OR ARISING BY OPERATION OF LAW, TRADE USAGE, OR

COURSE OF DEALING ARE HEREBY DISCLAIMED.

NOTWITHSTANDING THE FOREGOING, THERE ARE NO WARRANTIES WHAT SO

EVER ON ITEMS BUILT OR ACQUIRED WHOLLY OR PARTIALLY, TO BUYER’S

DESIGNS OR SPECIFICATIONS.

5. Limitation Of Remedy: SELLER’S LIABILITY ARISING FROM OR IN ANY WAY

CONNECTED WITH THE ITEMS SOLD OR THIS CONTRACT SHALL BE LIMITED

EXCLUSIVELY TO REPAIR OR REPLACEMENT OF THE ITEMS SOLD, OR REFUND

OF THE PURCHASE PRICE PAID BY BUYER, AT SELLER’S SOLE OPTION. IN NO

EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR

SPECIAL DAMAGES OF ANY KIND OR NATURE WHATSOEVER, INCLUDING BUT

NOT LIMITED TO LOST PROFITS ARISING FROM OR IN ANY WAY CONNECTED

WITH THIS AGREEMENT OR ITEMS SOLD HEREUNDER, WHETHER ALLEGED

TO ARISE FROM BREACH OF CONTRACT, EXPRESS OR IMPLIED WARRANTY, OR

IN TORT, INCLUDING WITHOUT LIMITATION, NEGLIGENCE, FAILURE TO WARN

OR STRICT LIABILITY.

6. Changes, Reschedules and Cancellations: Buyer may request to modify the designs

or specications for items sold hereunder as well as the quantities and delivery dates

thereof, or may request to cancel all or part of an order, however, no such requested

modication or cancellation shall become part of the contract between Buyer and

Seller unless accepted by Seller in a written amendment to this Agreement. Accept-

ance of any such requested modication of cancellation shall be at Seller’s discretion,

and shall be upon such terms and conditions as Seller may require.

7. Special Tooling: A tooling charge may be imposed for any special tooling, including

without limitation, dies, xtures, molds and patterns, acquired to manufacture items

sold pursuant to this contract. Such special tooling shall be and remain Seller’s

property notwithstanding payment of any charges therefor by Buyer. In no event

will Buyer acquire any interest in apparatus belonging to Seller which is utilized in

the manufacture of the items sold hereunder, even if such apparatus has been

specially converted or adapted for such manufacture and not with standing any

charges paid by Buyer therefor. Unless otherwise agreed, Seller shall have the right to

alter, discard or otherwise dispose of any special tooling or other property in its sole

discretion at any time.

8. Buyer’s Property: Any designs, tools, patterns, materials, drawings, condential

information or equipment furnished to Seller by Buyer, or any other items which

become Buyer’s property, may be considered obsolete and may be destroyed by

Seller after two (2) consecutive years have elapsed without Buyer placing an order

for the items which are manufactured using such property. Seller shall not be

responsible for any loss or damage to such property while it is in Seller’s possession

or control.

9. Taxes: Unless otherwise indicated, all prices and charges are exclusive of excise,

sales, use, property, occupational or like taxes which may be imposed by any taxing

authority upon the manufacture, sale or delivery of the items sold hereunder. If any

such taxes must be paid by Seller, or if Seller is liable for the collection of such tax,

the amount thereof shall be in addition to the amounts for the items sold. Buyer

agrees to pay all such taxes or to reimburse Seller therefor upon receipt of its

invoice. If Buyer claims exemption from any sales, use or other tax imposed by any

taxing authority, Buyer shall save Seller harmless from and against any such tax,

as well as any interest or penalties thereon which may be assessed if the items are

held to be taxable.

10. Indemnity For Infringement of Intellectual Property Rights: Seller shall have

no liability for infringement of any patents, trademarks, copyrights, trade dress,

trade secrets or similar rights except as provided in this Part 10. Seller will defend

and indemnify Buyer against allegations of infringement of U.S. patents, U.S.

trademarks, copyrights, trade dress and trade secrets (hereinafter ‘Intellectual

Property Rights). Seller will defend at its expense and will pay the cost of any

settlement or damages awarded in an action brought against Buyer based on an

allegation that an item sold pursuant to this contract infringes the Intellectual

Property Rights of a third party. Seller’s obligation to defend and indemnify Buyer is

contingent on Buyer notifying Seller within ten (10) days after Buyer becomes aware

of such allegations of infringement, and Seller having sole control over the defense

of any allegations or actions, including all negotiations for settlement or com-

promise. If an item sold hereunder is subject to a claim that it infringes the

Intellectual Property Rights of a third party, Seller may, at its sole expense and

option, procure for Buyer the right to continue using said item, replace or modify

said item so as to make it noninfringing, or oer to accept return of said item

and return the purchase price less a reasonable allowance for depreciation.

Notwithstanding the foregoing, Seller shall have no liability for claims of

infringement based on information provided by Buyer, or directed to items

delivered hereunder for which the designs are specied in whole or part by Buyer,

or infringements resulting from the modication, combination or use in a system of

any item sold hereunder. e foregoing provisions of this Part 10 shall constitute

Seller’s sole and exclusive liability and Buyer’s sole and exclusive remedy for

infringement of Intellectual Property Rights. If a claim is based on information

provided by Buyer or if the design for an item delivered hereunder is specied

in whole or in part by Buyer, Buyer shall defend and indemnify Seller for all costs,

expenses or judgements resulting from any claim that such item infringes any

patent, trademark, copyright, trade dress, trade secret or any similar right.

11. Force Majeure: Seller does not assume the risk of and shall not be liable for delay

or failure to perform any of Seller’s obligations by reason of circumstances beyond

the reasonable control of Seller (hereinafter ‘Events of Force Majeure). Events of

Force Majeure shall include without limitation, accidents, acts of God, strikes

or labor disputes, acts, laws, rules or regulations of any government or government

agency, res, oods, delays or failures in delivery of carriers or suppliers, shortages

of materials and any other cause beyond Seller’s control.

12. Entire Agreement/Governing Law: e terms and conditions set forth herein,

together with any amendments, modications and any dierent terms or conditions

expressly accepted by Seller in writing, shall constitute the entire Agreement

concerning the items sold, and there are no oral or other representations or

agreements which pertain thereto. is Agreement shall be governed in all

respects by the law of the State of Ohio. No actions arising out of the sale of the

items sold hereunder or this Agreement may be brought by either party more than

two (2) years after the cause of action accrues. e items described in this document

are hereby oered for sale at prices to be established by Parker Hannin

Corporation, its subsidiaries and its authorized distributors. is oer and its

acceptance by any customer (“Buyer”) shall be governed by all of the following

Terms and Conditions. Buyer’s order for any item described in this document,

when communicated to Parker Hannin Corporation, its subsidiary or an

authorized distributor (“Seller”) verbally or in writing, shall constitute acceptance

of this oer.

Offer of Sale

MiniKrimp™ Crimping Machine and Accessories

e items described in this document and other documents or descriptions provided by Parker Hannin Corporation, its subsidiaries and its authorized

distributors are hereby oered for sale at prices to be established by Parker Hannin Corporation, its subsidiaries and its authorized distributors. is

oer and its acceptance by any customer (“Buyer”) shall be governed by all of the following Terms and Conditions. Buyer’s order for any such item,

when communicated to Parker Hannin Corporation, its subsidiary or an authorized distributor (“Seller”) verbally or in writing, shall constitute

acceptance of this oer.

14 15

WARNING: Failure or improper selection or improper use of hose, tubing, ttings, assemblies or related accessories (“Products”) can

cause death, personal injury and property damage. Possible consequences of failure or improper selection or improper use of these

Products include but are not limited to:

• Fittingsthrownoathighspeed.

• Highvelocityuiddischarge.

• Explosionorburningoftheconveyeduid.

• Electrocutionfromhighvoltageelectricpowerlines.

• Contactwithsuddenlymovingorfallingobjectsthat

are controlled by the conveyed uid.

• Injectionsbyhigh-pressureuiddischarge.

•DangerouslywhippingHose.

Before selecting or using any of these Products, it is important that you read and follow the instructions below.

Only Hose from Parker’s Stratoex Products Division is approved for in-ight aerospace applications.

• Contactwithconveyeduidsthatmaybehot,cold,

toxic or otherwise injurious.

• Sparkingorexplosioncausedbystaticelectricitybuildup

or other sources of electricity.

• Sparkingorexplosionwhilesprayingpaintor

ammable liquids.

• Injuriesresultingfrominhalation,ingestionorexposure

to uids.

Safety Guide

Parker Safety Guide for Selecting and Using

Hose, Tubing, Fittings and Related Accessories

1.0 GENERAL INSTRUCTIONS

1.1 Scope: is safety guide provides instructions for selecting and using

(including assembling, installing, and maintaining) these Products.

For convenience, all rubber and/or thermoplastic products commonly

called “hose” or “tubing” are called “Hose” in this safety guide. All

assemblies made with Hose are called “Hose Assemblies”. All products

commonly called “ttings”, “couplings” or “adapters” are called

“Fittings”. All related accessories (including crimping and swaging

machines and tooling) are called “Related Accessories”. is safety

guide is a supplement to and is to be used with the specic Parker

publications for the specic Hose, Fittings and Related Accessories that

are being considered for use. Parker publications are available at

www.parker.com. SAE J1273 (www.sae.org) and ISO 17165-2

(www.ansi.org) also provide recommended practices for hydraulic

Hose Assemblies.

1.2 Fail-Safe: Hose, Hose Assemblies and Fittings can and do fail without

warning for many reasons. Design all systems and equipment in a

fail-safe mode, so that failure of the Hose, Hose Assembly or Fitting will

not endanger persons or property.

1.3 Distribution: Provide a copy of this safety guide to each person

responsible for selecting or using Hose and Fitting products. Do

not select or use Parker Hose or Fittings without thoroughly reading and

understanding this safety guide as well as the specic Parker

publications for the Products.

1.4 User Responsibility: Due to the wide variety of operating conditions and

applications for Hose and Fittings, Parker does not represent or warrant

that any particular Hose or Fitting is suitable for any specic end use

system. is safety guide does not analyze all technical parameters that

must be considered in selecting a product. e user, through its own

analysis and testing, is solely responsible for:

 • MakingthenalselectionoftheProducts.

 • Assuringthattheuser’srequirementsaremetandthattheapplication

presents no health or safety hazards.

 • Providingallappropriatehealthandsafetywarningsontheequipment

on which the Products are used.

 • Assuringcompliancewithallapplicablegovernmentandindustry

standards.

1.5 Additional Questions: Call the appropriate Parker technical service

department if you have any questions or require any additional

information. See the Parker publication for the Products being

considered or used, or call 1-800-CPARKER, or go to

www.parker.com, for telephone numbers of the appropriate

technical service department.

2.0 HOSE AND FITTINGS SELECTION INSTRUCTIONS

2.1 Electrical Conductivity: Certain applications require that the Hose

be nonconductive to prevent electrical current ow. Other

applications require the Hose and the Fittings and the Hose/

Fitting interface to be suciently conductive to drain o static

electricity. Extreme care must be exercised when selecting Hose and

Fittings for these or any other applications in which electrical

conductivity or nonconductivity is a factor.

e electrical conductivity or nonconductivity of Hose and Fittings

is dependent upon many factors and may be susceptible to change.

ese factors include but are not limited to the various materials

used to make the Hose and the Fittings, Fitting nish (some Fitting

nishes are electrically conductive while others are nonconductive),

manufacturing methods (including moisture control), how the

Fittings contact the Hose, age and amount of deterioration or

damage or other changes, moisture content of the Hose at any

particular time, and other factors.

e following are considerations for electrically nonconductive and

conductive Hose. For other applications consult the individual

catalog pages and the appropriate industry or regulatory standards

for proper selection.

2.1.1 Electrically Nonconductive Hose: Certain applications require

that the Hose be nonconductive to prevent electrical current ow or

to maintain electrical isolation. For applications that require

Hose to be electrically nonconductive, including but not limited to

applications near high voltage electric lines, only special

nonconductive Hose can be used. e manufacturer of the

equipment in which the nonconductive Hose is to be used must

be consulted to be certain that the Hose and Fittings that are

selected are proper for the application. Do not use any Parker

Hose or Fittings for any such application requiring nonconductive

Hose, including but not limited to applications near high voltage

electric lines, unless (i) the application is expressly approved in

the Parker technical publication for the product, (ii) the Hose is

marked “nonconductive”, and (iii) the manufacturer of the

equipment on which the Hose is to be used specically approves

the particular Parker Hose and Fittings for such use.

2.1.2 Electrically Conductive Hose: Parker manufactures special Hose

for certain applications that require electrically conductive Hose.

Parker manufactures special Hose for conveying paint in airless

paint spraying applications. is Hose is labeled “Electrically

Conductive Airless Paint Spray Hose” on its layline and packaging.

is Hose must be properly connected to the appropriate Parker

Fittings and properly grounded in order to dissipate dangerous static

charge buildup, which occurs in all airless paint spraying applications.

Do not use any other Hose for airless paint spraying, even if

electrically conductive. Use of any other Hose or failure to properly

connect the Hose can cause a re or an explosion resulting in death,

personal injury, and property damage.

Parker manufactures a special Hose for certain compressed natural

gas (“CNG”) applications where static electricity buildup may occur.

Parker CNG Hose assemblies comply with the requirements of

ANSI/IAS NGV 4.2-1999; CSA 12.52-M99, “Hoses for Natural Gas

Vehicles and Dispensing Systems” (www.ansi.org). is Hose is

labeled “Electrically Conductive for CNG Use” on its layline and

packaging. is Hose must be properly connected to the appropriate

Parker Fittings and properly grounded in order to dissipate dangerous

static charge buildup, which occurs in, for example, high velocity CNG

dispensing or transfer. Do not use any other Hose for CNG

applications where static charge buildup may occur, even if

electrically conductive. Use of other Hoses in CNG applications

or failure to properly connect or ground this Hose can cause a re or

an explosion resulting in death, personal injury, and property

damage. Care must also be taken to protect against CNG permeation

through the Hose wall. See section 2.6, Permeation, for more

information. Parker CNG Hose is intended for dispenser and vehicle

use at a maximum temperature of 180°F (82°C). Parker CNG Hose

should not be used in conned spaces or unventilated areas or areas

exceeding 180°F (82°C). Final assemblies must be tested for leaks.

CNG Hose Assemblies should be tested on a monthly basis for

conductivity per ANSI/IAS NGV 4.2-1999; CSA 12.52-M99.

Parker manufactures special Hose for aerospace in-ight

applications. Aerospace in-ight applications employing Hose

to transmit fuel, lubricating uids and hydraulic uids require

a special Hose with a conductive inner tube. is Hose for in-ight

applications is available only from Parker’s Stratoex Products

Division. Do not use any other Parker Hose for in-ight applications,

even if electrically conductive. Use of other Hoses for in-ight

applications or failure to properly connect or ground this Hose can

cause a re or an explosion resulting in death, personal injury

and property damage. ese Hose assemblies for in-ight

applications must meet all applicable aerospace industry, aircraft

engine and aircraft requirements.

2.2 Pressure: Hose selection must be made so that the published

maximum working pressure of the Hose and Fittings are equal to

or greater than the maximum system pressure. e maximum

working pressure of a Hose Assembly is the lower of the respective

published maximum working pressures of the Hose and the Fittings

used. Surge pressures or peak transient pressures in the system

must be below the published maximum working pressure for the

Hose. Surge pressures and peak pressures can usually only be

determined by sensitive electrical instrumentation that measures and

indicates pressures at millisecond intervals. Mechanical pressure

gauges indicate only average pressures and cannot be used to

determine surge pressures or peak transient pressures. Published

burst pressure ratings for Hose is for manufacturing test purposes

only and is no indication that the Product can be used in applications

at the burst pressure or otherwise above the published maximum

recommended working pressure.

2.3 Suction: Hoses used for suction applications must be selected to

insure that the Hose will withstand the vacuum and pressure of the

system. Improperly selected Hose may collapse in suction application.

2.4 Temperature: Be certain that uid and ambient temperatures,

both steady and transient, do not exceed the limitations of the Hose.

Temperatures below and above the recommended limit can degrade

Hose to a point where a failure may occur and release uid. Properly

insulate and protect the Hose Assembly when routing near hot objects

(e.g. manifolds). Do not use any Hose in any application where failure

of the Hose could result in the conveyed uids (or vapors or mist from

the conveyed uids) contacting any open ame, molten metal, or

other potential re ignition source that could cause burning or

explosion of the conveyed uids or vapors.

2.5 Fluid Compatibility: Hose Assembly selection must assure

compatibility of the Hose tube, cover, reinforcement, and Fittings

with the uid media used. See the uid compatibility chart in

the Parker publication for the product being considered or used.

is information is oered only as a guide. Actual service life can only

be determined by the end user by testing under all extreme conditions

and other analysis.

Hose that is chemically compatible with a particular uid must be

assembled using Fittings and adapters containing likewise compatible

seals.

2.6 Permeation: Permeation (that is, seepage through the Hose) will

occur from inside the Hose to outside when Hose is used with gases,

liquid and gas fuels, and refrigerants (including but not limited to such

materials as helium, diesel fuel, gasoline, natural gas, or LPG). is

permeation may result in high concentrations of vapors which are

potentially ammable, explosive, or toxic, and in loss of uid.

Dangerous explosions, res, and other hazards can result when using

the wrong Hose for such applications. e system designer must take

into account the fact that this permeation will take place and must

not use Hose if this permeation could be hazardous. e system

designer must take into account all legal, government, insurance, or

any other special regulations which govern the use of fuels and

refrigerants. Never use a Hose even though the uid compatibility

is acceptable without considering the potential hazardous eects that

can result from permeation through the Hose Assembly.

Permeation of moisture from outside the Hose to inside the Hose

will also occur in Hose assemblies, regardless of internal pressure. If

this moisture permeation would have detrimental eects (particularly,

but not limited to refrigeration and air conditioning systems),

incorporation of sucient drying capacity in the system or other

appropriate system safeguards should be selected and used.

2.7 Size: Transmission of power by means of pressurized uid varies with

pressure and rate of ow. e size of the components must be

adequate to keep pressure losses to a minimum and avoid damage due

to heat generation or excessive uid velocity.

2.8 Routing: Attention must be given to optimum routing to minimize

inherent problems (kinking or ow restriction due to Hose collapse,

twisting of the Hose, proximity to hot objects or heat sources). For

additional routing recommendations see SAE J1273 and ISO 17165-2.

Hose Assemblies have a nite life and if possible, should be installed in

a manner that allows for ease of inspection and future replacement.

Rubber Hose because of its relative short life, should not be used in

residential and commercial buildings for HVAC (heating, ventilating

and air conditioning) applications.

2.9 Environment: Care must be taken to insure that the Hose and

Fittings are either compatible with or protected from the environment

(that is, surrounding conditions) to which they are exposed.

Environmental conditions including but not limited to ultraviolet

radiation, sunlight, heat, ozone, moisture, water, salt water, chemicals

and air pollutants can cause degradation and premature failure.

2.10 Mechanical Loads: External forces can signicantly reduce Hose

life or cause failure. Mechanical loads which must be considered

include excessive exing, twist, kinking, tensile or side loads, bend

radius, and vibration. Use of swivel type Fittings or adapters may be

required to insure no twist is put into the Hose. Unusual applications

may require special testing prior to Hose selection.

2.11 Physical Damage: Care must be taken to protect Hose from wear,

snagging, kinking, bending smaller that minimum bend radius and

cutting, any of which can cause premature Hose failure. Any Hose that

has been kinked or bent to a radius smaller than the minimum bend

radius, and any Hose that has been cut or is cracked or is otherwise

damaged should be removed and discarded.

2.12 Proper End Fitting: See instructions 3.2 through 3.5. ese

recommendations may be substantiated by testing to industry

standards such as SAE J517 for hydraulic applications, or MIL-A-5070,

AS1339, or AS3517 for Hoses from Parker’s Stratoex Products Division

for aerospace applications.

2.13 Length: When establishing a proper Hose length, motion absorption,

Hose length changes due to pressure, and Hose and machine

tolerances and movement must be considered.

Parker Publication No. 4400-B.1 Revised: November, 2007

16 17

2.14 Specications and Standards: When selecting Hose and Fittings,

government, industry, and Parker specications and

recommendations must be reviewed and followed as applicable.

2.15 Hose Cleanliness: Hose components may vary in cleanliness levels.

Care must be taken to insure that the Hose Assembly selected has an

adequate level of cleanliness for the application.

2.16 Fire Resistant Fluids: Some re resistant uids that are to be

conveyed by Hose require use of the same type of Hose as used with

petroleum base uids. Some such uids require a special Hose, while

a few uids will not work with any Hose at all. See instructions 2.5

and 1.5. e wrong Hose may fail after a very short service. In

addition, all liquids but pure water may burn ercely under certain

conditions, and even pure water leakage may be hazardous.

2.17 Radiant Heat: Hose can be heated to destruction without contact by

such nearby items as hot manifolds or molten metal. e same heat

source may then initiate a re. is can occur despite the presence of

cool air around the Hose.

2.18 Welding or Brazing: When using a torch or arc welder in close

proximity to hydraulic lines, the hydraulic lines should be removed

or shielded with appropriate re resistant materials. Flame or weld

spatter could burn through the Hose and possibly ignite escaping uid

resulting in a catastrophic failure. Heating of plated parts, including

Hose Fittings and adapters, above 450°F (232°C) such as during

welding, brazing or soldering may emit deadly gases.

2.19 Atomic Radiation: Atomic radiation aects all materials used in Hose

assemblies. Since the long-term eects may be unknown, do not

expose Hose assemblies to atomic radiation.

2.20 Aerospace Applications: e only Hose and Fittings that may be

used for in-ight aerospace applications are those available from

Parker’s Stratoex Products Division. Do not use any other Hose

or Fittings for in-ight applications. Do not use any Hose or Fittings

from Parker’s Stratoex Products Division with any other Hose or

Fittings, unless expressly approved in writing by the engineering

manager or chief engineer of Stratoex Products Division and

veried by the user’s own testing and inspection to aerospace

industry standards.

2.21 Unlocking Couplings: Ball locking couplings or other Fittings with

quick disconnect ability can unintentionally disconnect if they are

dragged over obstructions, or if the sleeve or other disconnect

member, is bumped or moved enough to cause disconnect. readed

Fittings should be considered where there is a potential for accidental

uncoupling.

3.0 HOSE AND FITTINGS ASSEMBLY AND

INSTALLATION INSTRUCTIONS

3.1 Component Inspection: Prior to assembly, a careful examination

of the Hose and Fittings must be performed. All components must be

checked for correct style, size, catalog number, and length. e Hose

must be examined for cleanliness, obstructions, blisters, cover

looseness, kinks, cracks, cuts or any other visible defects. Inspect

the Fitting and sealing surfaces for burrs, nicks, corrosion or other

imperfections. Do NOT use any component that displays any signs

of nonconformance.

3.2 Hose and Fitting Assembly: Do not assemble a Parker Fitting on a

Parker Hose that is not specically listed by Parker for that Fitting,

unless authorized in writing by the engineering manager or chief

engineer of the appropriate Parker division. Do not assemble a

Parker Fitting on another manufacturer’s Hose or a Parker Hose

on another manufacturer’s Fitting unless (i) the engineering manager

or chief engineer of the appropriate Parker division approves the

Assembly in writing or that combination is expressly approved in

the appropriate Parker literature for the specic Parker product, and

(ii) the user veries the Assembly and the application through analysis

and testing. For Parker Hose that does not specify a Parker Fitting,

the user is solely responsible for the selection of the proper Fitting and

Hose Assembly procedures. See instruction 1.4.

To prevent the possibility of problems such as leakage at the Fitting or

system contamination, it is important to completely remove all debris

from the cutting operation before installation of the Fittings. e

Parker published instructions must be followed for assembling

the Fittings on the Hose. ese instructions are provided in the

Parker Fitting catalog for the specic Parker Fitting being used, or by

calling 1-800-CPARKER, or at www.parker.com.

3.3 Related Accessories: Do not crimp or swage any Parker Hose or

Fitting with anything but the listed swage or crimp machine and dies

in accordance with Parker published instructions. Do not crimp or

swage another manufacturer’s Fitting with a Parker crimp or swage

die unless authorized in writing by the engineering manager or chief

engineer of the appropriate Parker division.

3.4 Parts: Do not use any Parker Fitting part (including but not limited

to socket, shell, nipple, or insert) except with the correct Parker

mating parts, in accordance with Parker published instructions,

unless authorized in writing by the engineering manager or chief

engineer of the appropriate Parker division.

3.5 Field Attachable/Permanent: Do not reuse any eld attachable

Hose Fitting that has blown or pulled o a Hose. Do not reuse a

Parker permanent Hose Fitting (crimped or swaged) or any part

thereof. Complete Hose Assemblies may only be reused after proper

inspection under section 4.0. Do not assemble Fittings to any

previously used hydraulic Hose that was in service, for use in a uid

power application.

3.6 Pre-Installation Inspection: Prior to installation, a careful

examination of the Hose Assembly must be performed. Inspect the

Hose Assembly for any damage or defects. DO NOT use any Hose

Assembly that displays any signs of nonconformance.

3.7 Minimum Bend Radius: Installation of a Hose at less than the

minimum listed bend radius may signicantly reduce the Hose life.

Particular attention must be given to preclude sharp bending at

the Hose to Fitting juncture. Any bending during installation at less

than the minimum bend radius must be avoided. If any Hose is

kinked during installation, the Hose must be discarded.

3.8 Twist Angle and Orientation: Hose Assembly installation must

be such that relative motion of machine components does not

produce twisting.

3.9 Securement: In many applications, it may be necessary to restrain,

protect, or guide the Hose to protect it from damage by unnecessary

exing, pressure surges, and contact with other mechanical

components. Care must be taken to insure such restraints do not

introduce additional stress or wear points.

3.10 Proper Connection of Ports: Proper physical installation of the

Hose Assembly requires a correctly installed port connection insuring

that no twist or torque is transferred to the Hose when the Fittings are

being tightened or otherwise during use.

3.11 External Damage: Proper installation is not complete without

insuring that tensile loads, side loads, kinking, attening, potential

abrasion, thread damage or damage to sealing surfaces are corrected

or eliminated. See instruction 2.10.

3.12 System Checkout: All air entrapment must be eliminated and the

system pressurized to the maximum system pressure (at or below the

Hose maximum working pressure) and checked for proper function

and freedom from leaks. Personnel must stay out of potentia

hazardous areas while testing and using.

3.13 Routing: e Hose Assembly should be routed in such a manner so

if a failure does occur, the escaping media will not cause personal

injury or property damage. In addition, if uid media comes in

contact with hot surfaces, open ame or sparks, a re or explosion

may occur. See section 2.4.

3.14 Ground Fault Equipment Protection Devices (GFEPDs):

WARNING! Fire and Shock Hazard. To minimize the danger of re

if the heating cable of a Multitube bundle is damaged or improperly

installed, use a Ground Fault Equipment Protection Device.

Electrical fault currents may be insucient to trip a conventional

circuit breaker.

For ground fault protection, the IEEE 515:1989 (www.ansi.org)

standard for heating cables recommends the use of GFEPDs with a

nominal 30 milliampere trip level for “piping systems in classied

areas, those areas requiring a high degree of maintenance, or which

may be exposed to physical abuse or corrosive atmospheres”.

4.0 HOSE AND FITTING MAINTENANCE

AND REPLACEMENT INSTRUCTIONS

4.1 Even with proper selection and installation, Hose life may be

signicantly reduced without a continuing maintenance program.

e severity of the application, risk potential from a possible Hose

failure, and experience with any Hose failures in the application or in

similar applications should determine the frequency of the inspection

and the replacement for the Products so that Products are replaced

before any failure occurs. A maintenance program must be

established and followed by the user and, at minimum, must include

instructions 4.2 through 4.7.

4.2 Visual Inspection Hose/Fitting: Any of the following conditions

require immediate shut down and replacement of the Hose Assembly:

 • FittingslippageonHose;

 • Damaged,cracked,cutorabradedcover(anyreinforcement

exposed);

 • Hard,sti,heatcracked,orcharredHose;

 • Cracked,damaged,orbadlycorrodedFittings;

 • LeaksatFittingorinHose;

 • Kinked,crushed,attenedortwistedHose;and

 • Blistered,soft,degraded,orloosecover.

4.3 Visual Inspection All Other: e following items must be tightened,

repaired, corrected or replaced as required:

 • Leakingportconditions;

 • Excessdirtbuildup;

 • Wornclamps,guardsorshields;and

 • Systemuidlevel,uidtype,andanyairentrapment.

4.4 Functional Test: Operate the system at maximum operating pressure

and check for possible malfunctions and leaks. Personnel must avoid

potential hazardous areas while testing and using the system. See

section 2.2.

4.5 Replacement Intervals: Hose assemblies and elastomeric seals

used on Hose Fittings and adapters will eventually age, harden,

wear and deteriorate under thermal cycling and compression set.

Hose Assemblies and elastomeric seals should be inspected and

replaced at specic replacement intervals, based on previous service

life, government or industry recommendations, or when failures could

result in unacceptable downtime, damage, or injury risk. See section

1.2. Hose and Fittings may be subjected to internal mechanical and/

or chemical wear from the conveying uid and may fail without

warning. e user must determine the product life under such

circumstances by testing. Also see section 2.5.

4.6 Hose Inspection and Failure: Hydraulic power is accomplished

by utilizing high pressure uids to transfer energy and do work.

Hoses, Fittings and Hose Assemblies all contribute to this by

transmitting uids at high pressures. Fluids under pressure can be

dangerous and potentially lethal and, therefore, extreme caution must

be exercised when working with uids under pressure and handling

the Hoses transporting the uids. From time to time, Hose Assemblies

will fail if they are not replaced at proper time intervals. Usually these

failures are the result of some form of misapplication, abuse, wear or

failure to perform proper maintenance. When Hoses fail, generally

the high pressure uids inside escape in a stream which may or may

not be visible to the user. Under no circumstances should the user

attempt to locate the leak by “feeling” with their hands or any other

part of their body. High pressure uids can and will penetrate the skin

and cause severe tissue damage and possibly loss of limb. Even

seemingly minor hydraulic uid injection injuries must be treated

immediately by a physician with knowledge of the tissue damaging

properties of hydraulic uid.

If a Hose failure occurs, immediately shut down the equipment and

leave the area until pressure has been completely released from the

Hose Assembly. Simply shutting down the hydraulic pump may or

may not eliminate the pressure in the Hose Assembly. Many times

check valves, etc., are employed in a system and can cause pressure

to remain in a Hose Assembly even when pumps or equipment are

not operating. Tiny holes in the Hose, commonly known as pinholes,

can eject small, dangerously powerful but hard to see streams of

hydraulic uid. It may take several minutes or even hours for

the pressure to be relieved so that the Hose Assembly may be

examined safely.

Once the pressure has been reduced to zero, the Hose Assembly may

be taken o the equipment and examined. It must always be replaced

if a failure has occurred. Never attempt to patch or repair a Hose

Assembly that has failed. Consult the nearest Parker distributor or

the appropriate Parker division for Hose Assembly replacement

information.

Never touch or examine a failed Hose Assembly unless it is obvious

that the Hose no longer contains uid under pressure. e high

pressure uid is extremely dangerous and can cause serious and

potentially fatal injury.

4.7 Elastomeric Seals: Elastomeric seals will eventually age, harden,

wear and deteriorate under thermal cycling and compression set.

Elastomeric seals should be inspected and replaced.

4.8 Refrigerant Gases: Special care should be taken when working

with refrigeration systems. Sudden escape of refrigerant gases can

cause blindness if the escaping gases contact the eye and can cause

freezing or other severe injuries if it contacts any other portion of

the body.

4.9 Compressed Natural Gas (CNG): Parker CNG Hose Assemblies

should be tested after installation and before use, and at least on

a monthly basis per ANSI/IAS NGV 4.2-1999; CSA 12.52-M99

Section 4.2 “Visual Inspection Hose/Fitting”. e recommended

procedure is to pressurize the Hose and check for leaks and to visually

inspect the Hose for damage.

Caution: Matches, candles, open ame or other sources of ignition

shall not be used for Hose inspection. Leak check solutions should be

rinsed o after use.

5.0 HOSE STORAGE

5.1 Age Control: Hose and Hose Assemblies must be stored in a

manner that facilitates age control and rst-in and rst-out usage

based on manufacturing date of the Hose and Hose Assemblies.

e shelf life of rubber Hose or Hose Assemblies that have passed

visual inspection and a proof test is 10 years (40 quarters) from the

date of manufacture. e shelf life of thermoplastic and

polytetrauoroethylene Hose or Hose Assemblies is considered

to be unlimited.

5.2 Storage: Stored Hose and Hose Assemblies must not be subjected

to damage that could reduce their expected service life and must be

placed in a cool, dark and dry area with the ends capped. Stored Hose

and Hose Assemblies must not be exposed to temperature extremes,

ozone, oils, corrosive liquids or fumes, solvents, high humidity,

rodents, insects, ultraviolet light, electromagnetic elds or radioactive

materials.

Federal OSHA regulation 29 CFR 1910.1200 requires that we transmit to our customers Material Safety Data Sheets for all material covered under the law. If you

are an employer in SIC 20-39 who has not yet received them, you are required to obtain them from us and provide the information to employees as directed in
