PawHut D6-0044 User manual

ｓｈｏｒｔ ｈｅｘ ｓｃｒｅｗ
ｐｒｉｍｅ ｂｒａｃｋｅｔ ｕｐ
Assembiy Instructions
Please be sure to follow the tips as below to keep safty for the pets
Please understand we well not responsible for the loss of incorrect use of mishandle
Pay attention to your safety during asssembly.
Please check the intensity of the zenith wall before assembling to avoid.
Please install on a fiat place,keep away of the lighting applicance, fire warning device,
stairs,doors and windows.
Please keep the product away of the place of direct of direct sunlight to avoid get
deformation and discolored.
Please use the strew with M4 L:3mm size for courtyaid plastic roof fixing,and check the
intensity of couryard before fixing.
The range of adjustment for courtyard’s height:(2280-2730).
Maintenance and protection
Please do maintenance frequently during using to make sure the safty of products.
Please stop using the product in case of get loose, broken, broken down aging,
or purchase the appropriate parts for replacement.
Operating guide
Stop using when naughty cat get hurt during disorderly eat and scratch.
Please install in the obviously place.
Please correct install and use for the hammock and shelf board.
Use follow the range of weight.
Forbid people standing and heavy use.
Please install in ventilated place to get out the products smell.
Do not install in flammable place in case of fire.
This product is for general home use, do not use on special occasions.
Cleaning method
Please use neutral detergent to cleaning , dry soft cloth to wipe.
Do not use frictional objects to avoid get damaged.
Do not use stimulate lotion to avoid get damaged.
Please confirm the complete range of spare parts before assembly
Cat walk operating manual
Thank you for choose our product,pls read manual carefully to protect people or pets not
get hurt by mishandle,pls keep manual well.
Warning:
Keep away from baby when assembling in case get hurt,this product is only for the cats
to play with, please don't use in other ways.
Size:W650*D370*H2280-2730
Model
Material: steel,wood,and plastic.
Load-bearing:15kg
Made in China

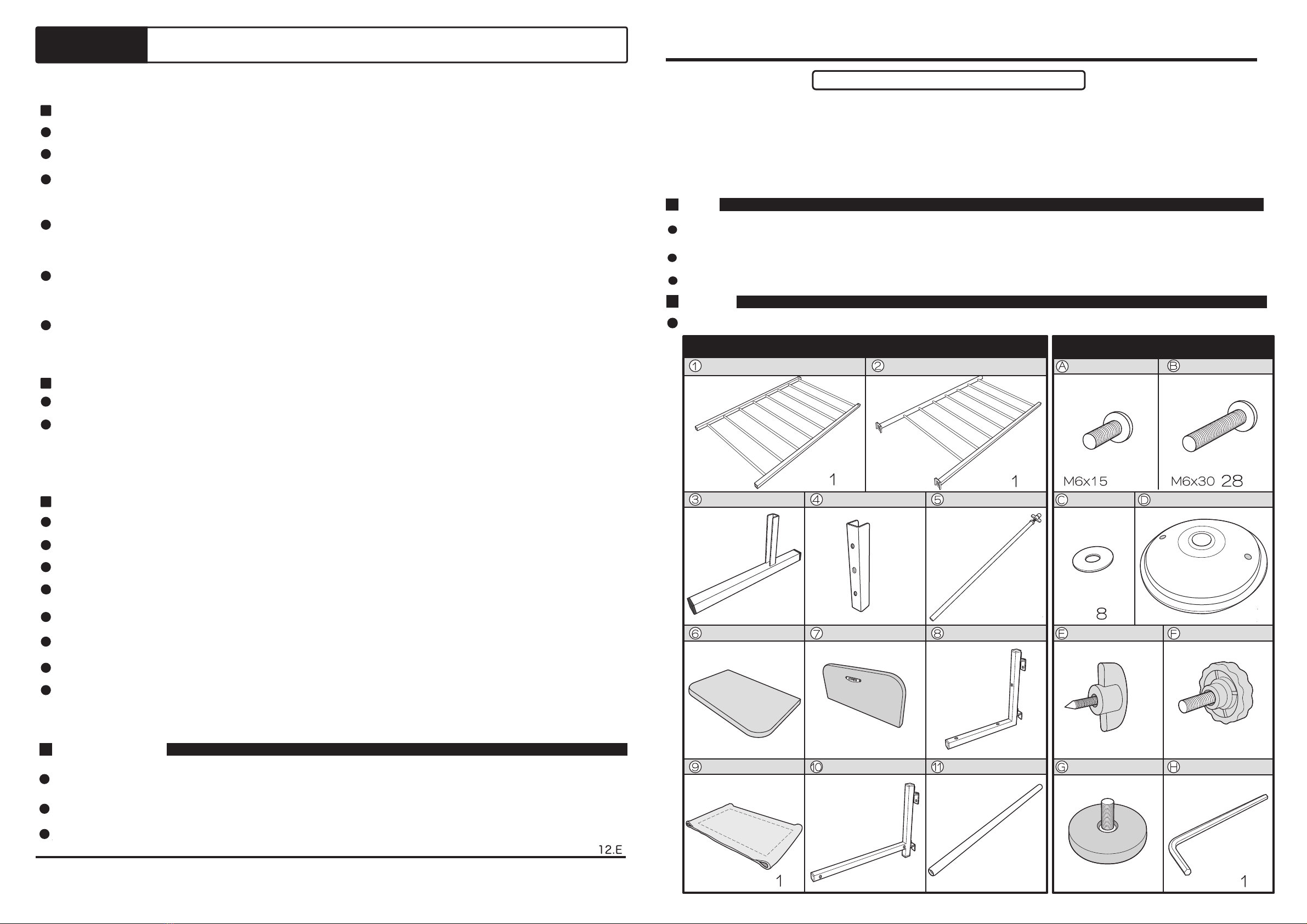

Parts list
ｌｏｎｇ ｈｅｘ ｓｃｒｅｗ
ＰＣ ＰＣ ８ＰＣＳ ＰＣＳ
ＰＣＳ
２ＰＣＳ ２
ＰＣＳ
２ＰＣＳ ２ＰＣＳ
４ＰＣＳ ４ＰＣＳ ８ＰＣＳ ＰＣＳ
２ＰＣＳ
１０
ＰＣＳ
２
ＰＣＳ
２
ＰＣ ４ＰＣＳ ＰＣ
ｓｔａｎｄ ｐｉｐｅ ｃｏｎｎｅｃｔｏｒ
ｂｒａｃｋｅｔ ｓｔａｎｄ ｇａｓｋｅｔ ｓｕｃｔｉｏｎ ｃｕｐｓ
ｓｈｅｌｆ ｂｏａｒｄ－ｄｏｗｎ
ｓｈｅｌｆ ｂｏａｒｄ－ｂａｃｋ
ｓｈｅｌｆ ｂｏａｒｄ Ｌ ｂｒａｃｋｅｔ
ｄｊｕｓｔｍｅｎｔ ｓｐｉｎ ｂｕｔｔｏｎ
ｓｈｅｌｆ ｂｏａｒｄ ａｄｊｕｓｔｍｅｎｔ ｂｕｔｔｏｎ
ｈａｍｍｏｃｋ
Ｌ ｂｒａｃｋｅｔ ｆｏｒ ｈａｍｍｏｃｋ
ｒｏｕｎｄ ｐｉｐｅ ｆｏｒ ｈａｍｍｏｃｋ
ａｄｊｕｓｔｍｅｎｔ ｓｔａｎｄ
ｈｅｘ ｗｒｅｎｃｈ
Using tips
Safety instruction manual, please keep well
Prime parts Spare parts

Assembly step
Warning:pls read manual carefully before assembly,to avoid adverse consequences.
Assembly on the prime bracket-upper part
Insert ⑤ height adjustment pipe to the top
of ① prime bracket,adjust the height and
fasten with Ⓔ rotary switch tight.
Assembly prime bracket-lower half
Insert ④connector into the top part of
②prime bracket-down,fasten by Ⓒwasher
Ⓐshort hex screw and small hex wrench.
Insert ③stand bracket into the end part
of ②prime bracket-down,fasten by Ⓒwasher,
Ⓐshort hex screw and small hex wrench.
Turn counter-clockwise the Ⓖstand to the
③stand bracket.
Assembled figure
Assembly of suction cups
Put the Ⓓsuction cups
on the top of ⑤ height
andjustment pipe
Assembly of the upper
and lower half part
of prime bracket
Combine ①prime bracket-
upper part and ②prime
bracket-lower half part
with Ⓒwasher,Ⓐshort hex
screw and small hex
wrench in ① ②
Assembly of shelf board
Fasten ⑥shelf board to ⑧bracket by 4pcs long
hex screws,⑦shelf board to ⑧bracket by 2pcs
long hex screws.
Assembly of hammock
Insert pipe into 2 sides of ⑨hammock,
fasten by long hex screw with ⑩bracket.
4 points are the same.
Fix to the top ceiling
Pull up the ⑤ height adjustment pipe of
temporarily fixed like picture 1
Clockwise rotating the Ⓓ top adjustment
switch to reach the top ceiling,at the
same time clockwise rotating Ⓔ rotary
switch,make sure fasten tight like picture 2
Assembly shelf board to prime bracket
Hang the shelf boards
and hammock onto pr
ime bracket, adjust
according to your
preferences.
Fasten method of shelf board
Hang shelf board onto the bracket pipe,
fasten by Ⓕrotary knob.
