PeakTech 1335 User manual

PeakTech
®1335 / 1336 / 1337
Digital Storage Oscilloscopes

2
1.General Safety Requirements……………….…………………………………………..….3
2. Safety Terms and Symbols..........................................................................................4
3. Quick Start ....................................................................................................................6
Introduction to the Structure of the Oscilloscope ................................................................... 6
Front Panel..............................................................................................................................................6
Rear Panel ...............................................................................................................................................7
Control Area............................................................................................................................................8
User Interface Introduction......................................................................................................... 9
How to Implement the General Inspection.............................................................................. 11
How to Implement the Function Inspection............................................................................11

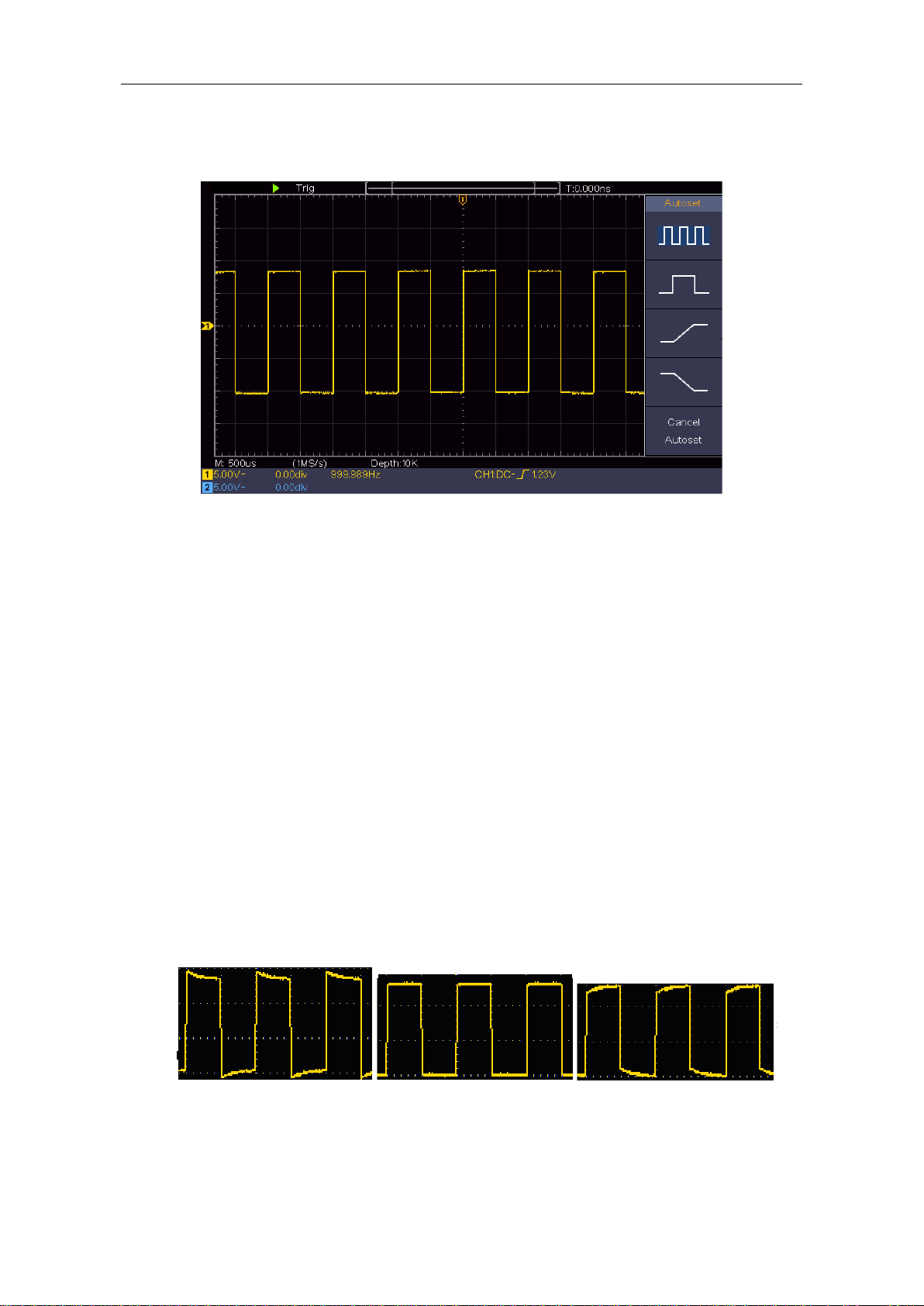

How to Implement the Probe Compensation..........................................................................12
How to Set the Probe Attenuation Coefficient........................................................................ 13

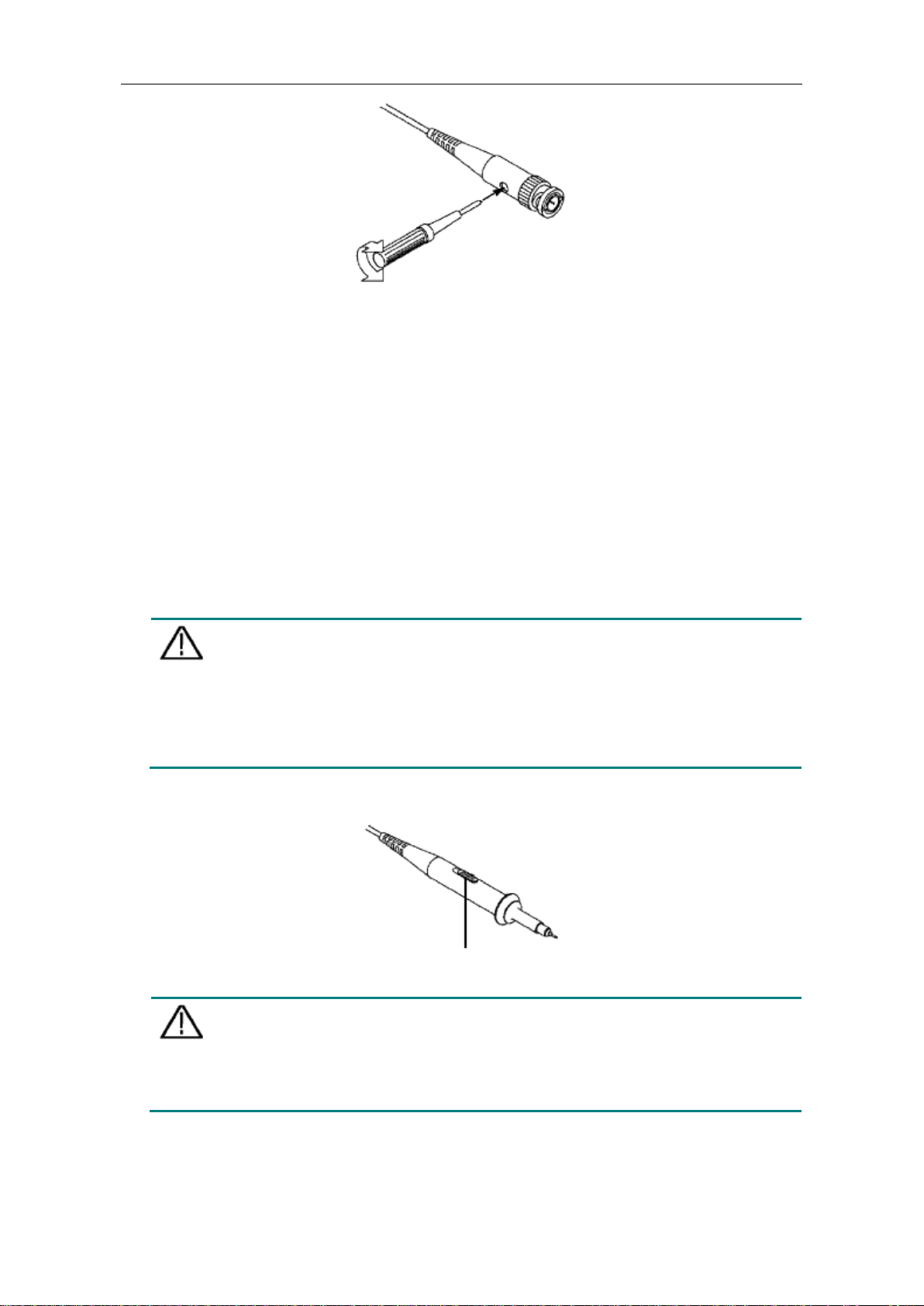

How to Use the Probe Safely....................................................................................................14
How to Implement Self-calibration........................................................................................... 14
Introduction to the Vertical System......................................................................................... 14
Introduction to the Horizontal System .................................................................................... 15
Introduction to the Trigger System.......................................................................................... 16
4. Advanced User Guidebook........................................................................................18
How to Set the Vertical System................................................................................................19
Use Mathematical Manipulation Function............................................................................... 20
The Waveform Calculation......................................................................................................................20
Using FFT function..................................................................................................................................21
Use Vertical Position and Scale Knobs................................................................................... 24
How to Set the Horizontal System........................................................................................... 24
Zoom the Waveform ...............................................................................................................................25
How to Set the Trigger System ................................................................................................25
Single Trigger .........................................................................................................................................26
Alternate Trigger (Trigger mode: Edge)..................................................................................................28
How to Operate the Function Menu.........................................................................................29
How to Set the Sampling/Display............................................................................................................29
How to Save and Recall a Waveform .....................................................................................................31
How to Implement the Auxiliary System Function Setting.......................................................................35
How to Update your Instrument Firmware ..............................................................................................37
How to Measure Automatically ...............................................................................................................38
How to Measure with Cursors.................................................................................................................42
How to Use Executive Buttons................................................................................................................45
5. Communication with PC ............................................................................................48
6. Demonstration ............................................................................................................49

3
Example 1: Measurement a Simple Signal.............................................................................. 49
Example 2: Gain of a Amplifier in a Metering Circuit............................................................. 50
Example 3: Capturing a Single Signal..................................................................................... 51
Example 4: Analyze the Details of a Signal ............................................................................52
Example 5: Application of X-Y Function .................................................................................53
Example 6: Video Signal Trigger.............................................................................................. 55
7. Troubleshooting .........................................................................................................56
8. Technical Specifications............................................................................................57
General Technical Specifications............................................................................................ 60
9. Appendix .....................................................................................................................60
Appendix A: Enclosure............................................................................................................. 60
Appendix B: General Care and Cleaning ................................................................................ 60
1. Safety Precautions
This product complies with the requirements of the following European Community Directives:
2014/30/EU (Electromagnetic Compatibility) and 2014/35/EU (Low Voltage) as amended by
2004/22/EG (CE-Marking). Overvoltage category II; pollution degree 2.
To ensure safe operation of the equipment and eliminate the danger of serious injury due to
short-circuits (arcing), the following safety precautions must be observed. Damages resulting from
failure to observe these safety precautions are exempt from any legal claims whatever.
* Do not use this instrument for high-energy industrial installation measurement.
* Do not place the equipment on damp or wet surfaces.
* Do not exceed the maximum permissible input ratings (danger of serious injury and/or
destruction of the equipment).
* The meter is designed to withstand the stated max voltages. If it is not possible to exclude
without that impulses, transients, disturbance or for other reasons, these voltages are exceeded
a suitable presale (10:1) must be used.
* Disconnect test leads or probe from the measuring circuit before switching modes or functions.
* Check test leads and probes for faulty insulation or bare wires before connection to the
equipment.
* To avoid electric shock, do not operate this product in wet or damp conditions.
* Conduct measuring works only in dry clothing and rubber shoes, i. e. on isolating mats.
* Never touch the tips of the test leads or probe.
* Comply with the warning labels and other info on the equipment.
* The measurement instrument is not to be to operated unattended.
* Do not subject the equipment to direct sunlight or extreme temperatures, humidity or dampness.
* Do not subject the equipment to shocks or strong vibrations.
* Do not operate the equipment near strong magnetic fields (motors, transformers etc.).
* Keep hot soldering irons or guns away from the equipment.

4
* Allow the equipment to stabilize at room temperature before taking up measurement (important
for exact measurements).
* Do not input values over the maximum range of each measurement to avoid damages of the
instrument.
* Periodically wipe the cabinet with a damp cloth and mid detergent. Do not use abrasives or
solvents.
* The meter is suitable for indoor use only
* Warning:
To avoid fire or electrical shock, when the oscilloscope input signal connected is more than 42V
peak (30Vrms) or on circuits of more than 4800VA, please take note of below items:
- Only use accessory insulated voltage probes and test lead.
- Check the accessories such as probe before use and replace it if there are any damages.
- Remove probes, test leads and other accessories immediately after use.
- Remove USB cable which connects oscilloscope and computer.
- Do not apply input voltages above the rating of the instrument because the probe tip voltage
will directly transmit to the oscilloscope. Use with caution when the probe is set as 1:1.
- Do not use exposed metal BNC or banana plug connectors.
- Do not insert metal objects into connectors.
* Do not store the meter in a place of explosive, inflammable substances.
* Do not modify the equipment in any way
* Do not place the equipment face-down on any table or work bench to prevent damaging the
controls at the front.
* Opening the equipment and service –and repair work must only be performed by qualified
service personal
* Measuring instruments don’t belong to children hands.
Cleaning the cabinet
Prior to cleaning the cabinet, withdraw the mains plug from the power outlet.
Clean only with a damp, soft cloth and a commercially available mild household cleanser. Ensure
that no water gets inside the equipment to prevent possible shorts and damage to the equipment.
2. Safety Terms and Symbols
Safety Terms
Terms in this manual (The following terms may appear in this manual):
Warning: Warning indicates conditions or practices that could result in injury or loss of
life.
Caution: Caution indicates the conditions or practices that could result in damage to this
product or other property.
Terms on the product. The following terms may appear on this product:
Danger: Indicates an immediate hazard or injury possibility.
Warning: Indicates a possible hazard or injury.
Caution: Indicates potential damage to the instrument or other property.

5
Safety Symbols
Symbols on the product. The following symbol may appear on the product:
Hazardous Voltage
Refer to Manual
Protective Earth Terminal
Chassis Ground
Test Ground
To Avoid body damage and prevent product and connected equipment damage, carefully read the
following safety information before using the test tool. This product can only be used in the
specified applications.
Warning:
The two channels of the oscilloscope are not electrically isolated. The channels should
adopt a common ground during measuring. To prevent short circuits, the 2 probe grounds
must not be connected to 2 different non-isolated DC levels.
The diagram of the oscilloscope ground wire connection:
Ground Clip
Signal Input
Oscilloscope Electrical OutletProbe
Power Cord
It is not allowed to measure AC power when the AC powered oscilloscope is connected to
the AC-powered PC through the ports.
Warning:
To avoid fire or electrical shock, when the oscilloscope input signal connected is more than 42V
peak (30Vrms) or on circuits of more than 4800VA, please take note of below items:
Only use accessory insulated voltage probes and test lead.
Check the accessories such as probe before use and replace it if there are any damages.
Remove probes, test leads and other accessories immediately after use.
Remove USB cable which connects oscilloscope and computer.
Do not apply input voltages above the rating of the instrument because the probe tip
voltage will directly transmit to the oscilloscope. Use with caution when the probe is set
as 1:1.
Do not use exposed metal BNC or banana plug connectors.
Do not insert metal objects into connectors.

6
1. Quick Start
Introduction to the Structure of the Oscilloscope
This chapter makes a simple description of the operation and function of the front panel of the
oscilloscope, enabling you to be familiar with the use of the oscilloscope in the shortest time.
Front Panel
The front panel has knobs and function buttons. The 5 buttons in the column on the right side of the
display screen are menu selection buttons, through which, you can set the different options for the
current menu. The other buttons are function buttons, through which, you can enter different
function menus or obtain a specific function application directly.
7
3
5 46
1 2
Figure 1-1 Front panel
1. Display area
2. Menu selection buttons: Select the right menu item.
3. Control (button and knob) area
4. Probe Compensation: Measurement signal (5V/1kHz) output.
5. Signal Input Channel
6. USB Host port: It is used to transfer data when external USB equipment connects to the
oscilloscope regarded as "host device". For example: Saving the waveform to USB flash disk
needs to use this port.
7. Power on/off

7
Rear Panel
5
12
3
4
Figure 1-2 Rear Panel
1. Handle
2. Air vents
3. AC power input jack
4. Foot stool: Adjust the tilt angle of the oscilloscope.
5. USB Device port: It is used to transfer data when external USB equipment connects to the
oscilloscope regarded as "slave device". For example: to use this port when connect PC to the
oscilloscope by USB.

8
Control Area
61
2
3
5
4
Figure 1-3 Control Area Overview
1. Function button area: Total 6 buttons.
2. Horizontal control area with 1 button and 2 knobs.
"HOR" button refer to horizontal system setting menu, "Horizontal Position" knob control
trigger position, " Horizontal Scale" control time base.
3. Trigger control area with 2 buttons and 1 knob.
The Trigger Level knob is to adjust trigger voltage. Other 2 buttons refer to trigger system
setting.
4. Copy button: This button is the shortcut for Save function in the Utility function menu.
Pressing this button is equal to the Save option in the Save menu. The waveform, configure or
the display screen could be saved according to the chosen type in the Save menu.
5. Vertical control area with 3 buttons and 4 knobs.
"CH1" and "CH2 " correspond to setting menu in CH1 and CH2, "Math" button refer to math
menu, the math menu consists of six kinds of operations, including CH1-CH2, CH2-CH1,
CH1+CH2, CH1*CH2, CH1/CH2 and FFT. Two "Vertical Position" knob control the vertical
position of CH1/CH2, and two "Scale" knob control voltage scale of CH1, CH2.
6. M knob(Multipurpose knob): when a symbol appears in the menu, it indicates you can
turn the M knob to select the menu or set the value. You can push it to close the menu on the
left and right.

9
User Interface Introduction
Figure 1-4 Illustrative Drawing of Display Interfaces
1. Waveform Display Area.
2. Run/Stop
3. The state of trigger, including:
Auto: Automatic mode and acquire waveform without triggering.
Trig: Trigger detected and acquire waveform.
Ready: Pre-triggered data captured and ready for a trigger.
Scan: Capture and display the waveform continuously.
Stop: Data acquisition stopped.
4. The two blue dotted lines indicates the vertical position of cursor measurement.
5. The T pointer indicates the horizontal position for the trigger.
6. The pointer indicates the trigger position in the record length.
7. It shows present triggering value and displays the site of present window in internal
memory.
8. It indicates that there is a USB disk connecting with the oscilloscope.
9. Channel identifier of current menu.
10. The waveform of CH1.
11. Right Menu.
12. The waveform of CH2.

10
13. Current trigger type:
Rising edge triggering
Falling edge triggering
Video line synchronous triggering
Video field synchronous triggering
The reading shows the trigger level value of the corresponding channel.
14. It indicates the measured type and value of the corresponding channel. "T" means period,
"F" means frequency, "V" means the average value, "Vp" the peak-peak value, "Vr" the
root-mean-square value, "Ma" the maximum amplitude value, "Mi" the minimum
amplitude value, "Vt" the Voltage value of the waveform's flat top value, "Vb" the Voltage
value of the waveform's flat base, "Va" the amplitude value, "Os" the overshoot value,
"Ps" the Preshoot value, "RT" the rise time value, "FT" the fall time value, "PW" the
+width value, "NW" the -Width value, "+D" the +Duty value, "-D" the -Duty value, "PD" the
Delay A->B value, "ND" the Delay A->B value, "TR" the Cycle RMS, "CR" the
Cursor RMS, "WP" the Screen Duty, "RP" the Phase, "+PC" the +Pulse count, "-PC" the -
Pulse count, "+E" the Rise edge count, "-E" the Fall edge count, "AR" the Area, "CA" the
Cycle area.
15. The readings show the record length.
16. The frequency of the trigger signal.
17. The readings show current sample rate.
18. The readings indicate the corresponding Voltage Division and the Zero Point positions of
the channels. "BW" indicates bandwidth limit.
The icon shows the coupling mode of the channel.
"—" indicates direct current coupling
"～" indicates AC coupling
" " indicates GND coupling
19. The reading shows the setting of main time base.
20. It is cursor measure window, showing the absolute values and the readings of the
cursors.
21. The blue pointer shows the grounding datum point (zero point position) of the waveform
of the CH2 channel. If the pointer is not displayed, it means that this channel is not
opened.
22. The two blue dotted lines indicate the horizontal position of cursor measurement.
23. The yellow pointer indicates the grounding datum point (zero point position) of the
waveform of the CH1 channel. If the pointer is not displayed, it means that the channel is
not opened.
