HIPPO F2100 & F2200
2-STAGE FILTRATION SYSTEM
USER'S MANUAL

2 • EVERPURE F2100 & F2200 User's Manual
CONTENTS
1. Precautions and General Notes
2. Parts Included
3. Product Information
3.1. Product Features
3.2. Product Specification
3.3. Water Treatment Process
3.4. Introduction to Main Parts
4. Installation and Commissioning
4.1 Schematic Diagram
4.2 Tools and Materials
4.3 Installation Steps
5. Filter Cartridge Replacement
5.1 Cartridge Replacement
6. Filter Cartridge Timer (Optional)
7. Troubleshooting
8. Terms and Conditions of Warranty
9. Maintenenace Records
..........…………….........….…........….….....….……….………… 3
……….….….........…..........………..….…….…….........................................… 4
......…….…………..........…………..….………….…........….................…… 4
....…………..…...........…………..….……………….…….................…...… 4
.....………….……………..….…………….…….….………..…….....….… 4
..........……………..........……..….…….……...............……....…. 5
.........……………..........……..…...…….…….….….….……….... 5
........…..........………….……………………………….......... 6 - 9
........…..........………….…….………........….…...…....……….… 10
................………..….…….….…….……..…....................... 11
........……………..........………..…….………….…...........….……........…......… 12
…….......………..….…….………….…........….………......… 13
...........………….......………..….…….………….…........….………......… 13

EVERPURE F2100 & F2200 User's Manual • 3
1. PRECAUTIONS AND GENERAL NOTES
CAUTION
WARNING:
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system.
Do not disassemble or modify the water
filtration system.
Before installation, please ensure that the
equipment is turned off and that the cold
water supply valve is closed.
Before using the water filtration system,
make sure that the cold water valve is open,
and that there is water pressure in the pipe
network (water supply available).
Do not put anything on top of the machine as
the object or cover might prevent heat from
dissipating and result in equipment damage
or cause a fire.
If the pressure exceeds 50PSI, a pressure
reduction device must be installed.
Avoid installing this product to pipelines with
water hammer effects for extended period of
time. Otherwise, an additional pressure
control valve must be installed.
Do not place the product under direct
sunlight, or in places with high temperature
or outdoors.
The installation and maintenance of this
product must be carried out by professional
plumber designated by an authorized Pentair's
distributor.
•
•
•
•
•
•
•
•
•
For cold water use only.
Make certain that installation complies with
all state and local laws and regulations.
The system must be maintained according to
manufacturer's recommendations, including
replacement of filter cartridges. The
contaminants or other substances removed
or reduced by the selected cartridge are not
necessarily in your water. Ask your local
water municipality for a copy of their water
analysis, or have your water tested by
reputable water testing lab.
After prolonged periods of non-use (such as
during a vacation) it is recommended that the
system be flushed thoroughly. Let water run
for 5-6 minutes before using.
The filter cartridges used with this system
have a limited service life. Changes in taste,
odour, and/or flow of the filtered water being
filtered indicate the cartridge should be
replaced.
It is normal small amount of carbon particles
may occasionally appear after installation or
filter replacement, Flush the system until the
carbon particles are cleared.
During installation, consider the convenience
of use and the room for movement during
maintenance
If you have any questions after installation,
please contact your local Pentair authorized
distributor.
Please read this instruction manual carefully before installing and using this product. If you encounter
any problems that are not addressed in this manual, please contact your local Pentair's distributor.
•
•
•
•
•
•
•
•

4 • EVERPURE F2100 & F2200 User's Manual
2. PARTS INCLUDED
See checklist below for the components included with your system.
Main Filtration System
Main System Cover
Faucet
Accessory Pack
DESCRIPTION QUANTITY
1
1
1
1
UNIT
Set
Piece
Piece
Set
No
1
2
3
4
3. PRODUCT INFORMATION
3.1. Product Features
The high quality of the 2-stage filtration system is a result of the strict material selection and superior performance
design of each component. Two stage filtration technology ensures water produced is safe to drink and good for taste.
1. Due to continuos product improvement, technical specification subject to change without notice.
Please refer to the product label.
2 The filtered water flow rate is measured at an ambient temperature of 25±2 °C, water temperature of 25±1 °C and water
pressure of 30 PSI.
NOTE:
Model
Stage
Cartridge Name
Removes
F2100
1
Polypropylene Polyspun
Cartridge (PP)
Sediments, particulates, dirt
2
Fibredyne
TM
Carbon Block
Cartridge
Chlorine, chemicals, odour & taste and
color
F2200
1
Polypropylene Polyspun
Cartridge (PP)
Sediments, particulates, dirt
2
Advanced Fibredyne
TM
Carbon Block Cartridge
Chlorine, cysts, lead, chemicals, odour
& taste and color
3.2. Product Specification
PARAMETER
F2100
F2200
Inlet Water Condition
Chlorinated City Water Supply
Inlet Water Pressure Range
20 – 50 PSI
Inlet Water Temperature Range
5 – 38 °C
Dimension
206 mm (L) X 320 mm (H) X 131 mm (W)
Capacity
3000L
5678L
Filtered Water Flowrate
2.2 L/Min
2.5 L/Min
System Cover
White
Filter Lifespan Indicator
Timer (Optional)

EVERPURE F2100 & F2200 User's Manual • 5
3.4. Introduction to Main Parts
3.3. Water Treatment Process
COMPONENT NAME MATERIAL QUANTITY SPECIFICATIONS
ESTIMATE
USEFUL
LIFESPAN
BRANDS
Polypropylene
Polyspun Filter
Cartridge (PP)
FibredyneTM /
Advanced
FibredyneTM
Carbon Block
Filter Cartridge
Housing: Polypropylene Diameter: 90mm
Length: 305mm
1pc 3-6
months
PENTAIR
EVERPURE
PENTAIR
EVERPURE
6-12
months
1pc
Diameter: 90mm
Length: 305mm
Housing: Polypropylene
Filter Element:
Polypropylene Polyspun
Micron Rating:
5 microns
Diameter: 40.6mm
Length: 248mm
Filter Element:
Activated Carbon
Micron Rating:
0.5 microns
Diameter: 58mm
Length: 269mm
Inlet/Outlet
Filter Assembly Material: Polypropylene Water inlet/outlet
diameter: 15.5mm 1 unit 5 years PENTAIR
Metal Faucet Material: Brass + Stainless
Steel pipe Diameter:12mm 1 unit 5 years PENTAIR
*Note: It is recommended to replace the components when the useful lifespan has reached.
The useful lifespan of the filter elements varies according to the actual water usage
conditions and the quality of the local tap water, and may be shorter.
F2100 Two-stage Filtra�on System:
F2200 Two-stage Filtra�on System:
v
Chlorinated
City Water
Polypropylene
Polyspun Filter
Cartridge (PP)
Fibredyne
TM
Carbon Block
Filter Cartridge
Filtered Water
Advanced
Fibredyne
TM
Carbon Block
Filter Cartridge
Chlorinated
City Water
Polypropylene
Polyspun Filter
Cartridge (PP)
Filtered Water

6 • EVERPURE F2100 & F2200 User's Manual
4. INSTALLATION AND COMMISSIONING
4.1 Schematic Diagram: 3. Selecting the Filter's Faucet Location.

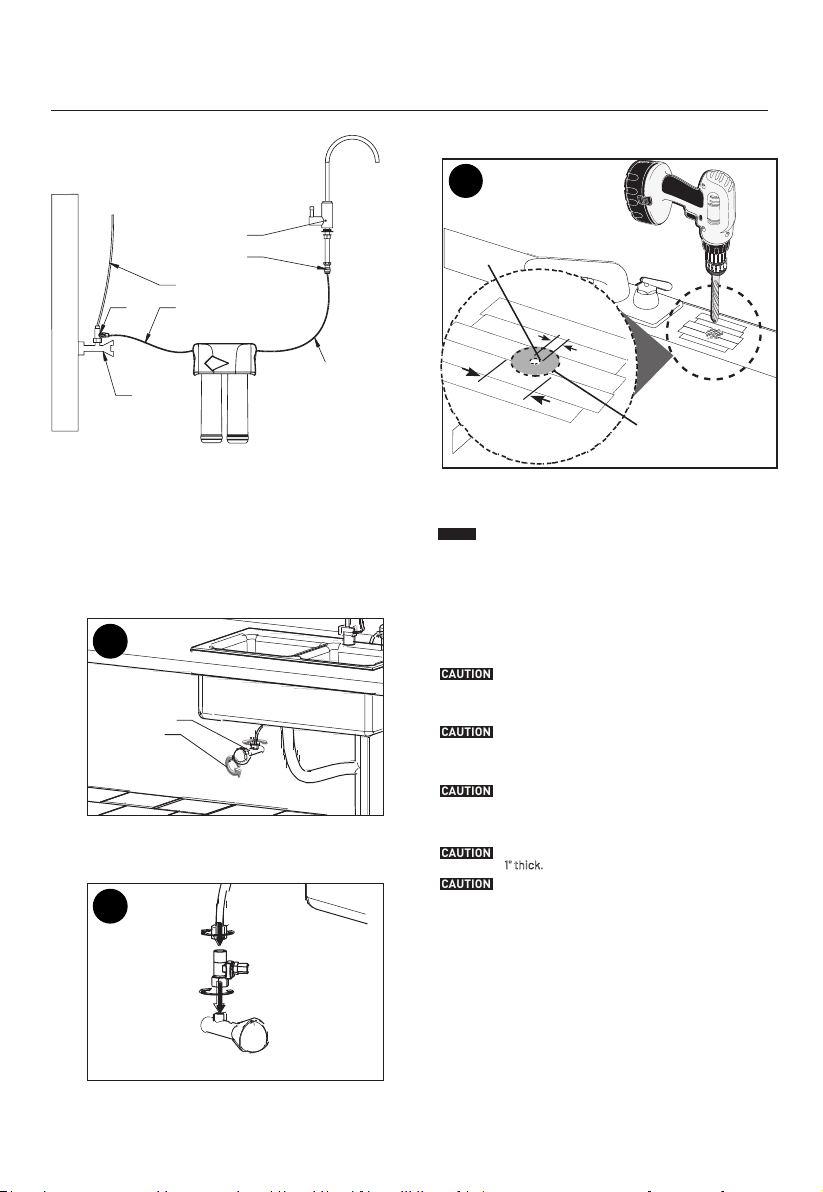

4. Drill hole for filter faucet installation
The drinking water faucet should be positioned with function,
convenience, and appearance in mind. An adequate flat area is
required to allow faucet base to rest securely. The faucet fits
through a 1/4" hole. Most sinks have pre-drilled 1-3⁄8" or 1-1⁄2"
diameter holes that may be used for faucet installation. If these
predrilled holes cannot be used or are in an inconvenient location,
it will be necessary to drill a 1/4" hole in the sink to accommodate
the faucet.
NOTE:
A. Line bottom of sink with newspaper to prevent metal
shavings, parts, or tools from falling down the drain.
B. Place masking tape over the area to be drilled to
prevent scratches if drill bit slips.
C. Mark hole with center punch. Use a 1/4" drill bit to drill
pilot hole.
D. Use a 3/4" drill bit and drill a hole completely through
sink.
E. Smooth rough edges with a file.
CAUTION
CAUTION
CAUTION
CAUTION
CAUTION
This procedure may generate dust which can cause
severe irritation if inhaled or come in contact with the
eyes. The use of safety glasses and respirator for this
procedure is recommended.
When drilling through a countertop, make sure the
area below the drilled area is free of wiring and piping.
Make certain you have ample room to make the proper
connections to the bottom of the faucet.
Do not attempt to drill through a tiled, marble, granite
or similar countertop. Consult a plumber or the
countertop manufacturer for advice or assistance.
DO NOT ATTEMPT CAUTION TO DRILL THROUGH AN
ALL-PORCELAIN SINK. If you have an all-porcelain
sink, mount the faucet in pre-drilled sprayer hole or
drill through countertop next to sink.
Do not drill through a countertop that is more than
1" thick.
Adjustable wrench, teflon tape, pipe cutter (or utility
knife), Phillips head screwdriver (for wall mounting),
pencil, drill and measuring tape.
4.2 Tools and materials:
4.3 Installation steps:
Wall
Filter's faucet
Faucet connector
3/8" water tubing (blue)
3/8" water tubing (white)
3-way
ball
valve
Angle
valve
Inlet water pipe
2
2. Connect the three-way ball valve with the angle
valve and the water supply pipe.
1. Switch off the cold water supply, disconnect the
cold water pipe, and open the tap to drain the water
from the pipe.
Unscrew the water inlet
pipe from the main faucet.
Turn the angle valve
counter-clockwise to
turn it off.
1
D
C
Pilot Hole
Mounting Hole
Ø1/4”
Ø1 1/4”
3

EVERPURE F2100 & F2200 User's Manual • 7

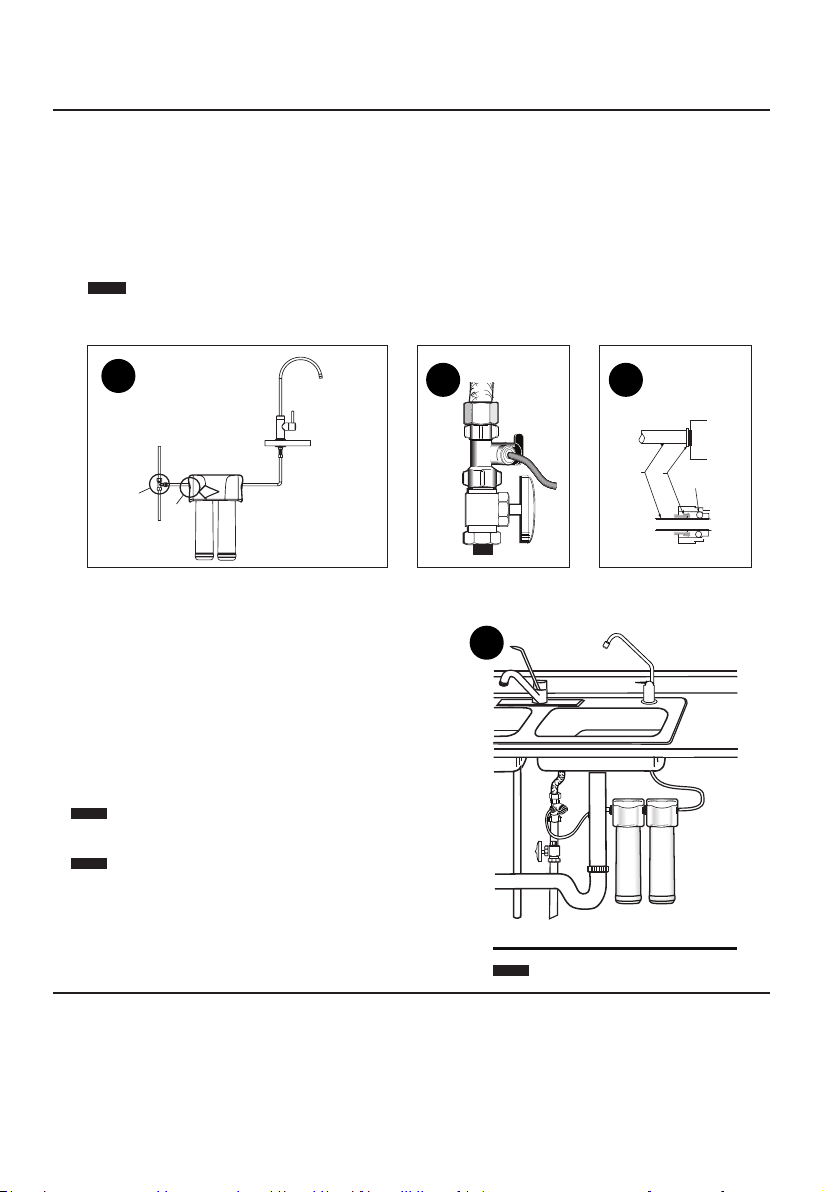

5. Mounting the Faucet.
A. Holding the faucet, slot in the base of the faucet, place the faucet stem through the hole on the sink or counter
top. Position the faucet handle at a desired location.
B. Assemble faucet as shown in Figure 5B.
C. Center the faucet and fittings between the bottom of the counter top or sink. Tighten the stem nut with a wrench
until it is tight.
D. Screw quick connector onto threaded end of faucet stem.
E. Place a mark 2cm from one end of the blue tubing. Wet the end of the 3/8" tube and push into bottom of connector.
The 2cm mark should be flush with the collar of the connector.
NOTE: To remove the tube, push on the fittings' collar and pull the tube out.
5B
Install the faucet on the small hole reserved in the sink.
5E
5C
Sink/counter top hole
Rubber washer
Anti-slip washer
Lock washer
Stem Nut
Connect the 3/8" blue tubing to the faucet.
5D
3/8" blue tubing
Faucet
Quick Connector
INSTALLATION CONTINUED . . .
A.
B.

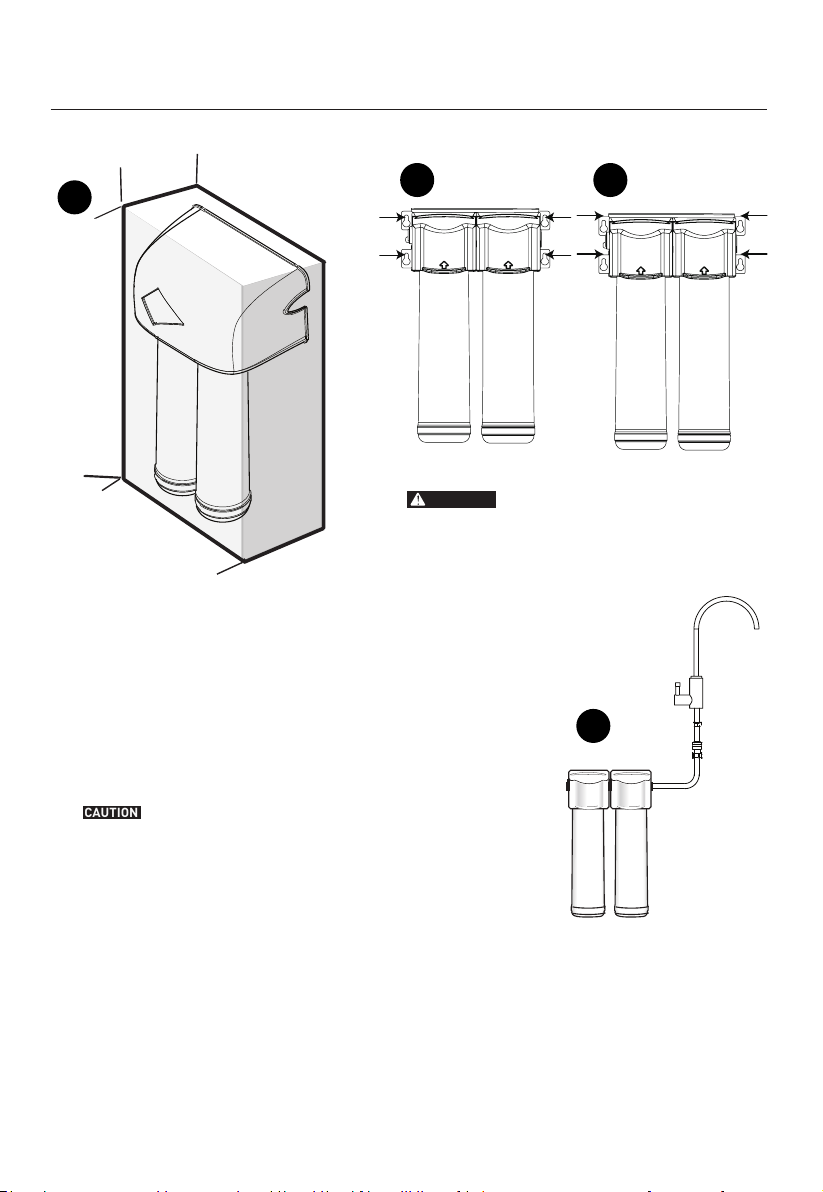

Space required: please choose an appropriate location for installation, according to the actual size of the water
filtration system, leaving a space of about 20cm around the filter for easy filter replacement.
NOTE: The system carton can be used to determine the operational footprint required for installation of the
system and replacement cartridges. (Figure 6a)
6. Mounting the System
Mount the system vertically. Ensure mounting is level. Place a pencil mark in the upper slots of the bracket
mounting holes. (Figure 6b). Alternate mounting option: If mounting the system near the floor, place the pencil
marks above each of the mounting holes on the bracket to ensure enough space resides below the cartridge and
the floor for cartridge replacement (Figure 6c). Use the 3/32" drill bit to create pilot holes for mounting.
Select a location under the sink, or other suitable area where the system will be installed.
CounterTop
Faucet Stem
Lock
Washer
Stem Nut
Quick
Connector
3/8” Tubing
Rubber
Washer
Anti-slip
Washer

8 • EVERPURE F2100 & F2200 User's Manual
INSTALLATION CONTINUED . . .
6a
131mm
320mm
206mm
In
l
et
Outlet
Filter
6b 6c
Filter
WARNING:
The system should be mounted to a firm, solid surface that is
able to support the weight of the system.
7. Connecting the Faucet to the System.
CAUTION
Do not bend or crimp tube inserting.
B. Gently pull back on the tube to ensure it is connected
Determine the length of plastic blue tubing needed to connect to the outlet
(right) side of the filter from the faucet. Be sure to allow enough tubing to
prevent kinking and cut the tubing squarely. Use a marker to mark one end of
the tubing 2cm from the end (Figure 7). Wet the end of the 3/8" tube and push
into the outlet (right) connection of the system up to the mark.
A. 7

EVERPURE F2100 & F2200 User's Manual • 9
8a 8b
8. Connecting the 3/8” white tubing to the three-way ball valve and to the system
A.
B.
Determine the length of plastic white tubing needed to connect the inlet (left) side of the filter with the supply
three-way ball valve installed on the cold water supply line. Be sure to allow enough tubing to prevent kinking and cut
the tubing squarely. Place a mark 2cm from one end of the tubing. Wet the end of the tubing. Insert the end of the
tubing into the 3/8" fitting of the inlet supply three-way valve. The 2cm mark should be flush with the collar of the
fitting located on the inlet supply three-way valve (Figure 8a).
Mark the remaining end of the tubing. Use a marker to mark 2cm from the end. Wet the end of the tube. Insert the end
into the feed connection on the inlet side (left) of the system. The tube should go in up to the mark. (Figure 8b).
8
8a
8b
INSTALLATION CONTINUED . . .
9
9. Placing the System into Operation
INSTALLATION IS NOW COMPLETE.
Slowly turn on the cold water supply. Ensure that the
supply three-way ball adapter valve is slowly open.
Open faucet and flush filter for 10-30 minutes. Discard
water.
Check for leaks at all fittings before leaving installation.
If leaks appear, see Troubleshooting.
A.
B.
C.
A drinking water cartridge may contain carbon fines (very fine
black powder). If carbon fines appear in the water, discard
water. More flushing is required if carbon fines are present.
Initially, filtered water may appear cloudy. If cloudiness in a
glass of water disappears from the bottom; fine air bubbles
are present. This air within the water will disappear within a
few weeks after installation.
NOTE:
NOTE:
NOTE: Ensure that the point of connection between the white tubing and the three-way ball valve is flat and uniform. When
installing, ensure that the white tubing is on the same axis with the three-way ball valve and not askew. Otherwise, the white
tubing may break and cause a leakage in the system.
NOTE: Actual faucet may vary from image.

10 • EVERPURE F2100 & F2200 User's Manual
5.1a
5.1b 5.1c 5.1d 5.1e
5. FILTER CARTRIDGE REPLACEMENT
NOTE: The life of the filter cartridges depends on water volume filtered and the quality of the feed water. It is recommended that
the filter cartridges be replaced every regularly, or when there is noticeable change in taste, odour, or flow of filtered water.
Ensure the correct replacement cartridge model (Refer to cartridge part number on the cartridge label) are purchased
for the system
Relieve pressure by turning off the water supply to
the system and opening a faucet until water flow
stops. Place a bucket or towel under the system to
catch any water drips (Figure 5.1a).
Remove the cover and lift the locking bar upward
until the filter cartridge disengages from the filter
head assembly (Figure 5.1b).
Pull the cartridge away from the filter head assembly
(Figure 5.1c).
Ensure the locking bar is fully in the up position
(Figure 5.1c).
Align the posts on the filter cartridge with the ports in
the filter head assembly. Slide the cartridge filter
towards into the filter head assembly engaging with
the locking bar, causing it to drop forward and down
(Figure 5.1d).
Pull down the locking bar until it snaps into place
(Figure 5.1e)
Install cover.
A.
B.
C.
D.
E.
F.
G.
NOTE: See section 4.3 - 9, Placing the System into
Operation section for remaining steps.
5.1 Cartridge Replacement
NOTE: Actual faucet may vary from image.

EVERPURE F2100 & F2200 User's Manual • 11
6.1
6
6.2
6.3
6.4
Magnet
Pla
t
e
M etal
Blinks
Green 3x
Key
Blinks red 1x after 11 months
Blinks red 3x after 12 months
Press and hold for 5 seconds
6. FILTER CARTRIDGE TIMER (OPTIONAL ACCESSORY)
The filter cartridge timer can be installed to the systems decorative cover by peeling away the adhesive backing on the metal
plate included with the cartridge timer. The timer can also be attached to a metal magnetic surface using the magnet that is
factory installed on cartridge timer.
Once the installation location has been selected, activate the timer by pulling the plastic tab out from the side of the
timer.Press and release the key to verify the battery is operational. The light will blink green three times. (Figure 6.1)
NOTE: The timer operates on 12 month schedule. The timer uses a coin cell type 2023 battery.
1. Green light on the timer indicates normal working condition. The timer will begin to blink red once every three minutes
after 11 months, and will blink red three times every three minutes after 12 months. (Figure 6.2)
NOTE: Timer status of the cartridge life can also be viewed immediately by pressing and releasing the key.
1. To reset the timer after filter cartridge replacement, press the key and hold for 5 seconds. The timer is now reset to 12
months (Figure 6.3)
1. Replace the battery every 12 months. To replace the battery, locate the slot on the side of the timer body and carefully
remove the front of the timer. The battery is now accessible (Figure 6.4).
2. Slide the new battery under the battery retention bracket with the positive + side of the battery facing up towards the
battery retention bracket. Align the tab on the timer back to the slot on the timer front and press and snap both timer
halves together. Battery replacement will not reset the 12month timer. If reset is required, press and hold key for 5
seconds.
6.2 The Filter Cartridge Timer is Operational
6.3 Reset Timer
6.4 Battery Replacement
6.1 Installation and Activation

12 • EVERPURE F2100 & F2200 User's Manual
No. Problem Solution
Leaks from three-way ball valve1.
2.
3.
4.
5.
Leaks at the connection point to the quick
connector
Reduced flow or change in taste of filtered
water
Leaks between filter head assembly and
filter cartridge
Leaks from tubing fittings Relieve line pressure by turning off the water supply to
the system then opening faucet until water flow stops.
Place a bucket or towel under the system to catch any
water drips.
Depress collet on system or inlet supply adapter tubing
fittings and pull tubing from fitting. Inspect surface of
tubing for scratches or debris. Clean or cut back tubing
to access clean surface.
Wet the end of the inlet tubing and press into the inlet
fitting of the system. Ensure the tubing is fully pushed
past the fittings o-rings. Place system into operation
and check for leaks. If leaks persist, turn off the water
supply and contact Pentair’s authorized distributor.
1.
2.
3.
Relieve line pressure by turning off the water supply to
the system then opening faucet until water flow stops.
Place a bucket or towel under the system to catch any
water drips.
Remove cartridge and inspect o-rings to make sure
they are seated and clean.
Install filter cartridge. Place system into operation and
check for leaks. If leaks persist, turn off the water
supply and contact Pentair’s authorized distributor.
1.
2.
3.
Relieve line pressure by turning off the water supply to
the system then opening faucet until water flow stops.
Place a bucket or towel under the system to catch any
water drips.
Cut off 2cm from the part of the tubing that is leaking,
and re-inserts it fully.
Place system into operation and check for leaks. If leaks
persist, turn off the water supply and contact Pentair’s
authorized distributor.
1.
2.
3.
Relieve line pressure by turning off the water supply to
the system then opening faucet until water flow stops.
Place a bucket or towel under the system to catch any
water drips.
Check and make sure that the rubber seal of the
three-way ball valve is properly seated.
Re-install and tighten three-way ball valve as required.
Place system into operation and check for leaks. If leaks
persist, turn off the water supply and contact Pentair’s
authorized distributor.
1.
2.
3.
Replace the filter cartridge.
Refer to Section 5 – Filter Cartridge Replacement of the manual.
7. TROUBLESHOOTING

EVERPURE F2100 & F2200 User's Manual • 13
8. TERMS AND CONDITIONS OF WARRANTY
9. MAINTENANCE RECORDS
Date Cause of Error Replacement Part Maintenance Personnel
Remarks
The warranty period is 1 year from the date of purchase. During the warranty period, Pentair (Company) is responsible for
providing free warranty for faults arising from normal operation and use according to the installation manual and user's
manual. Pentair will charge repair and maintenance fees after the warranty expires.
The user should keep valid purchase invoice, which serve as the basis for after-sales service.
Installation, maintenance and repair services will be provided by Pentair's authorized distributors. In the event that the
user is unable to present the warranty card or valid purchase invoice, Pentair will deem the warranty to have expired
and charge the relevant fees.
Warranty will be void in the following conditions:
Installation by personnel who are not authorized by the Pentair;
Product malfunction or damage resulted from the user's failure to follow the instructions described in
the user's manual to operate the system;
Error or damage caused by the user's self-repair or modification of the equipment;
Error or damage caused by major force (including but not limited to natural disasters such as fires, floods,
earthquakes, lightning strikes, etc.);
Error or damage caused by human factors (including but not limited to drop, knock, etc.);
Where the user is unable to present the warranty card or purchase invoice, or the content of the invoice has been altered;
Any problems caused by using parts that are not approved by Pentair.
The repair parts replaced during the warranty period are owned by Pentair.
Warranty does not cover for all consumables, such as filter element and materials, in water treatment equipment.
Pentair reserves the right to charge a certain service fee for maintenance or repair service provided on-site in remote areas.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
□
□
□
□
□
□
□

371 He Shan Road | New District Suzhou | Jiangsu 215011 | China | pentair.com
EVERPURE
All Pentair trademarks and logos are owned by Pentair. All other brands or product names are trademarks or registered marks of their respective owners.
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
00-00000 00/00 ©2020 Pentair. All Rights Reserved.
Distribution and Service by:
Date of Purchase:
(Distributor Stamp Here)
