Pepperl+Fuchs SIL KFD0-SD2-*. Series User guide

ISO9001
2
3
SOLENOID DRIVER
KFD0-SD2-(Ex)*.*****,
KCD0-SD-(Ex)1.****(.SP),
HiC2871
PROCESS AUTOMATION
SAFETY MANUAL SIL

With regard to the supply of products, the current issue of the following document is applicable: The
General Terms of Delivery for Products and Services of the Electrical Industry, published by the
Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie
(ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation
of proprietorship"
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Contents
221278 2012-02
3
1 Introduction......................................................................... 4
1.1 General Information.......................................................................................4
1.2 Intended Use ................................................................................................5
1.3 Manufacturer Information ..............................................................................5
1.4 Relevant Standards and Directives ...............................................................5
2 Planning .............................................................................. 6
2.1 System Structure...........................................................................................6
2.1.1 Low Demand Mode ..................................................................................6
2.1.2 High Demand Mode .................................................................................6
2.1.3 Safe Failure Fraction.................................................................................6
2.2 Assumptions ................................................................................................7
2.3 Safety Function and Safe State .....................................................................8
2.4 Characteristic Safety Values .........................................................................9
3 Safety Recommendation.................................................. 10
3.1 Interfaces ....................................................................................................10
3.2 Configuration ..............................................................................................10
3.3 Useful Life Time ..........................................................................................10
3.4 Installation and Commissioning ..................................................................11
4 Proof Test .......................................................................... 12
4.1 Proof Test Procedure ..................................................................................12
4.1.1 Proof Test Procedure KFD0-SD2-(Ex)*.*****...........................................13
4.1.2 Proof Test Procedure KCD0-SD-(Ex)1.****(.SP) .....................................14
4.1.3 Proof Test Procedure HiC2871...............................................................15
5 Abbreviations.................................................................... 16

221278 2012-02
4
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Introduction
1Introduction
1.1 General Information
This manual contains information for application of the device in functional safety
related loops.
The corresponding data sheets, the operating instructions, the system
description, the Declaration of Conformity, the EC-Type-Examination Certificate,
the Functional Safety Assessment and applicable Certificates (see data sheet)
are integral parts of this document.
The documents mentioned are available from www.pepperl-fuchs.com or by
contacting your local Pepperl+Fuchs representative.
Mounting, installation, commissioning, operation, maintenance and disassembly
of any devices may only be carried out by trained, qualified personnel. The
instruction manual must be read and understood.
When it is not possible to correct faults, the devices must be taken out of service
and action taken to protect against accidental use. Devices should only be
repaired directly by the manufacturer. De-activating or bypassing safety functions
or failure to follow the advice given in this manual (causing disturbances or
impairment of safety functions) may cause damage to property, environment or
persons for which Pepperl+Fuchs GmbH will not be liable.
The devices are developed, manufactured and tested according to the relevant
safety standards. They must only be used for the applications described in the
instructions and with specified environmental conditions, and only in connection
with approved external devices.

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Introduction
221278 2012-02
5
1.2 Intended Use
The devices are available as safe area version (KFD0-SD2-*.*****,
KCD0-SD-1.****(.SP)) where they can be used as a signal conditioner providing
isolation for non-intrinsically safe applications. The devices are also available as
hazardous area version (KFD0-SD2-(Ex)*.*****, KCD0-SD-(Ex)1.****(.SP),
HiC2871) allowing use as isolated barriers for intrinsic safety applications.
The safe area versions supply power to solenoids, LEDs, and audible alarms
located in a safe area. The hazardous area versions supply power to solenoids,
LEDs, and audible alarms located in a hazardous area.
The devices are loop powered, so the available energy at the output is received
from the input signal. The output signal has a resistive characteristic. As a result
the output voltage and current are dependent on the load and the input voltage.
The KC devices are available with screw terminals or spring terminals. The type
code of the versions of the KC-devices with spring terminals has the
extension ".SP".
The KFD0-SD2-(Ex)*.***** and KCD0-SD-(Ex)1.****(.SP) are single devices with
DIN rail mounting while the HiC2871 is a plug-in device to be inserted into a
specific Termination Board.
1.3 Manufacturer Information
Pepperl+Fuchs GmbH
Lilienthalstrasse 200, 68307 Mannheim, Germany
Up to SIL3
The stars replace a combination of characters, depending on the product.
1.4 Relevant Standards and Directives
Device specific standards and directives
Functional safety IEC 61508 part 1 –7, edition 2000:
Standard of functional safety of electrical/electronic/programmable electronic
safety-related systems (product manufacturer)
Electromagnetic compatibility:
- EN 61326-1:2006
- NE 21:2006
System specific standards and directives
Functional safety IEC 61511 part 1 –3, edition 2003:
Standard of functional safety: safety instrumented systems for the process
industry sector (user)
KFD0-SD2-(Ex)*.*****
KCD0-SD-(Ex)1.****(.SP)
HiC2871

221278 2012-02
6
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Planning
2 Planning
2.1 System Structure
2.1.1 Low Demand Mode
If there are two loops, one for the standard operation and another one for the
functional safety, then usually the demand rate for the safety loop is assumed to
be less than once per year.
The relevant safety parameters to be verified are:
the PFDavg value (average Probability of Failure on Demand) and
Tproof (proof test interval that has a direct impact on the PFDavg)
the SFF value (Safe Failure Fraction)
the HFT architecture (Hardware Fault Tolerance architecture)
2.1.2 High Demand Mode
If there is only one loop, which combines the standard operation and safety
related operation, then usually the demand rate for this loop is assumed to be
higher than once per year.
The relevant safety parameters to be verified are:
PFH (Probability of dangerous Failure per Hour)
Fault reaction time of the safety system
the SFF value (Safe Failure Fraction)
the HFT architecture (Hardware Fault Tolerance architecture)
2.1.3 Safe Failure Fraction
The safe failure fraction describes the ratio of all safe failures and dangerous
detected failures to the total failure rate.
SFF = (λs+ λdd) / (λs+ λdd + λdu)
A safe failure fraction as defined in EN 61508 is only relevant for elements or
(sub)systems in a complete safety loop. The device under consideration is always
part of a safety loop but is not regarded as a complete element or subsystem.
For calculating the SIL of a safety loop it is necessary to evaluate the safe failure
fraction of elements, subsystems and the complete system, but not of a single
device.
Nevertheless the SFF of the device is given in this document for reference.

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Planning
221278 2012-02
7
2.2 Assumptions
The following assumptions have been made during the FMEDA analysis:
Failure rate based on the Siemens SN29500 data base.
The stress levels are average for an industrial environment and can be
compared to the Ground Fixed Classification of MIL-HNBK-217F.
Alternatively, the assumed environment is similar to:
• IEC 60654-1 Class C (sheltered location) with temperature limits within
the manufacturer's rating and an average temperature over a long period
of time of 40 ºC. Humidity levels are assumed within manufacturer's
rating. For a higher average temperature of 60 ºC, the failure rates should
be multiplied with an experience based factor of 2.5. A similar multiplier
should be used if frequent temperature fluctuation must be assumed.
It was assumed that the appearance of a safe error (e. g. output in safe state)
would be repaired within 8 hours (e. g. remove sensor burnout).
During the absence of the device for repairing, measures have to be taken to
ensure the safety function (for example: substitution by an equivalent device).
The HART protocol is only used for setup, calibration, and diagnostic
purposes, not during normal operation.
SIL3 application (loop powered)
The device shall claim less than 10 % of the total failure budget for a
SIL3 safety loop.
For a SIL3 application operating in Low Demand Mode the total PFDavg value
of the SIF (Safety Instrumented Function) should be smaller than 10-3, hence
the maximum allowable PFDavg value would then be 10-4.
For a SIL3 application operating in High Demand Mode of operation the total
PFH value of the SIF should be smaller than 10-7 per hour, hence the
maximum allowable PFH value would then be 10-8 per hour.
Since the circuit has a Hardware Fault Tolerance of 0and it is a type A
component, the SFF must be > 90 % according to table 2 of IEC 61508-2 for
SIL3 (sub)system.
SIL2 application (bus powered)
The device shall claim less than 10 % of the total failure budget for a
SIL2 safety loop.
For a SIL2 application operating in Low Demand Mode the total PFDavg value
of the SIF (Safety Instrumented Function) should be smaller than 10-2, hence
the maximum allowable PFDavg value would then be 10-3.
For a SIL2 application operating in High Demand Mode of operation the total
PFH value of the SIF should be smaller than 10-6 per hour, hence the
maximum allowable PFH value would then be 10-7 per hour.
Since the circuit has a Hardware Fault Tolerance of 0and it is a type A
component, the SFF must be > 60 % according to table 2 of IEC 61508-2 for
SIL2 (sub)system.

221278 2012-02
8
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Planning
2.3 Safety Function and Safe State
Safety Function
The output is de-energized if the input is in low condition.
Safe State
The safety function is defined as the output is low/de-energized
(safe state: 0 V, 0 mA).
Reaction Time
The reaction time (switch off delay) for all safety functions is
< 100 ms at Iout > 10 mA.

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Planning
221278 2012-02
9
2.4 Characteristic Safety Values
The characteristic safety values like PFD, PFH, SFF, HFT and Tproof are taken
from the SIL report/FMEDA report. Please note, PFD and Tproof are related to
each other.
The function of the devices has to be checked within the proof test interval
(Tproof).
Parameters acc. to IEC 61508 Variables
Assessment type and documentation Full assessment
Pepperl+Fuchs FMEDA report 1P+F 05/07-10a R030
Device type A
Demand mode Low Demand Mode or High Demand Mode
Safety function De-energized if the input is in low condition
HFT 0
SIL (hardware) 3
λsd + λsu 114 FIT
λdd 0 FIT
λdu 0 FIT
λtotal (safety function) 227 FIT
SFF 100 %
MTBF 2451 years
PFH 30 1/h
PFDavg for T1= 1 year 30
Tproof max. 3Defined in Proof Test chapter but not necessary to
validate the safety values. See chapter 4.1.
Reaction time < 100 ms
1Pepperl+Fuchs documentation number
2acc. to SN29500. This value includes failures which are not part of the safety function/MTTR = 24 h.
3As the λdfailure rate is 0 FIT, a PFD calculation yields a PFD of zero, independent from the proof test
interval.
Ta b l e 2 . 1

221278 2012-02
10
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Safety Recommendation
3 Safety Recommendation
3.1 Interfaces
The device has the following interfaces. For corresponding terminals see data
sheet.
Safety relevant interfaces: input I, input II, output I, output II
Non-safety relevant interfaces: none
3.2 Configuration
A configuration of the device is not necessary and not possible.
3.3 Useful Life Time
Although a constant failure rate is assumed by the probabilistic estimation this
only applies provided that the useful life time of components is not exceeded.
Beyond this useful life time, the result of the probabilistic calculation is
meaningless as the probability of failure significantly increases with time. The
useful life time is highly dependent on the component itself and its operating
conditions –temperature in particular (for example, the electrolytic capacitors can
be very sensitive to the working temperature).
This assumption of a constant failure rate is based on the bathtub curve, which
shows the typical behavior for electronic components.
Therefore it is obvious that failure calculation is only valid for components that
have this constant domain and that the validity of the calculation is limited to the
useful life time of each component.
It is assumed that early failures are detected to a huge percentage during the
installation period and therefore the assumption of a constant failure rate during
the useful life time is valid.
However, according to IEC 61508-2, a useful life time, based on experience,
should be assumed. Experience has shown that the useful life time often lies
within a range period of about 8 ... 12 years.
Our experience has shown that the useful life time of a Pepperl+Fuchs product
can be higher
if there are no components with reduced life time in the safety path (like
electrolytic capacitors, relays, flash memory, opto coupler) which can produce
dangerous undetected failures and
if the ambient temperature is significantly below 60 °C.
Please note that the useful life time refers to the (constant) failure rate of the
device. The effective life time can be higher.

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Safety Recommendation
221278 2012-02
11
3.4 Installation and Commissioning
Installation has to consider all aspects regarding the SIL level of the loop. During
installation or replacement of the device the loop has to shut down. Devices have
to be replaced by the same type of devices.

221278 2012-02
12
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Proof Test
4 Proof Test
4.1 Proof Test Procedure
According to IEC 61508-2 a recurring proof test shall be undertaken to reveal
potential dangerous failures that are otherwise not detected by diagnostic test.
The functionality of the subsystem must be verified at periodic intervals
depending on the applied PFDavg in accordance with the data provided in this
manual. See chapter 2.4.
It is under the responsibility of the operator to define the type of proof test and the
interval time period.
As for these loop powered modules no dangerous failures can occur there is no
recurring proof test necessary.
Nevertheless we recommend to perform a regular functional test (e. g. in
combination with the proof test of the final element).
With the following instructions the correct working of the basic functionality can be
tested.
The ancillary equipment required:
• Digital multimeter with an accuracy better than 0.1 %
For the proof test of the intrinsic safety side of the devices, a special
digital multimeter for intrinsic safety circuits must be used. Intrinsic safety
circuits that were operated with circuits of other types of protection may
not be used as intrinsically safe circuits afterwards.
• Power supply set at nominal voltage of 24 V DC
The settings have to be verified after the configuration by means of suitable tests.
Procedure:
The entire measuring loop must be put out of service and the process held in
safe condition by means of other measures.
Prepare a test set-up for testing the device and perform the tests in
accordance to the respective chapter.
Restore the safety loop. Any by-pass of the safety function must be removed.

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Proof Test
221278 2012-02
13
4.1.1 Proof Test Procedure KFD0-SD2-(Ex)*.*****
Connect the module specific load resistor between the terminals 1+ and 2-
(and terminals 4+ and 5- for 2-channel device).
Connect the power supply set at nominal 20 V DC between terminals 7 and 8.
Measure the output voltage via multimeter. Compare the resulting value to
the nominal value specified in the table below.
Short circuit the load resistor and measure the short circuit current via
multimeter. Compare the resulting value to the nominal value specified in the
table below.
If applicable, repeat the test procedure for output II by connecting the power
supply between the terminals 9 and 8 instead of 7 and 8 and the repetition of
the output voltage and short circuit test.
Figure 4.1 Proof test set-up for KFD0-SD2-(Ex)*.*****
Usage in Zone 0, 1, 2/Div. 1, 2 only for KFD0-SD2-Ex*.*****.
Module Output resistor
(Ω)
Output voltage
(V)
Short circuit
current (mA)
KFD0-SD2-(Ex)1.1180 150 > 11 80 < Isc < 90
KFD0-SD2-(Ex)2.1045 270 > 10 45 < Isc < 50
KFD0-SD2-(Ex)1.1065 180 > 10 65 < Isc < 75
KFD0-SD2-(Ex)1.10100 100 > 9.5 95 < Isc < 105
KFD0-SD2-(Ex)1.1045 270 > 10 45 < Isc < 50
KFD0-SD2-(Ex)2.1245 270 > 12 45 < Isc < 50
Ta b l e 4 . 1
Zone 0, 1, 2
Div. 1, 2
Zone 2
Div. 2
KFD0-SD2-Ex2.1245
2-
3-
1+
5-
6-
4+
7
8 (+/-)
9
I
II
V
I
II
Multimeter
(mA)
Multimeter
(V)
Rload SC
Rload SC

221278 2012-02
14
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Proof Test

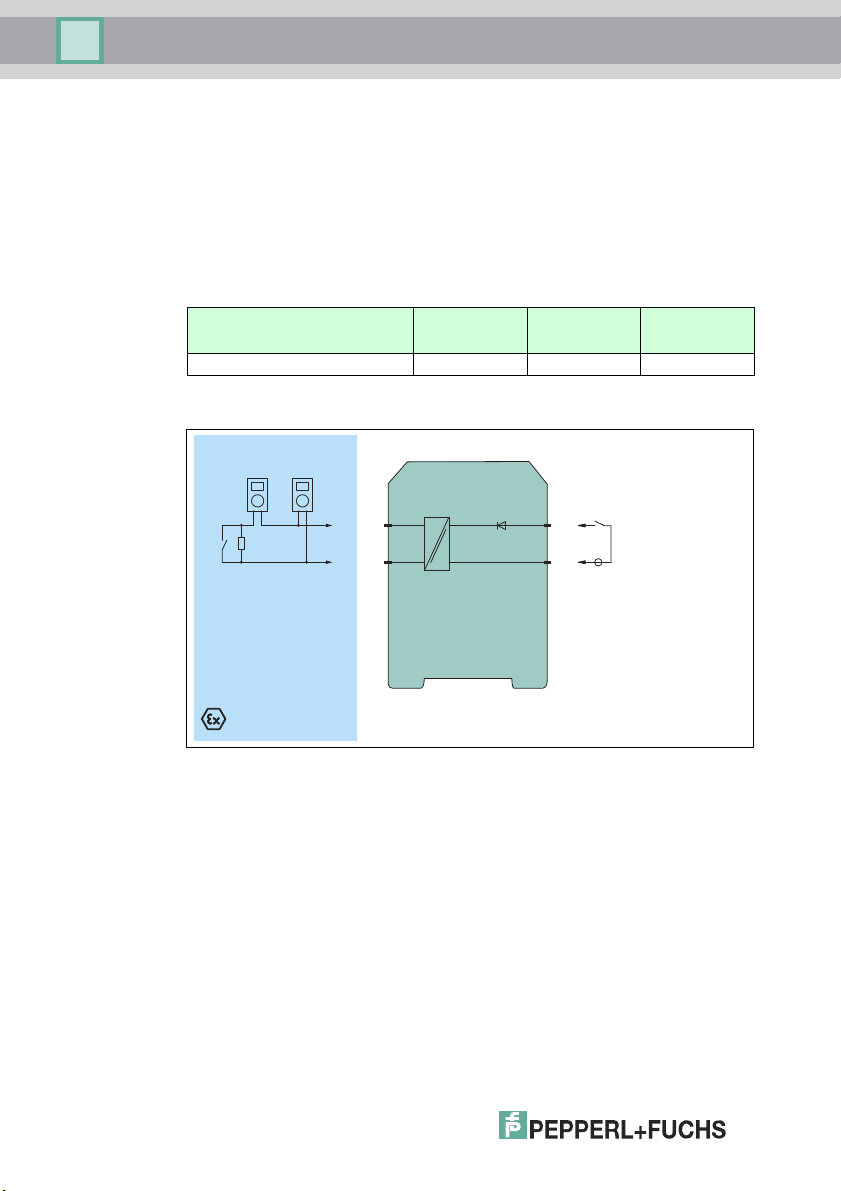

4.1.2 Proof Test Procedure KCD0-SD-(Ex)1.****(.SP)
Connect the module specific load resistor between the terminals 1+ and 2-.
Connect the power supply set at nominal 20 V DC between terminals 5+
and 6-.
Measure the output voltage via multimeter. Compare the resulting value to the
nominal value specified in the table below.
Short circuit the load resistor and measure the short circuit current via
multimeter. Compare the resulting value to the nominal value specified in the
table below.
Figure 4.2 Proof test set-up for KCD0-SD-(Ex)1.****(.SP)
Usage in Zone 0, 1, 2/Div. 1, 2 only for KCD0-SD-Ex1.****(.SP).
Module Output resistor
(Ω)
Output voltage
(V)
Short circuit
current (mA)
KCD0-SD-(Ex)1.1245(.SP) 270 > 12 45 < Isc < 55
Ta b l e 4 . 2
Zone 0, 1, 2
Div. 1, 2
Zone 2
Div. 2
Multimeter
(mA)
5+1+
2- 6-
KCD0-SD-Ex1.*
V
Multimeter
(V)
R
load
SC

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Proof Test
221278 2012-02
15

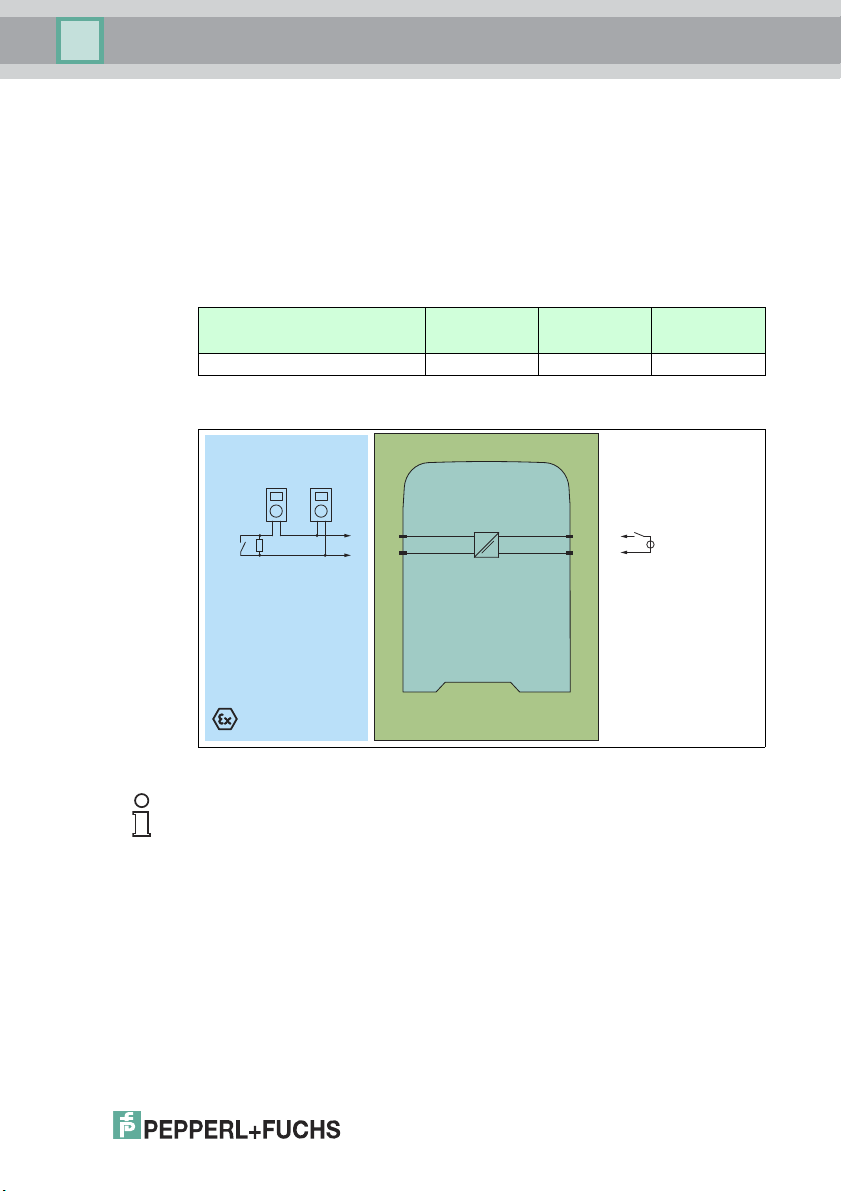

4.1.3 Proof Test Procedure HiC2871
Connect the module specific load resistor between the terminals 1+ and 4-.
Connect the power supply set at nominal 20 V DC between terminals 11+
and 14-.
Measure the output voltage via multimeter. Compare the resulting value to
the nominal value specified in the table below.
Short circuit the load resistor and measure the short circuit current via
multimeter. Compare the resulting value to the nominal value specified in the
table below.
Figure 4.3 Proof test set-up for HiC2871
Module Output resistor
(Ω)
Output voltage
(V)
Short circuit
current (mA)
HiC2871 270 > 12 45 < Isc < 55
Ta b l e 4 . 3
HiC2871
Termination Board
Zone 0, 1, 2
Div. 1, 2
Zone 2
Div. 2
11+
14-
1+
4-
SL2 SL1
V
Multimeter
(mA)
Multimeter
(V)
R
load
SC
Tip
Normally the easiest way to test H-System modules is by using a stand-alone
HiCTB08-UNI-SC-SC Termination Board. The tester then has no need to
disconnect wires in the existing application, so subsequent miswiring of the
module is prevented.

221278 2012-02
16
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Abbreviations
5 Abbreviations
FIT Failure In Time
FMEDA Failure Mode, Effects and Diagnostics Analysis
λsProbability of safe failure
λdd Probability of dangerous detected failure
λdu Probability of dangerous undetected failure
λno effect Probability of failures of components in the safety path that have
no effect on the safety function
λnot part Probability of failure of components that are not in the safety path
λtotal (safety function) Safety function
HFT Hardware Fault Tolerance
MTBF Mean Time Between Failures
MTTR Mean Time To Repair
PFDavg Average Probability of Failure on Demand
PFH Probability of dangerous Failure per Hour
PTC Proof Test Coverage
SFF Safe Failure Fraction
SIF Safety Instrumented Function
SIL Safety Integrity Level
SIS Safety Instrumented System
Tproof Proof Test Interval

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Notes
221278 2012-02
17

221278 2012-02
18
SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Notes

SAFETY MANUAL SIL K*D0-SD*-(EX)*.****(.SP), HIC2871
Notes
221278 2012-02
19

Subject to modifications
Copyright PEPPERL+FUCHS • Printed in Germany
www.pepperl-fuchs.com
Worldwide Headquarters
Pepperl+Fuchs GmbH
68307 Mannheim · Germany
Tel. [phone]
E-mail: [email protected]
For the Pepperl+Fuchs representative
closest to you check www.pepperl-fuchs.com/pfcontact
PROCESS AUTOMATION –
PROTECTING YOUR PROCESS
221278 TDOCT-1906AENG
02/2012
