PetSafe®UltraSmart®
Receiver Collar
Operating and Training Guide
Please read this entire guide before beginning.

2 Customer Care Center 1-800-732-2677
Thank you for choosing PetSafe®, the best selling brand of electronic training
solutions in the world. Our mission is to be the most trusted brand in the pet
ownership experience. We want to ensure your pet’s safety by providing you
with the tools and techniques to successfully train your pet. If you have any
questions, please contact the Customer Care Center at 1-800-732-2677 or
visit our website at www.petsafe.net.
To get the most protection out of your warranty, please register your product
within 30 days at www.petsafe.net. By registering and keeping your receipt,
you will enjoy the product’s full warranty and should you ever need to call the
Customer Care Center, we will be able to help you faster. Most importantly,
PetSafe®will never give or sell your valuable information to anyone. Complete
warranty information is available online at www.petsafe.net.

www.petsafe.net 3
How the System Works
A radio signal is sent by the transmitter to a receiver located on your dog’s collar.
The signal is transmitted through a wire which is placed along the boundaries
you want to establish.The wire is an antenna that carries the signal.The receiver,
attached to your dog’s collar, provides a warning beep when he approaches
the wire. If your pet continues into the Static Correction Zone, a safe Static
Correction will be delivered through the Contact Points to get his attention until
he returns to the Pet Area. Although harmless, this will discourage him from
continuing further.Three adjustable levels of correction allow you to choose the
one that is appropriate for your dog’s temperament. The PetSafe®UltraSmart®
In-Ground Fence™has been proven safe, comfortable and effective for dogs over
8 pounds.

4 Customer Care Center 1-800-732-2677
Prepare the Receiver Collar
Your Receiver Collar comes with short Contact Points installed. Use
the long Contact Points for pets with long or thick hair.Tighten the
Contact Points using the Contact Point Wrench included in your
In-Ground Fence™(A). Check the tightness weekly.
Charge the Receiver Collar
Before you can begin using the Receiver Collar, you will need
to charge it for 2-3 hours using the Receiver Collar Charger
included with the UltraSmart®In-Ground Fence™. Additional
Receiver Collar Chargers (part #IUA-005) can also be
purchased from the Customer Care Center.The Receiver
Collar fits on top of the charger with the Contact Points facing
down through the holes (B).The Receiver Collar light will
glow red when the collar is properly seated and charging.The
light will turn green when charging is complete. A built in
safety circuit prevents the Receiver Collar from overcharging.
A
B
The Receiver Collar will achieve a full charge in 2-3 hours. Each charge can last up to three
months depending on frequency of use.
Caution: Do not charge your Receiver Collar every night. Frequent charging can have a
negative effect on the battery. We recommend that the Receiver Collar be used until the
Receiver Indicator Light blinks yellow or red.

www.petsafe.net 5
The Fence Transmitter includes a Collar Charge Reminder Switch that you can set
to alert you when it is time to charge your dog’s Receiver Collar.The “A” Setting will
alert after 60 days and the “B” setting will alert after 30 days.To set the reminder, turn
the switch to the OFF position, then move to either the A or B setting. After the 30 or
60 days has passed, the Fence Transmitter will sound three short reminder tones every
minute.To reset the switch, turn it to the OFF position and move back to either setting
A or B, or you can choose to turn the switch OFF to disable this feature.
ReadyTest™Feature
ReadyTest™gives you added confidence that the Receiver Collar is working and
ready to use.When you remove the Receiver Collar from the charger, the receiver will
automatically go into self-test mode for approximately 8 seconds.The receiver’s internal
diagnostics will check that the battery charge is full and that all circuits are working
correctly. Do not touch the Contact Points while the receiver is in test mode.
When the collar is removed from the charger, the indicator light will go off and then
come back on.The light will first glow red for three seconds, then go off.The indicator
light will come back on for five seconds to indicate the status of the battery (green,
yellow or red).The ReadyTest™is complete once you see the battery indicator status.
If the Receiver Collar beeps and the indicator light glows solid red for 20 seconds, the
ReadyTest™self-test has failed. Replace the Receiver Collar in the charger for 5 seconds
and then remove. Do not touch the Contact Points. If the Receiver Collar continues to
fail the ReadyTest™, call the Customer Care Center.

6 Customer Care Center 1-800-732-2677
PerfectFit™Test for Collar Fit
This test is an added feature to verify fit but is not required for the system to function.
After the ReadyTest™, the Receiver Collar will go into PerfectFit™test mode. This mode
begins with a flashing yellow light.To use this feature, you must place the Receiver Collar
on your dog within 90 seconds of removing it from the Collar Charger.The Receiver Collar
will emit a chime tone as the Contact Points touch your dog’s skin.You will know you
have the proper fit when the collar chimes and flashes green 5 consecutive times. After 90
seconds, the Receiver Collar moves into normal operation mode.
The Receiver Collar will still function normally if you are unable to place the Receiver Collar
on your dog within 90 seconds of removing it from the Collar Charger. If you wish to use the
PerfectFit™test after 90 seconds have passed, place the Receiver Collar back on the charger for 5
seconds. Remove the collar and allow it to complete the ReadyTest™before placing it on your dog.
To Set the Correction Level
The Static Correction Level can be set to three different levels depending on
the temperament of your dog: Low, Medium, or High.The Static Correction Level is
set using the Stimulation Level Switch located on the Fence Transmitter.
On each of the Stimulation Level settings, the Receiver Collar will emit a 2 second
Warning Tone whenever your pet enters the Warning Zone. If your pet continues into
the Static Correction Zone, he will receive a Static Correction.

www.petsafe.net 7
Receiver Collar Status Indicators
The Receiver Collar Status Indicator Light along with the Receiver Collar Alarm Tone
are used to determine the operational mode, the battery status, and the correction type.
Refer to the Receiver Collar Status Indicator Table below to understand the status
lights and tones for the Receiver Collar. During normal operation, the Receiver Collar
Indicator Light will flash every 3 seconds to indicate the battery status as shown in the
table below.
Status Light Alarm Tone Condition
While on Charger
Solid Red No Tone Charge in progress
Solid Green No Tone Charge complete
No Light Charge failure, contact Customer
Care Center

8 Customer Care Center 1-800-732-2677
After Removing From Charger ReadyTest™& PerfectFit™Test
Off (1 second)
followed by
Red (3 seconds)
No Tone Unit is performing ReadyTest™
Continuous
Green/Yellow/Red
(5 seconds)
No Tone Battery Charge Indicator
Continuous Red 20 sec. ReadyTest™failure; unit is not
operational, contact Customer Care
Center
FlashingYellow
(every 1 second)
No Tone
Unit is in PerfectFit™mode for 90 sec.
after turning on
Flashing Green
(every 1 second)
Chime; 5 consecutive
chimes for confirmed fit
PerfectFit™mode indicates collar is
making true contact with dog's skin
Fast Pulsating
Green
Warning Tone Warning tone
Fast Pulsating Red Duration of the Stimulation Stimulation being delivered (up to
10 sec.)

www.petsafe.net 9
Continuous Green
(10 seconds)
No Tone Over Correction Protection; collar
locked for 10 sec.
Slow Blinking
Green (every 3
seconds)
No Tone Collar battery charge 100% - 60%
Slow Blinking
Yellow (every 3
seconds)
No Tone Collar battery charge 60% - 20%
Slow Blinking Red
(every 3 seconds)
No Tone
Collar battery charge 20% or less;
charge immediately
Anti –Linger Prevention
The Anti-Linger Prevention feature keeps your dog from staying in the Warning
Zone for long periods of time and draining the Receiver Collar battery.Your dog
will hear a two second warning tone when he reaches the Warning Zone. If your
dog does not return to the Pet Area after two seconds, he will receive a continuous
Static Correction until he returns to the Pet Area.
Run Through Prevention
This system includes a unique “run-through” prevention so that your dog cannot
escape the Pet Area without receiving an increased level of Static Correction.
The Receiver Collar automatically increases the Static Correction when your

10 Customer Care Center 1-800-732-2677
dog continues more than 1⁄3of the way through the pet fencing Field Width. For
example, if the signal is detected 12 feet from the wire and your dog enters the Static
Correction Zone, this feature is activated when he is approximately 8 feet from the
Boundary Wire.Your dog will then receive a Static Correction that is at an increased
level corresponding to the Static Correction level setting on the Fence Transmitter.
Over Correction Protection
In the unlikely event that your pet “freezes” in the Static Correction Zone, this
feature limits the Static Correction duration to 10 seconds.While the system locks
out further Static Correction, the green light will remain on for 10 seconds before
resuming the correction with tone for another 10 seconds.This pattern will repeat
for a maximum of three cycles, a duration of 60 seconds, or until the pet leaves the
Static Correction Zone.

www.petsafe.net 11
Fit the Receiver Collar
Important:The proper fit and placement of your Receiver Collar is important
for effective training.The Contact Points must have direct contact with your
pet’s skin on the underside of his neck.
Important: For comfort, safety and effectiveness of product, please ensure
the following:
During the first 2 weeks of training, do not use the training device on your pet•
without direct supervision.
Check the fit to prevent excessive pressure.You should be able to insert one•
finger between the Contact Point and your pet’s skin.
Never leave the Receiver Collar on your pet for more than 12 consecutive hours.•
Your pet must be carefully examined daily for any signs of a rash or sore.•
If a rash or sore is observed, discontinue the use of the Receiver Collar for a•
few days.
If the condition persists beyond 48 hours, see your veterinarian.•
Your dog’s neck and the Contact Points must be washed weekly with a wash•
cloth and mild hand soap, then rinsed thoroughly.
A condition called Pressure Necrosis, which is a devitalization of the skin due
to excessive and prolonged contact against the Contact Points, may occur if the
steps above are not followed.

12 Customer Care Center 1-800-732-2677
To assure a proper fit, please follow these steps:
Turn the Power OFF at the Fence Transmitter.1.
Start with your pet standing comfortably (2. C).
Place the Receiver Collar on your pet so that the “PetSafe3.
®
” logo
is right side up and the receiver is directly under your pet’s chin.
Center the Contact Points underneath your pet’s neck, touching
the skin (D). Note: It is sometimes necessary to trim the hair around
the Contact Points to make sure that contact is consistent.
C
The PetSafe4. ®QuickFit™Collar is
designed so you can quickly attach and
remove the Receiver Collar from your
pet while maintaining the desired fit.
With the Snap Buckle fasteneda.
(E), thread the collar through the
Metal Buckle (F).
D
Slide the excess collar through the “C” Loop on top of the Snap Buckle (b. G).This
will hold the excess collar in place.
Once the collar fit is determined, use the Snap Buckle to remove and replace the collar.c.

www.petsafe.net 13
The Receiver Collar should fit snugly,5.
yet loose enough to allow one finger
to fit between a Contact Point and
your pet’s neck (H). Allow your pet
to wear the collar for several minutes,
then recheck the fit. Check the fit
again as your pet becomes more
comfortable with the Receiver Collar.
Trim the collar as follows:6.
Mark the desired length of thea.
collar with a pen. Allow for
growth if your pet is young or
grows a thick winter coat.
Remove the Receiver Collar fromb.
your pet and cut off excess.
Snap Buckle
E
“C” Loop
Metal Buckle
F
G H
Replacement collar straps are available through the Customer Care Center.
Check the Fit using PerfectFit™Test
To check the fit of the Receiver Collar using the PerfectFit™test, place the collar on the
Collar Charger for 5 seconds. Remove the Receiver Collar and wait approximately 8
seconds for the collar to go through the ReadyTest™. Do not touch the Contact Points
during the ReadyTest™. Place the collar on your pet and adjust the tightness until you
hear the 5 consecutive chimes, indicating a good fit.

14 Customer Care Center 1-800-732-2677
Taking Your Pet Out of the Pet Area
Important: Remove the Receiver Collar and leave it in the Pet Area.
Once your pet learns the Boundary Zone, he will be reluctant
to cross it for walks or car rides.
Option 1: Replace the Receiver Collar with a regular collar.
Put your pet in a car that is within the Pet Area and drive him
out of the Pet Area.
Option 2: Replace the Receiver Collar with a regular collar
and leash.Walk your pet out of the Pet Area while giving a
command such as “OK” at a specific place of the Boundary
Zone (the end of your driveway, sidewalk, etc.). Always
leave the Pet Area with a leash at this place and your pet will
associate leaving the Pet Area only on a leash, only at this place,
and only with a person.You may initially need to convince your
pet to leave the Pet Area with a food treat and lots of praise.
Note:You may also carry your pet out of the Pet Area.

www.petsafe.net 15
Working with PetSafe®Pawz Away™Pet Barriers
Your UltraSmart®Receiver Collar also works with our Pawz
Away™deterrence products to keep your pet away from areas
inside or outside your home.

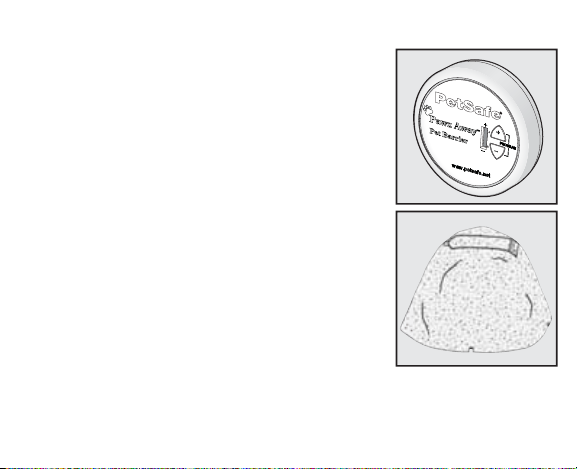

The Pawz Away™Indoor Pet Barrier (part number ZND-1000)
protects areas inside your home and can teach your pet to stay
off of furniture, away from trash or out of certain rooms.The
small, battery operated Indoor Barrier fits discreetly inside your
home and protects a circular area up to 12 feet in diameter. (I)
The Pawz Away™Outdoor Pet Barrier (part number RFA-378)
teaches your pet to avoid areas in your landscape.The waterproof
and battery operated Outdoor Barrier is disguised as a rock to
blend into your landscape. It can wirelessly protect a circular area
up to 16 feet in diameter or protect a custom shaped area using
up to 150 feet of Boundary Wire. (J)
The Pawz Away™Pet Barrier systems are easy to operate
and you can use more than one to protect multiple areas.
Purchase the Pawz Away™Pet Barriers by visiting our website
at www.petsafe.net or by calling the Customer Care Center.
I
J

16 Customer Care Center 1-800-732-2677
Additional Information
The Boundary Wire is buried so that it is not accidentally tripped over or cut. Use care•
when using a weed eater or when digging near the Boundary Wire to prevent damage.
The system should only be used with healthy pets. Contact your veterinarian if•
you have concerns about the medical condition of your pet (medication, pregnant,
heart conditions, etc.).
This system is not for vicious or aggressive pets. If your pet may pose a threat•
to others, DO NOT USE THIS SYSTEM. If you are unsure if your dog is
aggressive, please consult your veterinarian or a certified trainer.
The PetSafe• ®UltraSmart®In-Ground Fence™is for residential use only.
The Static Correction will get your pet’s attention, but will not cause harm. It is•
designed to startle, not to punish.
Test the Receiver Collar at least once a month to verify that it is functioning properly.•
Check that it activates at the Boundary Wire. Battery life depends upon how often the
Receiver Collar is activated.
For your pet’s comfort, remove the Receiver Collar from your pet when indoors.•
Never leave the Receiver Collar on your pet for more than 12 consecutive hours.•

www.petsafe.net 17
Test Light Instructions
Make sure the Receiver Collar battery is fully charged.1.
Hold the Test Light contacts to the Contact Points (2. K).
Hold the Receiver Collar at your dog’s neck height with the3.
Contact Points pointing up (L) and the www.petsafe.net
website on the receiver facing the Boundary Wire.
Slowly walk toward the Boundary Wire until you hear4.
the warning tone (M).
Two seconds after the warning tone, the test light will5.
begin to flash.
K
Note:The Receiver Collar is waterproof,
which can make the beep hard to hear.
Save the Test Light for future testing.
If the Receiver Collar did not beep
or the Test Light did not flash, see
the “Troubleshooting” section.
L
Boundary
Wire
M

18 Customer Care Center 1-800-732-2677
Troubleshooting
Receiver Collar
is not beeping
or correcting.
Charge the Receiver Collar and go through the ReadyTest• ™and
PerfectFit™diagnostic tests.
Check that the Fence Transmitter Power is turned ON and•
the transmitter status light is solid green. If not, perform the
“System Test” (page 20).
The Receiver
Collar is
beeping, but
the pet is not
responding
to the Static
Correction.
Make sure the Contact Point Training Covers are not over the•
metal Contact Points.
Test the Receiver Collar with the Test Light walking toward the•
Boundary Wire.
If the Test Light flashes, check the fit of the Receiver Collar.•
Trim your pet’s fur where the Contact Points touch the neck or•
use the long Contact Points.
Increase the Static Correction Level.•
Repeat training steps to reinforce training.•

www.petsafe.net 19
The Receiver
Collar has to be
held on top of
the Boundary
Wire to
activate.
Charge the Receiver Collar.•
Adjust Field Width Control knob clockwise to increase the distance•
from the Boundary Wire that the Receiver Collar activates.You can
also adjust the Field Size Switch to another setting.
If using a Double Loop, make sure Boundary Wires are•
separated by at least 5 feet.
If the Receiver Collar still has to be held on top of the Boundary•
Wire, perform the “System Test” (page 20).
Receiver Collar
is not charging.
Check that the Receiver Collar is properly seated on the Collar•
Charger with PetSafe®logo facing up.
Verify that the contact on the Collar Charger is clean and that•
there is no coating on the Receiver Collar Contact Points.
Check that the Receiver Collar strap is not pushing the receiver•
up off of the Collar Charger.
If the Indicator Light on the Receiver Collar still does not glow•
red when placed on the Collar Charger, there is a problem with
the Collar Charger. If the Indicator Light glows red when placed
on the Collar Charger but goes out after removing the Receiver
Collar without performing the ReadyTest™there is a problem
with the Receiver Collar. Call the Customer Care Center.

20 Customer Care Center 1-800-732-2677
System Test
The system test is used to determine cause of system problems that have not been
addressed elsewhere in this guide.You will need a 10 foot piece of Boundary Wire with
3⁄8inch of insulation removed from each end to use as a test loop wire. Follow the steps
below to perform the system test:
Remove the Receiver Collar from your dog and make sure it is fully charged.1.
Turn the Fence Transmitter Power OFF.2.
Set the Field Size switch to SM.3.
Set the Static Correction Level (STIM) to HI.4.
Disconnect the twisted Boundary Wire from the Loop Wire Terminals on the5.
Fence Transmitter.
Insert the two ends of the test loop wire into the Loop Wire Terminals on the transmitter.6.
Note the original position of the Field Width control knob and turn the Field7.
Width to the minimum setting (MIN).
Turn the Fence Transmitter Power ON.8.
Place the Test Light Tool Contacts on the Contact Points of the Receiver Collar.9.
While holding the Receiver Collar with Test Light Tool in place, start outside of the
test loop and walk toward the loop. Make a mental note of the distance between you
and the wire when the Receiver Collar activates.
Turn the Field Width control knob to 12 o’clock or a medium setting and repeat10.
Step 8.The distance where the Receiver Collar activates should be greater.
