Pfeiffer Vacuum RC 5501 Owner's manual

SUPPLEMENTARY INFORMATION
EN
Translation of the Original
RC 5501 | RC 7501 | RC 15001
Electronic drive unit on mounting plate for HiLobe

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new electronic drive unit is designed
to support you in your individual applications with maximum performance and without
malfunctions. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a
comprehensive and complete range of top-quality products and first-class service. With this
expertise, we have acquired a multitude of skills contributing to an efficient and secure
implementation of our product.
Knowing that our product must not interfere with your actual work, we are convinced that our
product offers you the solution that supports you in the effective and trouble-free execution of
your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/16

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This document applies to the following devices:
●Electronic drive unit on mounting plate for HiLobe
This supplementary information describes important deviations from the standard product and is valid
only in conjunction with the valid operating instructions.
1.1.1 Applicable documents
Document Document number
Operating instructions HiLobe 1002 | 1302 PW0322
Operating instructions HiLobe 1004 | 1304 | 2104 PW0329
Operating instructions HiLobe 2704 | 4504 | 6204 PW0333
Operating instructions HiLobe 8103 | 11003 | 14003 PW0328
Operating instructions HiLobe 8104 | 11004 | 14004 PW0334
Tbl. 1: Applicable documents
You can find these documents in the Pfeiffer Vacuum Download Center.
1.1.2 Variants
Electronic drive unit Pump type Sensor connections
RC 5501 HiLobe 1002 | 1302
HiLobe 1004 | 1304 | 2104
Temperature sensor
Temperature sensor/fan
RC 7501 HiLobe 2704 | 4504 | 6204 Temperature sensor/fan
RC 15001 HiLobe 8103 | 11003 | 14003 Temperature sensor
HiLobe 8104 | 11004 | 14004 Temperature sensor/fan
Tbl. 2: Variants
1.2 Abbreviations
Abbreviation Meaning in this document
FC Frequency converter
RC Roots control
Tbl. 3: Abbreviations used in this document
About this manual
3/16

2 Safety
2.1 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Low Voltage Directive 2014/35/EU. Where applicable, all life cycle phases of the prod-
uct were taken into account.
Risks during installation
DANGER
Danger to life from electric shock
Touching exposed and voltage-bearing elements causes an electric shock. Improper connection of
the mains supply leads to the risk of touchable live housing parts. There is a risk to life.
►Before the installation, check that the connection leads are voltage-free.
►Make sure that electrical installations are only carried out by qualified electricians.
►Provide adequate grounding for the device.
►After connection work, carry out an earthed conductor check.
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.
WARNING
Risk of danger to life through missing mains disconnection device
The vacuum pump and electronic drive unit are not equipped with a mains disconnection device
(mains switch).
►Install a suitable motor protection switch.
2.2 Limits of use of product
Parameter Electronic drive unit
Installation altitude max. 1000 m above sea level
Ambient temperature +5 °C to +40 °C
Relative humidity of air max. 85 %
Tbl. 4: Limits of use of electronic drive unit
Safety
4/16

3 Product description
3.1 Functional description
1
2
3
4
5
6
7
8
Fig. 1: Layout of the electronic drive unit
1 Mounting plate 5 Shield clamp, motor connecting cable
2 Brake resistor (not shown) 6 Connector for air and temperature sensors
3 Frequency converter 7 Terminal strip
4 Interface panel 8 Line filter
The RC electronic drive unit is a frequency converter for controlling the rotation speed of HiLobe roots
pumps. The frequency converter is wired to the associated components and installed on a mounting
plate. The power is connected via the terminal strip.
3.2 Scope of delivery
●Electronic drive unit on mounting plate for HiLobe
●Cable set for fan and temperature sensors, 2 m
●Motor connection cable, 2 m
●Operating instructions
Product description
5/16

4 Installation
4.1 Installing electronic drive unit in control cabinet
NOTICE
Damage caused by overheating
The ambient temperature must not exceed the permissible operating temperature of the device.
►Make sure there is unobstructed circulation of air when installing the device.
►Periodically check and clean the installed air filter, if necessary.
Integration of mounting plate into switchgear
Observe the boundary conditions for the installation:
●DIN EN IEC 61439-1: 2021 (VDE 0660-600-1): Low-voltage switchgear and control-
gear assemblies
Prerequisites
●Adequate space in control cabinet
Installing electronic drive unit
1. Integrate the electronic drive unit into the control cabinet assembly.
2. Use screws to fasten the mounting plate in the control cabinet.
–After it has been fastened, the mounting plate is earthed via the control cabinet.
4.2 Connection of motor connecting cable
14X1 X1
2561
UVW
5678
PE
GN/GE
W2
X3A
10 mm
Fig. 2: Connection diagram
Connection of motor connecting cable to terminal strip
1. Strip the cable along a length of 250 mm.
2. Lay the cable on the shield clamp.
3. Connect the cable according to the connection diagram.
Installation
6/16

4.3 Connecting temperature sensors and fan
For temperature monitoring, the roots pump has a pre-assembled temperature sensor with cable con-
nection on each of the two oil chambers. The two connecting cables on the fans are routed to the out-
side through openings in the fan hoods.
Temp. 1
Temp. 2
RC 7501 / RC 15001
RC 5501
Fan 1
Fan 2
Temp. 1
Temp. 2 n. c.
Temp. 1
Fan 1
Fan 2
Temp. 2
Fig. 3: Sensor and fan connectors
Temp. 1 Connector, temperature sensor 1 Fan 1 Connector, fan 1
Temp. 2 Connector, temperature sensor 2 Fan 2 Connector, fan 2
Connecting extension cable
The sensor and fan cable are safeguarded geometrically against interchanging.
1. Connect the connecting cables of the temperature sensors to the two matching connectors
(Temp. 1 | Temp 2).
2. Connect the connecting cables of both fans to the matching connectors (Fan 1 | Fan 2).
4.4 Implement electrical safety measures
WARNING
Risk of danger to life through missing mains disconnection device
The vacuum pump and electronic drive unit are not equipped with a mains disconnection device
(mains switch).
►Install a suitable motor protection switch.
Installation
7/16

Installing the mains disconnection device
1. The power details for the setting value can be found on the motor rating plate.
2. Install the circuit breaker within reach of the vacuum pump during building installation.
3. Label the circuit breaker as a disconnect device for the vacuum pump.
4.5 Connecting to mains power supply
DANGER
Danger to life from electric shock
Touching exposed and voltage-bearing elements causes an electric shock. Improper connection of
the mains supply leads to the risk of touchable live housing parts. There is a risk to life.
►Before the installation, check that the connection leads are voltage-free.
►Make sure that electrical installations are only carried out by qualified electricians.
►Provide adequate grounding for the device.
►After connection work, carry out an earthed conductor check.
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.

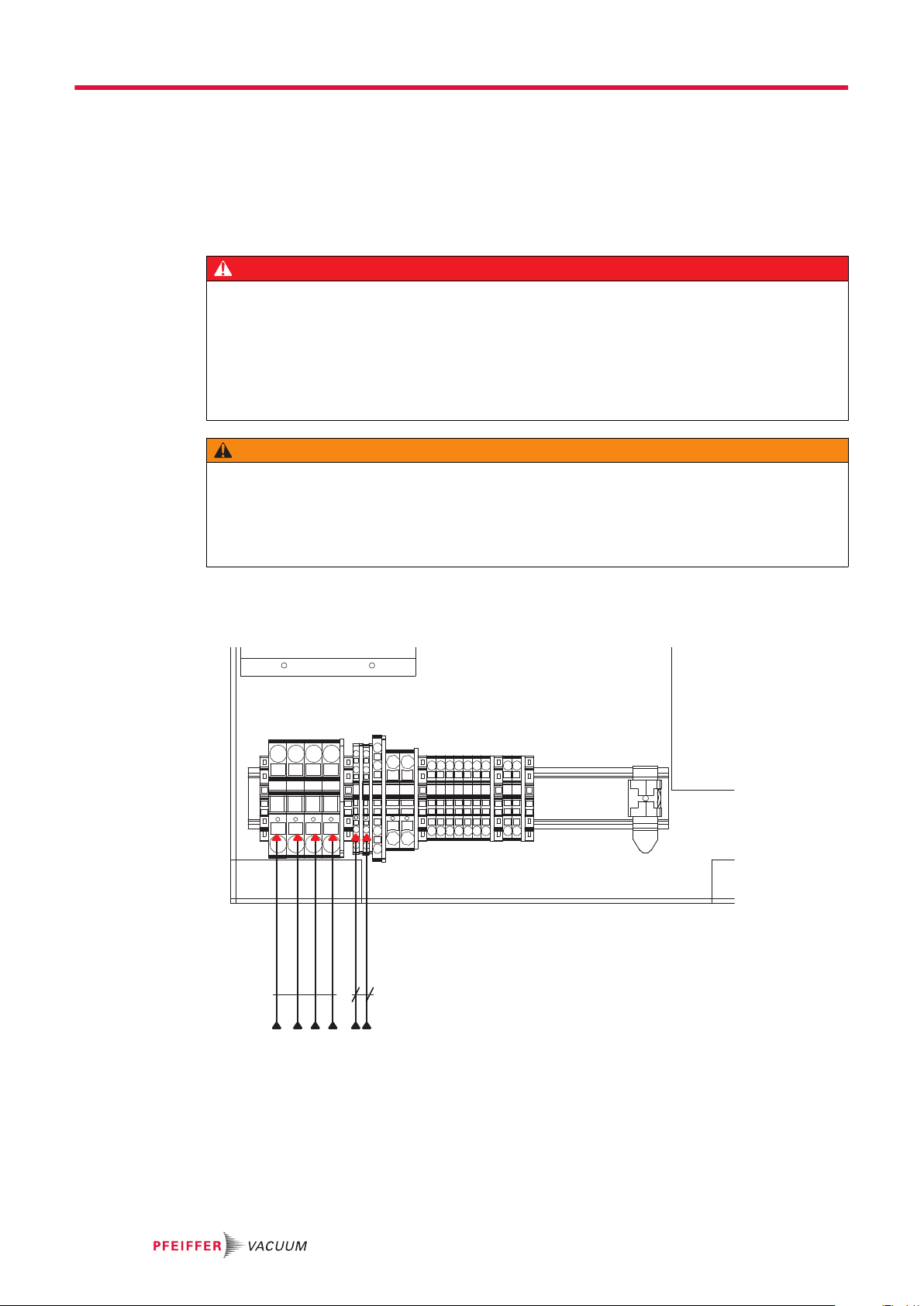

Required voltages
●Mains connection: 380 V – 480 V, 3~
●Extra-low voltage supply: 24 V/DC
X24
{
X0
11
22
3PE PE
L1 L2 L3PE
24V
0V 0.75mm²
W1
W0
Fig. 4: Mains connection terminal assignment and extra-low voltage supply
Installation
8/16

Electronic drive
unit
L1 | L2 | L3 and PE cable
cross section
Dielectric
strength
Flammability properties
RC 5501 ≥ 2.5 mm2≥ 600 V flame-retardant
RC 7501 ≥ 6.0 mm2
RC 15001 ≥ 10.0 mm2
Tbl. 5: Required properties of the power supply cable
Connecting to mains power supply
►Always ensure a secure connection to the earthed conductor (PE).
►Make sure that the supply voltage correctly matches the specification on the rating plate of the fre-
quency converter.
►Connect the 3 phases of the mains connection according to the connection diagram.
–Pay attention to the permissible tightening torques of the clamps.
Installation
9/16

5 Technical data and dimensions
5.1 Technical data
Type designation RC 5501 RC 7501 RC 15001
Order number PP 100 175 -T PP 200 175 -T PP 300 175 -T
Input voltage 3 ~ 380 – 480 V ±10%,
50/60 Hz
3 ~ 380 – 480 V ±10%,
50/60 Hz
3 ~ 380 – 480 V ±10%,
50/60 Hz
Current consumption,
max.
12 A 23 A 50 A
Output voltage 3 ~ 400 V, 0 – 400 Hz 3 ~ 400 V, 0 – 350 Hz 3 ~ 400 V, 0 – 250 Hz
Weight: 7 kg 12 kg 14.3 kg
Tbl. 6: Technical data
5.2 Dimensions
183.5
400
200
170
15
17 370 13
7
12
Fig. 5: Dimensions RC 5501
Technical data and dimensions
10/16

210.5
475
350
300
40
12.5 450
25
Ø 16
Fig. 6: Dimensions RC 7501
Technical data and dimensions
11/16

475
350
300
12.5 450
25
Ø 16
224
40
Fig. 7: Dimensions RC 15001
Technical data and dimensions
12/16

EC Declaration of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac-
turer.
Declaration for product(s) of the type:
Electronic drive unit
RC 5501
RC 7501
RC 15001
We hereby declare that the listed product satisfies all relevant provisions of the following
European Directives.
●Electromagnetic compatibility 2014/30/EU
●Basse tension 2014/35/CE
●Restriction of the use of certain hazardous substances 2011/65/EU
●Restriction of the use of certain hazardous substances, delegated directive
2015/863/EU
Harmonized standards and applied national standards and specifications:
DIN EN IEC 61439-1: 2021 DIN EN IEC 61000-6-2: 2019
DIN EN 60445: 2018 DIN EN 61800-5-1: 2017
DIN EN IEC 61800-3: 2019 DIN EN IEC 61000-6-3: 2022
DIN EN IEC 61000-6-1: 2019 DIN EN IEC 61000-6-4: 2020
The authorized representative for the compilation of technical documents is
Dr. Adrian Wirth, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Asslar, Germany.
Signature:
Pfeiffer Vacuum GmbH
Berliner Straße 43
35614 Asslar
Germany
(Daniel Sälzer)
Managing Director
Asslar, 2022-10-28

UK Declaration of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac-
turer.
Declaration for product(s) of the type:
Electronic drive unit
RC 5501
RC 7501
RC 15001
We hereby declare that the listed product satisfies all relevant provisions of the following
British Directives.
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Elec-
tronic Equipment Regulations 2012
Applied standards and specifications:
EN IEC 61439-1: 2021 EN IEC 61000-6-2: 2019
EN 60445: 2017 EN 61800-5-1: 2007 + A1: 2017
EN IEC 61800-3: 2018 EN IEC 61000-6-3: 2021
EN IEC 61000-6-1: 2019 EN IEC 61000-6-4: 2019
The manufacturer's authorized representative in the United Kingdom and the authorized
agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In-
terchange Park, MK169PS Newport Pagnell.
Signature:
Pfeiffer Vacuum GmbH
Berliner Straße 43
35614 Asslar
Germany
(Daniel Sälzer)
Managing Director
Asslar, 2022-11-09

15/16

*PW0343* ed. A - Date 2211 - P/N:PW0343BEN
