Pfeiffer Vacuum IKR 251 User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
IKR 251
Cold cathode gauge

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new gauge is designed to support
you in your individual application with maximum performance and without malfunctions. The
name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and
complete range of top-quality products and first-class service. From this extensive, practical
experience we have gained a large volume of information that can contribute to efficient
deployment and to your personal safety.
In the knowledge that our product must avoid consuming work output, we trust that our
product can offer you a solution that supports you in the effective and trouble-free
implementation of your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/48

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 8
1.3.1 Instructions in the text 8
1.3.2 Pictographs 8
1.3.3 Stickers on product 8
1.3.4 Abbreviations 9
1.4 Trademark proof 9
2 Safety 10
2.1 General safety information 10
2.2 Safety instructions 10
2.3 Safety precautions 12
2.4 Limits of use of product 13
2.5 Proper use 13
2.6 Foreseeable improper use 13
3 Product description 15
3.1 Function 15
3.2 Status display 15
3.3 Identifying the product 15
3.4 Scope of delivery 15
4 Transport and storage 17
4.1 Transporting the product 17
4.2 Storing the product 17
5 Installation 18
5.1 Establishing vacuum connection 18
5.2 Removing/installing magnetic unit 19
5.3 Establishing electric connection 20
6 Operation 23
6.1 Converting measuring signal and pressure 23
6.2 Determining effective pressure with correction factors 24
6.3 Observing ignition delay 26
6.4 Pollution 26
7 Removal 27
8 Maintenance 29
8.1 Maintaining the gauge 29
8.2 Disassembling gauge 30
8.3 Cleaning of components 31
8.4 Gauge assembling 32
9 Malfunctions 34
10 Shipping 35
11 Recycling and disposal 36
11.1 General disposal information 36
11.2 Dispose of gauges 36
12 Service solutions by Pfeiffer Vacuum 37
Table of contents
3/48

13 Spare parts 39
14 Accessories 40
14.1 Accessory information 40
14.2 Ordering accessories 40
15 Technical data and dimensions 41
15.1 General 41
15.2 Technical data 41
15.3 Dimensions 43
ETL certification 44
EC Declaration of Conformity 45
UK Declaration of Conformity 46
Table of contents
4/48

List of tables
Tbl. 1: Applicable documents 7
Tbl. 2: Variants 7
Tbl. 3: Abbreviations used 9
Tbl. 4: Permissible ambient conditions 13
Tbl. 5: Operation status 15
Tbl. 6: Constants for converting measuring signal and pressure 23
Tbl. 7: Conversion table 24
Tbl. 8: Correction factor for pressure range < 10 hPa 25
Tbl. 9: Malfunctions 34
Tbl. 10: Conversion table: Pressure units 41
Tbl. 11: Conversion table: Units for gas throughput 41
Tbl. 12: Measured and pressure values 41
Tbl. 13: Electrical data 42
Tbl. 14: Internal volume and weight 42
Tbl. 15: Ambient conditions 42
Tbl. 16: Temperatures 42
Tbl. 17: Substances in contact with media 43
List of tables
5/48

List of figures
Fig. 1: Light emitting diode 15
Fig. 2: Establishing vacuum connection 19
Fig. 3: Removing/installing magnetic unit 20
Fig. 4: Connection diagram 21
Fig. 5: Measurement cable and Hirschmann cable socket 21
Fig. 6: Relation between measuring signal and pressure 23
Fig. 7: Displayed pressure 25
Fig. 8: Removing gauge 28
Fig. 9: Individual parts 30
Fig. 10: Mounting tool for the ignition aid 33
Fig. 11: Spare parts 39
Fig. 12: Dimensions 43
List of figures
6/48

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This document describes the function of the products listed in the following and provides the most im-
portant information for safe use. The description is written in accordance with the valid directives. The
information in this document refers to the current development status of the products. The document
retains its validity assuming that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Document
Brief guide “Cold cathode gauge“ IKR 251 BG 5110
OmniControl “Control unit” operating instructions PT 0670
TPG 366 “Total Pressure Measuring and Control Unit” operating instruc-
tions
BG 5501
Declaration of conformity A component of these in-
structions
Tbl. 1: Applicable documents
You can find these documents in the Pfeiffer Vacuum Download Center.
1.1.2 Variants
This document applies to products with the following article numbers:
Article number Designation
PT R25 500 IKR 251, DN 25 ISO-KF
PT R25 501 IKR 251, DN 40 ISO-KF
PT R25 502 IKR 251, DN 40 CF-F
Tbl. 2: Variants
You can find the part number on the rating plate of the product.
Pfeiffer Vacuum reserves the right to make technical changes without prior notification.
Information that relates to only one of the products is indicated accordingly.
The figures in this document are not to scale.
Graphics without a caption reflect the product featuring a DN 25 ISO-KF vacuum connection, however,
they also apply for the other vacuum connections accordingly.
Dimensions are in mm unless stated otherwise.
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
About this manual
7/48

The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
The pictographs used in the document indicate useful information.
Note
Tip
Wear laboratory gloves
Perform a visual inspection
1.3.3 Stickers on product
This section describes all the stickers on the product along with their meanings.
D-35614 Asslar
Mod.
P/N
S/N
Input
IKR xxx
PT Rxx xxx
xxxxxxxxx
15...30 V DC 2 W
Made in Liechtenstein 2023/06
3103457
Rating plate
The rating plate is on the top of the unit.
10 cm
4”
Warning against magnetic fields
The sticker displays a warning that the
magnetic field of the gauge can interfere
with the functioning of pacemakers, and
specifies the minimum distance to the
gauge which must be maintained by per-
sons with pacemaker implants.
About this manual
8/48

1.3.4 Abbreviations
Abbreviation Explanation
c Constant for converting measuring signal and pressure
C Correction factor for calculating the pressure of gases other than air
d Constant for converting measuring signal and pressure
FKM Fluorinated rubber
MSL Mean sea level
p Pressure
WAF Width Across Flats
U Measuring signal [V] (output voltage)
Tbl. 3: Abbreviations used
1.4 Trademark proof
●Hirschmann® is a registered trademark of Hirschmann Electronics GmbH.
●Scotch-Brite® is a registered trademark of the 3M Company.
About this manual
9/48

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
Safety instructions according to product life stages
All safety instructions in this document are based on the results of a risk assessment.
Pfeiffer Vacuum has taken into account all the relevant life stages of the product.
Risks during installation
DANGER
Danger to life due to dangerous contact voltage
Voltages above 30 V (AC) or 60 V (DC) are considered dangerous in accordance with EN 61010. If
you come into contact with dangerous contact voltage, this can result in injury through electric shocks
or even death.
►Only connect the product to devices which meet the following criteria:
●Requirements of the earthed protective extra-low voltage (PELV)
●Limited power source (LPS) Class 2
►Secure the line to the product.
–Pfeiffer Vacuum measuring and control equipment complies with this requirement.
Safety
10/48

DANGER
Risk to life due to electric shock
An improperly earthed product is potentially fatal in the event of a fault.
►Connect the product galvanically with the earthed vacuum chamber.
►Ensure that the connection complies with the requirements of a protective bonding according to
EN 61010. (CF and VCR connections comply with this requirement.)
►Use electrically conductive centering rings and circlips for KF connections.
WARNING
Danger from magnetic fields
The product has a magnetic field that disturbs or impairs the function of electronic devices (e.g. pace-
makers).
►Maintain the distances specified by the manufacturer of the pacemakers.
–Pfeiffer Vacuum recommends a safety distance of at least 130 mm between the pacemaker
and the product.
►Avoid the influence of strong magnetic fields by means of magnetic field shielding.
WARNING
Risk of poisoning from toxic process gases escaping
High mechanical, chemical, or thermal stress causes leaks in the sensor. In processes involving toxic
process media, there is a risk of injury and danger to life from poisoning by escaping gas in the event
of overpressure in the vacuum system.
►Prevent high mechanical, chemical, or thermal stress from occurring.
►Prevent overpressure from occurring in the vacuum system.
►Take appropriate measures to prevent hazards or damage caused by the release of process me-
dia, such as gas supply interruption, extraction, or leak testing.
Risks during operation
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
Risks during maintenance
DANGER
Risk to life due to electric shock
If no earth connection is established, voltage flows become hazardous to the touch and could lead to
electronic components sustaining damage.
►Always tighten the electronic unit with the grub screw.
►Ensure that the grub screw of the electronic unit has been tightened correctly.
Safety
11/48

DANGER
Danger to life from electric shock caused by moisture ingress
Water that has entered the unit will result in personal injury through electric shocks.
►Only operate the unit in a dry environment.
►Operate the unit away from fluids and sources of moisture.
►Do not switch on the unit if fluid has entered it. Instead contact Pfeiffer Vacuum Service.
►Always disconnect the power supply before cleaning the unit.
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
WARNING
Health hazards due to cleaning agent
The cleaning agent being used causes health hazards which could include, for example, poisoning,
allergies, skin irritations, chemical burns or damage to the airways.
►When handling cleaning agents, observe the applicable regulations.
►Adhere to safety measures regarding handling and disposal of cleaning agents.
►Be aware of potential reactions with product materials.
Risks when shipping
WARNING
Risk of poisoning from contaminated products
Where products that contain harmful substances are shipped for maintenance or repair purposes, the
health and safety of service personnel is at risk.
►Comply with the instructions for safe distribution.
Risks during disposal
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
2.3 Safety precautions
The product is designed according to the latest technology and recognized safety engineering rules.
Nevertheless, improper use can result in danger to operator all third party life and limb, and product
damage and additional property damage.
Safety
12/48

Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Pass on safety instructions to all other users.
►Do not expose body parts to the vacuum.
►Always ensure a secure connection to the earthed conductor (PE).
►Never disconnect plug connections during operation.
►Observe the above shutdown procedures.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Do not carry out your own conversions or modifications on the device.
►Observe the unit protection degree prior to installation or operation in other environments.
►Provide suitable touch protection, if the surface temperature exceeds 70 °C.
►Inform yourself about any contamination before starting work.
2.4 Limits of use of product
Parameter Value
Relative humidity of air At temperatures up to +31°C max. 80%
At temperatures up to +40°C max. 50%
Mounting orientation Arbitrary
Usage Only in indoor areas
Installation altitude max. 2000 m MSL
Degree of pollution 2
Protection degree IP40
Tbl. 4: Permissible ambient conditions
2.5 Proper use
The gauge provides a vacuum measurement of gases within the range of 2 × 10-9 to 1 × 10-2 hPa.
Use the product according to its intended purpose
►Operate the gauge with a Pfeiffer Vacuum total pressure measuring and control unit or with an
evaluation unit provided by the customer.
►Install, operate and maintain the gauge exclusively as prescribed in these operating instructions.
►Observe the limits of use according to the technical data.
►Observe the technical data.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use; in particular:
●Use outside the mechanical and electrical limits of use
●Use with corrosive or explosive media, if this is not explicitly permitted
Safety
13/48

●Use outdoors
●Use after technical changes (inside or outside on the product)
●Use with replacement or accessory parts that are not suitable or not approved
Safety
14/48

3 Product description
3.1 Function
WARNING
Danger from magnetic fields
The product has a magnetic field that disturbs or impairs the function of electronic devices (e.g. pace-
makers).
►Maintain the distances specified by the manufacturer of the pacemakers.
–Pfeiffer Vacuum recommends a safety distance of at least 130 mm between the pacemaker
and the product.
►Avoid the influence of strong magnetic fields by means of magnetic field shielding.
The gauge has a cold cathode measuring system functioning to the principle of the inverted magnetron.
The measuring signal is logarithmically dependent on the pressure across the entire measuring range.
3.2 Status display
The LED on the top of the gauge indicates the operating status of the gauge.
1
Fig. 1: Light emitting diode
1 Green LED
LED Operation status
lights up Supply voltage available
Off No supply voltage available
Tbl. 5: Operation status
3.3 Identifying the product
You will need all the data from the rating plate to safely identify the product when communicating with
Pfeiffer Vacuum.
►To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
3.4 Scope of delivery
The scope of delivery includes the following parts:
●Gauge
●Brief instructions
Product description
15/48

Unpacking the product and checking completeness of the shipment
1. Unpack the product.
2. Remove the transport fasteners, transport protection etc.
3. Store the transport fasteners, transport protection etc. in a safe place.
4. Check that the shipment is complete.
5. Ensure that no parts are damaged.
Product description
16/48

4 Transport and storage
4.1 Transporting the product
NOTICE
Damage caused by incorrect transport
Transport in unsuitable packaging or failure to install all transport locks can result in damage to the
product.
►Comply with the instructions for safe transport.
Packing
We recommend keeping the transport packaging and original protective cover.
Transport product safely
►Observe the weight specified on the transport packaging.
►Where possible, always transport or ship the product in the original transport packaging.
►Always use dense and impact-proof transport packaging for the product.
►Remove the existing protective cover and transport protections only immediately prior to installa-
tion.
►Reattach transport locks and transport protections prior to each transport.
4.2 Storing the product
NOTICE
Damage caused by improper storage
Improper storage will lead to damage to the product.
Static charging, moisture, etc. will lead to defects on the electronic components.
►Comply with the instructions for safe storage.
Packing
We recommend storing the product in its original packaging.
Store product safely
►Store the product in a cool, dry, dust-free place, where it is protected against impacts and me-
chanical vibration.
►Always use dense and impact-proof packaging for the product.
►Where possible, store the product in its original packaging.
►Store electronic components in antistatic packaging.
►Maintain the permissible storage temperature.
►Avoid extreme fluctuations of the ambient temperature.
►Avoid high air humidity.
►Seal connections with the original protective caps.
►Protect the product with the original transport protection (where available).
Transport and storage
17/48

5 Installation
5.1 Establishing vacuum connection
DANGER
Risk to life due to electric shock
An improperly earthed product is potentially fatal in the event of a fault.
►Connect the product galvanically with the earthed vacuum chamber.
►Ensure that the connection complies with the requirements of a protective bonding according to
EN 61010. (CF and VCR connections comply with this requirement.)
►Use electrically conductive centering rings and circlips for KF connections.
DANGER
Risk to life due to electric shock
If no earth connection is established, voltage flows become hazardous to the touch and could lead to
electronic components sustaining damage.
►Always tighten the electronic unit with the grub screw.
►Ensure that the grub screw of the electronic unit has been tightened correctly.
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
WARNING
Risk of poisoning from toxic process gases escaping
High mechanical, chemical, or thermal stress causes leaks in the sensor. In processes involving toxic
process media, there is a risk of injury and danger to life from poisoning by escaping gas in the event
of overpressure in the vacuum system.
►Prevent high mechanical, chemical, or thermal stress from occurring.
►Prevent overpressure from occurring in the vacuum system.
►Take appropriate measures to prevent hazards or damage caused by the release of process me-
dia, such as gas supply interruption, extraction, or leak testing.
NOTICE
Impairment from contamination and damage
Touching the devices or components with bare hands increases the desorption rate and leads to in-
correct measurements. Dirt (e.g. dust, fingerprints, etc.) and damage impair the function.
►When working on high or ultra high vacuum systems, always wear clean, lint-free and powder-
free laboratory gloves.
►Only use clean tools.
►Make sure that the connection flanges are free of grease.
►Remove protective caps and protective covers from flanges and connections only when necessa-
ry.
►Carry out all work in a well lit area.
Installation
18/48

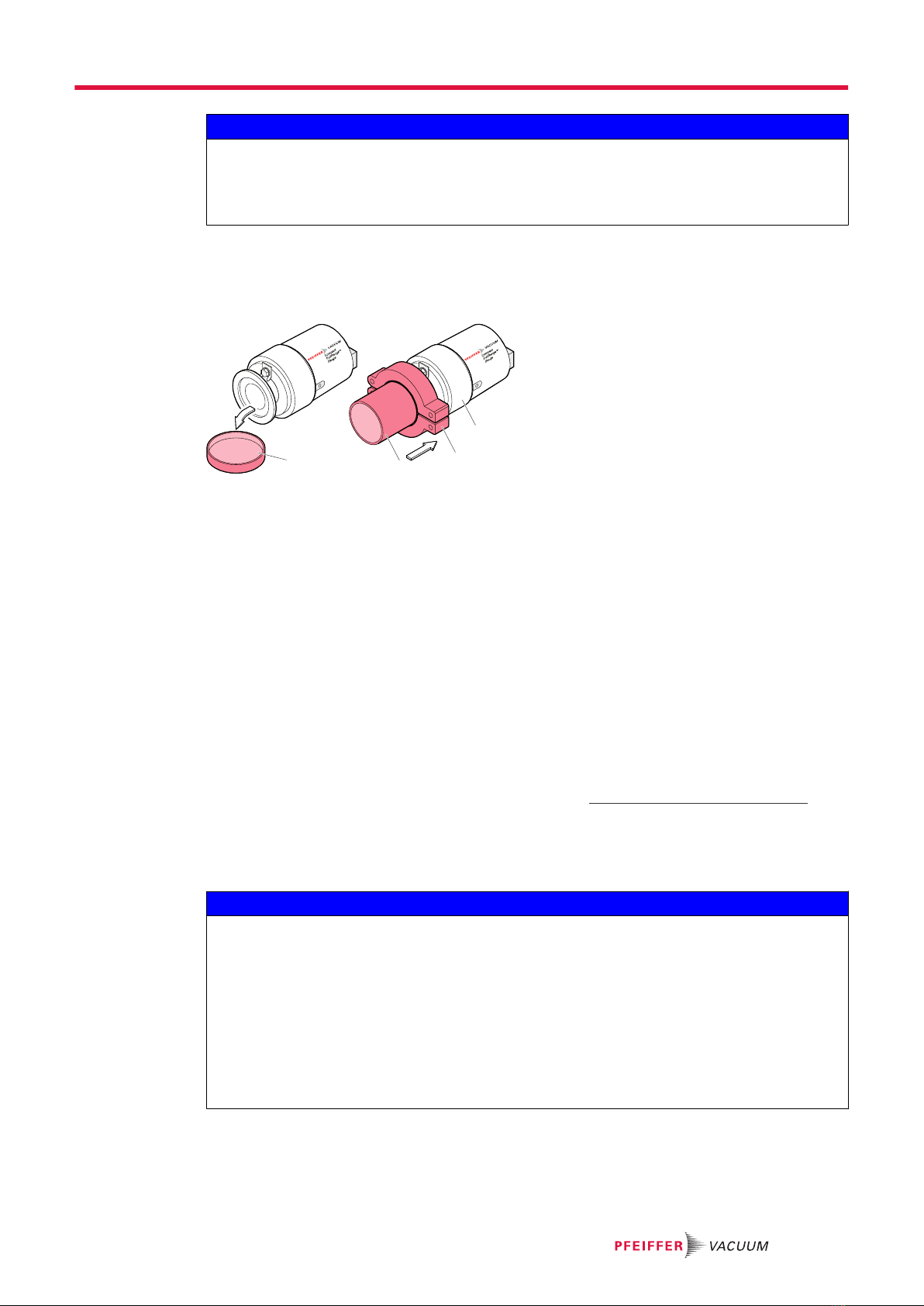

NOTICE
Electric flashover from helium
Helium can cause electric flashovers in the unit’s electronics which will destroy the electronics.
►Switch off the unit before carrying out a leak test.
►Dismantle the electronic unit before carrying out a leak test.
Prerequisites
●Appropriate ambient conditions
●Operating temperature within permissible range
●Adequate room available for electrical connection (e.g. permissible bending radii for cables)
42
1
3
Fig. 2: Establishing vacuum connection
1 Magnetic unit 3 Small flange components
2 Tensioning piece 4 Protective cap
Recommendations
►Ensure where possible that the gauge is not exposed to any vibrations during operation, as vibra-
tions in general will lead to deviations in the measured values.
►Mount the gauge in a horizontal to upright mounting orientation (flange facing downwards).
–This prevents condensate and particles from accumulating in the measurement chamber.
►Fit a seal with centering ring and filter for applications susceptible to pollution and to protect the
measuring system against contamination.
►Remove the magnetic unit of the gauge temporarily wherever installation is only possible with the
magnetic unit removed.
–This will facilitate assembly of the CF flange connection.
Procedure
1. Remove the protective cap and store in a safe place.
2. Assemble the gauge with vacuum components from the Pfeiffer Vacuum Components Shop on
the vacuum system.
5.2 Removing/installing magnetic unit
NOTICE
Impairment from contamination and damage
Touching the devices or components with bare hands increases the desorption rate and leads to in-
correct measurements. Dirt (e.g. dust, fingerprints, etc.) and damage impair the function.
►When working on high or ultra high vacuum systems, always wear clean, lint-free and powder-
free laboratory gloves.
►Only use clean tools.
►Make sure that the connection flanges are free of grease.
►Remove protective caps and protective covers from flanges and connections only when necessa-
ry.
►Carry out all work in a well lit area.
Removal of the magnetic unit should facilitate fitting of the gauge.
Required tools
●Allen key, WAF 1.5
●Open-end wrench, WAF 7
Installation
19/48

5
1
4
2
3
Fig. 3: Removing/installing magnetic unit
1 Measurement chamber 4 Electronic unit
2 Hexagon head set screw 5 Grub screw
3 Magnetic unit
Removing the magnetic unit
1. Loosen the grub screw on the side of the electronic unit.
2. Remove the electronic unit without exerting any rotary movement.
3. Loosen the hexagon head screw on the magnetic unit.
4. Remove the magnetic unit.
–Separation of the magnetic unit and measurement chamber is made more difficult due to the
effect of magnetic force and the tendency for them to tilt easily.
Installing magnetic unit
1. Fit the magnetic unit.
–Fitting of the magnetic unit is made more difficult due to the effect of magnetic force and the
tendency for it to tilt easily.
2. Fasten the hexagon head set screw on the magnetic unit.
3. Carefully fit the electronic unit.
4. Push the electronic unit as far as the limit stop.
5. Secure the grub screw on the side of the electronic unit.
5.3 Establishing electric connection
DANGER
Danger to life due to dangerous contact voltage
Voltages above 30 V (AC) or 60 V (DC) are considered dangerous in accordance with EN 61010. If
you come into contact with dangerous contact voltage, this can result in injury through electric shocks
or even death.
►Only connect the product to devices which meet the following criteria:
●Requirements of the earthed protective extra-low voltage (PELV)
●Limited power source (LPS) Class 2
►Secure the line to the product.
–Pfeiffer Vacuum measuring and control equipment complies with this requirement.
NOTICE
Damage sustained as a result of improper connection
Improper connection, incorrect polarity or impermissible supply voltage will damage the gauge.
►Always connect the supply earth (Pin 5) with the earth for the supply unit.
►Always connect the shielding (Pin 6) with the earth for the supply unit.
Installation
20/48
