Pfeiffer Vacuum TPG 201 User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
TPG 201
Pirani handheld measurement instrument

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new handheld measurement
instrument is designed to support you in your individual application with full performance and
without malfunctions. The name Pfeiffer Vacuum represents high-quality vacuum technology,
a comprehensive and complete range of top-quality products and first-class service. From
this extensive, practical experience we have gained a large volume of information that can
contribute to efficient deployment and to your personal safety.
In the knowledge that our product must avoid consuming work output, we trust that our
product can offer you a solution that supports you in the effective and trouble-free
implementation of your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/42

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 8
1.3.3 Stickers on the product 8
1.3.4 Abbreviations 8
2 Safety 9
2.1 General safety information 9
2.2 Safety instructions 9
2.3 Safety precautions 11
2.4 Limits of use of the product 11
2.5 Proper use 12
2.6 Foreseeable improper use 12
3 Product description 13
3.1 Identifying the product 13
3.2 Function 13
3.2.1 Measuring principle 13
3.2.2 USB interface 13
3.3 Scope of delivery 13
4 Transport and storage 15
4.1 Transporting the product 15
4.2 Storing the product 15
5 Installation 16
5.1 Establishing vacuum connection 16
5.2 Inserting block battery 16
5.3 Connecting power supply pack 17
5.4 Data transfer 17
6 Interfaces 19
6.1 USB interface 19
6.2 Pfeiffer Vacuum protocol for USB interface 19
6.2.1 Telegram frame 19
6.2.2 Telegram description 19
6.2.3 Telegram example 1 20
6.2.4 Telegram example 2 20
6.2.5 Data types 20
7 Parameter set 21
7.1 General 21
7.2 Status requests 21
7.3 Set value settings and pressure value query 22
8 Operation 23
8.1 Switching on handheld measurement instrument 23
8.2 Switching off handheld measurement instrument 23
8.3 Configuring handheld measurement instrument 23
8.3.1 Adjusting display unit 23
8.3.2 Setting data storage interval 24
8.4 Measuring pressure 24
Table of contents
3/42

8.4.1 Measuring pressure in auto-off mode 24
8.4.2 Measuring pressure in continuous mode 25
8.5 Storing measured values 25
8.6 Reading and setting parameters 26
8.7 Determining effective pressure with correction factors 27
8.8 Monitoring the operating condition 28
9 Dismantling 29
10 Maintenance 30
10.1 Cleaning components 30
10.2 Handheld measurement instrument calibration 31
11 Malfunctions 33
12 Shipping 34
13 Recycling and disposal 35
13.1 General disposal information 35
13.2 Disposing of handheld measurement instrument 35
14 Accessories 37
14.1 Accessory information 37
14.2 Ordering accessories 37
15 Technical data and dimensions 38
15.1 General 38
15.2 Technical data 38
15.3 Dimensions 39
Declaration of Conformity 40
Table of contents
4/42

List of tables
Tbl. 1: Abbreviations used 8
Tbl. 2: Permissible ambient conditions 11
Tbl. 3: Characteristics of the USB interface 19
Tbl. 4: Explanation and meaning of the parameters 21
Tbl. 5: Parameter set | Status requests 21
Tbl. 6: Parameter set | Set value settings and pressure value query 22
Tbl. 7: Adjusting display unit 24
Tbl. 8: Possible data storage intervals 24
Tbl. 9: Functions and displays in auto-off mode 25
Tbl. 10: Functions and displays in continuous mode 25
Tbl. 11: Functions in storage mode 25
Tbl. 12: Correction factor for pressure range < 1 hPa 28
Tbl. 13: Zero point calibration 32
Tbl. 14: ATM calibration 32
Tbl. 15: Malfunctions 33
Tbl. 16: Conversion table: Pressure units 38
Tbl. 17: Conversion table: Units for gas throughput 38
Tbl. 18: Technical data 38
List of tables
5/42

List of figures
Fig. 1: Design of the handheld measurement instrument 13
Fig. 2: Inserting block battery 17
Fig. 3: Opening dust cover 17
Fig. 4: "USB" connection 18
Fig. 5: Starting handheld measurement instrument in configuration mode 23
Fig. 6: Handheld measurement instrument in PC mode 26
Fig. 7: Examples of reading current pressure values via parameter [P:740] 26
Fig. 8: Gas type dependency of the Pirani sensor 27
Fig. 9: Low battery power display 28
Fig. 10: Dimensions 39
List of figures
6/42

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This document describes the function of the products listed in the following and provides the most im-
portant information for safe use. The description is written in accordance with the valid directives. The
information in this document refers to the current development status of the products. The document
retains its validity assuming that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Document
Declaration of conformity A component of these operating instructions
1.1.2 Variants
This document applies to the TPG 201 Pirani handheld measurement instrument.
●Article number: PT G28 201
You can find the part number on the rating plate of the product.
Pfeiffer Vacuum reserves the right to make technical changes without prior notification.
The figures in this document are not to scale.
Dimensions are in mm unless stated otherwise.
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
About this manual
7/42

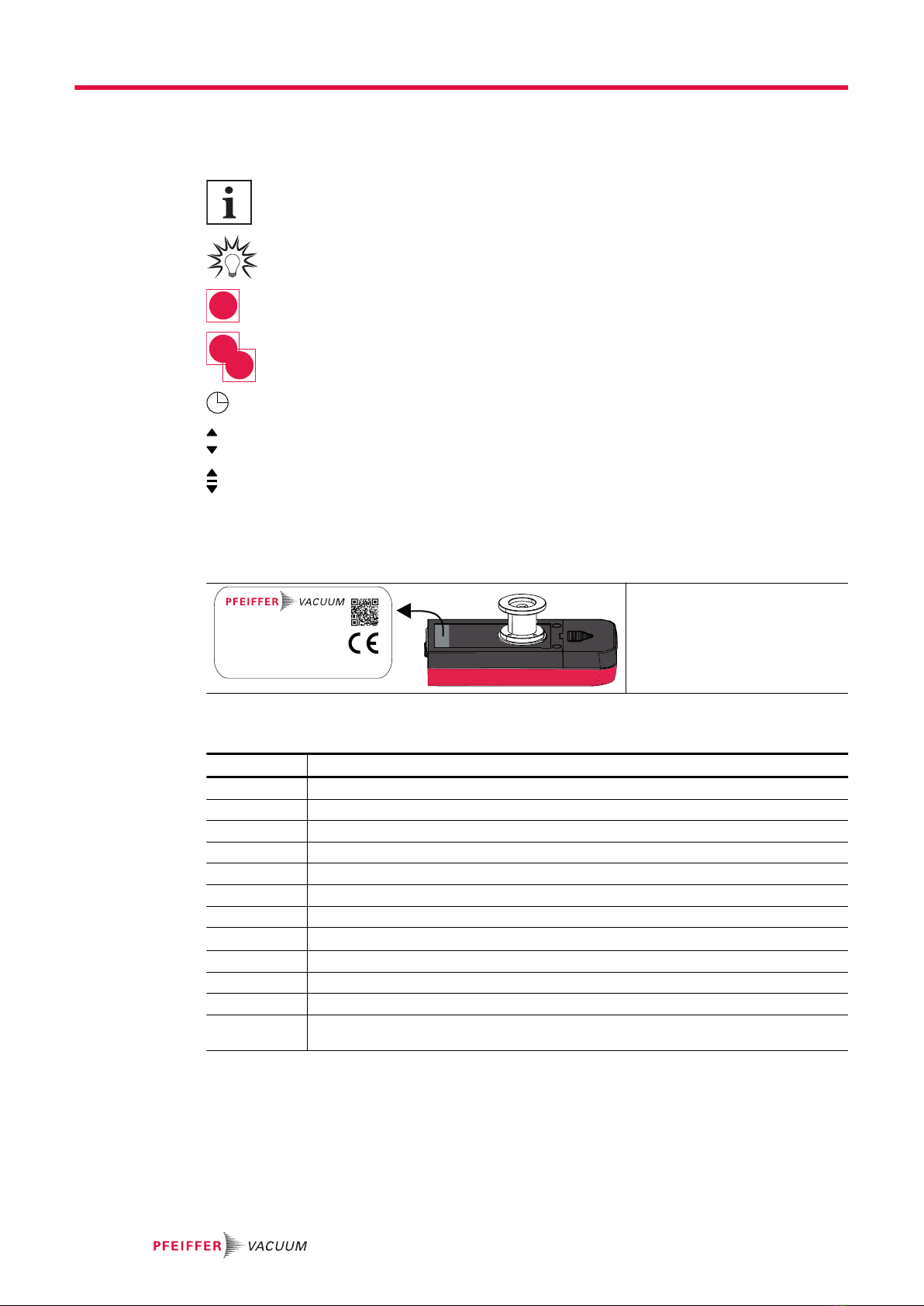

1.3.2 Pictographs
The pictographs used in the document indicate useful information.
Note
Tip
mode
Press the MODE button
mode
mode
Press the MODE button several times
5s
5 seconds
Up arrow: Continuous mode
Down arrow: Auto-off mode
Up and down arrow: Data storage active
1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meanings.
D-35614 Asslar
Mod.
P/N
S/N
Range
TPG 201
PT G28 201
Made in Germany 2022/02
xxxxxxxx
5.0x10 - 1000 hPa
-4
Rating plate
The rating plate is located on the
back of the device.
1.3.4 Abbreviations
Abbreviation Explanation
ATM Atmosphere
c Constant for converting measuring signal and pressure
C Correction factor for calculating the pressure of gases other than air
FKM Fluorinated rubber
HV High vacuum
MSL Mean sea level
p Pressure
Peff Effective pressure
TPG Total pressure gauge
U Measuring signal [V] (output voltage)
USB Universal Serial Bus
VCC Connection for positive supply voltage to an integrated circuit (voltage at the common
collector)
Tbl. 1: Abbreviations used
About this manual
8/42

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
Safety instructions according to product life stages
All safety instructions in this document are based on the results of a risk assessment.
Pfeiffer Vacuum has taken into account all the relevant life stages of the product.
Risks during installation
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
Safety
9/42

Risks during operation
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
Risks during maintenance
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
WARNING
Health hazards due to cleaning agent
The cleaning agent being used causes health hazards which could include, for example, poisoning,
allergies, skin irritations, chemical burns or damage to the airways.
►When handling cleaning agents, observe the applicable regulations.
►Adhere to safety measures regarding handling and disposal of cleaning agents.
►Be aware of potential reactions with product materials.
Risks when shipping
WARNING
Risk of poisoning from contaminated products
Where products that contain harmful substances are shipped for maintenance or repair purposes, the
health and safety of service personnel is at risk.
►Comply with the instructions for safe distribution.
Safety
10/42

Risks during disposal
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
2.3 Safety precautions
The product is designed according to the latest technology and recognized safety engineering rules.
Nevertheless, improper use can result in danger to operator all third party life and limb, and product
damage and additional property damage.
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Pass on safety instructions to all other users.
►Do not expose body parts to the vacuum.
►Always ensure a secure connection to the earthed conductor (PE).
►Never disconnect plug connections during operation.
►Observe the above shutdown procedures.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Do not carry out your own conversions or modifications on the device.
►Observe the unit protection degree prior to installation or operation in other environments.
►Provide suitable touch protection, if the surface temperature exceeds 70 °C.
►Inform yourself about any contamination before starting work.
2.4 Limits of use of the product
Installation location weatherproof (internal space)
Protection degree IP40
Installation altitude max. 2000 m
Ambient temperature 5 ℃ to 40 ℃
Rel. air humidity max. 85 %, non-condensing
Storage temperature -20 °C to 60 °C
Tbl. 2: Permissible ambient conditions
Safety
11/42

2.5 Proper use
The handheld measurement instrument provides vacuum measurement of gases within the range of
5 × 10-4 to 1000 hPa.
Use the product according to its intended purpose
►Install, operate and maintain the handheld measurement instrument only in accordance with these
operating instructions.
►Observe the limits of use prescribed in the technical data.
►Observe the technical data.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use; in particular:
●Use outside the mechanical and electrical limits of use
●Use with corrosive or explosive media, if this is not explicitly permitted
●Use for the measurement of highly flammable or combustible gases mixed with an oxidizing agent
(e.g. atmospheric oxygen) within the explosion limits
●Use outdoors
●Use after technical changes (inside or outside on the product)
●Use with replacement or accessory parts that are not suitable or not approved
Safety
12/42

3 Product description
3.1 Identifying the product
You will need all the data from the rating plate to safely identify the product when communicating with
Pfeiffer Vacuum.
1. Read the data on the product rating plate.
2. Record this data.
3. Always have all rating plate specifications to hand.
3.2 Function
The handheld measurement instrument has a Pirani sensor and is temperature-compensated. You can
connect the handheld measurement instrument to suitable flange connections and if suitable batteries
are used, you can operate it directly in a vacuum. The pressure is continuously displayed over the entire
measuring range. The integrated data logger function makes it possible to store up to 2000 measured
values in the handheld measurement instrument.
1
2
3
4
576
Fig. 1: Design of the handheld measurement instrument
1 Dust cover 5 Battery compartment cover
2 Display 6 USB interface
3 MODE button 7 Jack port for adapter
4 Small flange DN 16 ISO-KF
3.2.1 Measuring principle
The handheld measurement instrument uses an internal Pirani sensor that uses the heat conductivity of
gases for vacuum measurement. Here, the handheld measurement instrument heats a filament in a
measuring bridge to a constant temperature. The necessary bridge voltage is a measure of the absolute
pressure.
3.2.2 USB interface
You can use the USB interface to:
●Configure unit parameters (Pfeiffer Vacuum protocol)
●Record and read out measured values (DokuStar software)
●Retrieve data or change parameters from a program provided by the customer with the LabView
driver
3.3 Scope of delivery
●Handheld measurement instrument
●Operating instructions
●9 V block battery, type 6LR61
Product description
13/42

Unpacking the product and checking completeness of the shipment
1. Unpack the product.
2. Remove the transport fasteners, transport protection etc.
3. Store the transport fasteners, transport protection etc. in a safe place.
4. Check that the shipment is complete.
5. Ensure that no parts are damaged.
Product description
14/42

4 Transport and storage
4.1 Transporting the product
NOTICE
Damage caused by incorrect transport
Transport in unsuitable packaging or failure to install all transport locks can result in damage to the
product.
►Comply with the instructions for safe transport.
Packing
We recommend keeping the transport packaging and original protective cover.
Transport product safely
►Observe the weight specified on the transport packaging.
►Where possible, always transport or ship the product in the original transport packaging.
►Always use dense and impact-proof transport packaging for the product.
►Remove the existing protective cover and transport protections only immediately prior to installa-
tion.
►Reattach transport locks and transport protections prior to each transport.
4.2 Storing the product
NOTICE
Damage caused by improper storage
Improper storage will lead to damage to the product.
Static charging, moisture, etc. will lead to defects on the electronic components.
►Comply with the instructions for safe storage.
Packing
We recommend storing the product in its original packaging.
Store product safely
►Store the product in a cool, dry, dust-free place, where it is protected against impacts and me-
chanical vibration.
►Always use dense and impact-proof packaging for the product.
►Where possible, store the product in its original packaging.
►Store electronic components in antistatic packaging.
►Maintain the permissible storage temperature.
►Avoid extreme fluctuations of the ambient temperature.
►Avoid high air humidity.
►Seal connections with the original protective caps.
►Protect the product with the original transport protection (where available).
Transport and storage
15/42

5 Installation
5.1 Establishing vacuum connection
WARNING
Risk of injury resulting from overpressure in the vacuum system
Opening tensioning pieces with an overpressure > 1000 hPa in the vacuum system can lead to inju-
ries as a result of flying parts, and escaping process medium could prove harmful to health.
Elastomer seals in KF connections (e.g. O-rings) are not resistant to pressures > 2500 hPa. This
could prove harmful to health due to escaping process medium.
►Do not open any tensioning pieces when overpressure is prevalent in the vacuum system.
►Use suitable tensioning pieces for overpressure.
►Use tensioning pieces which can only be opened and closed using a tool (e.g. tightening strap-
circlip).
►Use sealing rings with an outer centering ring.
NOTICE
Impairment from contamination and damage
Touching the devices or components with bare hands increases the desorption rate and leads to in-
correct measurements. Dirt (e.g. dust, fingerprints, etc.) and damage impair the function.
►When working on high or ultra high vacuum systems, always wear clean, lint-free and powder-
free laboratory gloves.
►Only use clean tools.
►Make sure that the connection flanges are free of grease.
►Remove protective caps and protective covers from flanges and connections only when necessa-
ry.
►Carry out all work in a well lit area.
Prerequisites
●Appropriate ambient conditions
●Operating temperature within permissible range
●Adequate room available for electrical connection (e.g. permissible bending radii for cables)
Recommendations
►Where possible, ensure that the handheld measurement instrument is not exposed to any vibra-
tions during operation, as vibrations in general will lead to deviations in the measured values.
►Install the handheld measurement instrument in a horizontal to upright position (flange facing
downwards).
–This prevents condensate and particles from accumulating in the measurement chamber.
►Fit a seal with centering ring and filter for applications susceptible to pollution and to protect the
measuring system against contamination.
►Electrically connect the vacuum flange to the earthed conductor, e.g., by contacting the earthed
vacuum chamber through a metal tensioning piece.
Procedure
1. Remove the protective cap and store in a safe place.
2. Install the handheld measurement instrument on the vacuum system, with vacuum components
from the Pfeiffer Vacuum Components Shop.
5.2 Inserting block battery
Required material
●Block battery or equivalent rechargeable battery:
─9 V alkaline manganese block battery, type 6LR61; operating time approx. 40 h
─9 V lithium block battery, type 6LR61; operating time approx. 100 h
Installation
16/42

Fig. 2: Inserting block battery
Procedure
1. Open the battery compartment cover.
2. Insert the block battery.
3. Close the battery compartment cover.
5.3 Connecting power supply pack
Power supply pack and (rechargeable) battery
The (rechargeable) battery can remain in the handheld measurement instrument when the
power supply pack is connected. The handheld measurement instrument does not charge
rechargeable batteries. Use a commercially available charger to charge rechargeable bat-
teries.
Required material
●Power supply pack from accessories kit
Fig. 3: Opening dust cover
Connecting power supply pack
1. Open the dust cover.
2. Connect the power supply pack (12 V) from the accessories kit to the jack port.
5.4 Data transfer
The “USB” port is located on the top side under the dust cover and is used to connect to a PC for data
storage and unit configuration. The required USB driver can be found in the Pfeiffer Vacuum Download
Center.
Installation
17/42

15
Fig. 4: "USB" connection
1 VCC (+5 V) 4 Ground (GND)
2 Data - 5 Ground (GND)
3 Data +
Procedure
►Connect a USB cable to the handheld measurement instrument and the PC.
–When switched on, the handheld measurement instrument is ready for bidirectional data
transfer and ends the current measured value display and any data recording currently run-
ning.
►Disconnect the USB cable to exit PC mode.
–The handheld measurement instrument switches to auto-off mode.
Installation
18/42

6 Interfaces
6.1 USB interface
Designation Value
Serial interface Mini USB
Baud rate 9600 Baud
Data word length 8 bit
Parity none (no parity)
Tbl. 3: Characteristics of the USB interface
6.2 Pfeiffer Vacuum protocol for USB interface
6.2.1 Telegram frame
The telegram frame of the Pfeiffer Vacuum protocol contains only ASCII code characters [32; 127], the
exception being the end character of the telegram CR. Basically, a master (e.g. a PC) sends a tele-
gram, which a slave (e.g. electronic drive unit or gauge) responds to.
a2 a1 a0 * 0 n2 n1 n0 l1 l0 dn ... d0 c2 c1 c0 CR
a2 – a0 Unit address for slave
● Individual address of the unit ["001"]
* Action according to telegram description
n2 – n0 Pfeiffer Vacuum parameter numbers
I1 – I0 Data length dn to d0
dn – d0 Data in the respective data type (see chapter “Data types”, page 20).
c2 – c0 Checksum (sum of ASCII values of cells a2 to d0) modulo 256
CRcarriage return (ASCII 13)
6.2.2 Telegram description
Data query --> ?
a2 a1 a0 0 0 n2 n1 n0 0 2 = ? c2 c1 c0 cR
Control command --> !
a2 a1 a0 1 0 n2 n1 n0 l1 l0 dn ... d0 c2 c1 c0 cR
Data response / Control command understood -->
a2 a1 a0 1 0 n2 n1 n0 l1 l0 dn ... d0 c2 c1 c0 cR
Error message -->
a2 a1 a0 1 0 n2 n1 n0 0 6 N O _ D E F c2 c1 c0 cR
_ R A N G E
_ L O G I C
NO_DEF Parameter number n2–n0 no longer exists
_RANGE Data dn–d0 outside the permissible range
_LOGIC Logical access error
Interfaces
19/42

6.2.3 Telegram example 1
Query pressure value
Current measured pressure (parameter [P:740], slave device address: "001")
--> ? 0010074002=?106cR
ASCII 48 48 49 48 48 55 52 48 48 50 61 63 49 48 54 13
Data response: measured pressure 1 × 10+3 hPa as exponent 1E+3
Current measured pressure (parameter [P:740], slave device address: "001")
--> 0 0 1 1 0 7 4 0 0 6 1 0 0 0 2 3 0 2 5 cR
ASCII 48 48 49 49 48 55 52 48 48 54 49 48 48 48 50 51 48 50 53 13
6.2.4 Telegram example 2
Incorrect command
Incorrect command (parameter [P:888], slave device address: "001"
--> ! 0 0 1 1 0 8 8 8 0 3 1 3 0 c2 c1 c0 cR
ASCII 48 48 49 49 48 56 56 56 48 51 49 51 48 13
Unknown command
Incorrect command (parameter [P:888], slave device address: "001"
--> 0 0 1 1 0 8 8 8 0 6 N O _ D E F c2 c1 c0 cR
ASCII 48 48 49 49 48 56 56 56 48 54 78 79 95 68 69 70 13
6.2.5 Data types
No. Data type Description Length
l1 – l0
Example
0 boolean_old Logical value (false/true) 06 000000 is equivalent to
false
111111 is equivalent to
true
1 u_integer Positive whole number 06 000000 to 999999
2 u_real Positive fixed point number 06 001571 corresponds with
15.71
4 string Any character string with 6 charac-
ters. ASCII codes between 32 and
127
06 TC_110, TM_700
6 boolean_new Logical value (false/true) 01 0 is equivalent to false
1 is equivalent to true
7 u_short_int Positive whole number 03 000 to 999
10 u_expo_new Positive exponential number. The
last of both digits are the exponent
with a deduction of 20.
06 100023 is equivalent to
1,0 · 103
100000 is equivalent to
1,0 · 10-20
11 string16 Any character string with 16 charac-
ters. ASCII codes between 32 and
127
16 BrezelBier&Wurst
12 string8 Any character string with 8 charac-
ters. ASCII codes between 32 and
127
08 Example
Interfaces
20/42
