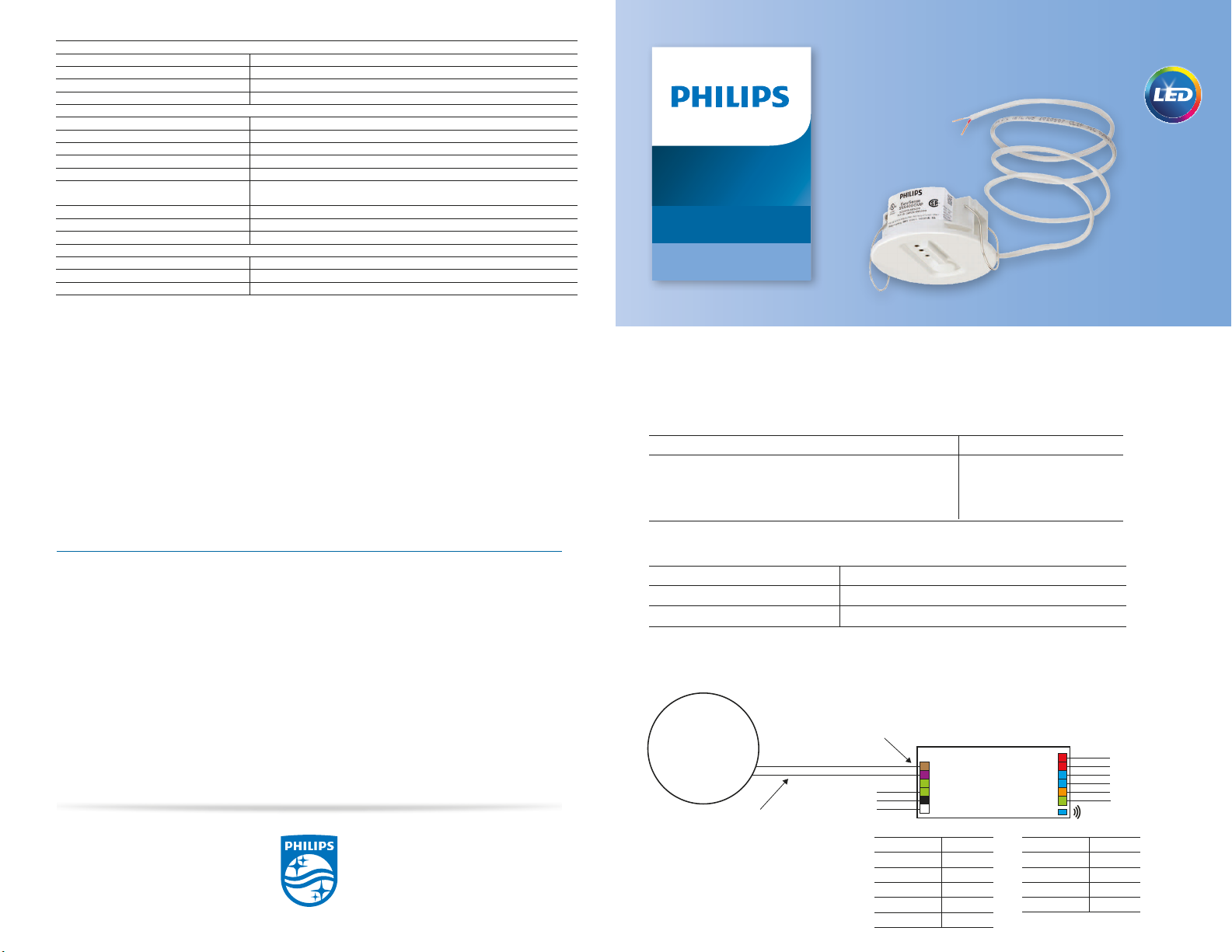

Philips EasySense SNS102CMP User manual

Transceiver
EasySense
Ceiling-Mount
Philips EasySense Quick Installation Guide
Commercial Product Name Order Code
EasySense Ceiling-Mount Sensor SNS102CMP (514851)
SNS200CMP (516666)
SNS300CMP (517839)
SNS441CMP
Connection Color
White Neutral
Black Line
Green Ground
Purple SR+
Brown SR-
Compatible LED Drivers
Sensor Part Number
Driver Model Number Description
XI040C110V054VPT1 Xitanium 40W 0.1-1.1A 27-54V 120-277V SR
XI075C200V054VPT1 Xitanium 75W 0.1-2.0A 27-54V 120-277V SR
Specications available at www.philips.com/XitaniumSR.
Wiring Diagram
XITANIUM SR
LED DRIVER
LED+
LED+
LED-
LED-
RSET2
SGND
NFC ANTENNA
SR-
Connectors
SR+
RED
WHITE
LINE
NEUTRAL
GROUND NC
36-inch 18AWG solid lead wires in
plenum-rated jacket from sensor stripped
to 3/8". Connect white wire to brown (SR-)
and red wire to purple (SR+) on driver.
Four drivers per sensor maximum.
Polarity must be maintained.
EASYSENSE
Electrical Information
Input Voltage Powered by SR driver low-voltage interface
Current Consumption 13mA
Nominal Power Consumption 200mW
Standby Power < 1 W on luminaire level, including driver standby power
Environment & Approbation
Operating Ambient Temperature Range 0°C to 55°C
Operating Humidity 0 – 95% non condensing
Storage Temperature -25°C to 85°C
Storage Humidity 0-95% non condensing
Max Case Temperature (Tcase) 55°C
Agency Approbations UL, CSA; Tested and approved for use in plenums; For use in
non-fire-rated installations only; FCC ID: 2AF2N-SNS_S; IC: 20659-SNS_S
Certication California Title 20
Limited Warranty 5 years
Digital Interface Xitanium SR
Other
Status Indicators None
No. Drivers per Sensor Four drivers per sensor maximum; Wiring polarity must be maintained
Field Conguration via NFC ior IR. Parameters set via Philips eld apps
© 2018 Philips Lighting Holding B.V. All rights reserved.
Philips reserves the right to make changes in specications
and/or to discontinue any product at any time without notice
or obligation and will not be liable for any consequences
resulting from the use of this publication.
philips.com/easysense
Philips Lighting North America Corporation
10275 W. Higgins Road, Rosemont IL 60018
Tel: [phone] Fax: [phone]
Customer/Technical Service: 800-372-3331
OEM Support: 866-915-5886
Philips Lighting Canada Ltd.
281 Hillmount Rd, Markham, ON, Canada L6C 2S3
Tel. [phone]
PLt-1621QG_EasySenseCMP QIG 07/18
Document #: 4435 290 61451 REV. C
Note: Below data applicable only for SNS102CMP and SNS200CMP. Refer to partner documentation for information
applicable to SNS300CMP.
Connection Color
Red LED+
Blue LED-
Orange RSET2
Green SGND
Operation and Conguration via Mobile App
EasySense operates immediately upon installation and energization without further commissioning. If changes from
default settings are desired, EasySense can be congured via Philips eld apps through NFC or IR. For a complete
description of the features and default settings—as well as details on the app—refer to www.philips.com/easysense.
FCC and IC Statement
This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Any
changes or modications not expressly approved by Philips could void the user’s authority to operate this equipment.
This product is intended for commercial use only.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Déclaration De Conformité À La Fcc/Ic
Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États-Unis et
d’Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est assujetti aux deux conditions suivantes
: (1) Ce dispositif ne doit pas provoquer de brouillage préjudiciable, et (2) il doit accepter tout brouillage reçu, y compris
le brouillage pouvant entraîner un mauvais fonctionnement. Tous les changements ou modications non expressément
approuvés par Philips, sont susceptibles d’annuler le droit de l’utilisateur à se servir de cet équipement. Ce produit est
exclusivement destiné à un usage commercial.
Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

Transceiver Dimensions (in/mm) Installation
Conguring Sensor Parameters
Step 1: Drill 2.5-inch hole in ceiling. It may be
more practical to remove the ceiling tile and
drill from the backside depending on material.
Step 3: Compress spring clips on sensor and
insert into ceiling hole.
Step 5: Connect the wires from the sensor to the LED Driver in the xture. Connect the white
wire from the sensor to the brown (SR-) terminal on the driver. Connect the red wire from the
sensor to the purple (SR+) terminal on the driver. Follow xture manufacturer’s instructions for
accessing the driver.
EasySense operates upon energization with
no further commissioning. See Transceiver
datasheet for sensor presets and
parameters that can be changed during
installation. Refer to “Operation and
Configuration via Mobile App” on last page
for further details.
Step 2: Feed wires from sensor into ceiling
hole. Wire length provided is 36-inches.
Cable jacket provided is plenum-rated.
Add additional wire length if necessary
(18AWG solid wire recommended).
Step 4: Sensor will clamp into place. Turn
sensor to appropriate position.
Notes:
1. For use in non-fire-rated installations only.
2. Remove power from fixtures/drivers before performing any electrical work.
3. Up to (4) drivers maximum can be connected to (1) EasySense. Polarity must be maintained.
Ø 2.480 (63) REF.
Ø 2.913 (74) REF.
1.811 (46) REF.
1.240 (31.5) REF.
