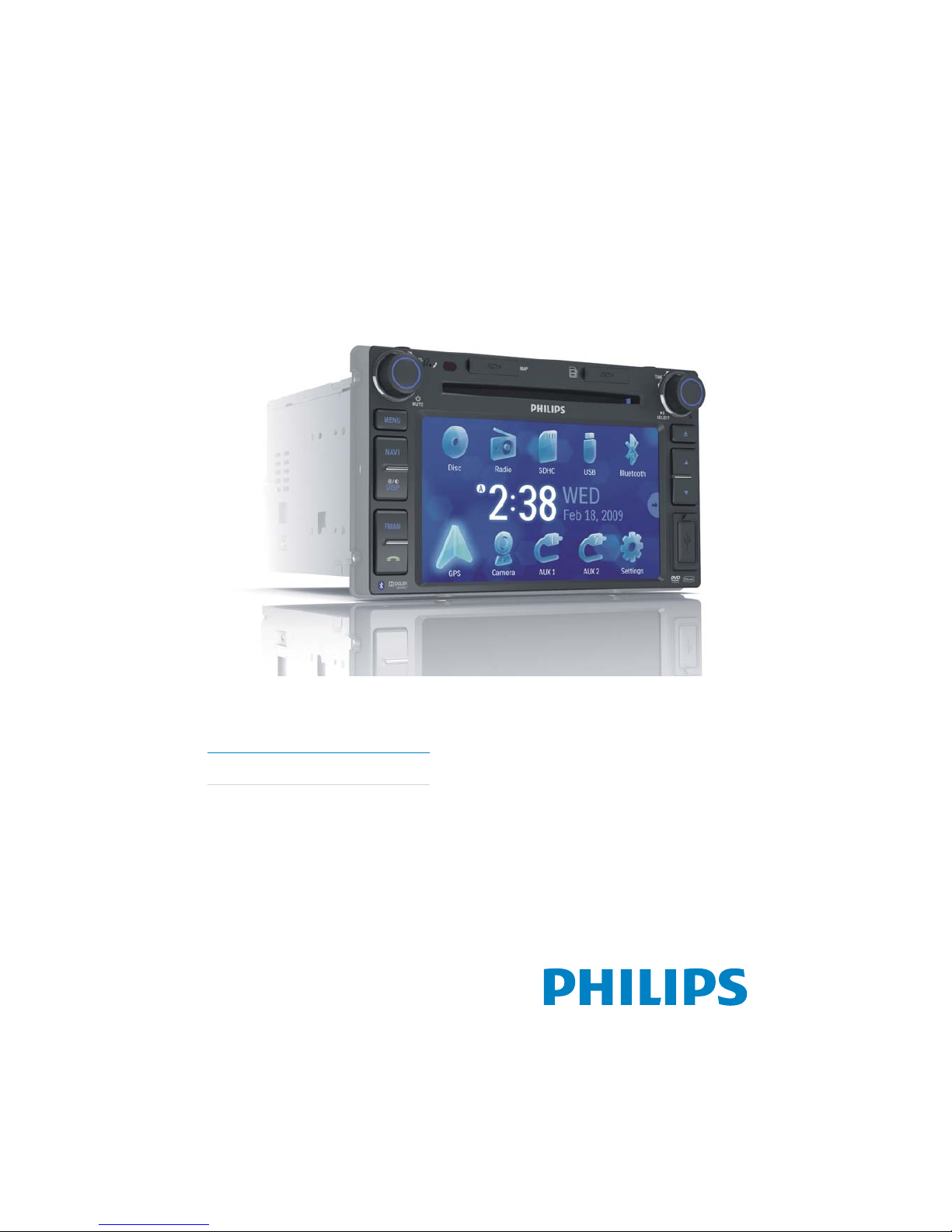

Philips CID3286/93 User manual

EN User manual
www.philips.com/welcome CID3286
Register your product and get support at

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 5
Introduction 5
What’s in the box 6
Overview of the main unit 7
3 Get started 8
Install the car audio 8
Turn on 10
Set date and time 10
Adjust screen 11
4 Use map 12
Upgrade the map 12
5 Listen to radio 13
Tune to a radio station 13
Store radio stations in memory 13
Tune to a preset station 14
6 Play 14
Load discs 14
Connect USB device 15
Insert USB or SD/MMC card 15
Play/Pause 15
Search for a folder 16
Search within a title/folder 16
Repeat 16
Repeat a section 17
Random play 17
Select audio language 17
Select audio mode 18
Select subtitle language 18
Rotate pictures 18
Zoom 18
Select slide show duration 18
7 Play with Bluetooth device 19
Pair the Bluetooth-enabled devices 19
Make a call 19
Receive call 20
Listen to music from Bluetooth device 20
Adjust Bluetooth settings 21
8 Adjust sound 21
Adjust volume 21
Mute 21
Select preset equalizer 21
Adjut fader/balance 22
Set Dynamic Bass Boost (DBB) 22
9 Adjust settings 23
Display system setup menu 23
Adjust general settings 23
Adjust sound settings 24
Adjust video settings 25
Adjust Bluetooth settings 25
Adjust language settings 26
Adjust volume settings 26
Adjust DVD rating 27
10 Others 27
Reset 27
Replace fuse 27
11 Product information 28
12 Troubleshooting 30
About Bluetooth device 31
13 Glossary 32

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
SURJUDPVÀOHVEURDGFDVWVDQGVRXQG
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
´'LY;'LY;µ&HUWLÀHGDQGDVVRFLDWHGORJRV
are trademarks of DivX, Inc. and are used
under license.
2IÀFDO'LY;&HUWLÀHGSURGXFW3OD\VDOO
YHUVLRQVRI'LY;YLGHRLQFOXGLQJ'LY;
ZLWKVWDQGDUGSOD\EDFNRI'LY;PHGLDÀOHV
7KH%OXHWRRWKZRUGPDUNDQGORJRVDUH
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
1 Important
Safety
Read and understand all instructions
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground
(earth) 12 V DC operation only.
7RUHGXFHWKHULVNRIWUDIÀFDFFLGHQWGR
no watch video during driving.
To ensure safe driving, adjust the volume
to a safe and comfortable level.
Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Never place any objects other than discs
into the disc tray/slot.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the screen! Never
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
EN

5
2 Your in-car
entertainment
system
Congratulations on your purchase, and
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from
DVD, VCD or CD
USB devices
SD/SDHC/MMC cards
External devices
FM or AM (MW) radio
Audio from Bluetooth-enabled devices
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2010 © Koninklijke Philips Electronics N.V.
All rights reserved.
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
EN

6

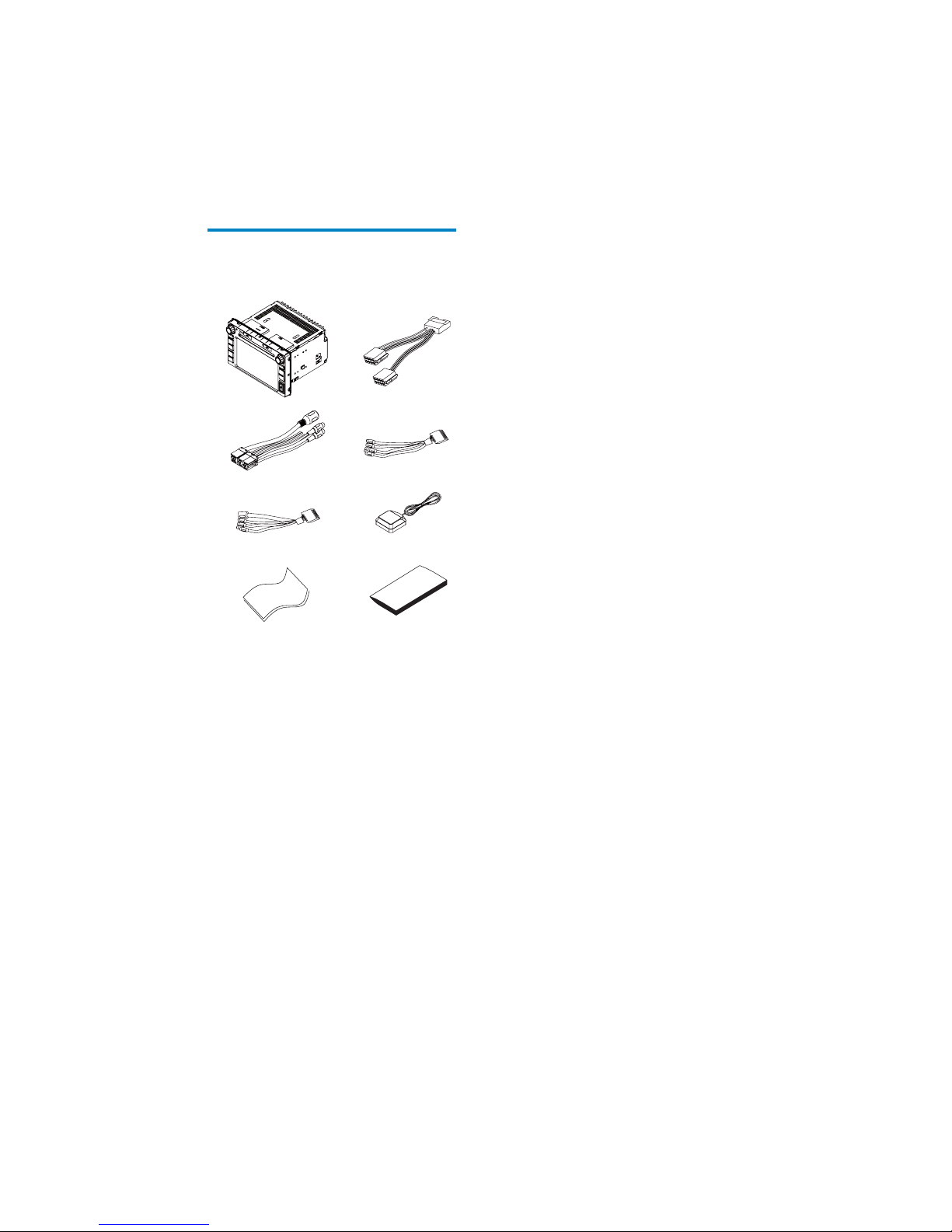

What’s in the box
Check and identify the contents of your package:
aMain unit
bPower connector
cI/O cable
dAudio out cable
eCMMB connector
fGPS antenna
gScreen cleaning cloth
hPrinting material (include User manual,
Quick start guide)
ab
cd
e
g
f
h
EN

7
i
Open the cover to insert USB device.
j
Answer phone call.
kFM/AM
Switch to the FM/AM source.
lDISP/ /
Adjust screen brightness/contrast/
color.
Turn on/off the screen display.
Adjust the display aspect ratio.
mNAVI
Enter the GPS navigation system or
exit.
nMENU
Return to the home menu.
oVOL/ /MUTE
Adjust volume.
Turn the unit on or off.
Turn mute on or off.
Overview of the main unit
aBuilt-in microphone
bSD card slot
cDisc slot
dMap card slot
eTUNE/ SELECT
Tune for radio station.
Skip to the previous or next title,
chapter, or track.
Start, pause or resume play.
&RQÀUPDQHQWU\RUVHOHFWLRQ
fRESET
Reset the unit when it hangs up.
g
Eject disc.
h/
Skip to the previous/next preset
station.
Skip to the previous/next track/folder.
Fast backward/forward for DVD video.
Move cursor up/down.
e
g
f
h
i
o
n
m
l
k
j
abd c
English
EN

8
Note on the power supply lead (yellow)
When you connect other devices to this
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the metal
body or chassis of the car.
Never connect speaker wires with stripes
to one another.
Mount in the dashboard
Note
Check wire connection before you mount the
unit into a car.
If preset radio stations are lost when the

ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected,
to avoid short-circuit, ensure that
bare wires do not touch each other.

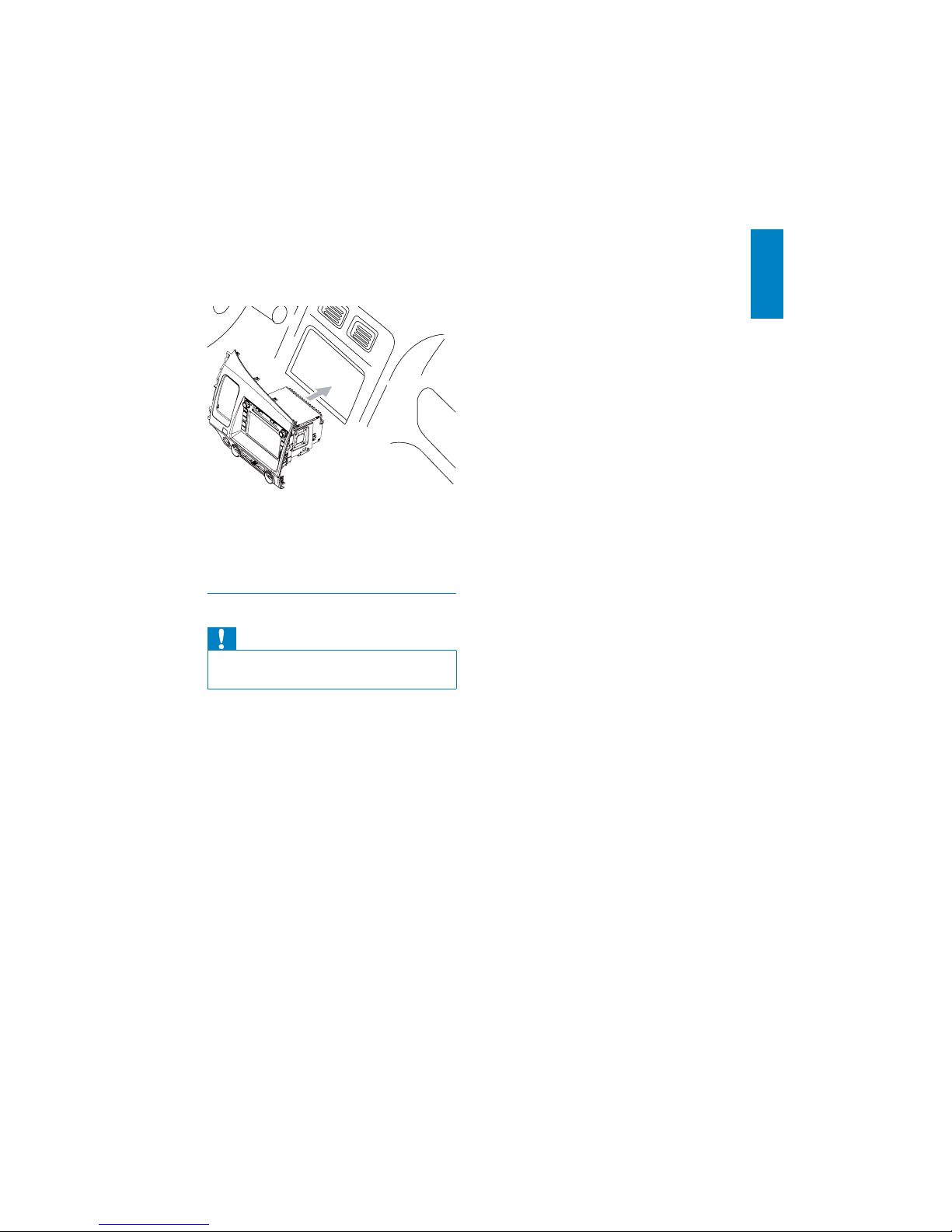

2Take out the original car audio. Keep the
air conditioner assembly and the screws.
3Mount the air conditioner assembly (A)
onto the unit with the screws (B).
A
C
B
3 Get started
Caution
Use of controls or adjustments or performance
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.

Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,

ensure that the ignition is off.
Ensure that you connect the yellow and red

power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with

electrical tape.
Ensure that the leads do not get caught under

screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to

a common ground (earth) point.
Use only the supplied mounting hardware for a

safe and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH

When you need to change the fuse, consult a
professional.
EN

9
4Connect wires (see “Connect wires”
section).
5Slide the unit into the dashboard until a
click sound is heard.
6 0RXQWRQWKHVFUHZV&WRÀ[WKHXQLW
onto the dashboard.
7Reconnect the negative terminal of the
car battery.

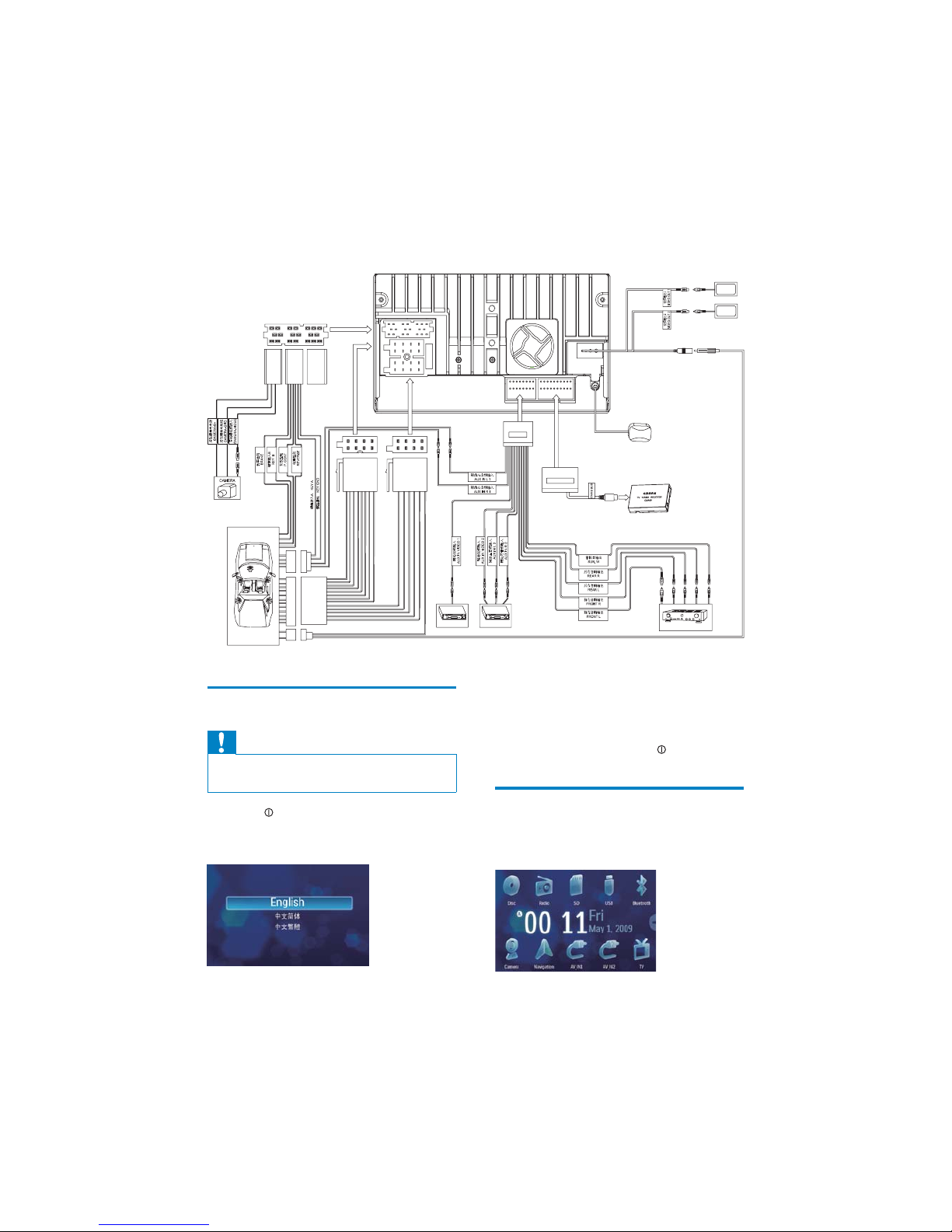

Connect wires
Caution
Ensure that all loose leads are insulated with
electrical tape.
English
EN

10
2Touch a language to select.
The OSD language is changed to the»
selected language immediately.
To turn off the unit, press for 3 seconds.
Set date and time
1Press MENU.
The main menu is displayed.»
1Check the car’s wiring carefully, then do
the other connections:
Turn on
Caution
Risk of road accidents! Never watch video or
adjust settings while you drive.
1Press to turn on the unit.
The available OSD (On-Screen Display)»
languages are displayed.
Yellow Green Blue
Red
Black Yellow
Red
White
Red
White
Yellow Yellow
AV systemAV system
AUXAUX
White
White
Red Red Brown
Amplifier
Optional accessory
GPS antenna
Radio antenna
Yellow
Yellow
Rear display
Rear display
EN

11
Set time
1Touch [Time].
2Touch on the displayed time.
A submenu is displayed.»
3Touch or to set hour and minute.
Tip
When date/time is set, touchto return to
main menu.
Adjust screen
To adjust screen brightness/contrast/color
1Press DISP/ / .
2Press or to select an item.
3Touch / to adjust the value.
4Press DISP/ /WRFRQÀUP
To turn on/off the screen, press and hold
DISP/ / .
2Touch [Settings].
3Touch [Time].
The date/time setup menu is displayed.»
Set date
1Touch [Date].
2Touch on the displayed date information.
A submenu is displayed.»
3Touch or to set year, month and day.
Set clock mode
1Touch [Clock mode].
2Touch on [12Hr] or [24Hr] to select
clock mode.
English
EN

12
Upgrade the map
1Turn off the car audio system.
2Open the MAP card cover.
3Press the map card until you hear a click
sound.
4Take out the card and bring it to the
authorized service center for upgrade.
5Insert the upgraded map card back into
the map card slot.
6Turn on the car audio.
The map upgrades in a few minutes.»
4 Use map
Note
You may need to upgrade the map before
using it (see “Upgrade the map” section)
1Touch the upper left corner to display
home menu.
2Touch [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual (in Chinese) to
operate the navigation tool.
Tip
You can pressNAVI to enter/exit the navigation
system.
EN

13
Touch to clear the last entered
number.
Touch to clear all the entered
numbers.
5Touch WRFRQÀUP
The radio station is broadcast.»
Select radio range
Before you start to search for radio stations,
you can select radio range.
1Touch .
2Touch [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
 [Distance]: Only stations with strong
signals can be broadcast.
 [Local]: Stations with strong and
weak signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1Tune to the station.
2Touch .

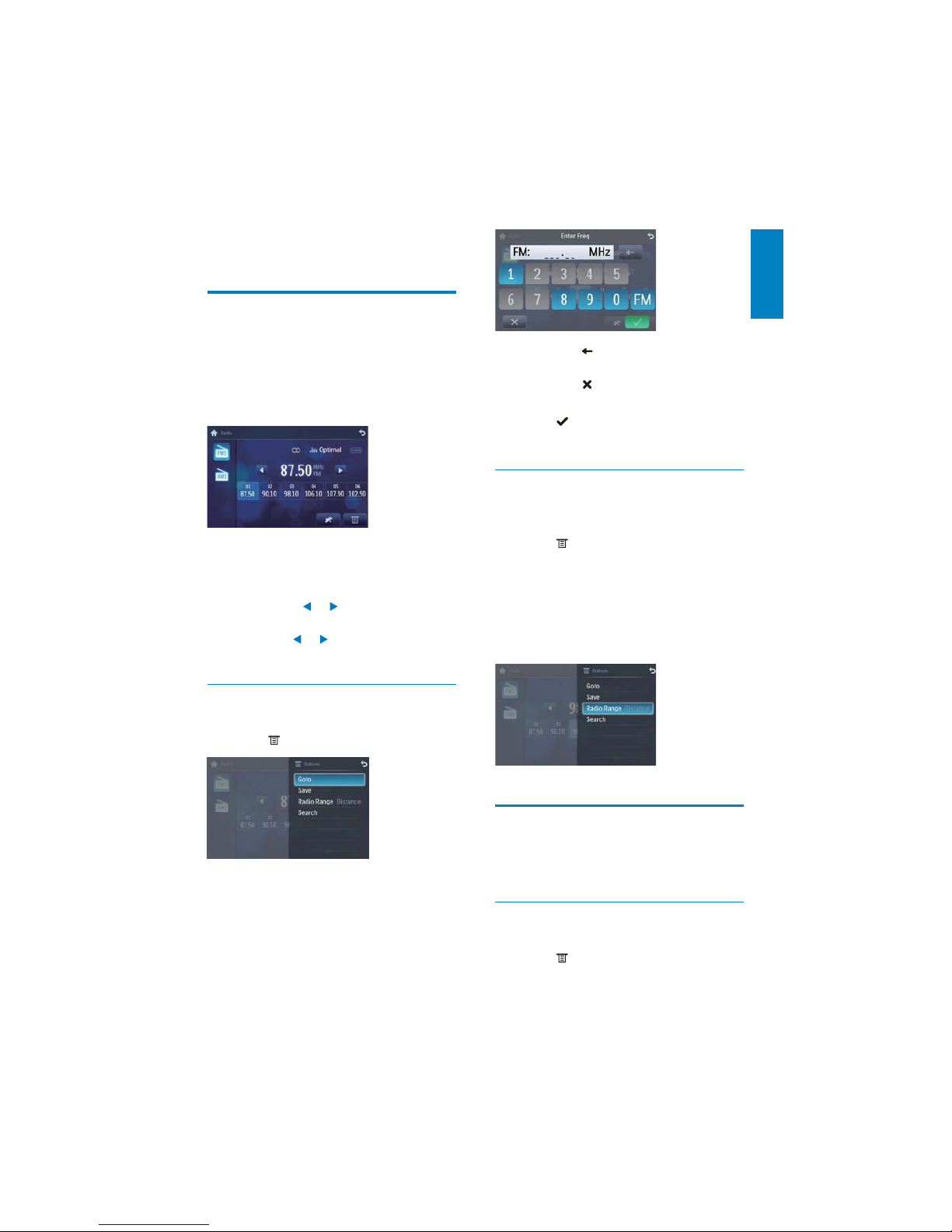

5 Listen to radio
Tune to a radio station
1Touch the upper left corner to display
home menu.
2Touch [Radio].
Band and frequency information is»
displayed.
3Touch on FM or AM to select band:
FM band options: FM1, FM2, FM3
AM band options: AM1, AM2
4 %ULHÁ\WRXFK or to tune to a radio
station by step.
Touch or for over 1 seconds to
tune to a radio station automatically.
Tune by frequency
1Touch FM or AM to select band.
2Touch .
3Touch [Goto].
4Touch the numbers to enter frequency.
English
EN

14
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW
VCD
Audio CD, CD-R, CD-RW
Note
Ensure that the disc contains playable content.
You can play DVD discs with the following
region codes:
DVD region code Country
China
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
To remove the disc, press the»button.
When the disc is ejected, the unit»
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
3Touch [Save].
4Touch one of the channels 01 to 06 to
save the select band.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Touch .
3Touch [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1Touch [Radio].
2Select band.
3Touch one of the preset channels (01 to
06) to select a preset station.
EN

15
Play starts automatically.»
Remove the SD/MMC card
1Press SOURCE to switch to another
source.
2Press the card until you hear a click sound.
The card is now disengaged.»
3Remove the SD or MMC card.
Play/Pause
1Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
For DVD movie, if a menu appears, press
to start play.
2To pause, touch .
To resume play, touch again.
Connect USB device
Note
Ensure that the device contains playable content.
1Open the USB door.
2Insert the USB device to the USB socket.
Play starts automatically.»
Note
To remove the USB device, switch to disc, radio
RURWKHUVRXUFHÀUVW
Insert USB or SD/MMC card
Note
Ensure that the device contains playable content.
The unit supports SDHC card.
1Open the SD/SDHC card cover.
2Insert the SD/MMC card into the SD/MMC
card slot.
English
EN

16
Search within a title/folder
Search by step
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch or to skip to the previous or
next chapter/track.
Direct search
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch .
The search screen is displayed.»
)RUYLGHRÀOHVWRXFK»ÀUVWWKHQ
touch .
3 7RXFKWKHQXPEHUVWRHQWHUFKDSWHUÀOH
number, then touch .
To clear the previous input, touch .
To clear all input, touch .
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
Search for a folder
)RUYLGHRÀOHV
1Touch to return to playlist menu.
2Touch WRGLVSOD\DOODYDLODEOHYLGHRÀOH
folders.
3Touch a folder, then touch or to select
DÀOH
4Touch to start play.
)RUDXGLRÀOHV
1Touch to return to playlist menu.
2Touch to display all available audio
folders.
3Touch a folder, then touch or to
VHOHFWDÀOH
4Touch to start play.
)RUSLFWXUHÀOHV
1Touch to return to playlist menu.
2Touch to display all available picture
folders.
3Touch a folder, then touch or to
select a picture.
4Touch to view the picture.
EN

17
Repeat a section
<RXFDQUHSHDWDVSHFLÀFVHFWLRQRIYLGHRÀOH
(repeat A-B).
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu, if
necessary.
3Touch repeatedly to mark:
 [Repeat A-]: the start of the section
to repeat.
 [Repeat A-B]: the end of the section
to repeat.
The selected section plays repeatedly.
4To exit A-B repeat mode, touch
repeatedly until [Repeat A-B off] is
displayed.
Random play
<RXFDQSOD\DXGLRWUDFNVÀOHVLQUDQGRPRUGHU
1During play, touch repeatedly to turn
random play on or off.
 is highlighted : start random play.
 turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu.
3Touch repeatedly.
The audio channel information is»
displayed on the upper line of the
screen.
2Touch to display the 2nd menu.
3Touch to select:
 [Repeat chapter]: play the current
chapter repeatedly.
 [Repeat title]: play all chapters in the
title repeatedly.
 [Repeat off]: cancel repeat play.
ForVCD karaoke or audio CD:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
 [Repeat]: play the current track
repeatedly.
 [Repeat off]: cancel repeat play.
)RU03:0$ÀOHV:
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch to select:
 [Repeat]: play the current track
repeatedly.
 [Repeat folder]: play all the tracks
in the current folder repeatedly.
 [Repeat off]: cancel repeat play.
English
EN

18

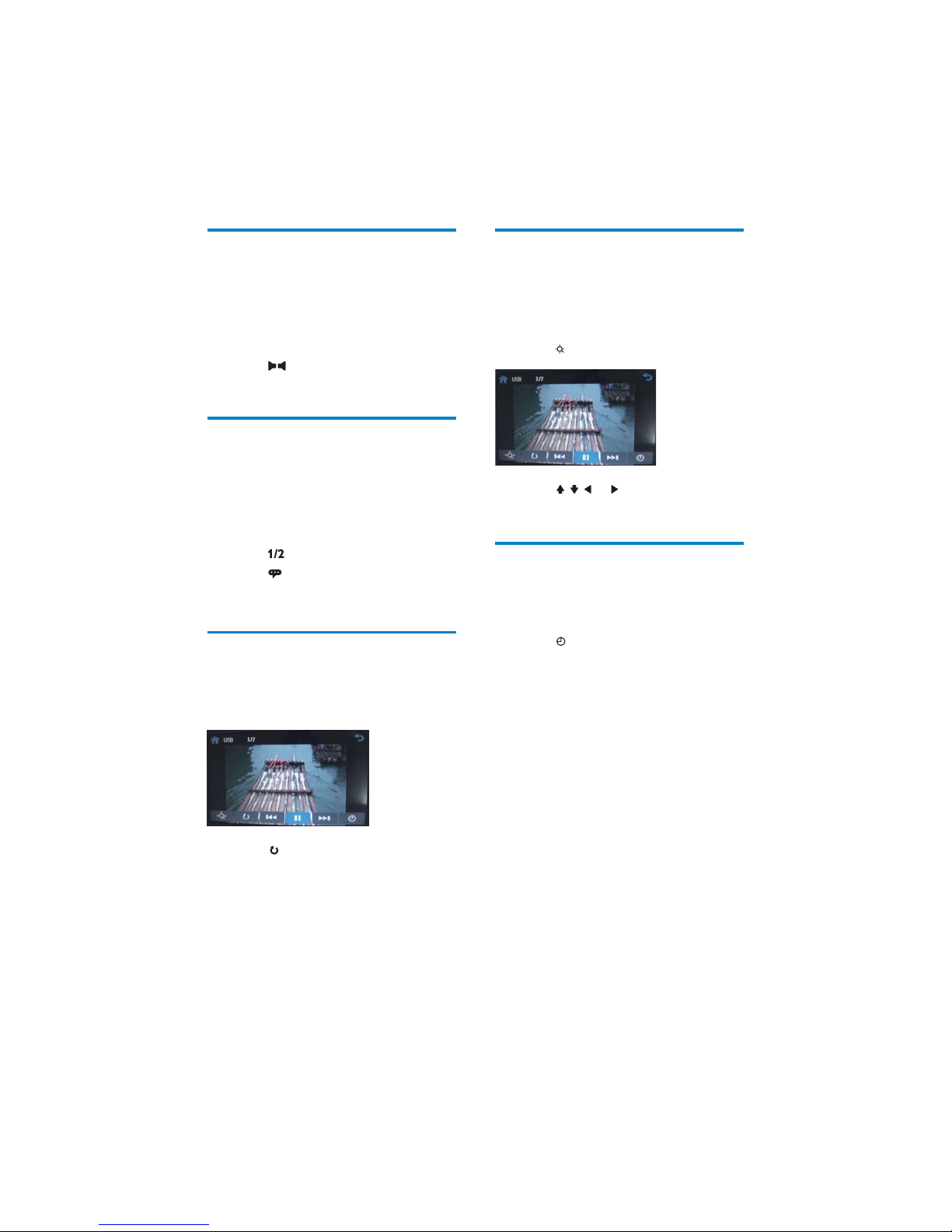

Zoom
You can zoom in pictures for a close view.
1During view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Touch repeatedly to zoom in the picture.
3Touch , , or to pan through the
enlarged picture.
Select slide show duration
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch repeatedly to select:
 Fast: 3 seconds
 Normal: 5 seconds
 Slow: 8 seconds
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1During play, touch anywhere except for
the upper left corner to display menu on
the screen.
2Touch repeatedly until the audio
mode is selected.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1During play, touch anywhere except for
the upper left corner to display menu on
the screen, if necessary.
2Touch to display the 2nd menu
3Touch repeatedly to select a language.
The selected language is displayed.»
Rotate pictures
1When you view pictures, touch anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Touch repeatedly to rotate the picture.
EN

19
Disconnect Bluetooth devices
1To disconnect one device, touch (red).
»(green) is displayed.
Tip
The device will also be disconnected when the
device is moved beyond the operational range.
If you want to reconnect the device to the

unit, place it within the operational range.
If you do not want to reconnect the device

to the unit automatically, touch >[Auto
connect], then select [Off]. For details, see the
“Adjust Bluetooth settings” section.
Make a call
1Pair the phone with the unit.
2Touch the upper left corner to display the
home menu.
3Touch [Bluetooth].
The Bluetooth menu is displayed.»
4Touch or to select the paired phone,
then touch .
5Touch or to search for phone
number from the following list:

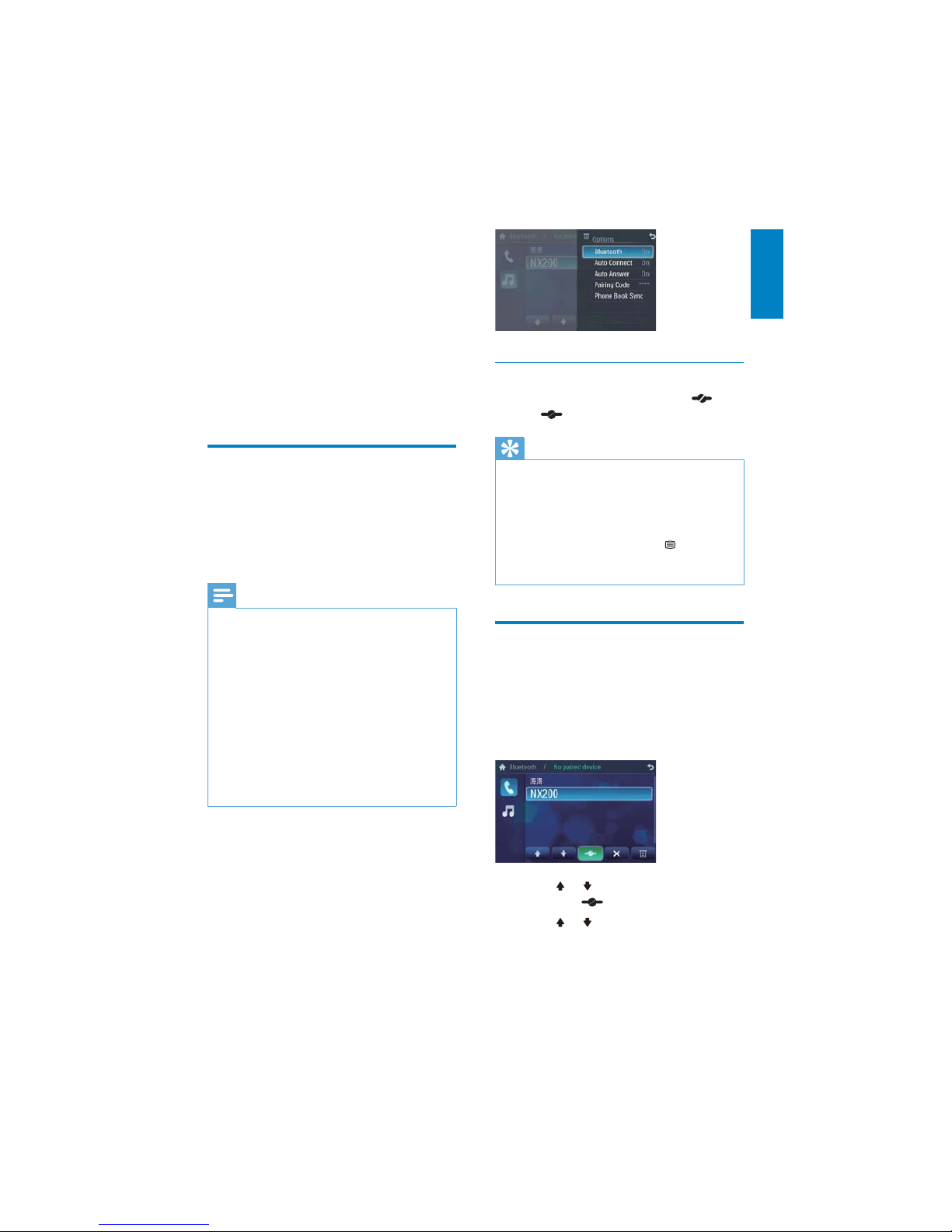

7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this

unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not

guaranteed.
Any obstacle between this unit and a Bluetooth

device can reduce the operational range.
Keep this unit away from any other electronic

device that may cause interference.
Turn on the Bluetooth function on the device.

1Search for Bluetooth device with the
device.
2Select “CID3286” in the pairing list.
3Enter default password “0000”.
if pairing succeeds. phone call record is»
displayed.
English
EN

20
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
1During talking, touch .
The voice is transferred from the unit’s»
loudspeaker to the mobile phone.

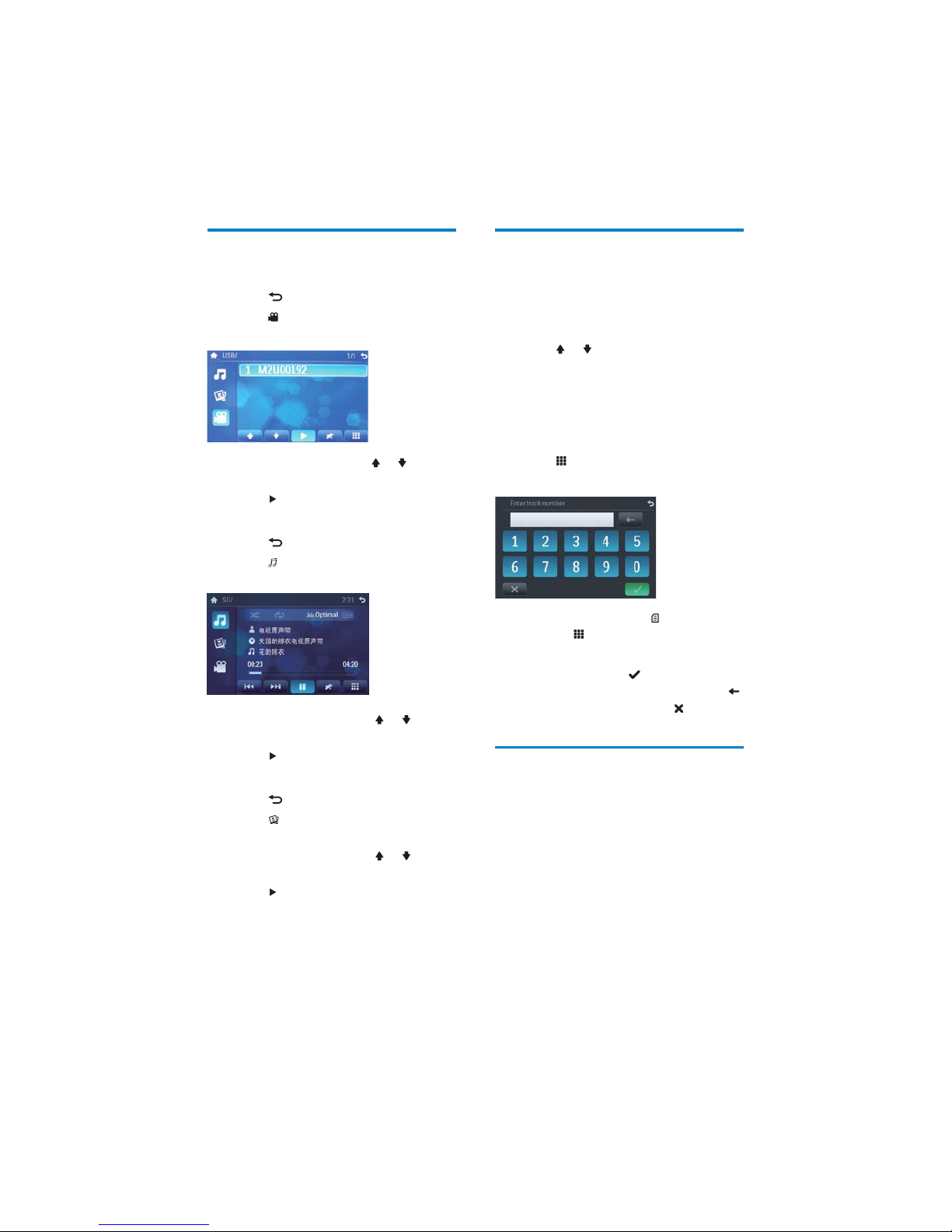

Listen to music from
Bluetooth device
If the connected Bluetooth device supports
$GYDQFHG$XGLR'LVWULEXWLRQ3URÀOH$'3
you can listen to the music stored on the device
through the unit. If the device also supports
$XGLR9LGHR5HPRWH&RQWURO3URÀOH$95&3
SURÀOH\RXFDQXVHWKHFRQWURORQWKHXQLWWR
play music stored on the device.
1Pair the phone with the unit.
2Touch the upper left corner to return to
home menu.
3Touch [Bluetooth].
The Bluetooth menu is displayed.»
4Start play music via device.
If your device support AVRCP.
1Touch .
2Touch to start play.
 [Missed calls]
 [Received calls]
 [Dialed calls]
 [Phone book]
 [Sim phone book]
 [Local phone book]
Or touch to dial number directly, then touch
to dial.
Receive call
By default, all incoming calls are received
automatically.
1If there is incoming call, [Incoming call...]
ÁDVKHVRQWKHVFUHHQ6SHDNLQWRWKH
Bluetooth microphone.
2When conversation ends, touch (red)
to terminate the call.
Tip
You can select to receive calls manually by set
[Auto answer] to [Off] status.
EN

21
8 Adjust sound
Adjust volume
1Tur n clockwise to increase volume.
Tur n anti-clockwise to reduce
volume.
Mute
1During play, press .
To turn the sound back on, press
again.
Tip
You can also turn off sound by touchingon
the screen.
Select preset equalizer
You can select preset equalizer:
 [User]
 [Techno]
 [Rock]
 [Classic]
 [Jazz]
 [Optimal]
 [Flat]
 [Pop]
1Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Touch .
The current Equalizer setting is displayed.»
Adjust Bluetooth settings
You can change below Bluetooth settings:
 [Bluetooth]: to turn on or off “Bluetooth”
function
 [Auto connect]: to turn on or off “Auto
connect” function
 [Auto answer]: to turn on or off “Auto
answer” function
 [Pairing code]: to set paring code
 [Phone Book Sync]: to synchronize phone
book
1In Bluetooth menu, touch .
The option menu is displayed.»
2Touch on the selected option to change
the setting.
Tip
You can also adjust Bluetooth settings in the
“Settings” menu.
English
EN
