4
Do not place any sources of danger on•
the apparatus (e.g. liquid filled objects,
lighted candles).
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX®Certified product. Plays all
versions of DivX®video (including DivX®6)
with standard playback of DivX®media files.
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do•
no watch video during driving.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp•
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to•
dripping or splashing.
EN

5
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2010 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
This apparatus includes this label:
This product complies with the radio
interference requirements of the European
Community.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
English
EN

6
What’s in the box
Check and identify the contents of your
package:
aMain unit
bISO wire
cCDC/camera cable
dGPS antenna
eAV OUT cable
fCMMB connector
g16 pin connector
hCleaning cloth
iPrinting material (include User manual,
Quick start guide)
ab
cd
ef
gh
i
2 Your in-car
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the•
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD, VCD or CD•
USB devices•
SD/SDHC/MMC cards•
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
EN

7
fAV IN
External equipment audio/video in•
socket.
gSD card slot
h
Open the cover to insert USB•
device.
i
Answer phone call.•
jFM/AM
Switch to the FM/AM source.•
Overview of the main unit
aDisc slot
bMap card slot
cTUNE/ SELECT
Tune for radio station.•
Skip to the previous or next title,•
chapter, or track.
Confirm an entry or selection.•
Start, pause or resume play.•
dRESET
Reset the unit when it hangs up.•
eDISP/ /
Adjust screen brightness.•
Turn on/off the screen display.•
c
e
f
g
b
h
d
i
j
k
l
m
a no
English
EN

8
kNAVI
Enter the GPS navigation system or•
exit.
lMENU
Return to the home menu.•
mVOL//MUTE
Adjust volume.•
Turn the unit on or off.•
Turn mute on or off.•
n
Eject disc.•
oBuilt-in microphone
EN

9
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Mount in the dashboard
Note
Check wire connection before you mount the•
unit into a car.
If preset radio stations are lost when the•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lost its memory.
If the car battery is not disconnected,•
to avoid short-circuit, ensure that
bare wires do not touch each other.

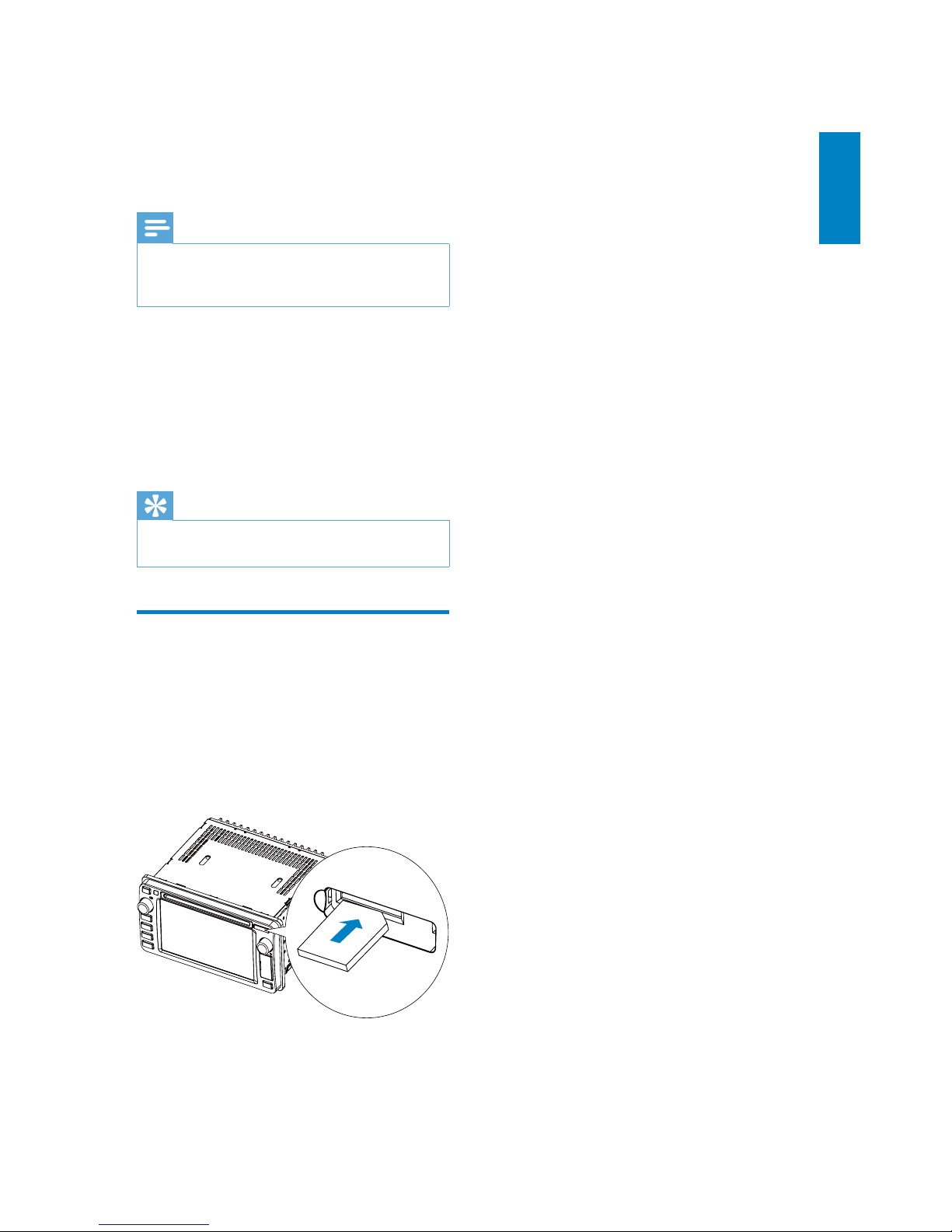

2Take out the original car audio and keep
the screws.
3Take off the mounting brackets from the
original car audio and mount them onto
this car audio system.
4Connect wires (see “Connect wires”
section).

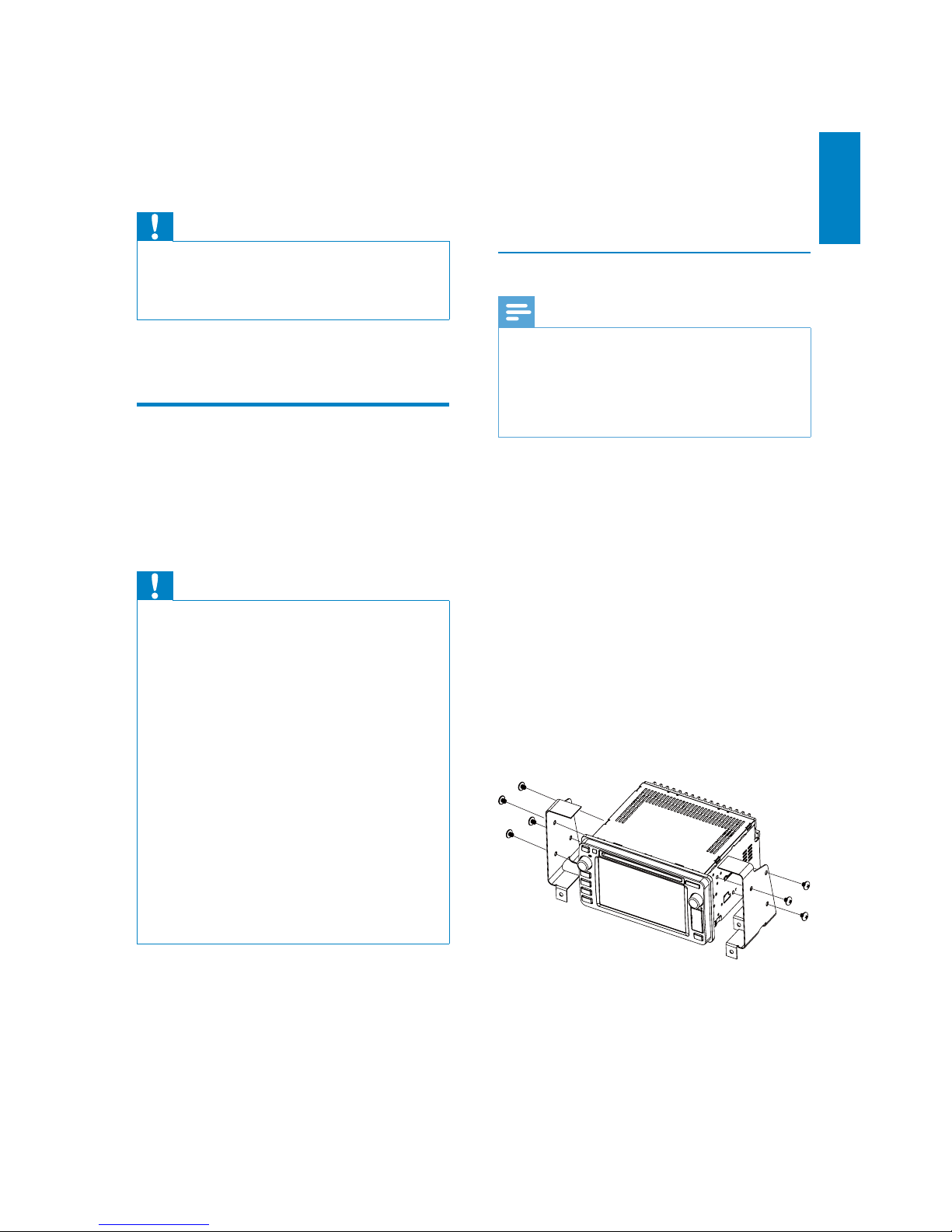

5Take off the two screws on the top side
of the unit.
3 Get started
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,•
ensure that the ignition is off.
Ensure that you connect the yellow and red•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with•
electrical tape.
Ensure that the leads do not get caught under•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to•
a common ground (earth) point.
Use only the supplied mounting hardware for a•
safe and secure installation.
Improper fuses can cause damage or fire.•
When you need to change the fuse, consult a
professional.
Note on the power supply lead (yellow)
When you connect other devices to this•
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
English
EN

10
6Slide the unit into the dashboard until a
click sound is heard.
7Fix the unit onto the dashboard with
screws.
8Reconnect the negative terminal of the
car battery.
EN

11
2Tap a language.
The OSD language is changed to the»
selected language immediately.

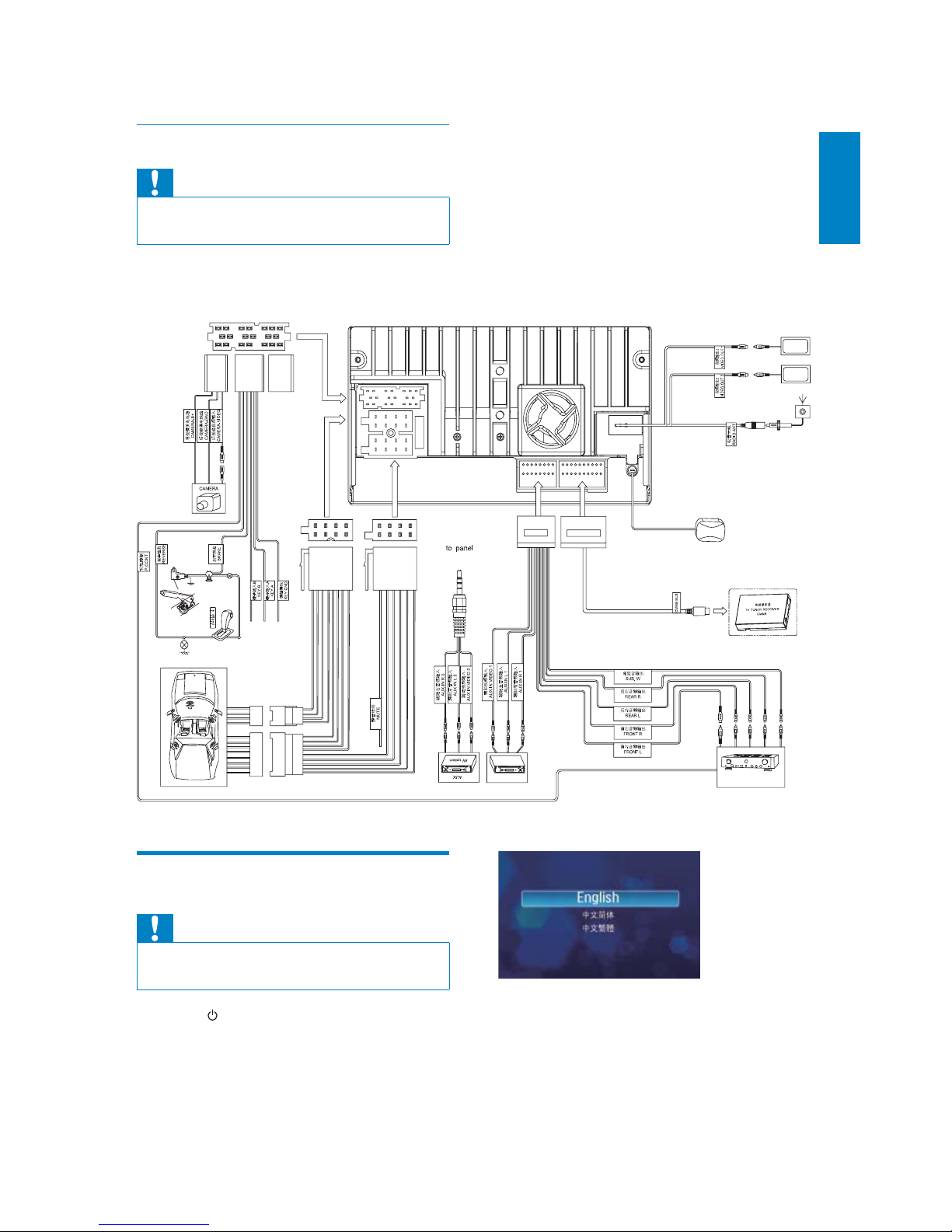

Connect wires
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Check the car’s wiring carefully, then do
the other connections:
Turn on
Caution
Risk of road accidents! Never watch video or•
adjust settings while you drive.
1Press to turn on the unit.
The available OSD (On-Screen»
Display) languages are displayed.
Yellow Green Blue
Red
Black Yellow
Blue/white
Pink
Green/white
Gearbox
White/
brown
Orange/
white
Brown/
black
Red
White
Yellow
Red
White
Yellow
AV system
AUX
White White
Red Red
Brown
Amplifier
Optional accessory
GPS antenna
Radio antenna
Yellow
Yellow
Rear display
Rear display
Remark:
c Connect the AV IN cable to the AV IN socket on front panel.
c
English
EN

12
2Tap [12H] or[24H] to select clock mode.
Set time
1Tap [Time].
2Tap the displayed time.
A submenu is displayed.»
3Tap or to set hour and minute.
Tip
When date/time is set, tap•to return to
main menu.
Adjust screen
To turn off the screen
1Press DISP for over 2 seconds
The screen is turned off.»
To turn on the screen, press»DISP.
To adjust screen brightness
1Press DISP.
Brightness bar is displayed.»
2Rotate TUNE/ SELECT to adjust the
value.
To turn off the unit, press•for 3
seconds.

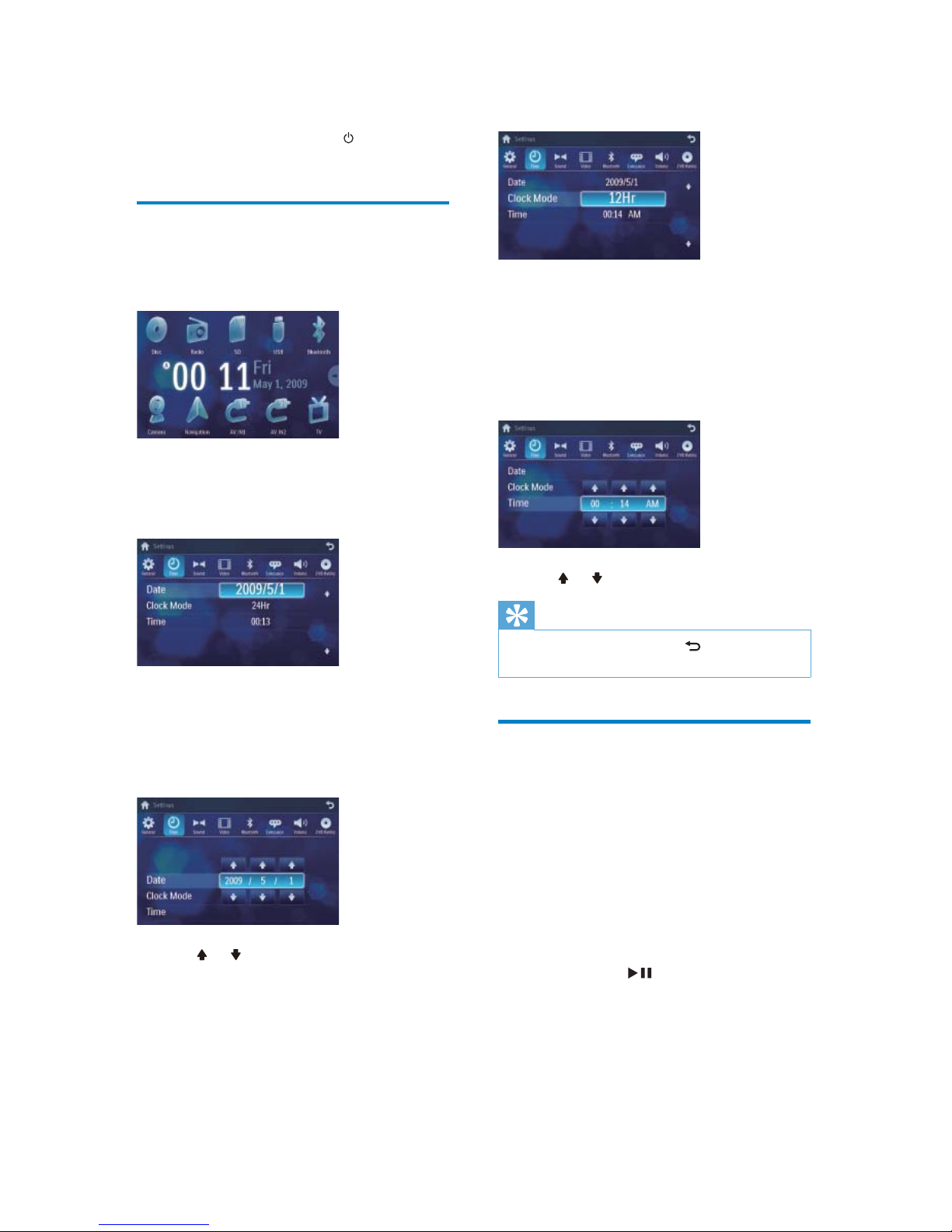

Set date and time
1Press MENU.
The main menu is displayed.»
2Tap [Settings].
3Tap [Time].
The date/time setup menu is displayed.»
Set date
1Tap [Date].
2Tap the displayed date information.
A submenu is displayed.»
3Tap or to set year, month and day.
Set time mode
1Tap [Time Mode] .
EN

13
6Turn on the car audio.
The map upgrades in a few minutes.»
4 Use map
Note
You may need to upgrade the map (sold•
separately) before using it (see “Upgrade the
map” section)
1Tap the upper left corner to display home
menu.
2Tap [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual to operate the
navigation tool.
Tip
You can press•NAVI to enter/exit the
navigation system.
Upgrade the map
1Turn off the car audio system.
2Open the map card door.
3Press the map card (sold separately) until
you hear a click sound.
4Take out the card and bring it to the
authorized service center for upgrade.
5Insert the upgraded map card back into
the map card slot.
English
EN

14
Tap• to clear the last entered
number.
Tap• to clear all the entered
numbers.
5Tap to confirm.
The radio station is broadcast.»
Select radio range
Before you start to search for radio stations,
you can select radio range.
1Tap .
2Tap [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
•[Distance]: Only stations with strong
signals can be broadcast.
•[Local]: Stations with strong and
weak signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1Tune to the station.
2Tap .
3Tap [Save].
5 Listen to radio
Tune to a radio station
1Tap to display home menu.
2Tap [Radio].
Band and frequency information is»
displayed.
3Tap on FM or AM to select band:
FM band options:•FM1, FM2, FM3
AM band options:•AM1, AM2
4Briefly tap or to tune to a radio
station by step.
Tap• or for over 1 seconds to
tune to a radio station automatically.
Tune by frequency
1Tap FM or AM to select band.
2Tap .
3Tap [Goto].
4Tap the numbers to enter frequency.
EN

15
4Tap one of the channels 01 to 06 to save
the select band.
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Tap .
3Tap [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1Tap [Radio].
2Select band.
3Tap one of the preset channels (01 to 06)
to select a preset station.
English
EN

16
Connect USB device
Note
Ensure that the device contains playable•
content.
1Open the USB/SD card door.
2Insert the USB device to the USB socket.
Play starts automatically.»
Note
To remove the USB device, switch to disc,•
radio or other source first.
Insert SD/MMC card
Note
Ensure that the device contains playable•
content.
The unit supports SDHC card.•
1Open the USB/SD card door.
2Insert the SD/MMC card into the SD/
MMC card slot.
Play starts automatically.»
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content.•
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
To remove the disc, press the»button.
When the disc is ejected, the unit»
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
You can play DVD discs with the following
region codes:
DVD region code Country
China
EN

17
Skip/search
1Tap to return to playlist menu.
2Tap one of below icons to select folder/
file:
•: To display all available audio
folders/track.
•: To display all available picture
folders/files.
•: To display all available video
folders/files
3Tap or to select a folder/track.
4Tap to start play.
Direct select
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap .
The search screen is displayed.»
Remove the SD/MMC card
1Switch to another source.
2Press the card until you hear a click
sound.
The card is now disengaged.»
3Remove the SD or MMC card.
Play/Pause
1Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
For DVD movie, if a menu appears, tap
to start play.
2To pause, tap .
To resume play, tap•again.
English
EN

18
For audio files:
1Tap to select:
•-1: play the current track
repeatedly.
•-Folder: play all the tracks in the
current folder repeatedly.
•(in grey color): cancel repeat play.
Repeat a section
You can repeat a specific section of video file
(repeat A-B).
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu, if
necessary.
3Tap repeatedly to mark:
•[Repeat A-]: the start of the section
to repeat.
•[Repeat A-B]: the end of the section
to repeat.
The selected section plays•
repeatedly.
4To exit A-B repeat mode, tap
repeatedly until [Repeat A-B off] is
displayed.
Random play
You can play audio tracks/files in random order.
1During play, tap repeatedly to turn
random play on or off.
•is highlighted : start random play.
•turns gray: cancel random play.
3Tap the numbers to enter chapter/file
number, then tap .
To clear the previous input, tap• .
To clear all input, tap• .
Repeat one/all
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap to display the 2nd menu.
3Tap to select:
•[Repeat chapter]: play the current
chapter repeatedly.
•[Repeat title]: play all chapters in the
title repeatedly.
•[Repeat off]: cancel repeat play.
For VCD karaoke:
1Tap to select:
•[Repeat one]: play the current track
repeatedly.
•[Repeat off]: cancel repeat play.
EN

19
Rotate pictures
1When you view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Tap repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1During view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2Tap repeatedly to zoom in the picture.
3Tap , , or to pan through the
enlarged picture.
Select slide show duration
1Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2Tap repeatedly to select:
•Fast: 3 seconds
•Normal: 5 seconds
•Slow: 8 seconds
Select audio language
For video discs that contain two or more audio
channels.
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu.
3Tap repeatedly.
The audio channel information is»
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1During play, tap anywhere except for the
upper left corner to display menu on the
screen.
2Tap repeatedly until the audio mode
is selected.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2Tap to display the 2nd menu
3Tap repeatedly to select a language.
The selected language is displayed.»
English
EN

20
Disconnect Bluetooth devices
1To disconnect one device, tap (red).
»(green) is displayed.
Tip
The device will also be disconnected when the•
device is moved beyond the operational range.
If you want to reconnect the device to the•
unit, place it within the operational range.
If you do not want to reconnect the device to•
the unit automatically, tap >[Auto connect],
then select [Off]. For details, see the “Adjust
Bluetooth settings” section.
Make a call
1Pair the phone with the unit.
2Tap to display the home menu.
3Tap [Bluetooth].
The Bluetooth menu is displayed.»
4Tap or to select the paired phone,
then tap .
5Tap or to search for phone number
from the following list:
7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a•
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this•
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not•
guaranteed.
Any obstacle between this unit and a•
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic•
device that may cause interference.
Turn on the Bluetooth function on the device.•
1Search for Bluetooth device with the
device.
2Select “CID3291” in the pairing list.
3Enter default password “0000”.
if pairing succeeds. phone call record is»
displayed.
EN

21
The voice is transferred from the unit’s»
loudspeaker to the mobile phone.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored on the device.
1Pair the phone with the unit.
2Tap to return to home menu.
3Tap [Bluetooth].
The Bluetooth menu is displayed.»
4Start play music via device.
If your device support AVRCP,
1Tap .
2Tap to start play.
Adjust Bluetooth settings
You can change below Bluetooth settings:
•[Bluetooth]: to turn on or off
“Bluetooth” function
•[Auto connect]: to turn on or off “Auto
connect” function
•[Auto answer]: to turn on or off “Auto
answer” function
•[Pairing code]: to set paring code
•[Phone Book Sync]: to synchronize
phone book
•[Missed calls]
•[Received calls]
•[Dialed calls]
•[Phone book]
•[Sim phone book]
•[Local phone book]
Or tap to dial number directly, then tap
to dial.
Receive call
By default, all incoming calls are received
automatically.
1If there is incoming call, [Incoming call...]
flashes on the screen. Speak into the
Bluetooth microphone.
2When conversation ends, tap (red)
to terminate the call.
Tip
You can select to receive calls manually by set•
[Auto answer] to [Off] status.
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
1During talking, tap .
English
EN
