Philips DS7530 User manual

www.philips.com/welcome
DS7530
Always there to help you
User Manual
Question?
Contact
Philips
Register your product and get support at

2EN
Contents
1 Important 3
2 Your Docking Speaker 4
Introduction 4
What's in the box 4
Overview of the main unit 4
3 Get started 5
Connect power 5
Turn on 5
4 Play 6
Play from iPod/iPhone 6
Play from Bluetooth device 6
Play from an external audio device 7
Adjust volume 7
5 Product information 8
Specications 8
6 Troubleshooting 9
About Bluetooth device 9
7 Notice 10
Contents

3EN
1 Important
• Follow all instructions.
• Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
• Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• Use only power supplies listed in the user
manual.
• Unplug this apparatus during lightning
storms or when unused for long periods
of time.
• Referallservicingtoqualiedservice
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
• Battery usage CAUTION –To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbonandalkaline,etc.).
• Remove batteries when the unit is not
used for a long time.
• Batteries (battery pack or batteries
installed)shallnotbeexposedtoexcessive
heatsuchassunshine,reorthelike.
• Apparatus shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
apparatus(e.g.liquidlledobjects,lighted
candles).
• Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•Never remove the casing of this apparatus.
•Never place this apparatus on other electrical
equipment.
•Keep this device away from direct sunlight, naked
amesorheat.
•Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect the apparatus from
the power.

4EN
2 Your Docking
Speaker
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
back of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this docking speaker, you can enjoy audio
from the iPod/iPhone, Bluetooth devices, and
other external audio devices.
What's in the box
Check and identify the contents of your
package:
• Main unit
• AC power adapter
• Quick start guide
• Safety sheet

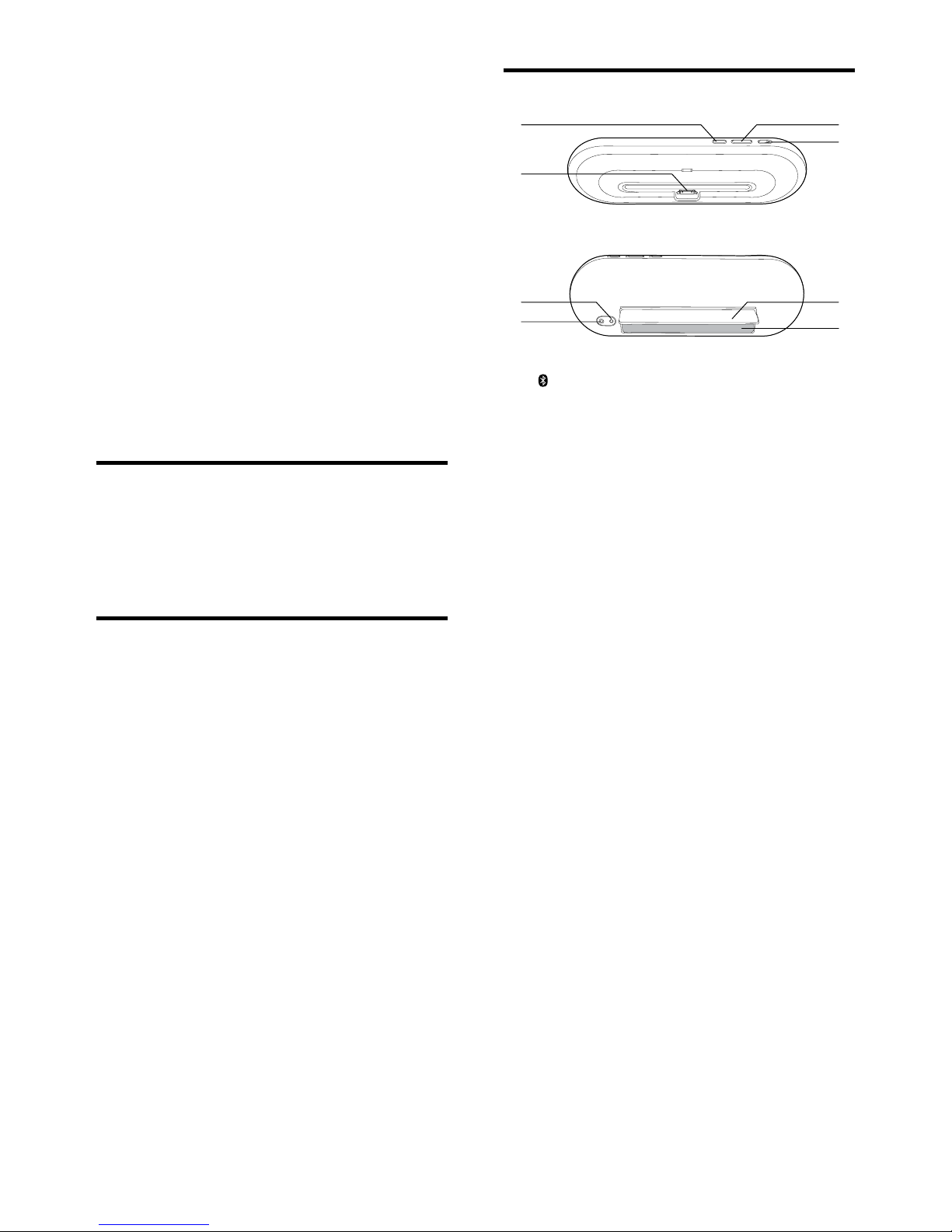

Overview of the main unit
a Bluetooth
• Enable or disable Bluetooth function.
b Dock for the iPod/iPhone
c ON/OFF
• Switch on/off the docking speaker.
d - VOLUME +
• Adjust volume.
e DC IN
• Connect power.
f AUX IN
• Connect an external audio device.
g Battery compartment
h Stand foot
ad
c
h
g
e
f
b

5EN
3 Get started
Always follow the instructions in this chapter in
sequence.
Connect power
This docking speaker can be powered by either
AC power or batteries.
Option 1:AC power
Caution
•Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the type
plate.The type plate is located inside the stand foot of
the docking speaker.
•Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket. Never
pull the cord.
Connect the AC power adapter to:
• the power socket at the back of the
docking speaker.
• the wall socket.
Option 2: Battery power
Caution
•Risk of explosion! Keep batteries away from heat,
sunshineorre.Neverdiscardbatteriesinre.
•Remove batteries if they are exhausted or will not be
used for a long time.
•Batteries contain chemical substances, so they should
be disposed of properly.
1 Open the battery compartment.
2 Insert 4 x 1.5V AA batteries with correct
polarity(+/-)asindicated.
3 Close the battery compartment.
Turn on
Switch the power button to ON position to
turn on the docking speaker.
» The LED indicator lights up.
Switch to standby mode
The docking speaker switches to economic
standby mode in the following situation:
• The speaker is idle for 15 minutes when
powered by AC supply;
• The iPod/iPhone or external audio device
is disconnected when the speaker is
operated on batteries.
» The LED indicator lights off.
PUSH

6EN
4 Play
Play from iPod/iPhone
You can enjoy audio from your iPod/iPhone
through this docking speaker.
Compatible iPod/iPhone
The docking speaker supports the following
iPod and iPhone models:
Made for.
• iPodtouch(2nd,3rd,and4thgeneration)
• iPod classic
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generation)
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
Listen to the iPod/iPhone
Philips DockStudio app brings a suite of new
features to your docking speaker, including
Internet radio and a multi-function alarm clock.
To enjoy more features, you are recommended
to install this free application.
1 Switch the power button to ON position.
» The LED indicator lights up.
2 Insert the iPod/iPhone into the dock.
3 Forrst-timeuse,youwillbeaskedto
install DockStudio app on your iPod/
iPhone.
4 Tap [Yes] (yes)toaccepttheinstallation
request.
5 Follow the on-screen instructions to
complete the installation.
6 Launch the app after the installation.
7 Play audio on your iPod/iPhone.
» You can hear audio from this docking
speaker.
Charge the iPod/iPhone
When the docking speaker is connected to
power, the docked iPod/iPhone begins to
charge automatically.
Play from Bluetooth device
Pair with Bluetooth devices
Note
•Before you connect a Bluetooth device to this docking
speaker, familiarize yourself with the Bluetooth
capabilities of the device.
•The effective operation range between the docking
system and the paired device is approximately 10
meters(30feet).
•Keep this docking speaker away from other electronic
devices that may cause interference.
1 Press Bluetooth to select Bluetooth
source.
» The Bluetooth button blinks.
2 Turn on Bluetooth function on your device.
• Different devices may have different
way to activate Bluetooth.

7EN
3 Scan Bluetooth devices that can pair with
your device.
4 When “DS7530” is displayed on your
device, select it to start connection.
» Doublebeeptoneconrmationis
heard and the Bluetooth button stops
blinking if connection is successful.
» A different Bluetooth icon is displayed
on your device.
5 Play music in your device.
» Music comes through the docking
speaker.
Tip
•If your Bluetooth device has been paired with DS7530
before,youjustneedtondout“DS7530”onyour
Bluetoothmenu,thenconrmtheconnection.
To disconnect Bluetooth:
• Press Bluetooth on the docking speaker
again.
• Deactivate Bluetooth function on
your device or move it beyond the
communication range.
Play from an external audio
device
With this docking speaker, you can also enjoy
audio from an external device such as an MP3
player.
Note
•Make sure that no iPod/iPhone is docked in the docking
speaker.
1 ConnectanMP3linkcable(notsupplied)
to:
• the AUX IN socket at the back of the
docking speaker.
• the headphone socket on an external
device.
2 Play music on the device (see the device's
usermanual).
Adjust volume
During play, press -VOLUME + to adjust
volume.

8EN
5 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Total Output Power 2 x 5 W RMS
Signal to Noise Ratio >60 dBA
MP3 Link 0.6 V RMS 22 kohm
Bluetooth
Standard Bluetooth Standard Version
2.1+EDR
Output power 4dBm(Class2)
Frequency band 2.402 ~ 2.480 GHzISM Band
Range 10m(freespace)
General information
AC Power Model: S018KV0900200
(Philips);
Input: 100-240 V ~
50/60Hz, 500mA;
Output: 9.0 V 2000 mA
Operation Power
Consumption <18 W
Eco Standby Power
Consumption <0.5 W
Max. load for iPod/
iPhone 5 V 1 A
Dimensions
- Main Unit
(WxHxD) 311 x 111 x 37.6mm
Weight
- Main Unit 0.28 kg

9EN
6 Troubleshooting
Warning
•Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page
(www.philips.com/support).Whenyoucontact
Philips, make sure that the device is nearby
and the model number and serial number are
available.
No power
•Ensure that the AC power plug of the unit
is connected properly.
•Ensure that there is power at the AC
outlet.
No sound
•Adjust the volume.
No response from the unit
•Disconnect and reconnect the AC power
plug, then turn on the unit again.
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
•The device cannot be used with the
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
•The Bluetooth reception is poor. Move
the device closer to the system or remove
any obstacle between the device and the
system.
Cannot connect with the system.
•Thedevicedoesnotsupporttheproles
required for the system.
•The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•The system is not in the pairing mode.
•The system is already connected with
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired device connects and disconnects
constantly.
•The Bluetooth reception is poor. Move
the device closer to the system or remove
any obstacle between the device and the
system.
•For some devices, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.

10EN
7 Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
“MadeforiPod”and“MadeforiPhone”
mean that an electronic accessory has been
designedtoconnectspecicallytoiPodor
iPhonerespectively,andhasbeencertiedby
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
This product complies with the radio
interference requirements of the European
Community.
A copy of the EC declaration of Conformity
is available in the Portable Document Format
(PDF)versionoftheusermanualat
www.philips.com/support.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separateintothreematerials:cardboard(box),
polystyrenefoam(buffer)andpolyethylene
(bags,protectivefoamsheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Note
•The type plate is located inside the battery
compartment of the unit.

Philips Consumer Lifestyle B.V.
Philips Consumer Lifestyle B.V. template AMB 544-9056
HK-1314-DS7530 2012/06
....................................................... ...........................................................................
(Document No. / Numéro du document)(Year, Month (yyyy/mm) in which the CE mark is affixed /
Année/mois (aaaa/mm) au cours de laquelle le marquage
CE a été apposé)
EUROPEAN DECLARATION OF CONFORMITY
(DECLARATION DE CONFORMITE CE)
We / Nous, PHILIPS CONSUMER LIFESTYLE B.V.
(Company name / Nom de l’entreprise)
TUSSENDIEPEN 4, 9206 AD DRACHTEN, THE NETHERLANDS
(address / adresse)
declare under our responsibility that the product(s):
(déclarons sous notre propre responsabilitéque le(s) produit(s))
Philips
.............................................................................
DS7530/05, /12
........................................................................
(brand name, nom de la marque)
(Type version or model, référence ou modèle)
Docking Speaker
.............................................................................
(
product description, description du produit)
to which this declaration relates is in confirmity with the following harmonized standards:
(auquel cette déclaration se rapporte, est conforme aux normes harmonisées suivantes)
(title, number and date of issue of the standard / titre, numéro et date de parution de la norme)
EN 60065:2006+A1(2006)+A11(2008)+A2(2010)+A12(2011)
EN 55013:2001+A1(2003)+A2(2006)
EN 55020:2007+A11:2011
EN 61000-3-2:2006 + A1(2009)+A2(2009)
EN 61000-3-3:2008
EN 62479:2010
EN 62301:2005
EN 50581:2012
EN301489-1 V1.9.2
EN301489-17 V2.1.1
EN300328 V1.7.1
following the provisions of :
(conformément aux exigences essentielles et autres dispositions pertinentes de:)
1995/5/EC (R&TTE Directive)
2006/95/EC (Low Voltage Directive)
2004/108/EC (EMC directive)
2011/65/EU (Rohs Directive)
2009/125/EC (Eco Design) -EC/1275/2008; EC/278/2009
And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC Permanent Documents
(Et sont fabriqués conformément à une qualité au moins conforme à la norme ISO 9001 ou aux Documents Permanents CENELEC)
Only for Medical Devices and R&TTE products:
The Notified Body:
SGS/0890
................................................
performed:
Expert Opinion
.....................................................
(L’Organisme Notifié) (Name and number/ nom et numéro)
(a effectué) (description of intervention / description de ’intervention)
and issued the certificate:
159004/1/058/GZ
............................................................
(et a délivré le certificat) (certificate number / numéro du certificat)
Remarks:
Drachten, Netherlands, April 02, 2013 A.Speelman, CL Compliance Manager
.........................................................
.........................................................
(place,date / lieu, date)
(signature, name and function / signature, nom et fonction)

Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
DS7530_12_UM_V2.0
