Philips HR2746/37 User manual

HR2746, HR2744

2

3
1

4


 4
 8
 12
 16
 20
 24
 28
 32
 36
 40
 44
 48
 52
 56
 60
 64

6

Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.


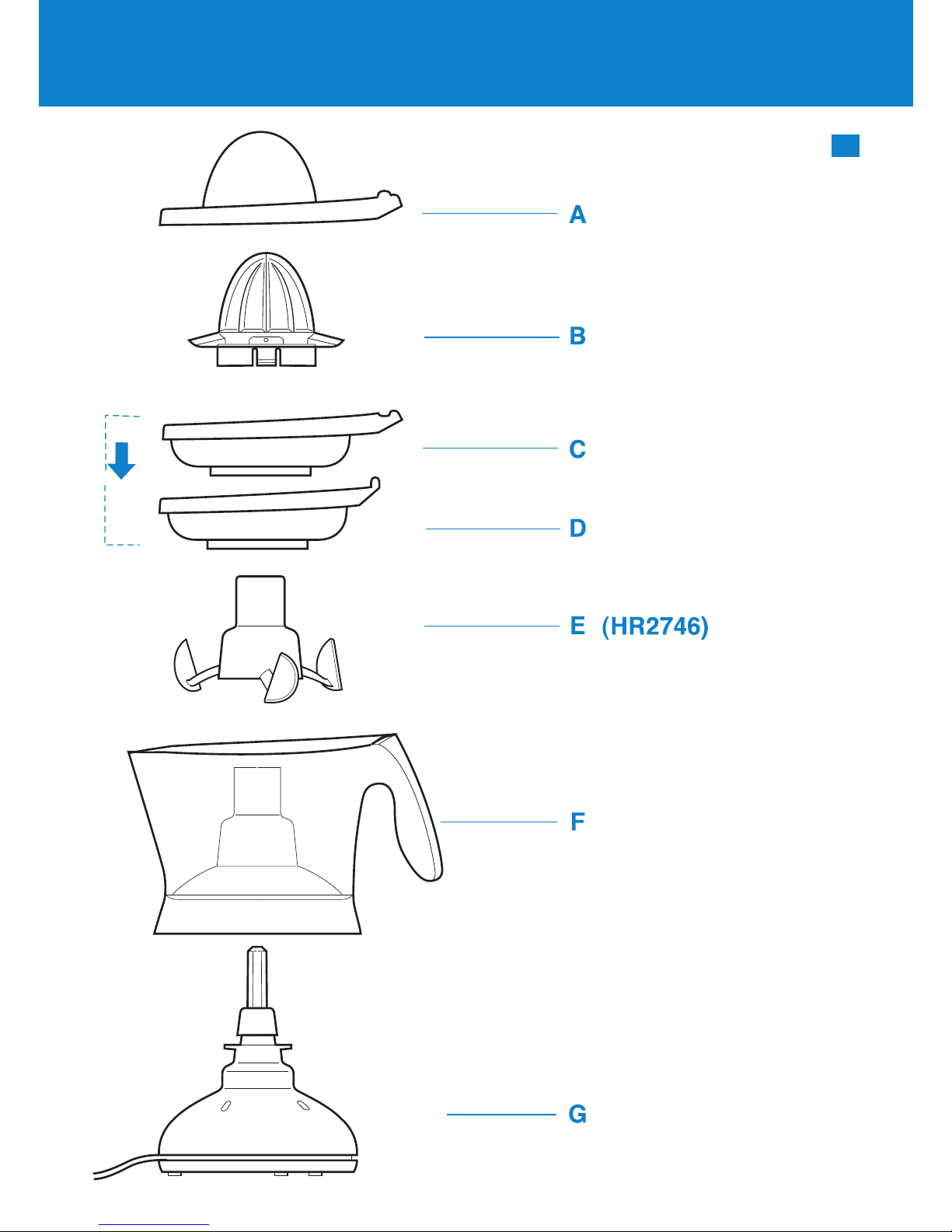

 Dust cover
 Cone
 Sieve
 Pulp selector
 Stirrer (HR2746 only)
 Jug
 Motor unit

Read this user manual carefully before you use the appliance and save it
for future reference.

- Do not immerse the motor unit in water nor rinse it under the tap.

- Check if the voltage indicated on the bottom of the appliance
corresponds to the local mains voltage before you connect the
appliance (Fig. 2).
- If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
- Do not use the appliance if the plug, the mains cord or other parts
are damaged.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.


- Children should be supervised to ensure that they do not play with
the appliance.

- Always place the appliance on a at, stable surface.
- Do not use the citrus press longer than 10 minutes without
interruption.
- This appliance is intended for household use only.
- Never use any accessories or parts from other manufacturers or that
Philips does not specically recommend. If you use such accessories
or parts, your guarantee becomes invalid.
- Noise level: Lc = 72 dB(A)

This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.

1 Clean all detachable parts before you use the appliance for the rst
time (see chapter ‘Cleaning’).
2 Make sure the appliance is assembled properly (see chapter
‘General description’) before you put the plug in the wall socket.
3 Remove the dust cover from the appliance (Fig. 3).
4 Wind excess cord round the base of the appliance.
5 Put the plug in the wall socket.

- Set the pulp selector to 1 for juice with a lot of pulp, but without
pips. (Fig. 4)
- Set the pulp selector to m for juice without pulp and pips. (Fig. 5)
 7


1 If you want to mix sugar or ice into the juice, place the stirrer in
the jug (Fig. 6).
Note: Put the sugar or ice in the jug before you start juicing.

1 Press a halved fruit rmly onto the cone to switch on the
appliance (Fig. 7).
2 Remove the cone and the sieve with pulp selector. Then lift the jug
from the motor unit (Fig. 8).
Note: Also remove the stirrer (HR2746 only) if you have used it.
3 Pour out the fresh juice (Fig. 9).
Tip: Clean the appliance immediately after use (see chapter ‘Cleaning’). Dried
fruit pulp is more difcult to remove.

1 Unplug the appliance.
2 Remove all detachable parts from the motor unit.
3 Separate the sieve from the pulp selector (Fig. 10).
4 Clean all detachable parts with hot water and some washing-up
liquid or in the dishwasher (Fig. 11).
5 Clean the motor unit with a moist cloth.
Never immerse the motor unit in water nor rinse it under the tap.

1 Wind the cord round the base of the appliance. Then x it with the
suction cap to the outside of the jug (Fig. 12).
2 Store the appliance in a safe and dry place.
8


- Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this, you help to preserve the environment
(Fig. 13).

If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you nd its phone number in the worldwide
guarantee leaet). If there is no Customer Care Centre in your country,
go to your local Philips dealer or contact the Service Department of
Philips Domestic Appliances and Personal Care BV.
 9

10

Поздравления за вашата покупка и добре дошли във Philips! За да се
възползвате изцяло от предлаганата от Philips поддръжка,
регистрирайте продукта си на www.philips.com/welcome.

 Капак против прах
 Конус
 Цедка
 Селектор за плодова каша
 Бъркалка (само за HR2746)
 Кана
 Задвижващ блок

Преди да използвате уреда, прочетете внимателно това
ръководство за експлоатация и го запазете за справка в бъдеще.

- В никакъв случай не потапяйте блока на мотора във вода и не го
изплаквайте с течаща вода.

- Преди да включите уреда в контакта, проверете дали
напрежението, посочено на дъното на уреда, отговаря на това на
местната електрическа мрежа (фиг. 2).
- Ако захранващият кабел се повреди, той трябва винаги да се
подменя от Philips, упълномощен сервиз на Philips или подобни
квалифицирани лица, за да се избегне опасност.
- Не използвайте уреда, ако щепселът, захранващият кабел или
други части са повредени.
- Този уред не е предназначен за ползване от хора (включително
деца) с намалени физически усещания или умствени недъзи или
без опит и познания, ако са оставени без наблюдение и не са
инструктирани от страна на отговарящо за тяхната безопасност
лице относно начина на използване на уреда.

