Architectural lighting plays a central role in the way people feel
about their living environment. Employed imaginatively, it can
create a poetry of daily life by elevating the mundane and banal
through a reinterpretation of everyday city objects and buildings.
Thanks to Philips Lighting’s ability to generate
new experiences and emotions, we can help shape
an inclusive, socially dynamic city. A place where
people can feel part of a shared beauty that
transcends their daily existence and links them to
each other, to their past, and to an enlightened
quality of life.
More and more, the expression of a town or city’s
architecture will come from its lighting rather than
from its structure. If buildings are the monumental
canvases on which lighting designers paint their
artistic vision of urban renewal, then light has
helped to deliver their most telling brushstrokes.
And now Philips is expanding the palette with
a host of light-emitting diode (LED) lighting
solutions, a new concept based on cutting-edge
LED technology that will enable lighting designers
to realize beauty with light, turning their vision
into reality. Opening up a virtually infinite range
of effects, Philips LED luminaires are versatile
enough to allow light to fill or underline, graze or
pinpoint, mark or blend.With a choice of up to five
colors, including white, they give free rein to the
architect’s and designer’s creativity.
How it works
The basic structure of a LED consists of a dye or a
light-emitting semiconductor material, a lead frame
in which the dye is placed, and the encapsulation
epoxy that surrounds and protects the dye.
The semiconductor crystal, which is laboratory-
grown, emits light initiated by a forward current
within the LED.The light color varies depending
on the nature and composition of the crystal used.
Performance levels are continuing to rise
dramatically. New packages are increasing the
cooling efficiency for the dye, thus permitting
higher current levels and hence higher light output.
a stroke of genius

key features of LEDs
2
LED LUMINAIRES CITY BEAUTIFICATION
Longer lasting
LEDs last up to 100 times longer, and up to
three times more efficient than today’s standard
incandescent lamps.
Reduced maintenance cost
Since LEDs last longer than a normal light source,
there is no need for frequent replacements
thereby reducing or even eliminating ongoing
maintenance and re-lamping expenses.
More energy efficient
LEDs are more efficient than incandescent
and most halogen light sources, using up to 90%
less energy.
Better design flexibility
LEDs are typically much smaller than conventional
light sources, allowing for dramatically different
lighting designs capitalizing on the unobtrusiveness
of the source. Designing with LEDs can enable
completely hidden sources of light, eliminating
large visual luminaires, and creating a magical effect
when illuminated.
Vivid colors
LEDs do not require filters to create colored light,
resulting in deeper saturated colors. Deep reds,
greens, blues and other colors can be produced
in monochromatic form directly from the solid-
state element.
High reliability
The solid-state nature of LEDs makes them
extremely rugged and durable an excellent
choice for city lighting where reliability and
dependability are paramount.
Environmentally friendly
LEDs do not contain any mercury. And since
they last longer, there is less waste disposal in
the environment.
3
LED LUMINAIRES CITY BEAUTIFICATION

4 5
LED LUMINAIRES CITY BEAUTIFICATION LED LUMINAIRES CITY BEAUTIFICATION
Philips LED luminaires are based on Luxeon high-power LEDs
“a revolutionary energy-efficient and ultra-compact new light
source, combining the lifetime and reliability of light-emitting
diodes with the brightness of conventional lighting” first
introduced by LumiLeds Lighting (a joint venture between
Philips and Agilent Technologies) in 1999.

LedStrip II
L
1000
BCS L (mm)
BCS 703 305
BCS 706 595
BCS 709 885
BCS 712 1175
LedStrip I
604 / 897 / 1190 50
65
76
94
124
62
58.5
67
1b
86
86
45º
Product dimensions
LedStrip I and
LedStrip II
7
LED LUMINAIRES CITY BEAUTIFICATION
6
LED LUMINAIRES CITY BEAUTIFICATION
• 5 color options:White, Red, Amber, Blue, Green
• Extruded aluminium housing, rated IP65
• 55V DC operating voltage
• Remote driver box converts mains voltage to
55V DC, designed to run between 8.5 and 11m
(color dependent)
• Fixed close to the wall by adjustable universal
jointed bracket for precise aiming
• 10 years sealed for life; 50,000 hours rated life
(at 70% lumen maintenance)
• Dimmer option available
Benefits
• Ability to wash a surface up to 10m to reveal
form and texture
• Slim profile offering better design flexibility
• Low power consumption and extremely long life
• Low installation and maintenance cost
• Uniform continuous wash of pure color allows
the designer to ‘paint’ with light
Main applications
• Bridges
• Balustrades
• Arches
• Cornices
Measurements in mm
Note: RGB color mix is available upon request
Note: RGB color mix is available upon request
The Philips LedStrip is a new concept for
illuminating and enhancing contemporary
architecture and historical monuments with
colored light. Based on high-power LEDs,
this linear floodlight creates a controlled,
soft wall wash accent with five clearly defined
color bands, opening up the possibilities for
exciting new lighting effects.
Features
• Modular luminaire concept based on unit boards
of 12x1w LEDs
• 300, 600, 900 and 1200mm options to enable long
straight lines or curves
• Unique highly efficient collimating optic captures
maximum available light and produce a tight beam
of 2 x 3 degrees
Product dimensions
LedSpot
sealed with high performance silicone and placed
in an IP65 precision-molded holder
• Highest grade, ultra-bright LEDs are used to
provide high brightness and a consistent
wave color
• An integral wiring box design ensures
wiring protection
Main applications
• Façade
• Landscapes
Measurements in mm
The Philips LedSpot luminaires give you the ability
to create an outdoor ambience with a hidden light
source. It is all you need to bring parks and gardens
to life and extend the comfort and ambience of a
cozy living room out into your outdoor living space.
Features
• A double protection layer ensures maximum
performance. Electronics are first sealed in epoxy
for complete water-resistance and then placed in
an IP65 die-cast aluminium housing. The LED is

LedUplight 100mm
103
110 153
110
109
LedUplight 150mm
130
130 96
130
96
122.5
9
LED LUMINAIRES CITY BEAUTIFICATION
8
LED LUMINAIRES CITY BEAUTIFICATION

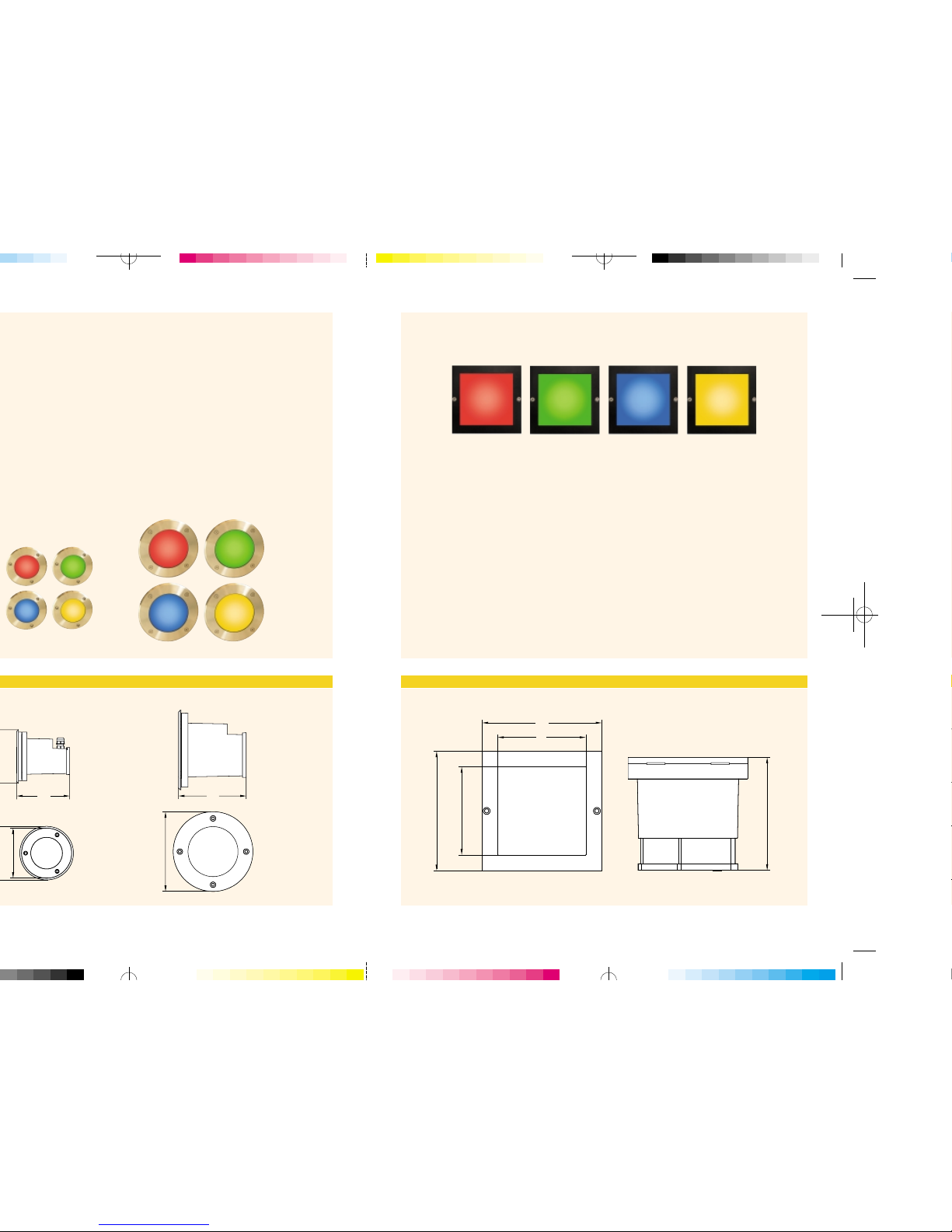

Product dimensions
LedStep-Square
and brilliant colors without revealing any
lamp image
• Proprietary CAM-C technology allows LedStep
to be programmed individually and connected to
the whole area without any data degradation
• A quick-connecting IP67 cable coupled with
various mounting accessories makes installation
easy and flexible
Main applications
• Façade
• Landscapes
Measurements in mm
Featuring high-power LEDs, this linear floodlight,
with its precise light distribution and uniform
illuminance, is ideal for scene setting.With several
clearly defined color bands, it can create a
controlled, soft light, opening up a wide range
of creative options and effects.The Philips LedStep
is available for both in-ground or recessed
wall applications.
Features
• Dynamic color changing capability
• Ability to create 16.67 million uniform, smooth
Note: RGB color mix is available upon request Note: RGB color mix is available upon request
Product dimensions
LedUplight 100mm/150mm
• Proprietary CAM-C technology allows
LedUplight to be programmed individually and
connected to the whole area without any
data degradation
• A quick-connecting IP67 cable coupled with
various mounting accessories makes installation
easy and flexible
Main applications
• Façade
• Landscapes
Measurements in mm
A clean, smooth color image on the ground or
a wall creates an elegant, tranquil atmosphere.
The new Philips LedUplight delivers precisely that.
Its heat-free surface coupled with low voltage is
ideal for children’s playgrounds, water parks or
wherever you want stunning light effects.
Features
• Dynamic color changing capability
• Ability to create 16.67 million uniform, smooth and
brilliant colors without revealing any lamp image

10 11
LED LUMINAIRES CITY BEAUTIFICATION LED LUMINAIRES CITY BEAUTIFICATION
Product dimensions
Measurements in mm

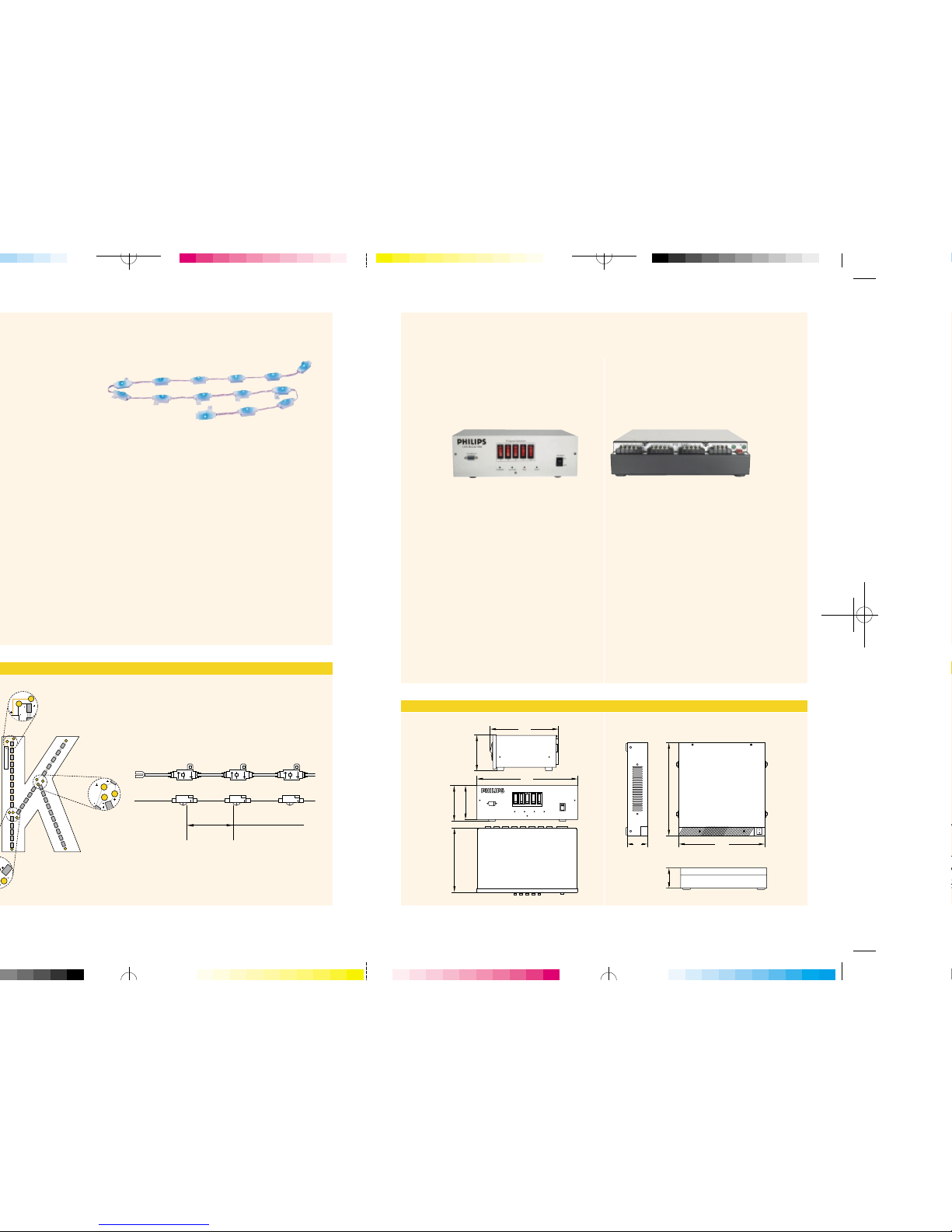

The Philips LedString system is formed by LED
modules, connected by wires and designed to be
directly mounted onto a sign back-plate or other
substrate.The driver is a single device which
converts the main voltage to a low voltage DC
required to operate LedString.
Features
• Available in 21mm reels of LEDs, with a slim
driver: both fully weather proof
• Each driver has a minimum connection of 5 LEDs
(Red and Amber) or 7 LEDs (Blue and Green).
Maximum connection is 45 LEDs or
49 LEDs respectively
• Standard range: Red,Amber, Blue, Green and White
• Safety compliance: EN 60598
LedString
LedMaster 800
Controller
The LedMaster 800
is a compact and powerful
controller in the Philips LED range of color
changing luminaires. LedMaster 800 possesses
tremendous controlling power to command up to
720 units of the LED color changing luminaires.
Product dimensions
Features
• Optimizes power supply for R, G, B diodes of
the LED luminaires thereby providing constant
power for dynamic color changing ranges of
each color
• An embedded data repeater allows LED
luminaires to be installed over long distances.
This is especially beneficial to motion-picture-
like programming
• With 7 power output ports, the system can
support up to 7 circuits of LED luminaires with
a maximum power limit of 100W x 3
Measurements in mm
Power Supply
The LedMaster 800 Power Supply is an integrated
device panel and serves as a power source for
the Philips LED range of color changing luminaires.
It also serves as the data repeater hub of
its controller.
LED module
Connector
Driver
Pitch=7mm
Controller Power Supply
101
194
182
101 CONSOLE
Program Selection
0.T1.T2.T3.T
4.T
TESTFAILACTIVEPOWER
OFF
ON
POWER
96
286
62
62 264
285
• Ingress protection: IP 66 (EN 60598, E N 60529)
• Approval marks: ENEC, CE, cCSAus.
• Quality standard: ISO 9001-2000
• Environmental standard: ISO 4001
Benefits
• Reliable and flexible
• Low cost of ownership
• Long life
• Safe to use: no high voltages or toxic materials
• Easy to install
• No breakage during shipping and handling
Main applications
• Outdoor signage
• Decorative lighting
Features
• Extremely diverse color changing effects – up to
32 sequencing effects in descriptive language with
minimum memory storage
• Connects up to 8 sub-controllers for a maximum
of 720 units of true-color LED luminaires
• Built-in 64K non-volatile memory to store up to
32 sets of programs
• Equipped with 5 sets of DIP switches that allows
manual settings of 32 pre-set programs
•RS -232 port – serves as an interface between
LedMaster 800 and PC software; or as a gateway
to other control systems
Main applications
• Façade
• Landscapes

12
LED LUMINAIRES CITY BEAUTIFICATION
Ordering Data
LedStrip I
Type Color Total weight Packing dimensions Quantity per box Ordering number
(kg) (mm)
BCS606/40 A Amber 9104 033 34880
BCS606/40 G Green 9104 033 34980
BCS606/40 B Blue 4.5 608 x 370 x 82 9104 033 35080
BCS606/40 R Red 9104 033 35180
BCS606/40 W White 9104 033 35280
BCS609/60 A Amber 9104 033 35380
BCS609/60 G Green 9104 033 35480
BCS609/60 B Blue 6.8 900 x 370 x 82 4 9104 033 35580
BCS609/60 R Red 9104 033 35680
BCS609/60 W White 9104 033 35780
BCS612/80 A Amber 9104 033 35880
BCS612/80 G Green 9104 033 35980
BCS612/80 B Blue 9 1195 x 370 x 82 9104 033 36080
BCS612/80 R Red 9104 033 36180
BCS612/80 W White 9104 033 36280
Ordering Data
LedSpot
Type Color Dominant wavelength Net weight Total weight Product dimensions Packing dimensions Quantity Ordering number
(kg) (kg) (mm) (mm) per box
BGS066/1 B Blue 459nm ~ 486nm 9104 019 72280
BGS066/1 G Green 519nm ~ 541nm 9104 019 72380
BGS066/1 A Amber 587nm ~ 597nm 0.6 16 85 x 85 x 63.5 518 x 391 x 196 24 9104 019 72180
BGS066/1 R Red 622nm ~ 645nm 9104 033 30080
BGS066/1 W White 4500K ~ 8000K 9104 019 72480
Ordering Data
LedStep-Square
Type Color Dominant wavelength Net weight Total weight Product dimensions Packing dimensions Quantity Ordering number
(kg) (kg) (mm) (mm) per box
BBS420/10 B Blue 460nm ~ 480nm 9104 033 30180
BBS420/10 G Green 519nm ~ 541nm 9104 033 30280
BBS420/10 A Amber 587nm ~ 597nm 1.65 41 130 x 130 x 104.5 638 x 481 x 272 24 9104 033 30480
BBS420/10 R Red 622nm ~ 645nm 9104 033 30380
BBS420/2 W White 4500K ~ 8000K 9104 033 30580
Ordering Data
LedUplight 100mm
Type Color Dominant wavelength Net weight Total weight Product dimensions Packing dimensions Quantity Ordering number
(kg) (kg) (mm) (mm) per box
BBS400-2/10 B Blue 460nm ~ 480nm 9104 019 70780
BBS400-2/10 R Green 519nm ~ 541nm 9104 019 70880
BBS400-2/10 A Amber 587nm ~ 597nm 1.1 28 D110 x 109 558 x 421 x 284 24 9104 019 70980
BBS400-2/10 R Red 622nm ~ 645nm 9104 019 71080
BBS400-2/1 W White 4500K ~ 8000K 9104 019 71180
Ordering Data
LedUplight 150mm
Type Color Dominant wavelength Net weight Total weight Product dimensions Packing dimensions Quantity Ordering number
(kg) (kg) (mm) (mm) per box
BBS500/10 B Blue 460nm ~ 480nm 9104 019 71480
BBS500/10 G Green 520nm ~ 550nm 9104 019 71580
BBS500/10 A Amber 584nm ~ 597nm 2 50 D150 x 128.5 22 x 544 x 320 24 9104 019 71680
BBS500/10 R Red 620.5nm ~ 630.5nm 9104 019 71780
BBS500/2 W White 4500K ~ 8000K 9104 019 71880
Ordering Data
LedString
Type Color Ordering number
BCS500 A Amber 9104 033 90980
BCS500 G Green 9104 033 91280
BCS500 B Blue 9104 033 91080
BCS500 R Red 9104 033 91180
Ordering Data
LedMaster 800 Controller
Ordering number
9104 033 91380
Ordering Data
LedMaster 800 Power Supply
Ordering number
9104 033 91480
Ordering Data
LedStrip Il
Type Color Total weight Packing dimensions Quantity per box Ordering number
(kg) (mm)
BCS703 A Amber 9104 033 37880
BCS703 G Green 9104 033 37980
BCS703 B Blue 1.2 355 x 100 x 100 9104 033 38080
BCS703 R Red 9104 033 38180
BCS703 W White 9104 033 38280
BCS706 A Amber 9104 033 38380
BCS706 G Green 9104 033 38480
BCS706 B Blue 2.4 645 x 100 x 100 9104 033 38580
BCS706 R Red 9104 033 38680
BCS706 W White
1
9104 033 38780
BCS709 A Amber 9104 033 38880
BCS709 G Green 9104 033 38980
BCS709 B Blue 3.6 935 x 100 x 100 9104 033 39080
BCS709 R Red 9104 033 39180
BCS709 W White 9104 033 39280
BCS712 A Amber 9104 033 39380
BCS712 G Green 9104 033 39480
BCS712 B Blue 4.8 1225 x 100 x 100 9104 033 39580
BCS712 R Red 9104 033 39680
BCS712 W White 9104 033 39780
DESIGNED BY PHILIPS DESIGN HONG KONG 2004
Available from Oct 2004
