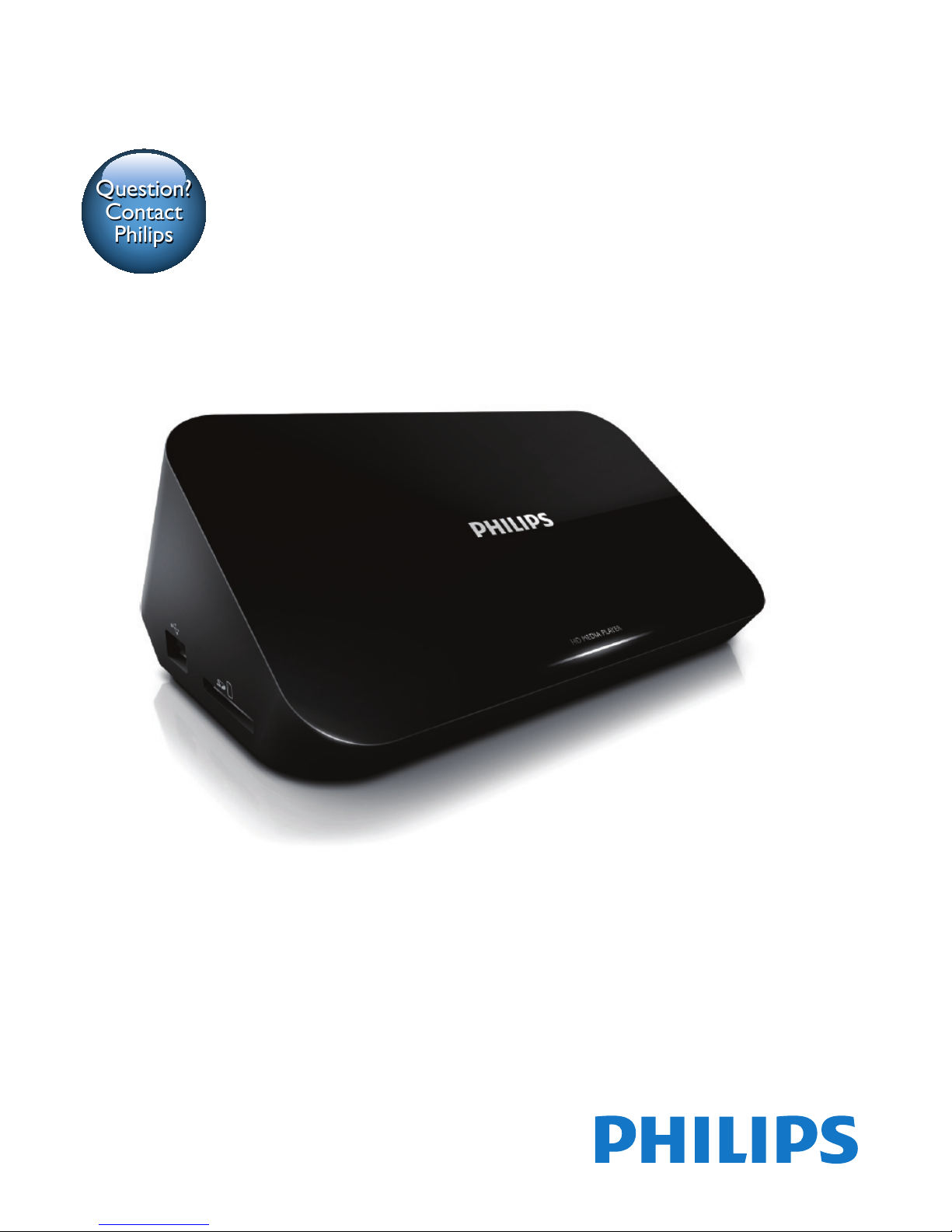

Philips HMP5000 User manual

www.philips.com/welcome
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
HMP5000

1
English
EN
Contents
1 Control and play 2
2 Options 3
Video options 3
Audio option 3
Photo options 4
3 File browsing 5
Browse all les 5
Browse movie les 6
Browse music les 7
Browse photo les 7
4 File management 9
Basic operations 9
5 Set up a network 11
Wireless network setup 11
Wired network setup 12
6 Playmedialesfromacomputer
(DLNA) 13
7 Internet Services 14
8 Settings 15
System 15
Audio 16
Video 16
Wireless network setup 16
MISC 17
9 EasyLink 18
10 Updatesoftware 19
Update software via the Internet 19
Update software via USB/SD 19
11 Troubleshooting 20
12 Specication 21

2EN
1 Control and play
Use your remote control to control the play.
Function Buttons / Actions
Stop the play. •
Pause or resume the play. •
Skip to the previous/next media le. • /
Return to the home page. •
Zoom in or out. Press repeatedly.
To pan through an enlarged photo, press
.
Search backward/forward fast. Press / repeatedly to select a speed.
Access subtitle settings. SUBTITLE
Rotate a photo. Press / .
Navigate menus. , , ,
Conrm a selection or entry. OK
Access option menus during play or in the le list.
Access the le editing menu in the le folder list. EDIT
Note
•You can only play DivX videos that were rented or purchased with DivX® registration code of this player. (Refer to "Setup' >
"MISC" > [DivX® VOD Code])
•Subtitle les with the following lename extensions (.srt, .smi, .sub, .ssa, .ass, .txt) are supported but not displayed in the le list.
•The subtitle lename has to be the same as the lename of the DivX video (the le extension excluded).
•The DivX video le and the subtitle le must be saved under the same directory.

3
English
EN
2 Options
During play, press to access the option items.
Video options
[Subtitle]: Adjust subtitle settings. Press to select an item and to adjust values.Then press OK
to conrm.
[Audio]: Select an audio language.
[GOTO]: Skip play to the specic time. Press to select an item and to adjust values.Then press
OK to conrm.
[Repeat Title]: Repeat the current title.
[Repeat All]: Repeat the movie le.
[RepeatOff]:Turn off a repeat mode.
[Video Setting]: Adjust the video settings. Press to select an item and to adjust values.Then
press OKto conrm.
Audio option
[RepeatOff]:Turn off a repeat mode.
[Repeat One]: Repeat the current music le.
[Repeat All]: Repeat all the music ies.
[ShufeLoop]: Play music les in a random loop.
a
b
c

4EN
Photo options
[Slide Timing]: Set a display interval for a slideshow.
[Slide Transition]: Select a transition effect for a slideshow.
[RepeatOff]:Turn off a repeat mode.
[Repeat All]: Repeat all the photo ies.
[ShufeLoop]: Play photo les in a random loop.
[Background Music]: Select and play a music le during slideshow.
[Video Setting]: Adjust the video settings.

5
English
EN
3 File browsing
You can browse media les stored in a USB/SD storage device.
1 Press .
2 Select [USB]/ [Card] / [Esata].
3 Select a mode to browse media les.
• [Folder]
• [Movies]
• [Music]
• [Photos]
Browseallles
1 Press to select [Folder] and press OK to conrm.
2 Select your USB/SD storage device and press OK.
3 Press in the le browser.
a
b
c
Folder Movies Music Photos
USB CARD Esata
Network Setup
Internet Service
Folder Movies MusicPhotos

6EN
4 Press / to select a mode to view or arrange les.
[Thumbnails]: Display thumbnails of les or folder.
[List]: Display les or folder in a list.
[Preview]: Display les or folders with a preview window.
[All Media] Display all media les.
[Movies]: Display movie les.
[Photos]: Display photo les.
[Music]: Display music les.
Browsemovieles
1 Press to select [Movies] and press OK to conrm.
2 Press in the le browser.
3 Press / to select a mode to view or arrange les.
[Search]: Search movie les. Follow on screen instruction to type in key words in the mini keyboard and
press to start search.
[Thumbnails]: Display thumbnails of movie les.
[List]: Display movie les in a list.
[Preview]: Display les or folders with a preview window.
[All Movies]: Display all movies les.
[Show DVDs]: Display all ISO les.
[Flash Animation]: Display all ash les.
[Go to Folder]: Go to the folder where the selected le is placed.
[Name]: List movies les in an alphabetical order of their names.
[Size]: List movies les in the ascending order of their sizes.
[Most Viewed]: List most viewed movie les.
[Recently Added]: List movie les added recently.
Folder Movies Music Photos

7
English
EN
Browsemusicles
1 Press to select [Music] and press OK to conrm.
2 Press in the le browser.
3 Press / to select a mode to view or arrange les.
[Search]: Search music les. Follow on screen instruction to type in key words in the mini keyboard and
press to start search.
[Thumbnails]: Display thumbnails of music les.
[List]: Display music les in a list.
[Preview]: Display movie les with a preview window.
[Go to Folder]: Go to the folder where the selected le is placed.
[All Songs]: Display all music les.
[Albums]: Display music les by albums.
[Artists]: Display music les by artists.
[Genres]: Sort music les by genres.
[Years]: Sort music les by years.
[Playlists]: Display play lists.
[Recently Played]: List music les played recently.
[Recently Added]: List music les added recently.
[Name]: List music les in an alphabetical order of their names.
Browsephotoles
1 Press to select [Photos]and press OK to conrm.
2 Press in the le browser.
FolderMoviesMusic Photos
Folder Movies MusicPhotos

8EN
3 Press / to select a mode to view or arrange les.
[Search]: Search photo les. Follow on screen instruction to type in key words in the mini keyboard and
press to start search.
[Thumbnails]: Display thumbnails of photo les or folder.
[List]: Display les or folder in a list.
[Preview]: Display les or folders with a preview window.
[Photo Directory]: Display photo les in the directory mode.
[LeafFolderView]: Display photo les in the leaf folder mode.
[Date view]: Sort photo les by date modied.
[All Photos]: Display all photos les.
[Albums]: Sort photo les by albums.
[Name]: List photo les in an alphabetical order of their names.
[Recently Added]: List photo les added recently.
[Recently Played]: List photo les played recently.

9
English
EN
4 File management
You can manage media les on the storage device.
Basic operations
1 Press .
2 Select [USB]/ [Card] / [Esata] >[Folder].
3 Select a partition of your USB/SD storage device and press OK.
4 Press / to select a le or folder and press [Edit].
» The le editing menu is displayed.
5 Press / to select your operation and press OK to conrm.
[Copy]: Select a destination and press to conrm.
» The selected le or folder is copied to the destination.
[Delete]: Select [Yes] and press OK to conrm.
» The selected le or folder is deleted.
[Move]: Select a destination and press to conrm.
» The selected le or folder is moved to the destination.
[Rename]
1 Select [Rename] to edit the name in the mini keyboard, and then press to conrm.
2 Select [OK] and press OK to apply the new name.
a
b
c
Folder Movies Music Photos
USB CARD Esata
Network Setup
Internet Service

10 EN
Usethelelist
[Multiple Select]
1 Press / to select a le or folder and press to add to the list.
2 Press [Edit]when you complete adding les and folders.
3 Select an operation.
[Copy] Select the destination and press to conrm.
[Delete] Select [Yes] and press to delete the selected les
or folders.
[Move] Select the destination and press to conrm.
[Save Playlist] • Select [OK] to save a play list.
• Select [Rename] to edit the name in the mini
keyboard, and then press to conrm.
[Save Photo Album] • Select [OK] to save a photo album.
• Select [Rename] to edit the name in the mini
keyboard, and then press to conrm.
Note
•Press and hold for two seconds to remove a connected storage device safely.

11
English
EN
5 Set up a network
By connecting this player to a computer network and the Internet, you can
• Play photos, music, and video les streamed from your computer.
• Watch online TV programs.
• Browse Internet photo albums.
• Update the software of this player through the Internet.
Wireless network setup
What you need A wireless router that is connected to the Internet
1 Connect this player to a computer network or the Internet through a wireless router.
2 Perform the wireless network installation.
1), Press .
2), Select [Setup] and press OK.
» The setup menu is displayed.
3), Select [Network]>[Wireless] > [Connect] and pressOK.
» A list of available wireless networks is displayed.
4), Select your network from the list and press OK.
5), Enter your WEP or WPA key in the mini keyboard and press .
» A connection test is started
» The status of network connection is displayed after the test is completed.
6), Press OKto exit.
Note
•To re-scan available wireless networks, press .
PC (DLNA)

12 EN
Wired network setup
What you need A wired router that is connected to the Internet
1 Connect this player to a computer network or the Internet through a wired router.
2 Perform the network installation.
1), Press .
2), Select [Setup] and press OK.
» The setup menu is displayed.
3), Select [Network] > [Ethernet] > [DHCP IP (AUTO)] > [DHCP (AUTO)] and press OK.
» A dialog box is displayed.
4), Select [Yes] and press OK to save the network settings .
» A connection test is started.
» The status of network connection is displayed after the test is completed. .
6), Press OKto exit.
You can set the IP address manually.
1 Select [Network] >[Ethernet] > [FIX IP (MANUAL)].
» The IP address table is displayed.
2 Press to select a item and press to adjust the value.
3 Press OK when you complete setting the IP address.
» A dialog box is displayed.
4 Select [Yes] and press OK to save the network settings.
PC (DLNA)

13
English
EN
6 Playmediafilesfromacomputer
(DLNA)
With this DLNA-certied player connected to a computer network, you can play video, music, and
photo from a computer.
Note
•To browse media les on a PC, make sure that a DLNA media server software (such as Windows Media Player 11 or higher)
is installed on the PC.
1 Connect this player to a computer network (see "Set up a network").
2 On the PC, in the software of the DLNA media server (such as Windows Media Player 11 or
higher), you need to set:
a Shareyourmediatothisplayer(see"Help"documentinthemediaserversoftware).
b Sharelesoraddlestothelibrary(see"Help"documentinthemediaserversoftware).br
3 Press .
4 Select [Network], and press OK.
» A content browser is displayed.
• To browse shared folders of a PC, select[Shared Folder] and pressOK.
• To browse shared media les, select [Shared Media Files]and pressOK.
5 Select a media le, and press OK to play.
• To access the menu of browsing options, press .
• For details, see "Browse all les".

14 EN
7 Internet Services
With this player, you can access online various services, such as movies, pictures, music, and games.
What you need Connect this player to the Internet. (see "Set up a
network").
1 Press .
2 Select [Internet Services] and press OK.
» The Internet services are displayed.
3 Select a service.
• [Facebook]: a social networking service
• [AccuWeather]: an online weather forecasting service worldwide
• [YouTube]: a video-sharing service
• [Piccasa]: an online photo album
1 Follow the on-screen instruction and use your remote control to enjoy the services.
Function Button/Action
Select a service or item.
Conrm a selection. OK
Return to a previous page, or delete input text.
Return to the home page.

15
English
EN
8 Settings
You can change settings of this player in the setup menu.
1 Press .
2 Select [Setup] and press OK to conrm.
» The setup menu is displayed.
• Press / to select a menu item or setting option.
• Press OK to access the lower-level menu.
• Press to return to the upper-level menu.
System
[Menu Language]: Select a language for on-screen menu.
[Subtitle]: Select a subtitle language for video.
[Screen Saver]: Enable the screen saver in case of inactivity (for example, in pause or stop mode).
[DLNA DMR]: Enable this player to play photos, music, and video les streamed from your
computer.
[Device Name]: Change the name of this player.
[Auto Scan]: Scan media les on a storage device automatically.
[Scan Storage]: Start or stop scanning media les on a storage device.
[Resume Play]: Resume playback of a video le from the point where you last stopped.
[FactoryDefault]: Reset all settings to factory default.
EasyLink
MISC
Audio
System
Network
Video
a
b
c
USB CARD Esata
Network Setup
Internet Service

16 EN
Audio
[Night Mode]: Equalize loud sound and soft sound. If enabled, you can watch movies at a low
volume at night.
[HDMI Output]: Select an output sound format when connecting the HDMI jack.
[SPDIF Output]: Select an output sound format when connecting the digital audio jack.
[Lip Sync]: Enable this function to synchronize audio to video playback.
Video
[Aspect Ratio]: Select display aspect ratio.
[TV System]: Select a video resolution setting that best is supported by yourTV. See your TV
manual for details.
Note
•If a selected video resolution is not supported with yourTV and a blank screen appears, to recover picture display, wait for 10
seconds.
•For a composite (CVBS) connection, if no video output is made when you set the video resolution is to an HD resolution
(1080p, 1080i, 720p), connect this player to the TV with an HDMI connection to play HD videos.
[Video Zoom]: Zoom in or out video scenes.
[1080P 24Hz]: Use 1080p 24Hz video output mode for video content.
Note
•The video resolution and the frame rate of the video content is 1080p 24Hz.
•Your TV supports the 1080p 24Hz.
•Ensure that you use an HDMI cable to connect this player to yourTV.
[Deep Color]: Display colors with more shades and hues when the video content is recorded in
Deep Color mode and the TV supports this feature.
[Video Setting]: Adjust the video settings.
Wireless network setup
[Ethernet]: Congure the IP address of this player.
[Wireless]: Set up a wireless network connection.
[NetworkInfo]: Display the current network status.

17
English
EN
MISC
[VersionInfo]: Display the information about software version of this player.
[DivX® VOD Code]: Display the DivX® registration code and deregistration code.
[Online upgrade]: Select to update software from a network.
[USB upgrade]: Select to update software from USB storage device.

18 EN
9 EasyLink
This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control)
protocol.You can use a single remote control to control EasyLink compliant devices that are connected
through HDMI.
1 Connect the HDMI CEC compliant devices through HDMI, and turn on the HDMI CEC
operations on the TV and other connected devices (see the user manual of the TV or other
devices for details).
2 Press .
3 Select [Setup] > [Easy Link].
4 Select [On]under the options:
• [Easy Link] > [On]
• [One Touch Play] > [On]
• [One Touch Standby] > [On]
» EasyLink function is turned on.
One Touch Play
When you play a le with this player, the connected HDMI CEC TV automatically switches to the
HDMI input channel.
One Touch Standby
When you switch a connected device (for example TV) to the standby mode with its own remote
control, this player switches to the standby mode automatically.
Auto Power On From TV
When you switch a connected device (for example TV) to this player port with its own remote
control and this player is standby mode, this player switches to the power on mode automatically.
Note
•WOOX Innovations does not guarantee 100% interoperability with all HDMI CEC devices.
