Phoenix contact Quint-ps/24dc/24dc/5/co User manual

1Description

DC/DC converter with SFB technology, dip-coated,

primary-switched, input: 24 V DC, output: 24 V DC,

output current: 5A

QUINT-PS/24DC/24DC/ 5/CO

Data sheet

QUINT DC/DC converter – superior system availability from

SFB technology

Compact DC/DC converters from the new QUINT POWER

generation maximize your system availability. With SFB

technology (Selective Fuse Breaking Technology), 6-fold

nominal current for 12 ms, it is possible to trigger even

standard circuit breakers reliably and quickly. Faulty current

paths are switched off selectively, the fault is located, and

important system parts remain in operation. Comprehensive

diagnostics are provided through constant monitoring of the

input voltage, output voltage and output current. Preventive

function monitoring visualizes critical operating states and

indicates them to the controller before errors can occur.

The application fields for DC/DC converters are numerous

– Changing the voltage level

– Refreshing the output voltage for constant voltage at

the end of long cables

– Setup of independent supply systems by electrical

isolation

Features

– Wide-range voltage input

– Galvanic isolation

– Reverse polarity protection

– Preventive function monitoring

– Reliable starting of difficult loads with POWER BOOST

static power reserve

– Fast tripping of standard circuit breakers with dynamic

SFB technology power reserve

– High MTBF > 890000 h (40 °C)

Flexible use

– Dip coating enables use in oxidizing and sulfidizing

atmospheres with humidities of up to 100 %

– Adjustable output voltage

– Can be used in Class I, Division 2, Groups A, B, C, D

(Hazardous Location) ANSI-ISA 12.12

Make sure you always use the latest documentation.

It can be downloaded from the product at phoenixcontact.net/products.

105537_en_02 2017-07-28

QUINT-PS/24DC/24DC/ 5/CO
105537_en_02 PHOENIX CONTACT 2 / 22
2Tableofcontents
Description .............................................................................................................................. 1
Table of contents ..................................................................................................................... 2
Ordering data .......................................................................................................................... 3
Technical data ......................................................................................................................... 4
Safety regulations and installation notes.................................................................................. 9

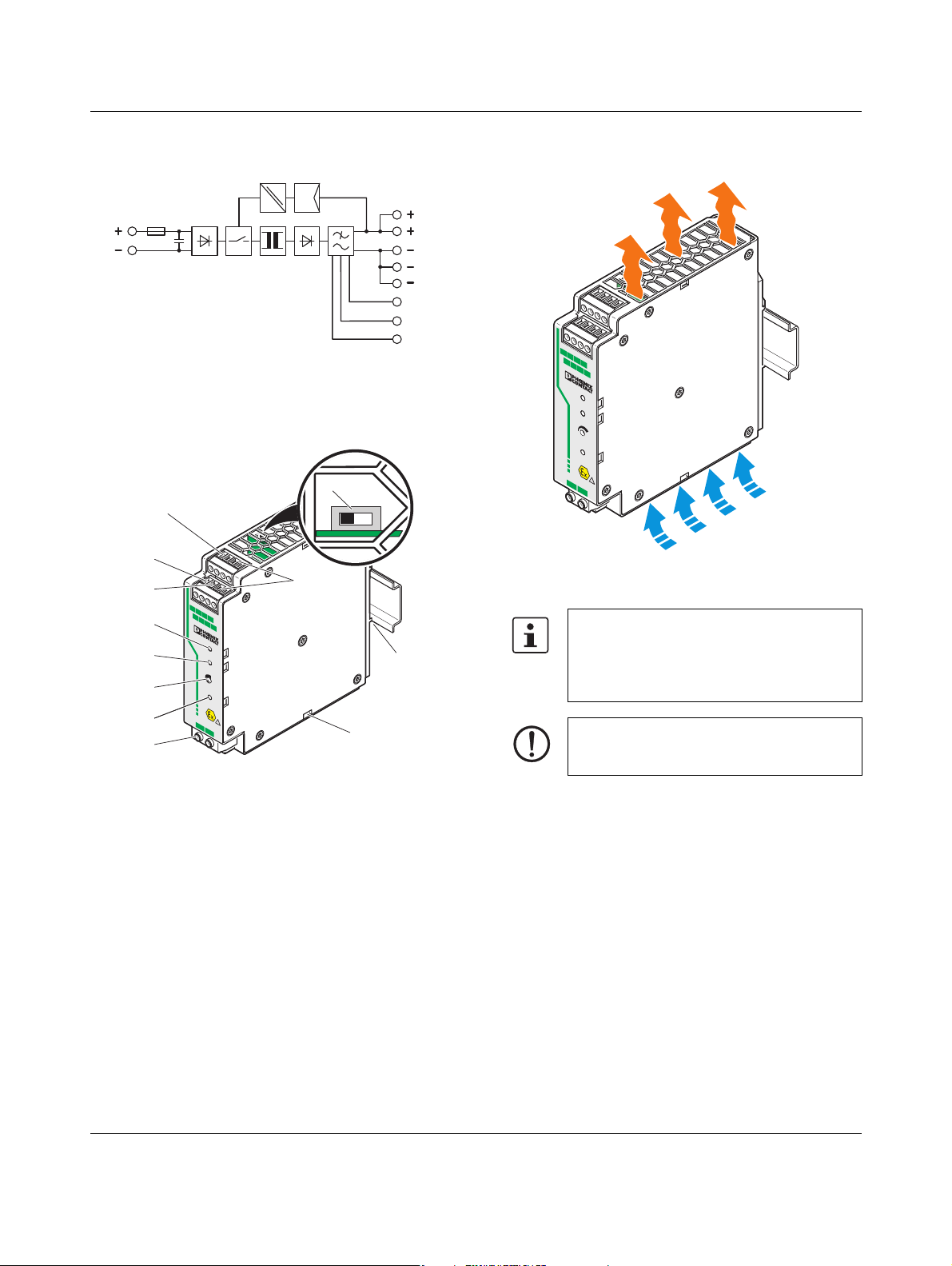

Basic circuit diagram ............................................................................................................. 10
Structure................................................................................................................................ 10
Installation ............................................................................................................................. 10
Dimensions and mounting positions...................................................................................... 11

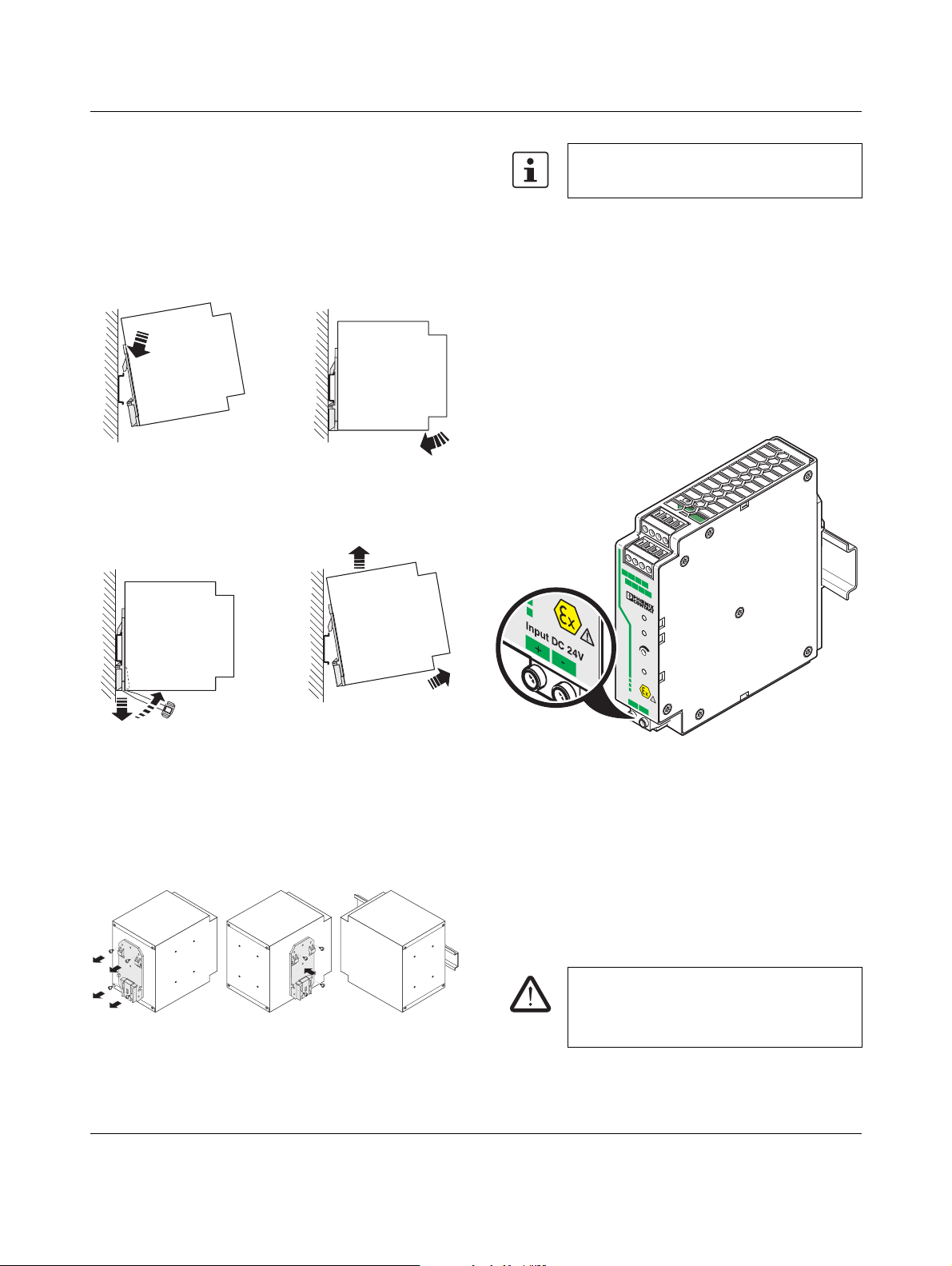

Mounting on DIN rails ............................................................................................................ 12
1 Normal mounting position .................................................................................................... 12
2 Rotated mounting position (270° Y-axis).................................................................................. 12
Input ...................................................................................................................................... 12
1 Protection of the primary side ............................................................................................... 12
Output.................................................................................................................................... 13
1 Protection of the secondary side............................................................................................ 13

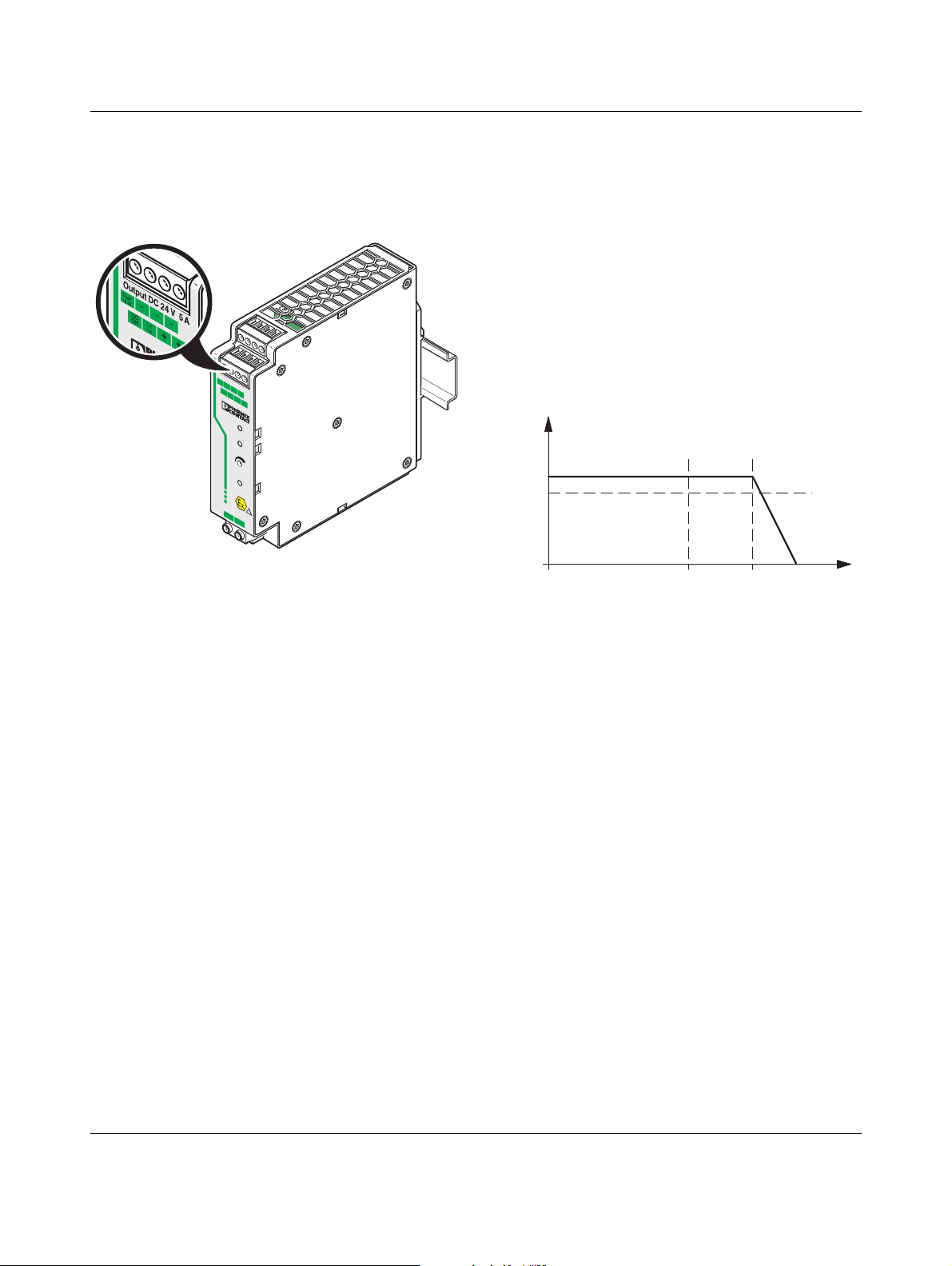

Output characteristic curve.................................................................................................... 13

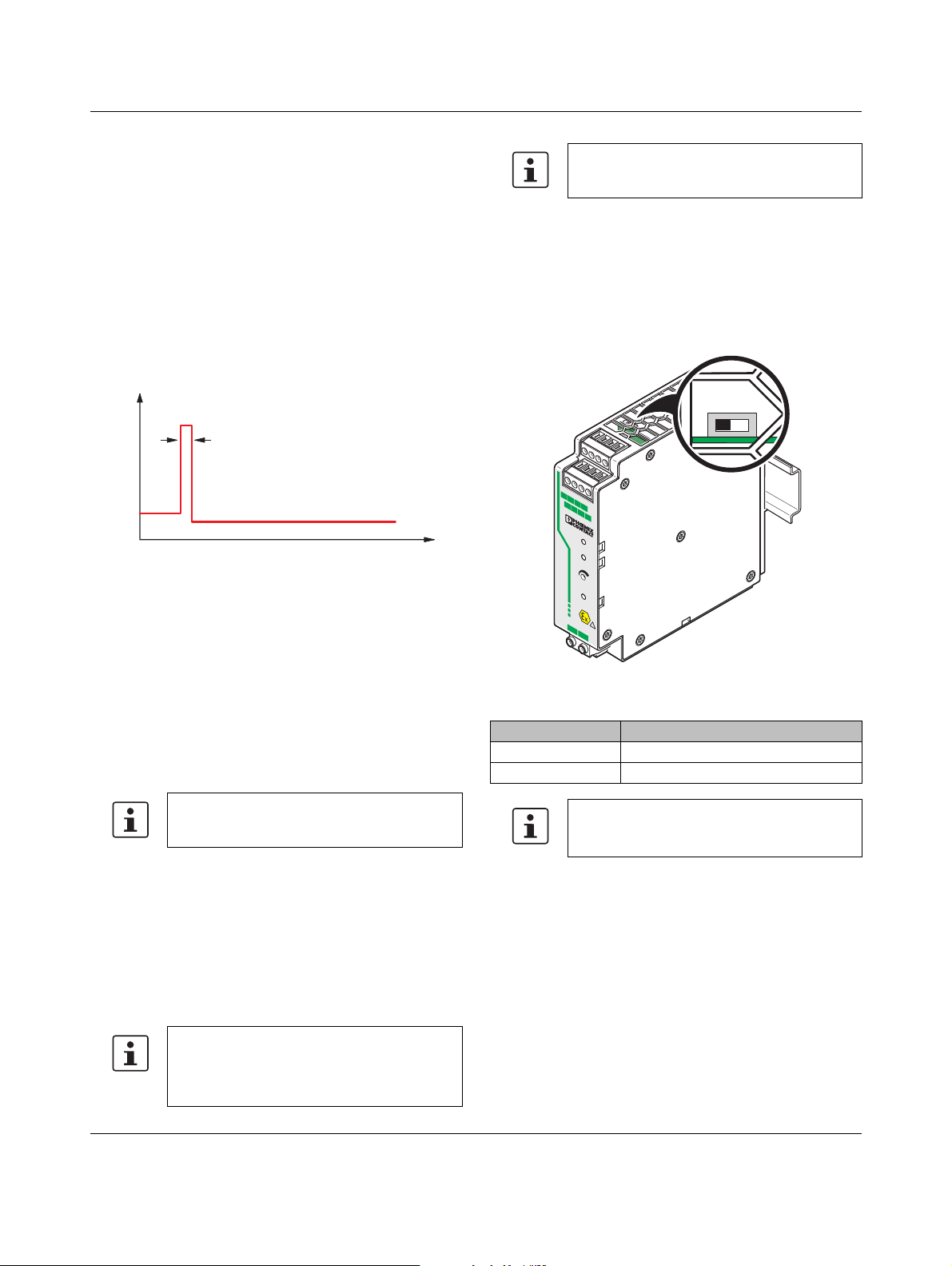

SFB technology ..................................................................................................................... 14
1 Circuit breaker tripping characteristics .................................................................................... 14
2 Installation notes ............................................................................................................... 14
3 Deactivating SFB technology................................................................................................ 14
4 SFB configuration .............................................................................................................. 15
Signaling................................................................................................................................ 16
1 Active switching output “DC OK”............................................................................................ 16
2 Active switching output “I<IN” .............................................................................................. 16
3 Active switching output “UIN>19.2V” .................................................................................... 17
Derating................................................................................................................................. 17
1 Temperature-dependent derating .......................................................................................... 17
2 Voltage-dependent derating ................................................................................................. 17

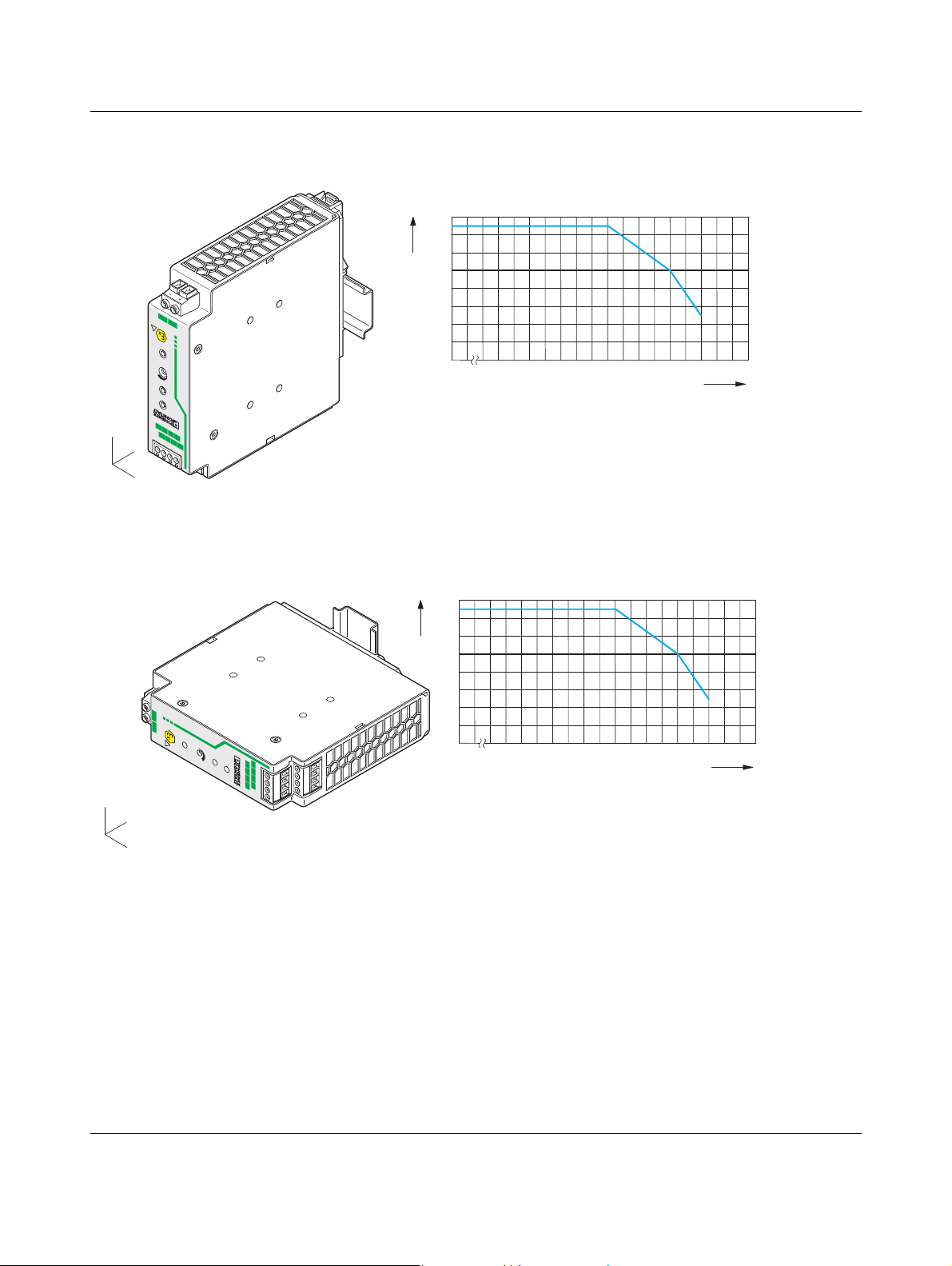

3 Position-dependent derating................................................................................................. 18
Operating modes................................................................................................................... 21
1 Series operation ................................................................................................................ 21
2 Parallel operation............................................................................................................... 21
3 Redundant operation .......................................................................................................... 21
4 Increasing power ............................................................................................................... 22

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 3 / 22

Description Ty p e Order No. Pcs./Pkt.

Primary-switched QUINT DC/DC converter for DIN rail

mounting with SFB (Selective Fuse Breaking)

Technology, with protective coating, input: 24 V DC,

output: 24 V DC/5 A

QUINT-PS/24DC/24DC/ 5/CO 2320542 1

3Orderingdata

Accessories Ty p e Order No. Pcs./Pkt.

Primary-switched QUINT POWER supply for DIN rail

mounting with SFB (selective fuse breaking) technology,

input: 1-phase, output: 24 V DC/10 A

QUINT-PS/1AC/24DC/10 2866763 1

Primary-switched QUINT POWER power supply for DIN

rail mounting with SFB (Selective Fuse Breaking)

Technology, with protective coating, input: 1-phase,

output: 24 V DC/10 A

QUINT-PS/1AC/24DC/10/CO 2320911 1

Primary-switched QUINT POWER power supply for DIN

rail mounting with SFB (Selective Fuse Breaking)

Technology, input: 3-phase, output: 24 V DC/10 A

QUINT-PS/3AC/24DC/10 2866705 1

Active QUINT redundancy module for DIN rail mounting

with Auto Current Balancing ACB technology and

monitoring functions, input: 24 V DC, output: 24 V DC/2 x

10 A or 1 x 20 A, including mounted UTA 107/30 universal

DIN rail adapter

QUINT-ORING/24DC/2X10/

1X20

2320173 1

Universal DIN rail adapter UTA 107/30 2320089 100

Universal wall adapter for securely mounting the power

supply in the event of strong vibrations. The power supply

is screwed directly onto the mounting surface. The

universal wall adapter is attached at the top/bottom.

UWA 182/52 2938235 1

Assembly adapter for QUINT-PS... power supply on S7-

300 rail

QUINT-PS-ADAPTERS7/1 2938196 1

Thermomagnetic device circuit breaker, 1-pos., tripping

characteristic SFB, 1 PDT contact, plug for base element.

CB TM1 1A SFB P 2800836 1

Thermomagnetic device circuit breaker, 1-pos., tripping

characteristic SFB, 1 PDT contact, plug for base element.

CB TM1 2A SFB P 2800837 1

Thermomagnetic device circuit breaker, 1-pos., tripping

characteristic SFB, 1 PDT contact, plug for base element.

CB TM1 12A SFB P 2800844 1

Thermomagnetic device circuit breaker, 1-pos., tripping

characteristic SFB, 1 PDT contact, plug for base element.

CB TM1 16A SFB P 2800845 1

Our range of accessories is being continually extended, our current range can be found in the download area.

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 4 / 22

4 Technical data

Input data

Nominal input voltage 24 V DC

Input voltage range 18 V DC ... 32 V DC

Extended input voltage range in operation 14 V DC ... 18 V DC (Derating)

Current consumption 7 A (24 V, IBOOST)

Inrush current limitation typ. 15 A

I2t< 0.5 A2s

Power failure bypass > 10 ms (24 V DC)

Protective circuit Transient surge protection Varistor

Reverse polarity protection Yes ≤30 V DC

Input fuse, integrated 15 A (device protection)

Output data

Nominal output voltage 24 V DC ±1%

Setting range of the output voltage (USet)18 V DC ... 29.5 V DC (> 24 VDC, constant capacity restricted)

Output current 5 A (-25°C ... 60°C)

6.25 A (with POWER BOOST, -25°C ... 40°C permanently,

UOUT = 24 V DC)

30 A (SFB technology, 12 ms)

Magnetic circuit breaker tripping B2 / B4 / C2

Active current limitation Approximately 7.2 A

Max. capacitive load Unlimited

Control deviation < 1 % (change in load, static 10 % ... 90 %)

< 2 % (change in load, dynamic 10 % ... 90 %)

< 0.1 % (change in input voltage ±10 %)

Efficiency > 92 %

Rise time < 2 ms (UOUT (10 % ... 90 %))

Residual ripple < 20 mVPP

Peak switching voltages < 10 mVPP (20 MHz)

Connection in parallel Yes, for redundancy and increased capacity

Connection in series yes , 2 (Devices)

Circuit breaker against surge voltage at output by invasive

foreign matter

< 35 V DC

Feedback resistance 35 V DC

Power consumption

Maximum power dissipation in no-load condition 2.4 W

Power loss nominal load max. 11.4 W

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 5 / 22

Status and diagnostic indicator DC OK active

Active switching output UOUT > 0.9 x UN: High signal

Voltage 18 V DC ... 24 V DC

Current < 20 mA (short-circuit resistant)

Status display "DC OK" LED green

Status and diagnostic indicator POWER BOOST, active

Active switching output IOUT < IN: High signal

Voltage 18 V DC ... 24 V DC

Current < 20 mA (short-circuit resistant)

Status display "BOOST" LED yellow/IOUT > IN:LED on

Status and diagnostic indicator UIN OK, active

Active switching output UIN > 19.2 V: High signal

Voltage 18 V DC ... 24 V DC

Current < 20 mA (short-circuit resistant)

Status display LED "UIN < 19.2 V" yellow/UIN < 19.2 V DC: LED on

General data

Insulation voltage input/output 1.5 kV (type test)

1 kV (routine test)

MTBF (IEC 61709, SN 29500) > 890000 h (40 °C)

Normal mounting position horizontal DIN rail NS 35, EN 60715

Dimensions W/H/D (normal mounting position/delivered

condition)

32 mm / 130 mm / 125 mm

Dimensions W / H / D (X-axis rotated 270°) 122 mm / 130 mm / 35 mm

Weight 0.7 kg

Housing

Degree of protection IP20

Type of housing Aluminum (AlMg3)

Hood version Galvanized sheet steel, free from chrome (VI)

Input connection data

Connection method Pluggable screw connection

Conductor cross section, solid 0.2 mm² ... 2.5 mm²

Conductor cross section, flexible 0.2 mm² ... 2.5 mm²

Conductor cross section AWG/kcmil 24 ... 12

Stripping length 8 mm

Screw thread M3

Tightening torque 0.5 Nm ... 0.6 Nm

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 6 / 22

Connection data, output/signals

Connection method Pluggable screw connection

Conductor cross section, solid 0.2 mm² ... 2.5 mm²

Conductor cross section, flexible 0.2 mm² ... 2.5 mm²

Conductor cross section AWG/kcmil 24 ... 12

Stripping length 7 mm

Screw thread M3

Tightening torque 0.5 Nm ... 0.6 Nm

Ambient conditions

Protection class III

Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C derating, 2.5 %/K, startup at -40°C

type-tested)

Ambient temperature (start-up type tested) -40 °C

Ambient temperature (storage/transport) -40 °C ... 85 °C

Max. permissible relative humidity (operation) 100 % (at 25 °C, non-condensing)

Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)

15 Hz ... 150 Hz, 2.3g, 90 min.

Shock 18 ms, 30g, in each space direction (according to IEC 60068-

2-27)

Degree of pollution in acc. with EN 50178 2

Climatic class 3K3 (in acc. with EN 60721)

Approvals

ATEX II 3 G Ex ec IIC T4 Gc

IECEx Ex ec IIC T4 Gc

UL approvals UL/C-UL listed UL 508

UL/C-UL Recognized UL 60950-1

UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D

(Hazardous Location)

Shipbuilding DNVGL(EMCB)

Current approvals/permissions for the product can be found in the download area under phoenixcontact.net/

products.

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 7 / 22

Conformance with EMC Directive 2014/30/EU

Noise immunity according to EN 61000-6-2

EN 61000-6-2 requirement tested

Electrostatic discharge EN 61000-4-2

Housing contact discharge 4 kV (Test Level 2) 8 kV (Test Level 4)

Housing air discharge 8 kV (Test Level 3) 15 kV (Test Level 4)

Comments Criterion B Criterion A

Electromagnetic HF field EN 61000-4-3

Frequency range 80 MHz ... 1 GHz 80 MHz ... 1 GHz

Test field strength 10 V/m 10 V/m

Frequency range 1.4 GHz ... 2 GHz 1 GHz ... 2 GHz

Test field strength 3 V/m 10 V/m

Frequency range 2 GHz ... 2.7 GHz 2 GHz ... 3 GHz

Test field strength 1 V/m 10 V/m

Comments Criterion A Criterion A

Fast transients (burst) EN 61000-4-4

Input 2 kV (Test Level 3 -

asymmetrical)

2 kV (Test Level 3 -

asymmetrical)

Output 2 kV (Test Level 3 -

asymmetrical)

2 kV (Test Level 3 -

asymmetrical)

Signal 1 kV (Test Level 3 -

asymmetrical)

2 kV (Test Level 4 -

asymmetrical)

Comments Criterion B Criterion A

Surge current loads (surge) EN 61000-4-5

Input 0.5 kV (Test Level 1 -

symmetrical)

0.5 kV (Test Level 1 -

asymmetrical)

1 kV (Test Level 2 -

symmetrical)

2 kV (Test Level 3 -

asymmetrical)

Output 0.5 kV (Test Level 1 -

symmetrical)

0.5 kV (Test Level 1 -

asymmetrical)

1 kV (Test Level 2 -

symmetrical)

2 kV (Test Level 3 -

asymmetrical)

Signal 1 kV (Test Level 2 -

asymmetrical)

1 kV (Test Level 2 -

asymmetrical)

Comments Criterion B Criterion A

Conducted interference EN61000-4-6

Input/Output/Signal asymmetrical asymmetrical

Frequency range 0.15 MHz ... 80 MHz 0.15 MHz ... 80 MHz

Voltage 10 V (Test Level 3) 10 V (Test Level 3)

Comments Criterion A Criterion A

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 8 / 22

Key

Criterion A Normal operating behavior within the specified limits.

Criterion B Temporary impairment to operational behavior that is corrected

by the device itself.

Emitted interference in acc. with EN 61000-6-3

Radio interference voltage in acc. with EN 55011 EN 55011 (EN 55022) Class B, area of application: Industry

and residential

Emitted radio interference in acc. with EN 55011 EN 55011 (EN 55022) Class B, area of application: Industry

and residential

All technical specifications are nominal and refer to a room temperature of 25°C and 70% relative humidity at

100m above sea level.

Current approvals/permissions for the product can be found in the download area under phoenixcontact.net/

products.

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 9 / 22

5 Safety regulations and installation

notes

Before startup please ensure:

– Only skilled persons may install, start up,

and operate the device.

– Observe the national safety and accident

prevention regulations.

NOTE: Danger if used improperly

– The device is a built-in device.

– The IP20 degree of protection

(IEC60529/EN60529) of the device is

intended for use in a clean and dry

environment. Do not subject the device to

any load that exceeds the described

limits.

– Do not subject the device to mechanical

and/or thermal loads that exceed the

specified limits.

– Installation and startup may only be

carried out by qualified personnel. The

relevant country-specific regulations

must be observed.

– It is not permissible to open or modify the

device. Do not repair the device yourself

but replace it with an equivalent device.

Repairs may only be carried out by the

manufacturer. The manufacturer is not

liable for damage resulting from violation.

CAUTION:

Before startup please ensure:

– Connection must be performed by

specialist personnel and protection

against electric shock ensured.

– It must be possible to switch off the

device outside the power supply

according to the regulations in EN 60950-

1 (e.g., by line protection on the primary

side).

– All feed lines are sufficiently protected

and dimensioned!

– All output lines are dimensioned

according to the maximum output current

of the device or separately protected!

– Sufficient convection is guaranteed!

EXPLOSION HAZARD!

Only remove equipment when it is

disconnected and not in the potentially

explosive area.

DANGER

Never carry out work on live parts!

The housing can become very hot, depending

on the ambient temperature and load!

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 10 / 22

6 Basic circuit diagram

Figure 1 Basic circuit diagram

7 Structure

Figure 2 Function elements

1DC input

2DC output

3Potentiometer 18 ... 29.5VDC

4LED "UIN < 19.2 V", yellow

5"DC OK" LED, green

6LED "BOOST", yellow

7UIN > 19.2 V, active switching output

8I < IIN, active switching output

9DC OK, active switching output

10 SFB switch (left: SFB activated, right: SFB deactivated)

11 Strain relief for connecting cables

12 DIN rail adapter

8 Installation

Figure 3 Convection

DC OK

U >19,2V

I<IN

QUINT POWER

Input DC 24 V

Output DC 24V5A

OKΙ

DCOK

Boost

18-29,5 V

19,2V

U<1

9.2V

111

ON OFF

10 SFB

The DC/DC converter can be snapped onto

all DIN rails according to EN60715 and

should be mounted in the normal mounting

position (connection terminal blocks on top

and bottom).

– The housing can become very hot

depending on the ambient temperature

and load of the DC/DC converter.

QUINT POWER

Input DC 24V

Output DC 2 4 V 5 A

OKΙ<

DC OK

Boost

18-29.5 V

19.2V

U <9.6V

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 11 / 22

9 Dimensions and mounting

positions

Figure 4 Dimensions, keepout areas, and mounting positions

Possible mounting positions:

Normal mounting position, installation depth 125 mm (+ DIN rail) (delivery state)

Rotated mounting position, 270° Y-axis, installation depth: 35 mm (+ DIN rail)

QUINT POWER

Input DC 24V

Output DC 24V 5A

DC >

OK Ι

DC OK

Boost

18-29.5 V

19.2V

U <19.2 V

---

32 55

130

122

115

230

The required keepout areas for mounting vary depending on the application and ambient conditions. The

keepout area dimensions specified in the figure are designed for the following application (nominal output

power) and ambient conditions (ambient temperature):

Nominal output power:≥50100%

Ambient temperature: -25 °C...≤40 °C

For other variants, please refer to the table below.

Output power Ambient temperature Spacing [mm]

lateral top/bottom

0...50%-25...70°C 0 40/20

≥50...100%-25...≤40°C 5

50≥100...125%15

≥50...100%>40...70°C

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 12 / 22

10 Mounting on DIN rails

10.1 Normal mounting position

Assembly:

Position the DC/DC converter with the DIN rail guide on the

top edge of the DIN rail and snap it in by pushing downward.

Removing:

Pull back the snap-on catch using a screwdriver and detach

the DC/DC converter from the bottom edge of the DIN rail.

10.2 Rotated mounting position (270° Y-axis)

A rotated mounting position can be achieved for the DC/DC

converter by mounting the device on the DIN rail at a 270°

angle. Mount the DIN rail adapter (UTA 107/30) as shown in

the figure. No additional mounting material is required.

Mounting screws: Torx® T10 (0.8 Nm ... 0.9 Nm tightening

torque).

Figure 5 Rotated mounting position (270° Y-axis)

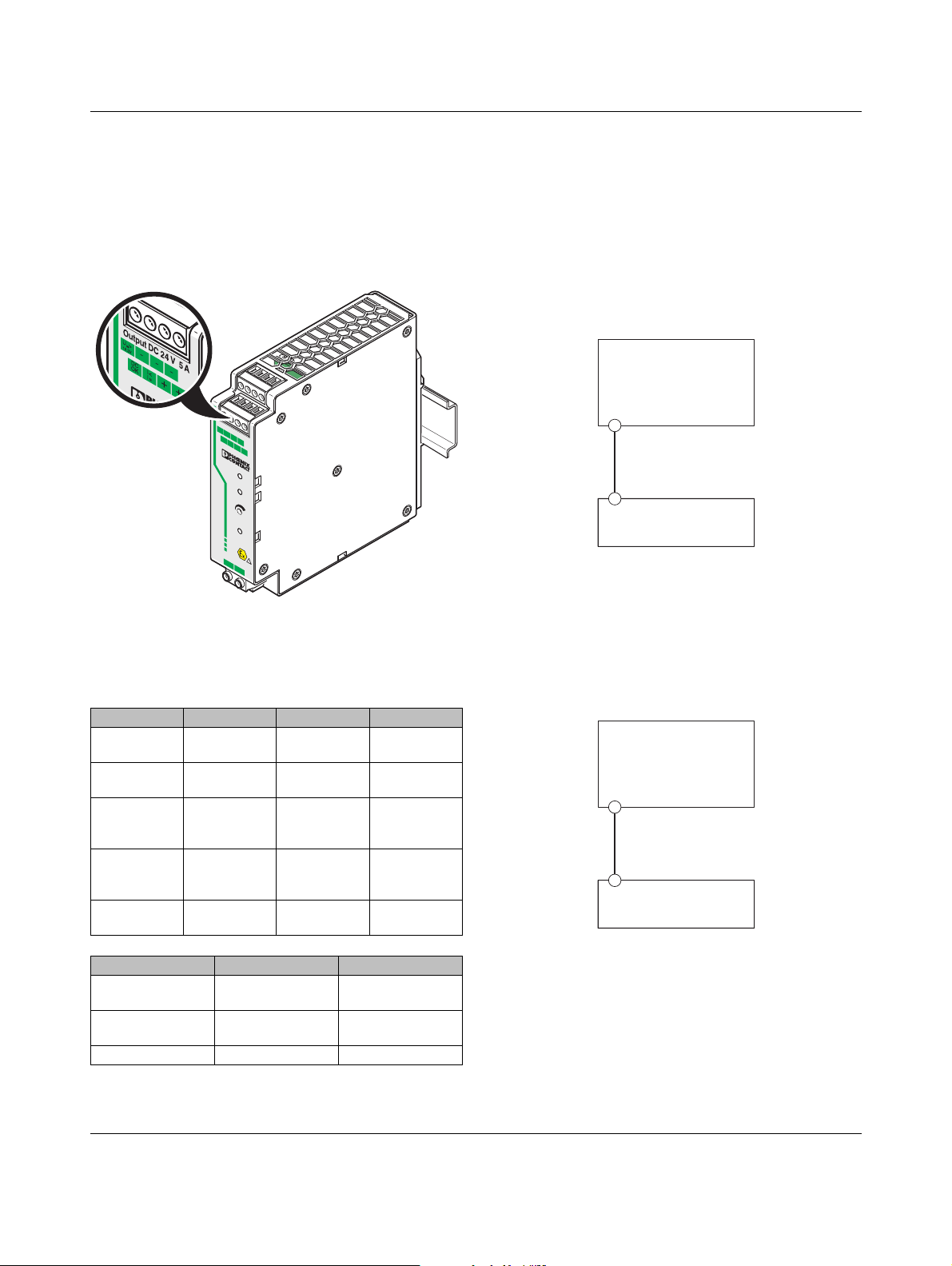

11 Input

Connection to the input voltage is established via the screw

connectors on the DC input screw connection.

The DC/DC converter converts a DC voltage of 18...32V

into adjustable, regulated, and electrically isolated output

voltage.

The DC/DC converter requires an input voltage of 18V.

During operation, this can drop down to 14V, then observe

the voltage-dependent derating.

Figure 6 Input

11.1 Protection of the primary side

Installation of the DC/DC converter must correspond to EN

60950 regulations.

An internal fuse is provided for device protection. Additional

device protection is not required.

The connecting cables on the primary side should have

large cross sections to keep the voltage drops in the cables

as low as possible.

Other mounting positions are also possible.

Always observe position-dependent derating.

NOTE: Device may be damaged

If an internal fuse trips, this is due to a device

fault. In this case, the DC/DC converter must

be inspected in the factory.

QUINT POWER

Input DC 24V

Output DC 24 V 5 A

OK Ι

DC OK

Boost

18-29.5 V

19.2V

U <9.6V

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 13 / 22

12 Output

Connection of the output voltage is established via the

screw connectors on the DC output screw connection.

The output voltage can be set on the potentiometer.

Figure 7 Output

12.1 Protection of the secondary side

The DC/DC converter is electronically short-circuit-proof

and idling-proof. In the event of an error, the output voltage

is limited. It must be ensured that all output cables are

dimensioned accordingly for the maximum output current or

have separate protection.

The connecting cables on the secondary side should have

large cross sections to keep the voltage drops in the cables

as low as possible.

13 Output characteristic curve

The DC/DC converter works with the POWER BOOST

power reserve as shown in the U/I characteristic curve in the

figure. At ambient temperatures < 40°C, IBOOST is

permanently available. It is also available at higher

temperatures for a few minutes.

In the event of a secondary-side short circuit or overload, the

output current is limited to IBOOST. In this case, the DC/DC

converter does not switch off but supplies output current

continuously. The secondary voltage is then reduced until

the short circuit is eliminated. The U/I characteristic curve

with the POWER BOOST power reserve ensures that high

inrush currents of capacitive loads in the primary circuit can

be supplied reliably.

Figure 8 Output characteristic curve

–U

N= 24 V

–I

N= 5 A

–I

BOOST = 6.25 A

– SFB Technology = 30 A (for 12 ms)

–P

N= 120 W

–P

BOOST = 150 W

QUINT POWER

Input DC 24V

Output DC 2 4 V 5 A

OKΙ

DC OK

Boost

18-29.5 V

19.2V

U <9.6V

I [A]

OUT

U [V]

OUT

I<I

<60 °C

U<0,9xU

I>I

<40 °C

BOOST

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 14 / 22

14 SFB technology

SFB (Selective Fuse Breaking) technology reliably switches

off faulty current paths in the event of a short circuit. In this

case, it supplies up to six times the nominal current for 12

ms. SFB technology therefore reliably triggers standard

circuit breakers. Faults are located reliably and important

system parts remain in operation.

14.1 Circuit breaker tripping characteristics

Typically, a circuit breaker trips within 3 ... 5 ms. Fast

enough to avoid voltage drops of parallel connected loads.

Figure 9 Quick tripping of circuit breakers with SFB

technology

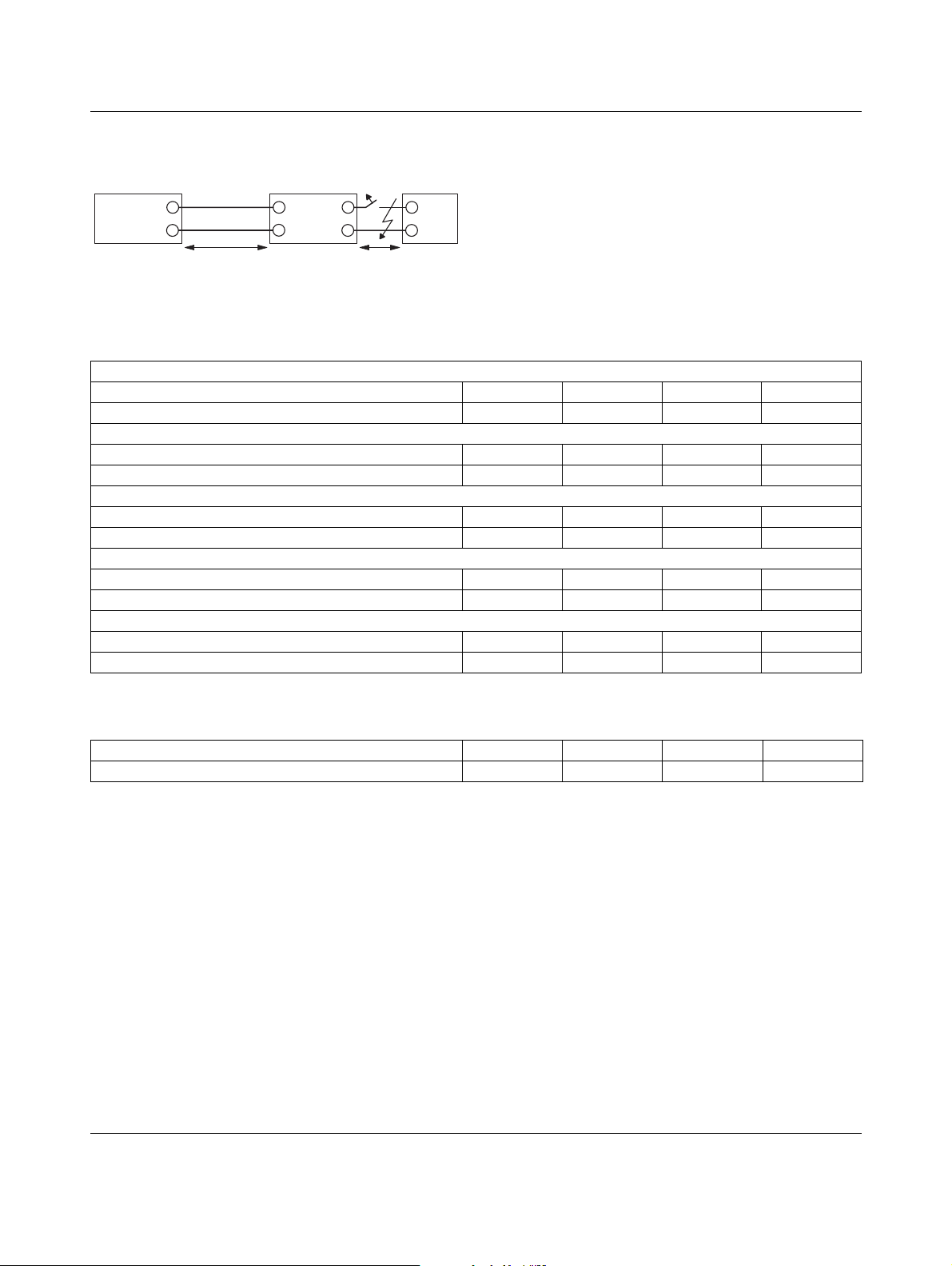

14.2 Installation notes

To use the SFB technology of the QUINT DC/DC converter,

you must observe the following requirements:

– When designing the secondary side, consider the

configuration matrix that describes the maximum cable

lengths depending on the performance class of the DC/

DC converters, the conductor cross section, and the

circuit breaker.

– Make sure that the source to be supplied is able to

deliver a corresponding current pulse to supply the DC/

DC converter. Forexample, this can be achieved by

upstream connection of a QUINT SFB power supply

(see accessories) or suitable battery capacity.

– Ensure the lowest possible cable impedance at the

input of the DC/DC converter by using short cable

lengths and large cable cross sections.

14.3 Deactivating SFB technology

The DC/DC converter is equipped with an additional SFB

switch which can be used to deactivate SFB technology.

The SFB switch is located on the top side of the housing and

is accessible for suitable tools, such as a small screwdriver

through the vents.

Figure 10 Position of the SFB switch

The current configuration matrix can be found

in the product download area.

Observe the maximum distance between the

source to be supplied and the DC/DC

converter.

(see also SFB configuration)

I [A]

6x I

BOOST

3-5 ms

If conditions cannot be observed, SFB

technology can be deactivated.

Switch position SFB technology status

left ON (default setting)

right OFF

Activating/deactivating SFB technology must

only be performed when the DC/DC converter

is switched off.

QUINT POWER

Input DC 24V

Output DC 2 4 V 5 A

OK Ι

DC OK

Boost

18-29.5 V

19.2V

U <9.6V

ON OFF

SFB

QUINT-PS/24DC/24DC/ 5/CO

105537_en_02 PHOENIX CONTACT 15 / 22

14.4 SFB configuration

Figure 11 Cable lengths

Maximum distance from the source to be supplied and the DC/DC converter (l1)

Maximum distance from the source to be supplied and the load (l2)

The following parameters are the basis for calculation:

– Circuit breaker from Siemens, B and C characteristics

(e.g., B6: 5SY6106-6)

– B characteristic: electromagnetic tripping of the circuit

breaker at the latest at (5-fold rated current) x

(correction factor 1.2 at 0Hz) = 6-fold rated current

– C characteristic: electromagnetic tripping of the circuit

breaker at the latest at (10-fold rated current) x

(correction factor 1.2 at 0Hz) = 12-fold rated current

– Ambient temperature: +20°C

– The internal resistances of the circuit breakers are

considered.

– In addition to short circuit current, the relevant power

supply unit supplies half of the nominal current for paths

connected in parallel.

l1l2

Supplying

Source Load

DC/DC

Converters

Source to be supplied: QUINT-PS/xAC/24DC/10, QUINT-PS/1AC/24DC/10/CO
