Phoenix Contact QUINT4-PS/12DC/24DC/5/PT User manual

1 Description
DC/DC converter
QUINT4-PS/12DC/24DC/5/PT
© PHOENIX CONTACT
Data sheet
QUINT POWER DC/DC converters with SFB Technology
and preventive function monitoring ensure superior system
availability.
Powerful
– SFB Technology: 6 times the nominal current for 15ms
– Power reserves:
Static boost of up to 125%(PN) for a sustained period
Dynamic boost of up to 200%(PN) for 5s
Preventive
– Comprehensive signaling:
Analog signal, digital signal, relay contact, LED bar
graph
Flexible connection technology
– Tried-and-tested screw connection
– Fast Push-in connection
Technical data (short form)
Input voltage range 12 VDC -25% ... +40%
Mains buffering typ. 4 ms (12VDC)
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage
(USet)
24 VDC ... 29.5 VDC
Nominal output current (IN)
Static Boost (IStat.Boost)
Dynamic Boost (IDyn.Boost)
Selective Fuse Breaking (ISFB)
5 A
6.25 A
10 A (5 s)
30 A (15 ms)
Output power (PN)
Output power (PStat. Boost)
Output power (PDyn. Boost)
120 W
150 W
240 W (5 s)
Efficiency typ. 91.3 % (24VDC)
Residual ripple < 20 mVPP
MTBF (IEC 61709, SN 29500) > 930000 h (40°C)
Ambient temperature (operation) -25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2,5 %/K
Dimensions W/H/D 36 mm / 130 mm / 125 mm
Weight 0.6 kg
All technical specifications are nominal values and refer to a room temperature of 25 °C and 70 % relative humidity
at 100 m above sea level.
109369_en_00 2021-11-03

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 2/49
2 Table of contents
1 Description .............................................................................................................................. 1
2 Table of contents..................................................................................................................... 2
3 Ordering data .......................................................................................................................... 3
4 Technical data ......................................................................................................................... 5
5 Safety and installation notes.................................................................................................. 15
6 High-voltage test (HIPOT) ..................................................................................................... 17
7 Structure of the power supply ................................................................................................ 18
8 Mounting/removing the power supply.................................................................................... 21
9 Device connection terminal blocks ........................................................................................ 25
10 Output characteristic curves .................................................................................................. 26
11 Configuring the power supply ................................................................................................ 29
12 Boost currents ....................................................................................................................... 30
13 SFB Technology.................................................................................................................... 32
14 Signaling................................................................................................................................ 36
15 Operating modes................................................................................................................... 44
16 Derating................................................................................................................................. 46

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 3/49
Description Type Item no. Pcs./Pkt.
Primary-switched DC/DC converter, QUINT POWER, DIN
rail mounting, SFB Technology (Selective Fuse Breaking),
Push-in connection, input: 12 VDC , output: 24 VDC / 5 A
QUINT4-PS/12DC/24DC/5/
PT
2910124 1
3 Ordering data
Accessories Type Item no. Pcs./Pkt.
Universal wall adapter for securely mounting the device in
the event of strong vibrations. The device is screwed
directly onto the mounting surface. The universal wall
adapter is attached on the top/bottom.
UWA 182/52 2938235 1
2-piece universal wall adapter for securely mounting the
device in the event of strong vibrations. The profiles that
are screwed onto the side of the device are screwed
directly onto the mounting surface. The universal wall
adapter is attached on the left/right.
UWA 130 2901664 1
Near Field Communication (NFC) programming adapter
with USB interface for the wireless configuration of NFC-
capable products from PHOENIX CONTACT with
software. No separate USB driver is required.
TWN4 MIFARE NFC USB
ADAPTER
2909681 1
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-4A NO 2906031 1
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-10A NO 2906032 1
Multi-channel electronic circuit breaker with IO-Link
interface for protecting four loads at 24VDC in the event
of overload and short circuit. With electronic locking of the
set nominal currents. For installation on DIN rails.
CBMC E4 24DC/1-4A+ IOL 2910410 1
Multi-channel electronic circuit breaker with IO-Link
interface for protecting four loads at 24VDC in the event
of overload and short circuit. With electronic locking of the
set nominal currents. For installation on DIN rails.
CBMC E4 24DC/1-10A IOL 2910411 1

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 4/49
Multi-channel, electronic circuit breaker with active
current limitation for protecting four loads at 24 V DC in the
event of overload and short circuit. With nominal current
assistant and electronic locking of the set nominal
currents. For installation on DIN rails.
CBM E4 24DC/0.5-10A NO-R 2905743 1
Multi-channel, electronic circuit breaker with active
current limitation for protecting eight loads at 24 V DC in
the event of overload and short circuit. With nominal
current assistant and electronic locking of the set nominal
currents. For installation on DIN rails.
CBM E8 24DC/0.5-10A NO-R 2905744 1
The range of accessories is being continuously extended. The current range of accessories can be found in
the download area for the product.
Accessories Type Item no. Pcs./Pkt.

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 5/49
4 Technical data
Input data
Unless otherwise stated, all data applies for 25°Cambient temperature, 12VDC input voltage, and nominal
output current (IN).
Input voltage range 12 VDC -25% ... +40%
Electric strength, max. 25 VDC (60 s)
Current draw typ. 14 A (12VDC)
Mains buffering typ. 4 ms (12VDC)
Switch-on time < 1 s
Typical response time from SLEEP MODE 300 ms
Inrush current limitation 2 A
Inrush current integral (I2t) < 0.07 A2s
Input fuse slow-blow, internal 30 A
During the first few microseconds, the current flow into the filter capacitors is excluded.
The SCCR value (short-circuit current rating) of the power supply unit corresponds to the SCCR value of the
backup fuse (see input protection table).
The external backup fuse must be approved for the (DC) supply voltage used and the voltage level.
Input protection , DC ( to be connected externally upstream )
Input current IIn
Input protection Circuit breaker Neozed fuse
or equivalent Power switch
Characteristics A B C D K gG ≤ 13 x IIn
(maximum magnetic tripping)
20 A -   -

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 6/49

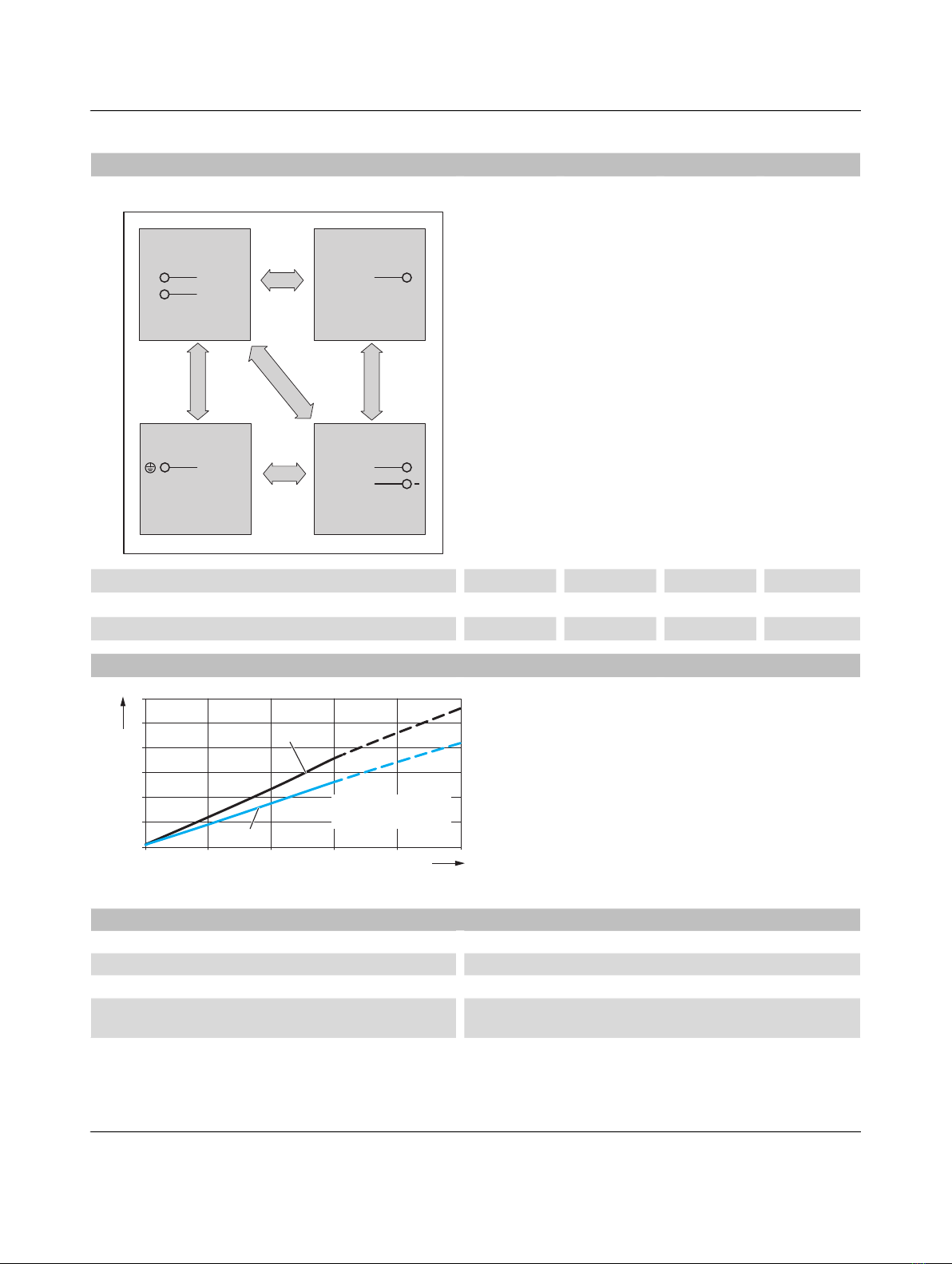

Electric strength of the insulation
A B C D
Type test ( IEC/EN61010-1 ) 2 kV DC 4 kV DC 0.5 kV DC 0.5 kV DC
Production test 2 kV DC 2 kV DC 0.5 kV DC 0.5 kV DC
Housing
Output
PE
Input Signaling
C
ABD
B
L
N
(+)
(-)
+
Input current vs. output current
0
0
5
10
15
20
25
30
246810
= UIn: 9 V DC/UOut: 24 V DC
= UIn: 12 V DC/UOut: 24 V DC
ij
ij
Ĵ
Ĵ
I
Out
[A]
IIn [A]
Input connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 6 mm²
Conductor cross section, flexible 0.2 mm² ... 6 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 4 mm²

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 7/49
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 4 mm²
Conductor cross section AWG 24 ... 10
Stripping length 10 mm
Input connection data
Output data
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage (USet) ( > 24VDC,
constant capacity )
24 VDC ... 29.5 VDC
Nominal output current (IN) 5 A
Static Boost (IStat.Boost) 6.25 A
Dynamic Boost (IDyn.Boost) 10 A (5 s)
Selective Fuse Breaking (ISFB) 30 A (15 ms)
Magnetic circuit breaker tripping A1 ... A4 / B2 / C1 ... C2 / Z1 ... Z4
Control deviation change in load, static 10 % ... 90 % < 1 %
Control deviation Dynamic load change 10 % ... 90 %,
10 Hz
< 2 %
Control deviation change in input voltage ±10 % < 0.1 %
Short-circuit-proof yes
No-load proof yes
Residual ripple < 20 mVPP
Connection in parallel yes, for redundancy and increased capacity
Connection in series yes
Feedback voltage resistance ≤ 35 VDC
Protection against overvoltage at the output (OVP) ≤ 32 VDC
Rise time typical < 1 s (UOUT (10 % ... 90 %))
Output connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 6 mm²
Conductor cross section, flexible 0.2 mm² ... 6 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 4 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 4 mm²
Conductor cross section AWG 24 ... 10
Stripping length 10 mm

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 8/49
LED signaling
POut > 100% LED lights up yellow, output power > 120W
POut > 75% LED lights up green, output power > 90W
POut > 50% LED lights up green, output power > 60W
UOut > 0.9xUSet LED lights up green
UOut < 0.9xUSet LED flashes green
UIn > 0.8 x UInNom LED off
UIn < 0.8 x UInNom LED lights up yellow
Signal contacts
Signal output Out1 (configurable)
Connection labeling 3.5 +
Digital 0/24VDC , 20 mA
Default UIN input voltage OK
Signal option Output voltage
Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Signal output Out2 (configurable)
Connection labeling 3.6 +
Digital 0/24VDC , 20 mA
Default Output power
Signal option Output voltage
Output current
Operating hours
Early warning of high temperatures
OVP voltage limitation active
Analog 4 mA ... 20 mA ±5% ( Load ≤400Ω )
Signal option Output voltage
Output current
Output power
Signal output Relay13/14 (configurable)
Connection labeling 3.1, 3.2
Switch contact (floating) floating
Maximum contact load 24 VDC 1 A , 30 VAC 0.5 A
Default Output voltage
Signal option Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
UIN input voltage OK

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 9/49
Remote signal input (configurable)
Connection labeling 3.3 +
Function Output power ON/OFF (remote)
Default Output power ON (>40kΩ/24VDC/open bridge between REM
and SGnd)
Signal ground SGnd
Connection labeling 3.4 +
Function Signal ground
Reference potential to OUT1, OUT2, REM
Signal connection data
Connection method Push-in connection
Conductor cross section, rigid 0.2 mm² ... 1 mm²
Conductor cross section, flexible 0.2 mm² ... 1.5 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.2 mm² ... 0.75 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.2 mm² ... 1.5 mm²
Conductor cross section AWG 24 ... 16
Stripping length 8 mm
Reliability 24 VDC
MTBF (IEC 61709, SN 29500) > 1600000 h (25°C)
> 930000 h (40°C)
> 380000 h (60°C)
Life expectancy (electrolytic capacitors)
Output current (IOut)
24 VDC
2.5 A > 365000 h ( 40 °C )
5 A > 194000 h ( 40 °C )
5 A > 388000 h ( 30 °C )
The expected service life is based on the capacitors used. If the capacitor specification is observed, the
specified data will be ensured until the end of the stated service life. For runtimes beyond this time, error-free
operation may be reduced. The specified service life of more than 15 years is simply a comparative value.
Switching frequency Min. Max.
Auxiliary converter stage 190 kHz 220 kHz
Main converter stage 50 kHz 420 kHz

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 10/49
General data
Degree of protection IP20
Protection class Special with SELV input and output
Inflammability class in acc. with UL 94 (housing / terminal
blocks)
V0
Side element version Aluminum
Hood version Stainless steel X6Cr17
Dimensions W / H / D (state of delivery) 36 mm / 130 mm / 125 mm
Dimensions W / H / D (90° turned) 122 mm / 130 mm / 39 mm
Weight 0.6 kg
Power dissipation 24 VDC
Maximum power dissipation in no-load condition < 2 W
Power dissipation SLEEP MODE < 1 W
Power loss nominal load max. < 13 W
Efficiency 24 VDC
typ. 91.3 %
Eta [%]
IOut [A]
2
70
75
80
85
90
95
435678910
= UIn: 12 V DC/UOut: 24 V DC
ij
ij
Ambient conditions
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
The ambient temperature (operation) refers to IEC61010 surrounding air temperature.
Ambient temperature (start-up type tested) -40 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing)
Installation height ≤ 5000 m (> 2000 m, observe derating)
Vibration (operation) 5Hz ... 100Hz resonance search 2.3g, 90min., resonance
frequency 2.3g, 90min. (according to DNV GL Class C)
Shock 18 ms, 30g, in each space direction (according to IEC60068-
2-27)
Degree of pollution 2
Climatic class 3K3 (EN60721)
Overvoltage category
EN 61010-1
EN 62477-1
II
III

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 11/49
Standards
Electrical safety (of control and regulation devices) IEC61010-1
Protective extra-low voltage EN61010-1 (SELV)
IEC61010-2-201 (PELV)
Mains variation/undervoltage EN61000-4-29
EMC requirements, power plant IEC61850-3
EN61000-6-5
Approvals
UL ULListedUL61010-1
CAN/CSAC22.2 No.61010-1-12
ULListedUL61010-2-201
CAN/CSAC22.2No.61010-2-201:18
UL121201 & CSAC22.2No.213-17Class I, Division 2,
Groups A, B, C, D T4 (Hazardous Location)
SIQ Type tested (type approved)
CB scheme (IEC61010-1, IEC61010-2-201)

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 12/49
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Noise emission according to EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
CE basic standard Minimum normative
requirements
Higher requirements in
practice (covered)
Conducted noise emission EN55016 EN61000-6-4 (Class A) EN61000-6-3 (Class B)
Noise emission EN55016 EN61000-6-4 (Class A) EN61000-6-3 (Class B)
Noise emission for marine approval Minimum normative
requirements of DNVGL
Higher requirements in
practice of DNVGL (cov-
ered)
DNV GL conducted noise emission Class A
Area power distribution
Class B
Bridge and deck area
DNV GL noise radiation Class A
Area power distribution
Class B
Bridge and deck area
Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station
equipment zone), IEC/EN 61850-3 (energy supply)
CE basic standard Minimum normative
requirements of
EN 61000-6-2 (CE)
(immunity for industrial
environments)
Higher requirements in
practice (covered)
Electrostatic discharge EN 61000-4-2
Housing contact discharge 4 kV (Test Level 2) 8 kV (Test Level 4)
Housing air discharge 8 kV (Test Level 3) 15 kV (Test Level 4)
Comments Criterion B Criterion A
Electromagnetic HF field EN61000-4-3
Frequency range 80 MHz ... 1 GHz 80 MHz ... 1 GHz
Test field strength 10 V/m (Test Level 3) 20 V/m (Test Level 3)
Frequency range 1 GHz ... 6 GHz
Test field strength 3 V/m (Test Level 2) 10 V/m (Test Level 3)
Comments Criterion A Criterion A
Fast transients (burst) EN61000-4-4
Input 2 kV (Test Level 3 -
asymmetrical)
4 kV (Test Level 3 -
asymmetrical)
Output 2 kV (Test Level 3 -
asymmetrical)
4 kV (Test Level 3 -
asymmetrical)
Signal 1 kV (Test Level 3 -
asymmetrical)
4 kV (Test Level 4 -
asymmetrical)
Comments Criterion B Criterion A

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 13/49
Surge voltage load (surge) EN61000-4-5
Input 0.5 kV (Test Level 2 -
symmetrical)
1 kV (Test Level 2 -
asymmetrical)
1 kV (Test Level 3 -
symmetrical)
2 kV (Test Level 3 -
asymmetrical)
Output 0.5 kV (Test Level 2 -
symmetrical)
1 kV (Test Level 2 -
asymmetrical)
1 kV (Test Level 3 -
symmetrical)
2 kV (Test Level 3 -
asymmetrical)
Signal 1 kV (Test Level 2 -
asymmetrical)
2 kV (Test Level 3 -
asymmetrical)
Comments Criterion B Criterion A
Conducted interference EN61000-4-6
Input/Output/Signal asymmetrical asymmetrical
Frequency range 0.15 MHz ... 80 MHz 0.15 MHz ... 80 MHz
Voltage 10 V (Test Level 3) 10 V (Test Level 3)
Comments Criterion A Criterion A
Power frequency magnetic field EN61000-4-8
50 Hz , 60 Hz ( 30 A/m ) 16.7 Hz , 50 Hz , 60 Hz
( 100 A/m 60 s )
not required 50 Hz , 60 Hz ( 1 kA/m , 3 s )
not required 0 Hz ( 300 A/m , DC, 60s )
Comments Criterion A Criterion A
Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station
equipment zone), IEC/EN 61850-3 (energy supply)
CE basic standard Minimum normative
requirements of
EN 61000-6-2 (CE)
(immunity for industrial
environments)
Higher requirements in
practice (covered)
Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Basic standard Minimum normative
requirements of
EN 61000-6-5
Higher requirements in
practice (covered)
Pulse-shape magnetic field EN61000-4-9
not required 1000 A/m
Comments none Criterion A
Damped oscillating magnetic field EN61000-4-10
not required 100 kHz
100 A/m
not required 1 MHz
100 A/m
Comments none Criterion A

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 14/49
Asymmetrical conducted disturbance variables EN61000-4-16
Input, Output, Signals 15 Hz ... 150 Hz , 10 V on 1 V
150 Hz ... 1.5 kHz , 1 V
1.5 kHz ... 15 kHz , 1 V on 10 V
15 kHz ... 150 kHz , 10 V
( Test Level 3 )
15 Hz ... 150 Hz , 10 V on 1 V
150 Hz ... 1.5 kHz , 1 V
1.5 kHz ... 15 kHz , 1 V on 10 V
15 kHz ... 150 kHz , 10 V
( Test Level 3 )
50 Hz , 60 Hz , 10 V
(Permanent)
50 Hz , 60 Hz , 100 V
(1 s)
( Test Level 3 )
16.7 Hz, 50 Hz, 60 Hz, 150 Hz,
180 Hz , 10 V (Permanent)
0 Hz , 16.7 Hz , 50 Hz , 60 Hz ,
100 V (1 s)
( Test Level 3 )
Comments Criterion A Criterion A
Alternating component of DC voltage EN61000-4-17
Alternating component 10 % (UN) , 50 Hz 10 % (UN) , 100 Hz , 120 Hz ,
300 Hz , 360 Hz
Comments Criterion B Criterion A
Attenuated oscillating wave EN61000-4-18
Input, Output 1 MHz , 0.5 kV
( Test Level 2 - symmetrical )
100 kHz , 1 MHz , 1 kV
( Test Level 3 - symmetrical )
1 MHz , 1 kV 100 kHz , 1 MHz , 2.5 kV
( Test Level 3 - asymmetrical )
Signals 1 MHz , 0.5 kV
( Test Level 2 - symmetrical )
100 kHz , 1 MHz , 1 kV
( Test Level 3 - symmetrical )
1 MHz , 1 kV
( Test Level 2 - asymmetrical )
100 kHz , 1 MHz , 2.5 kV
( Test Level 3 - asymmetrical )
Comments Criterion B Criterion A
Voltage dips EN61000-4-29
Input voltage ( 12 VDC )
Voltage dip 70 % , 100 ms ( Test Level 2 ) 70 % , 100 ms ( Test Level 2 )
Comments Criterion C Criterion A
Voltage dip 40 % , 100 ms ( Test Level 2 ) 40 % 100 ms ( Test Level 2 )
Comments Criterion C Criterion B
Voltage dip 0 % , 50 ms ( Test Level 2 ) 0 % , 50 ms ( Test Level 2 )
Comments Criterion B Criterion B
Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Basic standard Minimum normative
requirements of
EN 61000-6-5
Higher requirements in
practice (covered)
Key
Criterion A Normal operating behavior within the specified limits.
Criterion B Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C Temporary adverse effects on the operating behavior, which the device corrects
automatically or which can be restored by actuating the operating elements.

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 15/49
5 Safety and installation notes
5.1 Symbols used
Instructions and possible hazards are indicated by
corresponding symbols in this document.
There are different categories of personal injury that are
indicated by a signal word.
The following symbols are used to indicate potential
damage, malfunctions, or more detailed sources of
information.
5.2 Safety and warning notes
– Only skilled persons may install, start up, and operate
the device.
– Never carry out work when voltage is present.
– Establish connection correctly and ensure protection
against electric shock.
– Cover termination area after installation in order to avoid
accidental contact with live parts (e. g., installation in
control cabinet).
– Protection may be impaired if the equipment is used in
a manner not specified by the manufacturer.
– Observe the national safety and accident prevention
regulations.
– Assembly and electrical installation must correspond to
the state of the art.
– The power supply is a built-in device and is designed for
mounting in a control cabinet.
– The IP20 degree of protection of the device is intended
for use in a clean and dry environment.
– Observe mechanical and thermal limits.
– Ensure minimum clearances to external heat sources.
– Mount the power supply unit in the standard installation
position.
– Ensure that the primary-side wiring and secondary-side
wiring are the correct size and have sufficient fuse
protection.
– For the connection parameters for wiring the power
supply, suchas the required stripping length with and
without ferrule, refer to the technical data section.
– Use copper cables for operating temperatures of
75°C (ambient temperature 55°C)
90°C (ambient temperature 75°C).
– Protect the device against foreign bodies penetrating it,
e.g., paper clips or metal parts.
– The power supply is maintenance-free. Repairs may
only be carried out by the manufacturer. The warranty
no longer applies if the housing is opened.
– The power supply may only be used for its intended use.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety measures that follow this symbol to avoid
possible personal injuries.
WARNING
This indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
This indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTE
This symbol together with the signal word NOTE
and the accompanying text alert the reader to a
situation which may cause damage or malfunction
to the device, hardware/software, or surrounding
property.
This symbol and the accompanying text provide
the reader with additional information or refer to
detailed sources of information.
WARNING: Danger to life by electric shock!
WARNING: Risk of burns
The heatsinks of the power supply can reach
temperatures >65°C, depending on the load.
NOTE

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 16/49
The continuous total output power may not exceed
PN at 60°C ambient temperature and PStat. Boost at
40°C ambient temperature. Observe all the
maximum output powers for all operating
conditions.

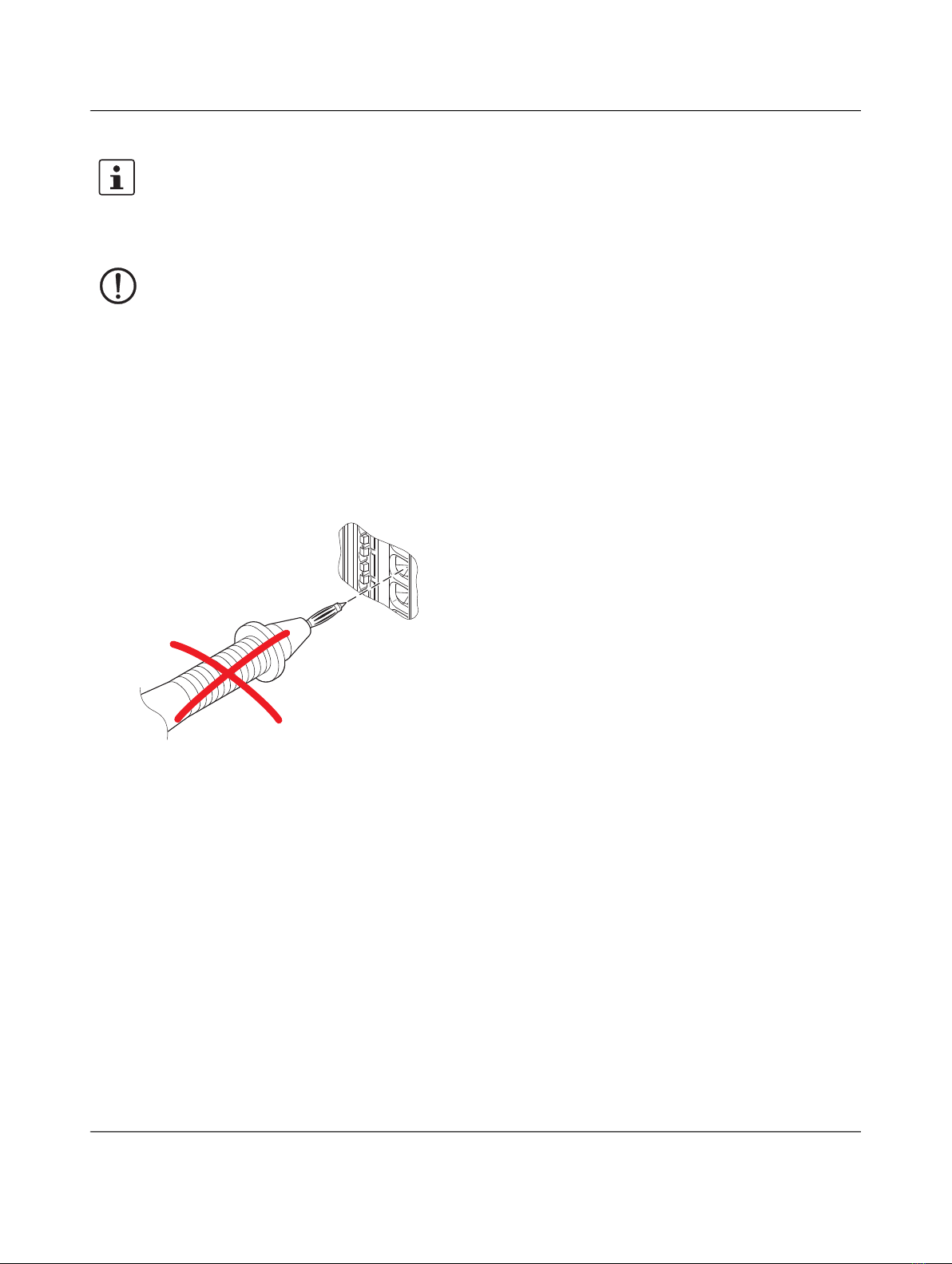

NOTE: Damage to the Push-in connection
terminal blocks is possible
Do not plug test pins into the Push-in connection
terminal blocks. The maximum pluggable depth of
the Push-in connection terminal blocks is limited.
In addition, when the test pin is plugged in, the
unlocking button (pusher) is covered to such an
extent that unlocking is not possible or only
possible to an insufficient extent. If you do not
push the unlocking button (pusher) down
completely when you are pulling the test pin out,
then the Push-in connection terminal block will
become damaged.

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 17/49
6 High-voltage test (HIPOT)
This power supply is subject to the Low Voltage Directive
and is factory tested. During the HIPOT test (high-voltage
test), the insulation between the input circuit and output
circuit is tested for the prescribed electric strength values,
forexample. The test voltage in the high-voltage range is
applied at the input and output terminal blocks of the power
supply. The operating voltage used in normal operation is
considerably lower than the test voltage used.
6.1 High-voltage dielectric test (dielectric strength
test)
In order to ensure permanent safe isolation of the DC input
circuit and DC output circuit, high-voltage testing is
performed as part of the safety approval process (type test)
and manufacturing (routine test).
6.2 High-voltage dielectric test during the
manufacturing process
During the manufacturing process for the power supply, a
high-voltage test is performed as part of the dielectric test in
accordance with the specifications of IEC/UL/EN61010-1.
The high-voltage test is performed with a test voltage of at
least 2kVDC or higher. Routine manufacturing tests are
inspected regularly by a certification authority.
6.3 High-voltage dielectric test performed by the
customer
Apart from routine and type tests to guarantee electrical
safety, the end user does not have to perform another high-
voltage test on the power supply as an individual
component. According to EN 60204-1 (Safety of machinery
- Electrical equipment of machines) the power supply can be
disconnected during the high-voltage test and only installed
once the high-voltage test has been completed.
6.3.1 Performing high-voltage testing
If high-voltage testing of the control cabinet or the power
supply as a stand-alone component is planned during final
inspection and testing, the following features must be
observed.
– The power supply wiring must be implemented as
shown in the wiring diagram.
– The maximum permissible test voltages must not be
exceeded.
Avoid unnecessary loading or damage to the power supply
due to excessive test voltages.
Figure 1 Potential-related wiring for the high-voltage
test
Key
For the relevant applicable test voltages and
insulation distances, refer to the corresponding
table (see technical data: electric strength of the
insulation section).
No. Designation Color coding Potential lev-
els
1 DC output circuit Blue Potential 1
2 Signal contacts Blue Potential 1
3 High-voltage
tester
-- --
4 DC input circuit Red Potential 2
Output DC
QUINT POWER
Ord.No.XXXXXXX
2.1 
1.1
Input DC

++
+
Signal
14
Out 2
Out 1
SGnd
Rem
13
3.2
3.1
3.3
3.4
3.5
3.6
> 75%
> 50%
DC OK
Boost> 100%
U
Out
P
Out
U
In
PE
HV
=/=
1.2
2.2 2.3 2.4
1
2
3
4

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 18/49
7 Structure of the power supply
The fanless convection-cooled power supply can be
snapped onto all DIN rails according to EN60715.
7.1 Function elements

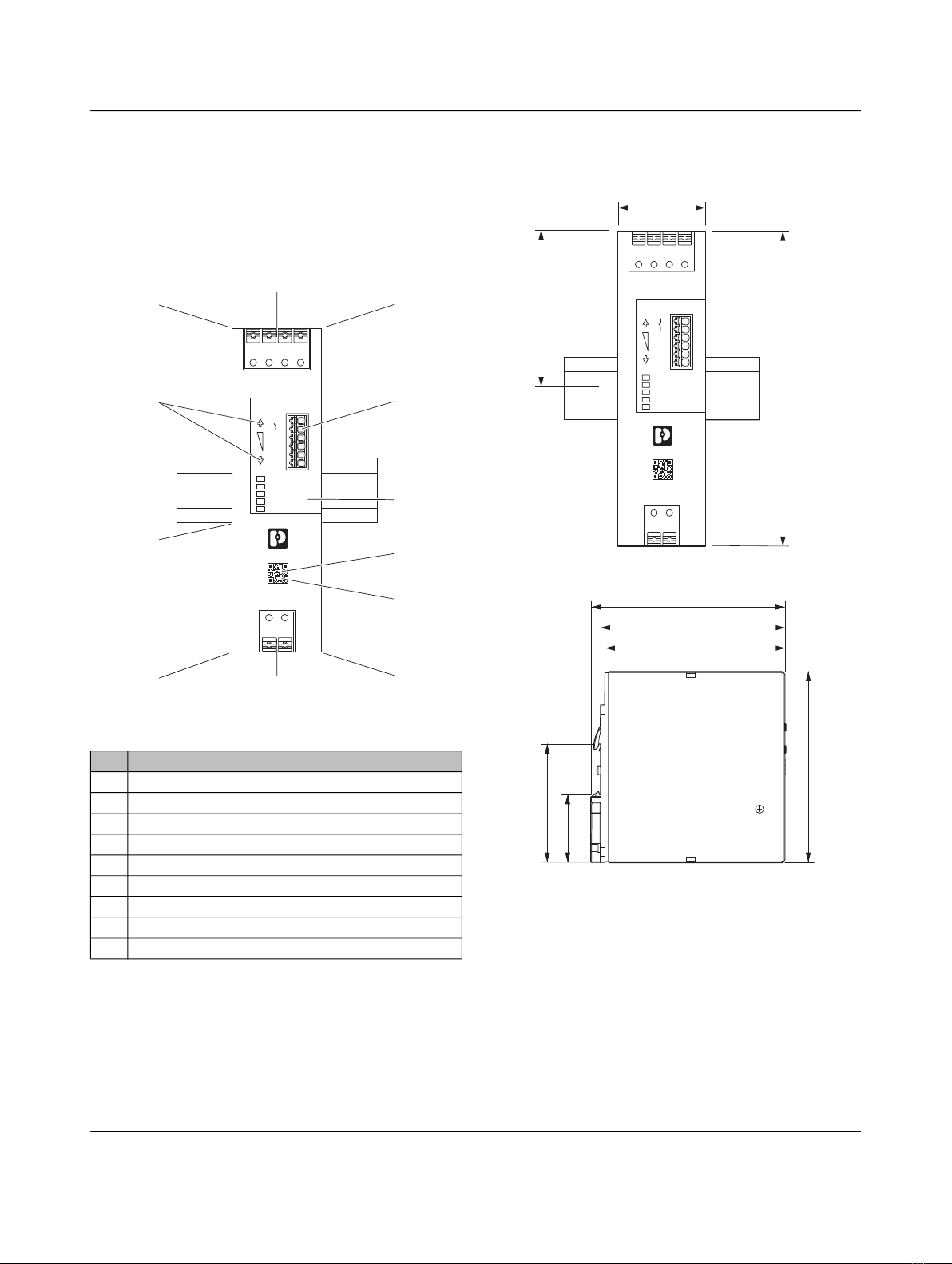

Figure 2 Operating and indication elements
Key
7.2 Device dimensions
Figure 3 Device dimensions (dimensions in mm)
Figure 4 Device dimensions (dimensions in mm)
No. Designation
1 DC output voltage connection terminal blocks
2 Accommodation for cable binders
3 Signaling connection terminal blocks
4 Status and diagnostics indicators
5 Position NFC interface (Near Field Communication)
6 QR code web link
7 DC input voltage connection terminal blocks
8 Universal DIN rail adapter (rear of housing)
9 Output voltage button (-) / (+)
Output DC
QUINT POWER
Ord.No.XXXXXXX
2.1 2.2 2.3 2.4

1.1 1.2
Input DC

++
+
Signal
14
Out 2
Out 1
SGnd
Rem
13
3.2
3.1
3.3
3.4
3.5
3.6
> 75%
> 50%
DC OK
Boost> 100%
U
Out
P
Out
U
In
22
3
6
9
7
4
2
2
1
8
5
Output DC
QUINT POWER
Ord.No.XXXXXXX
2.1

1.1
Input DC

++
+
Signal
14
Out 2
Out 1
SGnd
Rem
13
3.2
3.1
3.3
3.4
3.5
3.6
> 75%
> 50%
DC OK
Boost> 100%
U
Out
P
Out
U
In
1.2
2.2 2.3 2.4
65
36
130
122
125
130
80
45
131

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 19/49
7.3 Keep-out areas
Figure 5 Device dimensions and minimum keep-out
areas (in mm)
Nominal output
capacity
Spacing [mm]
a b c
< 50 % 0 40 20
≥ 50 % 5 50 50
36
aa
cb
130
Output DC
QUINT POWER
Ord.No.XXXXXXX
2.1

1.1
Input DC

++
+
Signal
14
Out 2
Out 1
SGnd
Rem
13
3.2
3.1
3.3
3.4
3.5
3.6
> 75%
> 50%
DC OK
Boost> 100%
U
Out
P
Out
U
In
1.2
2.2 2.3 2.4

QUINT4-PS/12DC/24DC/5/PT
109369_en_00 PHOENIX CONTACT 20/49

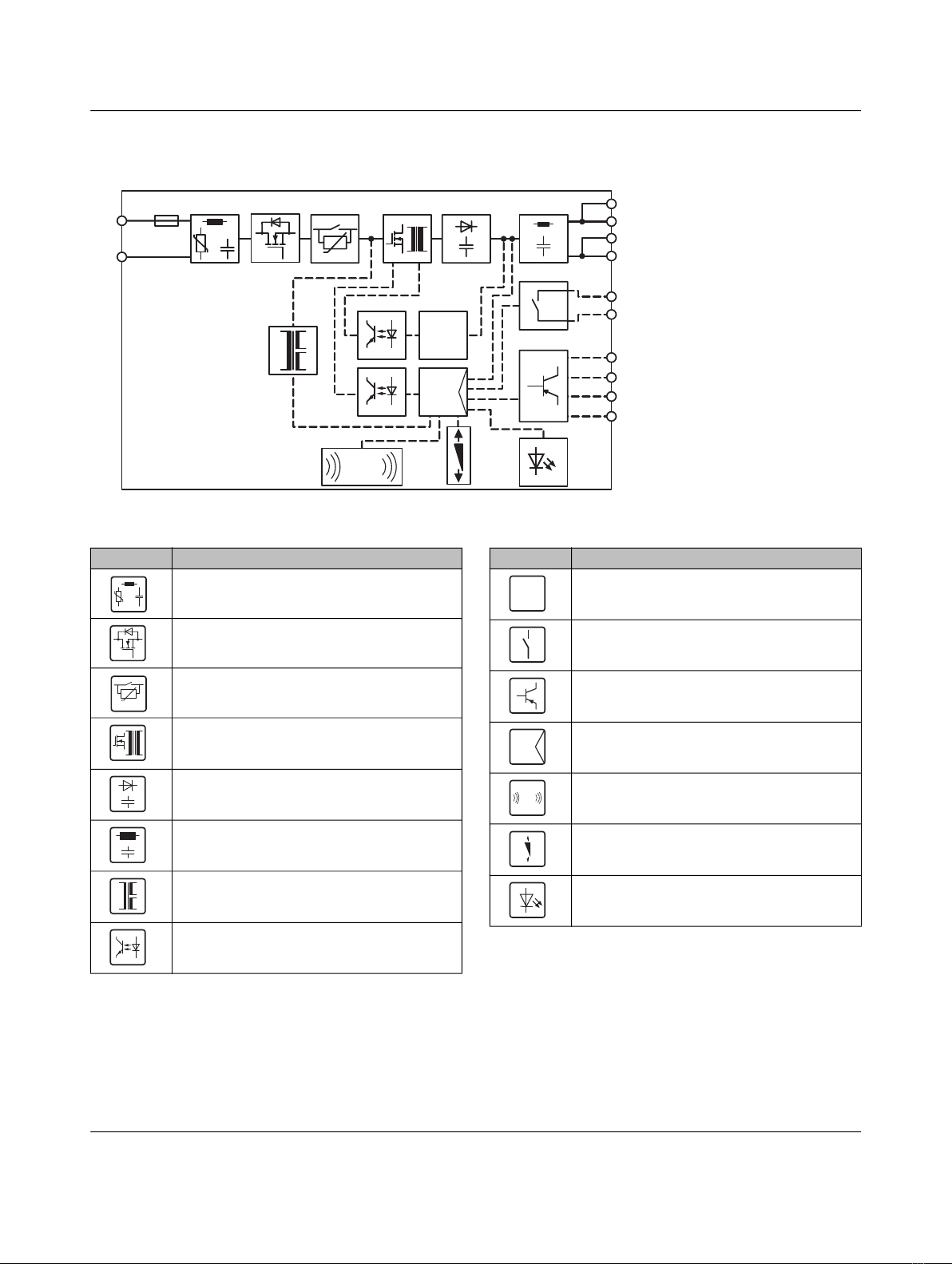

7.4 Block diagram
Figure 6 Block diagram
Key





 
 
 
 
 
 












Symbol Designation
Surge protection (varistor) with filter
Reverse polarity protection
Inrush current limitation
Switching transistor and main transmitter
(electrically isolating)
Secondary rectification and smoothing
Filter
Auxiliary converter (electrically isolating)
Optocoupler (electrically isolating)

Symbol Designation
Additional regulatory protection against
surge voltage
Switch
PNP transistor switch output
Microcontroller
Passive NFC interface (Near Field Communi-
cation)
Output voltage button (-) / (+)
Signal/display LEDs
OVP
C
NFC
