Phoenix Contact QUINT4-PS/12-24DC/24DC/1.3/SC User manual

1 Description
DC/DC converter
QUINT4-PS/12-24DC/24DC/1.3/SC
© PHOENIX CONTACT
Data sheet
QUINT POWER power supplies are exceptionally small yet
offer superior system availability in the sub 100 W power
range.
Powerful
– Static boost of up to 125%(PN) for a sustained period
– Dynamic boost of up to 200%(PN) for 4.9s
Space-saving
– Slim design
– Slim design for 120 mm control boxes
Preventive
– Function monitoring through adjustable signaling of
power thresholds or output voltage
Flexible connection technology
– Tried-and-tested screw connection
– Fast Push-in connection
Durable
– Efficiency up to 92%
– Low power dissipation
Technical data (short form)
Input voltage range 12 VDC ... 24 VDC -25%...+33%
Mains buffering typ. 19 ms (24VDC)
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage
(USet)
24 VDC ... 28 VDC
Nominal output current (IN)
Static Boost (IStat.Boost)
Dynamic Boost (IDyn.Boost)
1.3 A
1.625 A (≤40°C)
2.6 A (≤60°C(4,9s))
Output power (PN)
Output power (PStat. Boost)
Output power (PDyn. Boost)
30 W
38 W
60 W
Efficiency typ. 91.7 % (24VDC)
Residual ripple < 20 mVPP
MTBF (IEC 61709, SN 29500) > 1120490 h (40°C)
Ambient temperature (operation) -25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2.5 %/K
Dimensions W/H/D 22.5 mm / 99 mm / 90 mm
Weight 0.171 kg
All technical specifications are nominal and refer to a room temperature of 25°C and 70% relative humidity at
100m above sea level.
110257_en_00 2021-07-21

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 2/32
2 Table of contents
1 Description .............................................................................................................................. 1
2 Table of contents..................................................................................................................... 2
3 Ordering data .......................................................................................................................... 3
4 Technical data ......................................................................................................................... 4
5 Safety and installation notes.................................................................................................. 14
6 High-voltage test (HIPOT) ..................................................................................................... 15
7 Structure of the power supply ................................................................................................ 17
8 Mounting/removing the power supply.................................................................................... 20
9 Device connection terminal blocks ........................................................................................ 22
10 Output characteristic curves .................................................................................................. 22
11 Boost currents ....................................................................................................................... 23
12 Signaling................................................................................................................................ 25
13 Operating modes................................................................................................................... 27
14 Derating................................................................................................................................. 29

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 3/32
Description Type Order No. Pcs./Pkt.
Primary-switched DC/DC converter, QUINT POWER, DIN
rail mounting, Screw connection, input: 12 VDC - 24
VDC, output: 24 VDC / 1.3 A
QUINT4-PS/12-24DC/24DC/
1.3/SC
1066703 1
3 Ordering data
Accessories Type Order No. Pcs./Pkt.
Screwdriver, flat bladed, size: 0.4 x 2.0 x 60 mm, 2-
component grip, with non-slip grip
SF-SL 0,4X2,0-60 1212546 10
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-10A NO 2906032 1
Multi-channel electronic circuit breaker for protecting four
loads at 24 V DC in the event of overload and short circuit.
With electronic locking of the set nominal currents. For
installation on DIN rails.
CBMC E4 24DC/1-4A NO 2906031 1
Multi-channel electronic circuit breaker that can be
preconfigured, for protecting four loads at 24 V DC in the
event of overload and short circuit. With electronic locking
of the set nominal currents. For installation on DIN rails.
CBMC E4 24DC/1-4A NO-C 2908713 1
Type3 surge protection, consisting of protective plug and
base element, with integrated status indicator and remote
signaling for single-phase power supply networks.
Nominal voltage: 24VAC/DC
PLT-SEC-T3-24-FM-UT 2907916 5
The range of accessories is being continuously extended. The current range of accessories can be found in
the download area for the product.

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 4/32
4 Technical data
Input data
Unless otherwise stated, all data applies for 25°Cambient temperature, 230VAC input voltage, and nominal
output current (IN).
Input voltage range 12 VDC ... 24 VDC -25%...+33%
Electric strength, max. 35 VDC (60 s)
Current draw typ. 3.75 A (12VDC) / typ. 1.85 A (24VDC)
Mains buffering typ. 19 ms (24VDC)
Switch-on time < 1 s
Typical response time from SLEEP MODE 700 ms
Inrush current limitation 1.6 A
Inrush current integral (I2t) typ. 0.1 A2s
Input fuse fast blow, internal 15 A
During the first few microseconds, the current flow into the filter capacitors is excluded.
The SCCR value (short-circuit current rating) of the power supply unit corresponds to the SCCR value of the
backup fuse (see input protection table).
The external backup fuse must be approved for the (DC) supply voltage used and the voltage level.
Input protection , DC ( to be connected externally upstream )
Input current IIn
Input protection Circuit breaker Neozed fuse
or equivalent Power switch
Characteristics A B C D K gG ≤ 13 x IIn
(maximum magnetic tripping)
16 A -  - -

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 5/32
Electric strength of the insulation
A
Type test ( IEC/EN61010-1 ) 2.6 kV DC
Production test 1.3 kV DC
Housing
A
A
Signaling
Input
L
N
(+)
(-)
Output
+
Input current vs. output current
I
In
[A]
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
0,00 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00
IOut [A]
1
1
2
= UIn:12 V DC/UOut: 24 V DC
= UIn: 24 V DC/UOut: 24 V DC
2
Input connection data
Connection method Screw connection
Conductor cross section, rigid 0.5 mm² ... 2.5 mm²
Conductor cross section, flexible 0.5 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.5 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.5 mm² ... 2.5 mm²
Conductor cross section AWG 22 ... 14
Stripping length 8 mm

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 6/32
Output data
Nominal output voltage (UN) 24 VDC
Setting range of the output voltage (USet) ( > 24VDC,
constant capacity )
24 VDC ... 28 VDC
Nominal output current (IN) 1.3 A
Static Boost (IStat.Boost) 1.625 A (≤40°C)
Dynamic Boost (IDyn.Boost) 2.6 A (≤60°C(4,9s))
Control deviation change in load, static 10 % ... 90 % < 1 %
Control deviation Dynamic load change
10 % ... 90 %, 10 Hz
< 2 %
Control deviation change in input voltage ±10 % < 0.1 %
Short-circuit-proof yes
No-load proof yes
Residual ripple < 20 mVPP
Connection in parallel yes, for redundancy and increased capacity
Connection in series yes
Feedback voltage resistance ≤ 35 VDC
Protection against overvoltage at the output (OVP) < 32 VDC
Rise time typical < 1 s (UOUT (10 % ... 90 %))
Output connection data
Connection method Screw connection
Conductor cross section, rigid 0.2 mm² ... 2.5 mm²
Conductor cross section, flexible 0.25 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.25 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.25 mm² ... 2.5 mm²
Conductor cross section AWG 24 ... 14
Stripping length 8 mm
LED signaling
POut > PThr LED lights up yellow, output power > PThr, depending on the
rotary selector switch setting
UOut > 0.9xUSet LED lights up green
UOut < 0.9xUSet LED flashes green
Signal output (configurable)
Digital 0 VDC / 24 VDC , 22 mA
Default 24 VDC , 22 mA ( 24VDC for UOut >0.9xUSet )

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 7/32
Signal connection data
Connection method Screw connection
Conductor cross section, rigid 0.14 mm² ... 2.5 mm²
Conductor cross section, flexible 0.14 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule with plastic
sleeve
0.25 mm² ... 2.5 mm²
Conductor cross section flexible, with ferrule without
plastic sleeve
0.25 mm² ... 2.5 mm²
Conductor cross section AWG 26 ... 14
Stripping length 8 mm
Reliability 24 VDC
MTBF (IEC 61709, SN 29500) > 1999348 h (25°C)
> 1120490 h (40°C)
> 471066 h (60°C)
Life expectancy (electrolytic capacitors)
Output current (IOut)
24 VDC
0.65 A > 242000 h ( 40 °C )
1.3 A > 160000 h ( 40 °C )
1.3 A > 320000 h ( 30 °C )
The expected service life is based on the capacitors used. If the capacitor specification is observed, the
specified data will be ensured until the end of the stated service life. For runtimes beyond this time, error-free
operation may be reduced. The specified service life of more than 15 years is simply a comparative value.
Switching frequency Min. Max.
Auxiliary converter stage 130 kHz 130 kHz
Main converter stage 70 kHz 250 kHz
General data
Degree of protection IP20
Protection class II
Inflammability class in acc. with UL 94 (housing / terminal
blocks)
V0
Type of housing Polycarbonate (PC), UL94V0
Dimensions W / H / D (state of delivery) 22.5 mm / 99 mm / 90 mm
Weight 0.171 kg
Power dissipation 24 VDC
Maximum power dissipation in no-load condition < 1.3 W
Power loss nominal load max. < 8 W

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 8/32
Efficiency 24 VDC
typ. 91.7 %
Eta [%]
0
10
20
30
40
50
60
70
80
90
100
0,00 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00
IOut [A]
1
1
2
= UIn:12 V DC/UOut: 24 V DC
= UIn: 24 V DC/UOut: 24 V DC
2
Ambient conditions
Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
The ambient temperature (operation) refers to IEC61010 surrounding air temperature.
Ambient temperature (start-up type tested) -40 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing)
Installation height ≤ 5000 m (> 2000 m, observe derating)
Vibration (operation) < 15Hz, ±2.5mm amplitude; 15Hz ... 100Hz: 2.3g 90Min. (in
accordance with IEC 60068-2-6)
Shock 18 ms, 30g, in each space direction (according to IEC60068-
2-27)
Degree of pollution 2
Climatic class 3K3 (in acc. with EN 60721)
Overvoltage category
EN 61010-1 II(≤5000m)
Standards
Electrical safety (of control and regulation devices) IEC61010-1
Protective extra-low voltage IEC61010-1 (SELV)
Mains variation/undervoltage EN61000-4-29
EMC requirements, power plant EN61850-3
EN61000-6-5

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 9/32
Approvals
UL ULListedUL61010-1
CAN/CSAC22.2 No.61010-1-12
ULListedUL61010-2-201
CAN/CSAC22.2No.61010-2-201:18
UL121201 & CSAC22.2No.213-17Class I, Division 2,
Groups A, B, C, D T4 (Hazardous Location)
CBScheme IEC61010-1
IEC61010-2-201
Shipbuilding DNV GL
Current approvals/permissions for the product can be found in the download area under
phoenixcontact.net/products

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 10/32
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Noise emission according to EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
CE basic standard Minimum normative
requirements
Higher requirements in
practice (covered)
Conducted noise emission EN 55016 EN61000-6-4 (Class A) EN61000-6-3 (Class B)
Noise emission EN 55016 EN61000-6-4 (Class A) EN61000-6-3 (Class B)
Noise emission for marine approval Minimum normative
requirements of DNVGL
Higher requirements in
practice of DNVGL (cov-
ered)
DNV GL conducted noise emission Class A
Area power distribution
Class B
Bridge and deck area
DNV GL noise radiation Class A
Area power distribution
Class B
Bridge and deck area
Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station
equipment zone), IEC/EN 61850-3 (energy supply)
CE basic standard Minimum normative
requirements of
EN 61000-6-2 (CE)
(immunity for industrial
environments)
Higher requirements in
practice (covered)
Electrostatic discharge EN 61000-4-2
Housing contact discharge 4 kV (Test Level 2) 6 kV (Test Level 4)
Housing air discharge 8 kV (Test Level 3) 8 kV (Test Level 3)
Comments Criterion B Criterion A
Electromagnetic HF field EN61000-4-3
Frequency range 80 MHz ... 1 GHz 80 MHz ... 1 GHz
Test field strength 10 V/m (Test Level 3) 20 V/m (Test Level 3)
Frequency range 1 GHz ... 6 GHz 1 GHz ... 6 GHz
Test field strength 3 V/m (Test Level 2) 10 V/m (Test Level 3)
Comments Criterion A Criterion A
Fast transients (burst) EN61000-4-4
Input 2 kV (Test Level 3 -
asymmetrical)
2 kV (Test Level 4 -
asymmetrical)
Output 2 kV (Test Level 3 -
asymmetrical)
2 kV (Test Level 4 -
asymmetrical)
Signal 1 kV (Test Level 3 -
asymmetrical)
2 kV (Test Level 4 -
asymmetrical)
Comments Criterion B Criterion B

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 11/32
Surge voltage load (surge) EN61000-4-5
Input 0.5 kV (Test Level 3 -
symmetrical)
1 kV (Test Level 3 -
asymmetrical)
1 kV (Test Level 4 -
symmetrical)
2 kV (Test Level 4 -
asymmetrical)
Output 0.5 kV (Test Level 2 -
symmetrical)
1 kV (Test Level 1 -
asymmetrical)
1 kV (Test Level 3 -
symmetrical)
2 kV (Test Level 3 -
asymmetrical)
Signal 0.5 kV (Test Level 2 -
symmetrical)
1 kV (Test Level 1 -
asymmetrical)
1 kV (Test Level 4 -
symmetrical)
2 kV (Test Level 4 -
asymmetrical)
Comments Criterion B Criterion A
Conducted interference EN61000-4-6
Input/Output/Signal asymmetrical asymmetrical
Frequency range 0.15 MHz ... 80 MHz 0.15 MHz ... 80 MHz
Voltage 10 V (Test Level 3) 10 V (Test Level 3)
Comments Criterion A Criterion A
Power frequency magnetic field EN 61000-4-8
50 Hz , 60 Hz ( 30 A/m ) 16.67 Hz , 50 Hz , 60 Hz
( 100 A/m 60 s )
not required 50 Hz , 60 Hz ( 1 kA/m , 3 s )
not required 0 Hz ( 300 A/m , DC, 60s )
Comments Criterion A Criterion A
Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station
equipment zone), IEC/EN 61850-3 (energy supply)
CE basic standard Minimum normative
requirements of
EN 61000-6-2 (CE)
(immunity for industrial
environments)
Higher requirements in
practice (covered)

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 12/32
Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Basic standard Minimum normative
requirements of
EN 61000-6-5
Higher requirements in
practice (covered)
Pulse-shape magnetic field EN 61000-4-9
not required 1000 A/m
Comments none Criterion A
Damped oscillating magnetic field EN61000-4-10
not required 100 kHz
100 A/m
not required 1 MHz
100 A/m
Comments none Criterion A
Asymmetrical conducted disturbance variables EN 61000-4-16
Input, Output, Signals 15 Hz ... 150 Hz , 10 V on 1 V
150 Hz ... 1.5 kHz , 1 V
1.5 kHz ... 15 kHz , 1 V on 10 V
15 kHz ... 150 kHz , 10 V
( Test Level 3 )
15 Hz ... 150 Hz , 10 V on 1 V
150 Hz ... 1.5 kHz , 1 V
1.5 kHz ... 15 kHz , 1 V on 10 V
15 kHz ... 150 kHz , 10 V
( Test Level 3 )
50 Hz , 60 Hz , 10 V
(Permanent)
50 Hz , 60 Hz , 100 V (1 s) (
Test Level 3 )
16.7 Hz, 50 Hz, 60 Hz, 150 Hz,
180 Hz , 10 V (Permanent)
0 Hz , 16.7 Hz , 50 Hz , 60 Hz ,
100 V (1 s) ( Test Level 3 )
Comments Criterion A Criterion A
Alternating component of DC voltage EN61000-4-17
Alternating component 10 % (UN) , 50 Hz 10 % (UN) , 50 Hz , 100 Hz ,
150 Hz , 300 Hz ,
Comments Criterion B Criterion A
Attenuated oscillating wave EN 61000-4-18
Input, Output 1 MHz, 0.5 kV
( Test Level 2 - symmetrical )
1 MHz , 0.5 kV
( Test Level 2 - symmetrical )
1 MHz , 1 kV
10 MHz 0.5 kV
( Test Level 2 - asymmetrical )
1 MHz , 1 kV
( Test Level 2 - asymmetrical )
Signals 1 MHz , 0.5 kV
( Test Level 2 - symmetrical )
1 MHz, 0.5 kV
( Test Level 2 - symmetrical )
1 MHz , 1 kV
( Test Level 2 - asymmetrical )
1 MHz , 1 kV
( Test Level 2 - asymmetrical )
Comments Criterion B Criterion A

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 13/32
Voltage dips EN61000-4-29
Input voltage ( 24 VDC )
Voltage dip 70 % , 100 ms ( Test Level 2 ) 70 % , 100 ms ( Test Level 2 )
Comments Criterion C Criterion A
Voltage dip 40 % , 100 ms ( Test Level 2 ) 40 % 100 ms ( Test Level 2 )
Comments Criterion C Criterion A
Voltage dip 0 % , 50 ms ( Test Level 2 ) 0 % , 50 ms ( Test Level 2 )
Comments Criterion B Criterion B
Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Basic standard Minimum normative
requirements of
EN 61000-6-5
Higher requirements in
practice (covered)
Key
Criterion A Normal operating behavior within the specified limits.
Criterion B Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C Temporary adverse effects on the operating behavior, which the device corrects
automatically or which can be restored by actuating the operating elements.

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 14/32
5 Safety and installation notes
Symbols used
Instructions and possible hazards are indicated by
corresponding symbols in this document.
There are different categories of personal injury that are
indicated by a signal word.
The following symbols are used to indicate potential
damage, malfunctions, or more detailed sources of
information.
Safety notes and warning instructions
– Only skilled persons may install, start up, and operate
the device.
– Never carry out work when voltage is present.
– Establish connection correctly and ensure protection
against electric shock.
– Cover termination area after installation in order to avoid
accidental contact with live parts (e. g., installation in
control cabinet).
– Observe the national safety and accident prevention
regulations.
– Assembly and electrical installation must correspond to
the state of the art.
– The power supply is a built-in device and is designed for
mounting in a control cabinet.
– The IP20 degree of protection of the device is intended
for use in a clean and dry environment.
– Observe mechanical and thermal limits.
– Ensure that the primary-side wiring and secondary-side
wiring are the correct size and have sufficient fuse
protection.
– For the connection parameters for wiring the power
supply, suchas the required stripping length with and
without ferrule, refer to the technical data section.
– Use copper cables for operating temperatures of
75°C (ambient temperature 55°C)
90°C (ambient temperature 75°C).
– Protect the device against foreign bodies penetrating it,
e.g., paper clips or metal parts.
– The power supply is maintenance-free. Repairs may
only be carried out by the manufacturer. The warranty
no longer applies if the housing is opened.
– The power supply may only be used for its intended use.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety measures that follow this symbol to avoid
possible personal injuries.
WARNING
This indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
This indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTE
This symbol together with the signal word NOTE
and the accompanying text alert the reader to a
situation which may cause damage or malfunction
to the device, hardware/software, or surrounding
property.
This symbol and the accompanying text provide
the reader with additional information or refer to
detailed sources of information.
WARNING: Danger to life by electric shock!
NOTE

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 15/32
6 High-voltage test (HIPOT)
This protection class II power supply is subject to the Low
Voltage Directive and is factory tested. During the HIPOT
test (high-voltage test), the insulation between the input
circuit and output circuit is tested for the prescribed electric
strength values, forexample. The test voltage in the high-
voltage range is applied at the input and output terminal
blocks of the power supply. The operating voltage used in
normal operation is a lot lower than the test voltage used.
6.1 High-voltage dielectric test (dielectric strength
test)
In order to protect the user, power supplies (as electric
components with a direct connection to potentially
hazardous voltages) are subject to more stringent safety
requirements. For this reason, permanent safe electrical
isolation between the hazardous input voltage and the
touch-proof output voltage as safety extra-low voltage
(SELV) must always be ensured.
In order to ensure permanent safe isolation of the DC input
circuit and DC output circuit, high-voltage testing is
performed as part of the safety approval process (type test)
and manufacturing (routine test).
6.2 High-voltage dielectric test during the
manufacturing process
During the power supply manufacturing process, a high-
voltage test is performed as part of the dielectric test in
accordance with the specifications of IEC/UL/EN61010-1.
The high-voltage test is performed with a test voltage of at
least 1.2kVDC or higher. Routine manufacturing tests are
inspected regularly by a certification authority.
6.3 High-voltage dielectric test performed by the
customer
Apart from routine and type tests to guarantee electrical
safety, the end user does not have to perform another high-
voltage test on the power supply as an individual
component. According to EN 60204-1 (Safety of machinery
- Electrical equipment of machines) the power supply can be
disconnected during the high-voltage test and only installed
once the high-voltage test has been completed.
High-voltage tests up to 1.2kVDC can be
performed as described.
The test voltage should rise and fall in ramp form.
The relevant rise and fall time of the ramp should
be at least two seconds.

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 16/32
6.3.1 Performing high-voltage testing
If high-voltage testing of the control cabinet or the power
supply as a stand-alone component is planned during final
inspection and testing, the following features must be
observed.
– The power supply wiring must be implemented as
shown in the wiring diagram.
– The maximum permissible test voltages must not be
exceeded.
Avoid unnecessary loading or damage to the power supply
due to excessive test voltages.
Figure 1 Potential-related wiring for the high-voltage
test
Key
For the relevant applicable test voltages and
insulation distances, refer to the corresponding
table (see technical data: electric strength of the
insulation section).
No. Designation Color coding Potential lev-
els
1 DC output circuit Blue Potential 1
2 Signal contacts Blue Potential 1
3 High-voltage
tester
-- --
4 DC input circuit Red Potential 2
Input DC
Boost >100%
> 75%
> 50%
DC OK
Signal (SIG)
1.1 1.2
Output DC
SIG +
QUINT POWER Ord.No.xxxxxxx
3.1 2.1 2.2
+
UOut
POut > PThr
HV
/=
12
3
4
ô

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 17/32
7 Structure of the power supply
The fanless convection-cooled power supply can be
snapped onto all DIN rails according to EN60715.
7.1 Function elements
Figure 2 Operating and indication elements
Key
7.2 Device dimensions
Figure 3 Device dimensions (dimensions in mm)
Figure 4 Device dimensions (dimensions in mm)
No. Designation
1 Connection terminal block signal output (SIG)
DCOK, POut>PThr: +24VDC, 22mA
2 Connection terminal block output voltage: Output
DC +/-
3 Accommodation for cable binders
4 Integrated snap-on foot for carrier rail mounting
5 QR code web link
6 Connection terminal block input voltage: Input+/-
7 Signaling DC OK LED
8 Rotary selector, status of the output voltage (DCOK)
or output power (POut > PThr)
9 Signaling POut > PThr LED (yellow): output power
POut > output power threshold PThr
10 Potentiometer output voltage
Input DC
Boost >100%
> 75%
> 50%
DC OK
Signal (SIG)
1.1 1.2
Output DC
SIG +
QUINT POWER Ord.No.xxxxxxx
3.1 2.1 2.2
+
UOut
POut > PThr
23
3
33
4
5
7
9
10
1
6
8
99
22,5
49,5
Input DC
Boost >100%
> 75%
> 50%
DC OK
Signal (SIG)
1.1 1.2
Output DC
SIG +
QUINT POWER Ord.No.xxxxxxx
3.1 2.1 2.2
+
UOut
POut > PThr
90
95
99
67
32

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 18/32
7.3 Keep-out areas
Figure 5 Device dimensions and minimum keep-out
areas (in mm)
Nominal output
capacity
Spacing [mm]
a b c
< 50 % 0 30 30
≥ 50 % 5 30 30
If adjacent components are active and the nominal
output power ≥ 50%, there must be lateral spacing
of 15 mm.
99 b
c
22,5
a a
Input DC
Boost >100%
> 75%
> 50%
DC OK
Signal (SIG)
1.1 1.2
Output DC
SIG +
QUINT POWER
Ord.No.xxxxxxx
3.1 2.1 2.2
+
UOut
POut > PThr

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 19/32
7.4 Block diagram
Figure 6 Block diagram
Key
OVP
SIG
Ď C
3.1 SIG
2.2
2.3
-
2.1 +
1.1
+
1.2
-
-
Symbol Designation
Surge protection (diode) with filter
Inrush current limitation
Switching transistor and main transmitter
(electrically isolating)
Secondary rectification and smoothing
Filter
Optocoupler (electrically isolating)
Additional regulatory protection against
surge voltage
OVP
Symbol Designation
Auxiliary converter (electrically isolating)
Microcontroller
PNP transistor switch output
Rotary selector switch
Signal/display LEDs
Potentiometer output voltage
C
SIG

QUINT4-PS/12-24DC/24DC/1.3/SC
110257_en_00 PHOENIX CONTACT 20/32
8 Mounting/removing the power
supply
8.1 Mounting the power supply unit
Proceed as follows to mount the power supply:
1. The power supply is mounted in the normal mounting
position from above onto the 35mm DIN rail (DIN EN
60715). Make sure that the integrated snap-on foot is in
the correction position behind the DIN rail (A).
2. Then press the power supply down until the integrated
snap-on foot audibly latches into place (B).
3. Check that the power supply is securely attached to the
DIN rail.

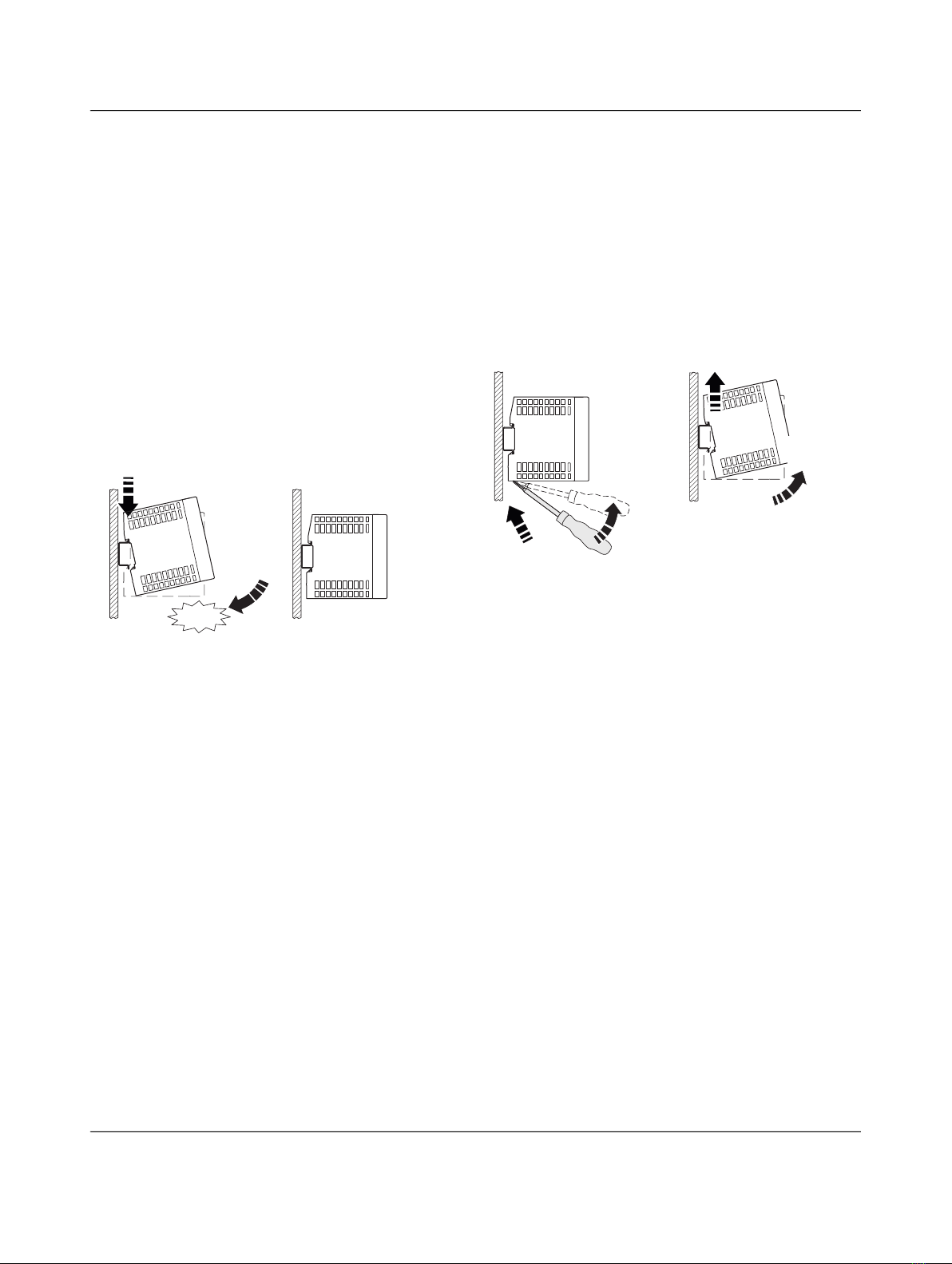

Figure 7 Snapping the power supply onto the DIN rail
8.2 Removing the power supply unit
Proceed as follows to remove the power supply:
1. Take a suitable screwdriver and insert this into the lock
hole on the integrated snap-on foot (A).
2. Release the lock by lifting the screwdriver (B).
3. Carefully swivel the power supply forward (C) so that
the lock slides back into the starting position.
4. Then separate the power supply from the DIN rail (D).
Figure 8 Removing the power supply from the DIN rail
B
A
Click
B
A
D
C
