Operating & Safety Manual
Smart Spider DN150, DN200 & DN225 / 6”, 8” & 9” for 18mm/¾” Shaft
These instrucons are for your personal safety. Always ensure that you
have read and understood these instrucons before using any of the
Smart Spider range.
We now have resellers in the U.S., Europe & Australasia.
Locate your reseller at picotesolutions.com

2
TOPIC PAGE/S
SAFETY INFORMATION & SYMBOLS 3
AVAILABLE SIZES & POWER SOURCES 5
BILL OF MATERIALS 6
ASSEMBLY & USE 9
PRACTICAL TIPS & SAFETY ADVICE 18
MAINTENANCE & SPARE PARTS 20
WARRANTY POLICY & PROCEDURE 23
To watch practical demonstration videos, or to download an electronic copy of these
Instructions, please visit www.picotesolutions.com. Please note that videos are not
intended as a replacement or alternative to this operating and safety manual, but only
as an additional learning tool.
TABLE OF CONTENTS

3
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
SAFETY INFORMATION
This section contains important safety information. Failure to
comply could result in serious injury or death.
Safety Symbols
Personal Protective Equipment (PPE)
Always use Personal Protective Equipment when using the Smart Spider and Miller
systems, including suitable overalls / protective clothing & footwear and the following:
Always wear suitable eye protection when using the Smart Spider to prevent
sewage, chemicals or other dust from irritating your eyes.
Always wear suitable ear protection when using the Smart Spider and Miller
systems to prevent any hearing loss.
Always wear suitable cut-resistant gloves when using the Smart Spider to prevent
any hand injuries. Any open injuries or skin irritations should be covered at all
times to avoid contact with sewage, chemicals or dust.
Always wear a suitable ventilation mask when using the Smart Spider or Miller
systems to prevent any resin dust or fumes being inhaled or consumed, which can
cause occupational asthma or dermatitis as well as eye irritation.
Danger risk of serious injury from rotating parts
Danger risk of serious injury, follow instructions
Danger risk of serious injury or death by electrocution, follow instructions
Danger risk of serious injury from hot parts
Safety symbols are used throughout this manual to draw attention to potential hazards.
Danger do not touch. Risk of injury, follow instructions
Danger risk of serious injury or death by electrocution, follow instructions

4
Dust produced can be dangerous to your health, inflammable or explosive.
Make sure the drain pipe has been opened and ventilated to stop any
gases forming in the lateral drain where the work takes place.
Before assembly, use, replacement of parts or maintenance, unplug the Picote
milling machine or your hand drill from its power socket.
High voltage. Failure to comply may lead to serious injury
including electric shock or injury from rotating parts!
Always remember
Safety Symbols cont.
Safety symbols are used throughout this manual to draw attention to potential hazards.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
ELECTRICAL SET UP REQUIREMENTS FOR MAXI MILLER POWER PLUS
Electrical shock can cause serious or fatal injury. Only qualified personnel
should install, maintain or troubleshoot this equipment.
Picote recommends that a properly trained electrician be available to wire
a power distribution box to whatever power source is available. In the case
where a generator is required, a minimum power requirement of 25,000
KW/KVA 3 Phase 480 volt is necessary.
The Power Plus is a dual voltage 3 phase power configuration. It uses a 10 gauge 4
wire cord.
Be sure the system is properly grounded/earthed before applying power. Do not apply power
before you ensure that grounds are connected. Electrical shock can cause serious or fatal injury.
Follow the National Electrical Code (NEC) and local codes for the safe installation of the
equipment.
Do not operate the Power Plus Miller until you are sure that you are completely familiar with the
safe operation of the machine, all accessories and safety equipment. Improper use can lead to
severe injury. The user manual defines proper use of this equipment.
Contact Picote if you do not understand any procedure or operation concerning this
equipment or the user manual.
READ THE MAXI MILLER POWER+ MANUAL BEFORE USE

5
AVAILABLE SIZES & POWER SOURCES
The Smart Spider is to a specialty tool for cleaning fragile or damaged pipes. The Smart
Spider can go through pipes which have lost small sections without getting stuck. The
Smart Spider legs adapt to the pipe size when the tool rotates. A Drill Head can be used
if required.
Selecting the correct Smart Spider for the job
Choose your Smart Spider according to the size of the original host pipe.
SMART SPIDER Shaft size
mm/inches
BEND 90° BEND 45°
Smart Spider DN150 / 6” 18 / ¾”YES YES
Smart Spider DN200 / 8” 18 / ¾”YES YES
Smart Spider DN225 / 9” 18 / ¾”YES YES
CHOOSING YOUR POWER SOURCE
The Smart Spider, with the 18mm/¾” diameter shaft, has been designed for and can
ONLY be operated with the Picote Maxi Miller Power+ machine.
The machine should only be connected to a 380-480 Volt (3-phase) power supply.
The power source has to be grounded (earthed).
CHOOSING YOUR DRILL HEAD
The Smart Spider can be used with or without the Drill or Crusher Heads by adding a Hub
Disc. The Drill Head and the Crusher are used when there is blockage in the centre of the
pipe.
If the Smart Spider can fit through the pipe without the Drill Head, the tool should be
used without one. Without the Drill Head all the force is applied to the legs.

6

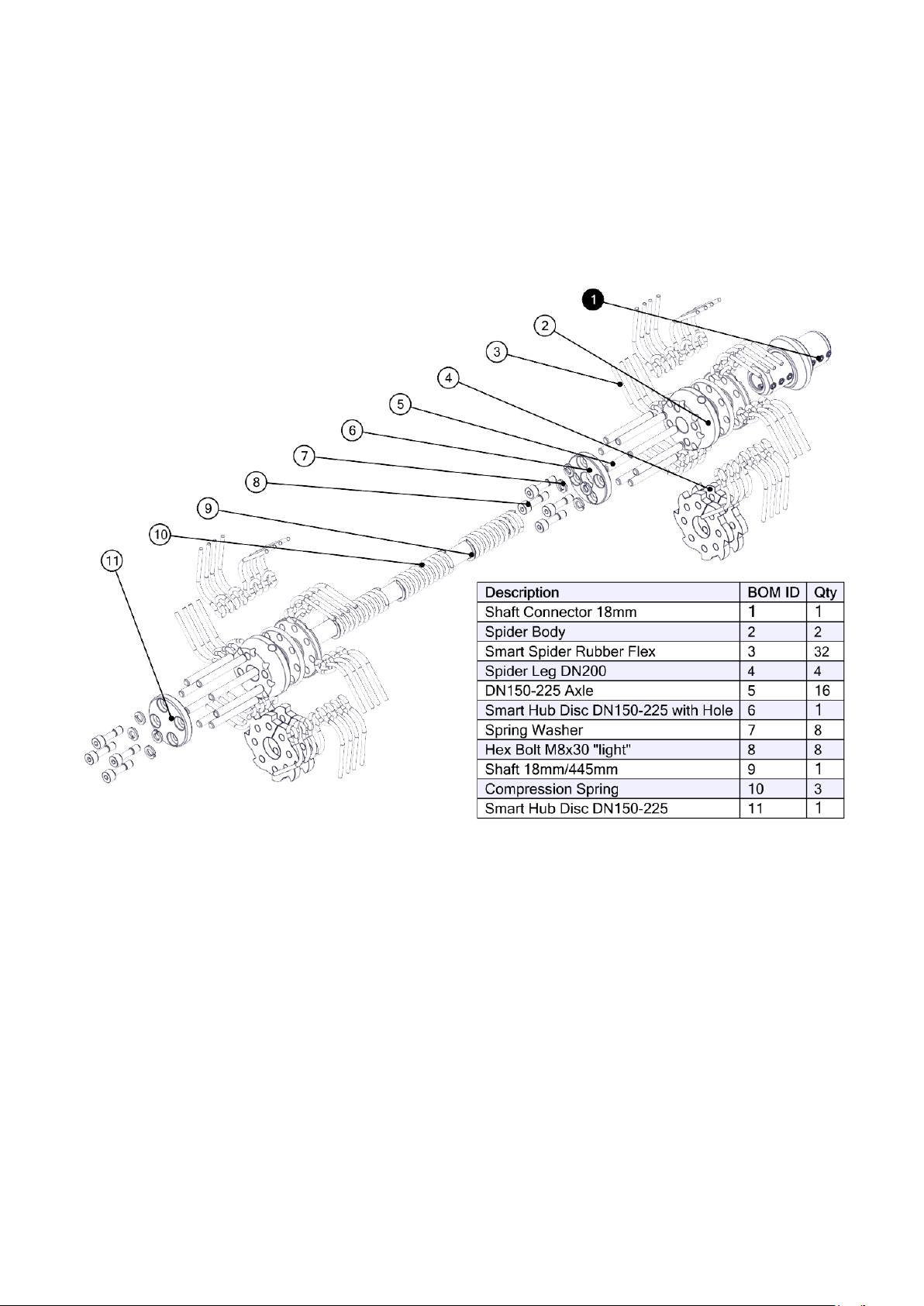

BILL OF MATERIALS: DN150/6” Smart Spider
The Smart Hub Disc can be replaced with the Crusher or Drill Head depending on
the working condions.

7
BILL OF MATERIALS: DN200/8” Smart Spider
The Smart Hub Disc can be replaced with the Crusher or Drill Head.

8
BILL OF MATERIALS: DN225/9” Smart Spider
The Smart Hub Disc can be replaced with the Crusher or Drill Head.

9

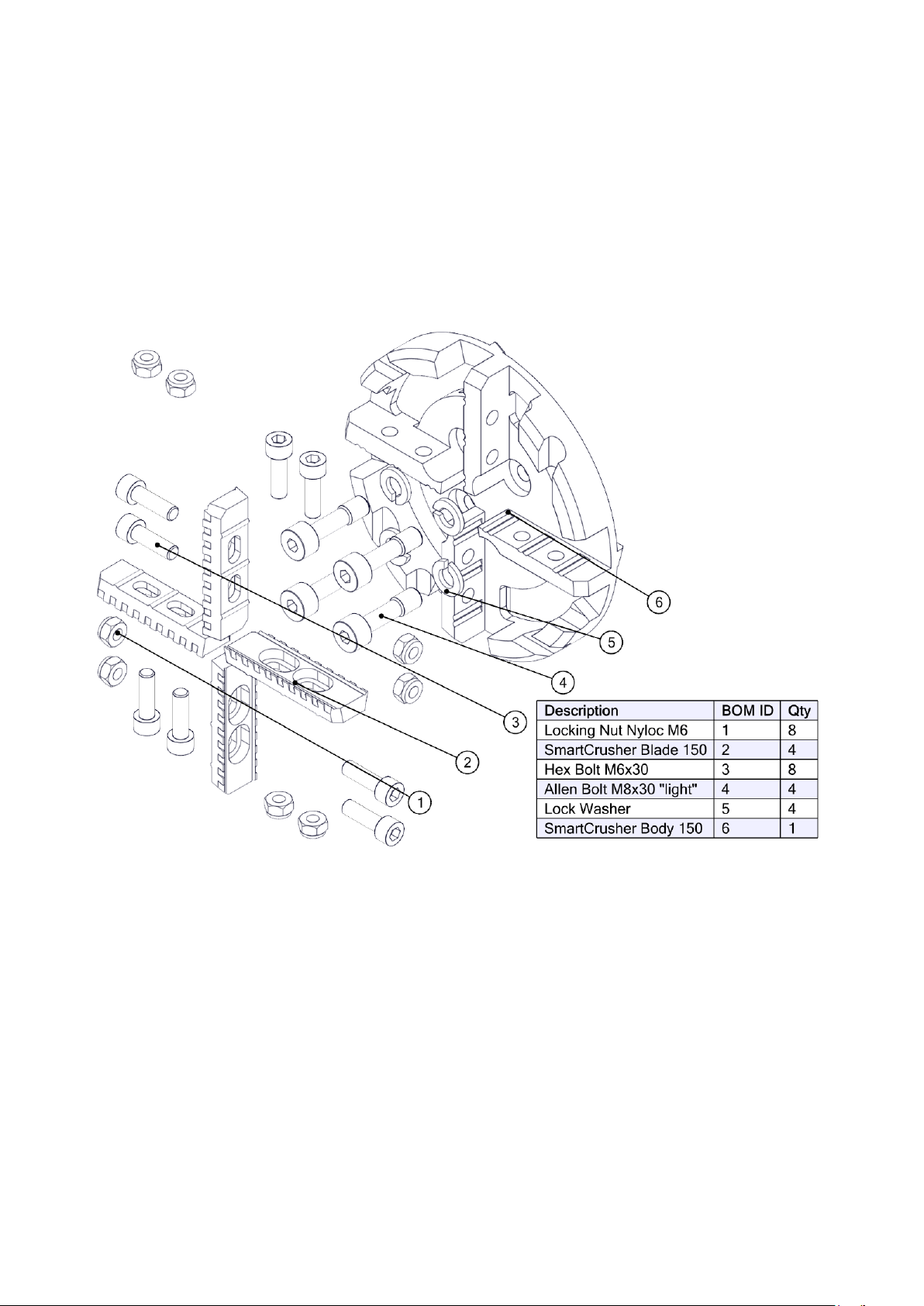

BILL OF MATERIALS - DN150/6” Smart Crusher
Head

10
BILL OF MATERIALS - DN200/8” Drill Head

11

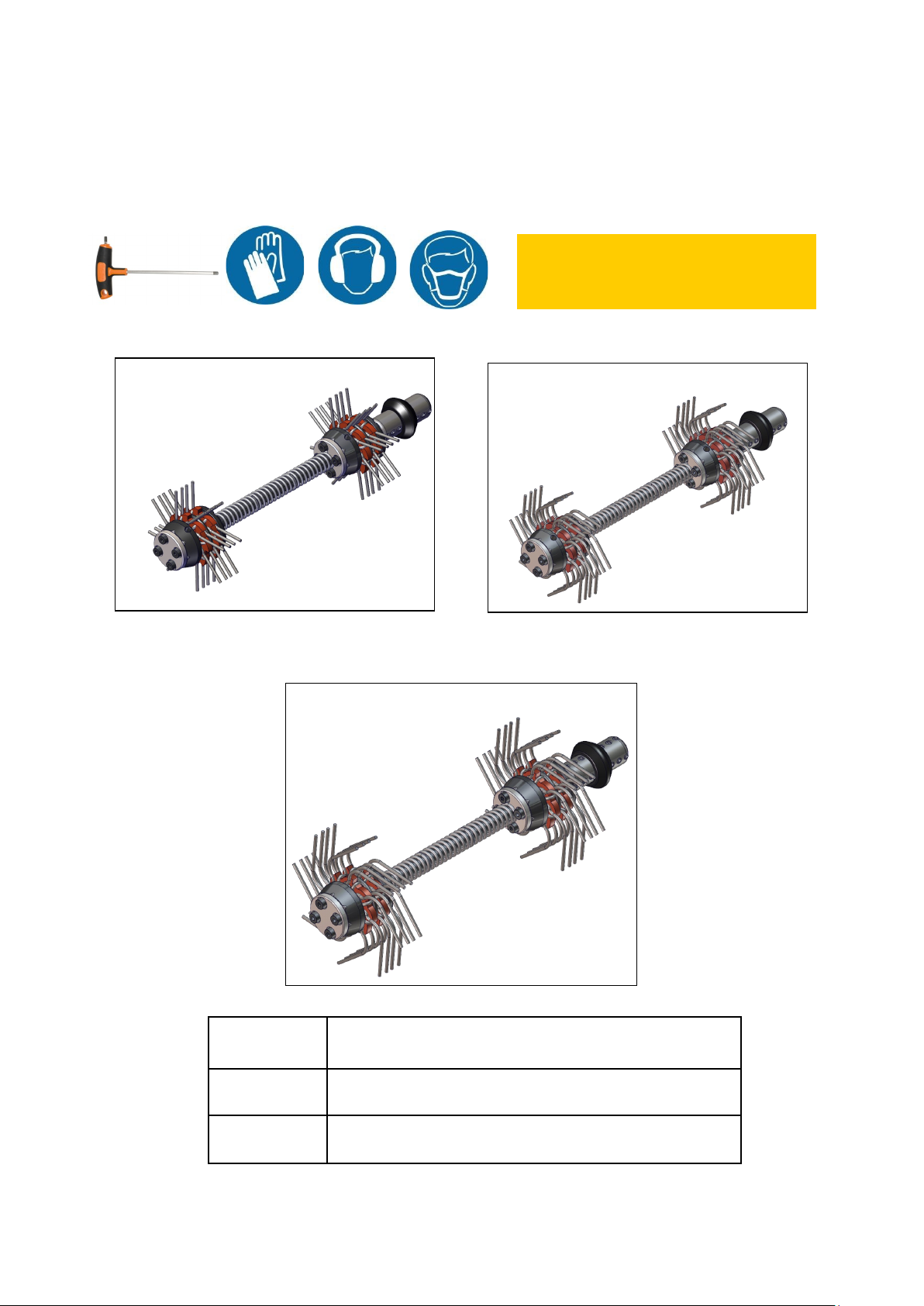

DN150/6”, DN200/8” & DN225/9” SMART SPIDER ASSEMBLY & USE
First, make sure you have all the required parts. Please see photo parts’ lists on page 5.
Smart Spider DN150 / 6”
Smart Spider DN225 / 9”
Please read safety informaon on
page 3 before assembly and use.
1390180150 Smart Spider DN150/6” for 18 mm/¾” Sha
1390180200 Smart Spider DN200/8”for 18 mm/¾” Sha
1390180225 Smart Spider DN225/9” for 18 mm/¾” Sha
Smart Spider DN200 / 8”

12
Smart Spider DN150/6”
Assembly Instrucons
Recommended: Locte 542 Thread Sealant

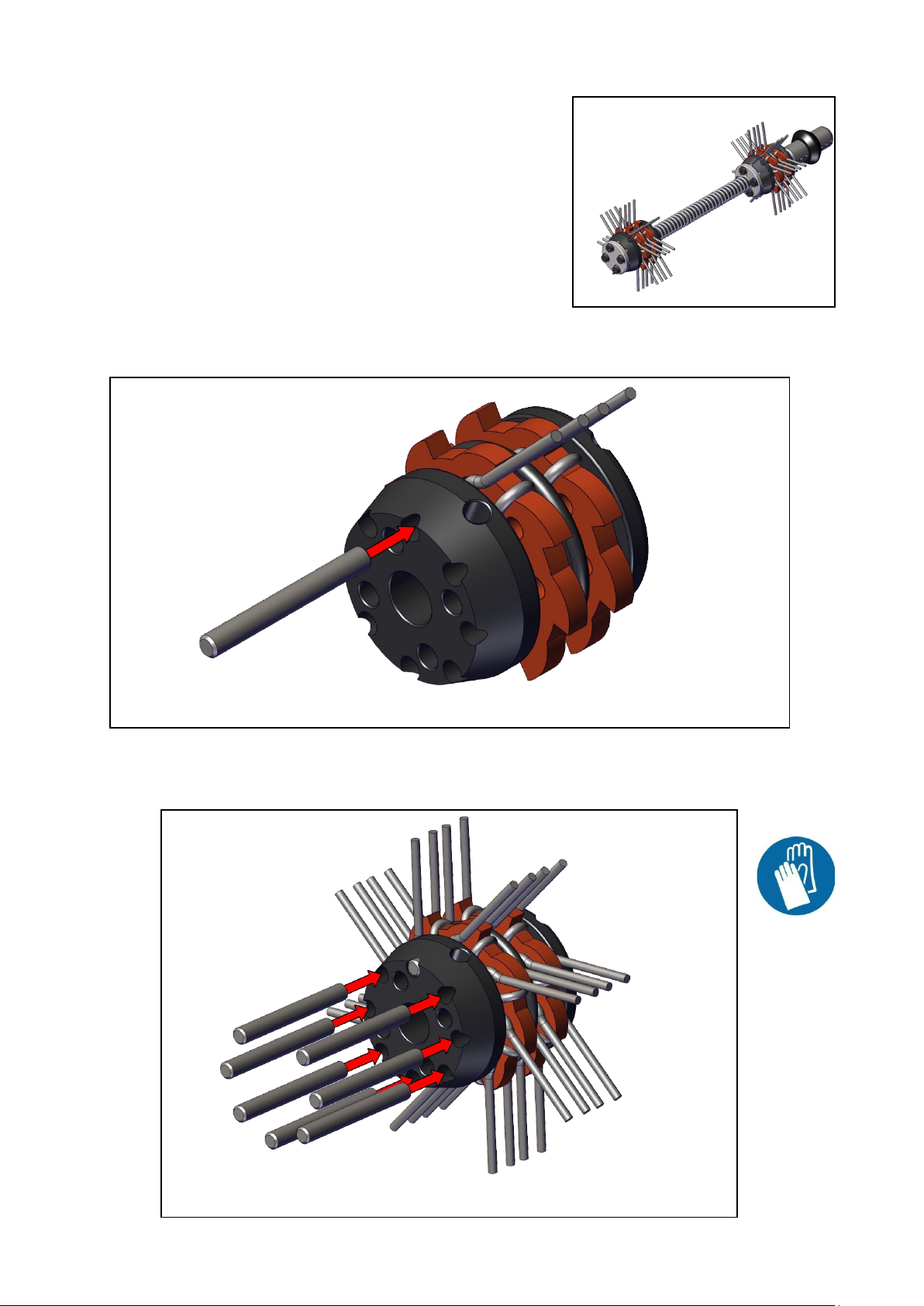

Step 1. Place the Smart Spider Rubber Flexes on
their slots. Place two Smart Spider legs as
shown below and lock them with axle.
Step 2. Add the other legs and axles.

13
Step 4. Install the front Smart Spider body to the sha and ghten the screws.
Add three Compression Springs.
Step 3. Insert the Smart Hub Disc, Spring Washers and Allen
Bolts (M8 “light”) into their slots. Repeat the same with the
other Smart Spider body except use the Smart Steering Hub
Disc that has holes.
Recommended: Locte 542 Thread Sealant

14

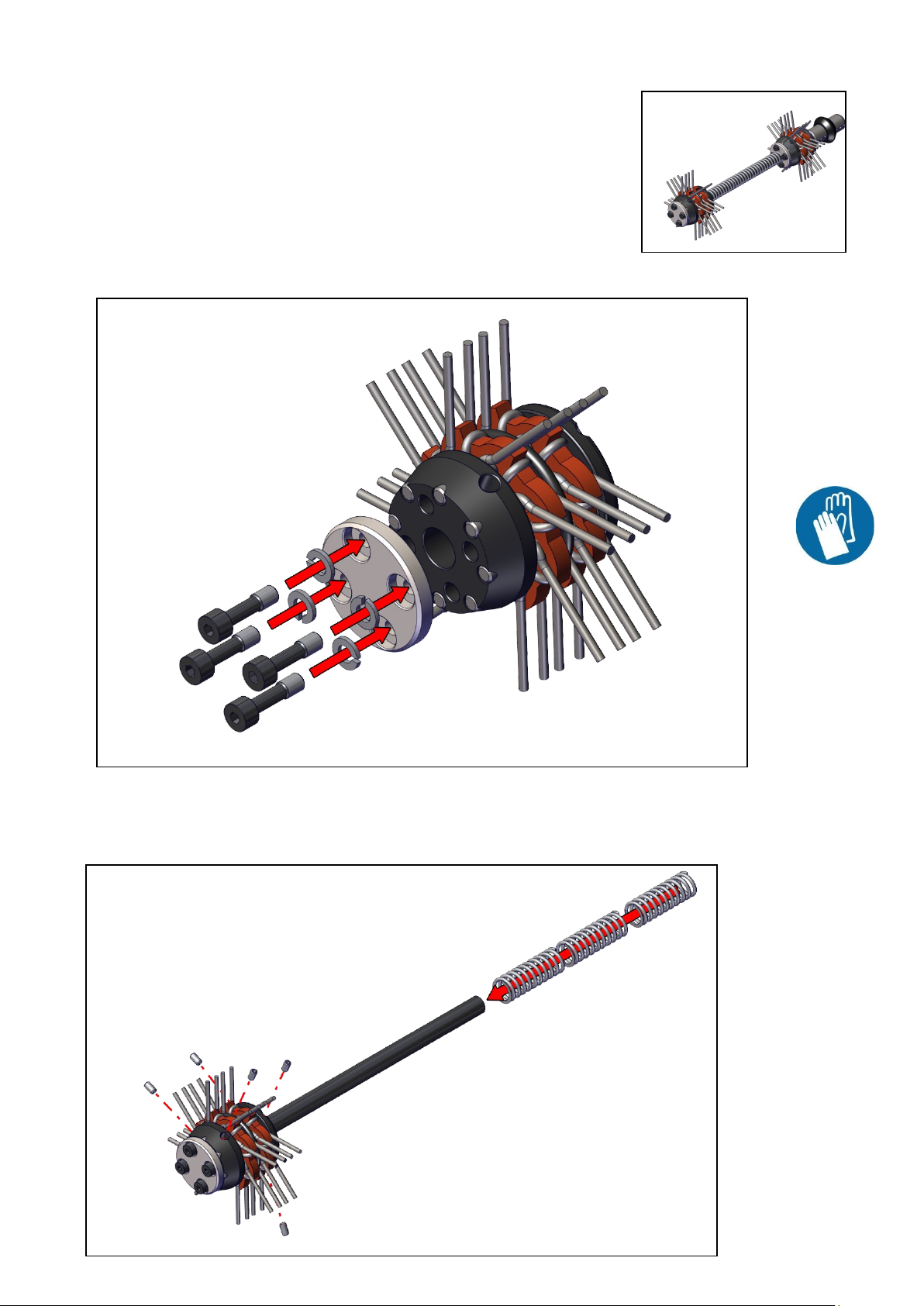

Step 6. Add the Sha Connector.
Step 5. Add the other assembled Smart Spider body with
the Steering Hub Disc.

15
Assembly Instrucons—Smart Crusher Heads

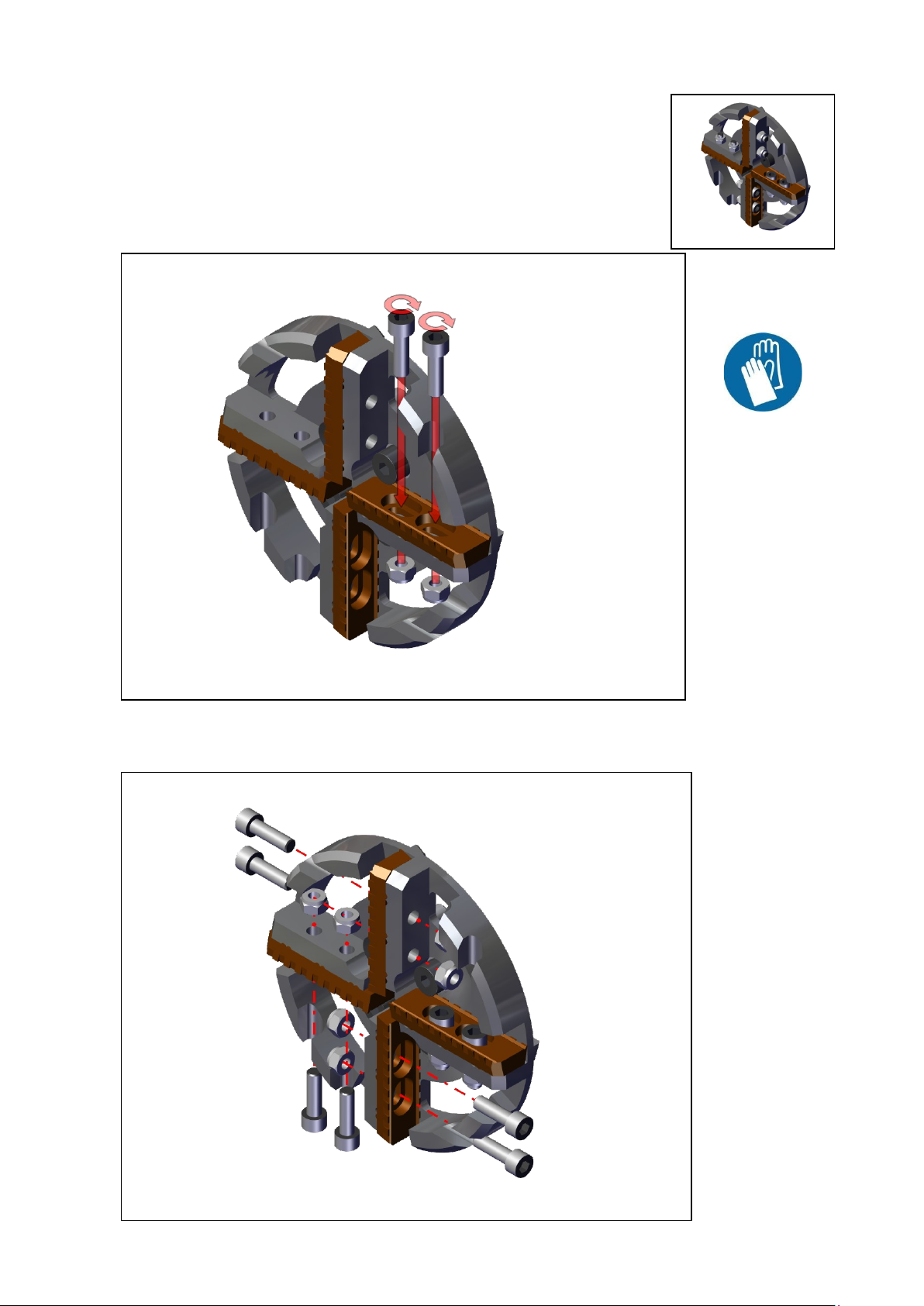

Step 1. Insert the Lock Washers and Hex Bolts into their slots.
Recommended: Locte 542 Thread Sealant
Step 2. Place the Smart Crusher Blades into their slots. Pay close aenon to
alignment as seen on next page.

16
Assembly Instrucons—Smart Crusher Heads
Step 3. Place every second blade in alternave slots of the
body.
The Smart Crusher can only operate at maximum diameter when the
blades are inserted correctly. The two opposite blades need to be closer
to the centre. If the blades are placed incorrectly the head may not
be able to progress through the pipe.

17
Assembly Instrucons—Smart Crusher Heads
Step 4. Insert the mounng bolts and nuts. Tighten bolts.
Locking nuts must be used! Recommended: Locte 542
Step 5. Place the rest of bolts and locking nuts into their place as per step 4.

18
Assembly Instrucons—Drill Heads DN200/8” & DN225/9”

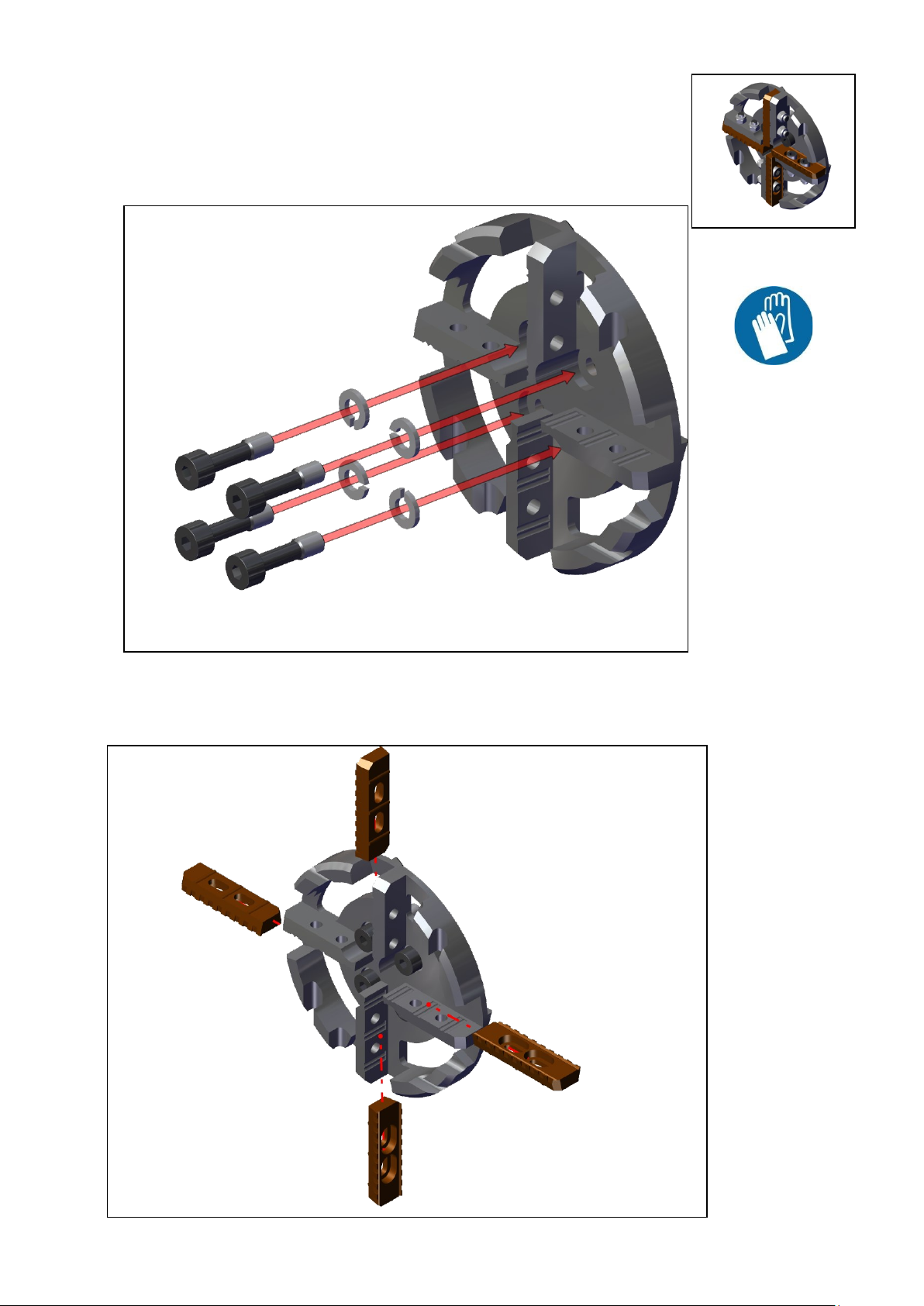

Step 1. Insert the blades into their slots.
Step 2. Place the bolts and nuts in posion and ghten them. Locking nuts
must be used! Recommended: use Locte 542 Thread Sealant.

19
Assembly Instrucons—Drill Heads DN200/8” & DN225/9”
Step 3. Insert other bolts and nuts into their slots.
Step 4. Place the Allen Bolts (M8) and locking washers into their slots.

20
Using the Smart Spider
Before starng work
Select the correct size tooling and drill head for your job. Ensure water is owing
in the pipe or the vacuum extracon is ready (dry cleaning). Venlate the working
area properly. Ensure that all metallic drain pipes are grounded/earthed. The
Smart Spider causes high friction and there is risk of electric shocks. Verify the
location to position the Smart Spider with a CCTV camera. Place the Smart
Spider inside the pipe ensuring that legs fit completely inside the drain before
turning the power on.
During operaon
Switch the power on. Inially start the Smart Spider at a lower speed and then slowly increase
the speed. Adjust the speed while working. Hold the sha ghtly. Move the tool in back and forth
movement in the pipe. Always use a CCTV camera to check how you are progressing.
Do not force the tool through the pipe—let the tool do the work. If too much force or excessive
high speed is used the tool might get stuck resulng in damaging or breaking the tool, sha or
the pipe. Use either water or vacuum to remove the debris. Use lower speed when working in
fragile or damaged secons of the pipe.
PLEASE NOTE: Where water cooling is not being used (air/vacuum situations), you need to take
breaks every 10—15 min as the tool head gets very hot during use. Always wear heat resistant
gloves after the machine has been switched off and the power supply isolated. The tools
can then be cooled down using water or left to cool in the open air. Always observe the
temperature of the outer casing and let the Maxi Miller Power+ cool down after every 30 min
periods of constant work.
Please read safety information on
page 3 before assembly and use.

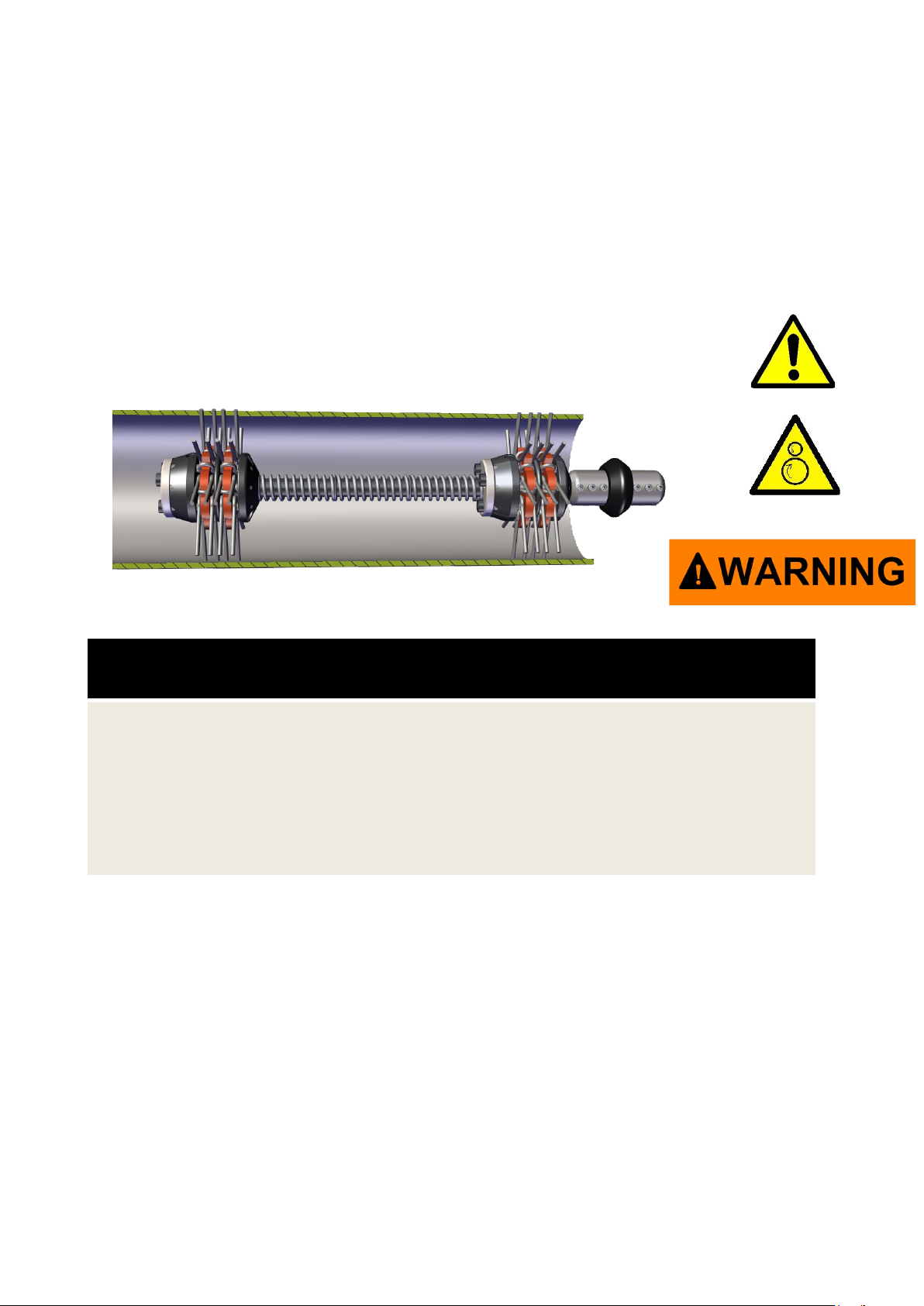

NEVER SWITCH ON THE SMART SPIDER OUTSIDE OF THE PIPE! The cung head
needs to t completely inside the pipe before turning power on and using the
tool. Failure to comply could lead to serious injury or death.
