Planet ICA-350 User manual

`
30M Infrared Internet Camera
ICA-350
User’s Manual
Version: 1.00
1/59
Date: June. 2007

Copyright
Copyright ©2007 by PLANET Technology Corp. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Any software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or
its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software. Further, PLANET reserves the
right to revise this publication and to make changes from time to time in the contents hereof
without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or
registered trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance. (example-use only shielded interface cables when connecting
to computer or peripheral devices). Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two
conditions: ( 1 ) This device may not cause harmful interference, and ( 2 ) this Device must
accept any interference received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal
operation.
R&TTE Compliance Statement
1/59

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment
and telecommunication terminal Equipment and the mutual recognition of their
conformity (R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of
April 8,2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users
of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 30M Infrared Internet Camera
Model: ICA-350
Rev: 1.0 (June. 2007)
Part No. EM-ICA350
2/59

Table of Content
1. Introduction.................................................................................................................. 5
1.1 Overview............................................................................................................. 5
1.2 Features.............................................................................................................. 5
1.3 Package Contents............................................................................................. 6
2. Basic Setup................................................................................................................. 7
2.1 System Requirements....................................................................................... 7
2.2 Physical Details.................................................................................................. 8
2.3 Hardware Installation........................................................................................ 9
2.4 Initial Utility Installation ..................................................................................... 9
2.5 IPWizard............................................................................................................ 12
2.6 Configure With IPWizard................................................................................ 14
2.7 Using UPnP of Windows®XP™.................................................................... 16
2.8 Setup ActiveX to use the ICA-350 ................................................................ 20
3. Web-based Management........................................................................................ 22
3.1 Introduction....................................................................................................... 22
3.2 Connecting to ICA-350 ................................................................................... 22
3.3 Live View........................................................................................................... 25
3.4 ActiveX Control ................................................................................................ 26
3.4.1 Digital Zoom.......................................................................................... 27
3.4.2 Record.................................................................................................... 28
3.4.3 Snapshot................................................................................................ 28
3.4.4 Statistics................................................................................................. 29
3.4.5 About...................................................................................................... 29
3.5 System Setting................................................................................................. 30
3.5.1 Network.................................................................................................. 30
3.5.2 DDNS server......................................................................................... 32
3.5.3 PPPoE.................................................................................................... 33
3.5.4 3GPP...................................................................................................... 34
3.5.5 UPnP...................................................................................................... 35
3.6 Camera.............................................................................................................. 37
3.6.1 Common................................................................................................ 37
3.6.2 Picture.................................................................................................... 38
3.6.3 Tour......................................................................................................... 38
3.7 System............................................................................................................... 39
3.7.1 Date & Time........................................................................................... 39
3.7.2 Maintenance.......................................................................................... 40
3.8 Video.................................................................................................................. 41
3.8.1 MPEG4/VGA......................................................................................... 41
3.8.2 MPEG4/QVGA...................................................................................... 42
3.8.3 MPEG4/QQVGA................................................................................... 43
3.8.4 JPEG/QVGA......................................................................................... 44
3.9 User ................................................................................................................... 45
3.10 E-Mail.............................................................................................................. 46
3.11 FTP .................................................................................................................. 47
3/59

3.12 Object detection............................................................................................. 47
Appendix A: Hardware Restore.................................................................................... 49
Appendix B: Troubleshooting & FAQ .......................................................................... 50
Appendix C: PING IPAddress ..................................................................................... 54
Appendix D: Bandwidth Estimation............................................................................. 55
Appendix E: DDNS Application.................................................................................... 56
4/59

1. Introduction
The ICA-350 features zero-lux illumination. The 28 IR illuminator built around the lens brings the
clearest vision at night. The ICA-350 offers color vision in day time and monochrome vision at
complete darkness environment with built 1/3” color Sony CCD sensor up to 30 meters of distance
and use new High-Light LED to provide great performance in the dark and longer LED life.
The ICA-350 is water-resistant construction with weatherproof solid housing. With the Aluminum
rugged, all-weather waterproof enclosure maintains the reliable operation in any environment. The
Build-in fan and heater prevent the machine overheated or sub cooling.
Multi-profile support stands for video stream simultaneously. The ICA-350 can generate MPEG-4
and M-JPEG streaming to different users in the meantime. Moreover, the resolution can also differ
from one user to another. This state-of-art design is considerable to fit in various network
environments. Up to 10 users can have access to the ICA-350 at any point in time simultaneously.
The ICA-350 is the perfect outdoor surveillance application for day and night. It can combine the
PLANET Pan/Tilt internet camera and internet video server / digital video recorder products for
various filed demands in surveillance network.
1.1Overview
This user’s manual explains how to operate the 30M Infrared Internet Camera from a computer.
Basically, the user’s manual is written to be read on the computer display. However, users might
consider printing it out to access easily and read it before you operate the Network Camera.
1.2 Features
•High quality of 1/3” color SONY CCD image sensor in 30M distance
•Clear and high resolution quality pictures for day and night
•3GPP for 3G mobile remote applications
•Multi-profile encoder supports MPEG-4 and M-JPEG video compression simultaneously and
30fps for all resolution
•Built-in fan and heater
•LED used on ICA-350 are 4 times brighter than ordinary IR LED
•Secure protection for current rejections
•Special mental base enhances lighting and dissipating heat
•Weatherproof protection of housing guard against the various weather
•Plug-N-Watch is able to simplify the system integration in existing network environment
•Because of supporting TCP/IP networking, SMTP e-mail and HTTP public network standards,
ICA-350 can be applied and utilized to a mixed IP network environment
5/59

•Easy configuration: Network administrators can configure and manage ICA-350 via
Windows-based utility or web browser
•DDNS, PPPoE and FTP uploading support provide more alternatives in surveillance network
•Motion Detection: the motion detection feature can monitor any suspicious movement in
specific area
1.3Package Contents
User can find the following items in the package:
1. ICA-350 x 1
2. Power adapter x 1
3. Wall mount accessories x 1
4. Installation software and manual CD x 1
5. Quick Start Guide x 1
NOTE:
1. If any of the above items are missing, please contact your dealer immediately.
2. Using the power supply that is not the one included in ICA-350 packet will cause damage and
void the warranty for this product.
6/59

2. Basic Setup
This chapter provides details of installing and configuring the ICA-350
2.1 System Requirements
Network Interface 10/100MBase-TX Ethernet
Monitoring System Recommended for Internet Explorer 6.0 or later
System Hardware · CPU: Pentium 4, 1.5GHz or above
· Memory Size : 512 MB (512 MB or above Recommended )
· VGA card resolution : 1024 x 768 or above
· Network bandwidth: In VGA resolution mode, minimum
upload bandwidth is 1Mbps.
System Requirement For Viewer & RecorderApplication
Support OS Win 2000 , Win XP
System Hardware 16 cameras surveillance application
· CPU: Pentium 4, 2.8GHz or faster
· Memory Size : 512 MB or above
· VGA card resolution : 1024 x 768 or above
· Free space of hard disk: 10GB or higher
· Power Supply: 300W or higher
Note: The listed information is minimum system requirements only. Actual requirement will vary
depending on the nature of your environment.
7/59

2.2 Physical Details

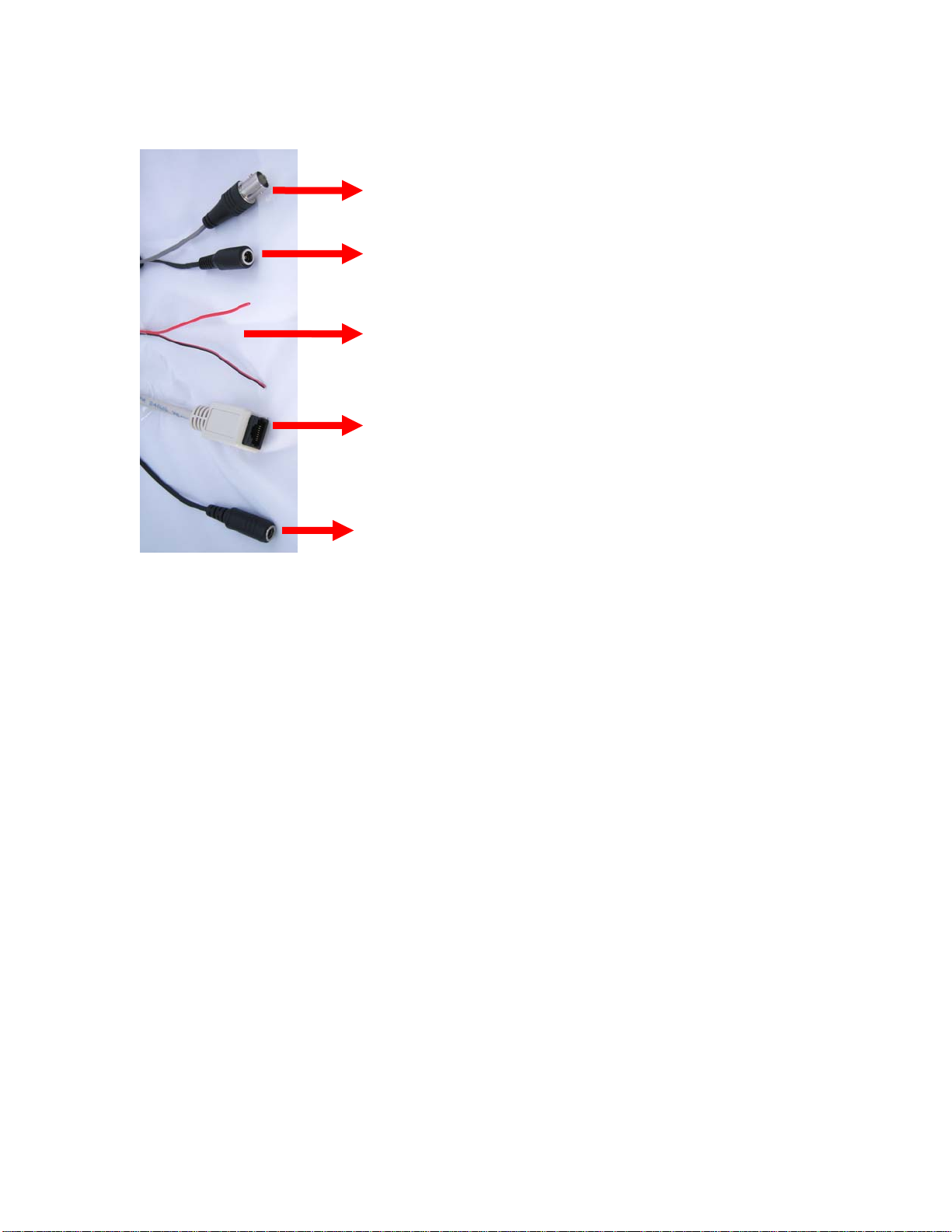

zBNC Connector – For analog video output
zPower Connector – Connect to DC 12V power adapter
(for ICA-350)
zRS485 cables (Black: D- / Red: D+ ) - To connect to P/T
scanner.
zRJ-45 Connector – For connect a CAT5 cable to hub or
switch.
zPower Connector – Connect to DC 12V power adapter
(for heater)
Cable Connections:
1. Power Connector: The input power is 12VDC. It supply two adapters that one for heater and
the other for camera.
Note: Supplies the power to the ICA-350 with the power adapter included in package.
2. Video Output Connector (BNC port)
The ICA-350 also provides composite video output. User can use BNC video cable to
connect the ICA-350 with a TV monitor or DVR.
3. RJ-45 LAN Connector: For connect a LAN cable to your Hub/Switch.
The LAN port is a RJ-45 connector for connections to 10Base-T Ethernet or 100Base-TX
Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the
transmission speed of the network automatically. Please use Category 5 “straight” cable to
connect the ICA-350 to a 100Mbps Fast Ethernet network switch or hub.
Note: In case you need to connect the device to PC or notebook directly, you should use a
cross-over cable instead.
4. RS-485: Connect to a Pan/Tilt scanner unit.
This connector is built inside the ICA-350 housing. Please refer to the Section 3.6.1 in
manual for more information.
8/59

2.3 Hardware Installation
1. Fix ICA-350 to the location with wall mount fixture.
2. Plug-in Ethernet Cable into RJ-45 LAN port. Connect an Ethernet cable to the LAN port on the
ICA-350 and connect the other side of the Ethernet cable to a hub/switch.
3. Connect the attached two power adapters to camera and plug-in this two adapters into power
outlet.
4. Connect Video BNC connector to a local TV monitor or DVR if necessary.
5. Done.
2.4 Initial Utility Installation
Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once completed, a
welcome menu screen will appear.
Click the “IPWizard Utility” hyperlink in the welcome screen, the below InstallShield Wizard dialog
box will appear.
Note: If the welcome screen does not appear, click “Start” at the taskbar. Then, select “Run” and
type “D:\Utility\setup.exe”, assume D is your CD-ROM drive.
9/59

The “Welcome to the InstallShield Wizard for IPWizard” will display on the screen and click “Next”
to continue.
Please click “Next” to install with original settings, or you may click “Change…” button to modify
the install folder then press “Next” to continue.
10/59

Please click “Install” to start the installation.
Please click “Finish” to complete the driver installation
Please double-click the utility icon on the desktop, and then you will see the ICA-350
11/59

initial utility - IPWizard. Please refer to the next section to operate this utility to finish the initial
configuration of your ICA-350.
2.5 IPWizard
When you installed the ICA-350 on a LAN environment, you may execute IPWizard to discover
ICA-350’s IP address and set up related parameters in the ICA-350.
Search Button:

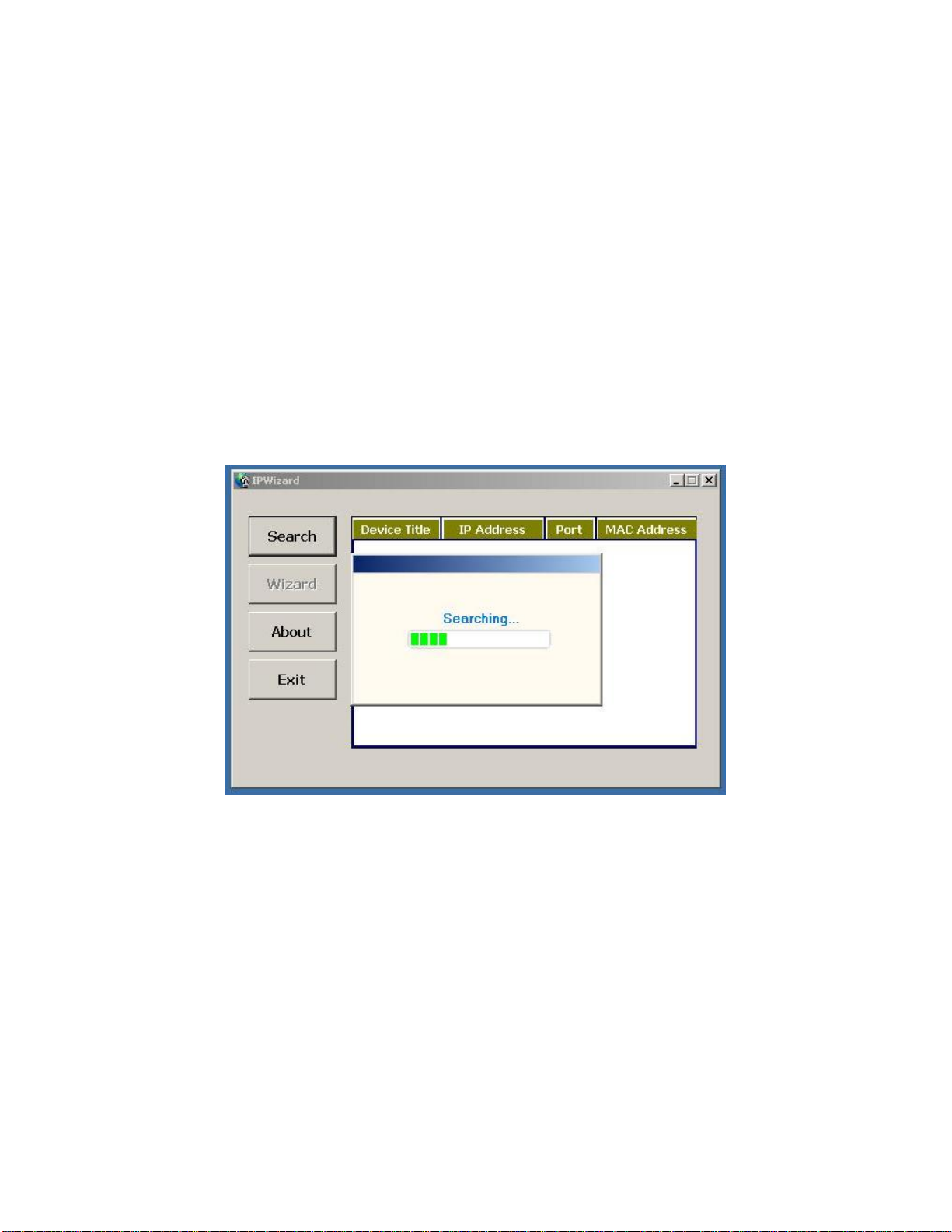

When click Search button, a searching window will pop up. IPWizard is starting to search ICA-350
on the LAN. The message “No Network Devices Is Found” will appear on this window if IPWizard
cannot find any camera on the LAN. Otherwise, existed cameras will be listed. If total quantity is
over, please move the cursor to Information Box. Click on the left button of the mouse and the
Information Box of the Listing Window will roll upward automatically; on the contrary, move the
cursor to the Information Box on the top of Listing Window and click on the left button of the mouse
and Listing Window will roll downward.
12/59

Wizard Button:
If IPWizard finds your camera, Wizard button will become available. Please select the device you
would like to configure in the Information Box. The device will turn into yellow which means this
device is selected; please press “Wizard” button. Or you could double click the mouse left key on
the selected camera. Relative settings will be carried out. Details of Install Wizard will be specified
as Section 2.6.

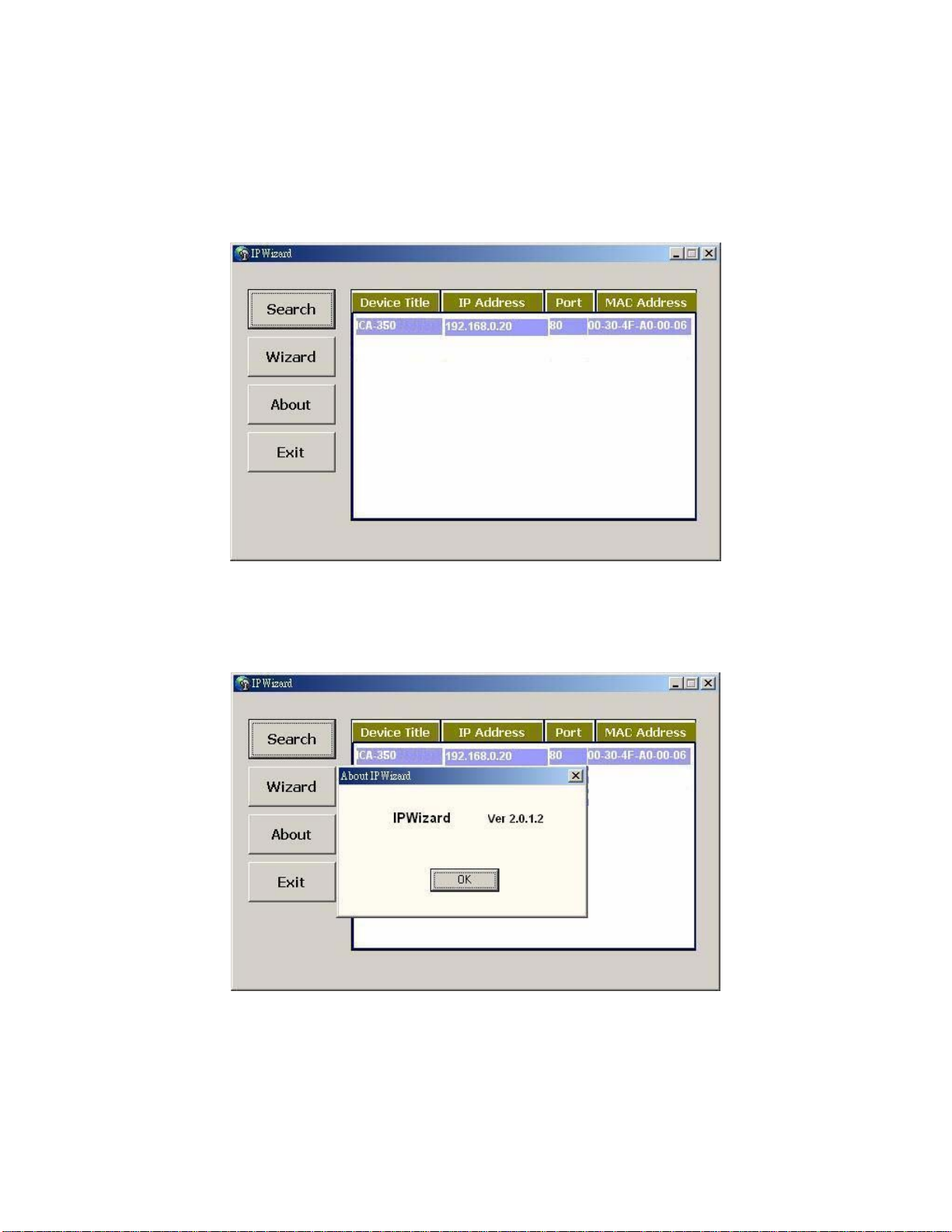

About Button:
When click “About” button, you will see the version information of IPWizard shown in the pop-up
dialog box.
Exit Button:
Click “Exit” button will close the IPWizard Program.
13/59

2.6 Configure With IPWizard

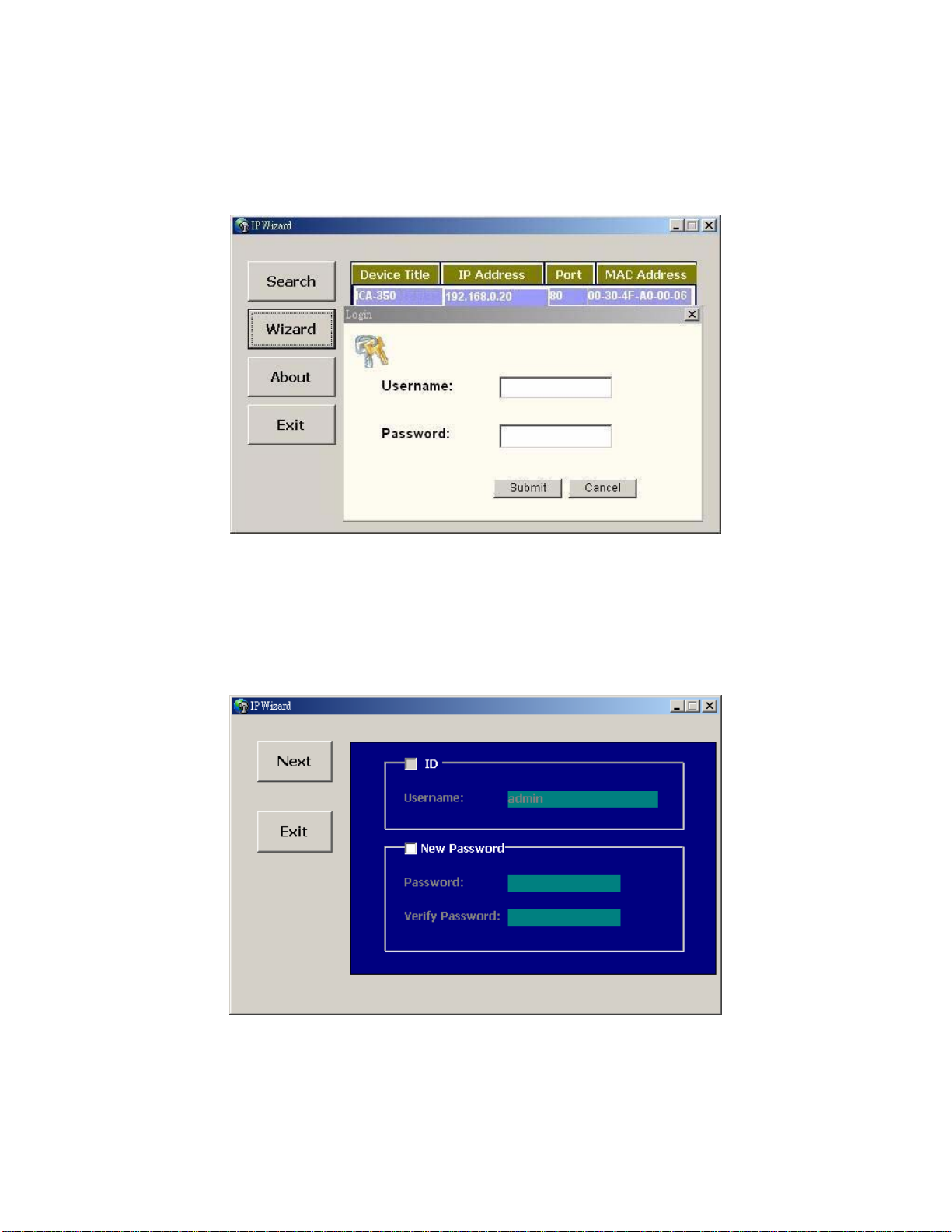

After pressing Installation Wizard, please key in Username and Password of the device when login
dialog box appears on the screen. You can login the setup page if authorized name and password
is correct. Default username/password for machine login: admin/<no password>
Wizard Page 1: Username and Password
This page is about the change of the authorized user name and password of the selected device. If
you don’t want to change them, please click “Next” to move to the next page. Press “Exit” button if
you don’t want to set up right now. If you want to change authorized name or password, you have
to check the box in front of ID or New Password.Authorized Username should contain at least 5~
20 characters and New Password should contain at least 4~8 characters.
14/59

Wizard Page 2: LAN Setting
This page is about the select of Static IP or DHCP ON.
LAN: You can configure this ICA-350 to obtain its address automatically or manually assign. If
there is a DHCP server in your network environment and you select “DHCP ON”, ICA-350 can
automatically obtain an IP address. If you don’t have DHCP server or you want to use fixed IP
address, please select “Static IP” and fill in the following fields with proper parameters.
IP Address: IP address is a unique number for identifies this device on the WAN or LAN. These
numbers are usually shown in groups separated by periods, for example: 192.168.0.200
Subnet Mask: Subnets allow network traffic between hosts to be separated based on the
network's configuration. In IP networking, traffic takes the form of packets. IP subnets advance
network security and performance to some level by organizing hosts into logical groups. Subnet
masks contain four bytes and usually appear in the same "dotted decimal" data. For example, a
very common subnet mask in its binary demonstration 11111111 11111111 11111111 00000000 will
usually be shown in the corresponding, more readable form as 255.255.255.0.
Def. Gateway: A gateway is a piece of software or hardware that passes information between
networks. You'll see this term most often when you either log in to an Internet site or when you're
transient email between different servers.
DNS1: When you send email or position a browser to an Internet domain such as xxxxx.com, the
domain name system translates the names into IP addresses. The term refers to two things: the
conventions for naming hosts and the way the names are control across the Internet.
DNS2: The same function as DNS1. It is optional, not necessary
Note: If no IP address is assigned after 30 seconds, the ICA-350 will work with its default IP
address 192.168.0.20. User may now open your web browser, and key in http://192.168.0.20 in
the address bar of your web browser to logon ICA-350’s web configuration page.
15/59

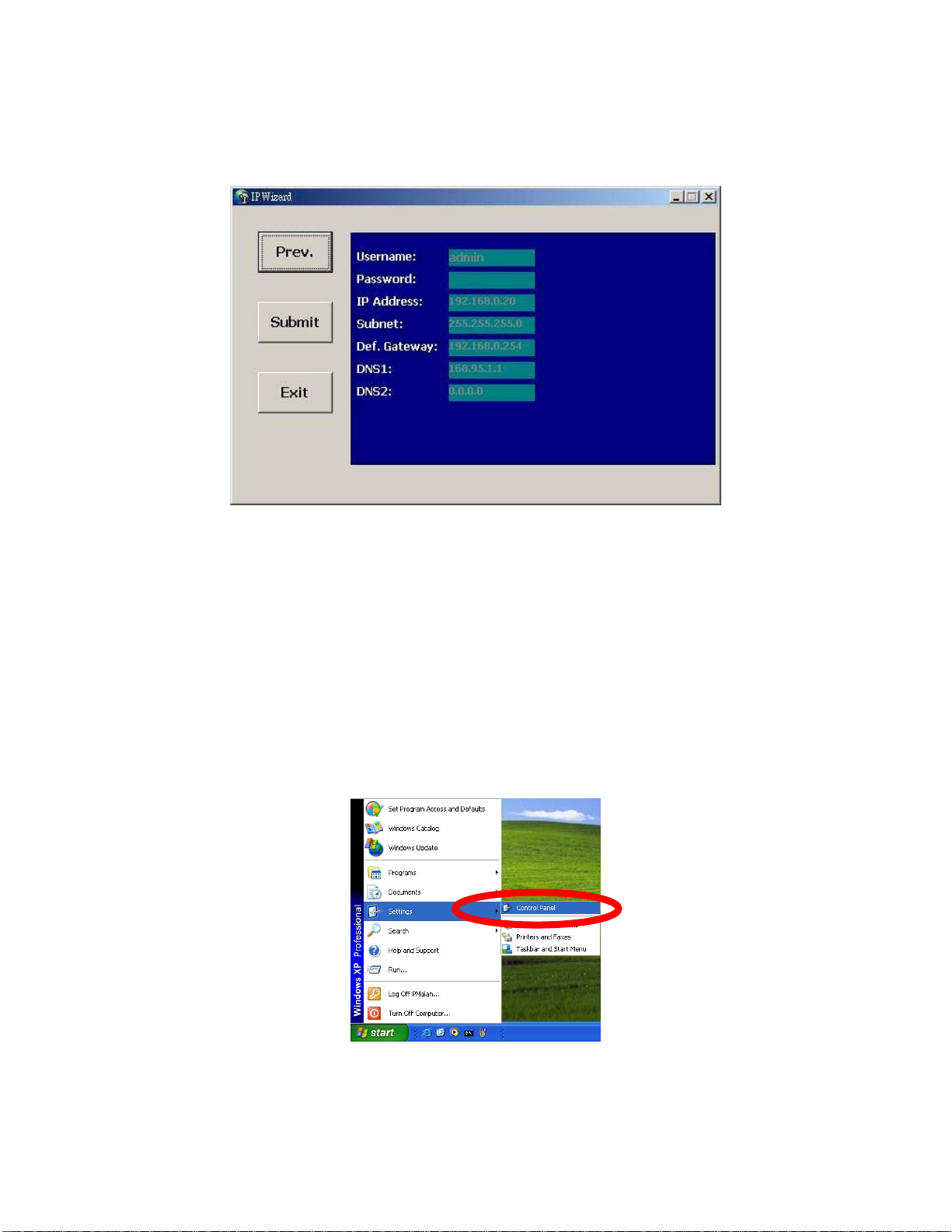

Wizard Page 3: Confirmation
This page shows the new configurations. If it is correct, please press “Submit” icon and the setting
information will be save to your ICA-350. Click on “Exit” to close this window.
2.7 Using UPnP of Windows®XP™
UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides
compatibility among networking equipment, software, and peripherals. This device is an UPnP
enabled device. If the operating system, Windows XP, of your PC is UPnP enabled, the device will
be very easy to configure. Use the following steps to enable UPnP settings only if your operating
system of PC is running Windows XP.
Note: Windows 2000 does not support UPnP feature.
Go to Start > Settings, and Click Control Panel
16/59

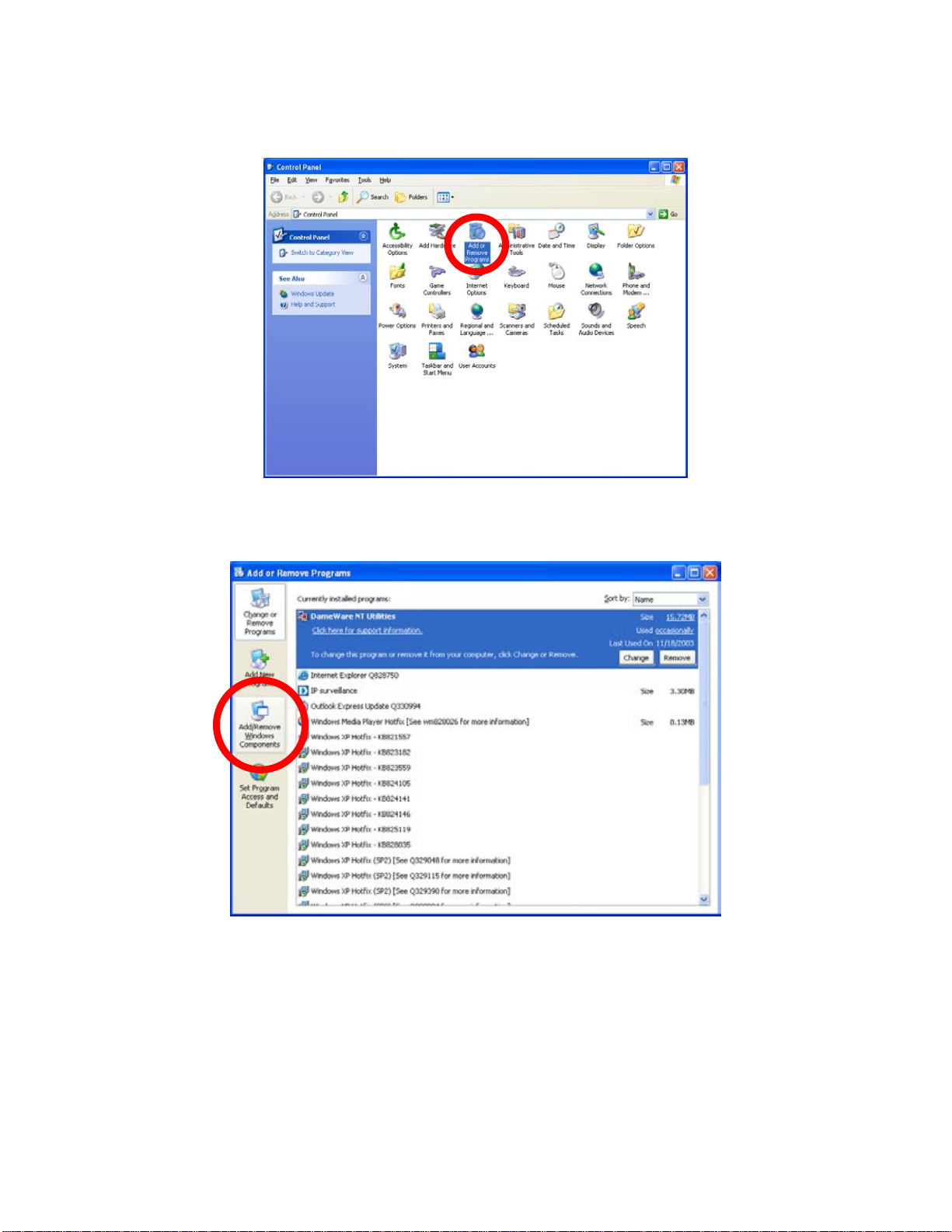

The “Control Panel” will display on the screen and double click Add or Remove Programs to
continue
The “Add or Remove Programs” will display on the screen and click Add/Remove Widows
Components to continue.
17/59

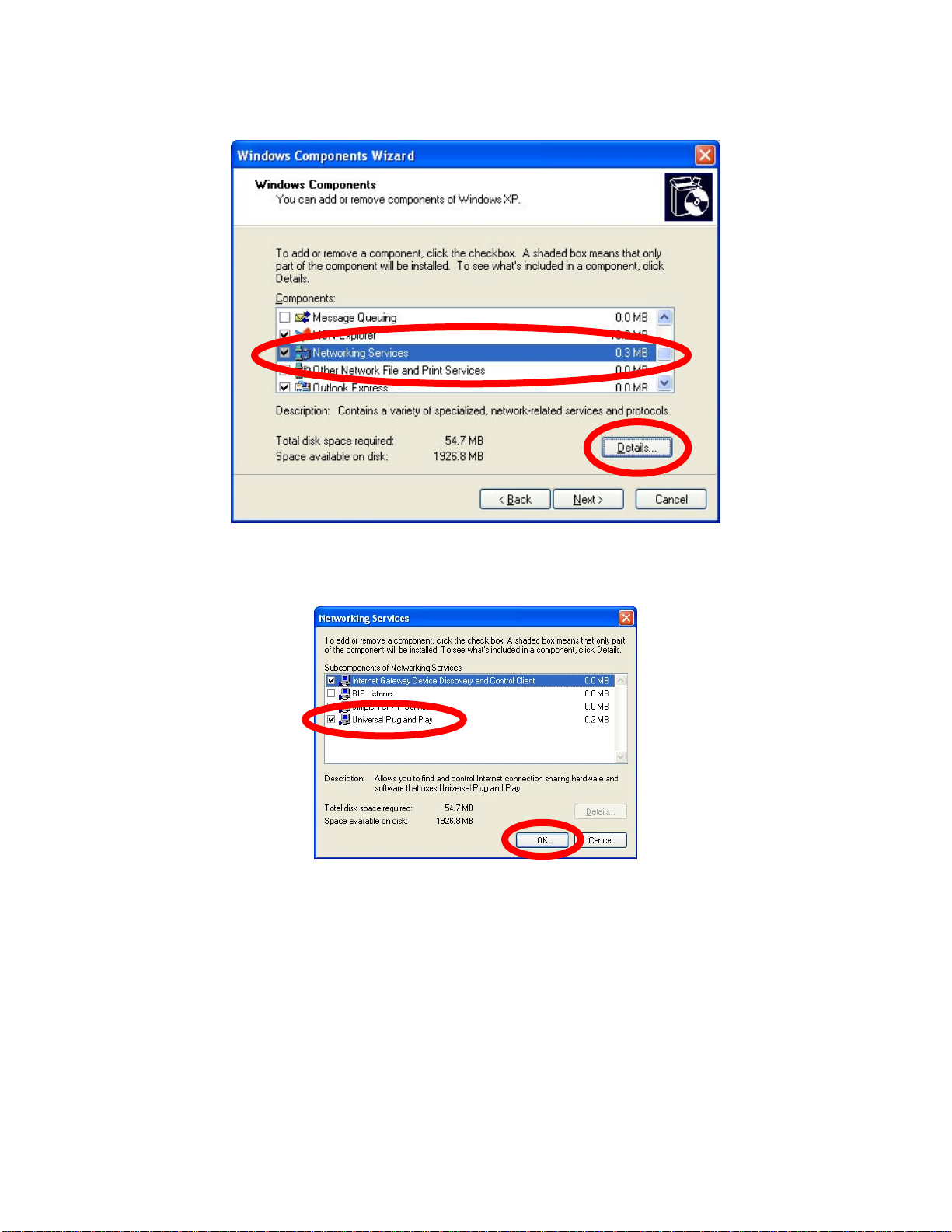

The following screen will appear, select Networking Services and click Details to continue.
The “Networking Services” will display on the screen, select Universal Plug and Play and click
OK to continue.
18/59

Please click Next to continue
The program will start installing the UPnP automatically. You will see the below pop-up screen,
please wait while Setup configures the components.
19/59
