Planet ICS-100 User manual

While IP Address lost or forgotten
admin password –
Power on the device and hold the RESET button over 10
seconds.Thedevicewillgobacktodefaultsetting:
IPaddress:192.168.0.100
Username:admin
Password:admin
5V DC
RESET
Hardware Reset
Customer Support
Please browse our online FAQ resource at the PLANET Web
site rst to check if it could solve you issue. For more
support information, please contact PLANET converter
support team.
PLANETonlineFAQ:
http://www.planet.com.tw/en/support/faq.php?type=3
Switchsupportteammailaddress:
[e-mail]
Copyright © PLANET Technology Corp. 2008.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.

1. Package Content
Thank you for purchasing the PLANET RS232/422/485 over
Fast Ethernet Media Converter – ICS-10X.
RS232/422/485 over Fast Ethernet Media Converter comes
with one of the following models.
● ICS-100:Ethernetinterface:RJ-45-100m
● ICS-102:Ethernetinterface:SC,MM-2km
● ICS-102S15:Ethernetinterface:SC,SM-15km
Upon open the box of the RS232/422/485 over Fast Ethernet
Media Converter and carefully unpack it. The box should
containthefollowingitems:
● TheRS232/422/485overFastEthernetMediaConverterx1
● ThisQuickInstallationGuidex1
● User’smanualCDx1
● ExternalAC-DCPowerAdapterx1
If any item is found missing or damaged, please contact
your local reseller for replacement.
2. Requirements
The RS232/422/485 over Fast Ethernet Media Converter
provide remote Web interface for manage; the following
equipments are necessary for further management.
Network cables: Use standard network (UTP) cables with
RJ45connectors.
SubscriberPCinstalledwithEthernetNIC(NetworkCard)
The operate system of subscriber PC that running Windows
98/ME, NT4.0, 2000/XP, MAC OS9 or later, Linux, UNIX or
other platform compatible with TCP/IP protocols.

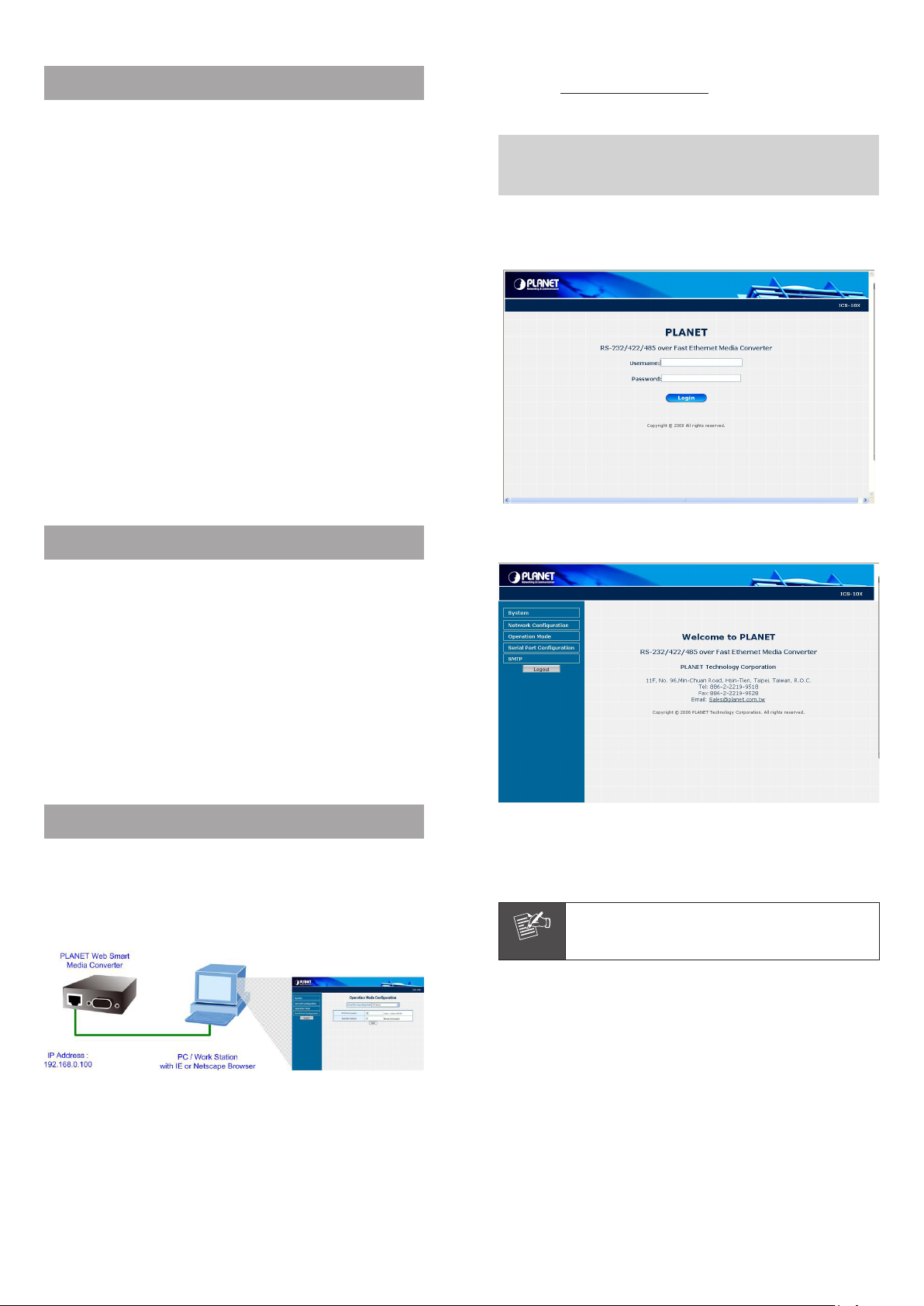

3. Start Web Management
The PLANET RS232/422/485 over Fast Ethernet Media
Converter provides a built-in browser interface. You can
manage the Converter remotely by having a remote host
with Web browser, such as Microsoft Internet Explorer,
Netscape Navigator or Mozilla Firefox.
Make sure the manager PC must be set on the same IP
subnet address, for example, the default IP address of the
Web Smart Media Converter is 192.168.0.100 (the factory-
default IP address), then the manager PC should be set
at 192.168.0.x (where x is a number between 1 and 254,
except100),andthedefaultsubnetmaskis255.255.255.0.
Use Internet Explorer 6.0 or above Web browser, enter IP
address http://192.168.0.100 (the factory-default IP
address)toaccesstheWebinterface.
DefaultIPAddress:192.168.0.100
DefaultAccount:admin
DefaultPassword:admin
After entering the username and password (default user
name and password is admin), the login screen appears as
Figure 2-1 and the main screen appears as Figure 2-2.
Figure 2-1: Web Login Screen of ICS-10X
Figure 2-2: Web Main Screen of ICS-10X
Now, you can use the Web management interface to
continue the ICS-10x management. Please refer to the user
manual for more.
Note
For security reason, please change and
memorize the new password after this first
setup.
– 1 – – 2 –

While IP Address lost or forgotten
admin password –
Power on the device and hold the RESET button over 10
seconds.Thedevicewillgobacktodefaultsetting:
IPaddress:192.168.0.100
Username:admin
Password:admin
5V DC
RESET
Hardware Reset
Customer Support
Please browse our online FAQ resource at the PLANET Web
site rst to check if it could solve you issue. For more
support information, please contact PLANET converter
support team.
PLANETonlineFAQ:
http://www.planet.com.tw/en/support/faq.php?type=3
Switchsupportteammailaddress:
[e-mail]
Copyright © PLANET Technology Corp. 2008.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
