Planet VC-231GP User manual

1-Port 10/100/1000T 802.3at PoE +
Ethernet to VDSL2 Converter
VC-231GP
User’s Manual

Trademarks
Copyright © PLANET Technology Corp. 2018.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose. PLANET has made every effort
to ensure that this User’s Manual is accurate; PLANET disclaims
liability for any inaccuracies or omissions that may have
occurred.
Information in this User’s Manual is subject to change without
notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. PLANET makes no
commitment to update or keep current the information in this
User’s Manual, and reserves the right to make improvements
to this User’s Manual and/or to the products described in this
User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your comments
and suggestions.
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the

Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode
operation. For energy saving, please remove the power cable to
disconnect the device from the power circuit. Without removing
power cable, the device will still consume power from the
power source. In view of Saving the Energy and reducing the
unnecessary power consumption, it is strongly suggested to
remove the power connection for the device if this device is not
intended to be active.
WEEE Warning
To avoid the potential effects on the environment and
human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste and have to collect such WEEE separately.
Revision
PLANET 1-Port 10/100/1000T 802.3at PoE + Ethernet to VDSL2
Converter User’s Manual
For Model: VC-231GP
Revision: 1.0 (September 2018)
Part No.: 2350-AC0540-000

Table of Contents
1. Package Contents .............................................................. 5
2. Product Features ............................................................... 6
3. Hardware Introduction ....................................................... 8
3.1 Front Panel and LED Indicators..................................... 8
3.2 Rear Panel and Mode DIP Switch ................................ 10
3.3 Power Information..................................................... 13
4. Connecting And Using The VDSL2 Bridge........................... 14

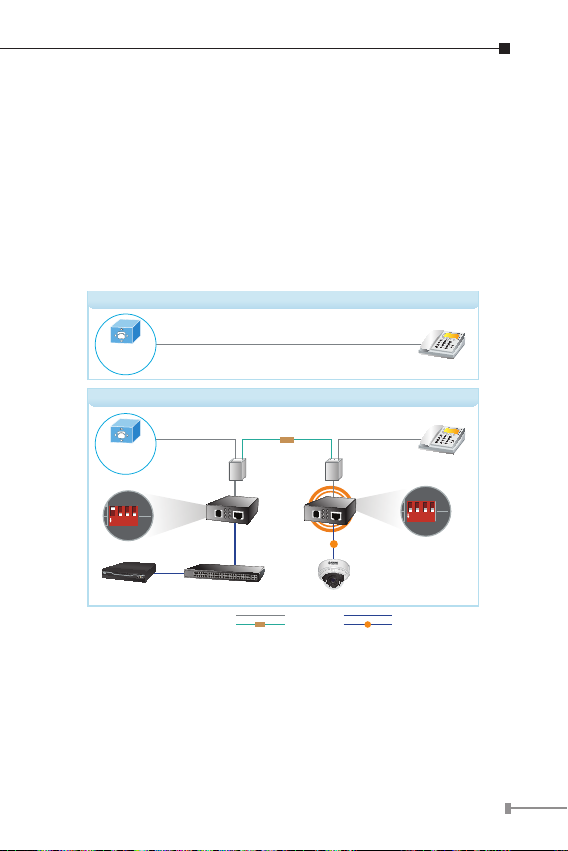

4.1 Point-to-Point Application - LAN to LAN Connection ...... 15

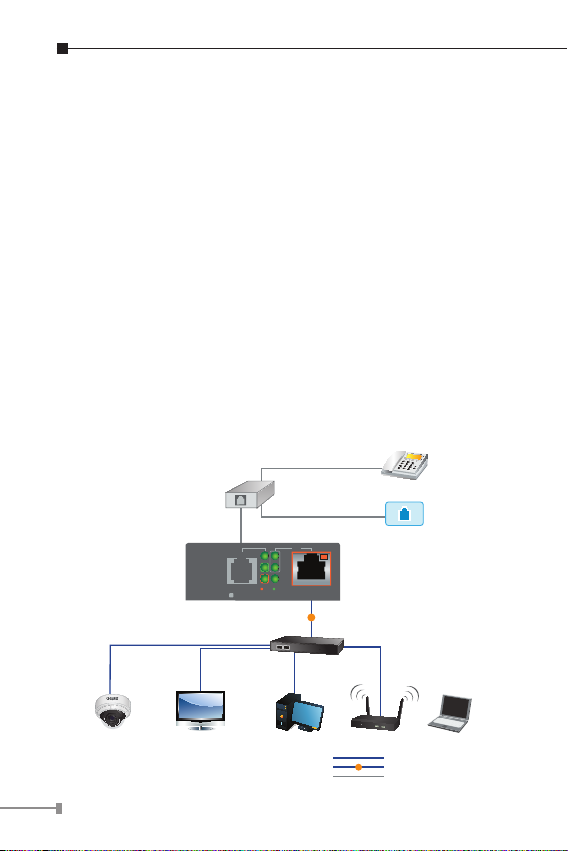

4.2 Point-to-Multipoint Application - Connect to IP DSLAM .. 17
5. Product Specications ...................................................... 19
6. Troubleshooting ............................................................... 23
7. FAQs .............................................................................. 24
8. Customer Support ........................................................... 25
APPENDIX: Wall-mount Installation....................................... 26

5
1. Package Contents
Thank you for purchasing PLANET 1-Port 10/100/1000T 802.3at
PoE + Ethernet to VDSL2 Converter, VC-231GP. Open the box of
the VC-231GP and carefully unpack it. The box should contain
the following items:
VC-231GP x1 User’s Manual x 1
RJ11 Telephone Wire x 1 Splitter x 1
AC-DC Power Adapter (Input: 54V DC, 0.74A max) x 1
If any of these are missing or damaged, please contact your
dealer immediately; if possible, retain the carton including the
original packing material, and use them again to repack the
product in case there is a need to return it to us for repair.

6
2. Product Features
¾Physical
1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/
802.3at PoE Injector
1 RJ11, connector for VDSL port with VDSL connection
Additional splitter for POTS connection
¾Power over Ethernet
Complies with IEEE 802.3at/af PoE Plus end-span PSE
1 IEEE 802.3at/af device powered
Supports PoE Power up to 30.8 watts for PoE port
Provides DC 52V power over RJ45 Ethernet cable to PD
with Ethernet port
Auto-detects IEEE 802.3at/af equipment and protects
devices from being damaged by incorrect installation
Remote power feeding up to 100m
IEEE 802.3at/af splitter devices compatible
¾VDSL2 Features
Cost-effective bridge function to connect two Ethernet LANs
Point-to-multipoint application: Compatible with PLANET
and third-party VDSL2 IP DSLAM for last-mile solution
Point-to-point application: LAN to LAN extension over
phone wire
Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)
ITU-T G.993.2 VDSL2 standard
ITU-T G.993.5 G.Vectoring and G.INP
DMT-based coding technology
Additional POST splitter to share voice and data

7
CO/CPE mode selectable via DIP switch
Selectable target band plan (symmetric and asymmetric)
and SNR margin
Half duplex back pressure and IEEE 802.3x full duplex
pause frame ow control
Voice and data communication can be shared simultane-
ously based on the existing telephone wire with distance up
to 1.4km
Supports IEEE 802.1Q VLAN tag transparency
VDSL2 stand-alone transceiver for simple bridge modem
application
Advantage of minimum installation time (Simply by Plug
and Play)
Supports extensive LED indicators for network diagnosis
¾Layer 2 Features
Supports auto-negotiation and 10/100Mbps half/full duplex
and 1000Mbps full duplex mode on RJ45 port
Prevents packet loss with back pressure (half-duplex) and
IEEE 802.3x pause frame ow control (full-duplex)
¾Hardware Features
Compact size, wall-mountable design
Metal case, good for heat sinking
Easy installation; ideal solution for space-limited locations
Power Input: DC 54V, 0.74A power adapter
LED Indicators
System: Power (Green)
TP port: 100BASE-TX LNK/ACT (Green), 1000BASE-T
LNK/ACT (Green), PoE-in-Use (Amber)
VDSL port: CO (Green), CPE (Green), VDSL (Green)

8
3. Hardware Introduction
3.1 Front Panel and LED Indicators
VC-231GP Front Panel
Ethernet over VDSL 2Converter
VC-231GP
PWR
VDSL
PoE-in-UseTP
1000
100
CPE
CO 10/100/1000
Figure 3-1-1: VC-231GP Front Panel
f10/100/1000BASE-T RJ45 connector for Ethernet and
802.3at/af PoE injector
fRJ11 connector for VDSL2; connect to IP DSLAM or another
VDSL2 equipment
fLEDs for power, Ethernet, PoE and VDSL
VC-231GP LED Indicators
¾System
LED Color Function
PWR Green
Lit Indicates that the VC-231GP has
power.
Off Indicates that the VC-231GP has no
power.

9
¾VDSL
LED Color Function
VDSL Green
Lit Indicates that the VDSL link is
established.
Fast
Blink
Indicates that the VDSL link is at
training status (about 10 seconds).
Slow
Blink
Indicates that the VDSL link is at idle
status.
CO Green Lit Indicates the VC-231GP is running in
CO mode.
CPE Green Lit Indicates the VC-231GP is running in
CPE mode.
¾10/100/1000BASE-T 802.3at PoE Port
LED Color Function
1000 Green
Lit Indicates that the port is operating at
1000Mbps.
Blink
Indicates that the VC-231GP actively
sending or receiving data over that
port at 1000Mbps.
Off Indicates that the port is link down
or operating at 10/100Mbps.
100 Green
Lit Indicates that the port is operating at
100Mbps or 10Mbps.
Blink
Indicates that the VC-231GP is actively
sending or receiving data over that
port at 100Mbps or 10Mbps.
Off Indicates that the port is link down
or operating at 1000Mbps.

10
PoE-
in-Use Amber
Lit Indicates that the port is providing DC
52V to remote powered device.
Off Indicate that the port is not providing
DC 52V to remote powered device.
3.2 Rear Panel and Mode DIP Switch
VC-231GP Rear Panel
52~54V DC
OFF
ON
CO
CPE
G.INP
Interleave 8dB
12dB
Mode Tran.
Sym.
Asym.
Band SNR
1 2 3 4
ON

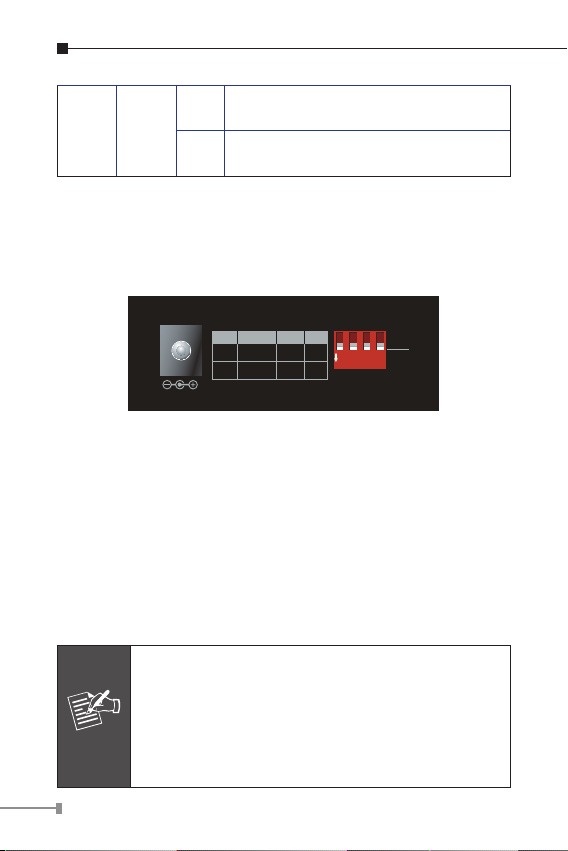

Figure 3-2-1: VC-231GP Rear Panel
fDIP switch
fDC jack (DC input) for power adapter
DC Power Jack
The VC-231GP requires 54V DC, 0.74A power input, which
conforms to the bundled AC-DC adapter. Should you have
the issue of power connection, please contact your local sales
representative.
Note
The device is a power-required device, meaning it
will not work till it is powered. If your networks
should be active all the time, please consider
using UPS (uninterrupted power supply) for your
device. It will prevent you from network data loss
or network downtime.

11
Note
In some areas, installing a surge suppression
device may also help to protect your VC-231GP
from being damaged by unregulated surge or
current to the VC-231GP or the power adapter.
¾DIP Switch
The VC-231GP provides 4 selective transmission modes. By
switching the transmission modes, you can obtain a best
transmission mode to suit with phone line quality or distance of
connectivity. The following is the summary table of transmission
setting, bandwidth and distance extensibility tested for AWG 24
(0.5mm) twisted-pair without noise and cross talk.
DIP-1 DIP-2 DIP-3 DIP-4
Mode Transmission Band Prole SNR Margin
OFF CO G.INP Asymmetric 12dB
ON (default) CPE Interleave Symmetric 8dB
¾DIP-1: Mode (CO / CPE)
CO (Central Ofce)
The Master device mode, usually the
CO device, is located at the data center
of ISP or enterprise to link to the
backbone.
CPE (Customer
Premises Equipment)
The Slave device mode, usually the CPE
device, is located at branch ofce, home
or remote side as the long reach data
receiver. The CPE can be connected to
the PC, IP camera or wireless access
point or other network devices.

12
Note
When the VC-231GP in CPE mode, DIP switches 2,
3, and 4 are without function.
¾DIP-2: Transmission (G. INP and Interleave mode)
G. INP Method of protection against bursts from other
devices or lines to impact your xDSL line.
Interleave
Method of error correction used on xDSL line.
Interleave requires additional latency to improve
resilience to burst of error.
¾DIP-3: Band Prole (Asymmetric/Symmetric)
Asymmetric
Asymmetric mode provides more bandwidth than
the other side.
This mode provides the highest bandwidth in
short range.
Symmetric
With G.997 band plan supported, symmetric
mode can provide almost the same rate of
downstream and upstream.
¾DIP-4: SNR (Signal Noise Ratio) Margin
When the SNR margin is selected, the system provides
12dB/8dB SNR margin for across all usable loop lengths. Better
channel noise protection is made with the higher SNR margin.
Note
By default, the four DIP switches, set at the “ON”
position, are operated as “CPE”. For operating
as “CO”, please turn DIP 1 Switch to the “OFF”
position. Then adjust the other DIP switches
accordingly to fulfill different network application
demands.

13
Note
Please power off the VC-231GP before making
any transmission mode adjustment.
3.3 Power Information
The central posts of the VC-231GP’s power jacks measure
2.5mm wide that require +54VDC power input. They conform to
the bundled AC-DC adapter. Should you have the issue of power
connection, please contact your local sales representative.
2.1mm
Width of DC Receptacle: 2.1mm
+54V for DC jack
DC receptacle is 2.1mm wide that matches the central post,
measuring 2.1mm wide, of the VC-231GP’s DC jack. Do not
install any improper unit.

14
4. Connecting And Using The VDSL2 Bridge
The VC-231GP does not require any software conguration. Users
can immediately use any feature of this product simply by putting
the plug in the receptacle and turning it on. There is some key
limitation on the VC-231GP. Please check the following items:
The device can be used for Point-to-Point (one CO device
to one CPE device) connection or Point-to-Multipoint (one
multi-port CO device to multi CPE devices) and allows data
and voice to work on the same telephone lines.
The VC-231GP provides only one RJ11 connector for VDSL2
port to build VDSL2 connection. For voice device connec-
tion, there is an additional splitter from the package of the
VC-231GP, which is an ideal choice.
Depending on the quality of telephone line, the maximum
distance of one VDSL2 segment is 1.4km (4593ft) with AWG
24 telephone wires. The distance could vary on the quality of
telephone wires.
RJ11 Line
RJ11 Line
Splitter
Phone
RJ11 Phone Jack
RJ45 Cat.5
Twisted-pair Cable
IP Camera IP TV Wireless
PoE PD Switch
LaptopPC
VC-231GP
Ethernet over VDSL 2Converter
VC-231GP
PWR
VDSL
PoE-in-UseTP
1000
100
CPE
CO 10/100/1000
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
Telephone wire
PoE

15
4.1 Point-to-Point Application - LAN to LAN
Connection
Two sets of the VC-231G/VC-231GP could be used to link
two local Area networks that are located in a different place.
Through the normal telephone line, it could be set up a
150/150Mbps (G.INP, Sym, 8dB) symmetric backbone, but
one VDSL2 Bridge must be Master (CO mode) and the other
one is Slave (CPE mode).
VC-231G(CO)
LAN to LAN Connection
Up to 1.4km
VDSL2
Telephone Wire
SplitterSplitter
Phone
Main Office
(PBX, Telco Co,
wire closet)
Main Office
(PBX, Telco Co,
wire closet)
Telephone Wire
Ethernet Telephone Network
Phone
Ethernet over VDSL2 and Telephone Network
PoE IP Camera
NVR
VC-231GP(CPE)
8dB
12dB OFF
ON
SNR
1 2 3 4
ON
12dB OFF
ON
SNR
1 2 3 4
ON
Switch
1000BASE-T UTP
PoE
1000BASE-T UTP with PoEVDSL2
VDSL2
Telephone wire
PoE

16
Refer to the following procedure to set up the VC-231G/
VC-231GP LAN to LAN connection.
1. [LAN1] Set the VC-231G at LAN 1 to CO mode from the DIP
switch.
2. [LAN2] Set the VC-231GP at LAN 2 to CPE mode from the
DIP switch.
3. Power on the VC-231G CO and VC-231GP CPE at both sides
by connecting its power source.
4. Power LED will illuminate.
5. Connect VDSL line from another VDSL device to RJ11 VDSL
port of the VC-231G/VC-231GP.
6. VDSL LNK LED will blink to illuminate at the VC-231G/
VC-231GP.
7. Connect telephone to the RJ11 Phone port of the VC-231G/
VC-231GP.
8. Connect the VC-231G/VC-231GP Ethernet LAN port to other
network device via regular Cat.5 UTP cable.

17
4.2 Point-to-Multipoint Application - Connect to IP
DSLAM
To build a local Internet in apartments, hotels and campuses
and hospitality environments, it requires:
The multi-port VDSL2 IP DSLAM or VDSL2 switch (for
example, PLANET VDL-2420M and VC-820M) operates as a
CO Master and needs to be placed in the wiring center (MDF
room) and connects to the telephone line system.
On the other hand, it needs to install one or many CPE
Slaves (the VC-231GP) on the individual client side and
connect to the multi-port Master through the telephone lines.
Multi-LAN Connection
Phone
Phone
PoE Door Phone
Phone
Telephone Wire
Telephone Wire
Ethernet Telephone Network
Up to 1.4km
VDSL2
VDSL2
VC-231GP
Splitter
Phone
Telephone Wire
Ethernet over VDSL2 and Telephone Network
Main Office
(PBX, Telco Co,
wire closet)
Main Office
(PBX, Telco Co,
wire closet)
VDSL2 Switch
(Multi-port CO)
VC-234G
1000BASE-T UTP
PoE
1000BASE-T UTP with PoEVDSL2
VDSL2
Telephone wire
PoE

18
Refer to the following procedure to set up the VC-231GP to IP
DSLAM connection.
1. [Remote End] Set the remote IP DSLAM/VDSL2 switch to
CO mode with proper VDSL2 prole.
2. [Local End] Set the VC-231GP at the local end to CPE mode
from the DIP switch.
3. Power on the VC-231GP CPEs by connecting its power source.
4. Power LED will illuminate.
5. Connect VDSL line from IP DSLAM/VDSL2 switch to RJ11
VDSL port of the VC-231GP.
6. VDSL LNK LED will blink to illuminate.
7. Connect telephone to the RJ11 Phone port of the VC-231GP.
8. Connect the VC-231GP Ethernet LAN port to other network
device via regular Cat.5 UTP cable.
When deciding where to put the converter and/or prolong the
operational life of the bridge, please also refer to the following
points:
It is accessible and cables can be connected easily.
Cabling is away from sources of electrical noise such as
radios, transmitters, motors, power lines and uorescent
lighting xtures.
Do not place objects on top of any unit or stack.
Water or moisture cannot enter the VDSL2 Bridge.
 Air owing around the unit and through the vents on the side
of the case is not restricted (We recommend that you provide
a minimum of 25mm clearance.).

19
5.ProductSpecications
Product VC-231GP
Hardware Specications
LAN Port 1 10/100/1000BASE-T RJ45 auto-MDI/
MDI-X port
VDSL Port
1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG24 or
better) up to 1.4km
Phone Port Additional splitter for POTS connection
Dimensions
(W x D x H) 97 x 70 x 26 mm
Weight 206g
Power Requirement DC 54V, 0.74A external power
LED Indicators
System: Power (Green)
TP port: 100BASE-TX LNK/ACT (Green),
1000BASE-T LNK/ACT (Green),
PoE-in-Use (Amber)
VDSL port: CO (Green), CPE (Green),
VDSL (Green)
Housing Metal
DIP Switch &
Functionality
4-position DIP switch
CO/CPE mode select
Selectable G.INP and interleaved
mode
Selectable target Band Prole
Selectable target SNR mode

20
Power Over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Output 52V DC: 15.4 watts
52V DC: 30 watts
PoE Power Supply
Type End-span
Power Pin
Assignment 1/2(+), 3/6(-)
PoE Power Budget 30 watts
Switch Specications
Switch Processing
Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Maximum Packet
Size 1522bytes
System Specications
VDSL Compliance
VDSL-DMT
ITU-T G.993.1 VDSL
ITU-T G.997.1
 ITU-T G.993.2 VDSL2 (Prole 17a/30a
Support)
ITU-T G.993.5 G. Vectoring
ITU-T G.998
G.INP
