Planet IGS-6325 DIN rail Series User manual

Industrial L3 Multi-Port Gigabit
Managed Ethernet Switch
IGS-6325-16P4S/ IGS-6325-8T4X
IGS-6325-8T8S/IGS-6325-8T8S4X
IGS-6325-8UP2S/IGS-6325-8UP2S2X
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Wiring the Power Inputs.............................................................................. 5
3.1 Grounding the Device .......................................................................... 7
4. Terminal Setup ........................................................................................... 8
4.1 Logging on to the Console.................................................................... 9
 4.2 ConguringIPAddressviaConsole ......................................................10
 4.3 Storingcurrentswitchconguration .....................................................11
5. Starting Web Management .........................................................................12
5.1 Logging in to the Industrial Managed Switch.........................................12
 5.2 SavingCongurationviaWeb ..............................................................14
6. RecoveringBacktoDefaultConguration.....................................................16
7. Customer Support .....................................................................................18

3
1. Package Contents
Thankyouforpurchasing PLANETL3Industrial ManagedSwitch,IGS-6325 DIN-rail
series. The descriptions of these models are as follows:
IGS-6325-16P4S IndustrialL316-Port10/100/1000T802.3atPoE+4-Port
100/1000XSFPManagedEthernetSwitch
IGS-6325-8T4X IndustrialL38-Port10/100/1000T+4-Port10GSFP+
ManagedEthernetSwitch
IGS-6325-8T8S IndustrialL38-Port10/100/1000T+8-Port100/1000X
SFPManagedEthernetSwitch
IGS-6325-8T8S4X IndustrialL38-Port10/100/1000T+8-Port100/1000X
SFP+4-Port10GSFP+ManagedEthernetSwitch
IGS-6325-8UP2S IndustrialL38-Port10/100/1000T802.3btPoE+2-Port
100/1000XSFPManagedEthernetSwitch
IGS-6325-8UP2S2X
IndustrialL38-Port10/100/1000T802.3btPoE+2-Port
100/1000XSFP+2-Port10GSFP+ManagedEthernet
Switch
“Industrial Managed Switch” mentioned in this Quick Installation Guide refers
to the above models.
Open the box of the Industrial Managed Switch and carefully unpack it. The
box should contain the following items:
The
Industrial
Managed
Switch
DB9 to RJ45
Interface
RS232
Console
Cable
Quick
Installation
Guide
Wall
Mounting
Kit
RJ45
Dust
Cap
SFP
Dust
Cap
IGS-6325-16P4S     17 4
IGS-6325-8T4X     9 4
IGS-6325-8T8S     9 8
IGS-6325-8T8S4X     912
IGS-6325-8UP2S     9 2
IGS-6325-8UP2S2X     9 4
Ifanyof theseare missingor damaged,please contactyourdealer immediately.If
possible, retain the carton including the original packing materials to enable you to
repack the product in case there is a need to return it to us for repair

4
2. Requirements
The Industrial Managed Switch provides remote login interface for management
purposes. The following equipment is necessary for further management:
zWorkstationsrunningWindows XP/2003/Vista/7/8/2008/10,MACOS X orlater,
Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPProtocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).
zSerialPortConnection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator,suchas
HyperTerminalincludedinWindowsXP/2003,puttyorteraterm.
Serial cable -- one end is attached to the RS232 serial port, while the other
end to the console port of the Industrial Managed Switch.
zEthernetPortConnection
Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Industrial Managed Switch.

5

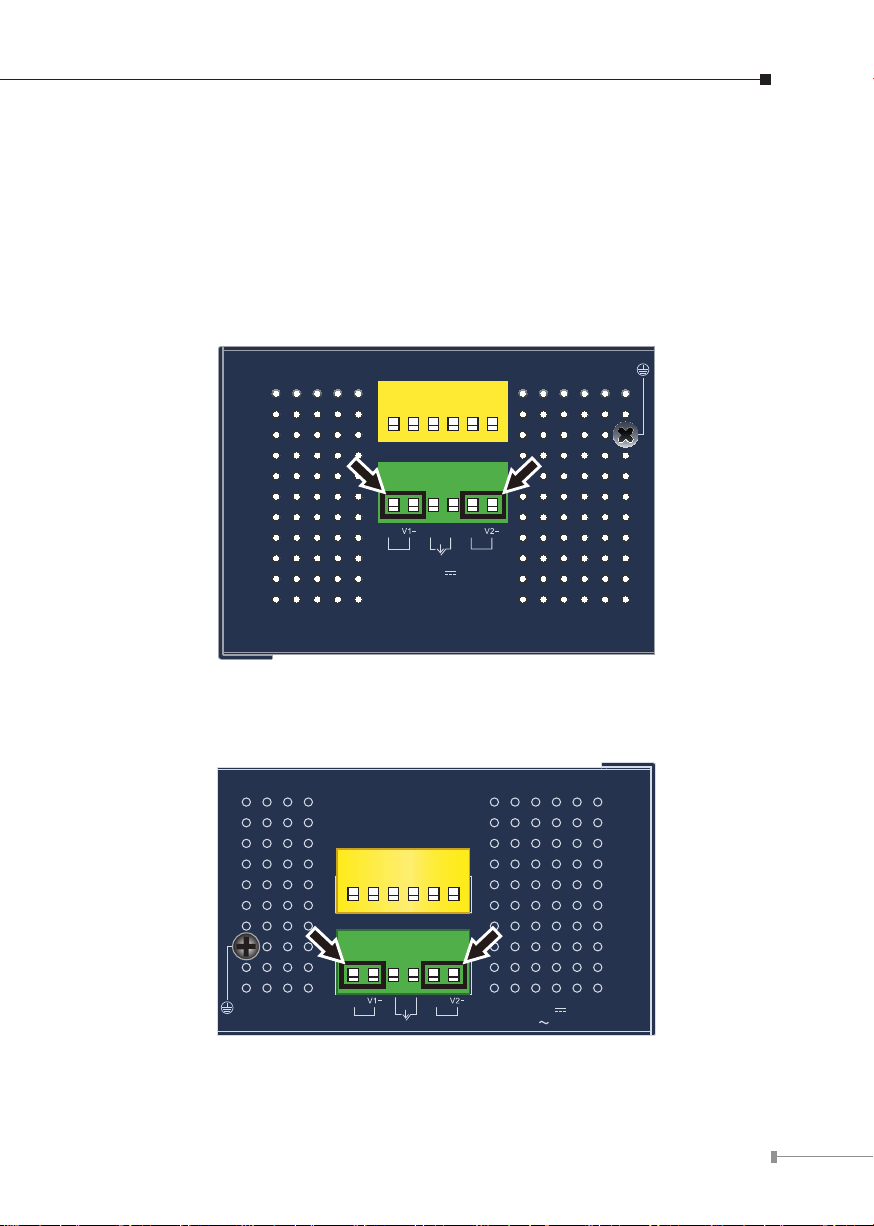

3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet power
socket and consists of one green terminal block connector within 6 contacts. Please
follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1, or
Contacts 5 and 6 for Power 2.
IGS-6325-16P4S:DC48-56V
DI 0DI 1DO 0DO 1GND GND
Fault
V1+ V2+1A@24V
DC2DC1
Dual power input is required
for maximum PoE loading.
Refer to user’s manual for
more details.
Input: 48-56V , 7.5A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-6325-16P4S Upper Panel
IGS-6325-8T4X/IGS-6325-8T8S/IGS-6325-8T8S4X:DC12~48V,AC24V
DI1 DO0 DO1DI0 GNDGND
Max. fault loading: 24V, 1A
V1+ V2+
PWR1 PWR2Fault
DC Input: 12-48V , 4A max.
AC Input: 24V
, 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-2: IGS-6325-8T4X/IGS-6325-8T8S/IGS-6325-8T8S4X Upper Panell

6
IGS-6325-8UP2S/IGS-6325-8UP2S2X:DC48~56V
PWR1 PWR2
Fault
DI1 DO0 DO1DI0 GNDGND
DC Input:
48-56V , 7.5A max.
Max. fault loading: 24V, 1A
Dual power input is required
for maximum PoE loading.
Refer to user’s manual for
more details.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-3: IGS-6325-8UP2S/IGS-6325-8UP2S2X Upper Panel
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
V+ V- V+ V-
Power 1 Power 2
Figure 3-4: The pin of 6-contact terminal block connector
Note
1. The wire gauge for the terminal block should be in the range
from 12 to 24 AWG.
2.Please check the wire AWG Ampere specification before
connectingPLANETIndustrialManagedSwitch.

7
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device.
DI 0DI 1DO 0DO 1GND GND
Fault
V1+ V2+1A@24V
DC2DC1
Dual power input is required
for maximum PoE loading.
Refer to user’s manual for
more details.
Input: 48-56V , 7.5A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground

8
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to RJ45 type serial (console) port of the Industrial
Managed Switch.
Console Port
115200,N,8,1
RJ45 to DB9 RS232 Cable
PC/Workstation with
Terminal Emulation Software
IGS Industrial Managed Switch
Serial Port
A terminal program is required to make the software connected to the Industrial
Managed Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud: 115200
Parity:None
Data bits: 8
Stop bits: 1
Flowcontrol:None

9
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Industrial
Managed Switch and the terminal will display “running testing procedures”.
Note
The following console screen is based on the IGS-6325-16P4S.
The display of the IGS-6325 series is the same as that of the IGS-
6325-16P4S.
Then, the following message asks to log in user name and password. The factory
defaultusernameandpasswordare shownasfollowsastheloginscreen inFigure
4-1appears
UserName:admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed Switch. For
adetaileddescriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new
password after this first setup.
2. Only accept command in lowercase letter under console inter-
face.

10
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address shown below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please
use the procedure as follows:

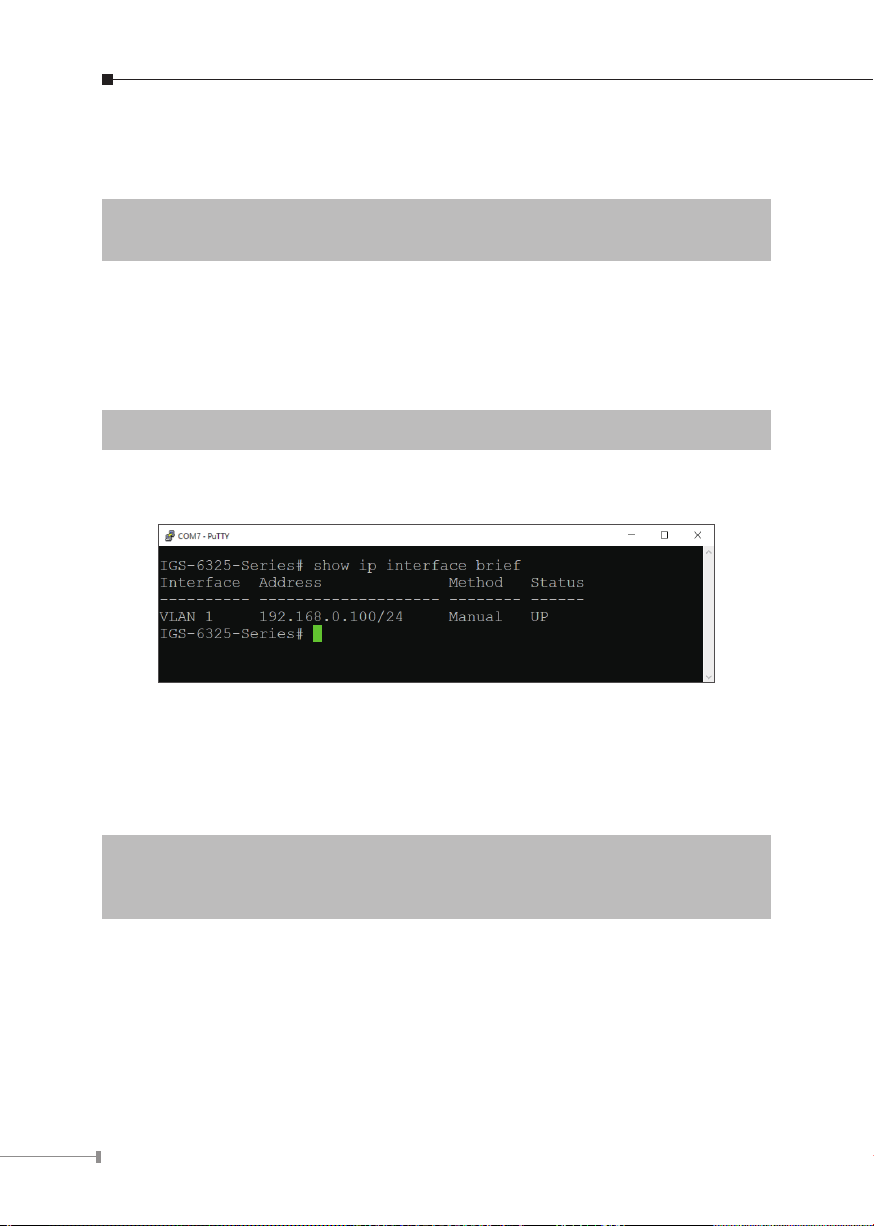

Display of the current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
IGS-6325-Series # show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen
 CongurationoftheIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure4-3.
IGS-6325-Series#congureterminal
IGS-6325-Series(cong)# interface vlan 1
IGS-6325-Series(cong-if-vlan)# ip address 192.168.1.100 255.255.255.0

11
The previous command would apply the following settings for the Industrial
Managed Switch.
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
Figure 4-3: Conguring IP Address Screen
4. Repeat step 1 to check if the IP address has changed.
4.3 Storingcurrentswitchconguration
1.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
#copyrunning-congstartup-cong
Figure 4-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Industrial Managed Switch will apply the
new IP address setting immediately. You can access the Web interface of the
Industrial Managed Switch through the new IP address.
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.

12
5. Starting Web Management
The following shows how to start up the Web Management of the Industrial
Managed Switch. Note the Industrial Managed Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the same
IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
IP Address:
192.168.0.x
IP Address:
192.168.0.100
IGS Industrial Switch
RJ45/UTP Cable
Figure 5-1: IP Management Diagram
5.1 Logging in to the Industrial Managed Switch
1.Use Internet Explorer 8.0 or above for Web browser and enter IP address
https://192.168.0.100 (the factory-default IP address) to access the Web
interface.
2.When the following dialog box appears, please enter the default user name
“admin” and password “admin”(orthepasswordyouhavechangedbefore)as
showninFigure5-2.
DefaultIPAddress:192.168.0.100
DefaultUserName:admin
Default Password: admin
Figure 5-2: Login Screen

13

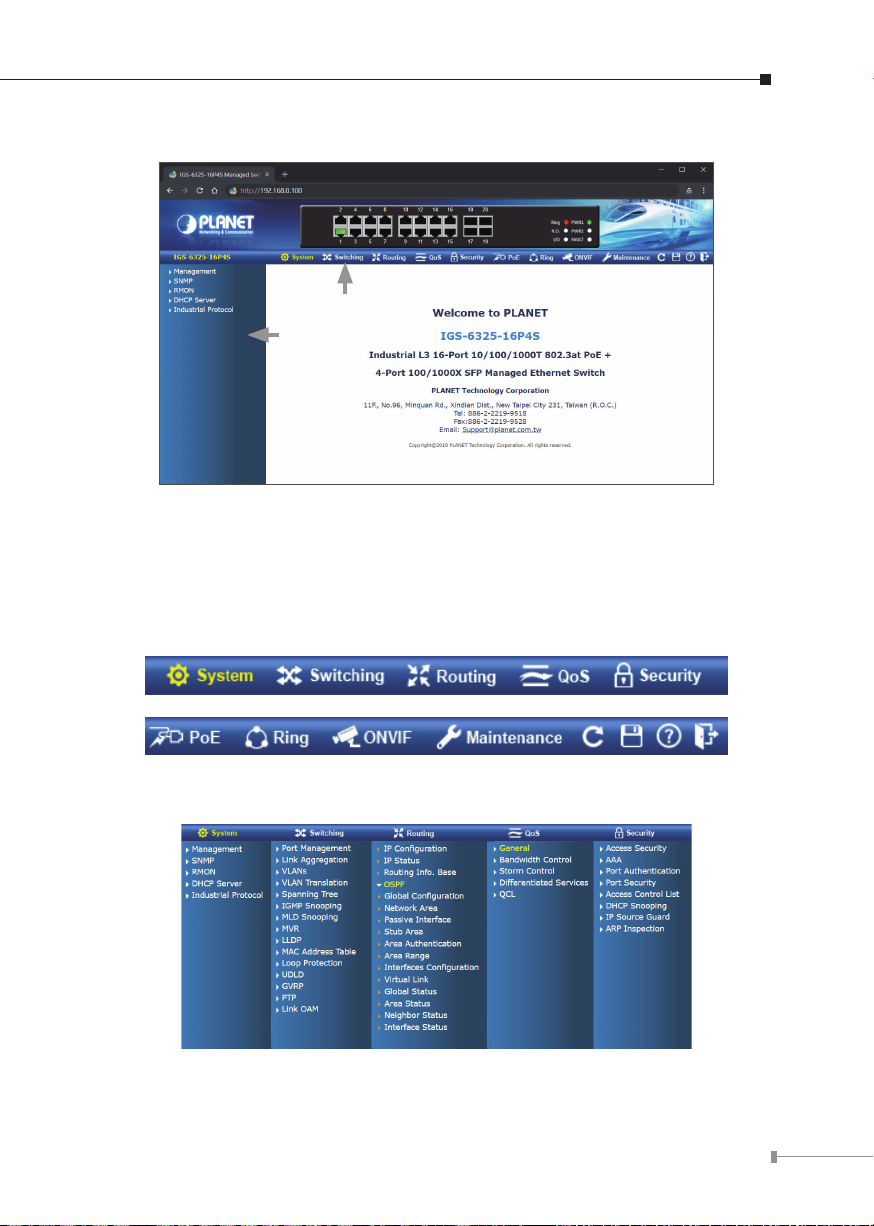

3.Afterenteringthepassword,themainscreenappearsasshowninFigure5-3.
Switch Menu
Sub-menu
Figure 5-3: Web Main Screen of Industrial Managed Switch
The Switch Menu on the top of the Web page lets you access all the commands
and statistics the Industrial Managed Switch provides. The Switch Menu always
contains one or more buttons, such as “System”, “Switching”, “Routing”,
“QoS”,“Security”,“PoE”,“Ring”,“ONVIF” and “Maintenance”.
Figure 5-4: Switch Menu
Figure 5-5: Switch Sub-menu

14
Figure 5-6: Switch Sub-menu
Now, you can use the Web management interface to continue the Switch
management. Please refer to the user manual for more.
Note
If you are not familiar with Switch functions or the related param-
eter, press “Help icon” anytime on the Web page to get the help
description.
5.2 SavingCongurationviaWeb
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across a
system reboot.
1. Click the Save icon on the top Switch Menu bar.

15
2. Press the “SaveConguration” button.
3. Or the other way to save the setting is to Click Maintenance, Save Startup
Cong.

16
6.RecoveringBacktoDefaultConguration
IP address has been changed or admin password has been forgotten –
To reset the IP address to the default IP address “192.168.0.100” and the
user password to factory default mode (default password is admin), press the
hardware-based reset button on the front panel for about 10 seconds. After
the device is rebooted, you can log in the management Web interface within the
same subnet of 192.168.0.xx and default password. Be noted that all the previous
setups will be disappeared after the factory default reset is made.
1
3
5
7
2
4
6
8
9
11
13
15
10
12
14
16
Reset
Console
115200,N,8,1
19
20
P1 P2
Ring R.O.
Fault
I/O
IGS-6325-16P4S
ACTLNK
PoE-in-Use
802.3at PoE+
17
18
ACT1000 LNK
ACT100 LNK
Reset Button
Figure 6-1: IGS-6325-16P4S Reset Button
19
19
17
17
18
20
18
20
ACT
1000 LNK
ACT
10G LNK
ACT
1000 LNK
ACT
10/100 LNK
ACT
1000
ACT
100 LNK
LNK
16
15
14
13
12
11
10
9
Console
115200
, N , 8 , 1
FaultP2P1
I/OR.O.
Ring
Reset IGS-6325-8T8S4X
7
5
3
1
8
6
4
2
Reset Button
Figure 6-2: IGS-6325-8T4X/IGS-6325-8T8S/IGS-6325-8T8S4X Reset Button

17
Reset
Console
115200
, N , 8 , 1
ACT1000 LNK
ACT10G LNK
ACT
1000 LNK
ACT
100 LNK
ACT
1000 LNK
ACT
10/100 LNK
10/100/1000T
bt PoE-in-Use
af/at PoE-in-Use
FaultP2P1
I/OR.O.
Ring
11
11
9
9
10
12
10
12
7
5
3
1
IGS-6325-8UP2S2X
802.3bt PoE++
320W
PoE Usage
240W
160W
80W
8
6
4
2
Reset Button
Figure 6-3: IGS-6325-8UP2S/IGS-6325-8UP2S2X Reset Button

18
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resourceon PLANET web site rstto checkif itcould solveyour issue.If youneed
moresupportinformation,pleasecontactPLANETswitchsupportteam.
PLANETonlineFAQs:
http://www.planet.com.tw/en/support/faq
Switch support team mail address:
[email protected]
IGS-6325-DIN-railSeriesUser’sManual:
https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=I
GS-6325&view=3#list
(PleaseselectyourswitchmodelnamefromtheProductModeldrop-downmenu)
Copyright © PLANET Technology Corp. 2019.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
