Planet IGS-6325-5X1T User manual

Industrial L3 5-Port 10GBASE-X SFP+ + 1-Port
10GBASE-T Managed Ethernet Switch
IGS-6325-5X1T
Quick Installation Guide

Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Wiring the Power Inputs.............................................................................. 5
3.1 Grounding the Device .......................................................................... 6
4. Terminal Setup ........................................................................................... 7
4.1 Logging on to the Console.................................................................... 8
 4.2 ConguringIPAddressviaConsole ....................................................... 8
 4.3 Storingthecurrentswitchconguration ...............................................10
5. Starting Web Management .........................................................................11
5.1 Logging in to the Industrial Managed Switch.........................................11
 5.2 SavingCongurationviaWeb ..............................................................14
6. RecoveringBacktoDefaultConguration.....................................................15
7. Customer Support .....................................................................................16

3
1. Package Contents
Thank you for purchasing PLANET L3 Industrial Managed Switch, IGS-6325-5X1T.
“Industrial Managed Switch” mentioned in this Quick Installation Guide refers
to the above model.
Open the box of the Industrial Managed Switch and carefully unpack it. The
box should contain the following items:
IGS-6325-5X1T
The Industrial Managed Switch 
DB9 to RJ45 Interface RS232 Console Cable 
Quick Installation Guide 
Wall Mounting Kit 
RJ45 Dust Cap 2
SFP Dust Cap 5
Ifanyof theseare missingor damaged,pleasecontact yourdealer immediately. If
possible, retain the carton including the original packing materials to enable you to
repack the product in case there is a need to return it to us for repair.

4
2. Requirements
The Industrial Managed Switch provides remote login interface for management
purposes. The following equipment is necessary for further management:
zWorkstations running Windows XP/2003/2008/Vista/7/8/10/11, MAC OS X or
later,Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPProtocols.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard).
zSerial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converte.
The above Workstations have been installed with terminal emulator,such as
HyperTerminalincludedinWindowsXP/2003,puttyorteraterm.
Serial cable -- one end is attached to the RS232 serial port, while the other
end to the console port of the Industrial Managed Switch.
zEthernet Port Connection
Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.
The above PC is installed with Web browser.
Note
It is recommended to use Chrome 98.0.xxx or above to access the
Industrial Managed Switch.

5
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet power
socket and consists of one green terminal block connector within 6 contacts. Please
follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1, or
Contacts 5 and 6 for Power 2.
 DC9-48V,AC24V
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 4A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-6325-5X1T Upper Panel
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
V1+ V1- V2+ V2-
Power 1 Power 2
Figure 3-2: Power1 & 2 Pins of Terminal Block Connector
Note
1. The wire gauge for the terminal block should be in the range
from 12 to 24 AWG.
2.Please check the AWG Ampere specification before connecting
PLANETIndustrialManagedSwitch.

6
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden lightning could
cause fatal damage to the device.
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V , 4A max.
AC Input: 24V , 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Earth Ground

7
4. Terminal Setup
Tocongurethesystem,connect a serialcabletoa COM port on a PC or notebook
computerandtoRJ45typeserial(console)portoftheIndustrialManagedSwitch.
PC/Workstation with
Terminal Emulation Software
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
Console
115200,N,8,1
RJ45 to DB9 RS232 Cable
A terminal program is required to make the software connected to the Industrial
Managed Switch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud: 115200
Parity:None
Data bits: 8
Stop bits: 1
Flowcontrol:None

8
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Industrial
Managed Switch and the terminal will display “running testing procedures”.
Then, the following message asks to log in user name and password. The factory
default user name and password are shown as follows as the login screen in Figure
4-1appears.
Username:admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed Switch. For
adetaileddescriptionofthecommands,pleaserefertothefollowingchapters.
Note
1.For security reason, please change and memorize the new
password after this first setup.
2. Only accept command in lowercase letter under console inter-
face.
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address shown below:
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0

9
To check the current IP address or modify a new IP address for the Switch, please
use the procedure as follows:
Display of the Current IP Address
1.Atthe“#”prompt,enter“show ip interface brief”.
IGS-6325-Series#show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen
 CongurationoftheIPAddress
3.At the “#” prompt, enter the following command and press <Enter> as shown
inFigure4-3.
IGS-6325-Series#congureterminal
IGS-6325-Series(cong)# interface vlan 1
IGS-6325-Series(cong-if-vlan)# ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Industrial
Managed Switch.
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
Figure 4-3: Conguring IP Address Screen

10
4. Repeat step 1 to check if the IP address has changed.
4.3 Storingthecurrentswitchconguration
1.Atthe“#”prompt,enterthefollowingcommandandpress<Enter>.
#copyrunning-congstartup-cong
Figure 4-4: Saving Current Conguration Command Screen
If the IP is successfully congured, the Industrial Managed Switch will apply the
new IP address setting immediately. You can access the Web interface of the
Industrial Managed Switch through the new IP address.
Note
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.

11
5. Starting Web Management
The following shows how to start up the Web Management of the Industrial
Managed Switch. Note the Industrial Managed Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the same
IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
IP Address:
192.168.0.x
IP Address:
192.168.0.100
IGS Industrial Managed Switch
RJ45/UTP Cable
Figure 5-1: IP Management Diagram
5.1 Logging in to the Industrial Managed Switch
1.Use Chrome 98.0.xxx or above for Web browser and enter IP address
https://192.168.0.100 (the factory-default IP address) to access the Web
interface.
2.When the following dialog box appears, please enter the default user name
“admin” and password “admin”(orthepasswordyouhavechangedbefore)as
showninFigure5-2.
DefaultIPAddress:192.168.0.100
DefaultUsername:admin
Default Password: admin
Figure 5-2: Login Screen

12

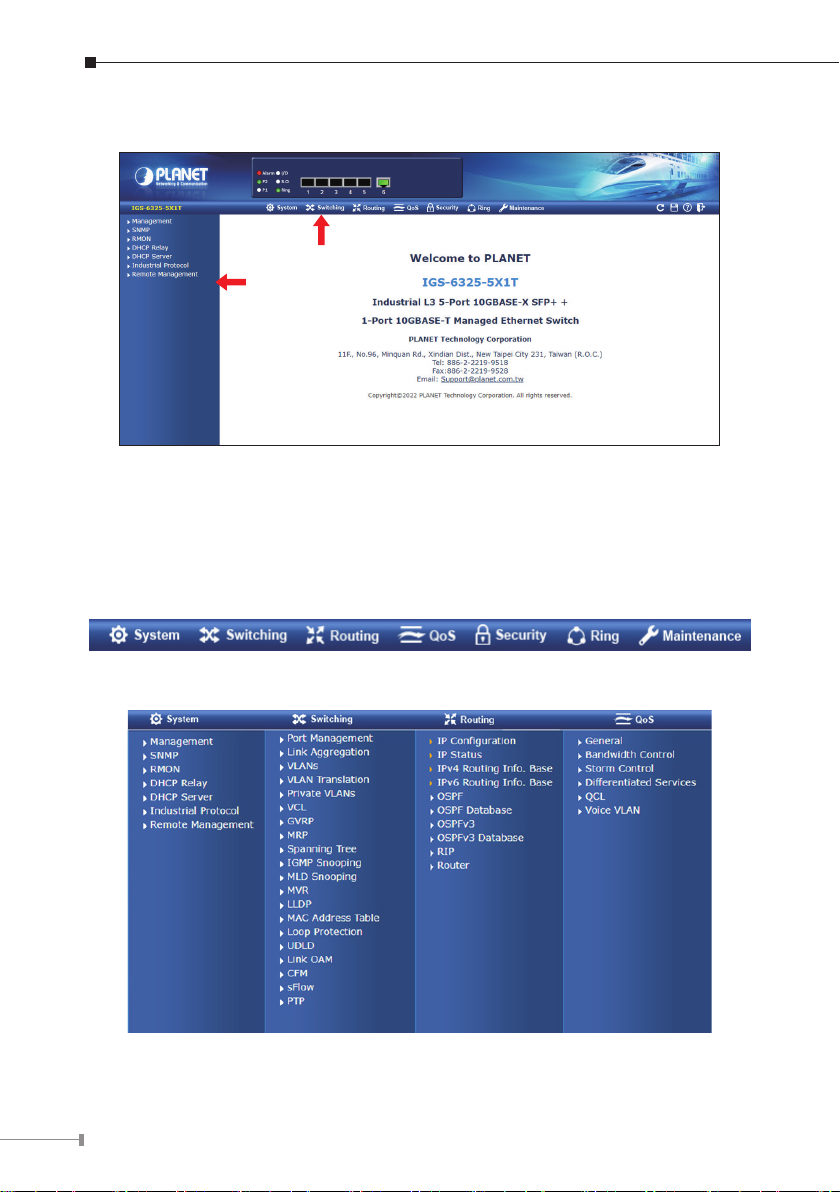

3.Afterenteringthepassword,themainscreenappearsasshowninFigure5-3.
Switch Menu
Sub-menu
Figure 5-3: Web Main Screen of Industrial Managed Switch
The Switch Menu on the top of the Web page lets you access all the commands
and statistics the Industrial Managed Switch provides. The Switch Menu always
contains one or more buttons, such as “System”, “Switching”, “Routing”,
“QoS”,“Security”,“Ring” and “Maintenance”.
Figure 5-4: Switch Menu

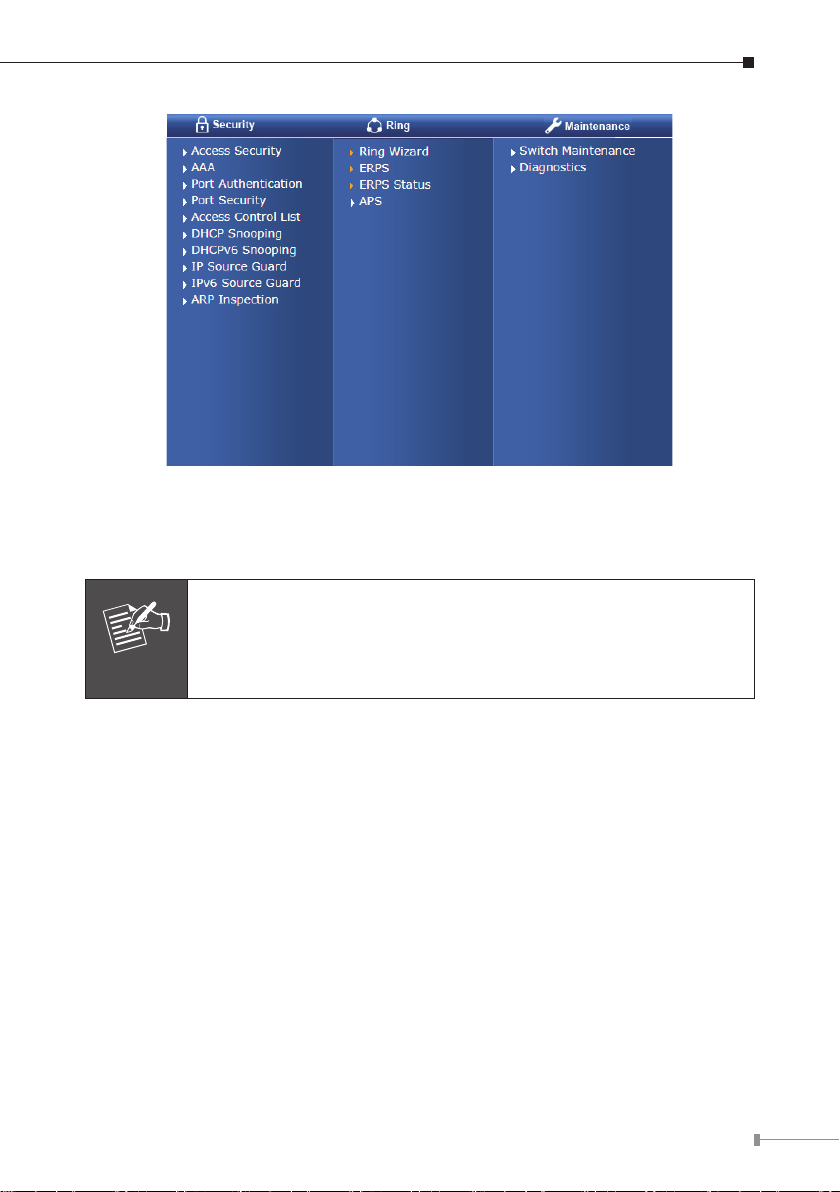

Figure 5-5: Switch Sub-menu

13
Figure 5-6: Switch Sub-menu
Now, you can use the Web management interface to continue the Switch
management. Please refer to the user manual for more.
Note
If you are not familiar with Switch functions or the related param-
eter, press “Help icon” anytime on the Web page to get the help
description.

14

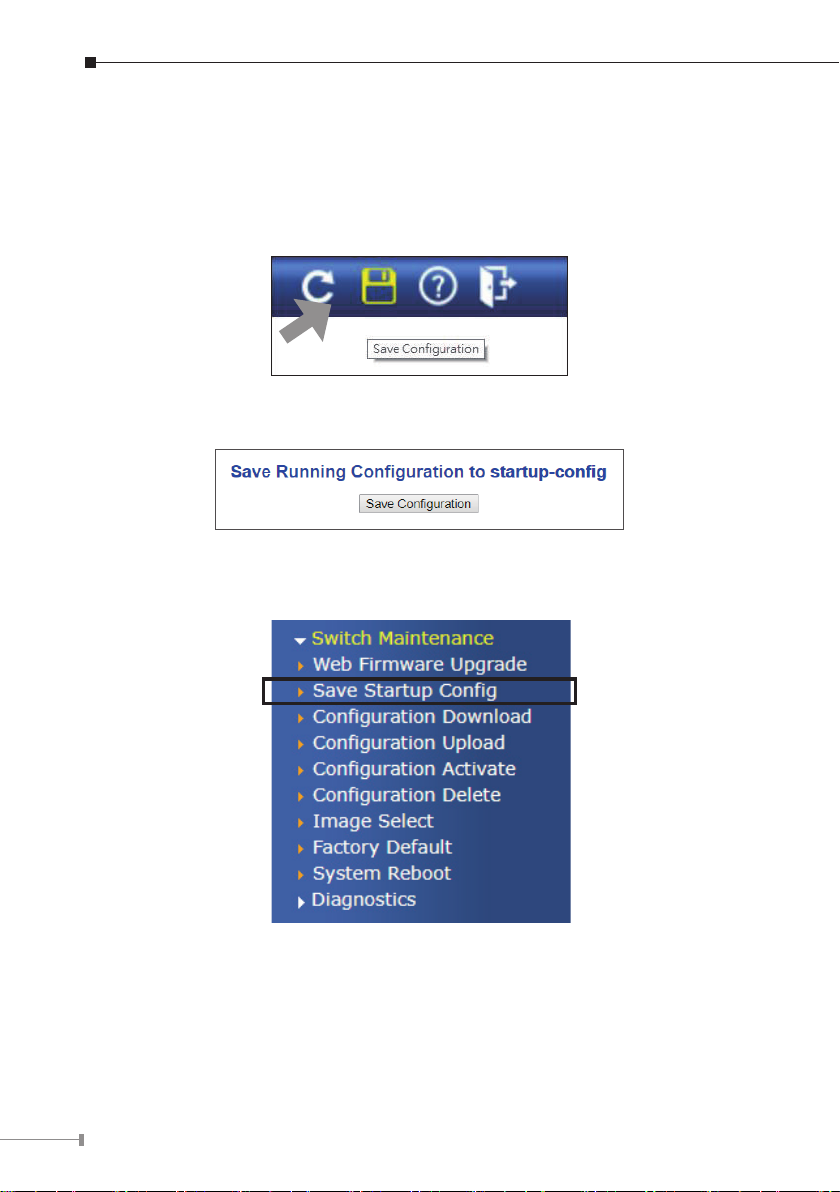

5.2 SavingCongurationviaWeb
To save all applied changes and set the current conguration as a startup
conguration, the startup-conguration le will be loaded automatically across a
system reboot.
1. Click the Save icon on the top Switch Menu bar.
2. Press the “SaveConguration” button.
3. Or the other way to save the setting is to Click Maintenance, Save Startup
Cong.

15
6.RecoveringBacktoDefaultConguration
IP address has been changed or admin password has been forgotten –
To reset the IP address to the default IP address “192.168.0.100” and the
user password to factory default mode (default password is admin), press the
hardware-based reset button on the front panel for about 10 seconds. After
the device is rebooted, you can log in the management Web interface within the
same subnet of 192.168.0.xx and default password. Be noted that all the previous
setups will be disappeared after the factory default reset is made.
P2
R.O.
P1
Ring
Alarm
I/O
IGS-6325-5X1T
Console
115200,N,8,1
10GBASE-T
Reset
5
6
4
3
2
1
5
4
3
2
1
2.5G
10G/1G
5G/100
LNK
LNK
LNK
2.5G
10G/1G
LNK/ACT
LNK/ACT
Reset Button
Figure 6-1: IGS-6325-5X1T Reset Button

16
7. Customer Support
Thank you for purchasing PLANET products. You can browse our online FAQ
resourceon PLANETweb siterst tocheck ifit couldsolve yourissue. Ifyouneed
moresupportinformation,pleasecontactPLANETswitchsupportteam.
PLANETonlineFAQs:
https://www.planet.com.tw/en/support/faq
Switch support team mail address:
[email protected]
IndustrialUser’sManual:
https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=I
GS-6325&view=3#list
(PleaseselectyourswitchmodelnamefromtheProductModeldrop-downmenu)
Copyright © PLANET Technology Corp. 2022.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
