Quick Start Guide
TNP700
TNP800
TNP850K1
Port Discovery
IPV4 and IPV6 Protocols
Port Test/CDP/LLDP
VLAN Detection
Device Discovery
Ping IPV4, IPV6 and URL
CAT 3/5e/6/6a
Coax
Telephone Cable

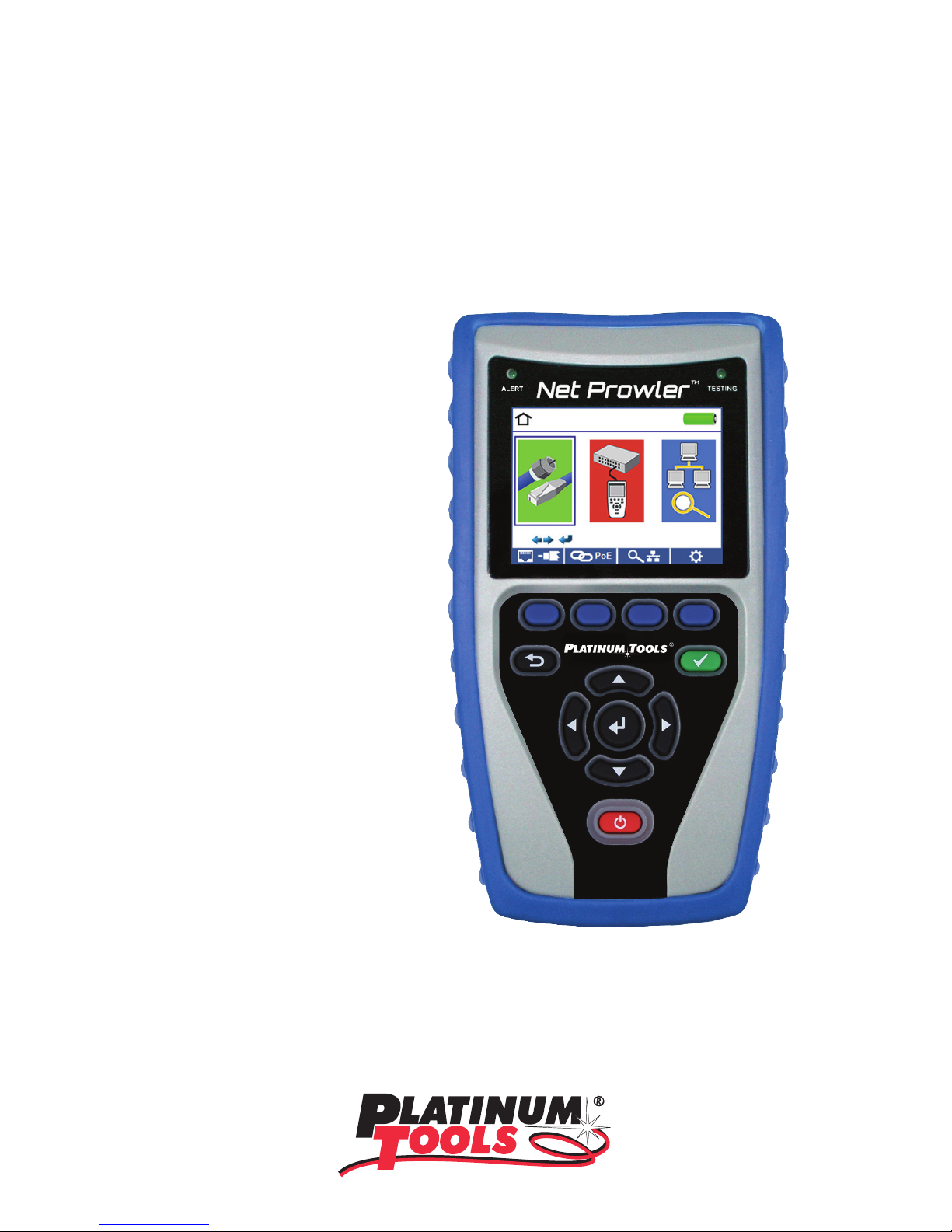

Net ProwlerTM
Identify, Monitor & Test LAN Issues

Thank you for purchasing a Platinum Tools tester.
Before you start using it, make sure that you have the latest updates for your
tester. Check the latest rmware version at our website:
www.platinumtools.com/softwaredownloads
You can also download the companion software that allows you to name,
save, and print out your test results.
Please register your tester at www.platinumtools.com/warranty so we can
send you future update notices for your tester.

www.platinumtools.com 3
Test
On/Off
Direction cursors to
move in LCD display
Enter
Back
Micro USB Port
RJ45 Jack
F-connector Jack
Soft keys perform the
function on the display
above each button.
Full color LCD display
Net ProwlerTM
Identify, Monitor & Test LAN Issues

4Net Prowler Quick Start Guide
Net Prowler Graphic Report
Legend
Pair 1-2 measures 10.3 ft but is mis-wired.
Pair 3-6 measures 10.1 ft and is properly connected.
Pair 4-5 has an open at 7.9 ft.
Pair 7-8 has a short at 7.0 ft.
Shielded cable detected.

www.platinumtools.com 5
Network Cable Test Coax Cable Test Telephone Cable Test
• Power on the Net Prowler. Connect a network, coax, or telephone cable to the
appropriate connector on top of the Net Prowler
• Press the enter button to display the cable test menu. The Net Prowler will
automatically perform at test upon entering the cable test menu.
• To test coax or telephone cable, press the coax or telephone soft key.
Warning! Do not plug an RJ11 cable directly into the Net Prowler! A standard RJ11
cable will damage the Net Prowler’s RJ45 jack. Use the included RJ adapter patch
cable.
• If a remote is NOT being used (one ended test), the Net Prowler will test the
length of each pair, opens, shorts, or split pairs. Performing a one ended test will
not verify connectivity on the opposite end of the cable.
• If a remote is being used, connect the remote to the opposite end of the cable.
• To calibrate the VOP, connect a known length of cable to the Net Prowler and
press the right arrow button to highlight a VoP digit, then press the up/down
buttons to increase or decrease the value.
• While adjusting the VOP, press the test button every so often until the length of
the cable is displayed.
• Press the green test button of the loop mode soft key to perform
additional tests.
• To save a cable test, press the save icon.
• Use the arrow buttons and the enter button to name the cable test le.
• Press the save icon to save the cable test le.

6Net Prowler Quick Start Guide
Tone Generator
• Power on the Net Prowler.
• Use the left or right arrow buttons to select the tone generator icon and
press the enter button.
• The Net Prowler will automatically activate the tone generator upon entering the
tone generator menu.
• Connect a cable to either the RJ45 jack or coax connector located on the top of
the Net Prowler.
• To switch between network and coax cables, press the coax cable/RJ45 soft key
/ .
• Press the up or down arrow buttons to select one of four cadences.
• Press the left or right arrow buttons to select which pin or pair to place the tone.
• Use a tone probe alongside the cable or at the end of the cable to produce an
audible tone.

www.platinumtools.com 7
Network / PoE Detection
Link Light
• Power on the Net Prowler.
• Connect the Net Prowler to a switch or
active network jack.
• Use the left or right arrow
buttons to select the Network/
PoE icon and press the enter
button or press the Network/
PoE soft key .
• The Net Prowler will automatically detect and display link capability, connection
speed, PoE class, and PoE Min/Max voltages.
• To perform a Network Test only, press the PoE soft key .
• To save the PoE data, press the Save soft key .
• Use the arrow buttons and the enter button to name the PoE le.
• Press the Save soft key to save the PoE le.
• Power on the Net Prowler.
• Connect the Net Prowler to an active
network cable or port.
• Press the Network/PoE soft key
then press the Link Light
soft key .
• The Link Light will automaticaly begin
upon entering the Link Blink menu.
• The Link LED above the LCD screen will ash at the same cadence as the port
light.
• Use the up and down arrows to adjust the link light cadence.

8Net Prowler Quick Start Guide
Setup
• From the main screen, press the “setup” soft key .
• Use the up and down buttons to navigate through the ve settings pages.
• Use the left and right arrow buttons to select a setting, then use the up and down
arrow buttons to change the highlighted setting.
• Press the enter button to accept your changes.
• Press the down arrow button to select a language (English, Spanish, Italian,
French, and German). Press the right arrow button to change the language.
• To edit an IP address or Favorites, scroll to the desired IP or URL and press the
right arrow button.
• Use the right arrow button to highlight a digit and the up and down buttons to
change the digit.
• To enter or edit a URL, press the keypad soft key then press the URL
soft key .
• When nished editing an IP or URL address, press the “Done” soft key
to return to the setup screen.
• Press the “Save” soft key to save your changes.

www.platinumtools.com 9
How to Perform a Port Discovery Test
Port Testing
• Connect the Net Prowler to a switch or active network jack.
• From the Network/PoE screen, press the Port test soft key .
• The Net Prowler will automatically perform a port test upon entering the Port Test
screen.
• Select one of the following Port Test soft keys to perform a specic test.
DHCP – Obtain Network IP address and DHCP information
LLDP – View Link Layer Discovery Protocol supported switch information
CDP – View advertised Cisco protocol information
Link Light – Flash the port LED on a hub, switch, or router to iden-
tify the port you are connected to.

10 Net Prowler Quick Start Guide
How to Perform a Device Discovery Test
Ping IPV4/IPV6
• Connect the Net Prowler to a switch, router, or active network jack.
• From the home screen, use the right arrow button to select the Network
Discovery icon and press the enter button or press the Network
Discovery soft key .
• The Net Prowler will perform a DHCP test and obtain an IP address (to ping IPV6,
press the IPV6 soft key).
• Press the ping soft key .
• Use the left and right arrows to highlight a digit. To change a digit, use the up
and down arrows or press the keypad soft key to use an alphanumeric
keypad. To hide the keypad, press the keypad soft key again.
• Press the test button to ping the IP address.
List
• Press the list soft key to view discovered IP addresses and manually
pinged IP addresses.
• To ping an IP address in the list, use the up and down buttons to naivgate to the
desired IP address and press the test button.
Favorites
• From the List screen, press the Favorites soft key to ping from the
favorites list.
• Use the up and down arrow buttons to scroll through the list.
• Press the test button to select an IP or URL address. The Net Prowler will
show the URL IP address obtained by the DNS server.
• Press the test button again to ping the IP address.

www.platinumtools.com 11
Net Prowler Application
User Manual
IP Discovery
• From the Network Discovery screen press the IP discovery soft key .
• The Net Prowler will scan the network and display IP addresses within a Subnet.
The list will include advertised device labels to the left of the IP addresses.
• Use the up and down arrow buttons to scroll through the IP list. Press the enter
button to view the MAC address associated with the selected IP address.
TCP/UDP Testing
• Please refer to the Net Prowler instruction manual for TCP/UDP instructions.
See https://www.platinumtools.com/softwaredownloads to install the application
software with latest updates, and get the latest functionality from your Net Prowler.
See https://www.platinumtools.com/softwaredownloads to
download the User Manual and learn more about Net Prowler
and how to transfer your test results to your PC.

For complete Net Prowler user manual, technical information and customer support, please visit
www.platinumtools.com or send an email to [email protected].
Phone: [phone] •2450 Turquoise Circle •Newbury Park, CA 91320
Net Prowler Kits
TNP700
• Net Prowler Main Unit
• Cable Tester Smart Remote, #1
• ID Only Coax Remotes, #1-5
• ID Only Network Remotes, #1-5
• F Connector Coupler F81
• No-Fault, RJ12 Cable (2)
• Micro USB Cable
• Alkaline AA Batteries
• Hanging Pouch
TNP800
• Net Prowler Main Unit
• Cable Tester Smart Remotes, #1-8
• ID Only Coax Remotes, #1-20
• ID Only Network Remotes, #1-20
• F Connector Coupler F81
• No-Fault, RJ12 Cable (2)
• Micro USB Cable
• Alkaline AA Batteries
• Large Shoulder Bag
TNP850K1
• Net Prowler Main Unit
• Cable Tester Smart Remotes, #1-8
• ID Only Coax Remotes, #1-8
• ID Only Network Remotes, #1-12
• Micro USB Cable
• Cable Assembly, RJ45 to Alligator Clip
• No-Fault, RJ12 Cable (2)
• RJ45 Port Saver
• F Connector Coupler F81 (2)
• BNC Adapter Kit
• Alkaline AA Batteries
• Durable Plastic Case
