PNI House IP31 User manual

Video surveillance camera
PNI House IP31 / IP32
Manual de utilizare
User manual
Camera supraveghere video

1
Camerele IP31 si IP32 de la PNI pot fi utilizate atat de sine statatoare cat si in
cadrul unui sistem de supraveghere video complex.
Functii principale
ŸMonitorizare de la distanta de pe calculator sau telefonul mobil
ŸSenzor de imagine CMOS color
ŸCompatibila cu protocolul ONVIF
ŸConectare la internet prin cablu sau wireless
ŸSuporta inregistrarea imaginilor local pe un card de memorie (nu este inclus in
pachet) sau la distanta pe un NVR
ŸDetectie miscare
ŸCarcasa metalica rezistenta la intemperii
ŸVizibilitate pe timp de noapte
ŸSlot de card microSD maxim 128GB (format FAT32)
Camerele IP31 si IP32 de la PNI pot fi accesate de la distanta in trei moduri:
1. Prin aplicatia dedicata "PNI SmartCAM", compatibila cu iOS si Android.
2. Prin software-ul CMS "HiP2P Client". Fisierul de instalare al software-ului si manualul
de utilizare pot fi gasite pe CD-ul inclus in pachet.
3. Prin Internet Explorer.
Nota: Daca doriti sa efectuati prima configurare a camerei prin Internet Explorer trebuie
sa conectati PC-ul / laptop-ul in aceeasi retea (wifi sau cablata) cu camera.
ŸDeschideti aplicatia "SearchTool" de pe CD. Apasati Next pentru Cautare. Apasati
Refresh pentru reimprospatarea dispozitivelor conectate. Apare camera PNI IPCAM .
ŸCopiati din fereastra afisata adresa IP de forma: "http://IP Adress: port" (ex:
http://192.168.1.15:80) si o lipiti in browser-ul Internet Explorer. Asigurati-va ca
nivelul de securitate este la minim / dezactivat, permisiunile ActiveX sunt validate, si
ca IP-ul este trecut la compatibility mode.
ŸLa prima accesare a camerei din browser este nevoie sa instalati de pe prima pagina
"Setup Software". Tot de pe prima pagina puteti schimba si limba interfetei in Engleza,
din optiunile din dreapta sus.
ŸAccesati imaginile live si meniul camerei apasand butonul "PC view". Ulterior aveti
acces la meniul camerei, meniu complex si performant ce va ofera acces la o
multitudine de functii.
Note:
ŸVa recomandam sa nu modificati nimic, decat daca este cu adevarat necesar si
intelegeti pe deplin termenii si notiunile tehnice si optiunile existente in meniurile
avansate. Aceste configurari avansate necesita cunostinte de IT, configurare,
retelistica si CCTV supraveghere video.
ŸAccesarea si vizualizarea directa a imaginilor preluate de camera se pot face in
modul simplu si mult mai rapid folosind aplicatia pentru telefon "PNI SmartCAM" sau
aplicatia pentru PC "HiP2P Client".
RO

2
Conexiuni RO
Buton reset (tineti apasat timp de 10sec
pentru a reseta camera)
Introducere card microSD
Mufa alimentare
Camerele IP31 si IP32 de la PNI pot inregistra imaginile local pe un card
microSD, de maxim 128GB, pe care il puteti achizitiona separat si apoi monta in interiorul
camerei conform instructiunilor de mai jos.
Port Ethernet pentru conectare la reteau de
internet cablata
1. Desfaceti cele 2 surburi laterale ale camerei
si indepartati partea din fata a carcasei
2. Desfaceti cu grija cele 2 picioruse ce prind
placutele electronice de partea inferioara a
carcasei
3. Scoateti partea electronica din carcasa si
introduceti cardul microSD in slotul dedicat cu
pinii spre placuta
4. Prindeti cu grija partea electronica la loc in carcasa, avand mare atentie sa nu agatati
sau sa smulgeti vreun fir, si apoi inchideti carcasa camerei cu suruburile laterale.
Nota: Pentru utilizarea camerei conectata cu cablu la reteaua de internet, urmati aceiasi
pasi de configurare descrisi pentru conexiunea wireless, fara instructiunile de Wifi.

3
RO

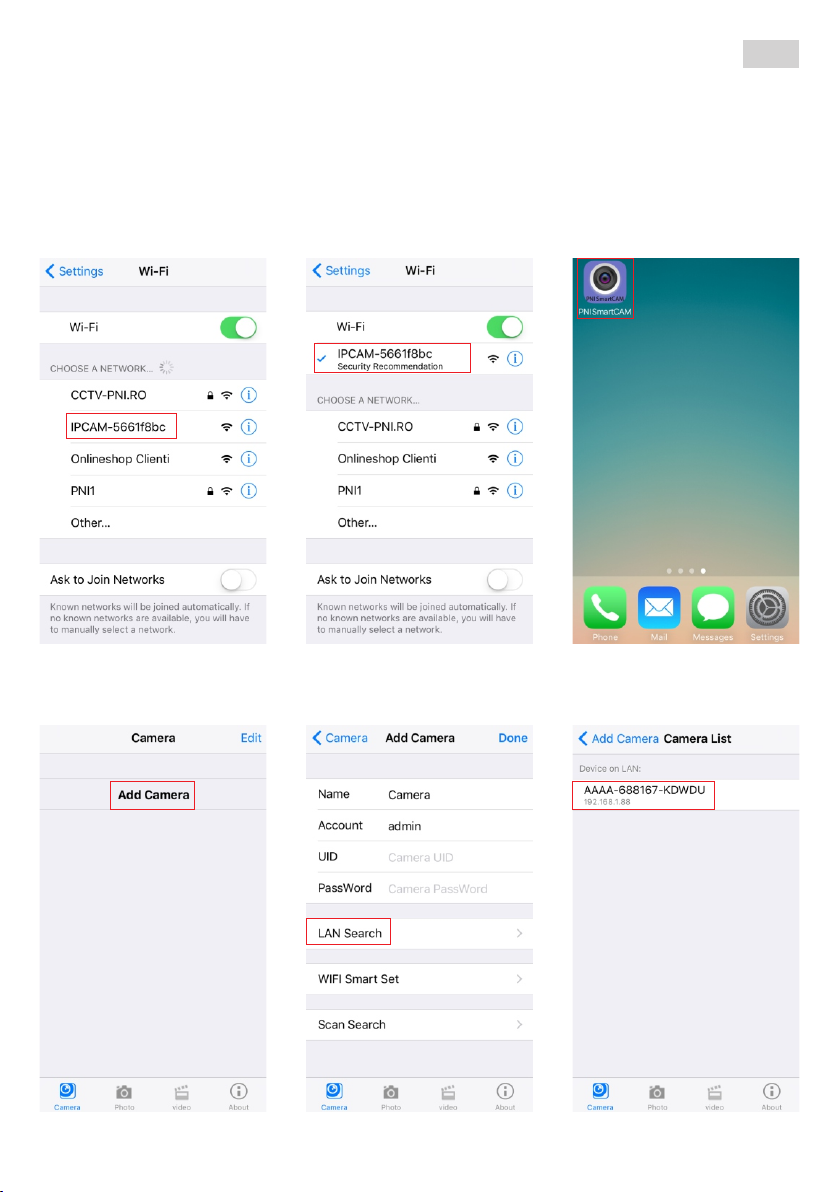

Urmati pasii de mai jos pentru a configura camera prin conexiune wireless la internet:
ŸAlimentati camera video
ŸDeschideti setarile wifi din telefon si cautati reteaua wireless creata de camera
ŸConectati-va telefonul la reteaua wireless creata de camera. Parola de acces este
„01234567“
ŸDescarcati si instalati aplicatia PNI SmartCAM din AppStore
Instructiuni de utilizare a aplicatiei pentru iOS
ŸDeschideti aplicatia de pe telefonul mobil apoi selectati optiunea „Add Camera“
ŸSelectati optiunea „LAN Search“ pentru a cauta camera in retea. Pe ecran va aparea
UID-ul camerei dv, ce se regaseste si pe camera.

4
RO

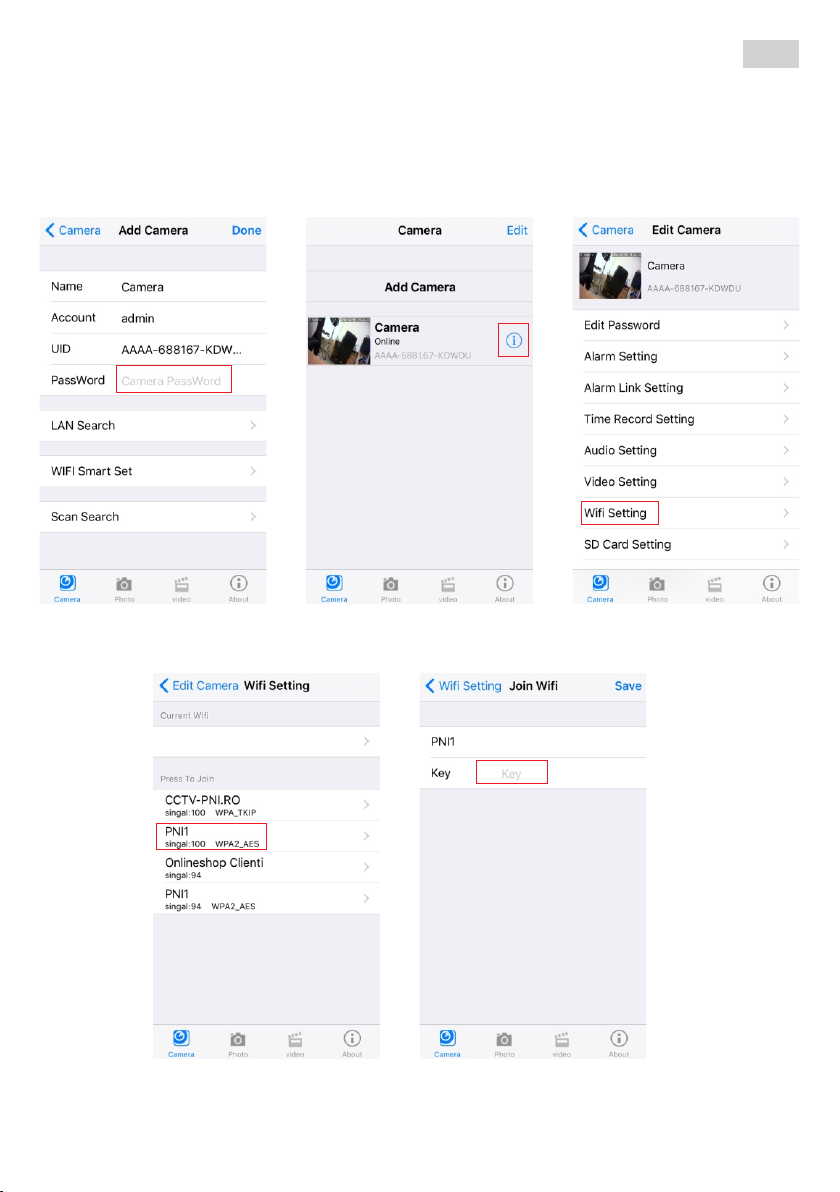

ŸSelectati camera gasita pentru a va conecta la ea
ŸIntroduceti parola de acces a camerei (implicit aceasta este admin)
ŸIn lista de camere veti putea vedea imaginea transmisa de camera.
ŸApasati pe butonul de info (i) pentru a deschide meniul de setari al camerei.
ŸSelectati optiunea „Wi-fi Setting“ pentru a conecta camera la reteaua de internet
wireless dorita
ŸSelectati reteaua dorita
ŸIntroduceti parola de acces a retelei
ŸCamera va putea fi accesata acum prin internet de oriunde va aflati

5
RO
Sunet oprit
Captare imagine
Indicator inregistrare.
Apasati pentru a porni inregistrarea, iconita devine rosie.
Selectare calitate imagine
Oglindire/rotire imagine
Zoom/Focus imagine
functie indisponibila pentru aceasta camera
Presetari
functie indisponibila pentru aceasta camera
Prin intermediul butoanelor din partea de jos a ecranului aveti posibilitatea
vizualizarii fotografiilor salvate pe telefon si inregistrarilor efectuate.
Vizualizare fotografii salvate pe telefon
Vizualizare inregistrariVizualizare lista camere salvate
Informatii despre aplicatie

6
Prin intermediul aplicatiei puteti efectua si setari ale camerei, cum ar fi:
Edit password
Alarm seeting
Alarm link setting
Time record setting
Audio setting
Video setting
Wifi Setting
SD Card Setting
Device Time Setting
Email Setting
FTP Setting
System Setting
Device Information
- schimbare parola accesare camera
- activare/dezactivare detectie miscare si nivelul de
sensibilitate al acesteia
- setari actiuni in caz de alarma
- setari inregistrare
- setari audio (nu sunt disponibile pentru aceste modele)
- setari video
- setari retea wireless
- setari card SD: gestionare spatiu / formatare card
- setari data/ora camera
- setari email
- setari FTP
- reset la setarile din fabrica sau restartare camera
- informatii despre camera
RO

7
Urmati pasii de mai jos pentru a configura o camera:
ŸAlimentati camera video
ŸDeschideti setarile wi-fi din telefon si cautati reteaua wireless creata de camera
ŸConectati-va telefonul la reteaua wireless creata de camera
ŸDescarcati si instalati aplicatia PNI SmartCAM din Google Play
Instructiuni de utilizare a aplicatiei pentru Android
ŸDeschideti aplicatia de pe telefonul mobil apoi selectati optiunea „Add Camera“
ŸSelectati optiunea „Search camera UID from LAN“ pentru a cauta camera in retea. Pe
ecran va aparea UID-ul camerei dv, ce se regaseste si pe camera.
RO

8

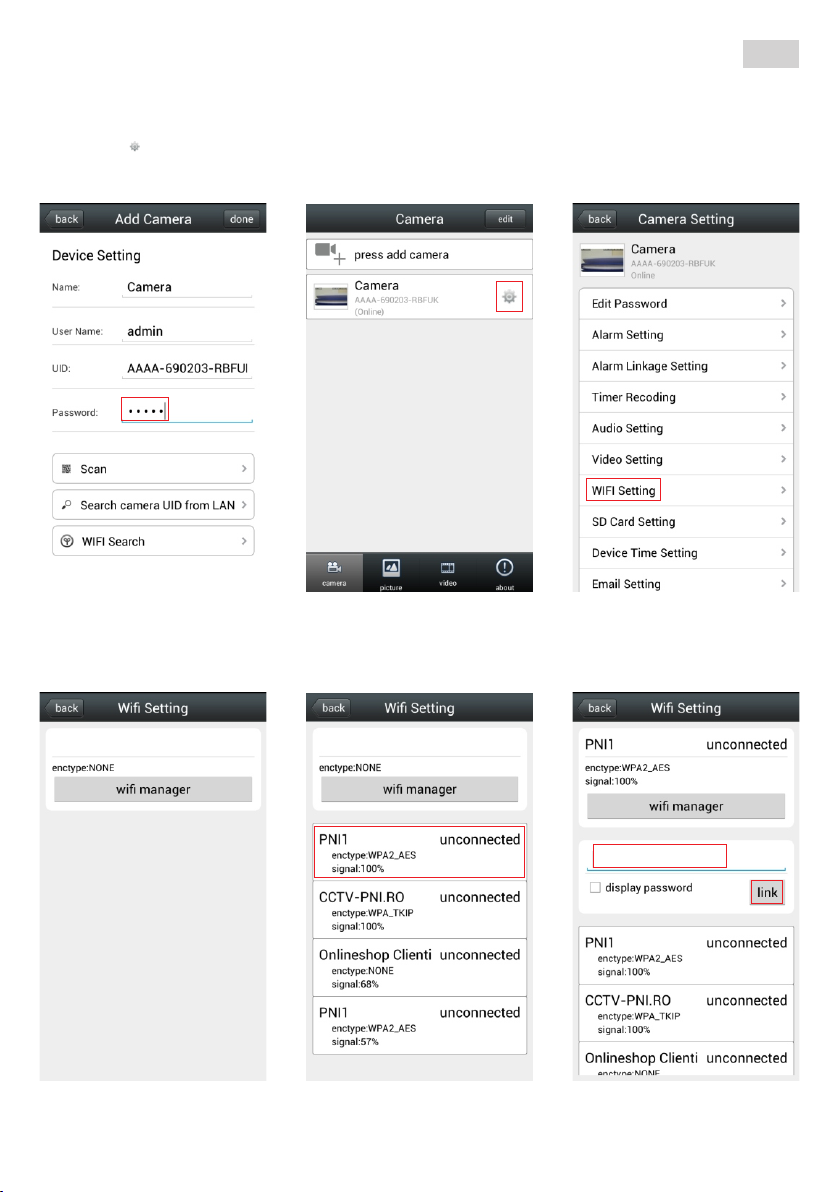

ŸSelectati camera gasita pentru a va conecta la ea
ŸIntroduceti parola de acces a camerei (implicit aceasta este admin)
ŸIn lista de camere veti putea vedea imaginea transmisa de camera.
ŸApasati pe butonul pentru a deschide meniul de setari al camerei.
ŸSelectati optiunea „Wi-fi Setting“ pentru a conecta camera la reteaua de internet
wireless dorita
ŸAccesati „Wifi manager“ si selectati reteaua dorita
ŸIntroduceti parola de acces a retelei si apoi apasati butonul „Link“
ŸCamera va putea fi accesata acum prin internet de oriunde va aflati
RO

9
Sunet oprit
Captare imagine
Selectare calitate imagine
Oglindire/rotire imagine
Zoom/Focus imagine
functie indisponibila pentru aceasta camera
Presetari
functie indisponibila pentru aceasta camera
Indicator inregistrare.
Apasati pentru a porni inregistrarea, iconita devine rosie.
Prin intermediul aplicatiei puteti efectua si setari ale camerei, cum ar fi:
Edit password
Alarm seeting
Alarm link setting
Time record setting
Audio setting
Video setting
Wifi Setting
SD Card Setting
Device Time Setting
Email Setting
FTP Setting
System Setting
Device Information
- schimbare parola accesare camera
- activare/dezactivare detectie miscare si nivelul de
sensibilitate al acesteia
- setari actiuni in caz de alarma
- setari inregistrare
- setari audio (nu sunt disponibile pentru aceste modele)
- setari video
- setari retea wireless
- setari card SD: gestionare spatiu / formatare card
- setari data/ora camera
- setari email
- setari FTP
- reset la setarile din fabrica sau restartare camera
- informatii despre camera
RO
Deasemenea, din pagina principala a aplicatiei, aveti posibilitatea vizualizarii
fotografiilor salvate pe telefon si inregistrarilor efectuate.
Vizualizare fotografii salvate pe telefon
Vizualizare inregistrariVizualizare lista camere salvate
Informatii despre aplicatie

10
ENEN
PNI IP31 and IP32 cameras can be used as stand alone or part of a larger
surveillance system.
Main functions
ŸRemote monitoring from PC or smartphone
ŸColor CMOS image sensor
ŸSupport ONVIF
ŸWireless or cable internet connection
ŸLocal or remote recording on
ŸMotion detection
ŸWaterproof metallic case
ŸNight vision
ŸMicroSD card slot max 128GB (FAT32 format)
PNI IP31 and IP32 cameras can be accessed remotely in 3 ways:
1. Through "PNI SmartCAM" app, for iOS and Android.
2. Through "HiP2P Client" CMS software. The installation file and user manual for this
software are the CD included in the box.
3. Through Internet Explorer.
Note: I you make the first configuration of the camera trough Internet Explorer you have
the connect your PC and camera to the same network (Wifi or ethernet).
ŸOpen software "SearchTool" from CD. Press „Next“ to search for cameras in the
network. You will se the IP camera.
ŸCopy the IP of the camera, example: http://192.168.1.15:80 and paste it in Internet
Explorer. Make sure the security level is on low or deactivated, ActiveX is enabled and
that the IP is in compatibility mode.
ŸAt first access of the camera with the IE browser you have to install "Setup Software"
from the main page. Also on main page you can change the display language to
english from the upper right corner.
ŸView live images and camera menu by pressing the "PC view" button. Later you can
access the camera menu where you can set it according to your requirements.
Notes:
ŸPlease don’t change any settings if you don’t have enough IT knowledge.
ŸDirect access and image view of the images from the camera can be made easily by
phone with the "PNI SmartCAM" app or PC with "HiP2P Client".

11
EN
Connections
Reset button (press for 10sec to reset
the camera)
How to insert microSD card
Power plug
PNI IP31 and IP32 cameras can record images locally on a microSD card. You
can buy this card separately and then insert it in the camera using the steps bellow:
Ethernet port
1. Open the 2 side screws and remove the frontal
part of the camera case
2. Carefully open the 2 little screws that bind the
electronic plates to the metallic case
3. Pull the electronic part from the case and insert
the microSD card in the designated slot
4. Carefully place all the parts together again and with the screws.
Note: To use the camera on wired network use the same next configuration steps without
the Wi-fi settings.

12
EN
Follow the steps bellow to set the camera with a wireless internet connection:
ŸPower the video camera
ŸOpen Wi-fi settings on your smartphone and search the IP camera Wi-fi (IPCam-xxx)
ŸConect your smartphone to the IP camera Wi-fi. The password for this network is
„01234567“
ŸDownload and install the PNI SmartCAM App from the AppStore
User instructions for iOS App
ŸOpen the App then select option „Add Camera“
ŸSelect option „LAN Search“ to search the IP camera on the network. You will see the
camera UID on the screen. You can find the UID on your camera also.

13
EN
ŸSelect the camera from the screen to connect to it
ŸInsert the access password found on the camera (default password: admin)
ŸIn the list on the screen you can see the live image from the camera
ŸPress (I)to open the camera menu
ŸSelect „Wi-fi Setting“ to select the wireless network you want to connect the camera to
ŸSelect the desired network
ŸInsert the network key
ŸNow you will be able to access the camera from anywhere in the world trough internet

14
EN
No sound
Take picture
Recording indicator.
Press this button to start recording, the icon will turn red.
Select image quality
Mirror/flip image
Zoom/Focus image
not supported by this camera
Presets
not supported by this camera
With the buttons on the lower part of the screen you can also view the saved
images on your phone and video recordings.
View photos saved on phone
View recordingsView camera list
App information

15
EN
Trough the app you can also set the camera:
Edit password
Alarm seeting
Alarm link setting
Time record setting
Audio setting
Video setting
Wifi Setting
SD Card Setting
Device Time Setting
Email Setting
FTP Setting
System Setting
Device Information
- change password for camera access
- enable/disable motion detection
- set alarm action
- recording settings
- audio settings (not supported)
- video image settings
- wireless network settings
- available space / format card
- date / time settings
- email settings
- FTP settings
- factory reset camera / restart camera
- camera information

16
EN
User instructions for Android App
Follow the steps bellow to set the camera with a wireless internet connection:
ŸPower the video camera
ŸOpen Wi-fi settings on your smartphone and search the IP camera Wi-fi (IPCam-xxx)
ŸConect your smartphone to the IP camera Wi-fi
ŸDownload and install the PNI SmartCAM App from the AppStore
ŸOpen the App then select option „Add Camera“
ŸSelect option „Search camera UID from LAN“ to search the IP camera on the network.
You will see the camera UID on the screen. You can find the UID on your camera also.

17
EN
ŸSelect the camera from the screen to connect to it
ŸInsert the access password found on the camera (default password: admin)
ŸIn the list on the screen you can see the live image from the camera
ŸPress to open the camera menu
ŸSelect „Wi-fi Setting“ to select the wireless network you want to connect the camera to
ŸSelect the desired network
ŸInsert the network key
ŸNow you will be able to see the image from the camera wherever you are

18
EN
No sound
Take picture
Recording indicator.
Press this button to start recording, the icon will turn red.
Select image quality
Mirror/flip image
Zoom/Focus image
not supported by this camera
Presets
not supported by this camera
Trough the app you can also set the camera:
Edit password
Alarm seeting
Alarm link setting
Time record setting
Audio setting
Video setting
Wifi Setting
SD Card Setting
Device Time Setting
Email Setting
FTP Setting
System Setting
Device Information
- change password for camera access
- enable/disable motion detection
- set alarm action
- recording settings
- audio settings (not supported)
- video image settings
- wireless network settings
- available space / format card
- date / time settings
- email settings
- FTP settings
- factory reset camera / restart camera
- camera information
With the buttons on the lower part of the screen you can also view the saved
images on your phone and video recordings.
View photos saved on phone
View recordingsView camera list
App information

19
