From Bicom Systems Wiki
Contents
1 Introduction
■
2 Requirements
■
2.1 Identifying phone model
■
2.2 Phone firmware
■
2.3 DHCP server
■
2.4 PBXware version
■
3 Installation
■
3.1 Power adapter
■
3.2 Power over Ethernet (PoE)
■
3.3 Find the phone IP address
■
3.4 Reset to factory settings
■
4 Registering phone
■
4.1 Manual configuration
■
4.2 Auto Provisioning
■
5 Additional Configuration Template
■

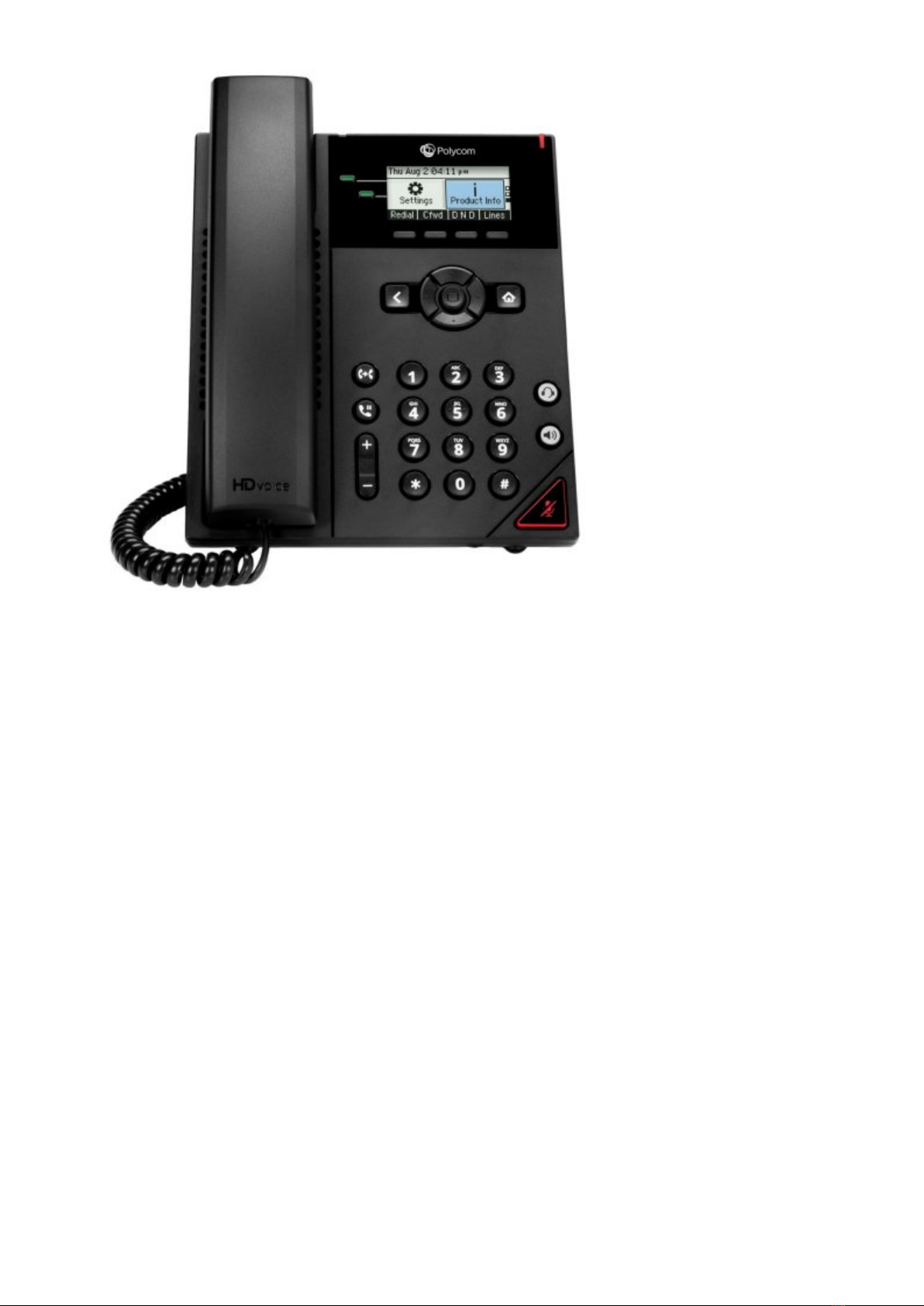

Introduction

This Configuration Guide is written as general guide on how to configure the Polycom VVX150
OBi Edition phone model to work with PBXware 5.3.5.
Requirements
Identifying phone model
To start and successfully complete registration of your Polycom VVX OBi Edition phone you
need to know which phone model you will setup.
From the back of each Polycom VVX OBi Edition phone there are exact model information that
you should check. Although different phone models can have exactly the same requirements and
installation procedure, phone models can also have significantly different requirements and
installation procedure, so that ignorance of your own model may result in the inability to
successfully set up your phone.
Phone firmware
Make sure that your phone is loaded with appropriate firmware version, 6.3.0.0.
■
To find out the firmware version of your Polycom VVX OBi Edition phone model open a new
■
browser window and enter your phone IP address in order to access the phone web
administration interface login screen. Example: http://192.168.1.22.
Login to phone web administration interface with your username and password. Please note,
■
factory default login details are username: admin and password: admin.

Under the Product Information you can see Software Version field that contains
■
information about firmware version.
DHCP server
Fully configured and operational DHCP server.
PBXware version
PBXware version 5.3.5
In order to find out the PBXware version:
Login to PBXware
■
Navigate to Settings: About.
■
On the top of About page is a code similar to this one PBXware Edition: Business, Release:
5.3.5 (387597b7), Running: 1.8.32.1-gc-b47edc45, PBXware Proxy v5.3.5 (62b7bcd),
API: 5.3, libmemcached version: 1.0.14, where Release denotes the exact version of your
PBXware.
Installation
This chapter describes how to install and connect the phone to the electrical power and data
network as well as how to apply factory settings.
The following topics are covered:
Power adapter
■
Power over Ethernet (PoE)
■
Factory Settings
■
Power adapter
Connect the Network and Power
Connect the DC plug on the power adapter to the DC port on the phone and connect the other
■
end of the power adapter into an electrical power outlet.
Connect the ethernet cable between the Internet port on the phone and the network port on a
■
router or switch to access LAN.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.
Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Power over Ethernet (PoE)
Connect the Network (only)
Using a regular ethernet cable, your phone can be powered from a Power over Ethernet (PoE)
compliant router or switch.

Connect the Ethernet cable between the Internet port on the phone and an available port on
■
the in-line power router or switch.
NOTE: If you are using Power over Ethernet (PoE), you don't need to connect the AC adapter.
Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.
Find the phone IP address
Find out your VVX150 OBi Edition phone IP Address.
Press Home button.
■
Select Settings with navigation buttons.
■
The IP address will be displayed on the top of display.
Reset to factory settings
This step is not required for brand new out-of-the-box phones, however, if the phone has been
already used then it is a must.
Open a new browser window and enter your phone IP address in order to access the phone
■
web administration interface login screen. Example: http://192.168.1.22.
Login to phone web administration interface with your username and password. Please note,
■
factory default login details are username: admin and password: admin.
Click on System Management menu.
■
Click on Device update menu.
■
Click on Reset button in order to reset the phone to factory settings. Phone will be reset to the
■
factory settings and reboot.
Wait sometime prior for device to reboot.
■
NOTE: Do not unplug or remove power to the phone while it is updating firmware and
configurations.
Registering phone
This chapter describes how to identify Polycom VVX OBi Edition phone model, requirements
that must be met and how to register the phone using manual configuration or auto
provisioning.
The following topics are covered:
Manual configuration
■
Auto provisioning
■

Manual configuration
This chapter describes how to set UAD settings, create PBXware extension and register the
phone.
The following topics are covered:
UAD settings
■
Creating extension
■
Registering phone
■

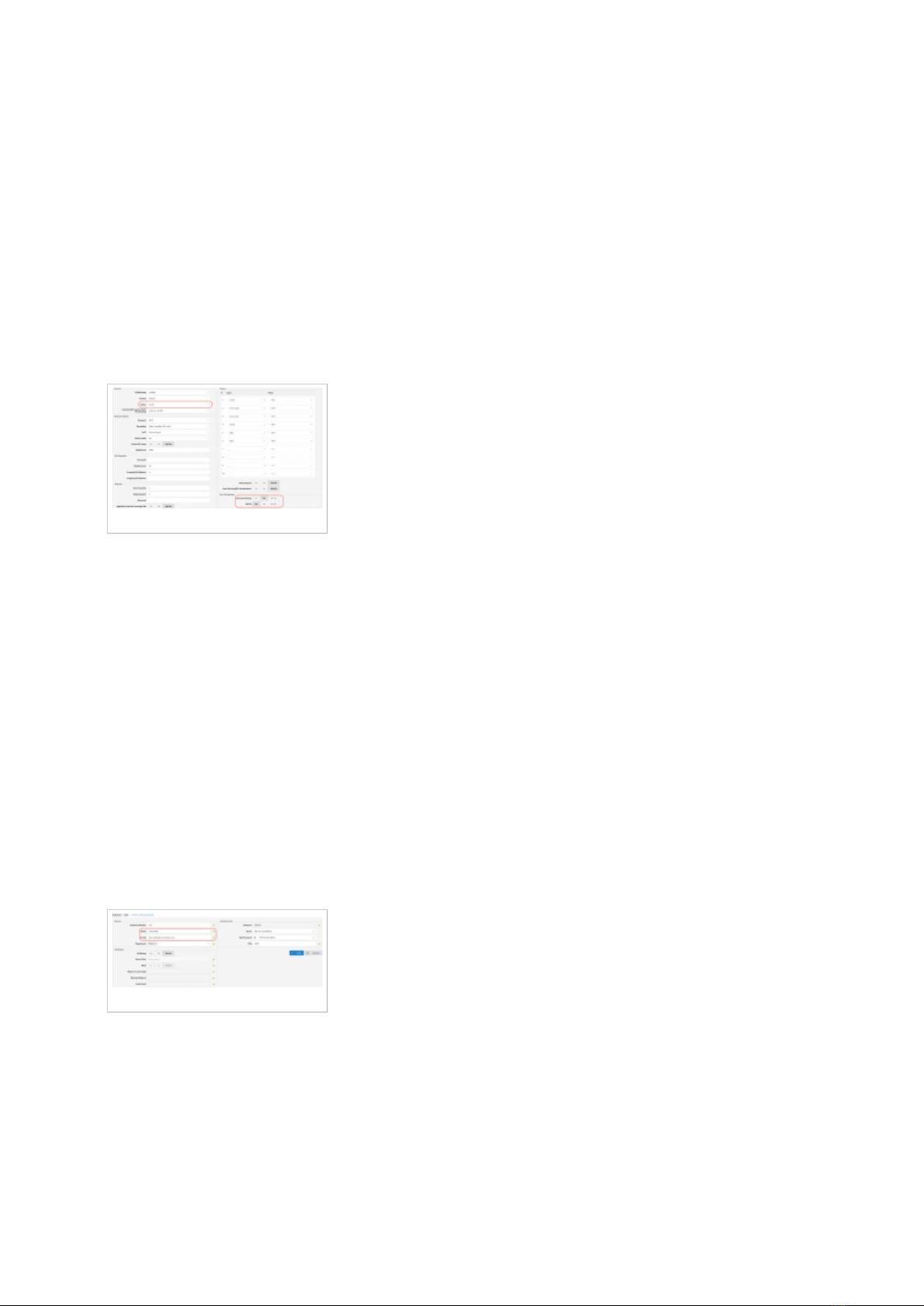

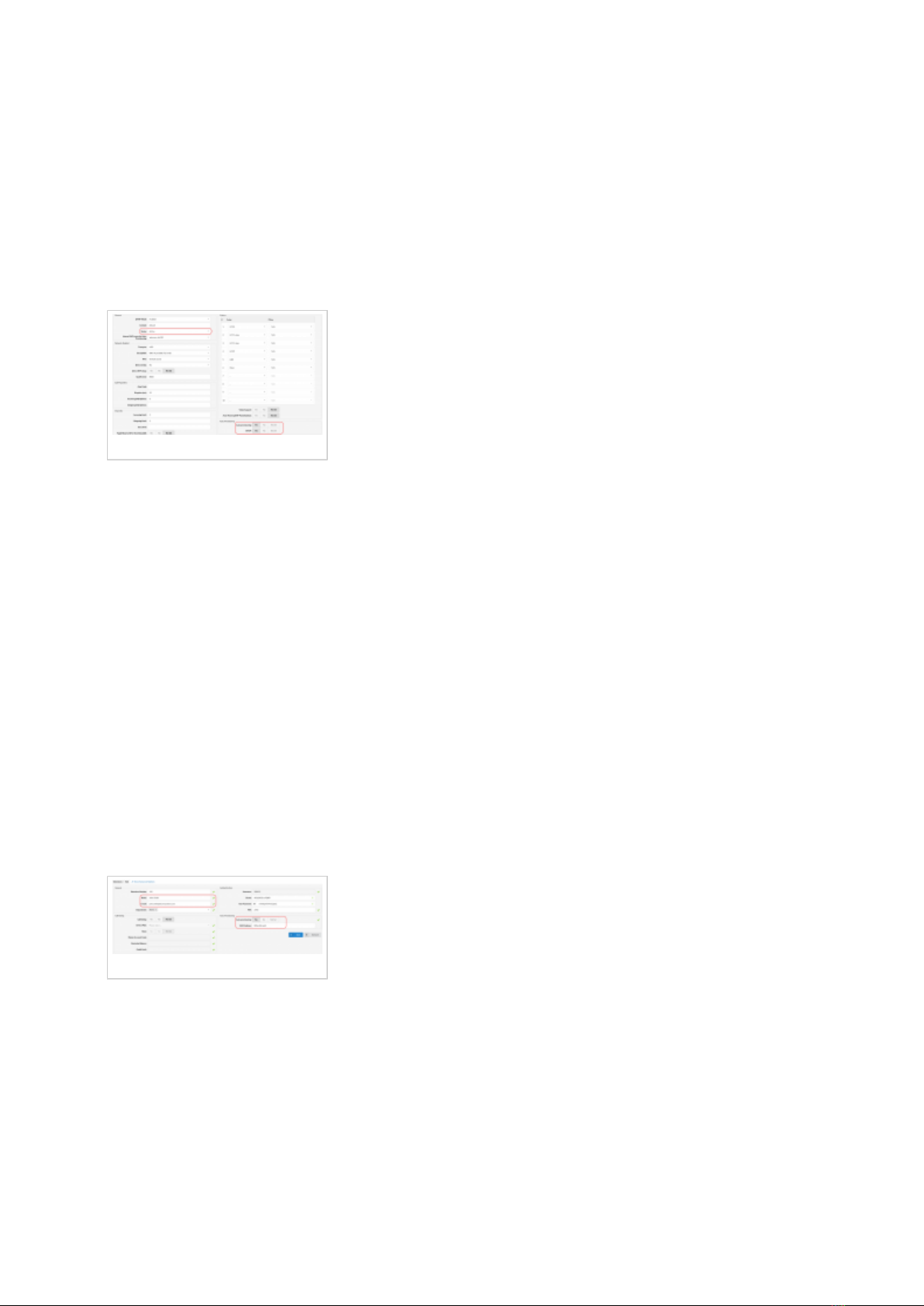

UAD Settings
UAD settings
Login to PBXware web administration interface
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
Navigate to Settings:UAD.
■
Make sure Polycom VVX OBi Edition UAD is enabled. To check the UAD status click on the
■
edit icon corresponding to your Polycom VVX OBi Edition phone.
Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating extension
Creating Extension
Add Extension
Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Polycom VVX OBi Edition phone model from the UAD select box.
■
Select Location: Local or Remote.
■

Local is for all extensions registered on the LAN and Remote is for all extensions
registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■
Extension values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected]
Department
■
Department to which extension will belong to. Example: Sales.
Click on the Save button.
■
Registering Phone
This chapter describes how to register Polycom VVX OBi Edition phone using Hostname or IP
Address.
The following topics are covered:
Hostname or IP Address
■
Hostname or IP Address
Login to phone web administration interface
Open a new browser window and enter your phone IP address in order to access the phone
■
web administration interface login screen. Example: http://192.168.1.22
Login to phone web administration interface with your username and password. Please note,
■
factory default login details are username: admin and password: admin.
Click on Service Providers and select Profile A.
■
Enter or set the following details into the SIP section.
■
REQUIRED FIELDS:
Proxy Server
■

Enter the Hostname or IP Address of the PBXware.
- Example for Hostname: voip.bicomsystems.com
- Example for IP Address: 192.168.1.10
Registrar Server
■
Enter the Hostname or IP Address of the PBXware.
- Example for Hostname: voip.bicomsystems.com
- Example for IP Address: 192.168.1.10
Click on Voice Services and select SP1 Service.
■
X_DisplayLabel
■
Usually the same number as the Phone Number.
X_DisplayNumber
■
Usually the same number as the Phone Number.
AuthUserName
■
Your Extension number.
AuthPassword
■
The Secret of the extension as received in the e-mail associated with this extension.
Example: _%Z4M3*Ts9y7. A password is generated automatically for each newly created
extension.
URI
■
Extension number and the server location in this format: [email protected].
Click on the Submit button, then Reboot button.
■
You'll have to wait sometime prior for the device to reboot. If everything is done as above
■
described, you should have successfully registered your phone to PBXware. Dial *123 to verify
registration.
Auto Provisioning
This chapter describes how to set UAD settings, create PBXware extension and register the

phone using DHCP or Static IP address.
The following topics are covered:
UAD Settings
■
Creating Extension
■
Registering Phone
■
UAD Settings
UAD settings
Login to PBXware web administration interface.
Open a new browser window and enter the IP address in order to access the PBXware web
■
administration login screen. Example: http://192.168.1.10.
Login to PBXware with your e-mail address and password.
■
UAD settings.
Navigate to Settings:UAD.
■
Make sure Polycom VVX OBi Edition UAD is enabled. To check the UAD status click on the
■
edit icon corresponding to your Polycom VVX OBi Edition phone.
Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
■
Click on the Save button to save changes.
■
Creating Extension
Creating Extension
Add Extension
Navigate to Extensions. Click on Add Extension.
■
The standard options window will be shown below.
■
Select Polycom VVX OBi Edition phone model from the UAD select box.
■
Select Location: Local or Remote.
■
Local is for all extensions registered on the LAN and Remote is for all extensions

registered from remote networks, WAN, Internet etc.
Click on the Next step button.
■
Extension values
Enter values into the required field text boxes.
REQUIRED FIELDS:
Name
■
Enter a name for the extension being created. Example: John Smith.
E-mail
■
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected]
Auto Provisioning
■
Set to Yes.
MAC Address
■
Enter Polycom VVX OBi Edition phone MAC address. Example: 9CADEF123456. MAC
address can be found at the back of the phone.
Click on the Save button.
■
Registering Phone
This chapter describes how to register Polycom VVX OBi Edition phone using DHCP, TFTP or
HTTP.
The following topics are covered:
DHCP
■
TFTP or HTTP
■
DHCP
Configure DHCP
Make sure your DHCP router is configured to use option 66 to automatically instruct phones
■
with the URL for auto provisioning. For more information refer to your router documentation
or contact your network administrator.
Phone first boot or user initiated reboot

Auto provisioning process will start during phone first boot or after reboot process has been
■
initiated by user. DHCP server will instruct the phone where from to pickup appropriate
configuration file. If everything is done as above described, you should have successfully
registered your phone to PBXware. Dial *123 to verify registration.
TFTP or HTTP
Open a new browser window and enter your phone IP address, e.g. http://192.168.1.22.
■
Enter username and password and press Confirm button. NOTE: Factory default login
■
details are username: admin and password: admin.
Click on System Management link in the left hand navigation menu.
■
Click on Auto Provisioning link in the submenu, and in the ITSP Provisioning section enter
■
the following in the ConfigURL field:
NOTE: Our recommendation is to use the HTTP.
■
Example for Hostname using HTTP:
http://username:[email protected]/prov/$mac.xml
Example for IP Address using HTTP:
http://username:[email protected]/prov/$mac.xml
Replace username and password with Auto Provisioning username and password.
■
Example for Hostname using TFTP:
tftp://voip.bicomsystems.com/$mac.xml
Example for IP Address: tftp://192.168.1.10/$mac.xml

Click on Submit button then Reboot button.
■
Auto provisioning process will start during phone reboot process, phone will pickup
■
appropriate configuration file from PBXware. If everything is done as above described, you
should have successfully registered your phone to PBXware. Dial *123 to verify registration.
Additional Configuration Template
If You want to include some additional UAD configuration for Polycom VVX OBi Edition, just add
fields to User Agent General Auto Provisioning Template in Settings -> UAD -> Polycom
VVX150 OBi Edition menu, or add them directly to the extension in UAD Auto Provisioning
Template section.
