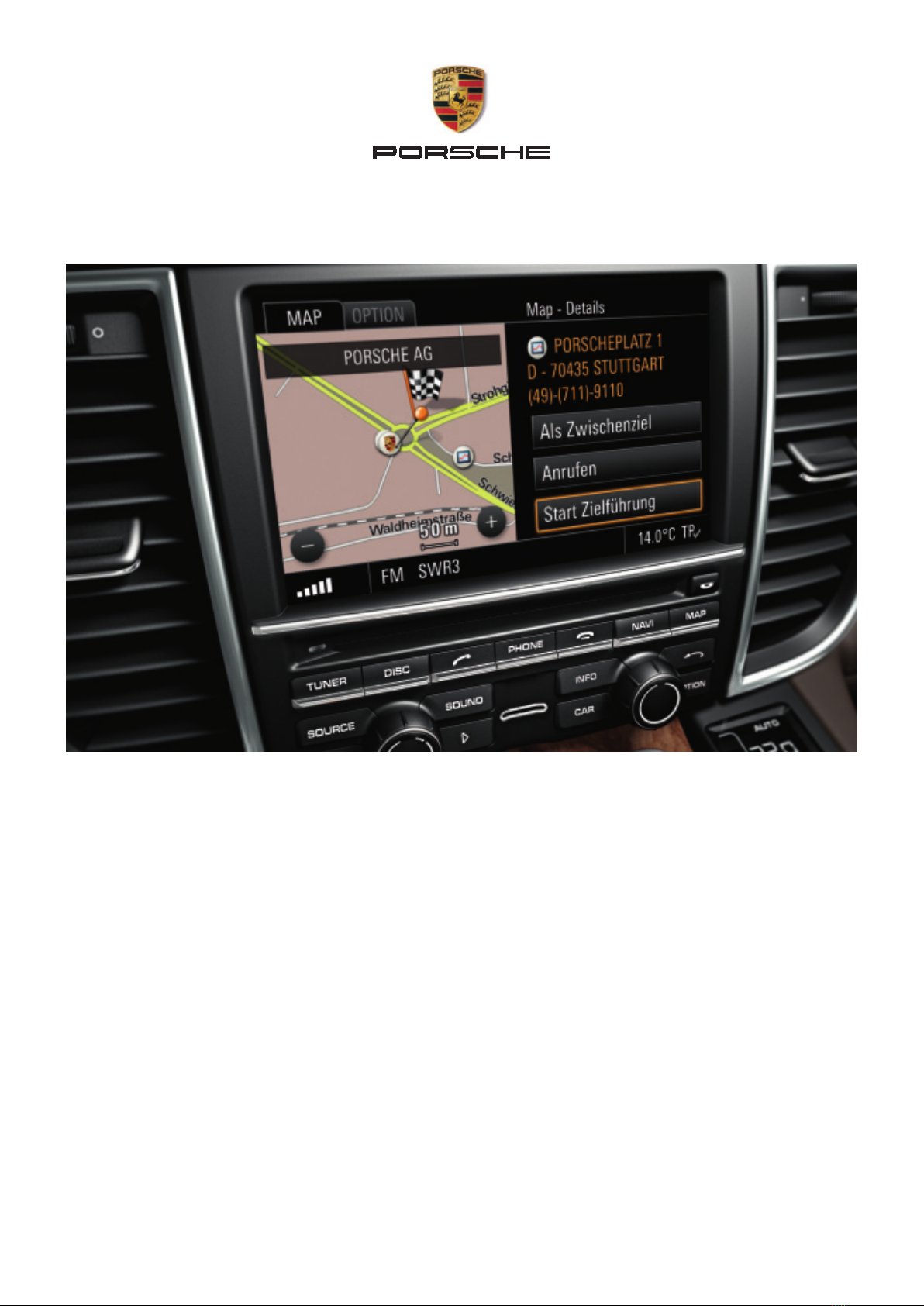

Porsche PCM User manual

Mobile Communication
Compatibility of Bluetooth®mobile phones with PCM/CDR-31
in the Panamera models

2
Contents
1. Compatibility list for Bluetooth®
mobile phones
2. Detailed overview of functions
3. Pairing instructions for the CDR-31
4. Pairing instructions for the PCM
5. Frequently asked questions (FAQs)
6. Glossary

1. Compatibility list for Bluetooth®mobile phones
3
1. Compatibility list for Bluetooth®mobile phones
Manufacturer Model
Compatible with PCM
with preparation for
mobile phone/CDR-31
with preparation for
mobile phone
Compatible
with PCM
with phone module
Apple iPhone®3GS • •
Apple iPhone®4 • •
BlackBerry®Pearl™ 9105 • •
BlackBerry®Curve™ 9300 • •
BlackBerry®Bold™ 9700 • •
BlackBerry®Bold™ 9780 • •
BlackBerry®Torch™ 9800 • •
HP Palm Pre 2 • •
Status 26.04.2011. Errors and omissions excepted. • compatible

1. Compatibility list for Bluetooth®mobile phones
4
Manufacturer Model
Compatible with PCM
with preparation for
mobile phone/CDR-31
with preparation for
mobile phone
Compatible
with PCM
with phone module
Nokia 5630 XpressMusic • •
Nokia 6700 Classic • •
Nokia 6710 Navigator • •
Nokia 7230 • •
Nokia C3-01 • •
Nokia E72 • •
Nokia E75 • •
Nokia N97 mini • •
Status 26.04.2011. Errors and omissions excepted. • compatible

5
Manufacturer Model
Compatible with PCM
with preparation for
mobile phone/CDR-31
with preparation for
mobile phone
Compatible
with PCM
with phone module
Nokia X3 • •
Nokia X3-02 • •
Samsung Omnia 7 • •
Sony Ericsson C510 • •
Sony Ericsson W705 • •
Sony Ericsson W995 • •
Sony Ericsson Aino • •
Sony Ericsson Yari • •
Status 26.04.2011. Errors and omissions excepted. • compatible
1. Compatibility list for Bluetooth®mobile phones

6
Manufacturer Model
Compatible with PCM
with preparation for
mobile phone/CDR-31
with preparation for
mobile phone
Compatible
with PCM
with phone module
Sony Ericsson Elm • •
Sony Ericsson Satio • •
Sony Ericsson Xperia Arc • •
Sony Ericsson Xperia Neo • •
This is not an exhaustive compatibility list. If your device is not listed here, please consult your Porsche Centre.
Research In Motion, the RIM logo, BlackBerry®, the BlackBerry® logo and SureType are registered with the
U.S. Patent and Trademark Office and may be pending or registered in other countries – these and other marks
of Research In Motion Limited are used under license.
Status 26.04.2011. Errors and omissions excepted. • compatible
1. Compatibility list for Bluetooth®mobile phones

2. Detailed overview of functions
7
2. Detailed overview of functions
Manufacturer Model Firmware version
Pairing from vehicle
Pairing from device
Auto-connect
Register state
Signal strength
Network name
Basic phone functions
Additional call/call transfer*
Conference call*
DTMF tones
Ringtone from mobile phone
(in-band ringing)*
Contacts on SIM card*
Contacts on device
Call lists
Pairing from vehicle
Auto-connect
SIM phone books
SMS download messages
from SIM
Comments
Apple iPhone®3Gs 4.3.2 • • -• • •••••••• -• • - - - - - 88 - Connection by iPod® cable recommended Apple iPhone®4 4.3.2 • • -• • •••••••• -• • - - - - - 88 - Connection by iPod® cable recommended Blackberry®Pearl™ 9105 6.0b2343 • • •• • ••••••• - - • • • • • • - Blackberry®Curve™ 9300 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Bold™ 9700 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Bold™ 9780 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Torch™ 9800 6.0b2342 • • •• • ••••••• - - • • • • • • - HP Palm Pre 2 HP webOS 2.1.0 • • •• • ••••••• -••• - - - - - Nokia 5630 XpressMusic 11.020 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia 6700 classic 10.50 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia 6710 Navigator 22.013 • • •• • •••••••• -••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia 7230 6.90 • • •• • •••••••• -••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia C3-01 6.00 • • •• • •••••••••••• •1• • • 1 - No connection on active call Nokia E72 22.007 • • •• • •••••••••••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia E75 110.48.125 • • •• • •••••••••••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia N97 mini 11.0.045 • • •• • •••••••••••3• • • • -3 - Wrong time stamp on transmission of call lists (GMT) Nokia X3 4.11 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia X3-02 6.00 • • •• • •••••••••••• •1• • • 1 - Problems on connection with active call Samsung Omnia 7 7.0.7389.0 • • -• • • •2••••• -••• - - - - - 2 - Displayed field strength often less than actual Sony Ericsson C510 R1HA035 • • •• • ••••••• -••• - - - - • Sony Ericsson W705 R1GA030 • • •• • ••••••• -••• - - - - • Sony Ericsson W995 R1HA036 • • •• • ••••••• -••• - - - - • Sony Ericsson Aino R7AA071 • • •• • ••••••• -••• - - - - • Sony Ericsson Yari R1BA049 • • •• • ••••••• -••• - - - - •
Sony Ericsson Elm R7BA076 • • • • • •9•9•9•••• -••• - - - - •9 - Restricted on activated GSM-UMTS roaming
Sony Ericsson Satio R2AK006 • • • • • •9•9•9•••• -••• - - - - •66 - Restricted AUX BT function
9 - Restricted on activated GSM-UMTS roaming
Sony Ericsson Xperia Arc 3.0.A.2.184 • • -•4• ••••••• -••• - - - - - 4 - Please note pairing instructions Sony Ericsson Xperia Neo 3.0.A.2.184 • • -•4• ••••••• -••• - - - - - 4 - Please note pairing instructions
• = compatible/function supported; – = incompatible/function not supported; * = PCM only; Status 26.04.2011; Errors and omissions excepted
MP3-Audioübertragung
via Bluetooth®(AUX BT)*
Compatible with PCM with
preparation for mobile phone/
CDR-31 with preparation
for mobile phone
Compatible with PCM with PCM
telephone
Remote SIM Access*Connection Phone functionsStatus display Phone book
Manufacturer Model Firmware version
Pairing from vehicle
Pairing from device
Auto-connect
Register state
Signal strength
Network name
Basic phone functions
Additional call/call transfer*
Conference call*
DTMF tones
Ringtone from mobile phone
(in-band ringing)*
Contacts on SIM card*
Contacts on device
Call lists
Pairing from vehicle
Auto-connect
SIM phone books
SMS download messages
from SIM
Comments
Apple iPhone®3Gs 4.3.2 • • -• • •••••••• -• • - - - - - 88 - Connection by iPod® cable recommended Apple iPhone®4 4.3.2 • • -• • •••••••• -• • - - - - - 88 - Connection by iPod® cable recommended Blackberry®Pearl™ 9105 6.0b2343 • • •• • ••••••• - - • • • • • • - Blackberry®Curve™ 9300 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Bold™ 9700 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Bold™ 9780 6.0b2342 • • •• • ••••••• - - • • • • • • - Blackberry®Torch™ 9800 6.0b2342 • • •• • ••••••• - - • • • • • • - HP Palm Pre 2 HP webOS 2.1.0 • • •• • ••••••• -••• - - - - - Nokia 5630 XpressMusic 11.020 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia 6700 classic 10.50 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia 6710 Navigator 22.013 • • •• • •••••••• -••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia 7230 6.90 • • •• • •••••••• -••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia C3-01 6.00 • • •• • •••••••••••• •1• • • 1 - No connection on active call Nokia E72 22.007 • • •• • •••••••••••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia E75 110.48.125 • • •• • •••••••••••3• • • • •63 - Wrong time stamp on transmission of call lists (GMT)
6 - Restricted AUX BT function
Nokia N97 mini 11.0.045 • • •• • •••••••••••3• • • • -3 - Wrong time stamp on transmission of call lists (GMT) Nokia X3 4.11 • • •• • •••••••••••• • •••66 - Restricted AUX BT function Nokia X3-02 6.00 • • •• • •••••••••••• •1• • • 1 - Problems on connection with active call Samsung Omnia 7 7.0.7389.0 • • -• • • •2••••• -••• - - - - - 2 - Displayed field strength often less than actual Sony Ericsson C510 R1HA035 • • •• • ••••••• -••• - - - - • Sony Ericsson W705 R1GA030 • • •• • ••••••• -••• - - - - • Sony Ericsson W995 R1HA036 • • •• • ••••••• -••• - - - - • Sony Ericsson Aino R7AA071 • • •• • ••••••• -••• - - - - • Sony Ericsson Yari R1BA049 • • •• • ••••••• -••• - - - - •
Sony Ericsson Elm R7BA076 • • • • • •9•9•9•••• -••• - - - - •9 - Restricted on activated GSM-UMTS roaming
Sony Ericsson Satio R2AK006 • • • • • •9•9•9•••• -••• - - - - •66 - Restricted AUX BT function
9 - Restricted on activated GSM-UMTS roaming
Sony Ericsson Xperia Arc 3.0.A.2.184 • • -•4• ••••••• -••• - - - - - 4 - Please note pairing instructions Sony Ericsson Xperia Neo 3.0.A.2.184 • • -•4• ••••••• -••• - - - - - 4 - Please note pairing instructions
• = compatible/function supported; – = incompatible/function not supported; * = PCM only; Status 26.04.2011; Errors and omissions excepted
MP3-Audioübertragung
via Bluetooth®(AUX BT)*
Compatible with PCM with
preparation for mobile phone/
CDR-31 with preparation
for mobile phone
Compatible with PCM with PCM
telephone
Remote SIM Access*Connection Phone functionsStatus display Phone book

3. Pairing instructions for the CDR-31
Requirements for the CDR-31
– The CDR-31 must be specified with the option
‘preparation for mobile phone’.
– The Bluetooth® function on the CDR-31 must be
switched on.
– The CDR-31 is not connected with a mobile phone.
Pressing the ‘PHONE’ button displays the menu item
‘Find telephone’.
Requirements for the mobile phone
– The Bluetooth® function must be switched on.
– The mobile phone must be visible to other devices.
These two settings are normally found in the Bluetooth®
settings on the mobile phone.
Note: Some mobile phones (e.g. Motorola) can only
be made visible for a limited period of time (e.g.
1 minute). If pairing is not completed within this time,
it may be necessary to repeat the process. Some
mobile phones respond to a pairing request by the
PCM only when their screen is active and visible.
Note for iPhone®and BlackBerry®: iPhone®and
BlackBerry® devices cannot be found and paired
from the CDR-31. The pairing must therefore be
started from the iPhone® or BlackBerry® itself (see
pairing instructions for iPhone® and BlackBerry®
devices with the CDR-31).
Pairing process
CDR-31
1. Press ‘PHONE’ button.
2. Select ‘Find telephone’. A search is performed for
available Bluetooth® phones. At the end of the search,
the devices found are displayed in a list.
Note: Since the CDR-31 can include a maximum of
three devices in its list, delete any devices that are
no longer required from the list before starting the
search for new devices.
3. Select the phone you want from the search list on the
CDR-31. You are now prompted to enter a Bluetooth®
code specified by the CDR-31 on the phone. Confirm
the prompted code on the CDR-31 with ‘OK’. Enter the
correct code on the mobile phone and confirm it to
complete the pairing process.
Note: The user has 30 seconds to enter the code.
If pairing is not completed within this time, it may
be necessary to repeat the process. To do this,
select the phone you want from the search list on
the CDR-31 again.
Mobile phone
4. After pairing, the CDR-31 attempts to connect with
the phone. On some phones, it is necessary to
confirm the connection by pressing a button on
the handset.
5. On some phones, when connection is established
transfer of the phone book must also be confirmed
on the phone. We recommend always allowing the
CDR-31 access if this option is available on the phone.
Note: In most cases, a paired phone will be auto-
matically found and connected whenever the car is
started. In some cases (e.g. Nokia N and E series),
however, it is necessary to authorise the CDR-31 in
the device list on the mobile phone.
8
3. Pairing instructions for Bluetooth®mobile phones with the CDR-31

3. Pairing instructions for the CDR-31
Requirements for the CDR-31
– The CDR-31 must be specified with the option
‘preparation for mobile phone’.
– The Bluetooth® function on the CDR-31 must be
switched on.
– The CDR-31 must be visible. For this, it must
be included in the list of devices shown under
‘PHONE/OPTION/Device List’.
– The CDR-31 is not connected with a mobile phone.
Pressing the ‘PHONE’ button displays the message
‘Find telephone’.
Requirements for the BlackBerry®
– The Bluetooth® function must be switched on. You can
switch on the Bluetooth® function on the BlackBerry®
via ‘Manage connections/Bluetooth® On’. An icon in the
status area indicates that the Bluetooth® function is
switched on.
Note: The BlackBerry®does not appear in the
search list on the CDR-31 because it has a higher
security level. In this case, therefore, you must
start the search from the mobile phone itself.
Pairing process
CDR-31
1. Press ‘PHONE’ button.
2. Press ‘OPTION’ button.
3. Select the menu item ‘Device list’.
The CDR-31 is now visible to external devices.
Note: To speed up the CDR-31’s location of the
BlackBerry®, delete any devices that are no longer
required from the list before starting the search for
new devices.
BlackBerry®
4. Select the menu item ‘Manage connections/Bluetooth®
connections’.
5. Press the trackball and select ‘Full menu/Add device/
Search’. The BlackBerry® now starts to search for
visible Bluetooth®devices.
6. Select ‘CDR-31’ from the search list on the
BlackBerry®. A connection request now appears
on the CDR-31; you must confirm this request.
CDR-31
7. A number pad is displayed on the CDR-31; enter any
4-digit Bluetooth® code of your choice (e.g. ‘0000’)
and confirm with ‘OK’.
BlackBerry®
8. Enter the same Bluetooth® code on the BlackBerry®
and confirm with ‘OK ()’. Pairing is now complete.
Note: The user has 30 seconds to enter the code. If
pairing is not completed within this time, it may be
necessary to repeat the process. To do this, select
‘CDR-31’ from the search list again.
9. A window now appears on the BlackBerry® asking
whether the connection with the CDR-31 should be
accepted. Answer this question with ‘Yes’ and
confirm the item ‘Do not ask this question again’
by setting a check. The CDR-31 is now authorised
on the BlackBerry®. The BlackBerry® will be
automatically found and connected whenever the
car is started.
9
3. Pairing instructions for BlackBerry®devices with the CDR-31

3. Pairing instructions for the CDR-31
Requirements for the CDR-31
– The CDR-31 must be specified with the option
‘preparation for mobile phone’.
– The Bluetooth® function on the CDR-31 must be
switched on.
– The CDR-31 must be visible. For this, it must
be included in the list of devices shown under
‘PHONE/OPTION/Device List’.
– The CDR-31 is not connected with a mobile phone.
Pressing the ‘PHONE’ button displays the message
‘Find telephone’.
Requirements for the iPhone®
– The Bluetooth® function must be switched on. The
Bluetooth® function on the iPhone® is switched on
in the Bluetooth® settings menu. You can access
this menu via ‘Settings/General/Bluetooth®’.
– An icon in the status area indicates that the
Bluetooth® function is switched on.
Note: The Bluetooth® function on the iPhone®is
configured in such a way that a device search is
normally started by the iPhone® itself.
Pairing process
CDR-31
1. Press ‘PHONE’ button.
2. Press ‘OPTION’ button.
3. Select the menu item ‘Device list’.
The CDR-31 is now visible to external devices.
Note: To speed up the CDR-31’s location of the
iPhone®, delete any devices that are no longer
required from the list before starting the search
for new devices.
iPhone®
4. Select the menu item ‘Settings/General/Bluetooth®’.
The iPhone® now starts to search for visible
Bluetooth®devices.
5. Select ‘CDR-31’ from the search list on the iPhone®.
A connection request now appears on the CDR-31;
you must confirm this request.
CDR-31
6. A number pad is displayed on the CDR-31; enter any
4-digit Bluetooth® code of your choice (e.g. ‘0000’)
and confirm with ‘OK’.
iPhone®
7. A numerical field is displayed on the iPhone®; enter
the same Bluetooth® code in this field and confirm
with ‘Pair’. Pairing is now complete.
Note: The user has 30 seconds to enter the code. If
pairing is not completed within this time, it may be
necessary to repeat the process. To do this, select
‘CDR-31’ from the search list again.
8. The iPhone® now automatically establishes a
Bluetooth® connection with the CDR-31.
9. Your iPhone® is now connected with the CDR-31.
The next time the car is started, it will be automatically
connected with the CDR-31.
10
3. Pairing instructions for an iPhone®with the CDR-31
