Porter-Cable 690 User manual

Instruction
manual
The Model and Serial No. plate is located on the
main housing of the tool. Record these numbers in
the spaces below and retain for future reference.
Model No.____________________________________
Type _________________________________________
Serial No. ____________________________________
IMPORTANT
Please be certain that the person who is to use
this equipment carefully reads and understands
these instructions before starting operations.
Part No. 904373 - 10-31-01
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2001 Porter-Cable Corporation
Routers
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 27
MODEL 690
MODEL 691
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 1

2
WARNING: SOME DUST CREATED BY POWER SANDING, SAWING,
GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES
contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust
masks that are specially designed to filter out microscopic particles.
GENERAL SAFETY RULES
WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to
follow all instructions listed below, may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS!
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
2. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your
body is grounded.
3. Don’t expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull
the plug from an outlet. Keep cord away from heat, oil, sharp edges or
moving parts. Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
5. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These cords are rated for outdoor use and reduce the
risk of electric shock.
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 2

3
PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long
hair. Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is OFF before plugging in.
Carrying tools with your finger on the switch or plugging in tools that have the
switch ON invites accidents.
4. Remove adjusting keys or wrenches before turning the tool ON. A
wrench or a key that is left attached to a rotating part of the tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance at all times.
Proper footing and balance enable better control of the tool in unexpected
situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-
skid safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
TOOLS USE AND CARE
1. Use clamps or other practical way to secure and support the
workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The
correct tool will do the job better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it ON or OFF. A tool that cannot
be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and are
easier to control.
7. Check for misalignment or binding of moving parts, breakage of
parts, and any other condition that may affect the tool’s operation. If
damaged, have the tool serviced before using. Many accidents are caused
by poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer for
your model. Accessories that may be suitable for one tool may become
hazardous when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel may result in a
risk of injury.
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 3

4
ADDITIONAL SAFETY RULES FOR ROUTERS
1. NEVER ADJUST the depth of cut while the motor is running. This action
may cause personal injury and/or damage to cutter or workpiece.
2. CHECK TO SEE that the cord is free and will not “hang up” during routing
operations.
3. KEEP YOUR HANDS CLEAR of the cutter when the motor is running to
prevent personal injury.
4. MAINTAIN A FIRM GRIP on the router when starting the motor to resist
starting torque.
5. STAY ALERT and keep the cutter clear of all foreign objects while the
motor is running.
6. BE CERTAIN THAT the motor has completely stopped before putting the
machine down between operations.
7. DO NOT use router bits with a diameter in excess of 21/8" in this machine.
8. DO NOT hand-hold the router in an upside-down or horizontal position.
The motor can fall from the base if it is not properly attached according to
instructions (see page 7).
9. AVOID “CLIMB-CUTTING” (see page 10). “Climb-cutting” increases the
chance for loss of control resulting in possible personal injury.
10. NEVER TOUCH the router bits after use. They get extremely hot during
operation.
11. CHECK TO SEE THAT the bit is centered in the templet guide (See page
9) to avoid personal injury and/or damage to finished work
12. SOME WOOD CONTAINS PRESERVATIVES WHICH CAN BE TOXIC.
Take extra care to prevent inhalation and skin contact when working with these
materials. Request and follow any safety information available from your
material supplier.
13. WARNING: This tool was designed for certain applications. DO NOT
modify and/or use it for any application other than for which it was designed.
If you have questions relative to its application DO NOT use the tool until you
have written Porter-Cable and we have advised you.
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
Jackson, TN 38305
SYMBOL DEFINITION
V ........................ volts
A ........................ amperes
Hz ........................ hertz
W ........................ watts
kW ........................ kilowatts
µF ........................ microfarads
l ........................ liters
kg ........................ kilograms
N/cm2........................ newtons per square centimeter
Pa ........................ pascals
h ........................ hours
min ........................ minutes
s ........................ seconds
........................ alternating current
3 ........................ three-phase alternating current
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 4

3N........................ three-phase alternating current with neutral
........................ direct current
n0........................ no load
........................ alternating or direct current
........................ Class II Construction
........................ splash-proof construction
........................ watertight construction
…/min ........................ revolutions or reciprocation per minute
REPLACEMENT PARTS
When servicing use only identical replacement parts.
MOTOR
Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60
cycle A.C. current and voltage within plus or minus 5 percent of that shown on
the specification plate on the tool. Several models, however, are designed for
A.C. current only. Refer to the specification plate on your tool for proper voltage
and current rating.
CAUTION: Do not operate your tool on a current on which the voltage
is not within correct limits. Do not operate tools rated A.C. only on
D.C. current. To do so may seriously damage the tool.
EXTENSION CORD SELECTION
If an extension cord is used, make sure the conductor size is large enough to
prevent excessive voltage drop which will cause loss of power and possible
motor damage. A table of recommended extension cord sizes will be found in
this section. This table is based on limiting line voltage drop to 5 volts (10 volts
for 230 volts) at 150% of rated amperes.
If an extension cord is to be used outdoors it must be marked with the suffix
W-A or W following the cord type designation. For example – SJTW-A to
indicate it is acceptable for outdoor use.
5
Length of Cord in Feet
115V 25 Ft. 50 Ft. 100 Ft. 150 Ft. 200 Ft. 250 Ft. 300 Ft. 400 Ft. 500 Ft.
230V 50 Ft. 100 Ft. 200 Ft. 300 Ft. 400 Ft. 500 Ft. 600 Ft. 800 Ft. 1000 Ft.
0-2181818161614141212
2-3181816141412121010
3-418181614121210108
4-5 18 18 14 12 12 10 10 8 8
5-6 18 16 14 12 10 10 8 8 6
6-8 18 16 12 10 10 8 6 6 6
8-10 18 14 12 10 8 8 6 6 4
10-12 16 14 10 8 8 6 6 4 4
12-14 16 12 10 8 6 6 6 4 2
14-16 16 12 10 8 6 6 4 4 2
16-18 14 12 8 8 6 4 4 2 2
18-20 14 12 8 6 6 4 4 2 2
Nameplate Ampere Rating
RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 5

FUNCTIONAL DESCRIPTION
FOREWORD
Porter Cable Models 690 and 691 are routers designed for continuous rugged
operation to handle the most demanding production applications.
OPERATING INSTRUCTIONS
SELECTING THE BIT
These routers accommodate bits with 1/4" diameter shanks that are installed
directly into the power unit collet. Collets are available to allow the use of bits
having 3/8" or 1/2" diameter shanks. Both the 690 and 691 come furnished with
1/4" and 1/2" diameter collets.
CAUTION: Do not use router bits with a diameter in excess of 2 1/8" in this tool.
CAUTION: ALWAYS disconnect this tool from the power source when
preparing the tool for use, when making adjustments, and when the tool is not
in use.
INSTALLING AND REMOVING THE BIT
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Remove the motor unit from the
base unit:
(a) Loosen the clamp screw (A) Fig. 1.
(b) While holding the base, turn the
motor unit COUNTER-CLOCK-
WISE until the lower pin (B) in the
motor housing is disengaged
from the groove in the base.
(c) Lift the motor unit from the base
unit.
3. Clean and insert the shank of the
bit into the collet until the shank
bottoms. Then back it out approx-
imately 1/16".
4. Lay the motor unit on its side on a
supporting surface with the collet
pointed AWAY from you.
5. Place one wrench on the flats of
the chuck with the opposite end of the
the wrench resting on the bench to
your left (Fig. 2).
6. Place the other wrench on the
collet and tighten COUNTER-CLOCK-
WISE (Fig. 2). TIGHTEN FIRMLY.
7. To remove the bit, reverse the
procedure.
6
Fig. 2
Fig. 1
B
A
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 6

7
AVOID POSSIBLE DAMAGE TO COLLET. Never tighten collet without bit.
ATTACHING THE MOTOR TO THE MODEL 690
1. CAUTION: DISCONNECT MOTOR FROM POWER SOURCE.
2. Loosen the clamp screw (A) Fig. 1 to allow the power unit to be set in the
base unit.
3. Insert the motor unit into base aligning the lower pin (B) with the groove
in the base.
4. Rotate the motor unit CLOCKWISE into the base until the upper guide
pins are rigidly set in the groove of the base.
5. Tighten the clamp screw firmly.
ATTACHING THE MOTOR TO THE MODEL 691
1. CAUTION: DISCONNECT
BOTH POWER CORDS (base and
motor) FROM POWER SOURCE.
2. Loosen the clamp screw (A),
Fig. 3 to set the power unit in the
base unit.
3. With the motor switch (C)
positioned (Fig. 3), insert the motor
unit into the base aligning the
lower pin (B) with the groove in the
base.
4. Rotate the motor unit into the
base CLOCK-WISE until the motor
switch (C) is opposite the handle
(Fig. 4).
5. Connect the motor unit cord to
the outlet in handle (Fig. 4).
6. Continue rotating the motor
unit into the base until upper guide
pins set rigidly into the base.
7. Tighten clamp screw firmly.
ADJUSTING DEPTH OF CUT
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
Fig. 3
C
B
A
Fig. 4
C
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 7

8

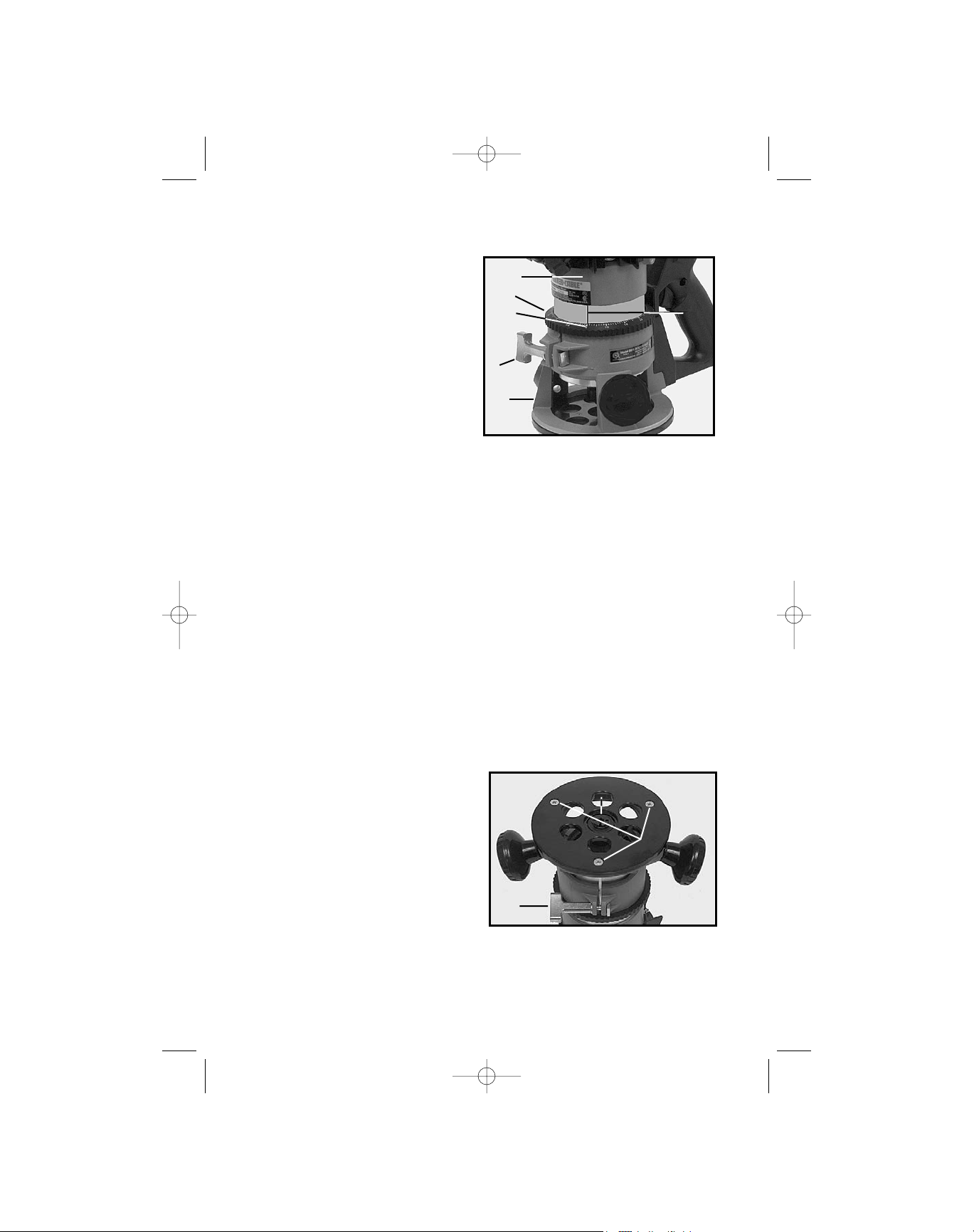

2. Loosen the clamp screw (A), Fig. 5.
3. Hold the base (E), and turn the motor unit (F), Fig. 5 COUNTER-CLOCK-
WISE until the tip of the bit is above
the bottom of the base.
4. Set the router on a flat surface.
5. Turn the motor unit (F), Fig. 5
CLOCKWISE until bit touches the
wood surface.
6. Tighten the clamp screw (A),
Fig. 5.
7. Rotate the depth adjusting ring
(B), Fig. 5, until the zero-line (C) is
opposite the index line (D) on the
housing.
8. Loosen the clamp screw (A),
Fig. 5.
9. Tip the router so that the bit is clear of the wood surface. Turn the motor
unit (F), Fig. 5 CLOCKWISE until the index line (D) on the motor housing
reaches the desired depth indicated on the ring.
10. Tighten the clamp screw (A), Fig. 5 firmly.
NOTE: Setting the index line to 1/4" on the ring means the cutting edge of the
bit is exposed 1/4" below the base.
ADJUSTING SUB-BASE ALIGNMENT
Applications using a templet guide require the bit to be centered in the guide.
This, in turn, requires the center hole in the sub-base to be in line with the
collet of the motor unit. Your model has an adjustable sub-base which has
been aligned at the factory. If the sub-base has been removed and/or
readjustment is required, use the following procedure:
CAUTION: Be sure that the power switch is in the “OFF” position and that the
machine is disconnected from the power source to avoid accidental starting
of the motor which could result in personal injury.
1. Loosen the sub-base mounting screws just enough to allow the sub-base
to move on the base.
2. Loosen the clamp screw (C) Fig.
6, and adjust the motor so that the
collet nut engages the center hole in
the sub-base. Allow the sub-base to
center itself on the collet nut. Tighten
the clamp screw.
3. Tighten sub-base mounting
screws securely.
CONNECTING TO THE
POWER SOURCE
CAUTION: Before connecting router to power source, ALWAYS MAKE SURE
THAT THE SWITCH IS IN THE “OFF” POSITION.
Fig. 5
F
B
CD
A
E
Fig. 6
A
B
C
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 8

9
Also check to see that the power circuit is the same as that shown on
specification plate of the router.
STARTING AND STOPPING THE MOTOR
CAUTION: Before starting the router, clear the bit of the workpiece and
foreign objects. Also keep a firm grip on the router to resist starting torque.
The motor units for these routers can be used with either Model 690 or Model
691.
When using the base with two handles, (Fig. 7), start and stop the motor by
setting the toggle switch (A), Fig. 7, in the ON or OFF Position.
When using the base with the switch-in-handle (Fig. 8), check to see that the
motor unit power cord (A) is plugged into the handle, and that the switch (B)
on the motor is set to the ON position. The starting and stopping of the motor
is then controlled by pressing and releasing the trigger switch (C) Fig. 8 in the
handle of the base.
To allow the tool to run without continually pressing the trigger (C), Fig. 8,
press the trigger (C) into the handle and engage the switch locking button (D)
on the side of the handle. While holding the button in, slowly release the
trigger. To stop the tool, squeeze trigger into handle and release.
CAUTION: To avoid personal injury or damage to finished work always allow
motor to come to a COMPLETE STOP before putting it down.
USING THE ROUTER
IMPORTANT: Before using the tool, consider the workpiece. Depending on
the material, more than one cut may be necessary to avoid overloading the
motor. Before beginning the cut on the actual workpiece, make a sample cut
on a piece of scrap lumber. This action will show exactly how the cut will look,
and will enable you to check dimensions.
CAUTION: Always secure the work to a stable surface prior to routing.
Generally, the workpiece should be secured to the bench by clamps. When
routing edges, the router should be held firmly down and against the work by
both guiding knobs.
Fig. 7 Fig. 8
A
A
C
B
D
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 9

10

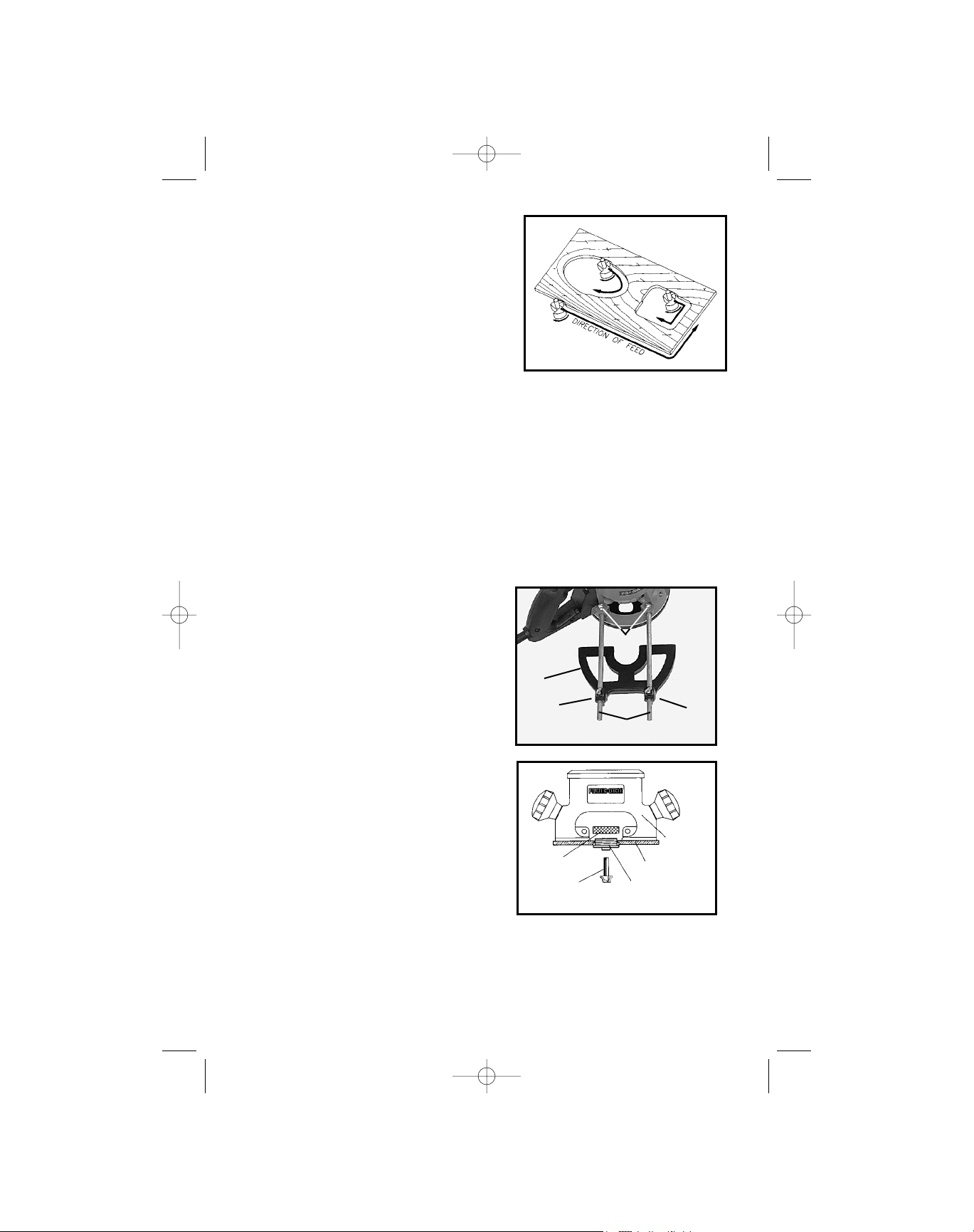

Since the cutter rotates clockwise (when
viewing router from top), move the router
from left to right to obtain a more efficient
cutting. (Fig. 9).
When working on the inside of a templet,
move the router in clockwise direction.
When working on the outside of a
templet, move the router in a counter-
clockwise direction.
WARNING: Avoid “Climb-Cutting”
(cutting in direction opposite that shown
in Fig. 9). “Climb-Cutting” increases the
chance for loss of control resulting in possible personal injury. When “Climb-
Cutting” is required (backing around a corner), exercise extreme caution to
maintain control of the router.
The speed and depth of cut will depend largely on the type of work material.
Keep the cutting pressure constant, but do not use so much pressure that the
motor speed slows excessively. More than one pass at various settings may
be necessary.
When making cuts on all four edges of the workpiece, start the first cut on the
end of the piece across the grain to minimize chipping of the wood at the end
of a cut.
THE EDGE GUIDE
An edge guide is available as an
accessory to aid in straight edge planing,
parallel grooving, dado or slotting
operations.
To attach, insert the guide rods (A) in
holes in the base, and secure it with
screws (B). The guide (C) is adjusted on
the rods and secured in position with
thumb screws (D).
TEMPLET GUIDES
A wide variety of templet guides are
available for use in pattern and templet
routing operations. Fig. 11 shows a
typical combination bit, templet guide,
and locknut.
CAUTION: DISCONNECT TOOL FROM
POWER SOURCE.
To install, insert templet guide in center
hole in router base and secure in place
with the locknut.
BEFORE CONNECTING ROUTER TO POWER SOURCE: Install bit, adjust
depth of cut, and rotate router chuck by hand, checking to see that the bit or
collet do not contact templet guide.
Fig. 9
Fig. 10
A
D
B
C
D
Fig. 11
LOCKNUT
ROUTER BIT
ROUTER
BASE
SUB-BASE
TEMPLET GUIDE
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 10

11
MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with dry compressed air. All plastic parts
should be cleaned with a soft damp cloth. NEVER use solvents to clean
plastic parts. They could possibly dissolve or otherwise damage the material.
CAUTION: Wear safety glasses while using compressed air.
FAILURE TO START
Should your tool fail to start, check to make sure the prongs on the cord plug
are making good contact in the outlet. Also, check for blown fuses or open
circuit breakers in the line.
LUBRICATION
This tool has been lubricated with a sufficient amount of high grade lubricant
for the life of the unit under normal operating conditions. No further lubrication
is necessary.
BRUSH INSPECTION AND LUBRICATION
For your continued safety and electrical protection, brush inspection and
replacement on this tool should ONLY be performed by an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA FACTORY
SERVICE CENTER.
At approximately 100 hours of use, take or send your tool to your nearest
authorized Porter-Cable Service Station to be thoroughly cleaned and
inspected. Have worn parts replaced and lubricate with fresh lubricant. Have
new brushes installed, and test the tool for performance.
Any loss of power before the above maintenance check may indicate the
need for immediate servicing of your tool. DO NOT CONTINUE TO OPERATE
TOOL UNDER THIS CONDITION. If proper operating voltage is present,
return your tool to the service station for immediate service.
SERVICE AND REPAIRS
All quality tools will eventually require servicing or replacement of parts due to
wear from normal use. These operations, including brush inspection and
replacement, should ONLY be performed by either an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA FACTORY
SERVICE CENTER. All repairs made by these agencies are fully guaranteed
against defective material and workmanship. We cannot guarantee repairs
made or attempted by anyone other than these agencies.
Should you have any questions about your tool, feel free to write us at any
time. In any communications, please give all information shown on the
nameplate of your tool (model number, type, serial number, etc.).
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 11

12
PORTER-CABLE LIMITED
ONE YEAR WARRANTY
Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original
purchase. We will repair or replace at our option, any part or parts of the product and accessories
covered under this warranty which, after examination, proves to be defective in workmanship or
material during the warranty period. For repair or replacement return the complete tool or accessory,
transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Service Station.
Proof of purchase may be required. This warranty does not apply to repair or replacement required
due to misuse, abuse, normal wear and tear or repairs attempted or made by other than our Service
Centers or Authorized Service Stations.
ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE DATE
OF PURCHASE.
To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION,
4825 Highway 45 North, P.O. Box 2468, Jackson, Tennessee 38302-2468; Attention: Product Service.
THE FOREGOING OBLIGATION IS PORTER-CABLE’S SOLE LIABILITY UNDER THIS OR ANY
IMPLIED WARRANTY AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how
long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state.
ACCESSORIES
A complete line of accessories is available from your Porter-Cable •Delta
Supplier, Porter-Cable • Delta Factory Service Centers, and Porter-Cable
Authorized Service Stations. Please visit our Web Site www.porter-
cable.com for a catalog or for the name of your nearest
supplier.
WARNING: Since accessories other than those offered by Porter-Cable
•Delta have not been tested with this product, use of such accessories
could be hazardous. For safest operation, only Porter-Cable •Delta
recommended accessories should be used with this product.
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 12

The following are trademarks of PORTER-CABLE · DELTA (Las siguientes son marcas registradas de PORTER-CABLE · DELTA S.A.) (Les
marques suivantes sont des marques de fabriquant de la PORTER-CABLE
· DELTA ): BAMMER®, LASERLOC®, OMNIJIG®, POCKET
CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-CABLE®, QUICKSAND®, SANDTRAP®, SAW BOSS®, SPEED-BLOC®, SPEEDMATIC®,
SPEEDTRONIC®, STAIR-EASE®, THE PROFESSIONAL EDGE®, THE PROFESSIONAL SELECT®, TIGER CUB®, TIGER SAW®, TORQ-BUSTER®,
VERSA-PLANE®, WHISPER SERIES®, DURATRONIC™, FRAME SAW™, INNOVATION THAT WORKS™, JETSTREAM™, MICRO-SET™,
MORTEN™, NETWORK™, RIPTIDE™, TRU-MATCH™, WOODWORKER’S CHOICE™.
Trademarks noted with ® are registered in the United States Patent and Trademark Office and may also be registered in other countries. Las
Marcas Registradas con el signo de ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también pueden estar
registradas en otros países. Marques déposées, indiquées par la lettre ®, sont déposées au Bureau des brevets d’invention et marques
déposées aux Etats-Unis et pourraient être déposées aux autres pays.
PORTER-CABLE ·DELTA SERVICE CENTERS
(CENTROS DE SERVICIO DE PORTER-CABLE ·DELTA)
(CENTRE DE SERVICE PORTER-CABLE ·DELTA)
Parts and Repair Service for Porter-Cable
· Delta Power Tools are Available at These Locations
(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable
· Delta)
(Locations où vous trouverez les pièces de rechange nécessaires ainsi qu’un service d’entretien)
Authorized Service Stations are located in many large cities. Telephone [phone] or 731-541-6042 for assistance locating one. Parts
and accessories for Porter-Cable
· Delta products should be obtained by contacting any Porter-Cable · Delta Distributor, Authorized
Service Center, or Porter-Cable
· Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will
be directed to the nearest Porter-Cable
· Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas
grandes ciudades. Llame al 800-487-8665 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios
para los productos Porter-Cable
· Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable · Delta, Centro
de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable
· Delta. Si no tiene acceso a ninguna de estas opciones, llame al
888-848-5175 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable
· Delta más cercano. Des centres de service agréés sont situés
dans beaucoup de grandes villes. Appelez au 800-487-8665 ou au 731-541-6042 pour obtenir de l’aide pour en repérer un. Pour obtenir
des pièces et accessoires pour les produits Porter-Cable
· Delta, s’adresser à tout distributeur Porter-Cable · Delta, centre de service
agréé ou centre de service d’usine Porter-Cable
· Delta. Si vous n’avez accès à aucun de ces centres, appeler le 888-848-5175 et on
vous dirigera vers le centre de service d’usine Porter-Cable
· Delta le plus proche.
ARIZONA
Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: [phone]
Fax: [phone]
CALIFORNIA
Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: [phone]
Fax: [phone]
San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: [phone]
Fax: [phone]
FLORIDA
Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: [phone]
Fax: [phone]
Tampa 33609
4538 W. Kennedy Boulevard
Phone: [phone]
Fax: [phone]
GEORGIA
Forest Park 30297 (Atlanta)
5442 Frontage Road, Suite 112
Phone: [phone]
Fax: [phone]
ILLINOIS
Addison 60101 (Chicago)
311 Laura Drive
Phone: [phone]
Fax: [phone]
Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: [phone]
Fax: [phone]
MARYLAND
Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: [phone]
Fax: [phone]
MASSACHUSETTS
Braintree 02185 (Boston)
719 Granite Street
Phone: [phone]
Fax: [phone]
Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: [phone]
Fax: [phone]
MICHIGAN
Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: [phone]
Fax: [phone]
MINNESOTA
Minneapolis 55429
4315 68th Avenue North
Phone: [phone]
Fax: [phone]
MISSOURI
North Kansas City 64116
1141 Swift Avenue
P.O. Box 12393
Phone: [phone]
Fax: [phone]
St. Louis 63119
7574 Watson Road
Phone: [phone]
Fax: [phone]
NEW YORK
Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: [phone]
Fax: [phone]
NORTH CAROLINA
Charlotte 28270
9129 Monroe Road, Suite 115
Phone: [phone]
Fax: [phone]
OHIO
Columbus 43214
4560 Indianola Avenue
Phone: [phone]
Fax: [phone]
Cleveland 44125
8001 Sweet Valley Drive Unit #19
Phone: [phone]
Fax: [phone]
OREGON
Portland 97230
4916 NE 122 nd Ave.
Phone: [phone]
Fax: [phone]
PENNSYLVANIA
Willow Grove 19090
520 North York Road
Phone: [phone]
Fax: [phone]
TEXAS
Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: [phone]
Fax: [phone]
Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: [phone]
Fax: [phone]
WASHINGTON
Renton 98055 (Seattle)
268 Southwest 43rd Street
Phone: [phone]
Fax: [phone]
Printed in U.S.A.
CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS
ALBERTA
Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: [phone]
Fax: [phone]
BRITISH COLUMBIA
8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: [phone]
Fax: [phone]
MANITOBA
1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: [phone]
Fax: [phone]
ONTARIO
505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: [phone]
Fax: [phone]
QUÉBEC
1515 ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: [phone]
Fax: [phone]
1447, Begin
St-Laurent, (Montréal), Québec
H4R 1V8
Phone: [phone]
Fax: [phone]
904373 - 10-31-01.qxd 2/12/02 9:23 AM Page 40
