Porter-Cable 690LR User manual

Router
Model 690LR
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
POIllERJWBlf
Copyright © 2002 Porter-Cable Corporation
IMPORTANT
Please be certain that the person who is to use
this equipment carefully reads and understands
these instructions before starting operations.
The Model and Serial No. plate is located on the
main housing of the tool. Record these numbers in
the spaces below and retain for future reference.
Model No.
Type
Serial No.
Part No. 904372 - 01-08-02

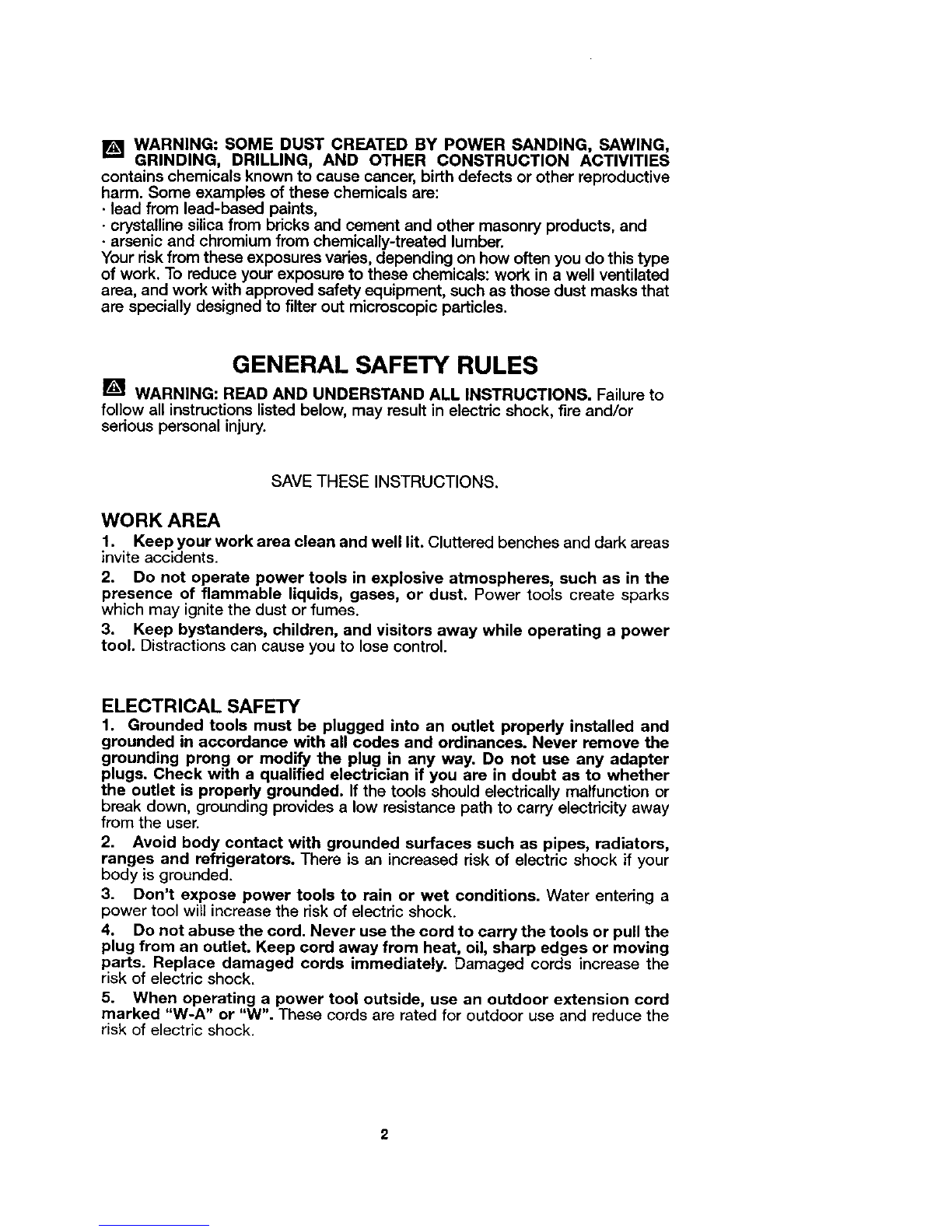

[] WARNING: SOME DUST CREATED BY POWER SANDING, SAWING,
GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES
contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
•crystalline silica from bricks and cement and other masonry products, and
•arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
GENERAL SAFETY RULES
[] WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to
follow all instructions listed below, may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating apower
tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
2. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your
body is grounded.
3. Don't expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the
plug from an outlet. Keep cord away from heat, oil, sharp edges or moving
parts. Replace damaged cords immediately• Damaged cords increase the
risk of electric shock.
5. When operating a power tool outside, use an outdoor extension cord
marked "W-A" or "W". These cords are rated for outdoor use and reduce the
risk of electric shock.
2

PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when
operating a power tool. Do not use tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury, power tools may result in
serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long
hair. Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is OFF before plugging in.
Carrying tools with your finger on the switch or plugging in tools that have the
switch ON invites accidents.
4. Remove adjusting keys or wrenches before turning the tool ON. A
wrench or a key that is left attached to a rotating part of the tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enable better control of the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-
skid safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
1. Use clamps or other practical way to secure and support the
workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it ON or OFF. A tool that cannot
be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and are easier
to control.
7. Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tool's operation. If damaged,
have the tool serviced before using. Many accidents are caused by poorly
maintained tools.
8. Use only accessories that are recommended by the manufacturer for
your model. Accessories that may be suitable for one tool may become
hazardous when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel may result in a risk
of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the Maintenance Section of this manual. Use of unauthorized
parts or failure to follow Maintenance Instructions may create a risk of electric
shock or injury.

ADDITIONAL SAFETY RULES FOR ROUTERS
1. HOLD TOOL BY INSULATED GRIPPING SURFACES WHEN
PERFORMING AN OPERATION WHERE THE CUTTING TOOLS MAY
CONTACT HIDDEN WIRING OR ITS OWN CORD. Contact with a "live"
wire will make exposed metal parts of the tool "live" and shock the
operator.
2. TIGHTEN COLLET NUT SECURELY to prevent the bit from slipping.
3. PROVIDE CLEARANCE under workpiece for router bit when through-
cutting.
4. CHECK TO SEE THAT THE CORD will not "hang up" during operation.
5. CLEAR THE ROUTER BIT AREA before starting motor.
6. MAINTAIN FIRM GRIP ON TOOL to resist starting torque.
7. KEEP HANDS CLEAR OF BIT WHEN MOTOR IS RUNNING to prevent
personal injury.
8. LET THE MOTOR COME TO ACOMPLETE STOP before putting the tool
down.
9. NEVER TOUCH ROUTER BITS AFTER USE. They may be extremely hot.
10. AVOID "CLIMB-CU'I-rlNG". (See section "USING THE ROUTER" in this
manual). "Climb-cutting" increases the chance for loss of control resulting in
possible personal injury.
11. DO NOT HAND-HOLD THE ROUTER IN AN UPSIDE-DOWN OR
HORIZONTAL POSITION. The motor can separate from the base if not
properly attached according to the instructions (See "ATTACHING THE
MOTOR TO THE ROUTER") section.
12. SOME WOOD CONTAINS PRESERVATIVES WHICH CAN BE TOXIC.
Take extra care to prevent inhalation and skin contact when working with
these materials. Request, and foltow, any safety information available from
your material supplier.
13. [] WARNING: There are certain applications for which this tool was
designed. Porter-Cable strongly recommends that this tool NOT be
modified and/or used for any application other than that for which it was
designed. Ifyou have questions relative to its application, DO NOT use the
tool until you have written Porter-Cable and we have advised you.
SYMBOL
V
A
Hz
W
kW
pF
I
kg
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
Jackson, TN 38305
DEFINITION
....................... volts
....................... amperes
....................... hertz
....................... watts
....................... kilowatts
....................... microfarads
....................... liters
....................... kilograms
N/cm 2 ....................... newtons per square centimeter
....................... pascals
....................... hours
....................... minutes
....................... seconds
....................... alternating current
....................... three-phase alternating current
Pa
h
min
S
3 "k-,
4

3N
n0
[]
....................... three-phase alternating current with neutral
....................... direct current
....................... no load
....................... alternating or direct current
....................... Class II Construction
....................... splash-proof construction
....................... watertight construction
.../min ....................... revolutions or reciprocation per minute
REPLACEMENT PARTS
When servicing useonly identicalreplacement parts.
MOTOR
Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60
cycle A.C. current and voltage within plus or minus 5 percent of that shown on
the specification plate on the tool. Several models, however, are designed for
A.C. current only. Refer to the specification plate on your tool for proper voltage
and current rating.
CAUTION: Do not operate your tool on a current on which the voltage
is not within correct limits. Do not operate tools rated A.C. only on D.C.
current. To do so may seriously damage the tool.
EXTENSION CORD SELECTION
If an extension cord is used, make sure the conductor size is large enough to
prevent excessive voltage drop which will cause loss of power and possible
motor damage. A table of recommended extension cord sizes will be found in
this section. This table is based on limiting line voltage drop to 5 volts (10 volts
for 230 volts) at 150% of rated amperes.
If an extension cord is to be used outdoors it must be marked with the suffix
W-A or W following the cord type designation. For example - SJTW-A to
indicate it is acceptable for outdoor use.
RECOMMENDED EXTENSION CORD SIZES FOR USE WiTH PORTABLE ELECTRIC TOOLS
115V
230V
0-2
2-3
3-4
4-5
5-6
6-8
8-10
10-12
12-14
14-16
16-18
18-20
Length ofCordinFeet
25 Ft. 50Ft. 100Ft. 150 Ft. 200 Ft. 250Ft. 300 Ft. 400 Ft. 500Ft.
50Ft. 100Ft. 200Ft. 300 Ft. 400Ft. 500Ft. 600 Ft. 600 Ft. 1000Ft.
18 16 18 16 16 14 14 12 12
18 18 16 14 14 12 12 10 10
18 18 16 14 12 12 10 10 8
18 18 14 12 12 10 10 8 8
18 16 14 12 10 10 8 8 6
18 16 12 10 10 8 6 6 6
18 14 12 10 8 8 6 6 4
16 14 10 8 8 6 6 4 4
16 12 10 8 6 6 6 4 2
16 12 10 8 6 6 4 4 2
14 12 8 8 6 4 4 2 2
14 12 8 6 6 4 4 2 2
5

FUNCTIONAL DESCRIPTION
FOREWORD
The Porter Cable Model 690LR is a router designed for continuous operation
to handle the most demanding applications.
OPERATING INSTRUCTIONS
SELECTING THE BIT
This tool accommodates bits with 1/4" and 1/2" diameter shanks that are
installed directly into the power unit collet. The 690LR comes furnished with
1/4" and 1/2" diameter collets. Collets are available to allow the use of bits
having 3/8" diameter shanks.
CAUTION: Do not use router bits with a diameter in excess of 2-1/8" in this
tool.
CAUTION: ALWAYS disconnect this tool from the power source when
preparing the tool for use, when making adjustments, and when the tool
is not in use.
INSTALLING AND REMOVING THE BIT
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Remove the motor unit from the
base unit.
(a) Open the clamp (A) Fig. 1.
(b) While holding the base, turn the
motor unit COUNTER-CLOCK-
WISE until the lower pin (B) in the
motor housing is disengaged
from the groove in the base.
(c) Lift the motor unit from the base
unit.
3. Clean and insert the shank of the
bit into the collet until the shank
bottoms. Then back it out approx- Fig.1
imately 1/16".
4. Lay the motor unit on its side on a
supporting surface with the collet
pointed AWAY from you.
5. Place one wrench on the flats of
the chuck with the opposite end of the
the wrench resting on the bench to
your left (Fig. 2).
6. Place the other wrench on the
collet and FIRMLY tighten the collet.
7. To remove the bit, reverse the
procedure. Fig. 2
AVOID POSSIBLE DAMAGE TO COLLET. Never tighten collet without bit.
6

A'n'ACHING THE MOTOR TO THE ROUTER
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Open the clamp (A) Fig. 1, and set the power unit in the base unit.
3. Align the lower pin of the motor unit (B) Fig. 1 with the groove in the base.
4. Rotate the motor unit CLOCKWISE into the base until the upper guide
pins are set in the groove of the base.
5. Close the clamp.

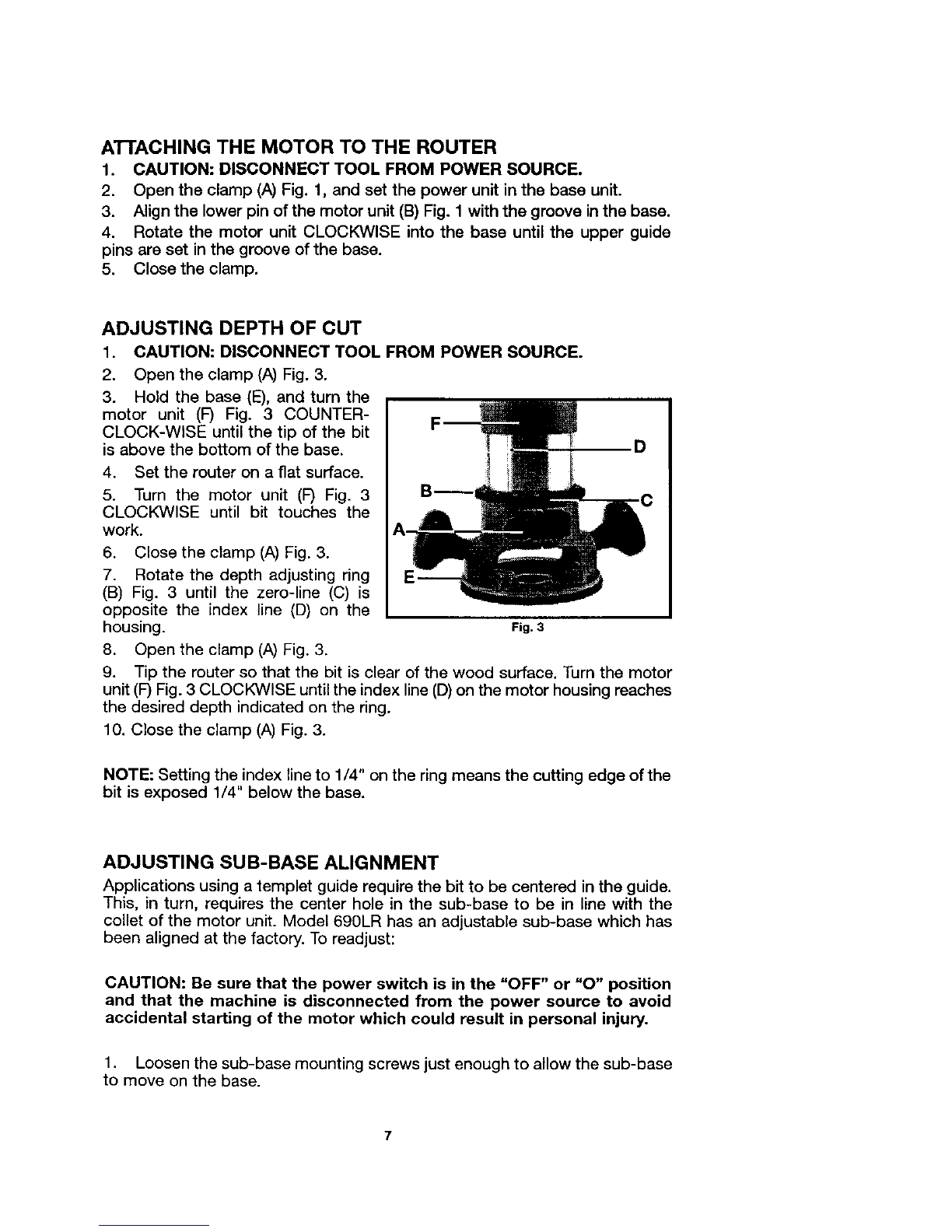

ADJUSTING DEPTH OF CUT
1. CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
2. Open the clamp (A) Fig. 3.
3. Hold the base (E), and turn the
motor unit (F) Fig. 3 COUNTER-
CLOCK-WISE until the tip of the bit
is above the bottom of the base.
4. Set the router on a flat surface.
5. Turn the motor unit (F) Fig. 3
CLOCKWISE until bit touches the
work.
6. Close the clamp (A) Fig. 3.
7. Rotate the depth adjusting ring
(B) Fig. 3 until the zero-line (C) is
opposite the index line (D) on the
housing. Fig, 3
8. Open the clamp (A) Fig. 3.
9. Tip the router so that the bit is clear of the wood surface. Turn the motor
unit (F) Fig. 3 CLOCKWISE until the index line (D) on the motor housing reaches
the desired depth indicated on the ring.
10. Close the clamp (A) Fig. 3.
NOTE: Setting the index line to 1/4" on the ring means the cutting edge of the
bit is exposed 1/4" below the base.
ADJUSTING SUB-BASE ALIGNMENT
Applications using a templet guide require the bit to be centered in the guide.
This, in turn, requires the center hole in the sub-base to be in line with the
collet of the motor unit. Model 690LR has an adjustable sub-base which has
been aligned at the factory. To readjust:
CAUTION: Be sure that the power switch is in the "OFF" or "0" position
and that the machine is disconnected from the power source to avoid
accidental starting of the motor which could result in personal injury.
1. Loosen the sub-base mounting screws just enough to allow the sub-base
to move on the base.
7

2. Open the clamp (C) Fig. 4, and
adjust the motor so that the co]let nut
engages the center hole in the sub-
base. Allow the sub-base to center
itself on the collet nut. Close the
clamp.
3. Tighten the sub-base mounting
screws securely.
Fig. 4

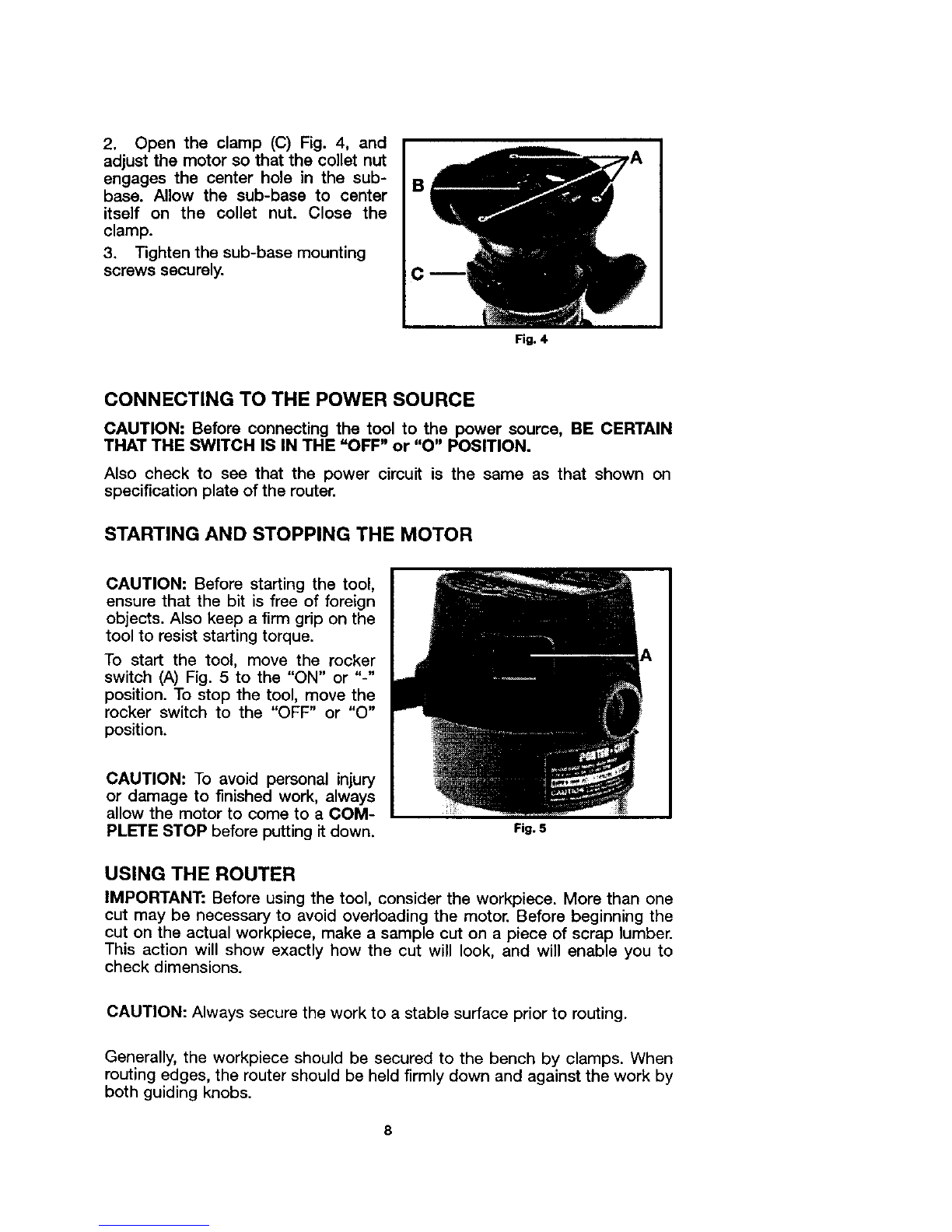

CONNECTING TO THE POWER SOURCE
CAUTION: Before connecting the tool to the power source, BE CERTAIN
THAT THE SWITCH IS IN THE "OFF" or "0" POSITION.
Also check to see that the power circuit is the same as that shown on
specification plate of the router,
STARTING AND STOPPING THE MOTOR
CAUTION: Before starting the tool,
ensure that the bit is free of foreign
objects. Also keep a firm grip on the
tool to resist starting torque.
To start the tool, move the rocker
switch (A) Fig. 5 to the "ON" or "-"
position. To stop the tool, move the
rocker switch to the "OFF" or "O"
position.
CAUTION: To avoid personal injury
or damage to finished work, always
allow the motor to come to a COM-
PLErE STOP before putting it down.
USING THE ROUTER
Fig. 5
IMPORTANT: Before using the tool, consider the workpiece. More than one
cut may be necessary to avoid overloading the motor. Before beginning the
cut on the actual workpiece, make a sample cut on a piece of scrap lumber.
This action will show exactly how the cut will look, and will enable you to
check dimensions.
CAUTION: Always secure the work to a stable surface prior to routing.
Generally, the workpiece should be secured to the bench by clamps. When
routing edges, the router should be held firmly down and against the work by
both guiding knobs.
8

Since the cutter rotates clockwise
(when viewing router from top), move
the router from left to right to obtain a
more efficient cutting. (Fig. 6).
When working on the inside of a
templet, move the router in clockwise
direction. When working on the outside
of a templet, move the router in a
counter-clockwise direction.
[] WARNING: Avoid "Climb-Cutting" Fig.6
(cutting in direction opposite that shown
in Fig. 6). "Climb-Cutting" increases the chance for loss of control resulting in
possible personal injury. When "Climb-Cutting" is required (backing around a
corner), exercise extreme caution to maintain control of the muter,
The speed and depth of cut will depend largely on the type of work material.
Keep the cutting pressure constant, but do not use so much pressure that the
motor speed slows excessively. More than one _ass at various settings may
be necessary.
When making cuts on all four edges of the workplece, start the first cut on the
end of the piece across the grain to minimize chipping of the wood at the end
of a cut.
THE EDGE GUIDE
An edge guide is available as an
accessory to aid in straight edge planing,
parallel grooving, dado, or slotting
operations.
To attach, insert the guide rods (A) Fig. 7
in holes in the base, and secure it with
screws (B). Adjust the guide (C) on the
rods and secure it in position with the
thumb screws (D).
D
Fig. 7
TEMPLET GUIDES
A wide variety of templet guides is
available for use in pattern and templet
routing operations. Fig. 8 shows a typical
combination bit, templet guide, and
Iocknut.
CAUTION: DISCONNECT TOOL FROM
POWER SOURCE.
To install, insert the templet guide in the
center hole in the router base and secure
it in place with a locknut.
ROUTER BIT TEMPLET GUIDE
Fig. 8
BEFORE CONNECTING THE ROUTER TO THE POWER SOURCE, Install
the bit. Adjust the depth of cut and rotate the router chuck by hand, checking
to see that the bit or collet do not contact templet guide.

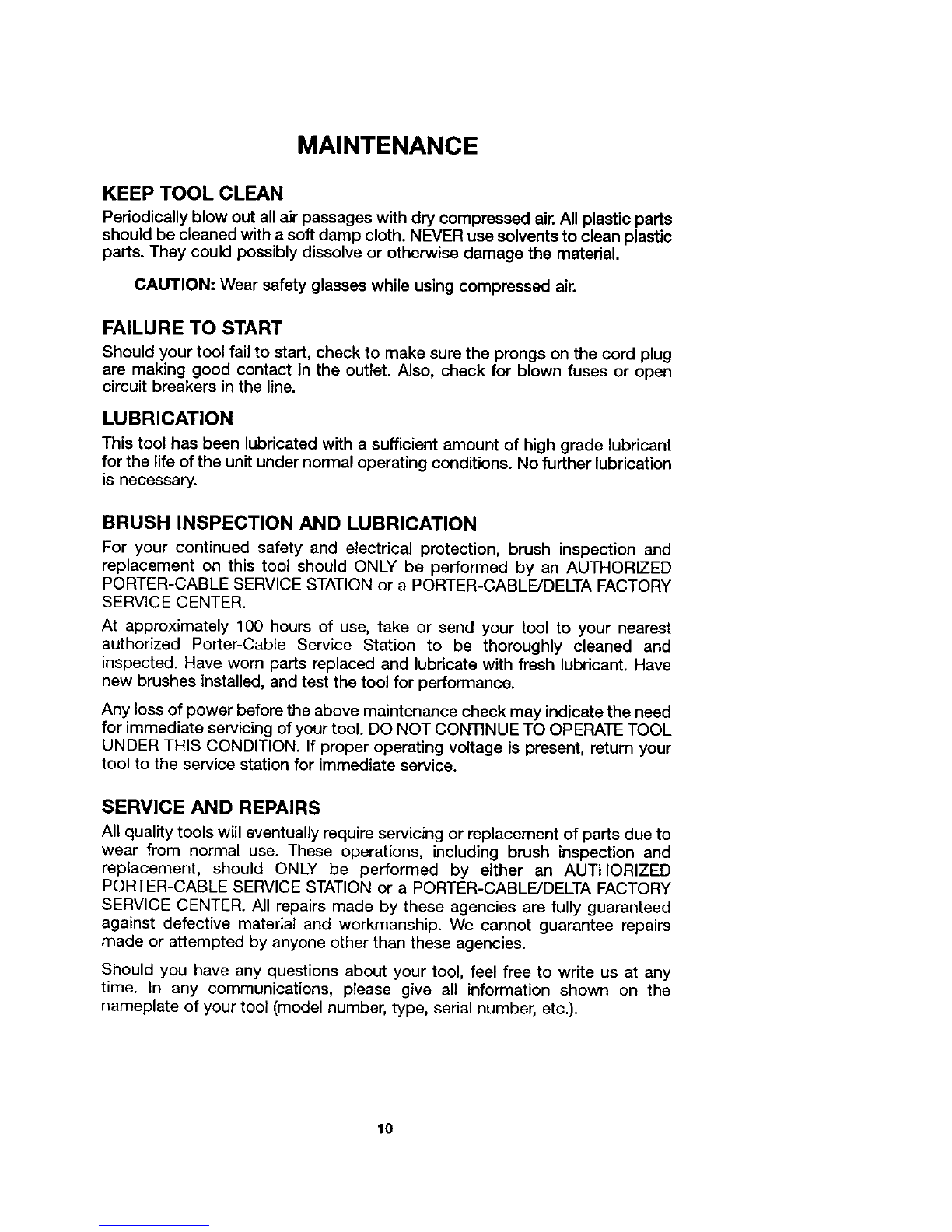

MAINTENANCE
KEEP TOOL CLEAN
Periodically blow out all air passages with dry compressed air.All plastic parts
should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic
parts. They could possibly dissolve or otherwise damage the material.
CAUTION: Wear safety glasses while using compressed air.
FAILURE TO START
Should your tool fail to start, check to make sure the prongs on the cord plug
are making good contact in the outlet. Also, check for blown fuses or open
circuit breakers in the line.
LUBRICATION
This tool has been lubricated with a sufficient amount of high grade lubricant
for the life of the unit under normal operating conditions. No further lubrication
is necessary.
BRUSH INSPECTION AND LUBRICATION
For your continued safety and electrical protection, brush inspection and
replacement on this tool should ONLY be performed by an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA FACTORY
SERVICE CENTER.
At approximately 100 hours of use, take or send your tool to your nearest
authorized Porter-Cable Service Station to be thoroughly cleaned and
inspected. Have worn parts replaced and lubricate with fresh lubricant. Have
new brushes installed, and test the tool for performance.
Any loss of power before the above maintenance check may indicate the need
for immediate servicing of your tool. DO NOT CONTINUE TO OPERATE TOOL
UNDER THIS CONDITION. If proper operating voltage is present, return your
tool to the service station for immediate service.
SERVICE AND REPAIRS
All quality tools will eventually require servicing or replacement of parts due to
wear from normal use. These operations, including brush inspection and
replacement, should ONLY be performed by either an AUTHORIZED
PORTER-CABLE SERVICE STATION or a PORTER-CABLE/DELTA FACTORY
SERVICE CENTER. All repairs made by these agencies are fully guaranteed
against defective material and workmanship. We cannot guarantee repairs
made or attempted by anyone ether than these agencies.
Should you have any questions about your tool, feel free to write us at any
time. in any communications, please give all information shown on the
nameplate of your tool (model number, type, serial number, etc.).
10

ACCESSORIES
A complete line of accessories is available from your Porter-Cable • Delta
Supplier, Porter-Cable-Delta Factory Service Centers and Porter-Cable
Authorized Service Stat ons. To get a catalog, or to find the name of the
nearest supplier, visit our Web Site www.Dorter-cable.com.
[] WARNING: Since accessories other than those offered by Porter-Cable
Delta have not been tested with this product, use of such accessories could
be hazardous. For safest o_ use only Porter-Cable Delta
PORTER-CABLE LIMITED
ONE YEAR WARRANTY
Porter-Cable warrants its Professional Power Toolsfor a pedod of one year from the date of original
purchase. We will repair or replace at our option, any part or parts of the product and accessories
covered under this warranty which, after examination, proves to be defective in workmanship or
material during the wan'anty period. For repair or replacement return the complete tool or accessory,
transportation prepaid, to your nearest Porter-Cable Service Center or Authorized Sen/ice Station.
Proof of purchase may be required. ]Tits warranty does not apply to repair or replacement required
due to misuse, abuse, normal wear and tear or repairs attempted or made by other than our Service
Centers or Authorized Service Stations.
ANY IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WILL LAST ONLY FOR ONE (1) YEAR FROM THE DATE
OF PURCHASE.
To obtain information on warranty performance please write to: PORTER-CABLE CORPORATION,
4825 Highway 45 North, RO. Box 2468, Jackson, Tennessee 38302-2468; Attention: product Service.
THE FOREGOING OBUGATION IS PORTER-CABLE'S SOLE LIABILITY UNDER THIS OR ANY
IMPLIED WARRANTY AND UNDER NO CIRCUMSTANCES SHALL PORTER-CABLE BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how
long an implied wan'anty lasts or the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
l_is warranty gives you specific legal rights and you may also have other legal rights which vary from
state to state.
11

PORTER-CABLE o DELTA SERVICE CENTERS
(CENTROS DE SERVICIO DE PORTER-CABLE ° DELTA)
(CENTRE DE SERVICE PORTER-CABLE °DELTA)
parts and Repair Service for Porter-Cable - Delta Power Tools are Available at "l_mse Locations
(Obtenga Refacci_'t de Partes o Servicio para su Herramienta en los Siguientes Cer_os de Porter.Cable • Delt_
(Locations o_ vous trouverez les pi_ces de rechange n6cessaires ainsi qu'un service d'entretJen)
Jt.U_$ MINNESOTA _44125
"_ _(Ffeet_ Addison80101 (Chicago) i_ii 55429 8001 _Vale/_ Unit I119
2400 WeM SouitmmAvta_ 311 Laura_5522 Lakela*xlAweluo North _: _16) 447-_Q0
_0 135 _ (830) 6_6t00 Photo: (763)561-g080 Fax:_10) 447_(_7
R'or_ (8(_ 4.17-1'J00 F_ (630) S28_(_O Fax:(Te01SS1-06S3
Fax:(_ 437-2200 OREGON
_dddge 6_17 (Chicago) MISSOUR_ poland 972"30
CAL_QRNIA 20Q3West75th _North Kant,as City641_8 4916 NE 122lid AW.
OmarIo91761 (Los_) Phone;(630) 9tO-gr2_0 1141 Swift Avenue Phone: (5_ 252_107
Ea_ GLk_,_iRoad F_ (630) 910_360 RO. Box 12'3gQ Fax:(,_0) 252-2123
(5(_ 3gO-5555 Phone:[phone]
Fax:(90gt 3g0_554 MARYLAND Fax:[phone] PENNSYLVANIA
E_r;dge 21075 (Bal_ore) WillowGrove lg(_O
San Leandmg4577(Oakland) 7397- I02 V_shin0)on _d. SL Lc_ 63119 520 Northyork Road
T_ Street Pho_¢ (410) 7g_-g_i_4 7574 Witson Road Phone;(215) 658-t 430
Pho_ (510) 357-976_ Fax.(410) 7gg-9398 _: (314)968- 8_::0 Fa_ [phone]
Fax:[phone]_39 Fax:(314) g6_2790
FLORIDA Brair_ee (_185 (Boston) NEW YORK _o_ 750(_ ([_
Dave 33314 (M'ia'l_ 719 _ _ R_l/_ 11365-15g_ (N_'LC,) 1300 Irde_tato35 I_ Sure 112
4343 SouthStateRd. 7(441) PhoP_ (781) 848-ge10 175-25 _HaNi_g Expwy. Phone:0)72) 44_-21_6
#107 F=_c(781) 848-6759 Phone:(715) 225-_040 Fax:(972) 446_t 57
Pao_ _54) 321_635 Fa_:[phone]
Fax:[phone] F_ank_ 0_t_8 (Bostc_ Houslon77055
Industr_ Park _CAP.OLIN& West tO B_i_ Ce_ter
Tampa33600 1015Co_s_bJtion_Charlotte28270 1008 WhlRoad, Suite120
4538 _Ker_edy Boukw=d Phoe_ (5_) 520-88_ 9129 Monroe Road, Su_ 115 Phone:(713) 682_34
Phon_ [phone] F_: (SOB)528-8089 Phone:[phone] Fax:[phone]
Fax:(5_0) 28_7948 Fax:[phone]
MICHIGAN WI_INGTO N
GEORGIA Madl_ _48071 (Oetmit) OHIO Rento_ 98Q_5(Seattle)
Fore_ Park 3_L_97fAUa_t,_ 30475 Stephe,_ H_way Colu*Wm_43214 268 Southwest43rd Stl_et
5442 Frontage Road,Suite 112 _ ('248)597-5000 4560 India_la Averse Fhor_: (425) 251_680
I_or_ (404) 606-000_ Fax:(248) 597-S_4 P_ne: (614) 263-092_ Fax:[phone]
Fax:(_04)608"1123 Fax:[phone]
Autbenzed_Sta5onsarealcoted in many largecitie_Tslephone800487-8665 or731_41-6042 for _s_stance Ic_atin<Jo_e.Parts
and accessdeesfor Porter_able * Deltaproductsshouldbe obtainedby contactingany Porter_able • Delta Cistributc_,Authorized
ServiceCenter.orP_,ter-Ceds)• DeltaFactc_ SeanceCente_Ifyoudonot haveaccessto anyof these,call888-848-5175 and youw_ll
be dirscted to tbenearestPorter-Cable* Data FaotorySe_ce Cente_ Las E®acionesde Serv_o Autc_.adas est_nubicadesen
touchesgrandesc=udades,Uamea]8(X)_87-8665 6al 731-541-6042 papaobte_erasistenciaa finde k_cal_aruna.Las piezasy _os
accesor_ papa_s prodectosPorter_abCe• Ddta dedencbtenersepon_dese e_ contaotoc_ cualquierdiotnbuidorPode_able *
Delta,Ce_trode ServicioAoto_.ado o Ceotmde Sewkitode F_beca Poder-Cable• Det_ Si no be_e accesoa nalgunade estas
opcio_e_,flameal 888-848-5175y ledi_i_ff_nalCentredeServkbedeFbbhoaPorter*Cable• Deltamt_.scemano.Descentresde service
agn_s sontsdu_sdarts beaucoupde grand_ vi(les.Appelez au 800_87-8665 ou au731_41-6042 pou_obtenitde I'a_bepouren
mp_er un. Pourobtenirdes pibcesetaccessotms pourlesproduitsPorte_-Cable• Deifa.s'adresser_toutdLstnbu_e_rPortePCable•
Dalta, centredeservicea_'_ oucentrede se_'_e 6'Us)hePode_able •Deifa Sivousn'av_, accbs_taLmunde cescent_es,appe_er
_e_5175 ® _ VOL_dingeraverslecentrede serv_edtssinePc_ter-Cable• Oe_a lepluswoch_
CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS
ALBERTA MANITOBA QUI_BEC
Bay6, 2520-23rd SL N.E. 1699 DublinAvenue 1515 Ave,
Calgary,Alberta Winnipeg.Manitoba St_JeanBaptiste,
T2E 8L2 R3H 0H2 Quebec, Qu6bec
Phone:(403)735_166 Phone:[phone] G2E 55,?.
Fax:(40_) 735_t44 Fax: [phone] Phone:[phone]
BRITISH COLUMBIA ONTARIO Fax:[phone]
8520 BaxterRace 5(;6 SouthgateDnve t447. Begin
Burnaby, BC, Guelph,Ontatio St-Laurent. (Montr6al),Quebec
V5A 4T8 N1H 5M7 H4R I'#8
Phone: [phone] Phone: [phone] Phone:[phone]
Fax: [phone] Fax: [phone] Fax: [phone]_5
The tollowing areb'abemarksot _R_,ABLE • DELTA(Lassiguientesson ma,reasreg_s_'adasde PORTER_;ABLE•DELTAS.A,) (Les
marquessuivaotessontdes marquesde fabdquanlde (9PO_TER_;ABLE• DELTA):BAMMEfP, LASERLOC_',OMNIJIG_, POCKETCLr[TER'
PORTA-BAND', POBTA-PLANE°, PORTEB-CABLE', QUICKSAND', SANDTRAP*, SAW BOSS', SPEED-BLOC=. SPEEDMATIG'
SPEEDTRON_', 9TA]REASE',THEPROFESSIONALEDGE*.THEPROFESSIONALSELECT',TIGERCUB', TIGERSAI,__, TORQ-BUSTEI_
VERSA-PLANE',WHISPERSERIES*,DURATRONIC_",FRAME SAWTM, INNOVATIONTHAT WORKS_", JETSTREAMTM, MICRO-SET_
MORTENr",NEPNORKTM, RIPTIDETM, TRU-MATCHTM, WOODWK_RKER'SCHOICETM, THE AMERICAN WOOD SHOPTM (design), AUTO
SETTM, B.O,S.S.TM. BUILDEB'SSAWTM, CONTRACTOR'SSAWTM, DELTATM, DELTACRAFTTM, HOMECRAFT_, JET.LOCKT-,KICKSTANDS,,
THELUMBERCOMPANYTM (design).MICRO-SET_",03 TM, QUICKSETIP", QUICKSETPLU5TM, SAFEGUARDIP", SANDINGCEN3_RT",
SIDEKICKTM, UNIFENCETM, UNIGUARDTM, UNIR(PTM, UNISAW_"VErSA-FEEDERTM 'TPSTM, Emc_T-.
T_ademed_snotedwilh T. and®arersgistsredin 1heUnitedStalesPaten_andTredema_kOffice andmayalso bereg_sleredinothercountries.
LasM_c_s RegisIfadasconelalgnodeTM y®so_reg_tredaspotlaOficleadeBegi®rosy PatenleSde_osEstadesUnidesytamb_n pueden
estarzegaltradasen otrospaises Masquesd6poseds, indiqu_espar L_le_re _Met ®, sontditbes_esau Bureaudesbrevets d'inventionel
marquesd_posL,es auxEtats-Unisetpourrak)nt_'e dL,posdesauxau_respays.
Printed in U,S_..
