Portfolio VEL-5069-MD-PIR Operator's manual

1
Portfolio®is a registered
trademark of LF, LLC. All rights
reserved.
MODEL #VEL-5069-MD-PIR
MOTION-ACTIVATED
WALL LANTERN
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-643-0067, 8 a.m – 6 p.m., EST,
Monday – Thursday, 8 a.m. – 5 p.m., EST, Friday
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
ITEM #0358718
Français p. 9
Español p. 17
Page 1/Inside Spread
SIZE: 8.5in X 11in

2
PACKAGE CONTENTS
A
B
C
Fixture body
Cage
Glass (preassembled to Cage (B))
DESCRIPTIONPART
A
B
C
QUANTITY
1
1
3
(not shown to size)
AA BB CC DD EE
Crossbar
x 1
HARDWARE CONTENTS (shown actual size)
Mounting
screw
x 2
Decorative nuts
(preassembled to
Crossbar (CC))
x 2
Cage screws
x 2
Wire nut
x 3
Page 2/Inside Spread

3
ASSEMBLY INSTRUCTIONS
1. Turn OFF power to work area at main circuit breaker or fuse box. CAUTION: Do not
rely on the wall switch alone to turn off power. 1
2
2. Install a bulb (not included) to the socket of the fixture body (A). Do not exceed a
100-watt incandescent light bulb or a 26-watt CFL. Attach the cage (B) to the fixture
body (A) using the cage screws (EE). A
B
EE
Hardware Used
EE Cage Screw x 2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
CAUTION
● Turn off the main power at circuit breaker before installing fixture.
● There is no serviceable part inside the motion sensor. Do not try to repair or disassemble the unit. Doing so could
damage the unit and cause possible electrical shock. Consult a qualified electrician if needed.
● Save these instructions.
WARNING
● All electrical connections must be in accordance with local and National Electrical Code standards. If you are unfamiliar
with proper electrical wiring connections, obtain the services of a qualified electrician.
● This light fixture is designed to fit standard junction boxes as defined by the National Electrical Code. Please contact a
qualified electrician if you have any questions regarding the installation.
PREPARATION
Before beginning to assemble or install lighting fixture, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble, install or operate
the fixture.
Estimated Assembly Time: 30 – 60 minutes (Installation time will vary depending on skill level and existing wiring
conditions. Estimated installation time assumes standard wall junction box and supply wiring are already installed).
Tools Required for Assembly (not included): Phillips screwdriver, slotted screwdriver, wrench or pliers, silicone
caulking adhesive and caulking gun.
Helpful tools (not included): Wire cutters and/or wire strippers, step ladder.
Page 3/Inside Spread

4
ASSEMBLY INSTRUCTIONS
CAUTION: The lamp fixture is designed to be mounted so that the motion detector controls face toward the ground.
If the lamp fixture is mounted in any other position, it may be possible for water to enter the unit and cause damage
to the unit and cause possible electric shock. Make sure the controls are facing toward the ground!
IMPORTANT: After mounting the fixture, it will be necessary to apply silicone sealant caulking compound to the
perimeter of the fixture where the back of the cover plate meets the mounting surface. Silicone caulking prevents
water from entering the junction box.
Your installation in now complete. Turn on power at the circuit breaker and flip the wall switch to the ON position. The
wall switch must remain in the ON position for the motion detector to operate properly.
Hardware Used
Hardware Used
DD
BB Wire Nut
Decorative Nut
x 3
x 2
4. Attach the black supply wire to the black fixture wire and the white supply wire to the
white fixture wire using wire nuts (BB). Connect the fixture ground wire and the supply
ground wire together using a wire nut (BB). Wrap all wire connections with electrical
tape (not included) for a more secure connection. Note: If you have electrical ques-
tions, consult your local electrical code for approved grounding methods.
5. Make sure wire connections are secure. Carefully position wires and wire nuts (BB)
into the junction box. Place the wall plate of fixture body (A) over the junction box and
onto the mounting screws (AA). Adjust the mounting screws (AA) until they protrude
out from the wall plate 1/4 in. Remove the wall plate and secure the position of the
mounting screws (AA) by tightening the hex nuts preassembled to crossbar (CC).
Place the wall plate back onto the fixture mounting screws, and secure it into place
using the decorative nuts (DD).
Hardware Used
3
CC
AA Mounting Screw
Crossbar
x 2
x 1
3. Remove the crossbar (CC) and two decorative nuts (DD) from accessory bag. Save
decorative nuts (DD) for later. Attach the crossbar (CC) to the junction box (not
included) with the mounting screws (AA).
4
5
AA
CC
BB
DD
Page 4/Inside Spread

5
OPERATING INSTRUCTIONS
GETTING STARTED:
After installing the fixture, slide the “TIMER” switch to “TEST”. Restore power at the circuit breaker and turn on your wall
switch (if applicable). The light will turn on and remain on for approximately 45 seconds. Then the light will flash 3 times
and turn off.
In the beginning, it is necessary to first switch to TEST mode, which will allow you to easily set the motion sensor sensitiv-
ity. In TEST mode, the motion sensor will turn on the light when it senses movement. Four to five seconds after movement
has stopped, the light will turn off.
SETTING SENSITIVITY IN TEST MODE:
(NOTE: Sensitivity directly correlates to the sensor’s detection range). In TEST mode, slide the “SENSITIVITY” switch to
a desired level: “L” for low, “M” for medium, or “H” for high. From a distance, walk through the coverage area. When the
light turns on, note your distance from the fixture. Try different approaches toward the fixture from various angles. Try
pathways where you expect high traffic, such as walkways and driveways.
If necessary, select a different “SENSITIVITY” switch position to increase or decrease sensitivity/range. Repeat the steps
above. Continue to adjust the sensitivity until optimum results are attained.
SELECTING FUNCTION:
After setting the sensitivity, select the function by sliding to “TIMER” switch to one of the following positions:
Fig. 1 220o
Fig. 2
15o
SELECTING A LOCATION:
● When selecting a location, be aware of the motion sensor’s maximum range of 30 ft. and 220º detection angle (Fig. 1).
In addition, be aware of its 15º detection down-angle (from horizontal) (Fig. 2). Mounting the fixture too high or in front
of a sloped surface, such as an uphill walkway or driveway, may affect the motion sensor’s effectiveness.
"TIMER"
Switch
Position
Function Description
4
10
At dusk, the motion sensor will activate (Motion Sensing Mode).
Any movement within the coverage area, will cause the light to
turn on. After movement has stopped, the light will remain on
for the preset time limit (4 or 10 minutes). At the time limit, the
light will turn off. The motion sensor will remain active throughout
the night. At dawn, the motion sensor will deactivate.
Motion
Sensor
NOTE: To make sure the above functions operate properly, always keep the wall switch in the “ON” position (including
the daytime).
To meet ENERGY STAR requirements the timer switch must be set to 4 or 10 to prevent operation during full
daylight.
Page 5/Inside Spread

6
OPERATING INSTRUCTIONS
SENSOR SENSOR
CARE AND MAINTENANCE
● Select locations away from heat sources, such as heating vents, air conditioners, and heated swimming pools.
● When selecting a location, be aware that the motion sensor is more sensitive to movement across its coverage area
and less sensitive to movement toward or away from the motion sensor (Fig. 3).
● Select locations away from nighttime light sources, such as street lamps or other light fixtures. They may shine light onto
the fixture’s photocell sensor (located at the bottom of the back plate, between the two switches). This light might cause
the circuit to “think” that it is daytime and not allow the fixture’s functions to operate.
● Be aware that shade from a porch or an eave may not allow enough daylight to shine onto the photocell sensor and
may cause the circuit to “think” that it is nighttime, and subsequently cause the light to come on during the daytime.
● Be aware that motorized equipment, such as power tools, on the same electrical circuit may cause oscillations on the
electrical line that might cause the fixture to malfunction.
Fig. 3
Clean the glass and coated metal surfaces with a non-abrasive cleaner. Do not use any cleaners with chemicals,
solvents or harsh abrasives, The motion detecting lens is coated with a specially painted finish and requires special
care when cleaning. Use only a soft dry cloth to dust or wipe the lens area. Another area that will need special attention
is the photocell window. The photocell detects light through this small window. Keep this area clean to prevent dirt from
collecting.
Excessive accumulation of dirt or dust on the photocell window may cause the lantern to come on during the day. The
light fixture is designed to safely operate with a single 100 watt medium-base bulb or 26W compact fluorescent (not
included). DO NOT over lamp this fixture. Some models require the removal of a cover to access the bulb. To remove
the cover, remove the decorative nuts that secure the cover in place. Replace the decorative nuts after installing the
bulb.
Least Sensitivity Best Sensitivity
ADDITIONAL NOTE:
● This fixture uses one 100-watt max. A19-base incandescent bulb or one 26-watt max. standard-base CFL (both not
included).
● Select a lamp with rated life of 3,000 hours or more.
● Minimum starting temperature for lamp is -0.4°F.
Page 6/Inside Spread

7
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
In motion sensing mode,
the light does not turn on
when there is motion.
In motion sensing mode,
the light stays on
continuously.
The light comes on for
no apparent reason.
1. Wall switch or circuit breaker is off. 1. Turn on switch or circuit breaker.
2. Test the light bulb in a known working
light fixture. Replace light bulb.
3. Tighten light bulb in socket.
4. Check wire connections.
5. Relocate fixture away from a
western facing wall.
6. Eliminate or turn off other light source.
OR
Block other light source from
shining onto photocell sensor.
OR
Relocate fixture.
7. Relocate fixture to a lower
position or to a different location.
Eliminate heat source.
OR
Relocate fixture.
1. Lower the sensitivity.
2. Light bulb may be dead.
5. Too much sunlight is shining onto
photocell sensor in the early evening.
6. Too much light is shining onto
photocell sensor due to another light
source, such as a street lamp or other
light fixture.
7. Moving persons or vehicles are below
the view of the motion sensor, because
motion sensor is mounted too high.
False triggering caused by a heat source,
such as a heater or dryer vent or heated
swimming pool.
1. Street or sidewalk traffic is triggering
the motion sensor.
2. Eliminate heat source.
OR
Relocate fixture.
2. False triggering cause by a heat source,
such as a heater or dryer vent or heated
swimming pool.
3. Light bulb is loose.
4. Incorrect or loose wire connections.
WARRANTY
● Instructions shall caution users that modifications not approved by the party responsible for compliance could void
user’s authority to operate the equipment.
● NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures: Reorient or relocate the equipment into an outlet on a circuit different from that
to which the receiver is connected; or consult the dealer or an experienced radio/TV technician for help.
In motion sensing mode,
the light always on during
the daytime or evening
Turn off the wall switch, wait
10 seconds or longer, before turning
the wall switch on again.
Setting problem.
The light comes on
during the daytime or
too early in the evening.
Relocate fixture.The fixture may be installed in a shaded
area, such as under a porch or eave,
preventing daylight from shining onto
the photocell sensor.
Page 7/Inside Spread

8
If this product fails due to a defect in materials or workmanship within three (3) years from the date of purchase, return it
along with proof of date of purchase to the retailer and it will be replaced with the same or comparable model free of
charge.
This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.
This warranty gives you specific legal rights and you may have other rights that vary from state to state.
IN NO EVENT WILL LIABILITY EXTEND TO ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL OR
INDIRECT DAMAGES OF ANY KIND ARISING OUT OF THE USE OR MISUSE OF THIS PRODUCT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
For warranty service: Call 1-800-643-0067, 8 a.m. – 6 p.m., EST, Monday – Thursday, 8 a.m. – 5 p.m., EST, Friday.

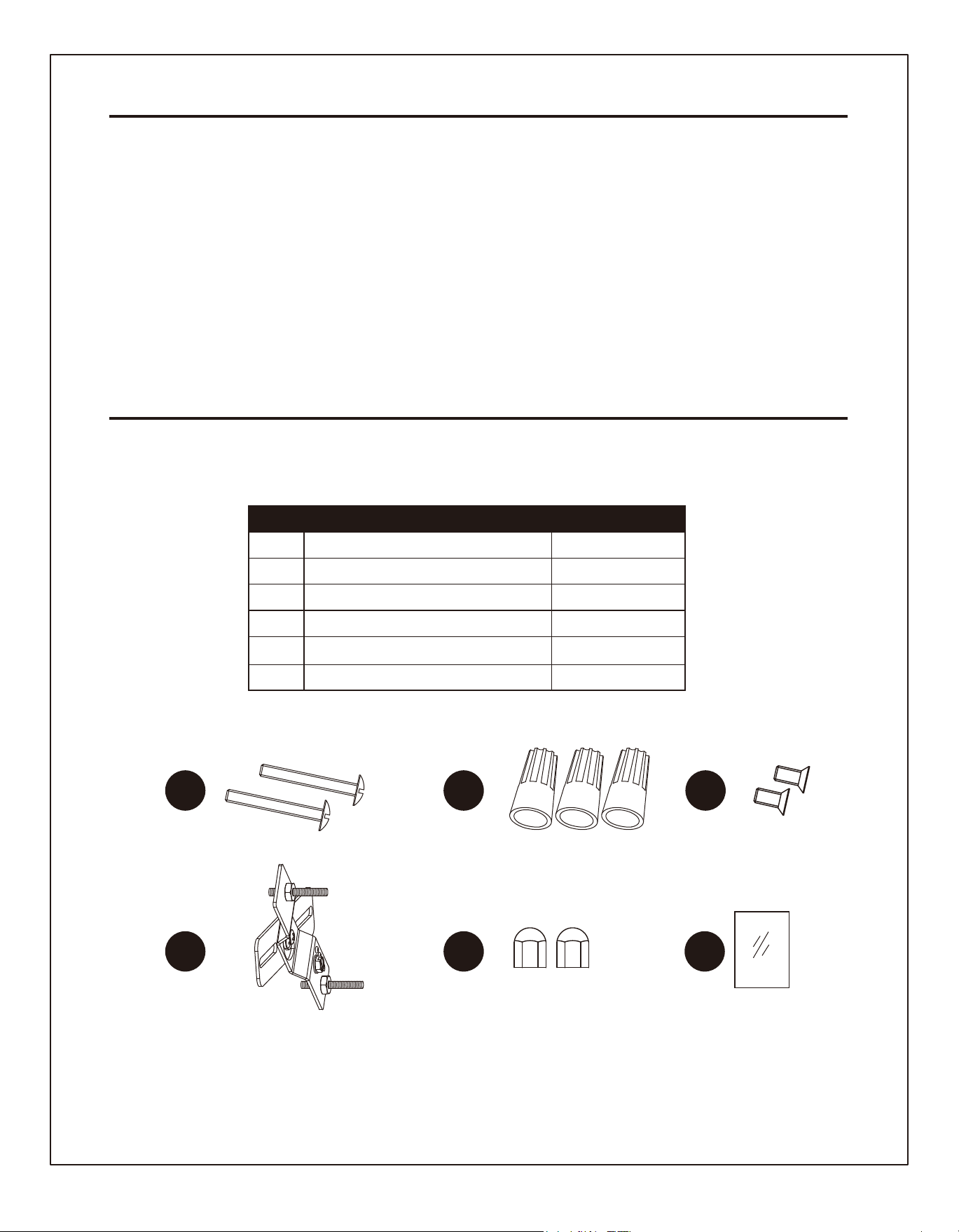

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. – 6 p.m., EST, Monday – Thurs-
day, 8 a.m. – 5 p.m., EST, Friday.
Printed in China
DD Decorative nuts
EE Cage screws
CC Crossbar
BB Wire nuts
AA Mounting screws
C Glass
PART PART#
CCC DD
AA BB EE
GBC182
90115
9132-P4
9100D
9003C
9007SA-8
DESCRIPTION
THREE-YEAR LIMITED WARRANTY
Page 8/Inside Spread
